24VDC 30Nm 28W Electromagnetic Brake Clutch 14.105.10.1.3 / 14.105.10.1.1 Shaft Diameter 20mm
0.0 ( votes)
Price:
US $
790.16 -
862.62
- Color
-
-

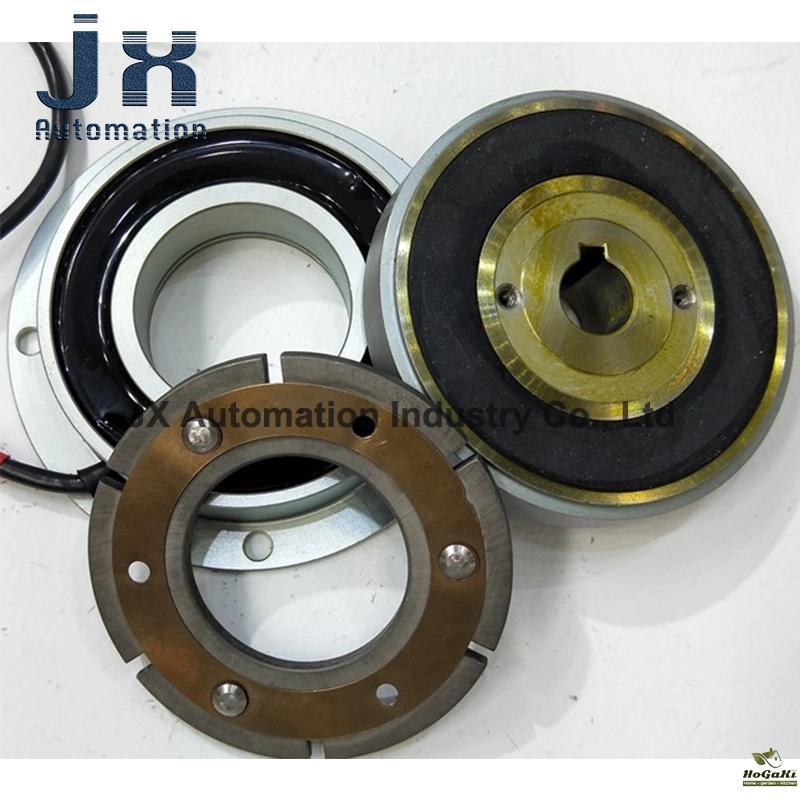

24VDC 30Nm 28W Electromagnetic Brake Clutch 14.105.10.1.1 Shaft Diameter 20mm / 14.105.10.1.3

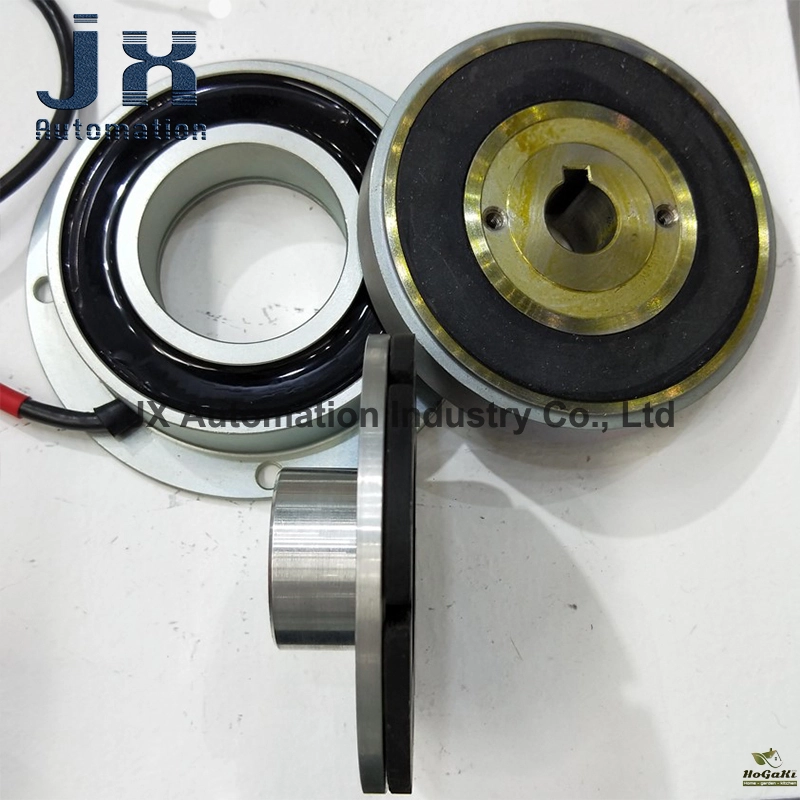

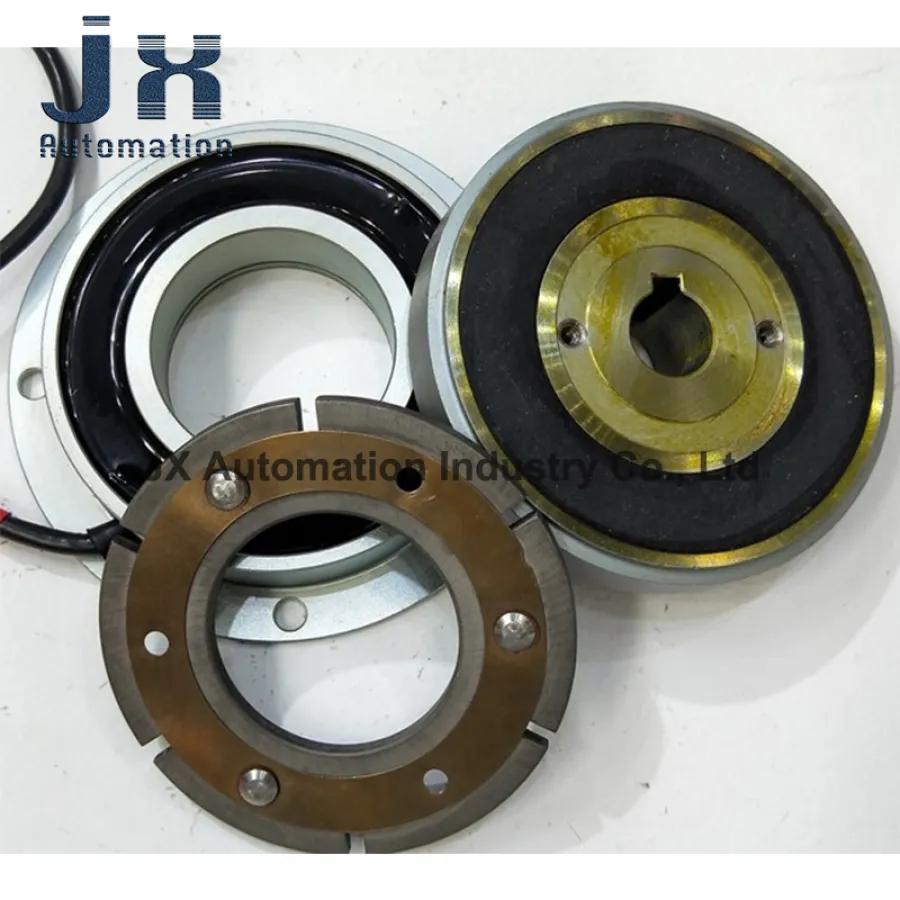

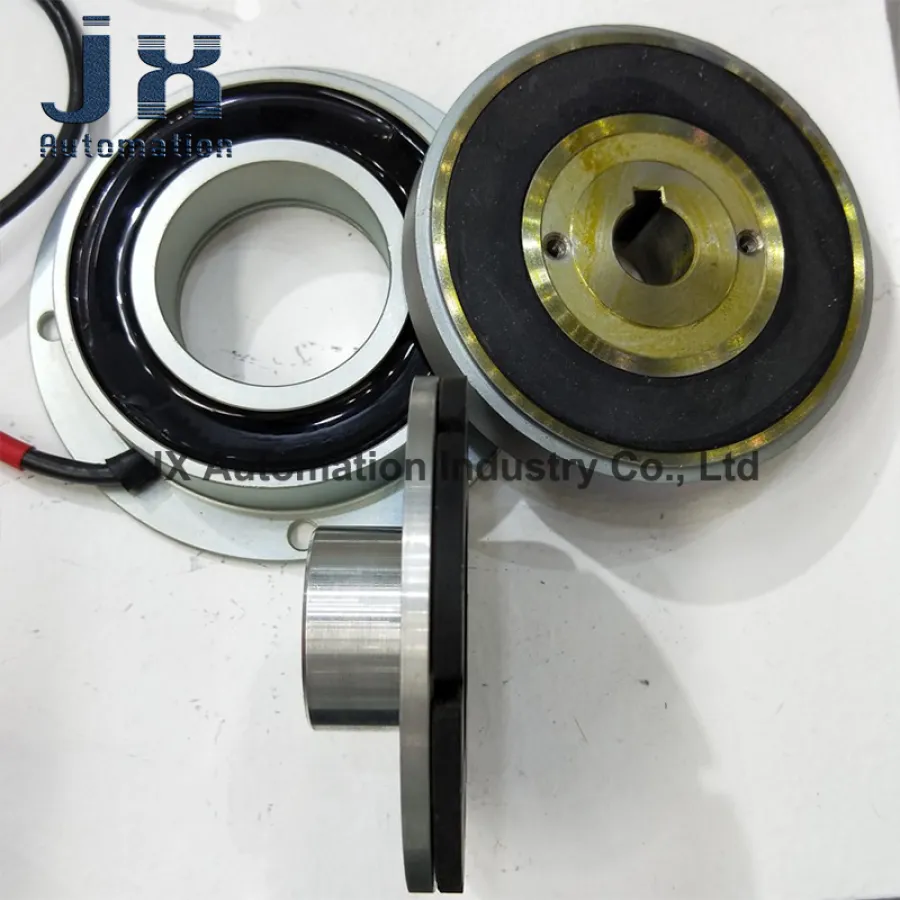

The electromagnetic clutch (14.105 series) is divided into two series: dry single-plate clutch and built-in bearing clutch. The electromagnetic clutch is in the off state when the power is off, and the armature plate is separated from the armature; when the power is on, the armature plate is in the closed state. It is attracted to the armature.
Model: Built-in bearing type electromagnetic clutch (14.105..3.)
Dry single-plate electromagnetic clutch (14.105..1.0)

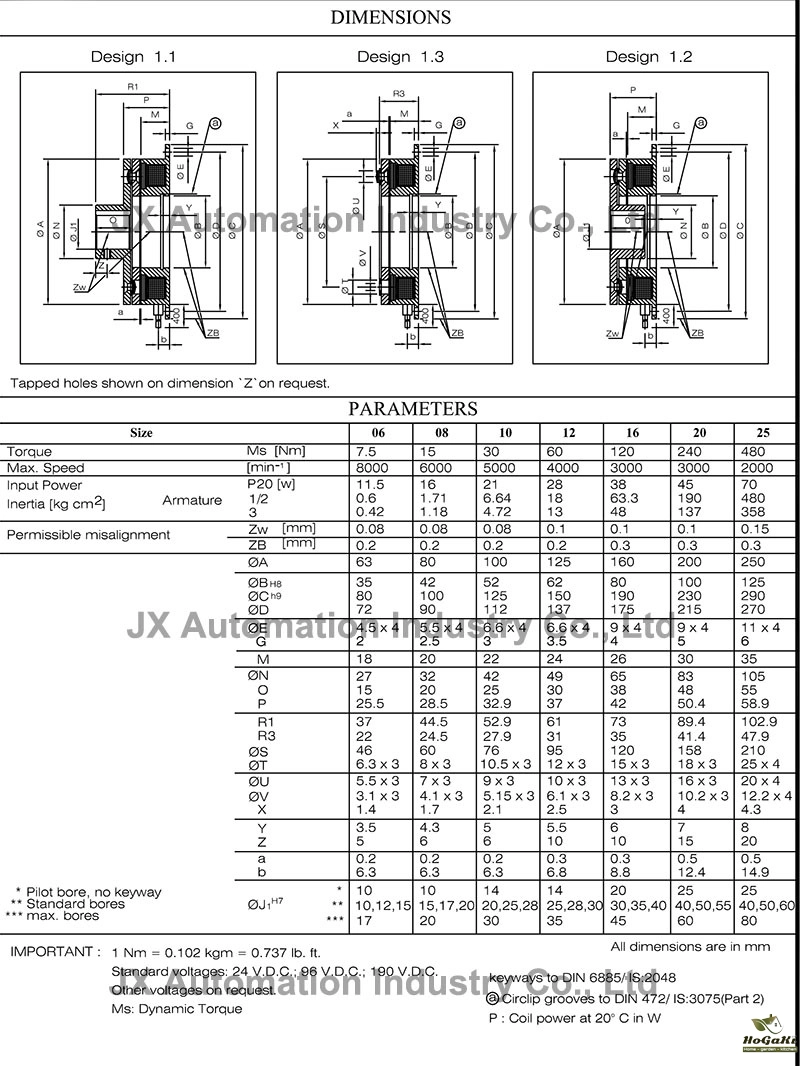

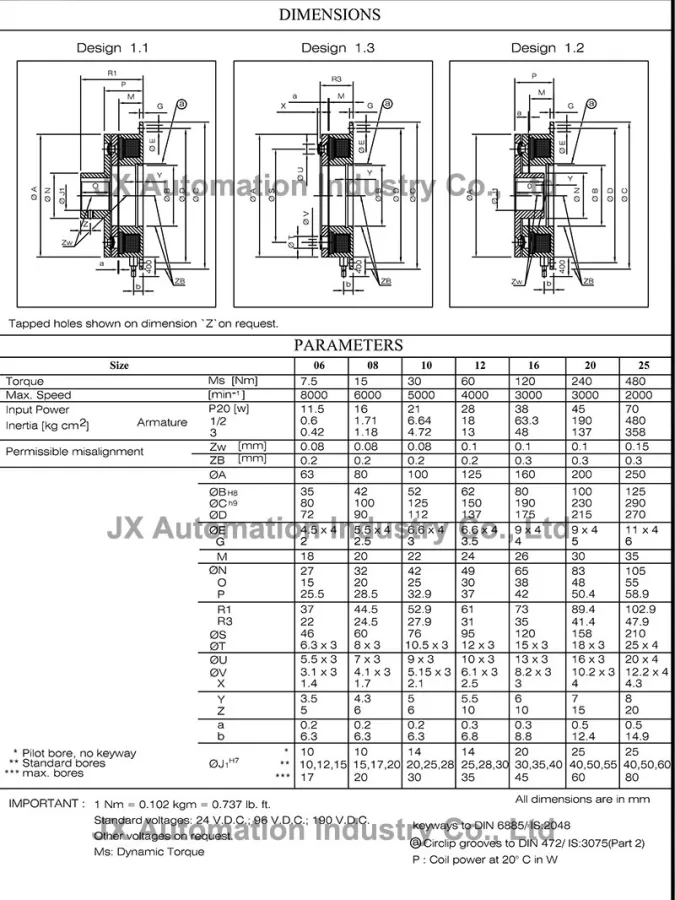

Regular specifications: 06/08/10/12/16/20/25

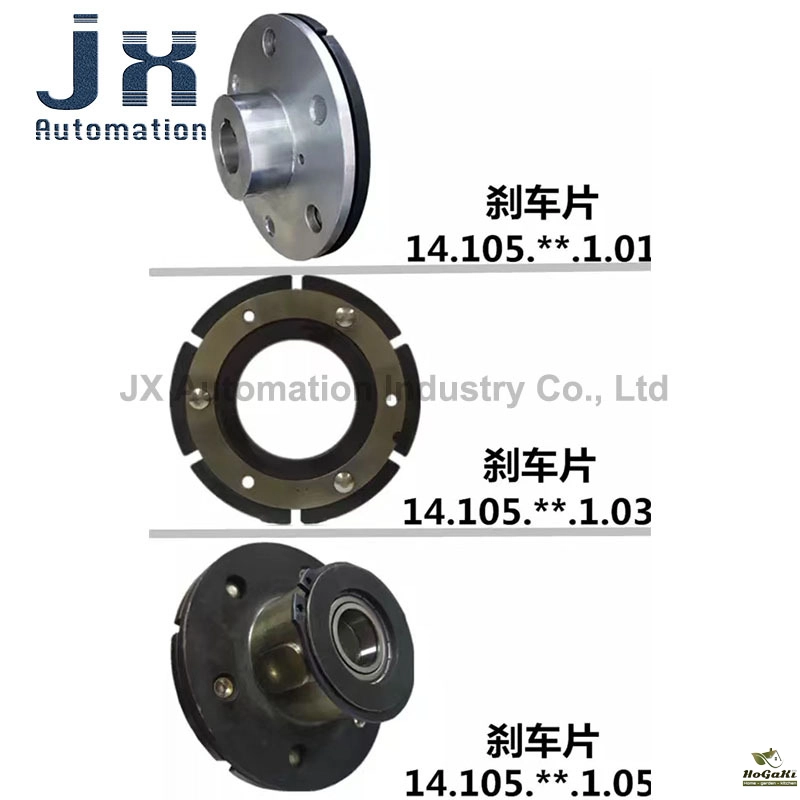

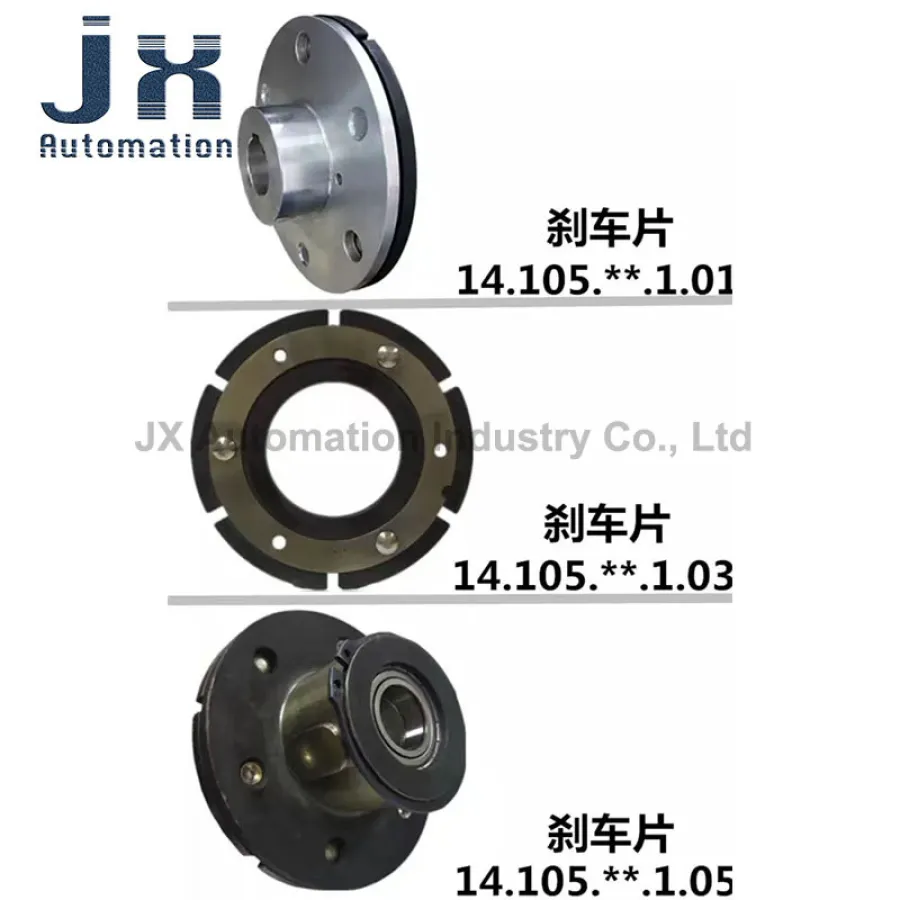

Brake Pad Model: 01/03/05
Other models: 31/40/50 special specifications and sizes can be customizedBraking torque: 7.5-48ONM
Standard voltage: 24VDC (other voltages can be customized)
Product features: small size, low voltage, low power, low energy consumption, large torque, high speed, armature wear-resistant, quick response, easy installation and maintenance.
Application areas: brake clutch combination, food and beverage machinery, winding machinery, industrial production lines, various automated production lines, packaging machinery, textile machinery, instruments, printing machinery and other industries that require frequent speed changes or frequent changes of direction are widely used.
Note: The armature plate and friction surface should not be in contact with lubricating oil or grease under any circumstances.
Packaging Details
- Unit Type:
- Package Weight: 2.500
- Package Size: 18x10x28
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Certification: CE
- Voltage: 24V
- Model Number: 14.105.10.1.1 / 14.105.10.1.3
- Material: Cast Iron
- Name: Emco LENZE Built-in bearing type electromagnetic clutch
