220V single-phase motor soft starter module controller2KW4KW6KW8KW motor online soft starting fan pump pressure reducer conveyor
4.8 (145 votes) | 518 orders
Price:
US $43.68 - 110.98
/ piece
Discount Price:
US $
34.94 -
86.38
/ piece
-20%
Sorry! This item is out of stock
This product is commonly used for motors with the following voltages:
220V ... (50Hz, 60Hz).
230V ... (50Hz, 60Hz).
240V ... (50Hz, 60Hz).
The above three voltages are universal for this product.
Single-phase 220V soft start module use range:
Petroleum, chemical, fire, construction, metallurgy, building materials, mining, environmental protection and other fields.
Fans, pumps, belt conveyors, ball mills, car washing machines, conveyors and compressors.
It is an ideal replacement for traditional star/delta conversion, auto-coupling buck, magnetic control buck, inverter and other step-down starting devices.
220V single-phase motor soft start module (motor conversion method)
model:
SSR-20WA-R1 (1kw)
SSR-40WA-R1 (1.5kw)
SSR-60WA-R1 (2kw)
SSR-100WA-R1 (4kw)
SSR-150WA-R1 (6kw)
SSR-200WA-R1 (8kw)
According to the actual working current 5 times: power ÷ voltage × 5
in case:
Your motor is 8000w power ÷ 220v voltage × 5 = (181.81WA should choose 200WA) should choose the parameter closest to that model.
our soft start is universal for the motor, regardless of whether the motor has a capacitor or not.
If your motor is working for a long time, the motor above 2000W needs to be equipped with a heat sink.
Single phase motor compared to starter module
Voltage compatibility:
(220V + 0V = single-phase 220V, AC)
(230V + 0V = single-phase 230V, AC)
(240V + 0V = single-phase 240V, AC)
(220V + 220V = two-phase 380V--400V, AC)
Frequency: 50Hz, 60Hz

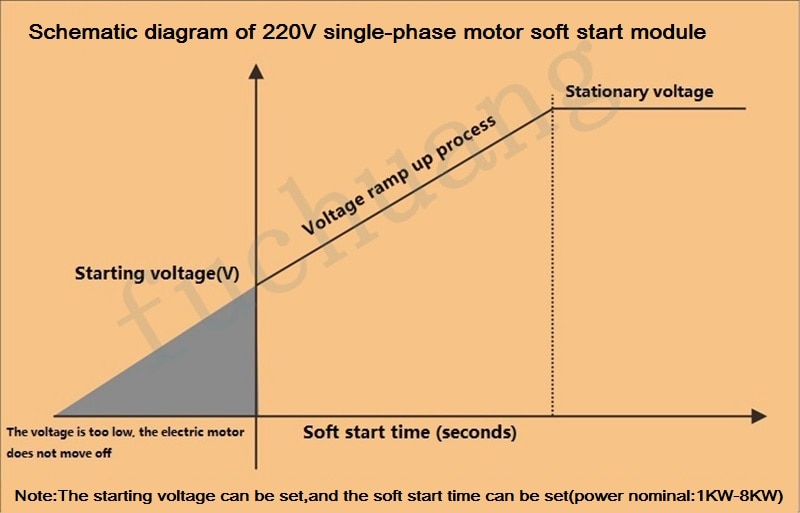

Soft start time is adjustable between 0-30 seconds (soft start time refers to the entire process 0-220V, 0-380V)
Slowly adjust the starting voltage from 0-50? Reaching the rated voltage (220-380V)

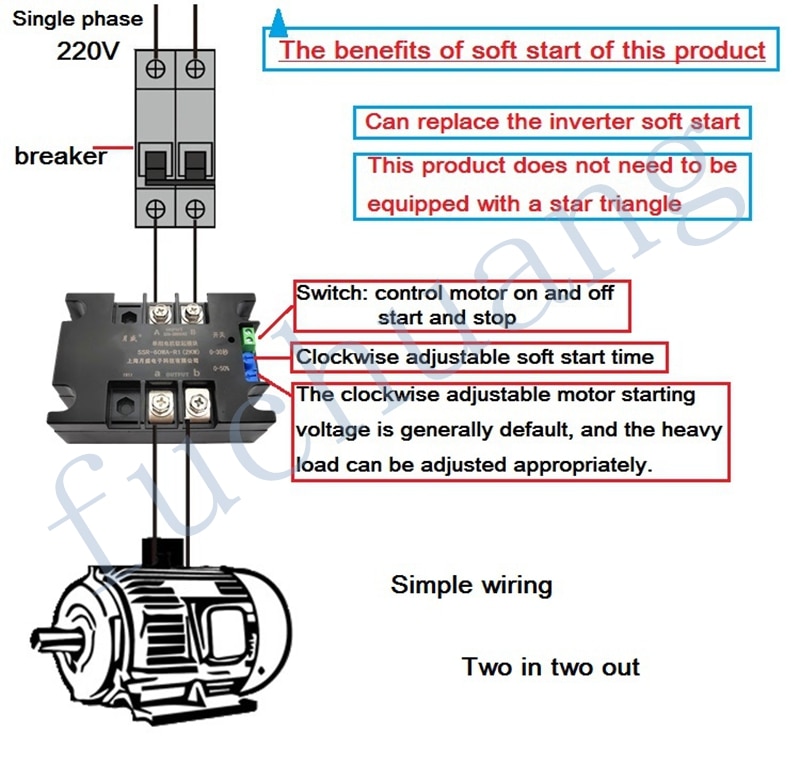

There are two ways to use it:
1. After closing the switch, the main power will be energized and start soft start.
2. Use the switch to control, close the soft start to start, open to stop.
The soft start module has 2 programs:
1.SSR-40WA-R1 has soft start and no soft stop.
2.SSR-40WA-R2 has soft start and soft stop functions (start as many V stops as V stop)
note:
1.Do not apply voltage to the switch.
note:
1. Do not use a multimeter on the load side to judge the quality of the product!
2. Subject to field test.
Working environment temperature range -25°C~60°C
- Certification: NONE
- Origin: Mainland China
- Model Number: SSR-60WA-R1
- Voltage: 220V
- Place of origin: China Soft Start Module
- Single-phase: 220V 230V 240V
- Motor: Controller module
