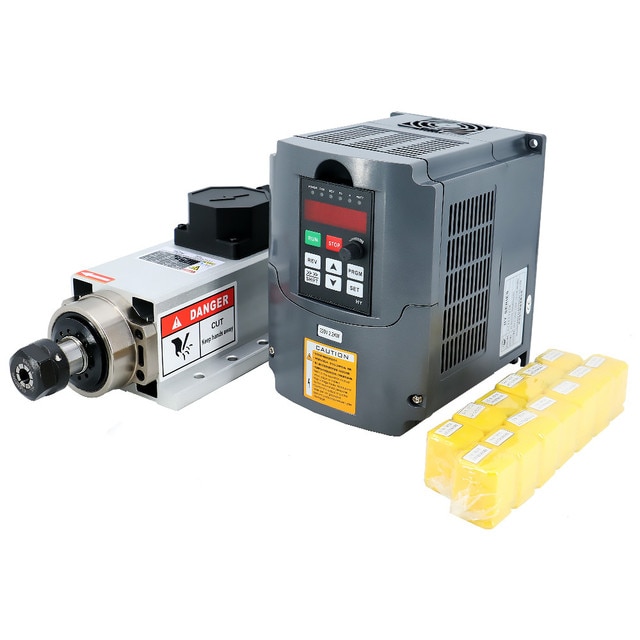

1.5KW/2.2KW Water Cooled Spindle + 110V/220V Inverter + 65/80mm Clamp + Water Pump/5m Pipe + 13pcs ER20/ER11 for CNC Wood Router
738.92 609.82 $
SALE
ID: 45015
Quantity
2200W/2.2kw 1500w/1.5kw 24000rpm air cooled cnc spindle motor+HY/YL inverter+1set ER20/ER11 collet for CNC milling machine
4.6 (13 votes) | 60 orders
Price:
US $620.00 - 1148.00
/ piece
Discount Price:
US $
341.62 -
665.84
/ piece
-45%
- Ships From
- Length
- Color
-
-
note：1.5kw is ER11，2.2kw is ER20！

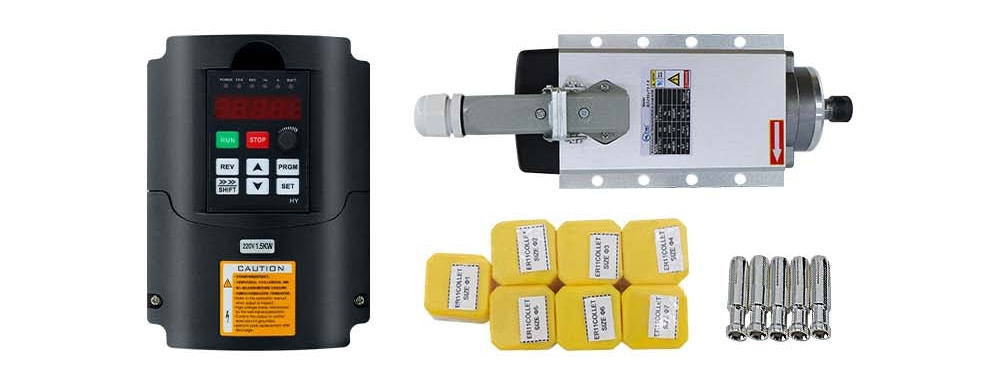

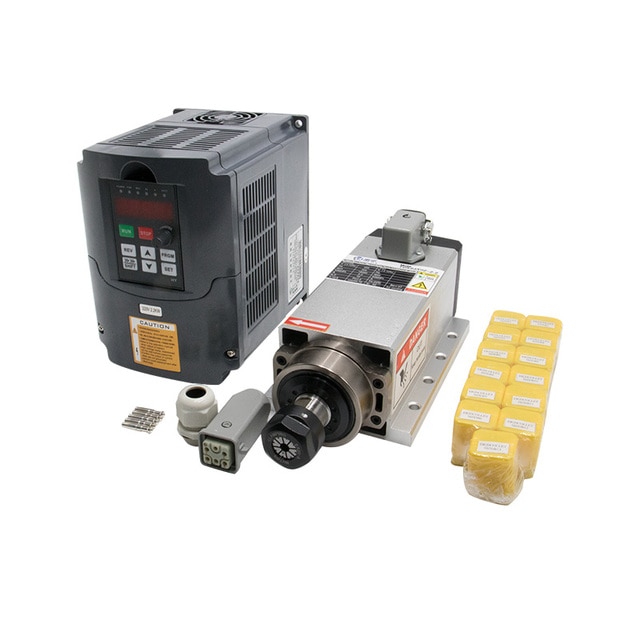

1.5kw Junction Box kit | 1.5kw Aviation plug kit | ||||||
|
| ||||||

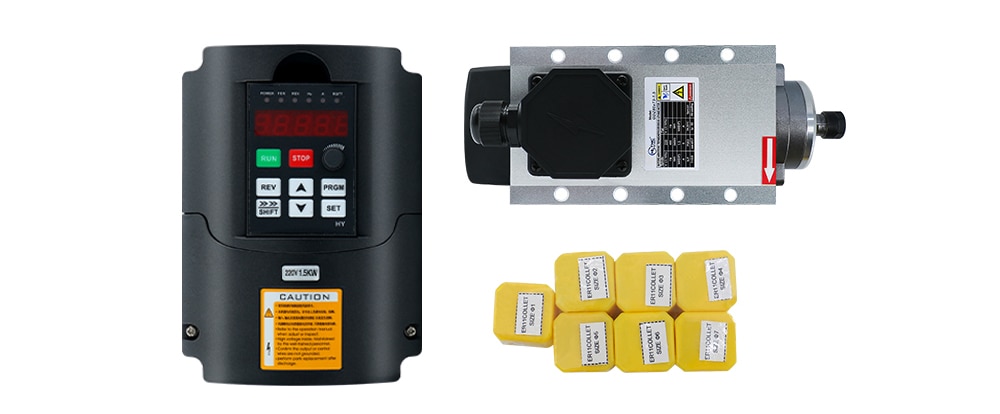

1 &220v 1.5kw ER11 4 bearings air cooled spindle 1 &220v 1.5kw HY/YL inverte/VFD 1 kit ER11 collet （Quantity: 7） φ1*1 φ2 *1 φ3 *1 φ4*1 φ5 *1 φ6 *1 φ7*1 | |||||||

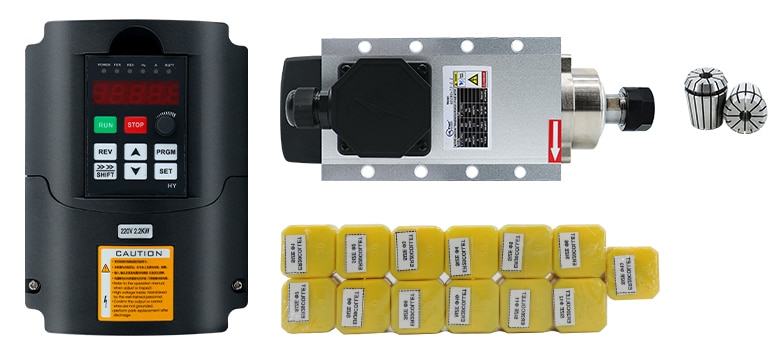

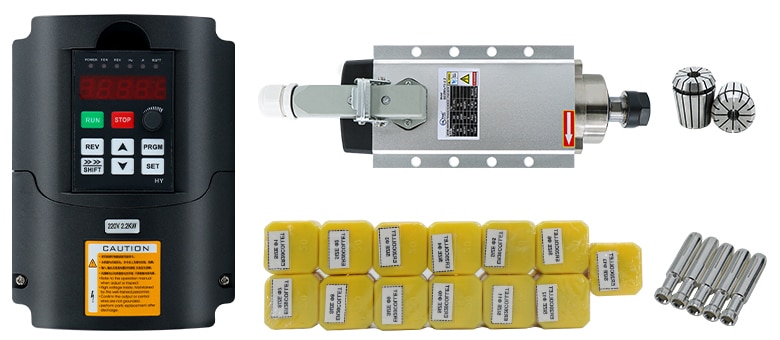

2.2kw Junction Box kit | 2.2kw Aviation plug kit | ||||||
|
| ||||||
| 1 &220v 2.2kw ER20 4 bearings air cooled spindle | ||||||
| 1 &220v 2.2kw HY/YL inverter/VFD | ||||||
| 1 kit ER20 collet（Quantity: 15） | ||||||
□φ1*1 | □φ2 *1 | □φ3 *1 | □φ3.175*1 | □φ4*1 | □φ5 *1 | □φ6 *2 | |
□φ7*1 | □φ8*1 | □φ9*1 | □φ10 *1 | □φ11 *1 | □φ12*1 | □φ13*1 | |

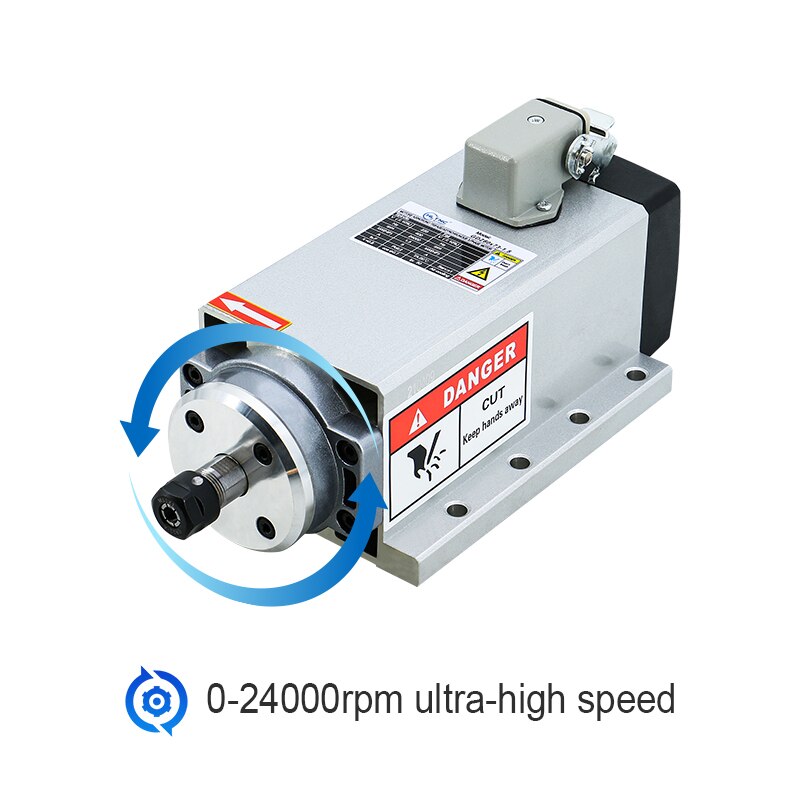

1. 0-24000rpm ultra-high speed

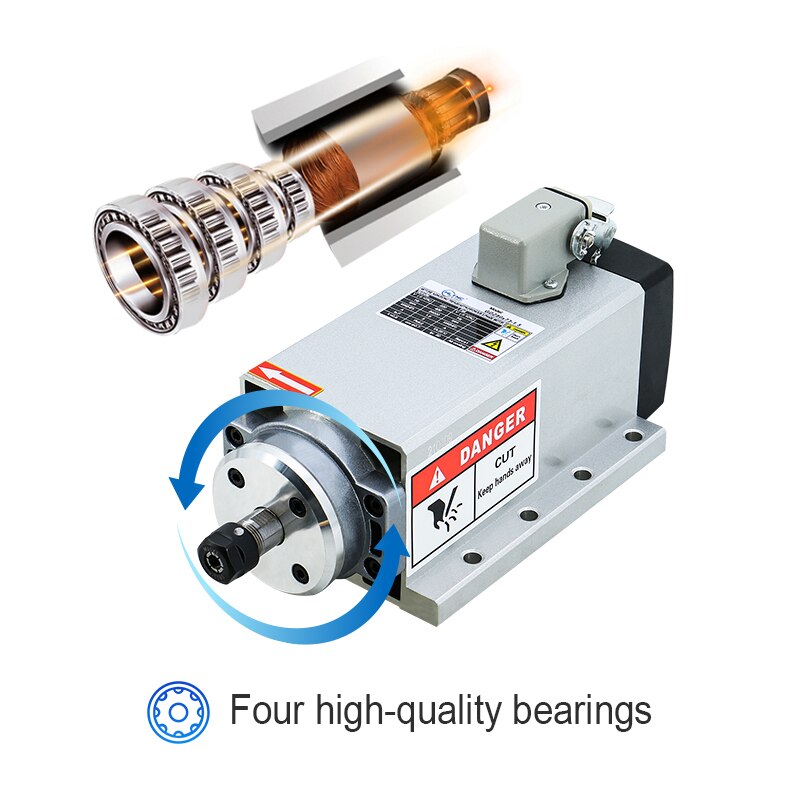

2. Four high-quality bearings
3. Run silent

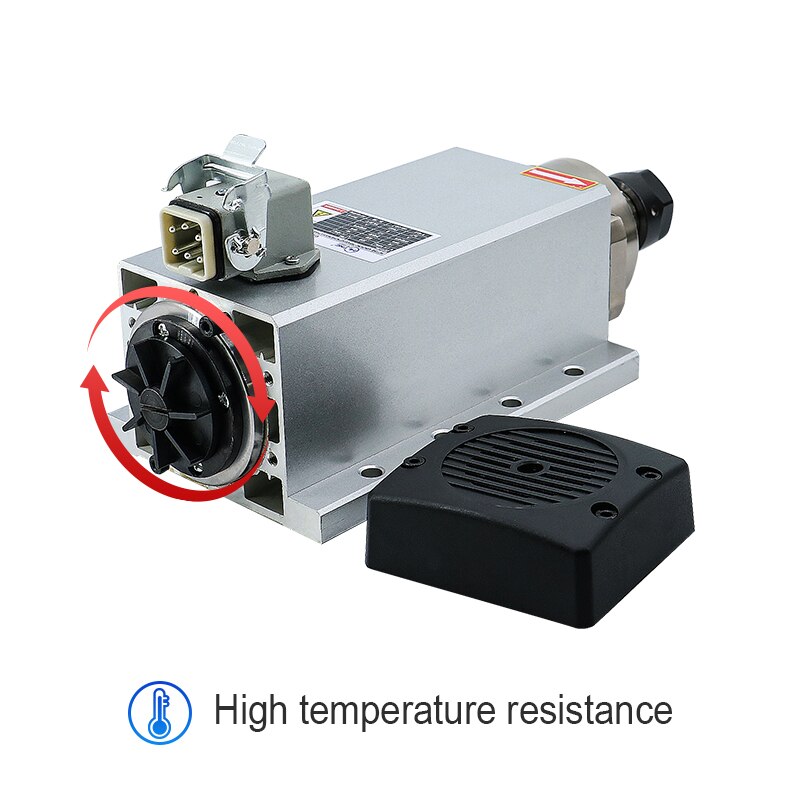

4. High temperature resistance
5. long life
|

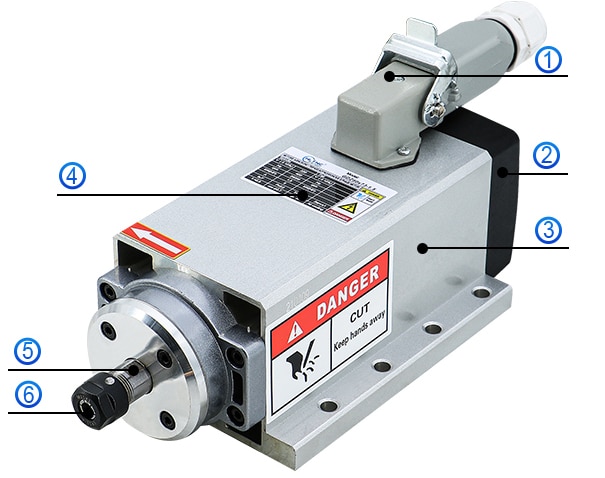

| Aviation Plug/Juntiion Box |
| Cooling Fan | |
| Metal body | |
| Parameter | |
| Lengthened rotor | |
| Chuck |
MOTORE ASINCRONO TRIFASE/ASYNCHRONOUS 3 PHASE MOTOR

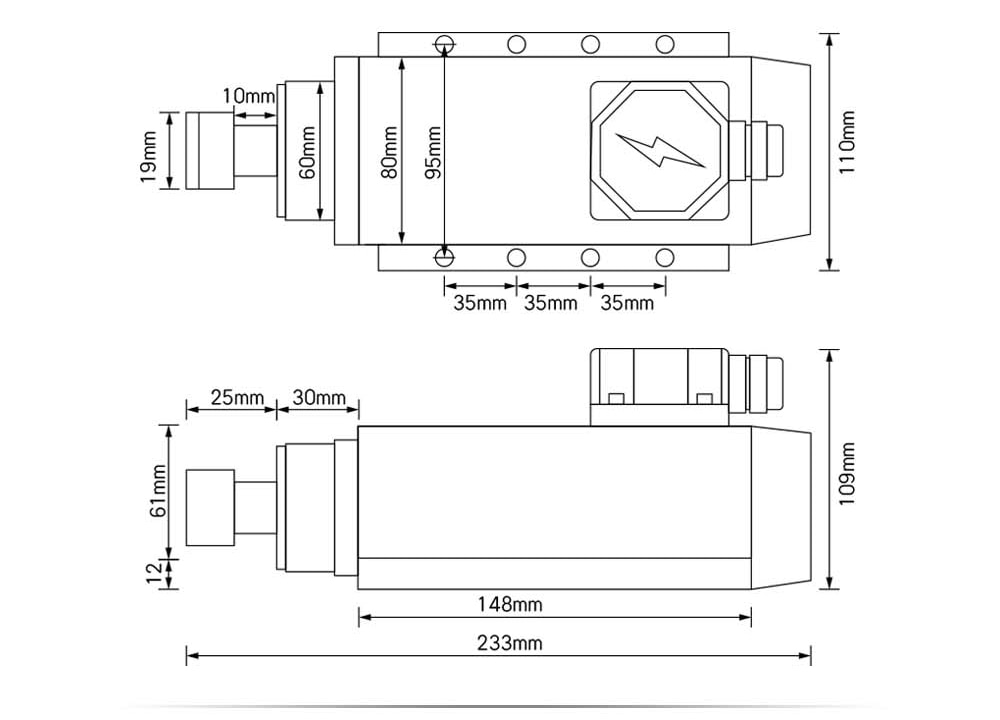

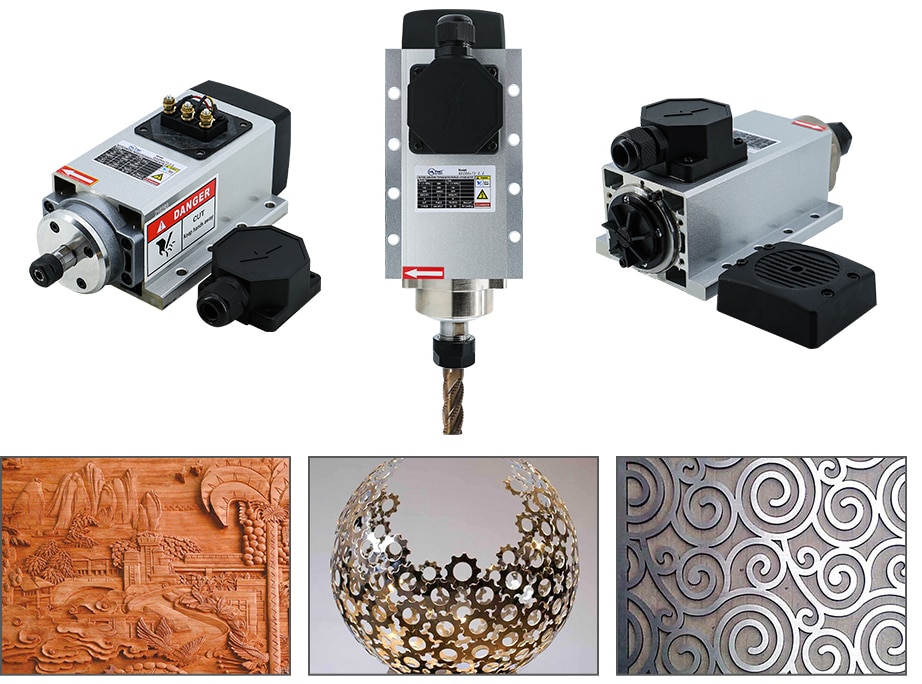

1.5kw/2.2kw spindle
Spindle | Fail | ||
V（±10%） | 220 | V（±10%） | |
Hz | 400 | Hz | |
rpm | 24000 | rpm | |
KW (HP) | 1.5/2.2 | KW (HP) | |
A | 5/6 | A | |
IS .F | Poli:2 | TA :20℃ | Serv:S1 |
=0.8 | Cosφ0.7 | IP：50 | Air Cooling |

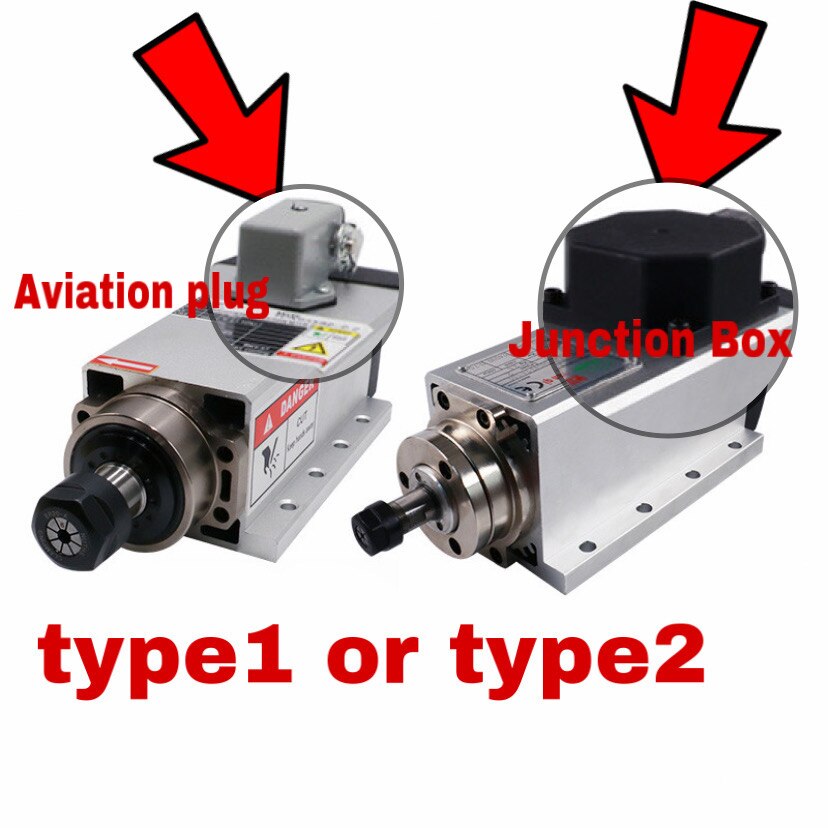

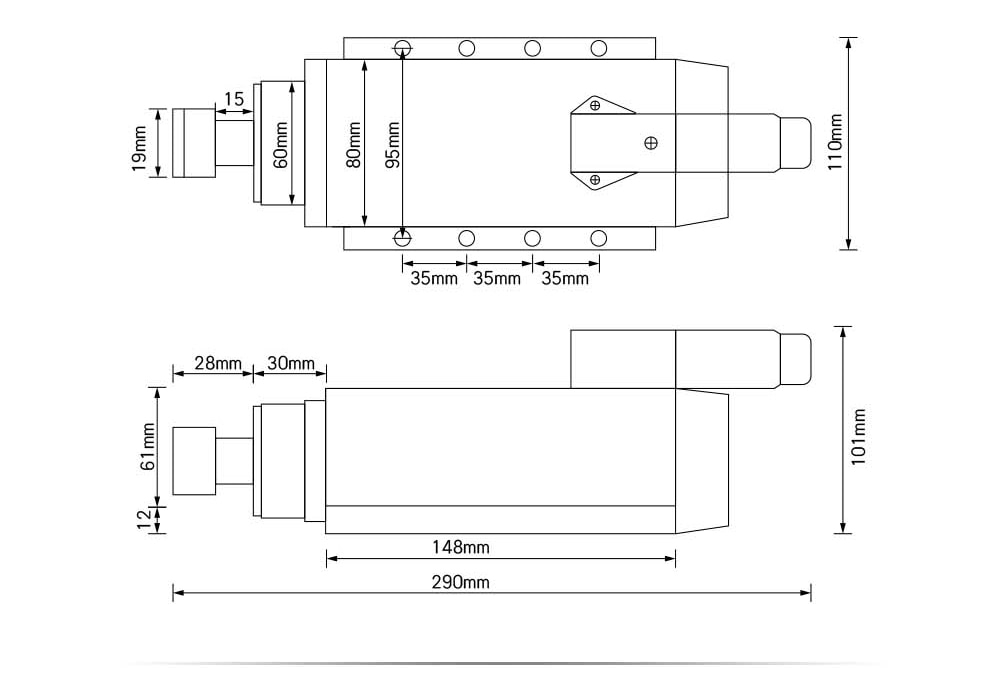

1.5kw Termial Box Type/Aviation Connector Spindle

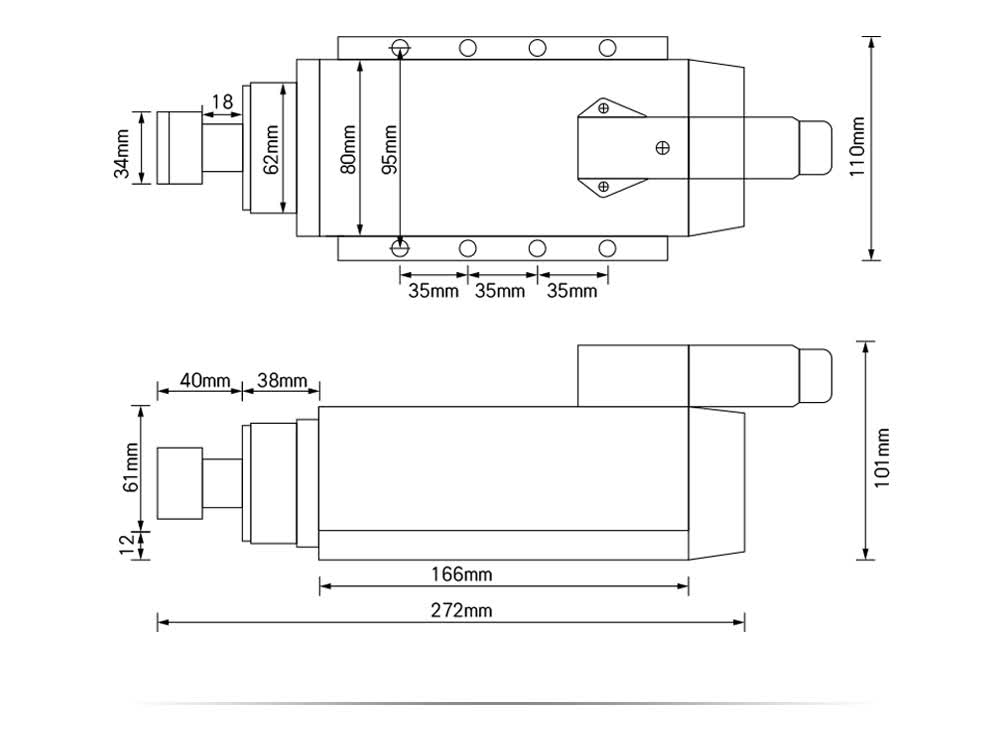

2.2kw Termial Box Type/Aviation Connector Type Spindle

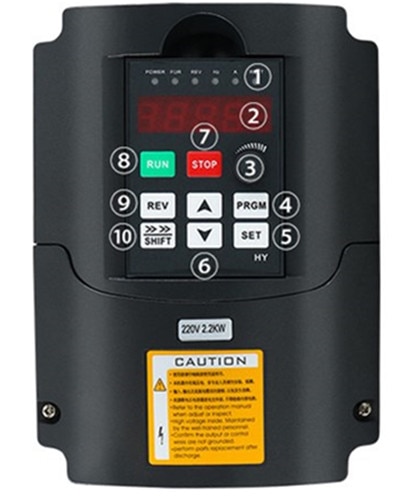

Huanyang HY Inverter
 |
| LED Display zone indicating For., Rev.,frequency,current,recolution, etc. | |
| Main display zone indicating frequency,current,ACV ,DC V,revolution,counter,temperature,etc | ||
| Speed controller | ||
| Function key | ||
| Set Key (enter) | ||
| Value Change key | ||
| Stop/Reset key | ||
| Run key | ||
| FOR/REV Switch | ||
| (DISP) Shift key | ||
Tech parameters | |
Power:1.5KW/2.2kw | Input Voltage :220V |
Input Frequency :50/60Hz | Input Phase : 1phase |
Output Voltage : 220V | Output Phase : 3pahse |
Output Current :7A/10A | Output Frequency: 400Hz |
Control Method : V/F control; Open-loop fiux vector control | |

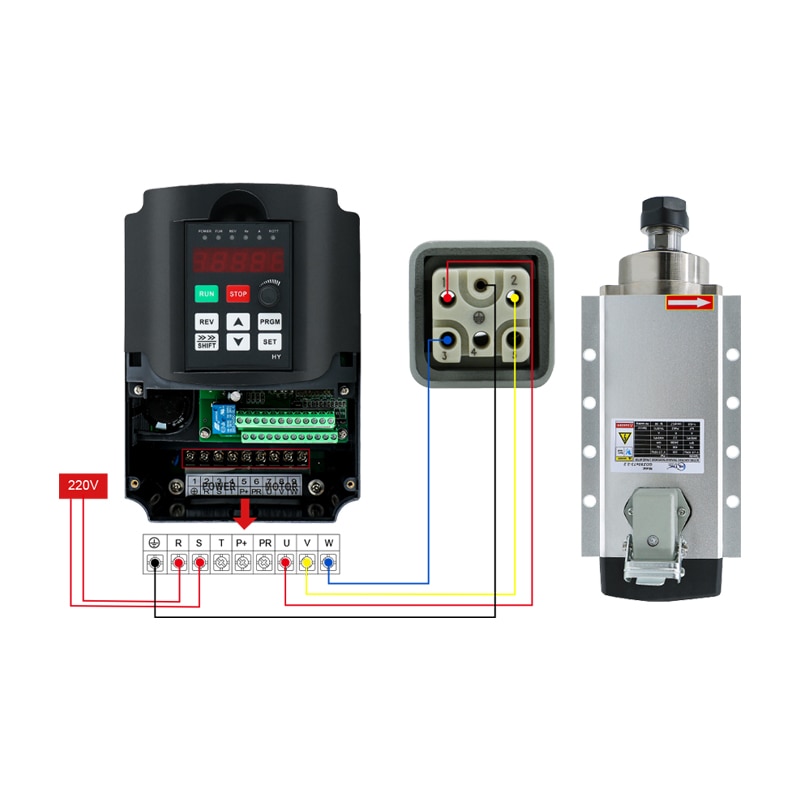

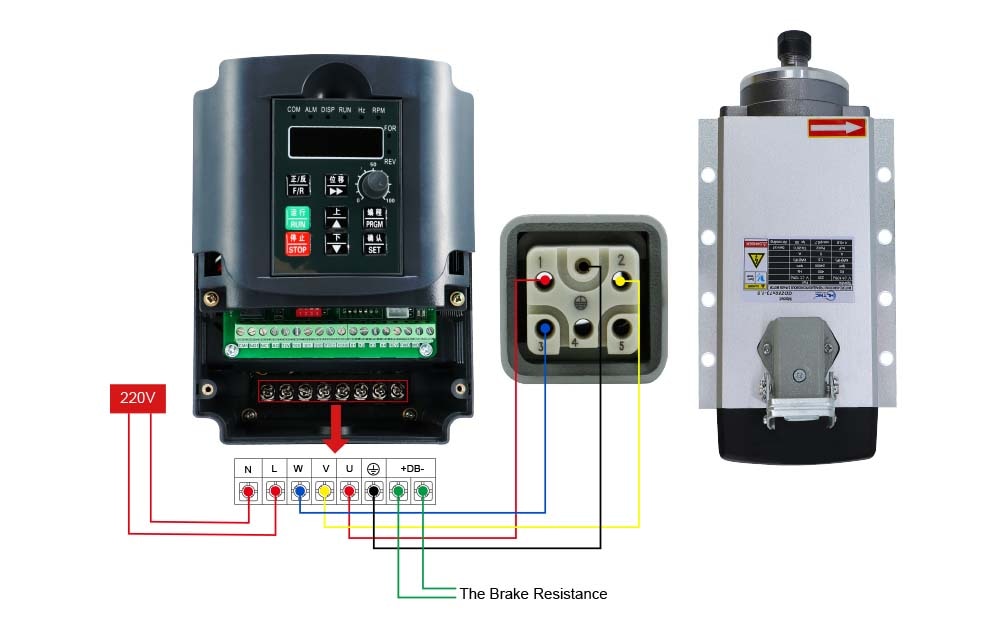

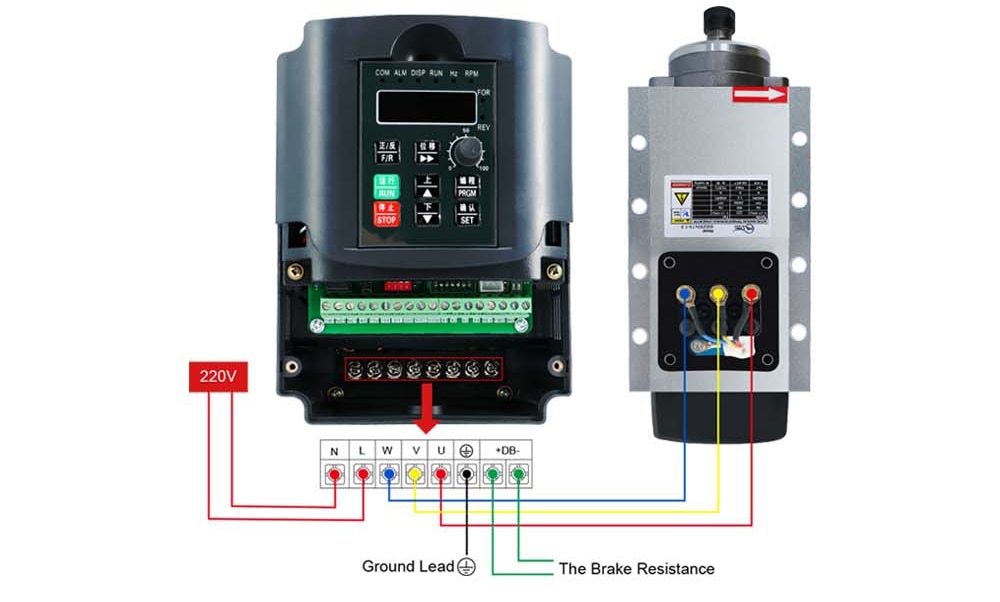

Wiring diagram
Inverter Setting Scheme | |
PD013=8 | Restore factory setting |
PD005=400 | Set max operating frequency |
PD004=400 | Set base frequency |
PD002=1 | Set board potentiometer control |
PD070=1 | Set analoy input |
PD072=400 | Set high analoy frequency |

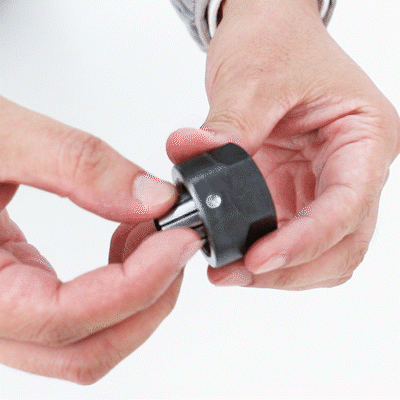

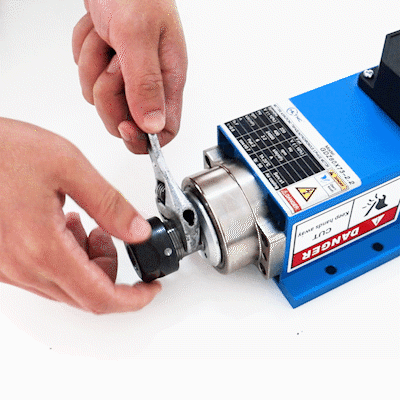

CHUCK REPLEACEMENT
| ||
Wood Carving | Soft Metal Engraving | Aluminum Alloy Carving |
| ||

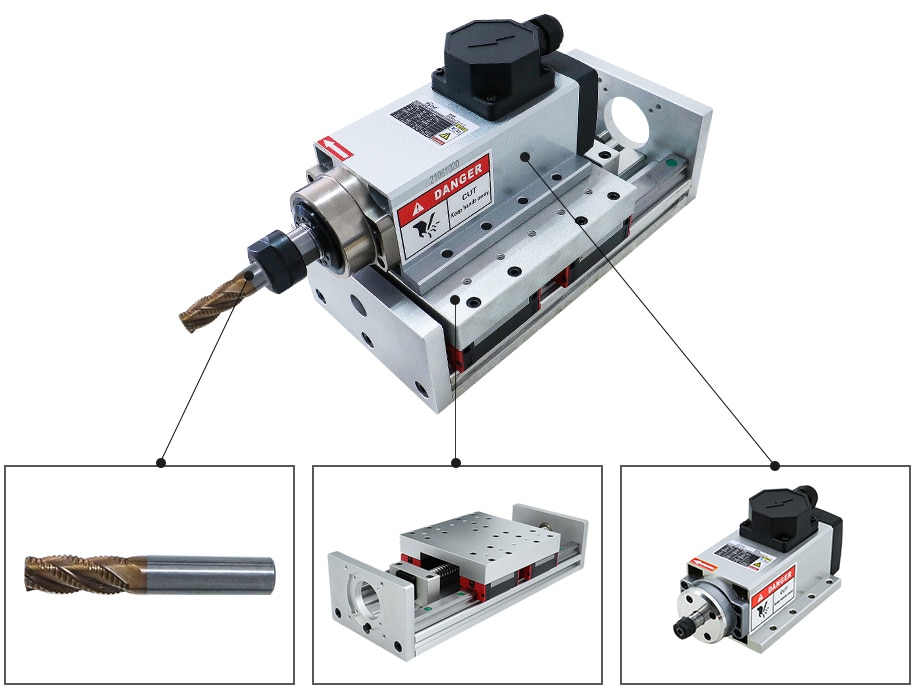

Milling Cutter | Sliding Table | Air Cooled Spindle |
- Operating Speed: 24000rpm
- Maximum Torque: 0.8
- Application: Milling
- Model Number: 1.5/2.2KW air cooled
- Drive: Motor
- Brand Name: HLTNC
- Origin: Mainland China
- Certification: CE
- Air Cooled CNC-Spindle Motor: 2.2KW/1.5kw
- Inverter brand: HY
- Place of Origin: LISHUI,ZHEJIANG
- Frequency: 400HZ
- Voltage: 110v/220V/380V
- Warranty: 1 year from the date you purchased
- 2.2kw Weight: 8kg
- warehouse: china/Mosscow/Spain
- 2.2KW collet: ER20(1-13mm)
- 1.5kw collet: ER11(1-7mm)
- Spindle 1: Aviation plug
- Spindle 2: Junction Box

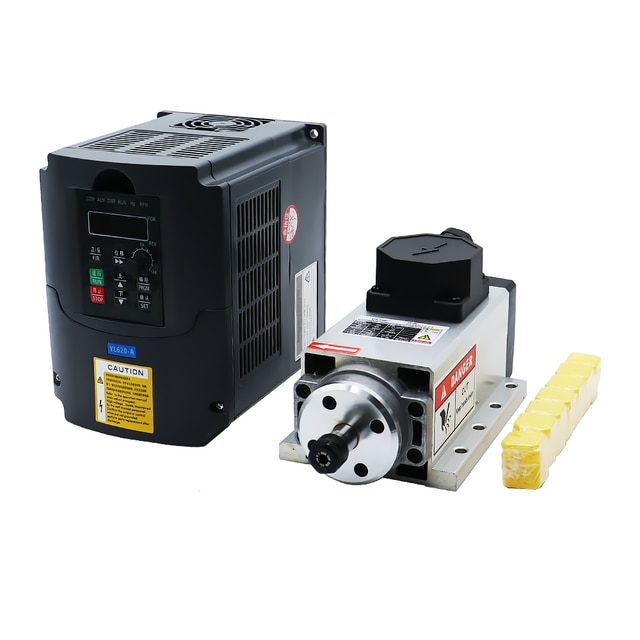

- inverter 1: YL VFD
- inverter 2: HY VFD
