200w engraving machinespindle motor air-cooling cnc 0.2KW spindle dc motor CNC Engraving Machine ER11 3.175mm collets ER16-8MM
5.0 (1 votes) | 2 orders
Price:
US $116.79 - 297.45
/ piece
Discount Price:
US $
74.11 -
176.40
/ piece
-37%
- Color
-
-
0.2kw spindle motor Air cooled spindle 1Pcs ER16 chuck CNC 200W Spindle Motor
Package introduce:
package 1: 1pcs 200w ER16 spindle
package 2: 1pcs 200w 220v/110v mach3 power supply

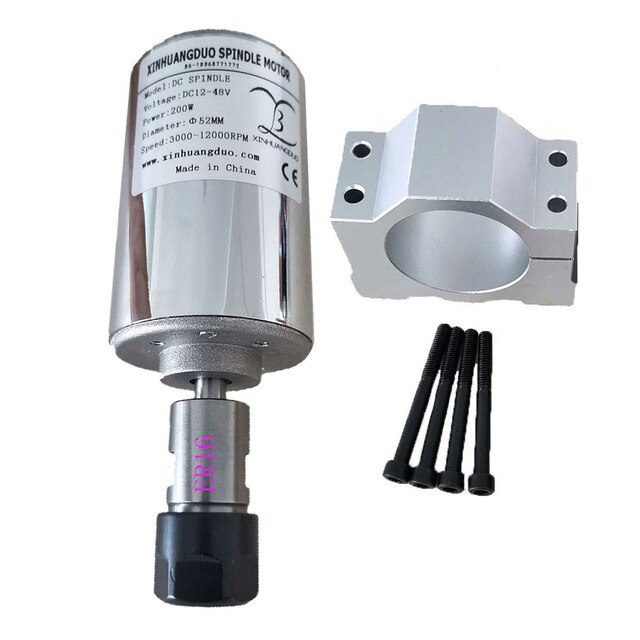

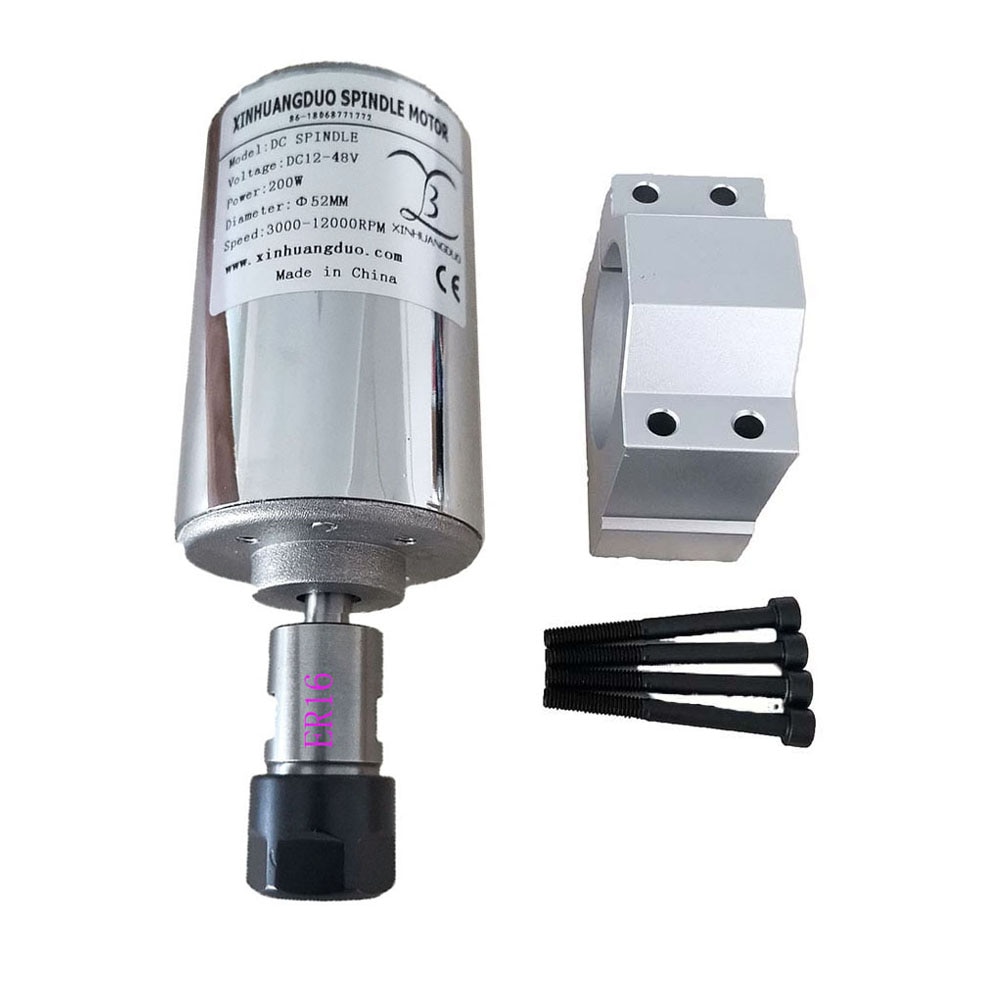

package 3: 1pcs 200w ER16 spindle+1pcs 52mm clamp

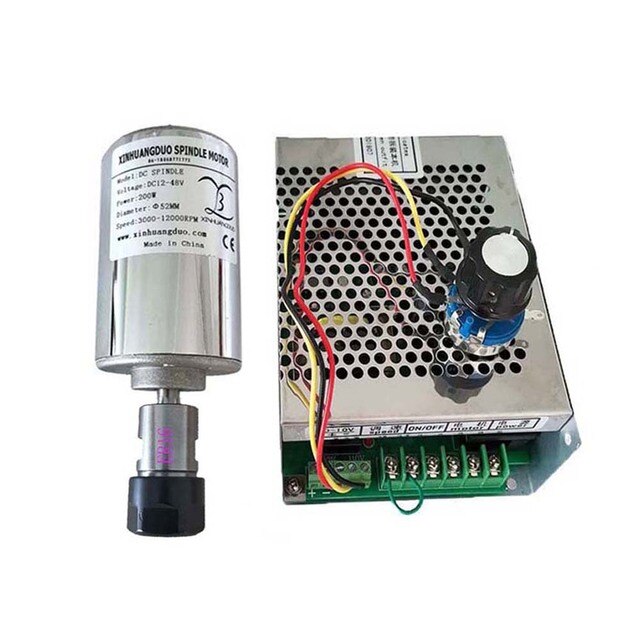

package 4: 1pcs 200w ER16 spindle+1pcs 200w 220v/110v mach3 power supply

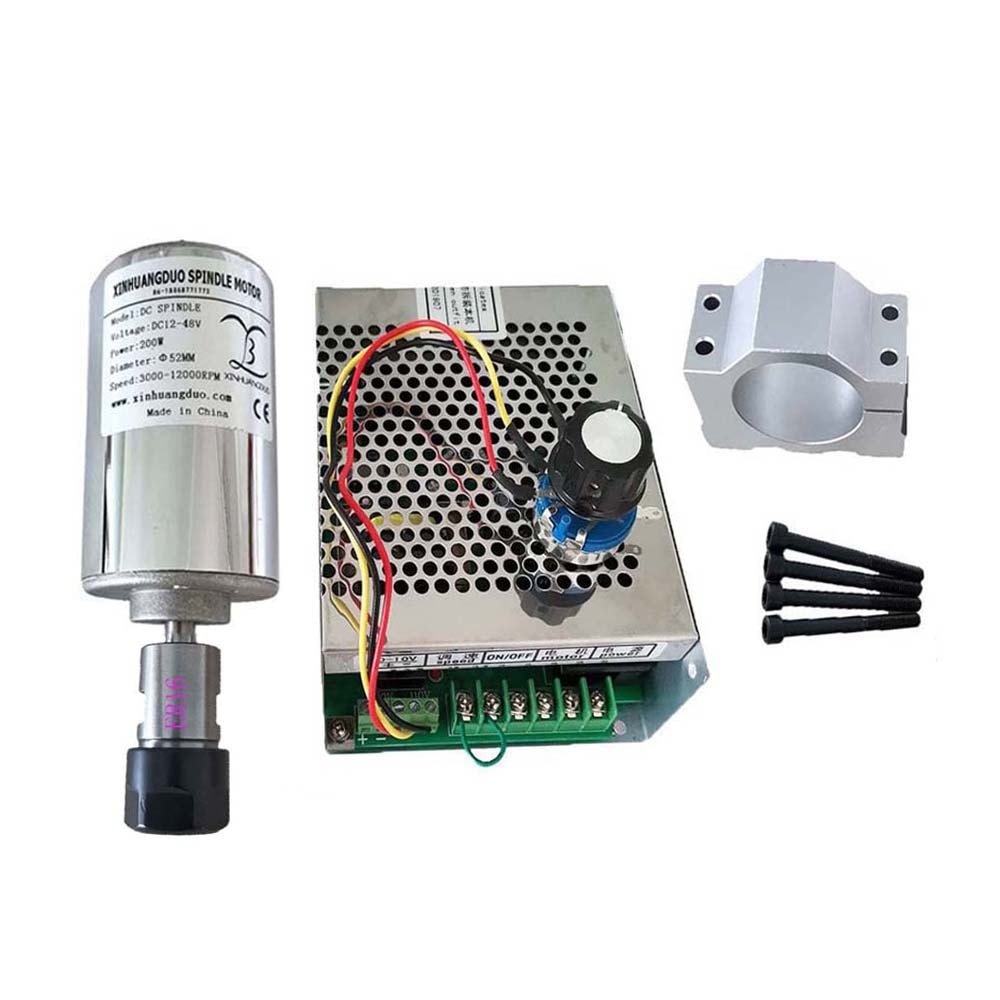

package 5: 1pcs 200w ER16 spindle+1pcs 200w 220v/110v mach3 power supply+1pcs 52mm clamp

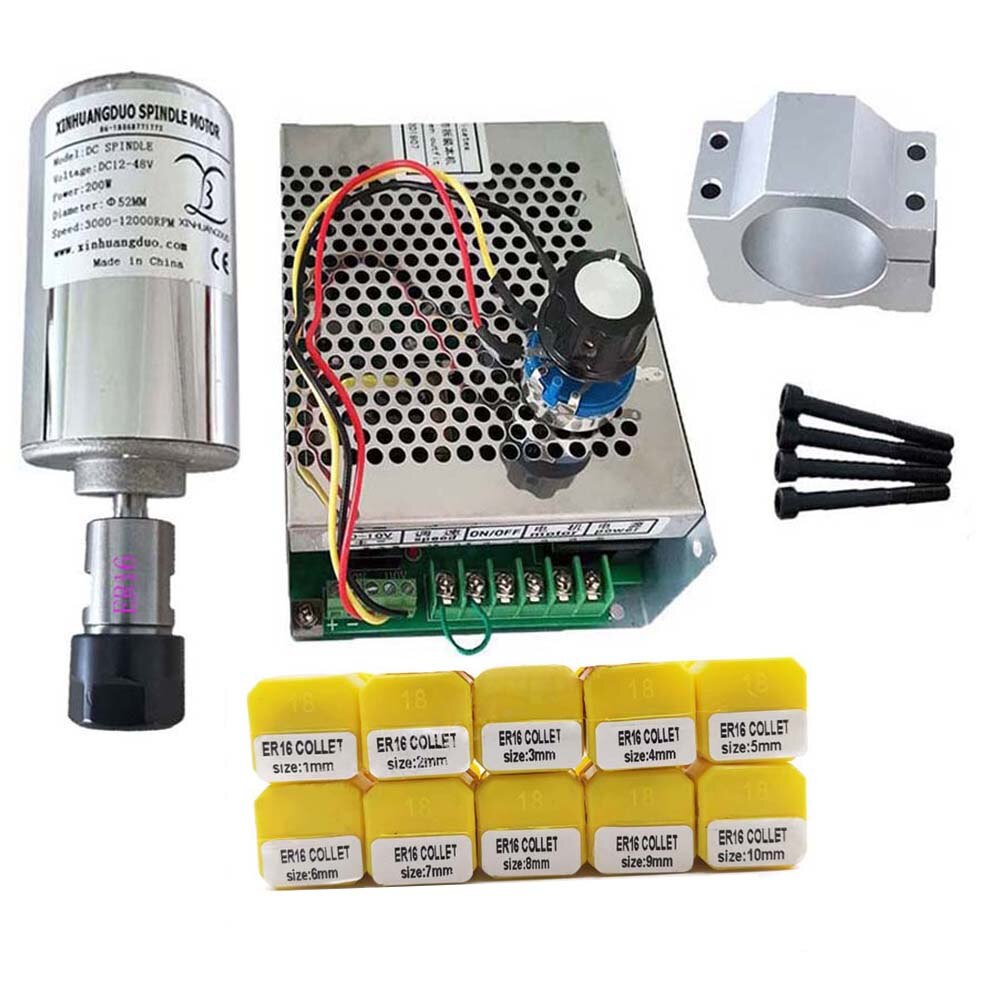

package 6: 1pcs ER16 200w spindle+1pcs 200w 220v/110v mach3 power supply+1pcs 52mm clamp+10pcs ER16 collect
Feature:

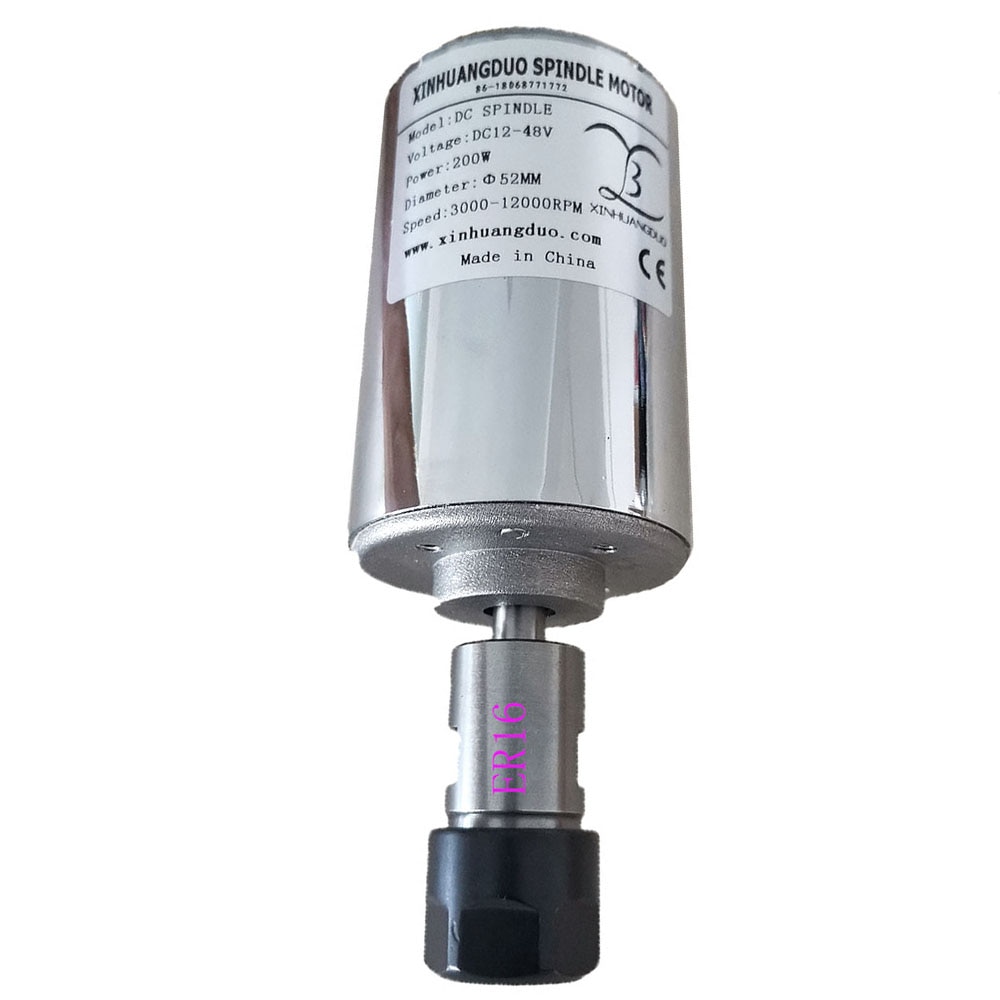

1.Air Cooled Spindle:
Size:52mm
Power:200W
Maximum Torque:0.3Nm
Runout off:0.01mm-0.03mm
work Voltage:12V-48VDC
Speed:3000-12000rpm

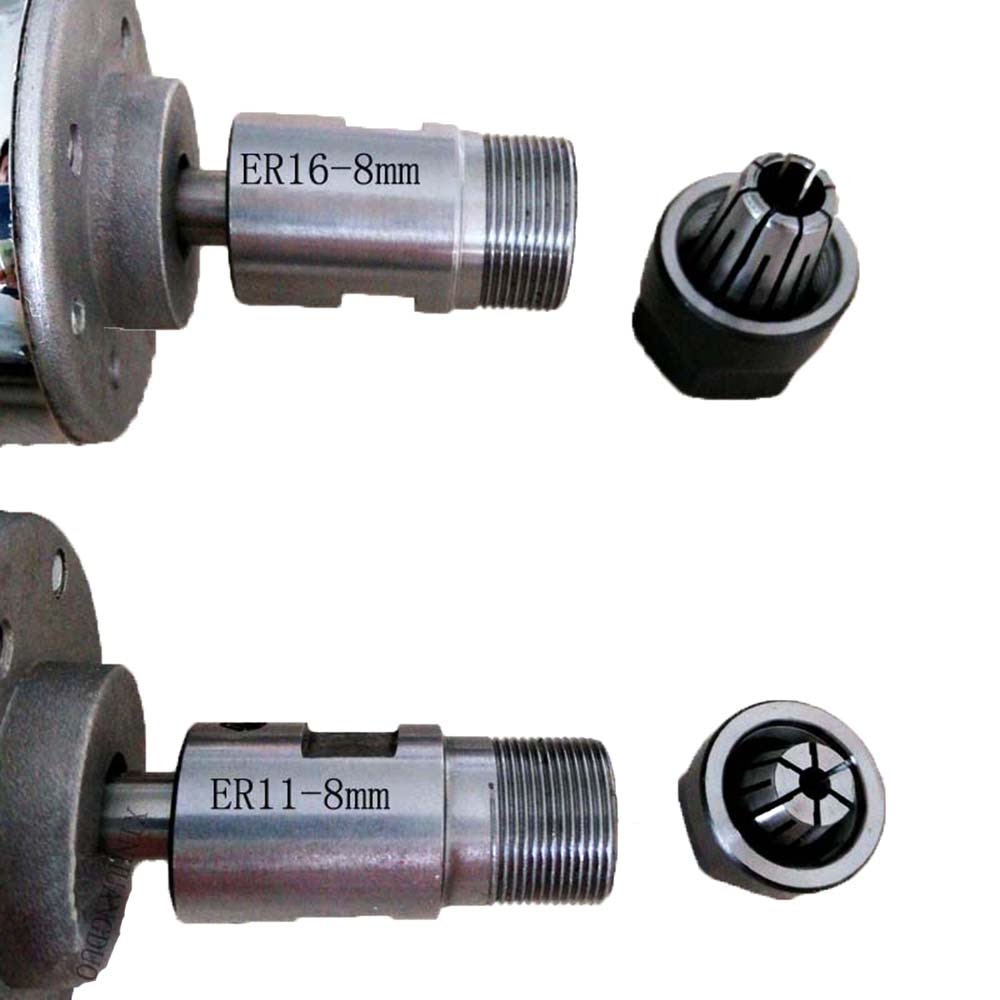

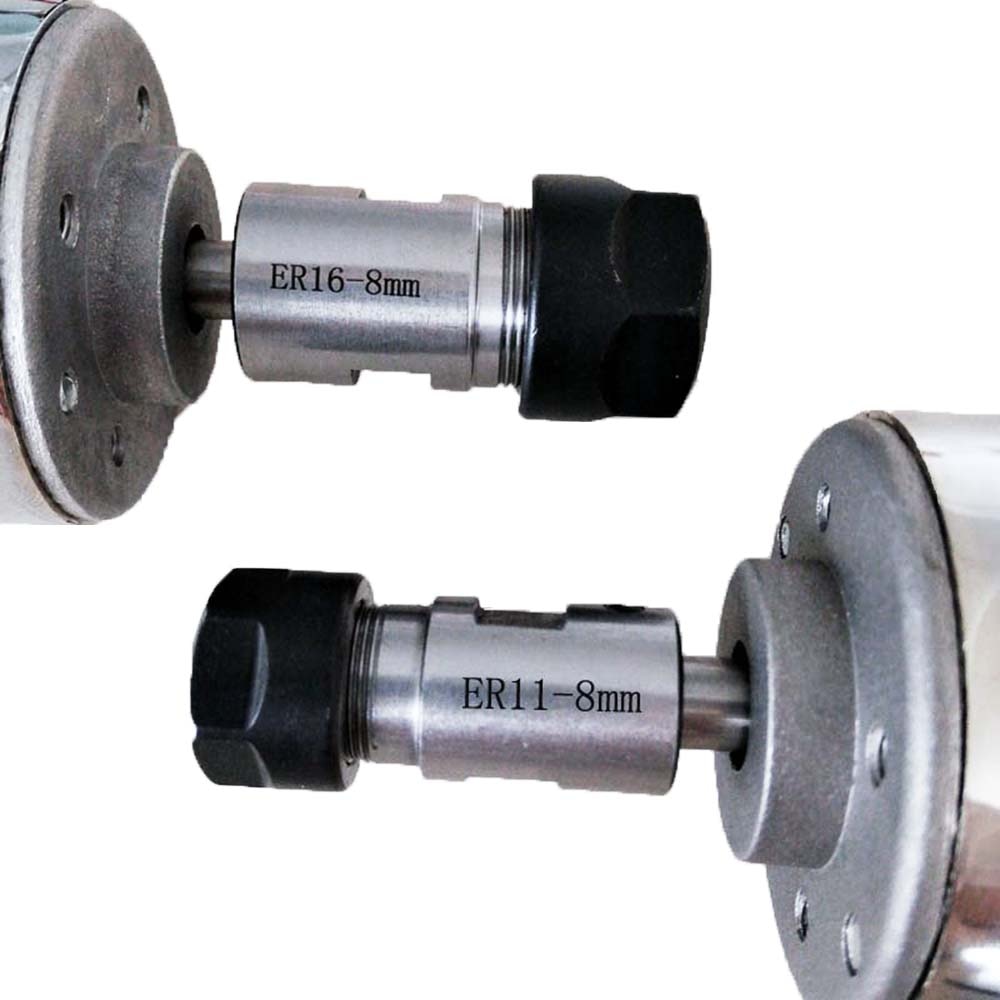

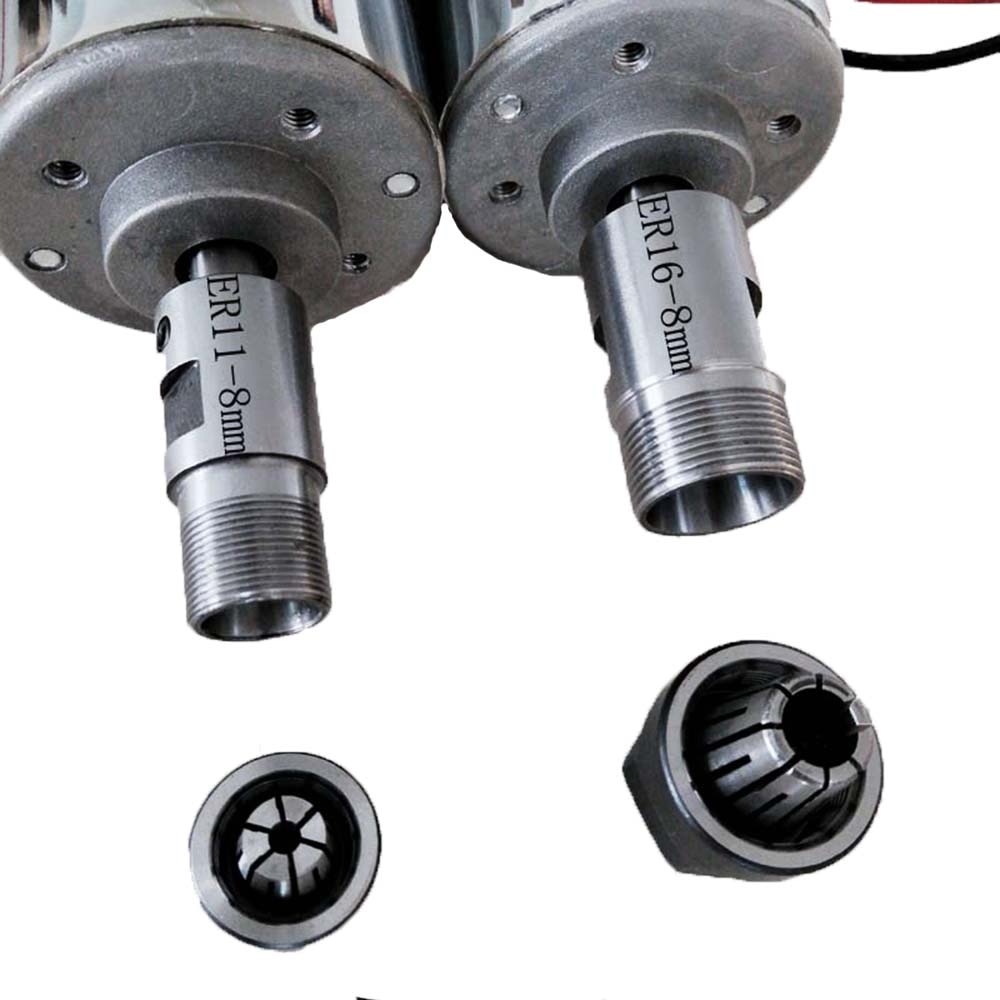

Spindle Arbor ER16 Arbor Clip (1mm-10mm) Default Hair 8 MM Chuck
2.power supply:
Power Supply with speed governor:(Manual speed regulation)
Input:AC220V ± 10%50/60Hz
Adapter power:200W
Support mach3 function
this power regulator can adjust 110/220v according to customers' needs

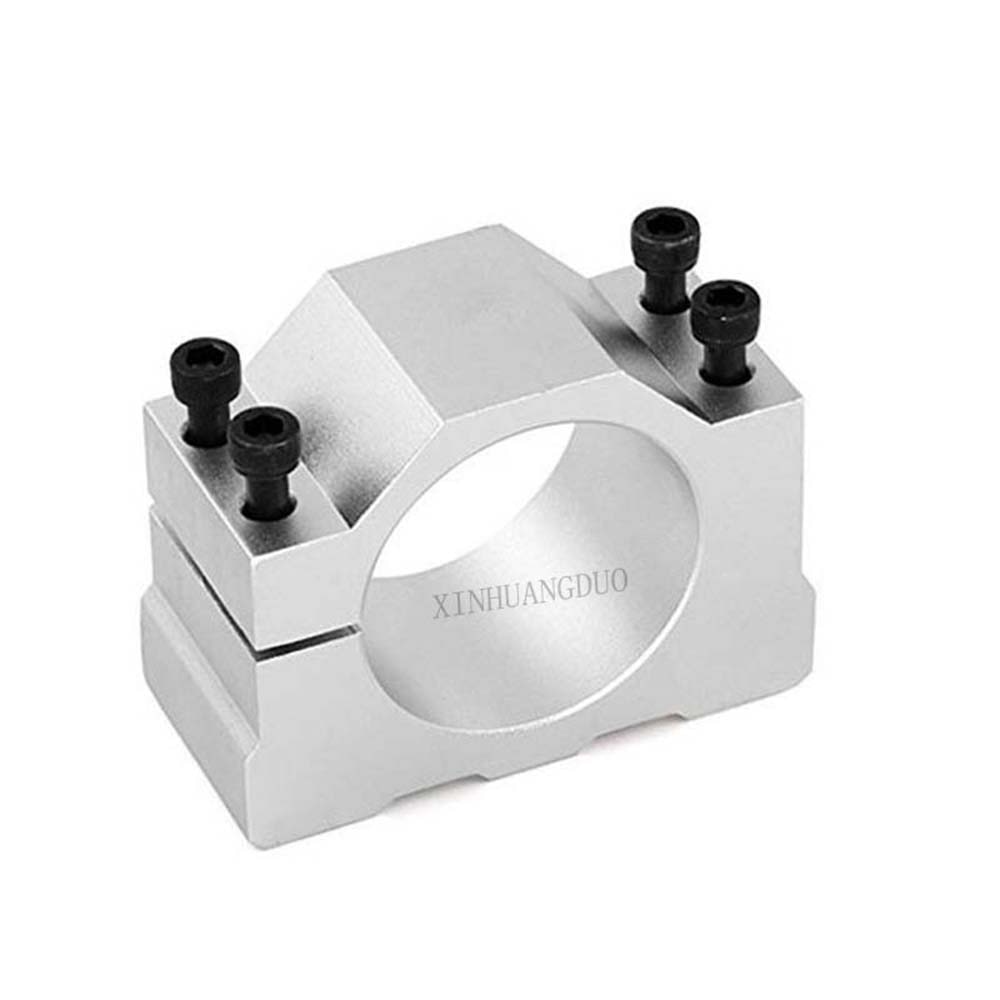

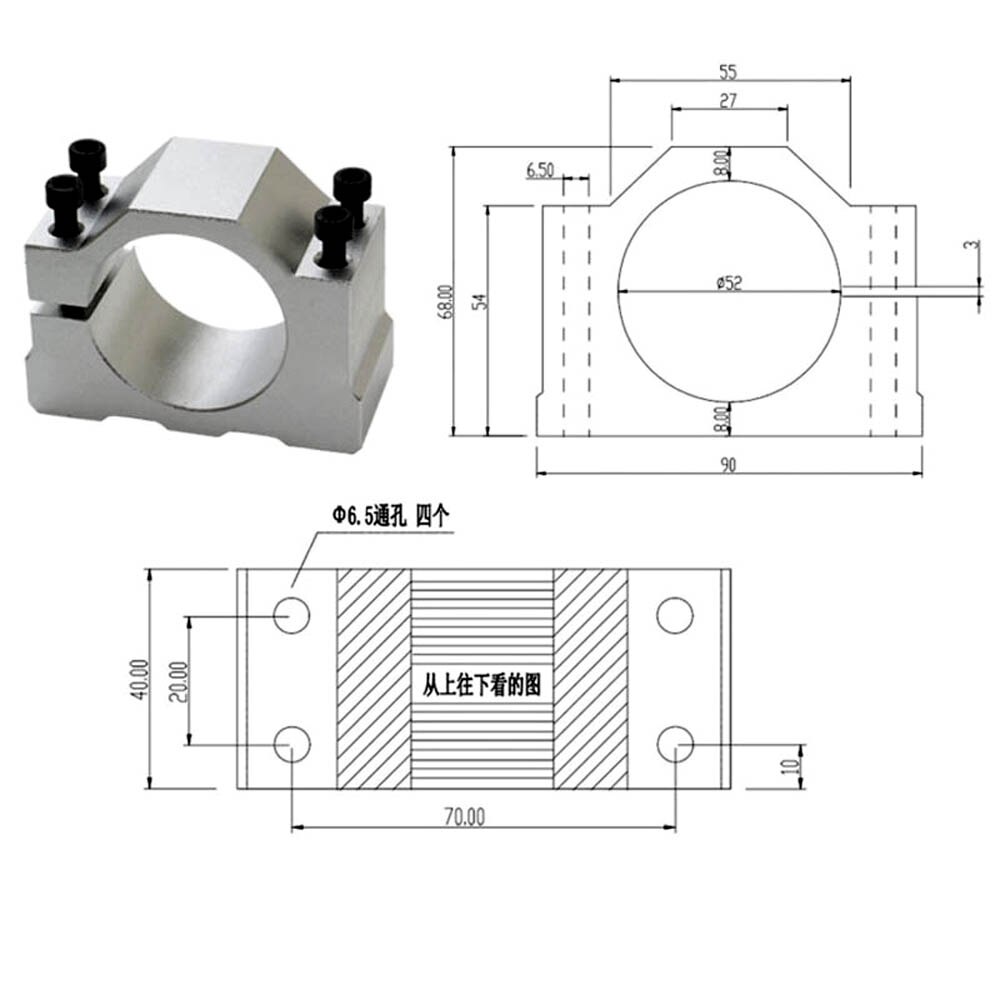

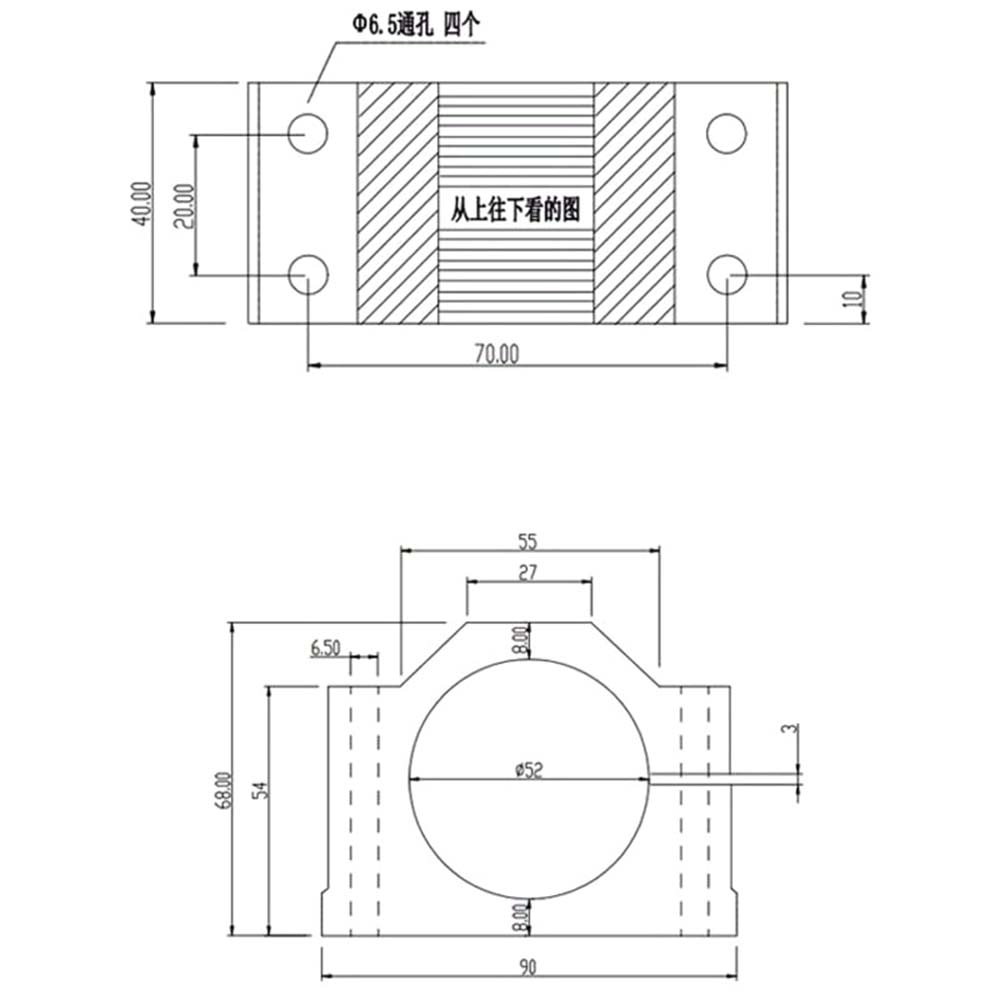

3.52mm clamp :
1x 52mm Mount Bracket+4x Screws
Applicable to: 200W 300w 400w 500w spindle motor
Model: 52mm Spindle motor mount bracket
Diameter: 52mm
Material: Aluminum alloy

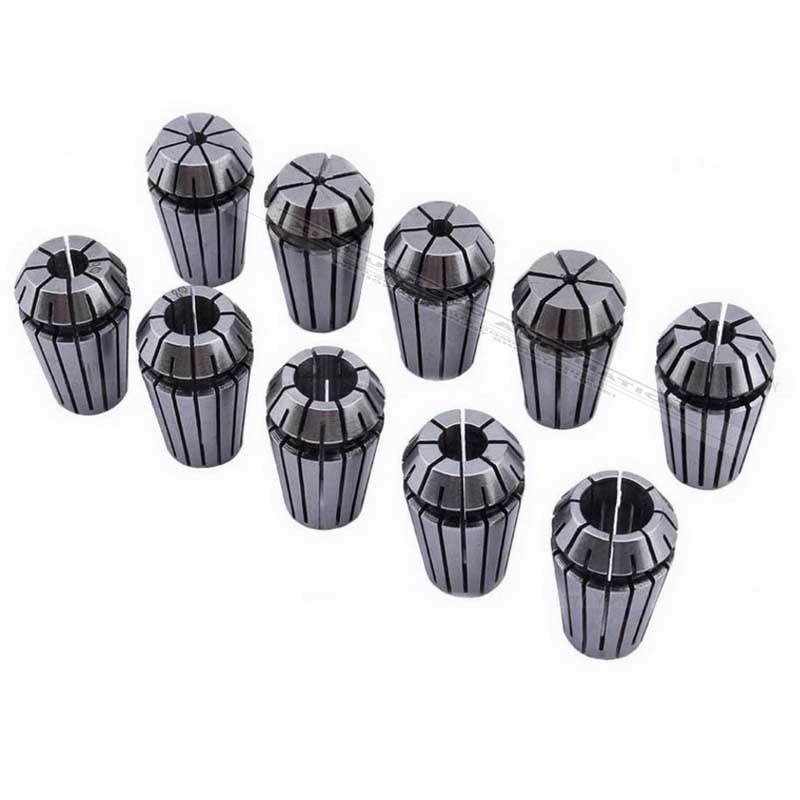

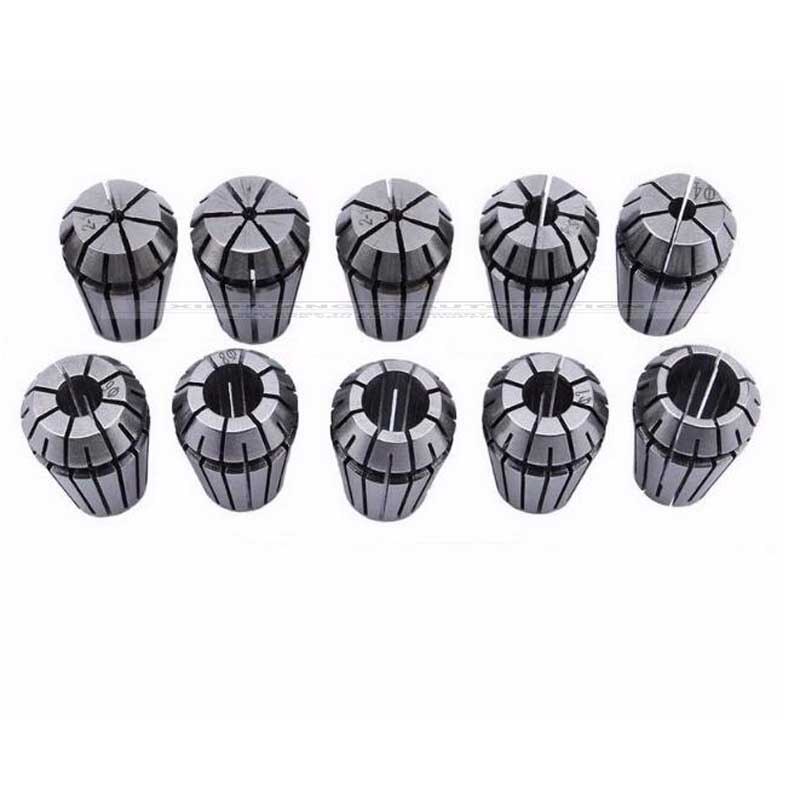

4. 10pcs ER16 collect:

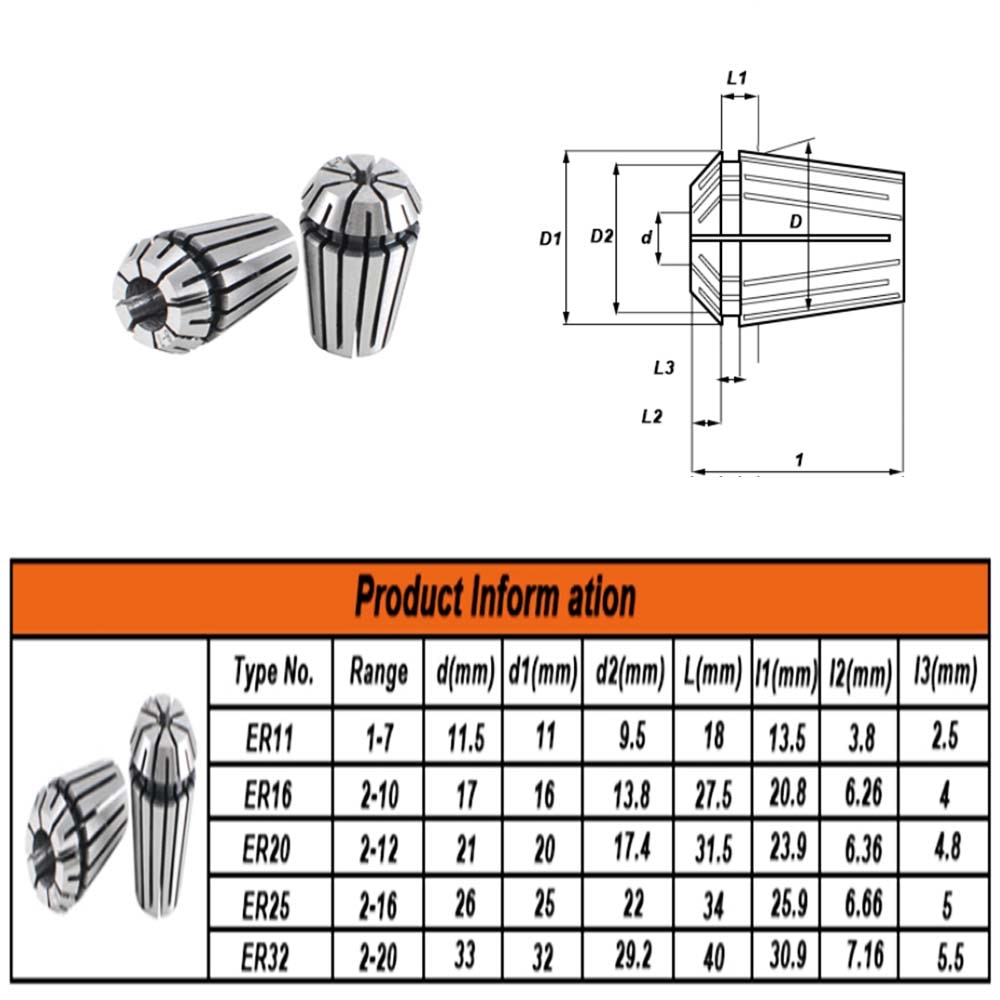

10pcs ER16 Size: 1mm / 2mm / 3mm / 4mm / 5mm /6mm / 7mm/ 8mm/ 9mm/ 10mm
Spindle Motor Parameter:
Condition:NEW
Dc motor: new permanent magnet brush dc motor
Working voltage: 12 to 48 VDC
Speed: 3000-12000 r/min (12 v - 3000 turn, 24 v - 3000, 36 v - 9000 turn, 48 v - 12000 RPM)
Distance: 300 mn. M
Insulation resistance: > 2 ohms
Insulation dielectric strength: 400 v

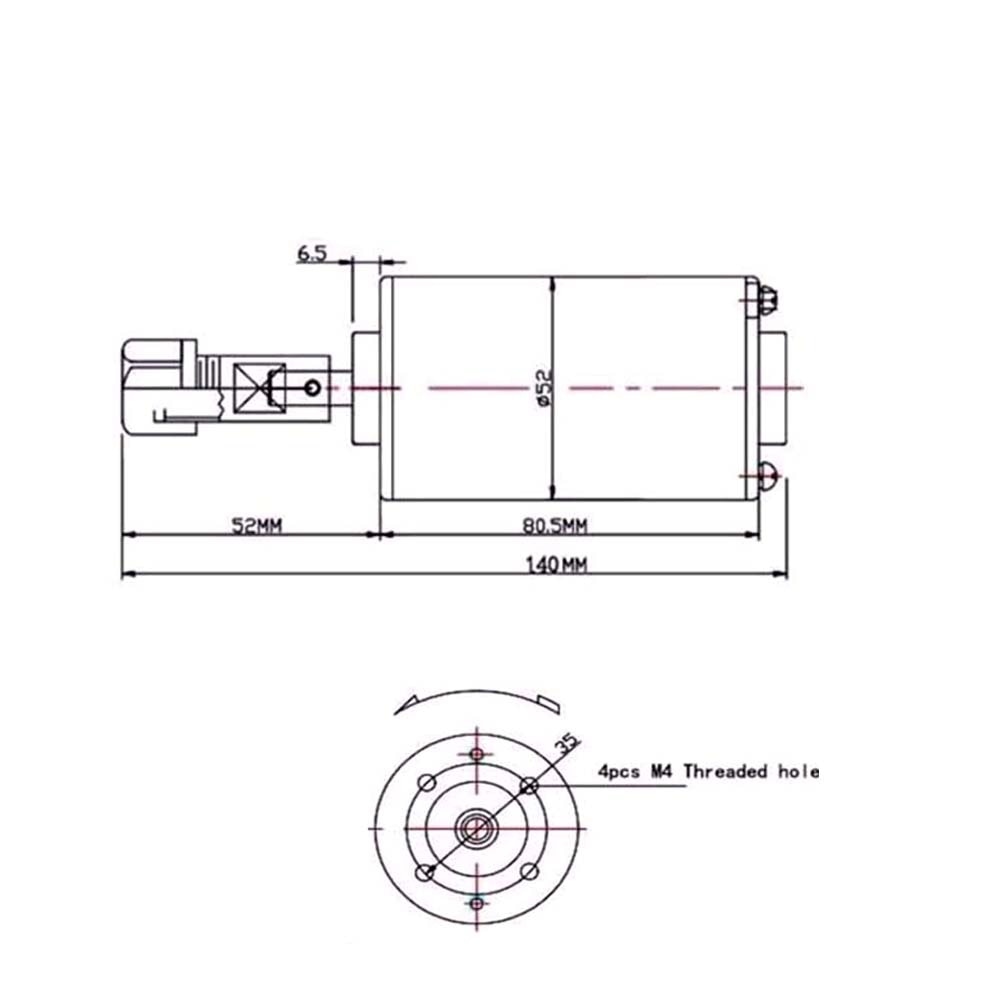

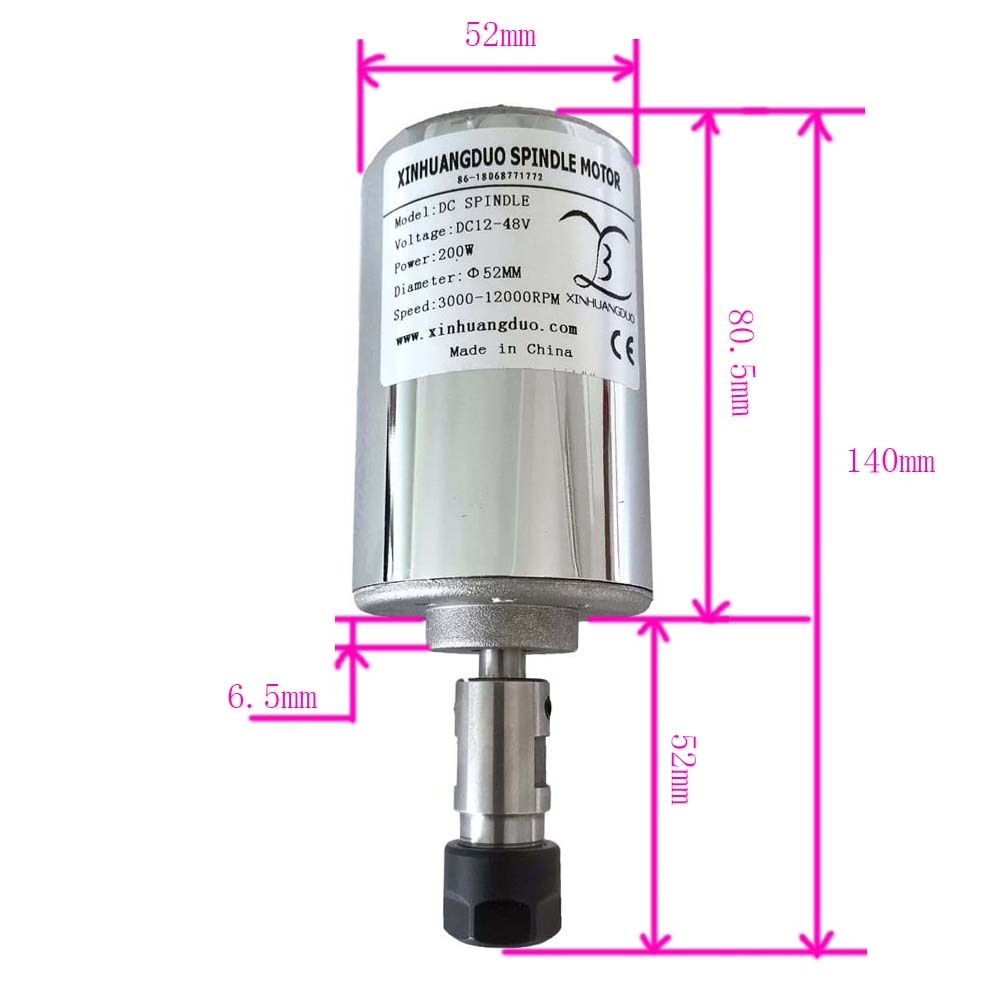

52 mm diameter:
A single motor net weight: 620 g
If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor
Repeat accuracy: 0.01-0.02mm
Spindle Arbor ER16 Arbor Clip (1mm-10mm) Default Hair 8 MM Chuck

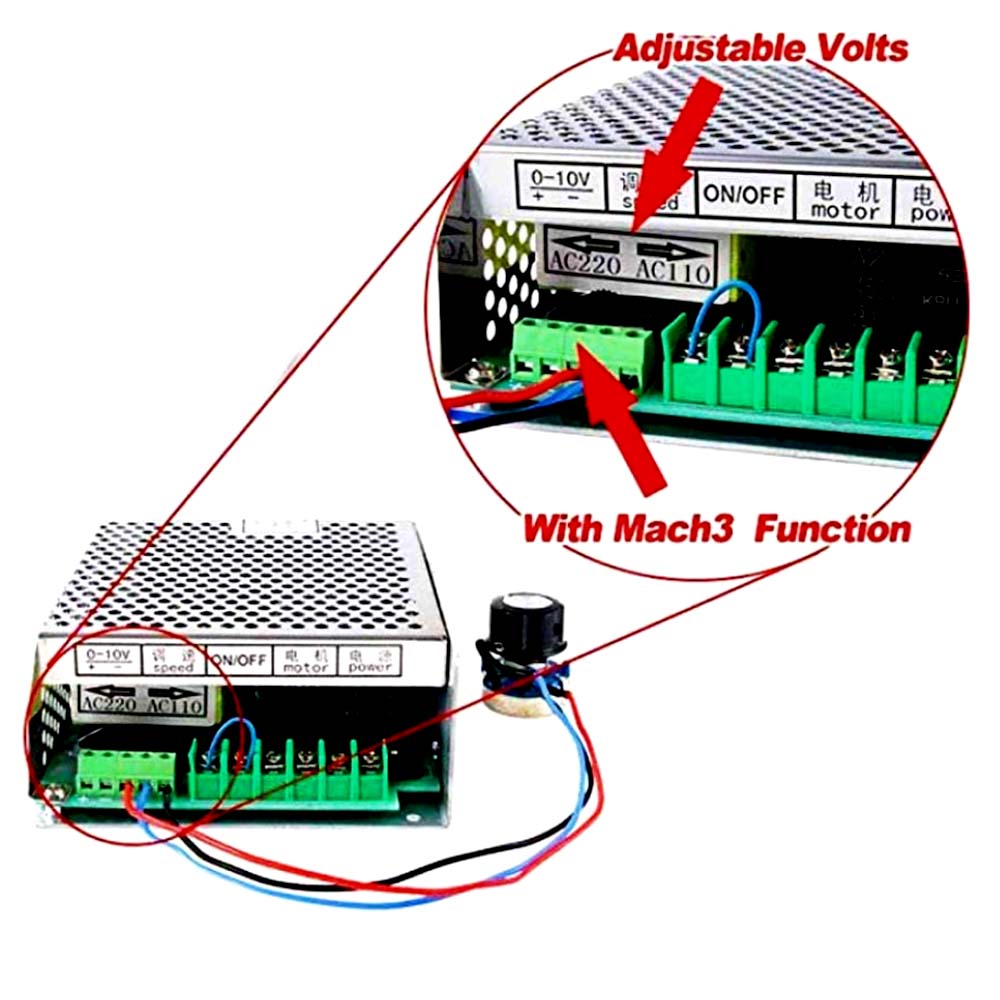

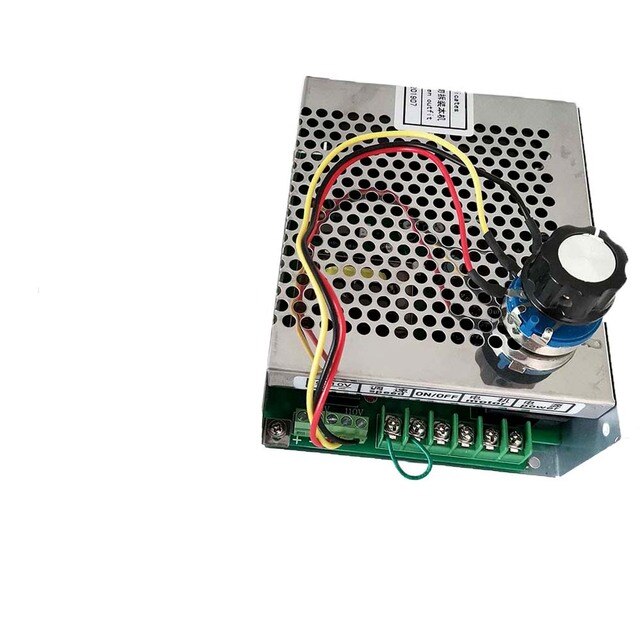

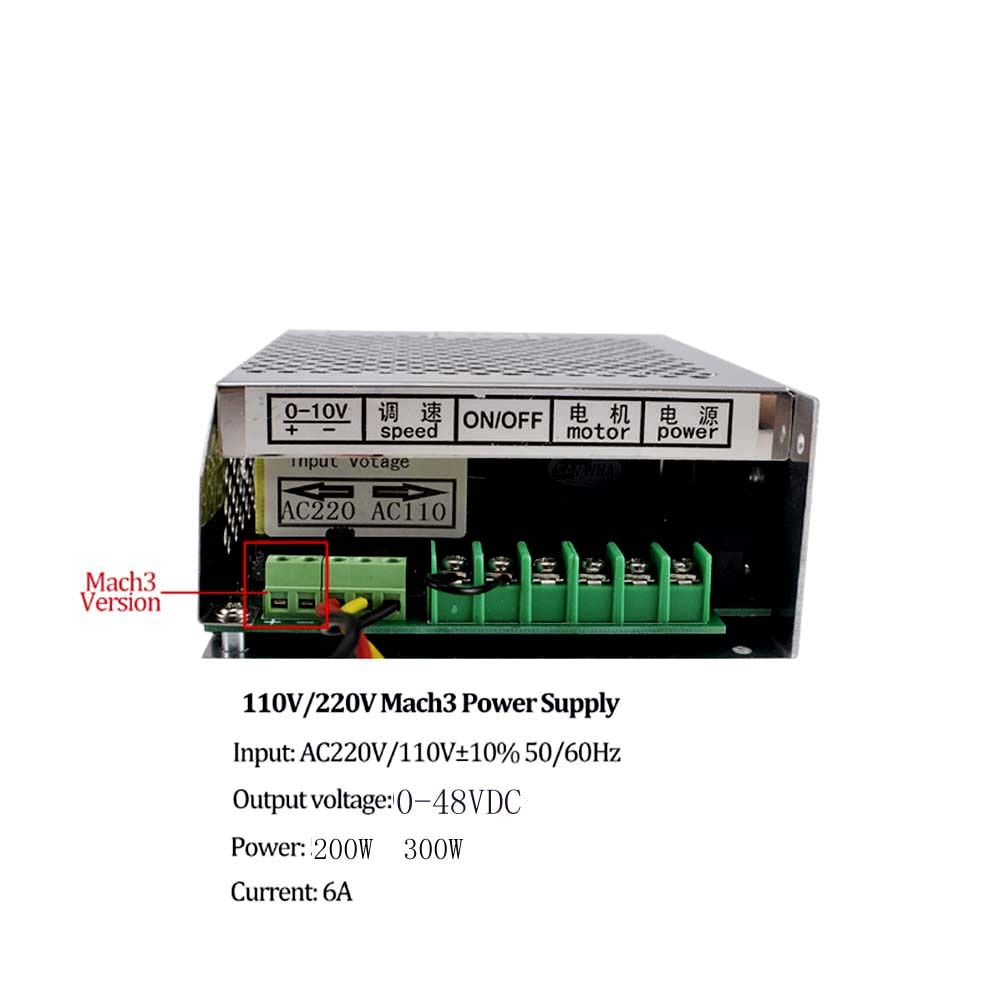

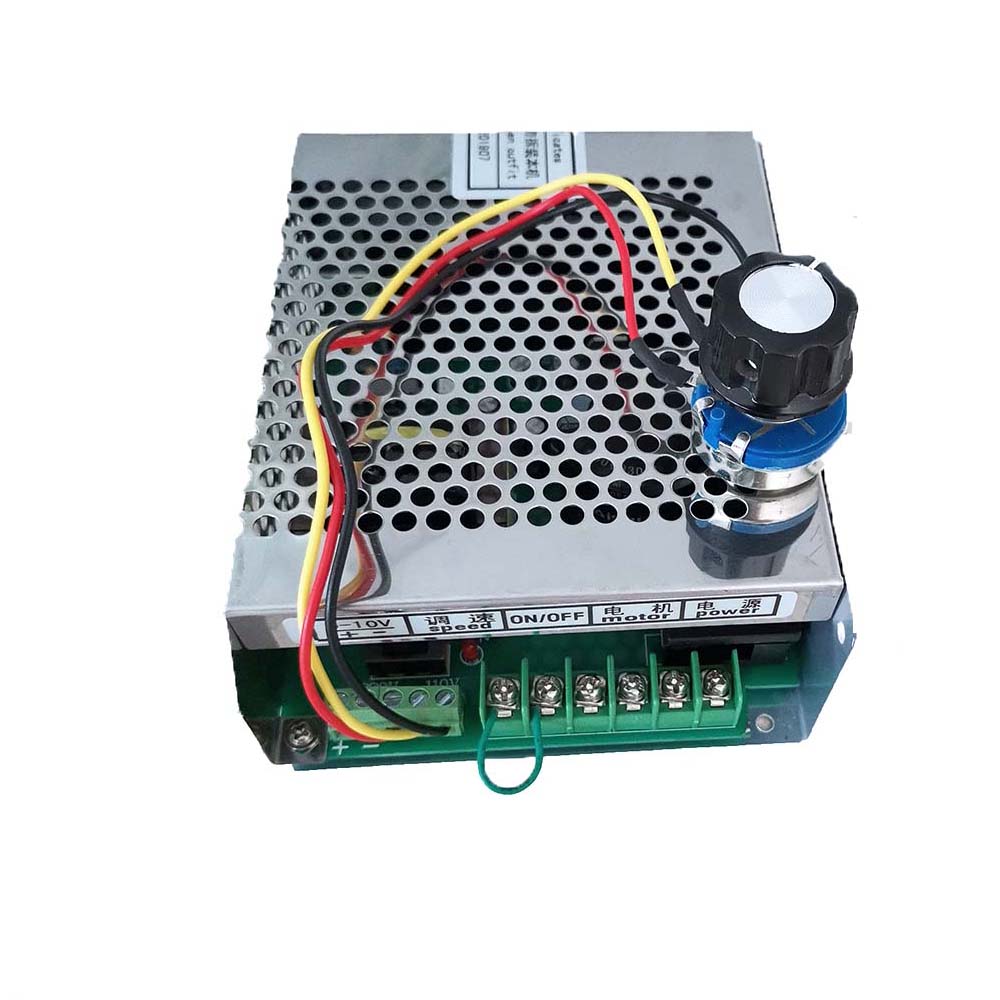

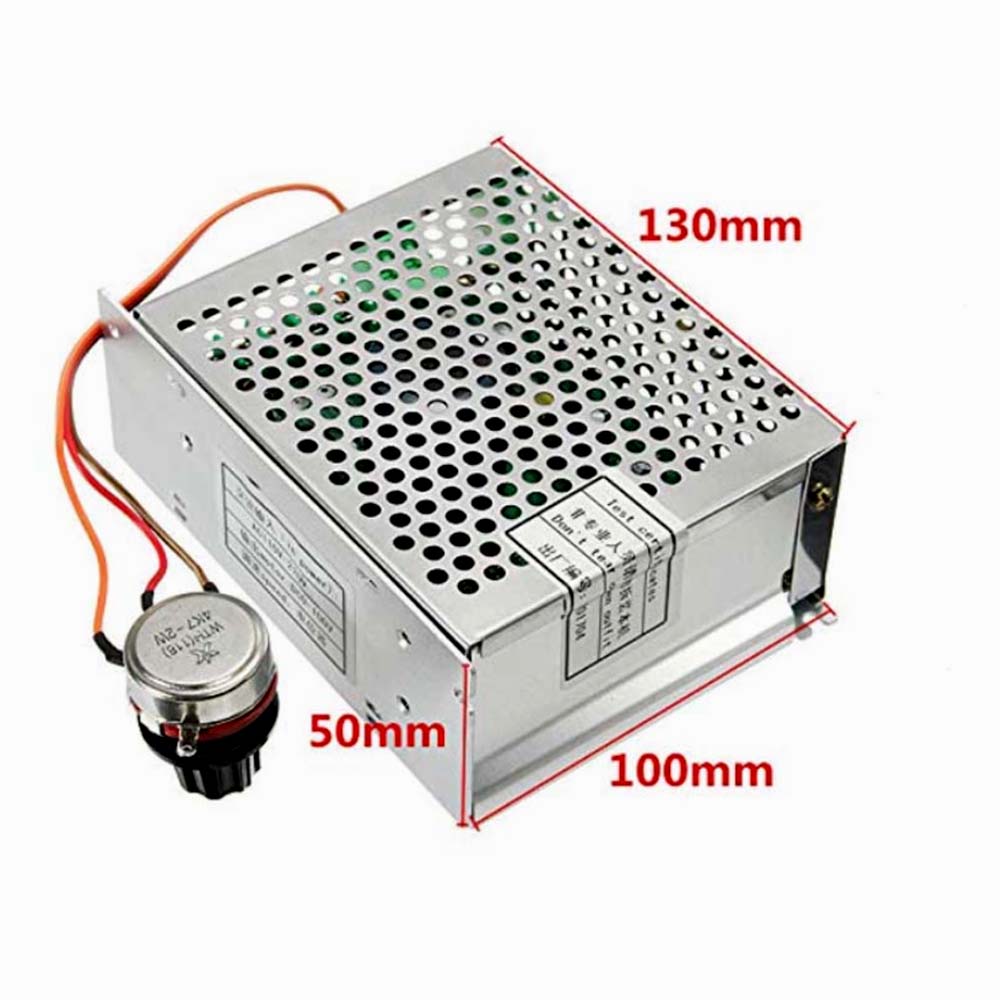

0.2KW Power Supply Speed Governor 200w Spindle Power Supply 110V/220V For DIY Engraving machine tool
Feature:
with speed governor--------------Wasy to control the speed of 300w spindle motor !
1.Input:AC220V/110V ± 10% 50/60Hz (Default )
2,Power :200W
3,Output voltage: 0-48V DC
4,Current: 6A
5. Dimension: L190mm × W105mm × H60mm
6. Controller: Mach3

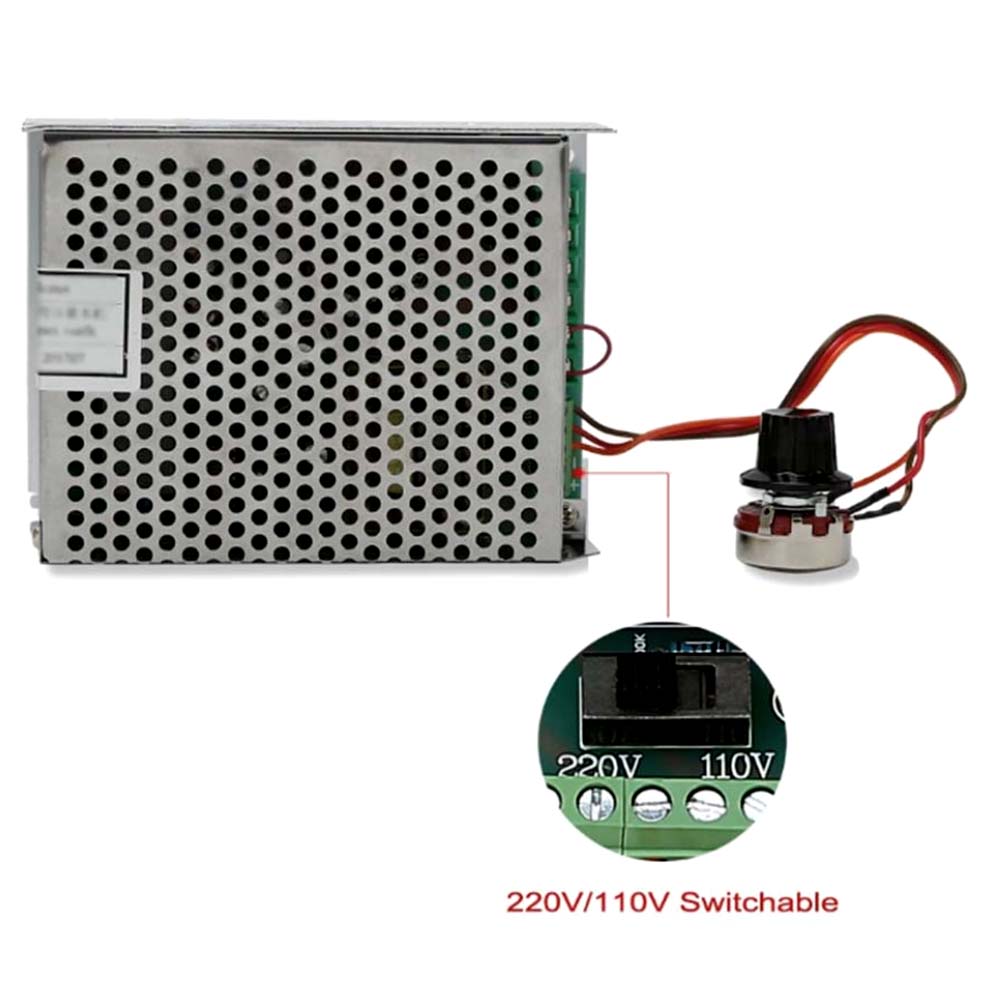

Note: Default AC 220v If you need 110V, please adjust the power supply to 110V. Thanks
Shipping：
Prepare package: We will ship out the items within 1~2 working days after the payment confirmed by Hogaki. We will inform you if we need more time to prepare the items.
Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately.We ship to worldwidebut If your country’s custom is strict, please contact us before you bid to check detail and confirmed.
Payment
We accept credit card,bank TT,western union etc
Payment must be made within 48hours of the auction end time
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility
Contact us
Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again
Customer’s satisfaction is very important to us.
- Operating Speed: 3000-12000r/min
- Maximum Torque: 300mN.m
- Application: Milling
- Model Number: 200W
- Drive: Motor
- Brand Name: XINHUANGDUO
- Certification: CE
- Origin: Mainland China
- Voltage(V): 12-48VDC
- Output Power: 200W
