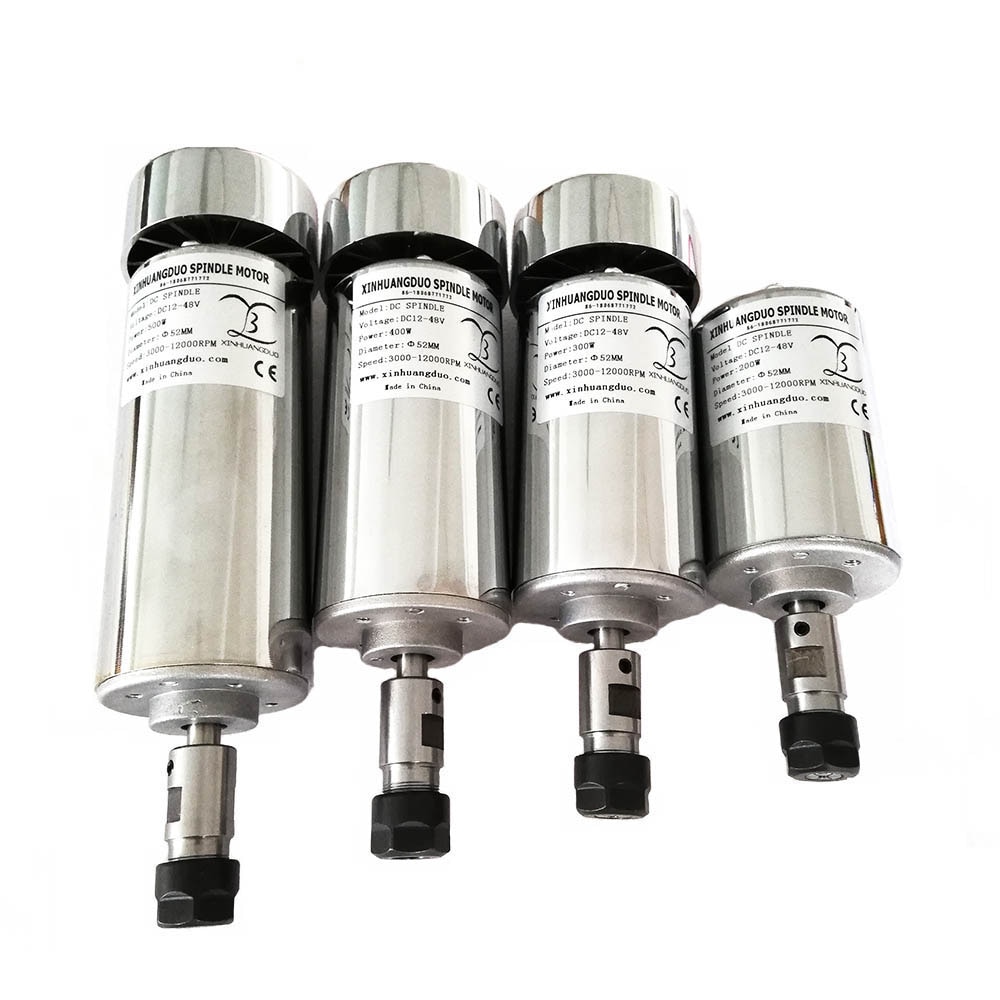

200w/300w/400w/500w Spindle Engraving Machine Spindle Motor Air-cooling cnc Spindle DC Motor CNC Engraving Machine ER11 or ER16
4.8 (24 votes) | 109 orders
Price:
US $104.21 - 148.91
/ piece
Discount Price:
US $
59.81 -
85.48
/ piece
-43%
- Ships From
- Color
-
-
200w/300w/400w/500w Spindle Engraving Machine Spindle Motor Air-cooling cnc Spindle DC Motor CNC Engraving Machine ER11 3.175mm Collets
Package include:

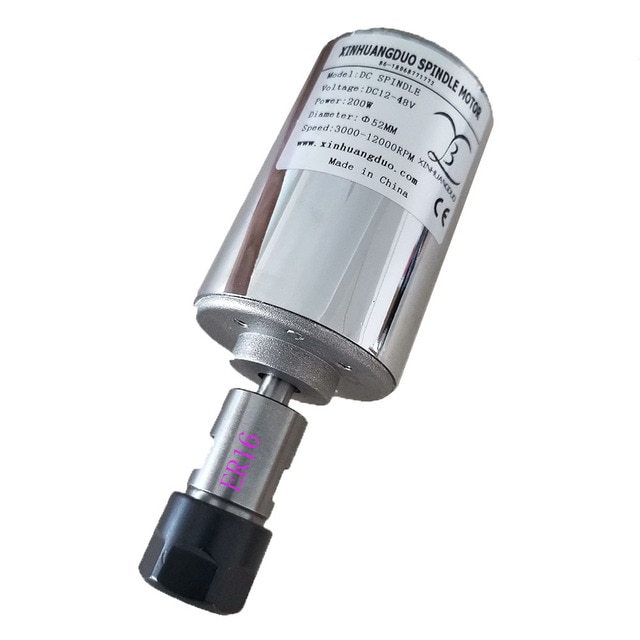

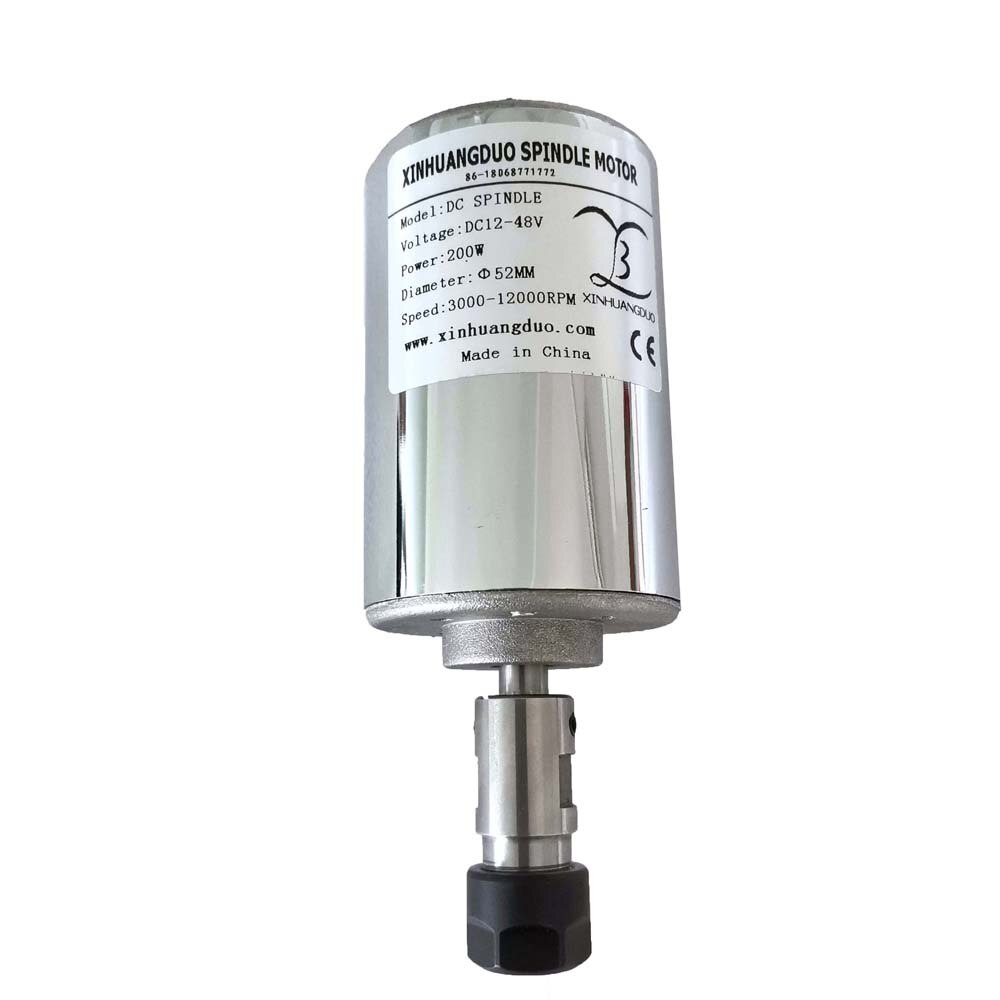

1PCS 200w spindle motor
Feature:
Spindle motor: new DC motor
Operating voltage: 12-48VDC
Power: 200W
Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)
Torque:280mN.m
Insulation resistance: >2 Mohm
Insulation dielectric strength: 400V
Diameter: 52mm
Chuck part length: Arbor part contains nut and sandwich 41MM
Chuck part of the diameter: 16mm (clip default with 3.175MM)

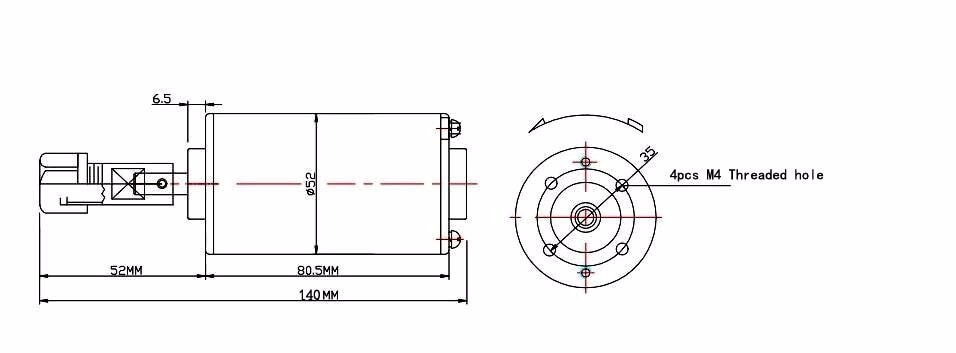

Total length of motor: 141mm (including clamping area and motor)
Spindle radial runout is about 0.01-0.03.
This motor does not have a fan. Do not work continuously for a long time!
A single motor net weight: 620 g
If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor
Display seiz：
Package include:

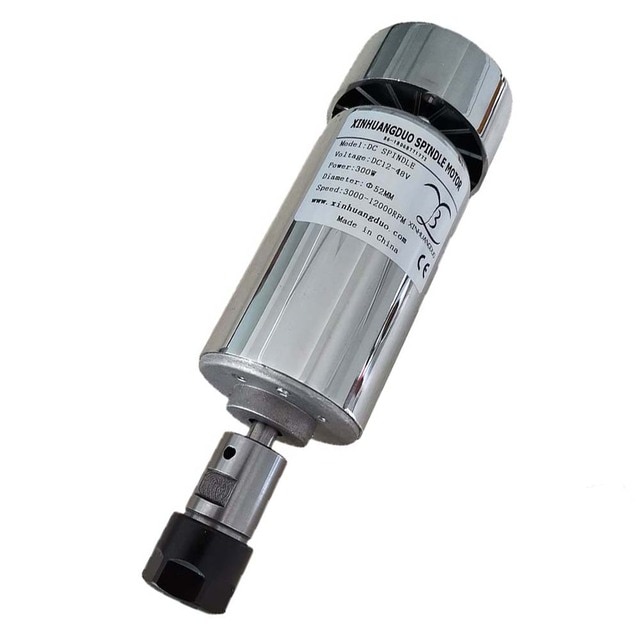

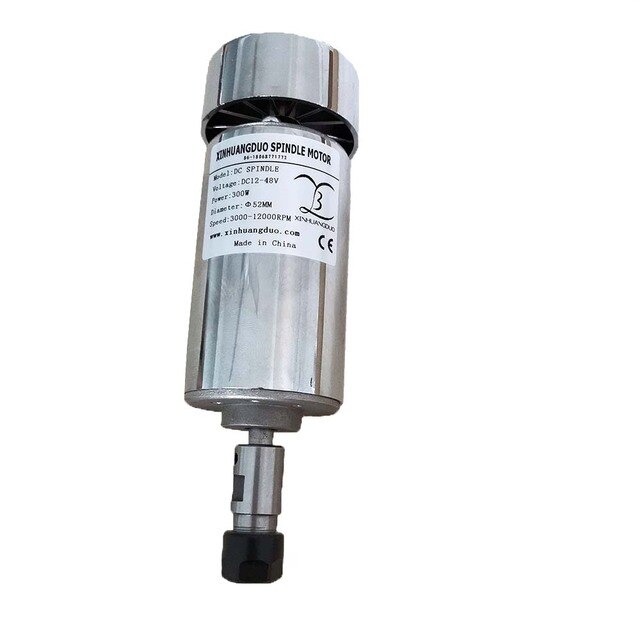

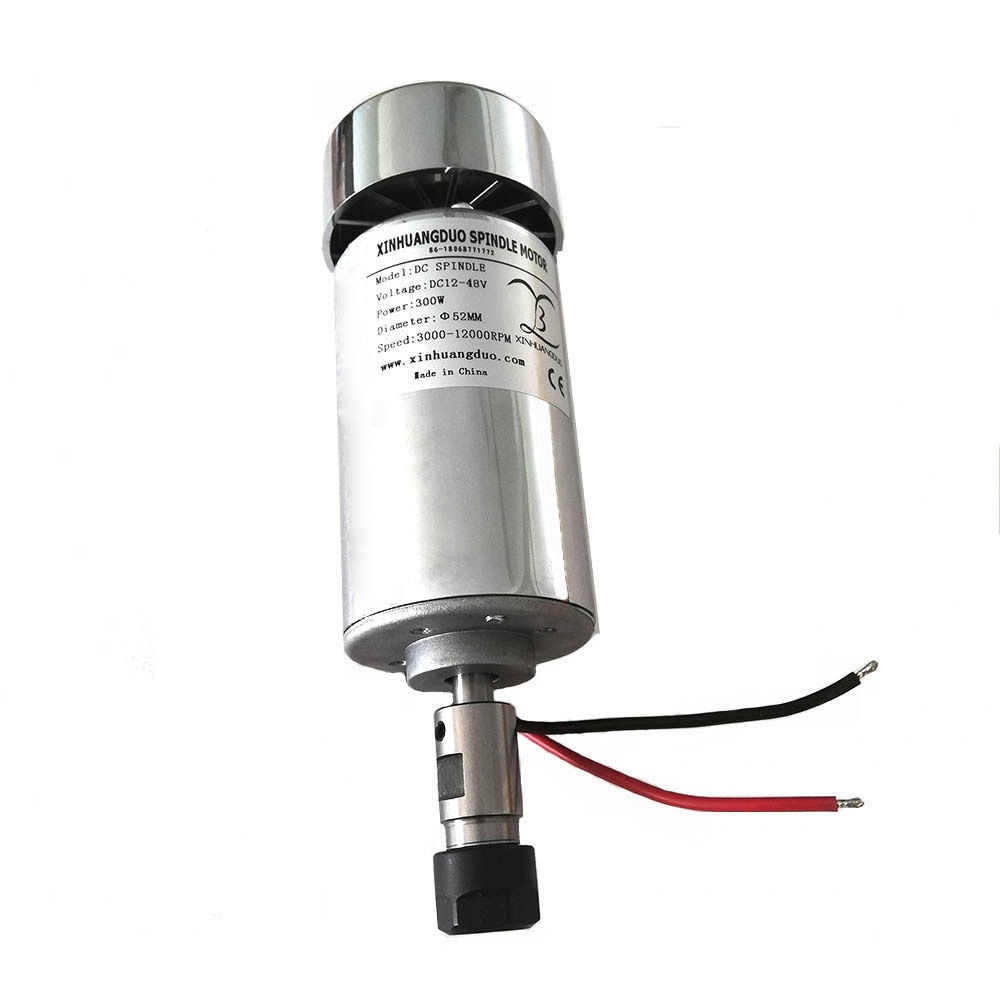

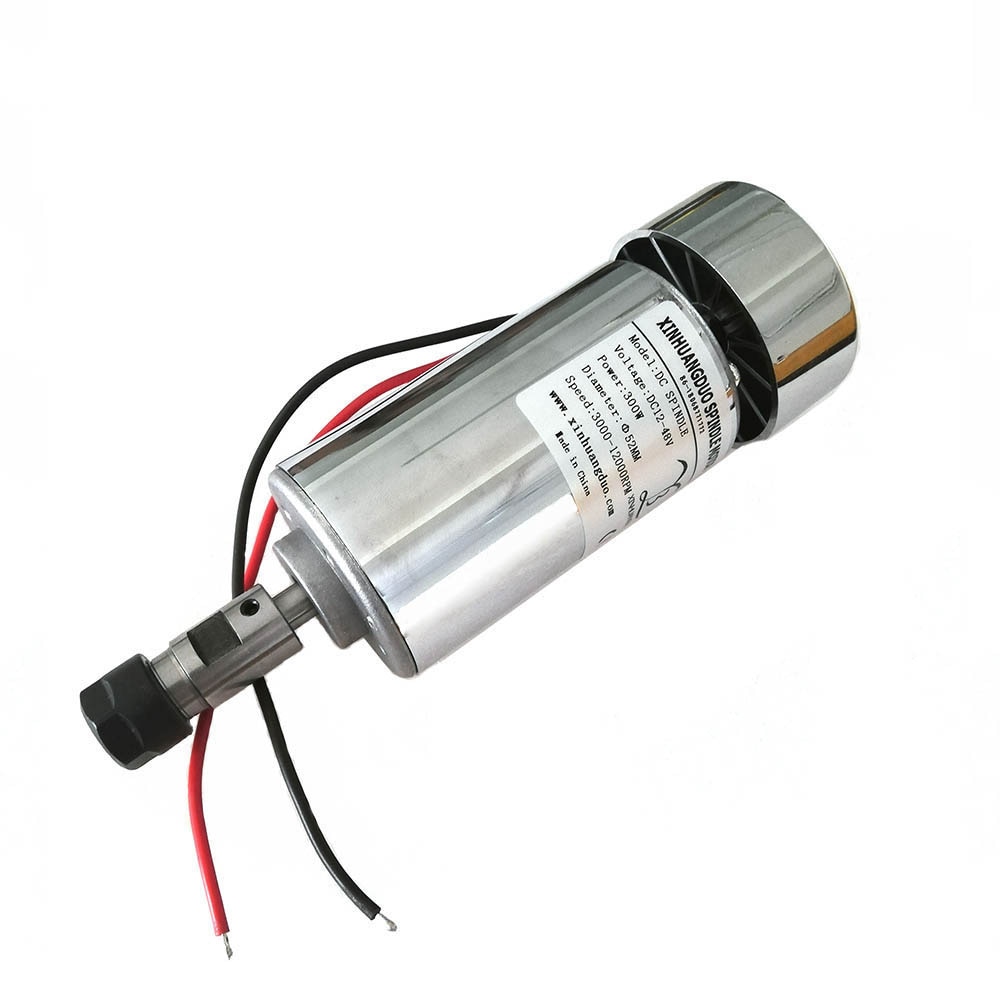

1PCS 300w spindle motor
Feature:
Spindle motor: new DC motor
Operating voltage: 12-48VDC
Power:300W
Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)
Condition:NEW
Model:300w air cooled spindle motor and
Qty:1set 1pcs spindle +ER11-3.175mm
Spindle Motor:
Work voltage: 12-48VDC
Rotation speed: 3000-12000r/min
Power: 300W
Torque:400mN.m
Insulation resistance:>2Megohm
Dielectric strength:400V

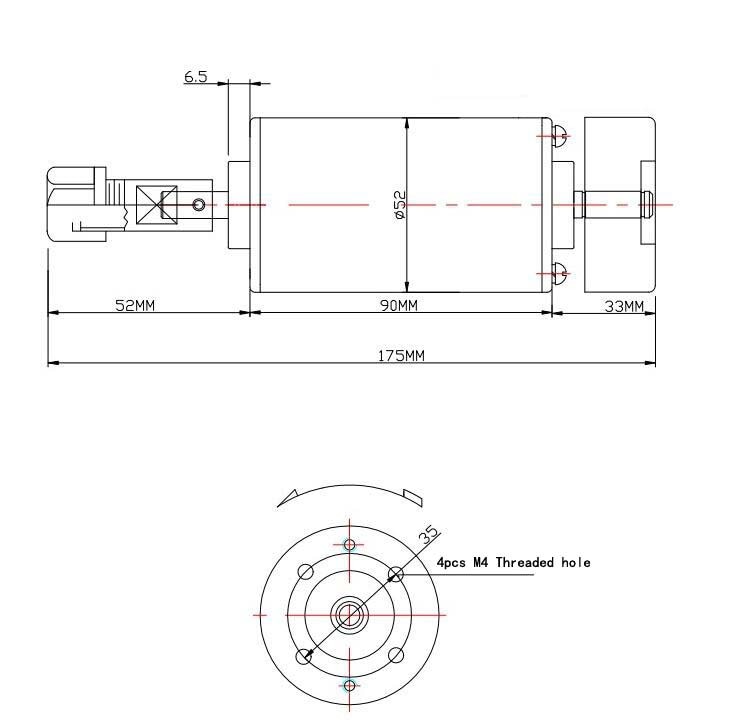

Motor Length : 175mm
Diameter:52mm
Axis collet Length: 48mm
Diameter of Axis collect holder:16mm
ER11 chuck : 3.175
Spindle radial runout is about 0.01-0.03.
If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor
Package include:

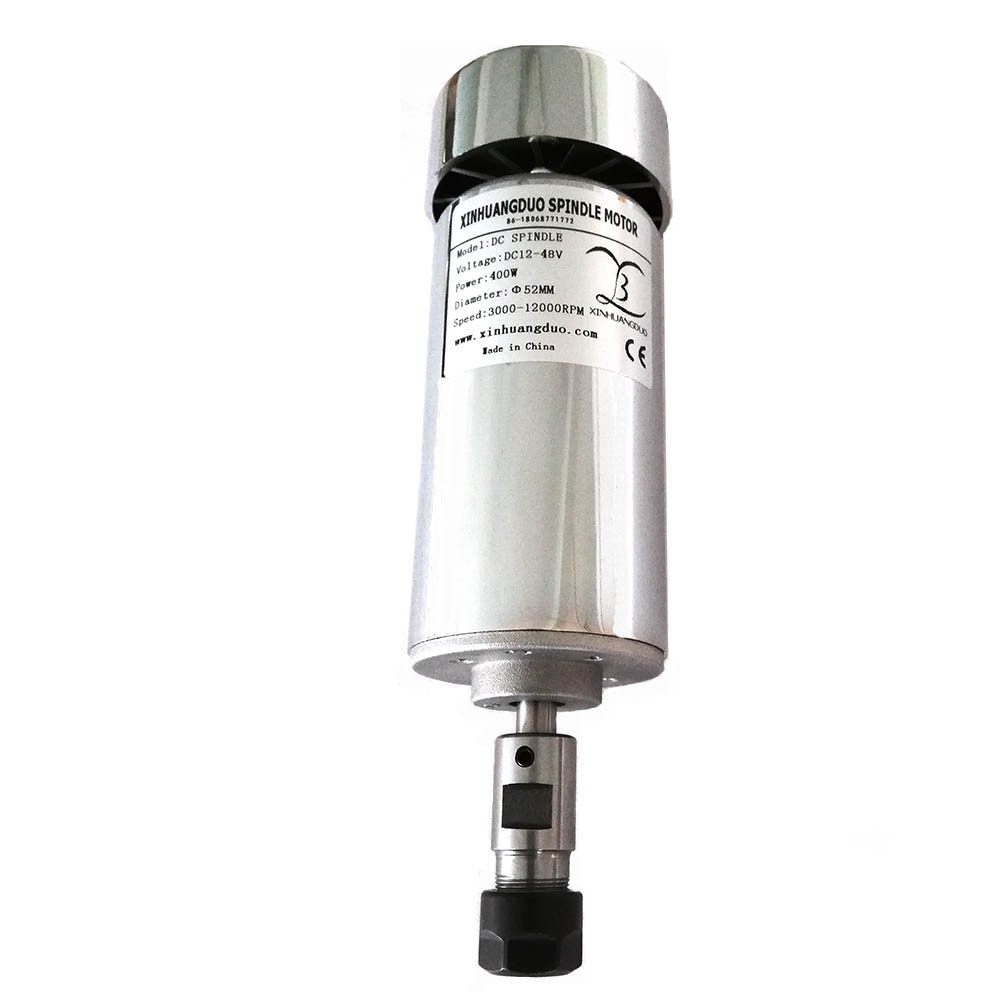

1PCS 400w spindle motor
Feature:
Spindle motor: new DC motor
Operating voltage: 12-48VDC
Power:400W
Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)
Condition:NEW
Torque:500mN.m
Insulation resistance:> 2 megohms
Dielectric strength: 400V
Diameter: 52mm
Chuck Part Length: Arbor parts 35mm, (including nuts and sandwich 43mm)
Part chuck diameter: 16mm

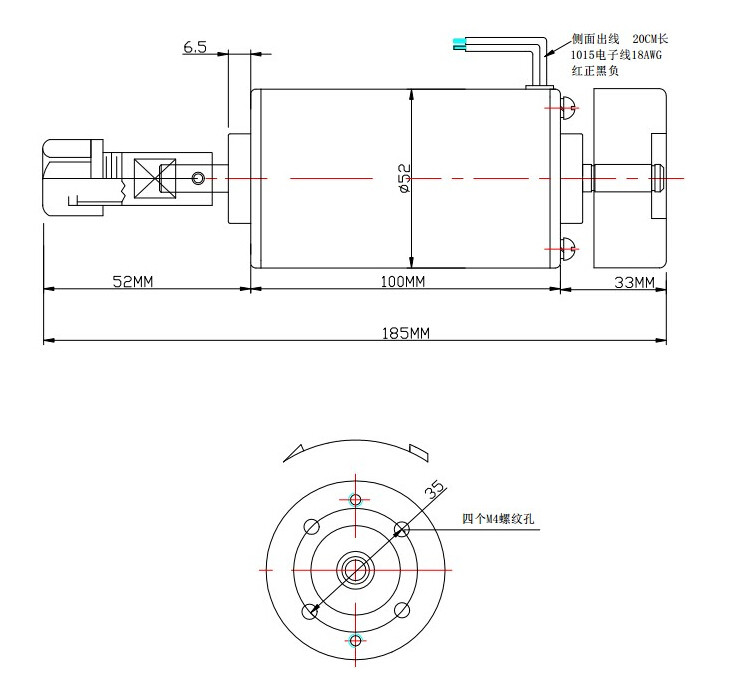

Motor length: 185mm (including gripping parts and motor)
Spindle runout of about :0.01-0.03.
Can be used for engraving metal or non-metal and other materials.
Spindle radial runout is about 0.01-0.03.
If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor
Package include:

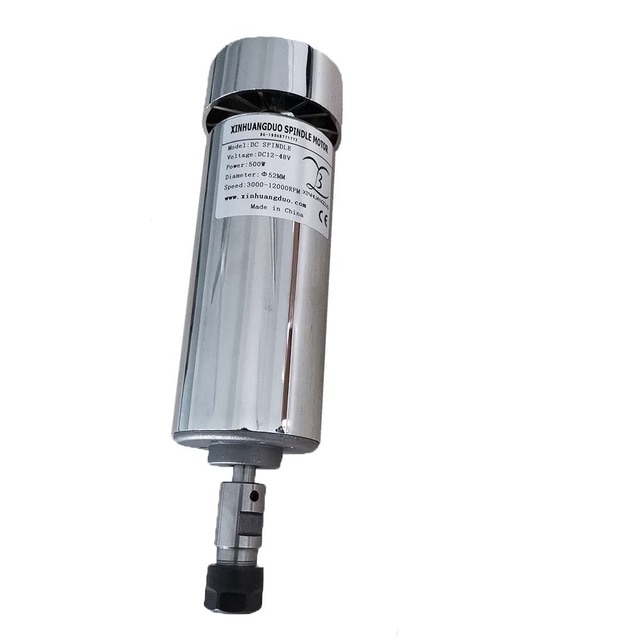

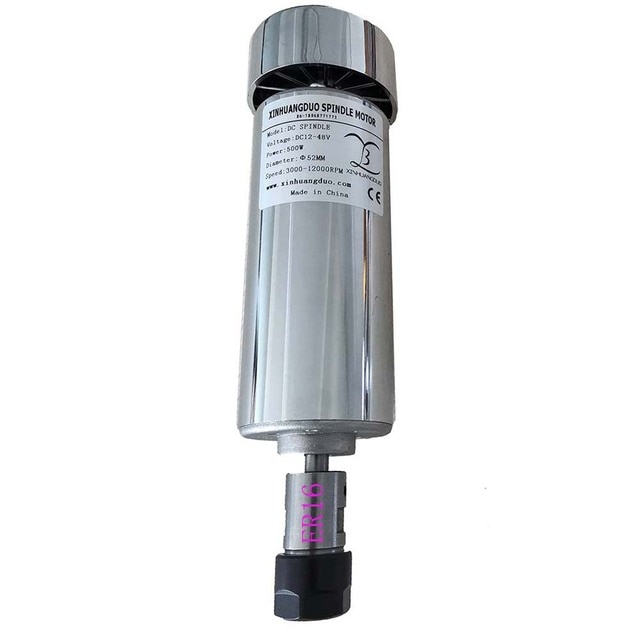

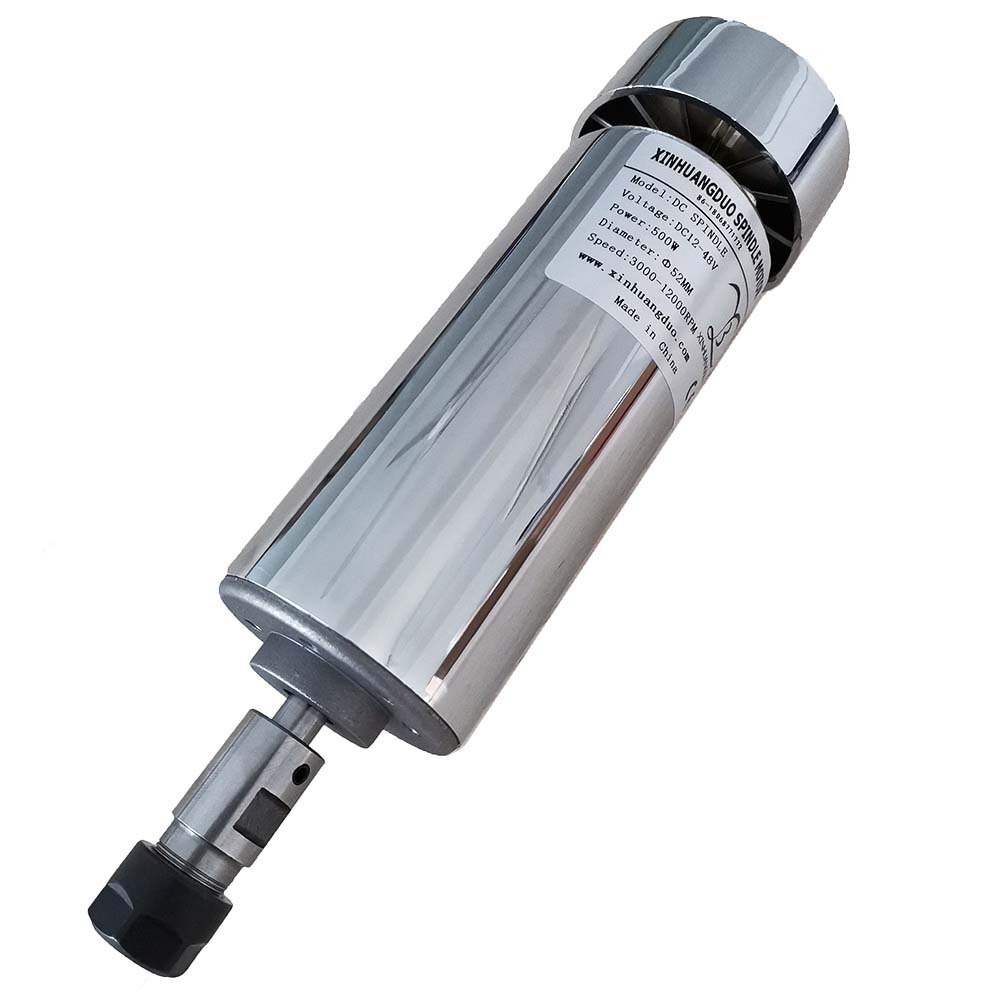

1PCS 500w spindle motor
Feature:
Spindle motor: new DC motor
Condition:NEW
Working voltage :12-48VDC
Power: 500W
Speed :3000-12000RPM (12v-3000rpm,24V-6000rpm,36V-9000rpm .48V-12000rpm)
Torque:550mN.m
Insulation resistance:> 2 megohms
Dielectric strength: 400V
Diameter: 52mm

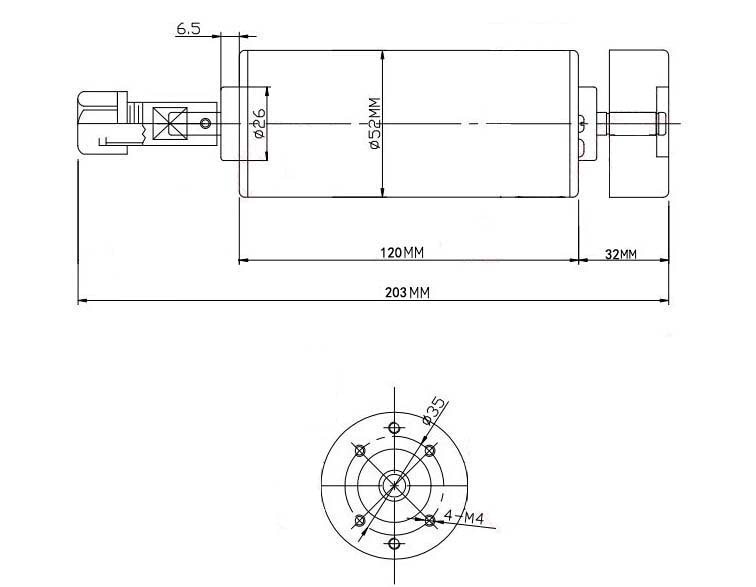

Motor length: 203mm (including gripping parts and motor)
Spindle runout of about :0.01-0.03.
Can be used for engraving metal or non-metal and other materials.
Spindle radial runout is about 0.01-0.03.
If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor
Our company is focused on providing CNC /3D PRINTER parts and accessories. We have our own cnc processing plant, and cooperate with some other factories, this will help control costs and ensure quality.
make your China sourcing work more convenient and efficient!
Shipping：
Prepare package: We will ship out the items within 1~2 working days after the payment confirmed by Hogaki. We will inform you if we need more time to prepare the items.
Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately.We ship to worldwidebut If your country’s custom is strict, please contact us before you bid to check detail and confirmed.
Payment
We accept credit card,bank TT,western union etc
Payment must be made within 48hours of the auction end time
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility
Contact us
Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again
Customer’s satisfaction is very important to us.
- Operating Speed: 3000-12000r/min
- Maximum Torque: 300mN.m
- Application: Milling
- Model Number: 200W 300W 400W 500W
- Drive: Motor
- Brand Name: XINHUANGDUO
- Origin: Mainland China
- Certification: CE,RoHS
- Voltage(V): 12-48VDC
- Output Power: 200W 300W 400W 500W
