2000W/4000W High Power Thyristor Electronic Voltage AC 220V Regulator Dimming Speed Temperature Regulation with Insurance Shell
4.6 (21 votes) | 301 orders
Price:
US $15.27 - 22.72
/ piece
Discount Price:
US $
13.69 -
19.71
/ piece
-10%
- Color
-
-

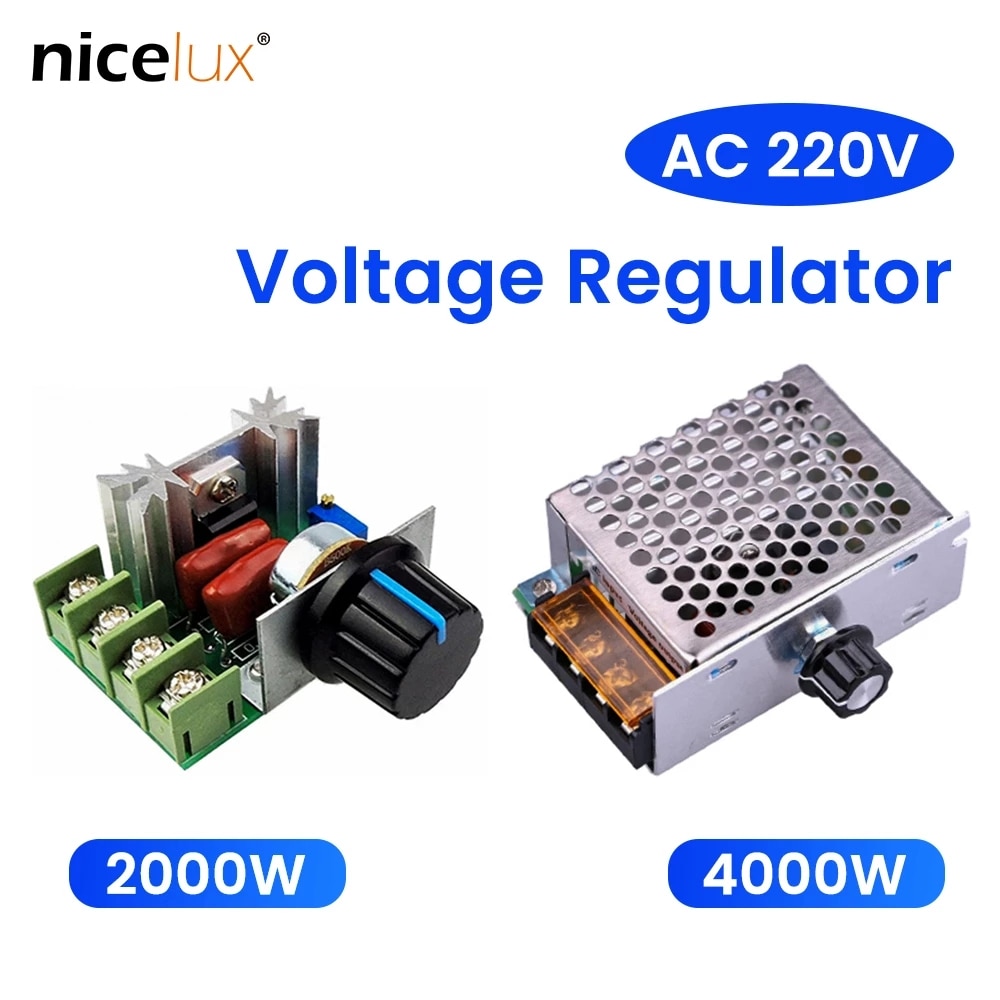

2000W/4000W High Power Thyristor Electronic Voltage AC 220V Regulator Dimming Speed Temperature Regulation with Insurance Shell
Note:You must first connect the load and then adjust the voltage. For the first time use, adjust the potentiometer counterclockwise to the end before powering on. Otherwise, it is connected to a load with a small resistance heating wire. It is easy to burn out the thyristor at the moment of power-up. It is mainly used for resistive loads (electric filament incandescent lamp, etc.). Most single-phase AC motors are also available, but they are not guaranteed. Please confirm the load by the buyer. The fuse is not omnipotent, there is a reaction time, if the current is too large, in addition to burning the fuse, the module may also burn out.
Note
:
The plastic cover on the connector cannot be fully opened due to the installation of the shell. The screwdriver must be twisted on the side. Be careful when opening it. Excessive force may easily break the cover. Express delivery may also be damaged. It is a wearing part. However, it will not affect the use of the module. Any problems related to the plastic cover will not be responsible for the return.
Specification:
Operating voltage: AC 220V
Maximum power: 2000W / 4000W
Voltage regulation: AC 110-220V

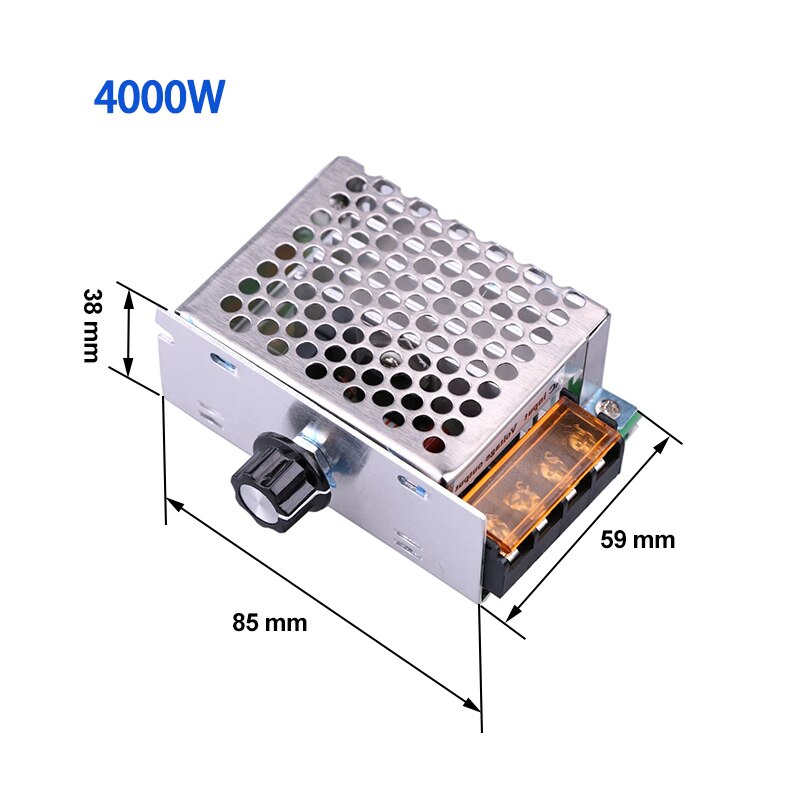

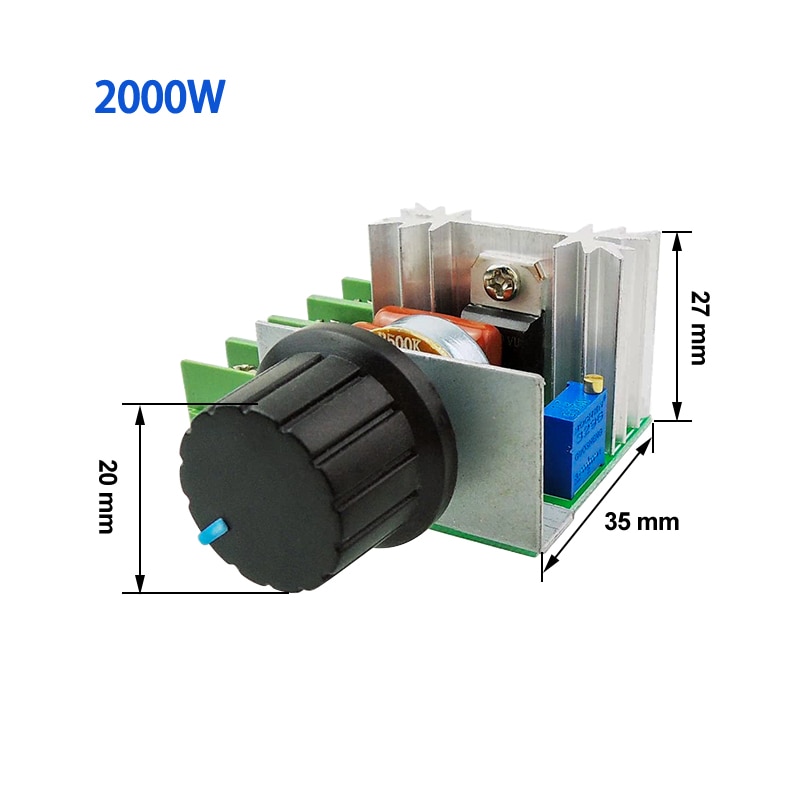

External dimensions: 60mm * 48mm * 28mm (2000W), 85mm * 55mm * 38mm (4000W)
Maximum power: 2000W / 4000W (resistive load limit power), the power should be reduced for a long time
Efficiency: 90% or more
Thyristor withstand voltage up to 1200V / current 25A
1.6mm thick epoxy copper clad laminate
The voltage regulator has a peak voltage absorption circuit to effectively protect the high-power thyristor, which has a longer life and is more durable.
Use Instructions:

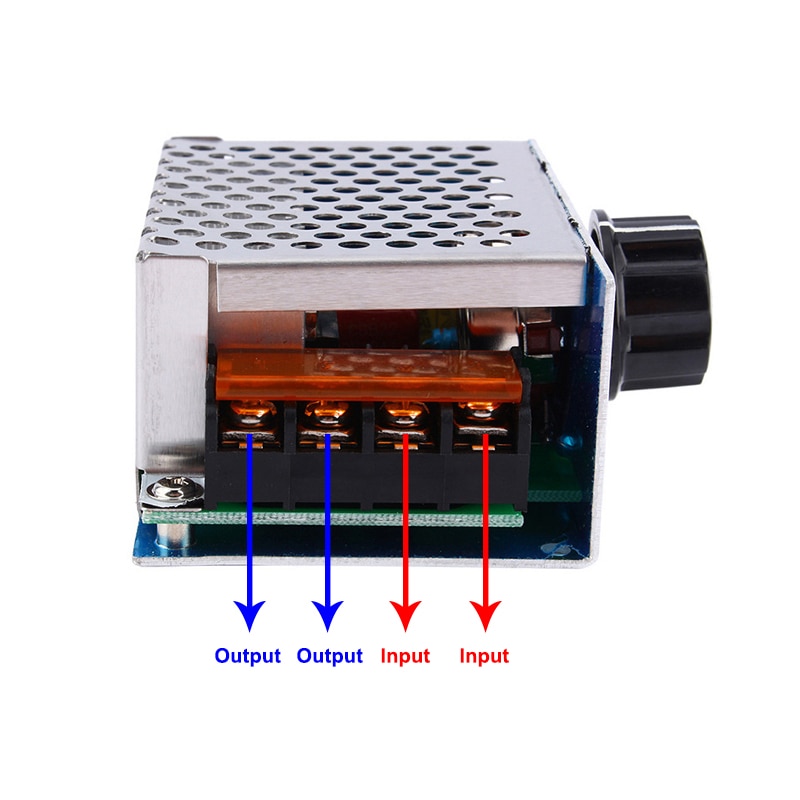

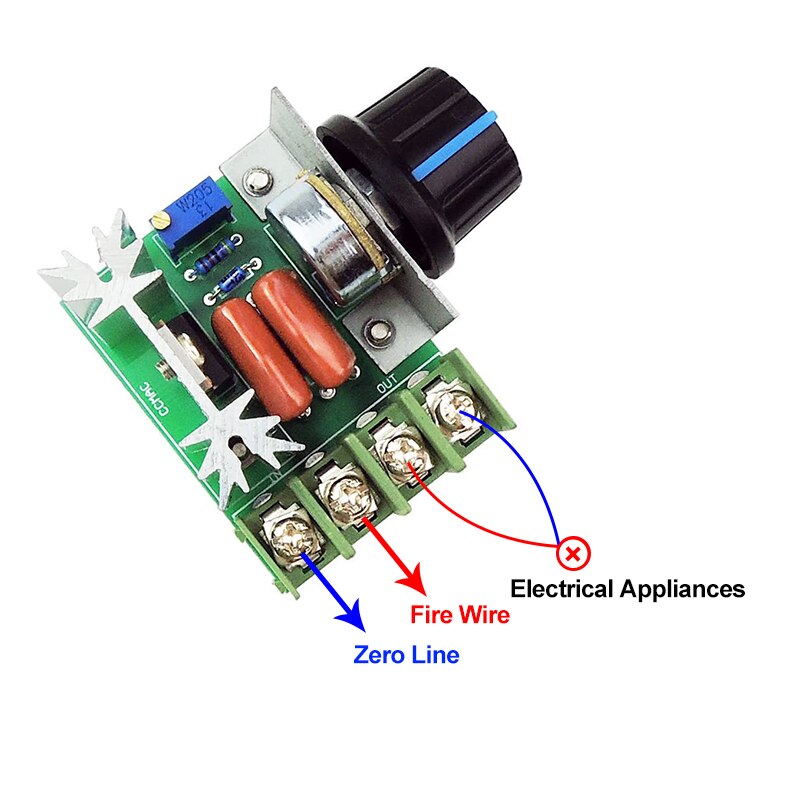

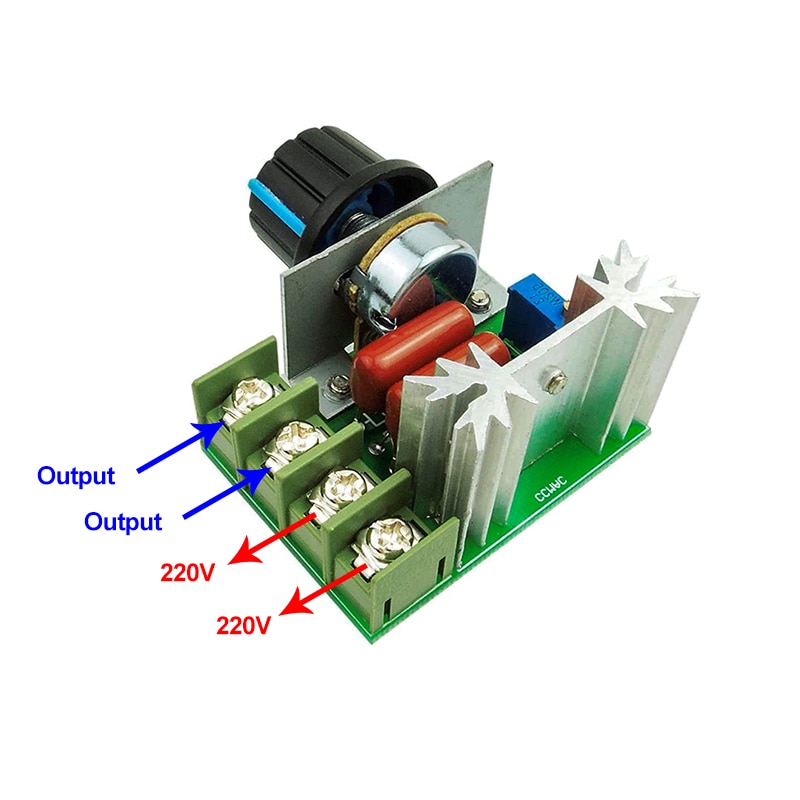

Connect this product in series to the circuit of the table lamp or the electrical appliance (ie disconnect any one of the live or neutral wires from the table lamp, the electrical appliance, etc., and connect the two wires of this "product".) It can play the role of light and dark adjustment, speed adjustment, pressure adjustment and temperature adjustment; it is very convenient to use.
This product is suitable for: the use of new bidirectional high-power thyristor, because the current can reach 25 amps, it solves the problem of overcurrent caused by the resistance of the electric furnace wire is too small under cooling; it can easily adjust the city power The output voltage can be adjusted arbitrarily between 0 and 220 volts for electrical appliances. Such as: electric stove, water heater heat adjustment, lamp dimming, small motor speed adjustment, electric iron temperature adjustment, etc. So as to achieve the effects of dimming, temperature adjustment, and pressure adjustment. It is available for large appliances with a power consumption of less than 2000 watts. Because the power is already very large, general household appliances or small factories are sufficient. (Inductive or capacitive load power should be reduced. This voltage regulator is equipped with a bidirectional high-power thyristor. The potentiometer is equipped with a nut, which can be used without adding any components. It is very convenient and practical).
Package Includes:
1xElectronic Voltage Regulator(2000W/4000W)
- is_customized: Yes
- Usage: SVC
- Model Number: E5
- Current Type: AC
- Phase: single phase
- Origin: Mainland China
- Certification: NONE
