Note: Bimetal saw blades cannot be welded, metal cutting saw blades cannot be welded, and alloy saw blades cannot be welded.

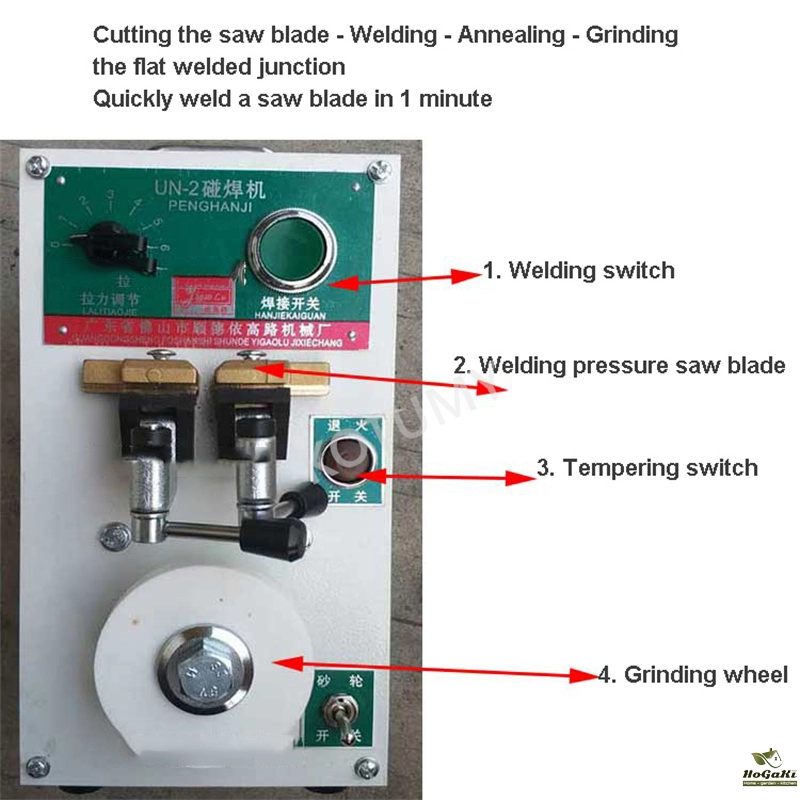

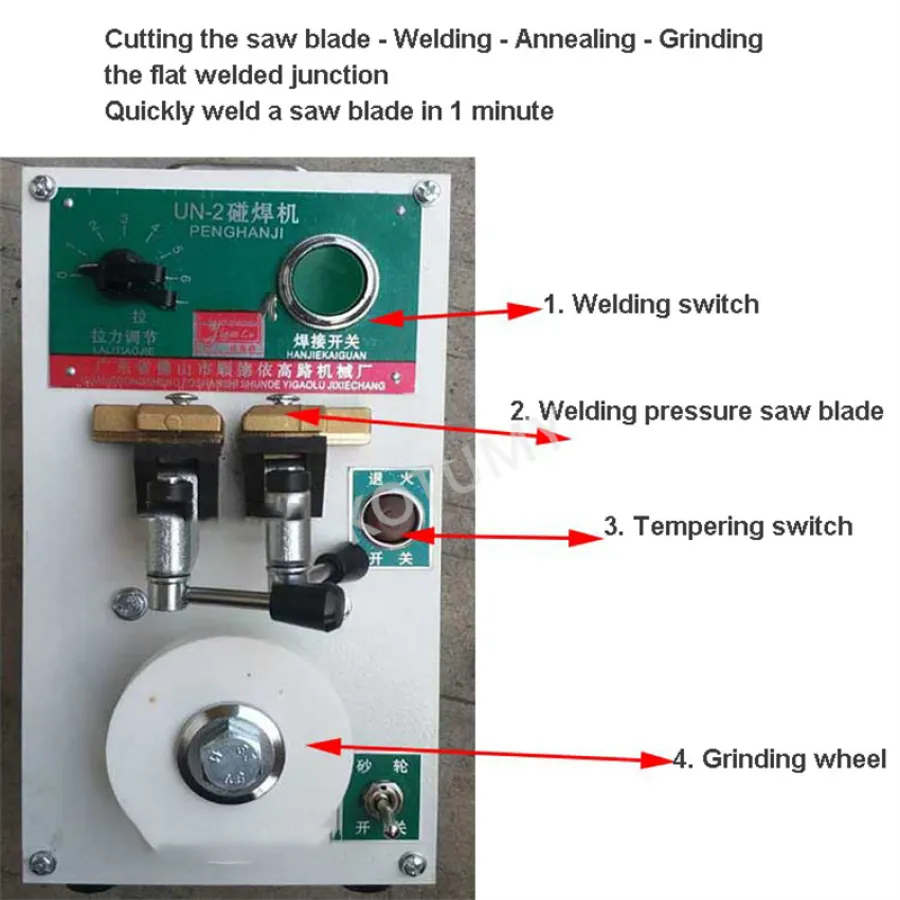

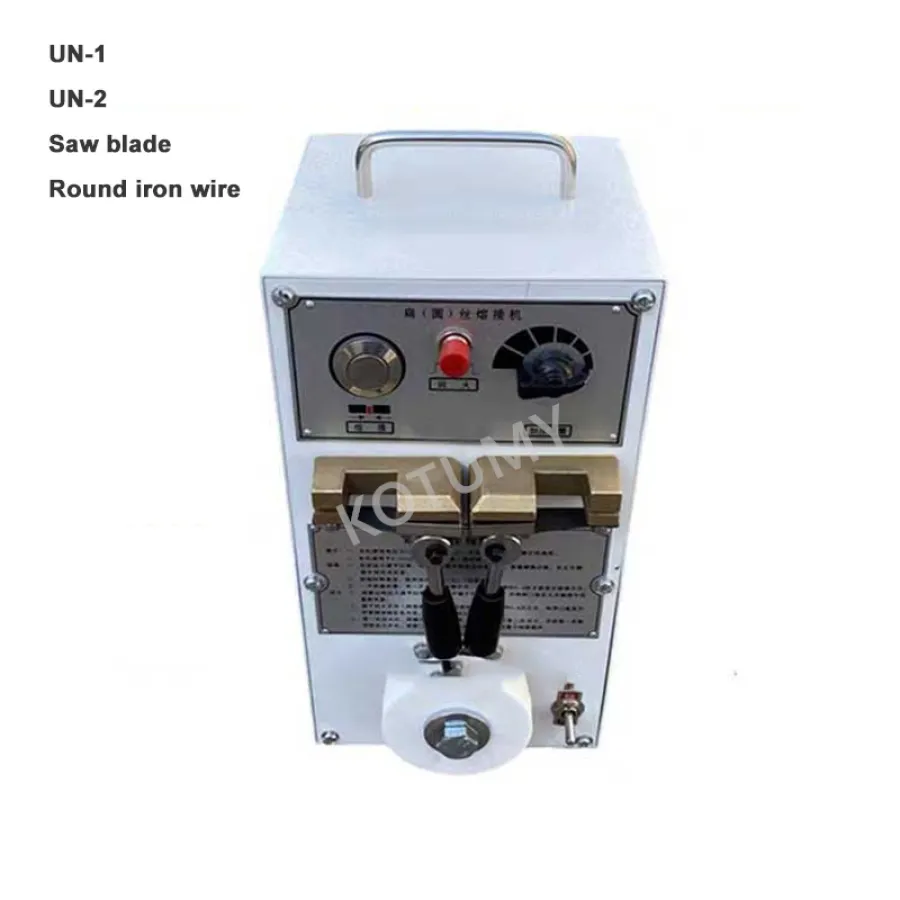

The UN-2 type impact welding machine is a new type of resistance welding machine that automatically opens and cools the welding circuit by pressing the switch. The whole machine has a compact structure and is equipped with complete equipment (including saw band scissors, grinding wheel, tempering switch, etc.). It has excellent performance, simple and convenient operation, fast welding without large force, firm welding joints, and strong tensile resistance after tempering. It can easily cut clothing materials into the desired appearance of the manufacturer, Convenient for manufacturers to make or process clothing, this product has been used by many manufacturers for many years and has received good feedback. It is the best equipment for welding cutting machines with saw blades and other thin sheet materials. Welcome to inquire and compare the products.

Product parameters:

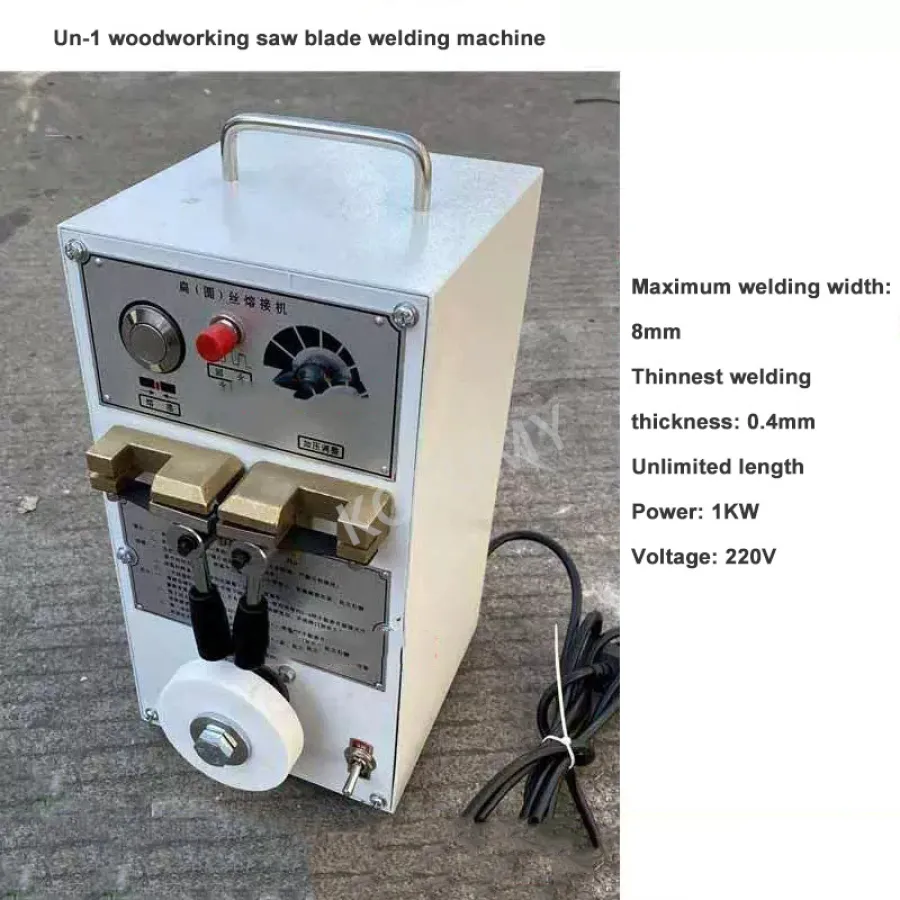

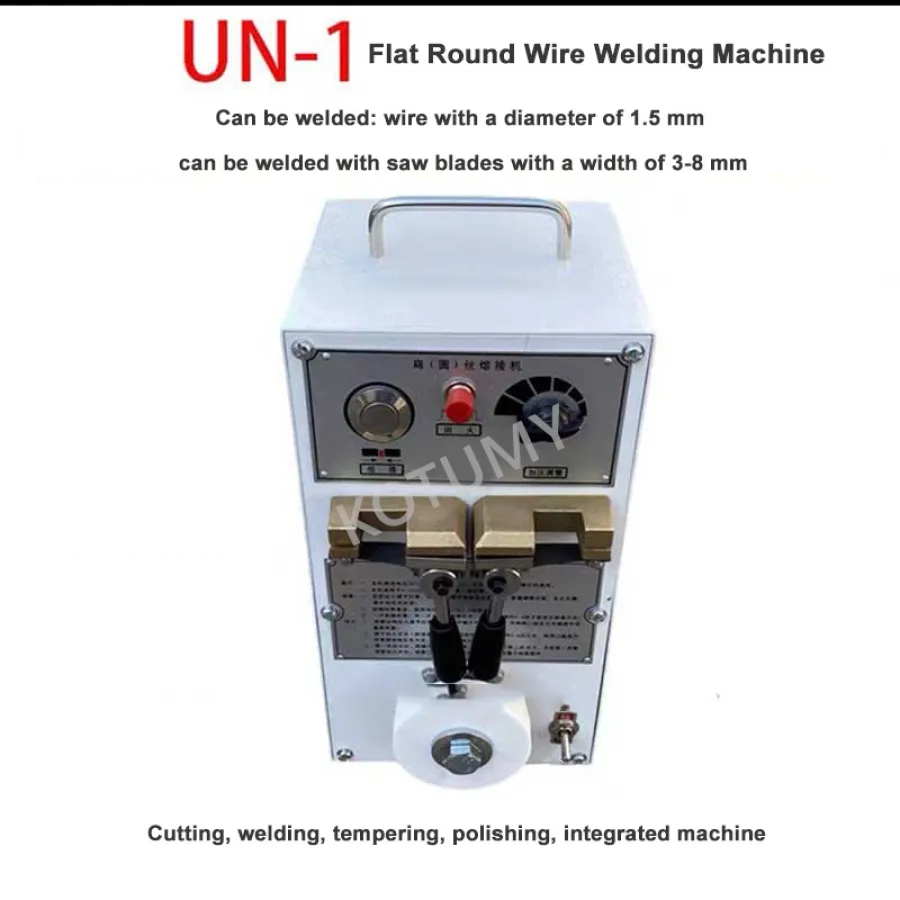

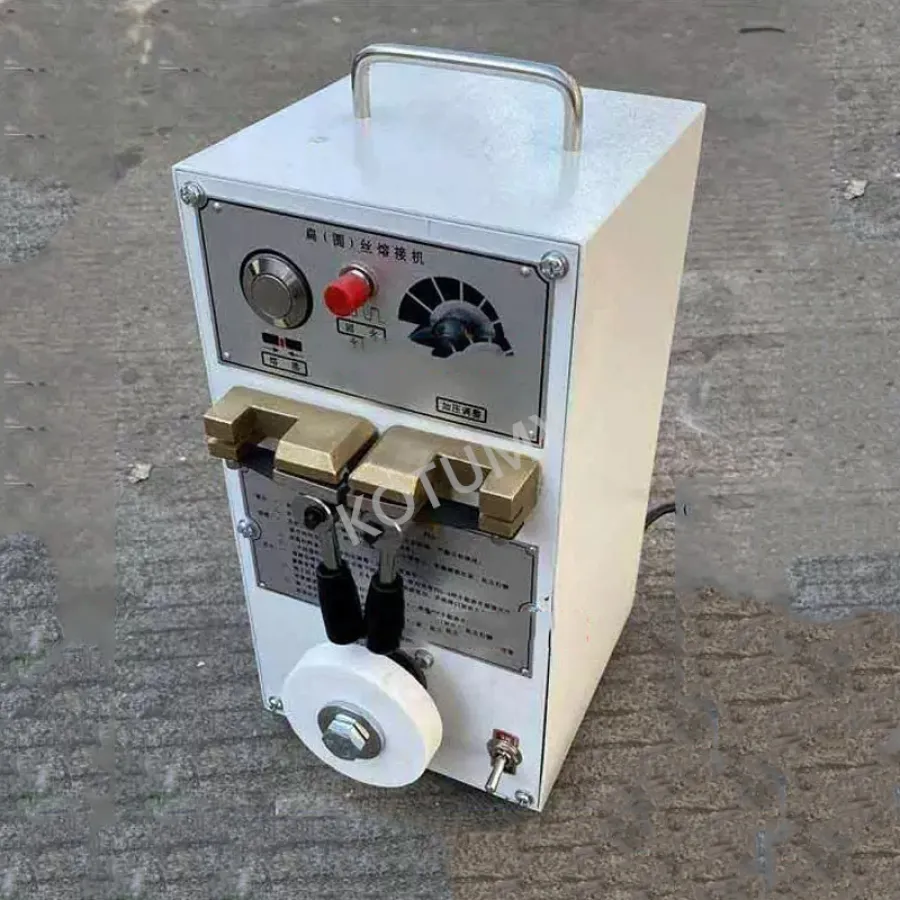

UN-1

Power supply: 220v/50Hz

Power: 1KW

Welding width of band saw blade: 3mm -8mm Maximum welding thickness of band saw

blade: 0.65mm

Ball wire welding diameter: 0.6-1.5mm

Length: unlimited

Body size: 380 * 170 * 170mm

Packaging appearance: 390 * 320 * 380

Weight: 14kg

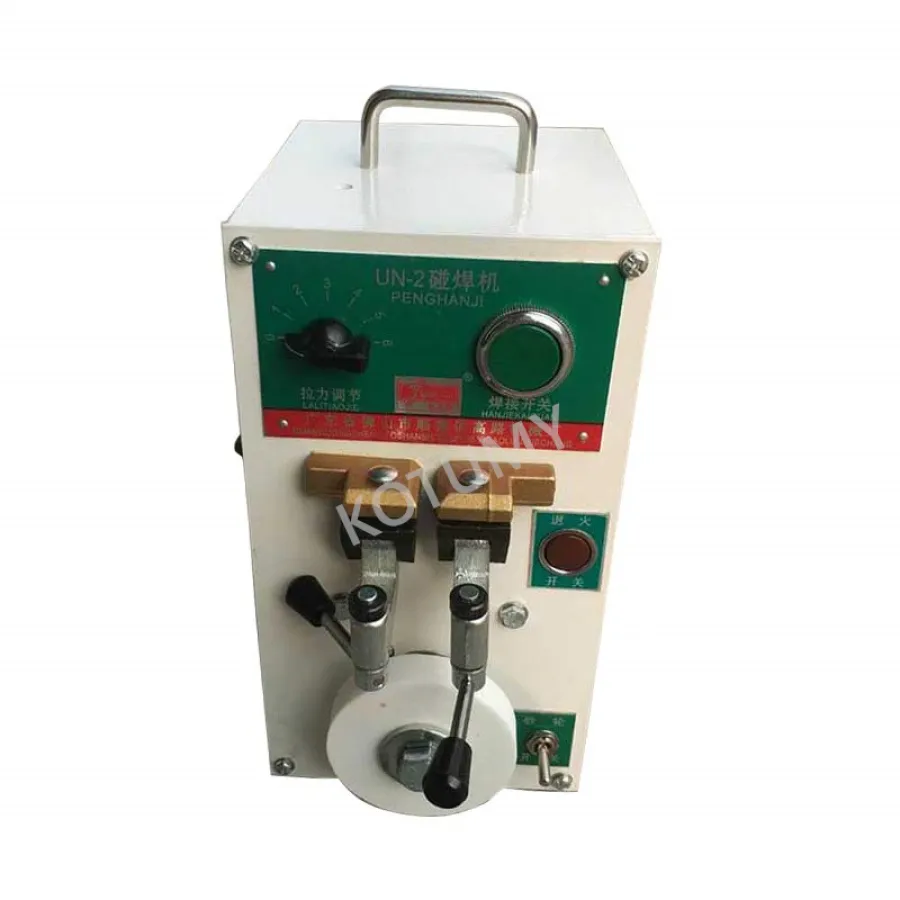

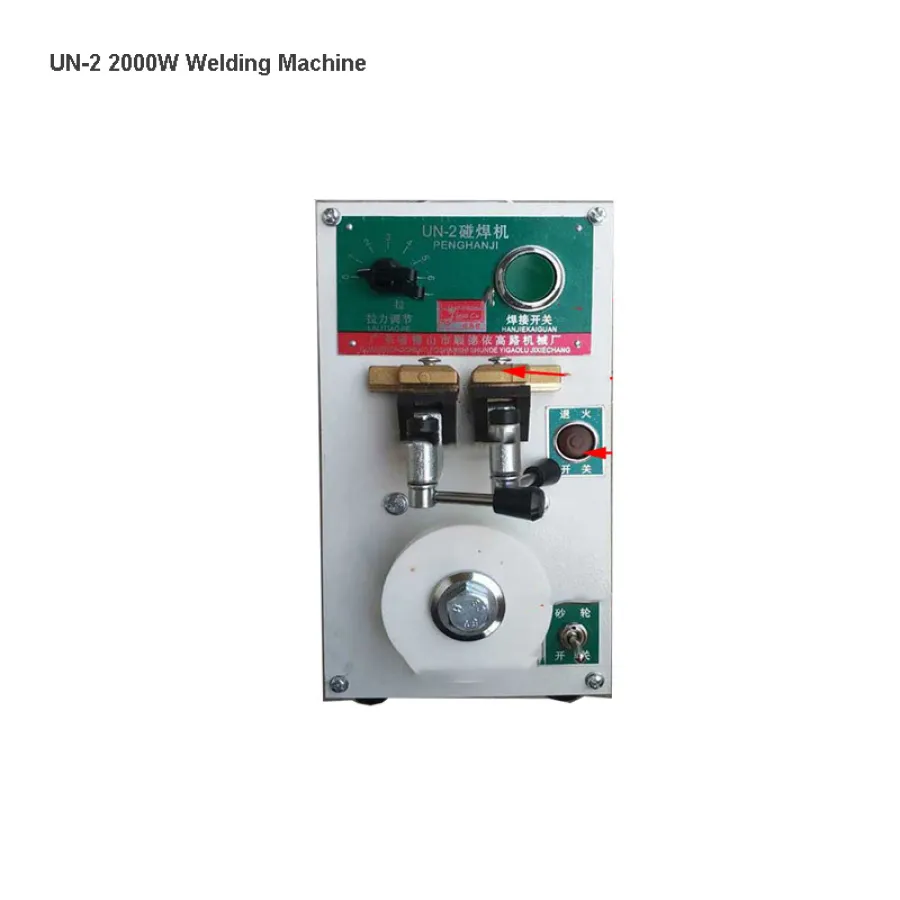

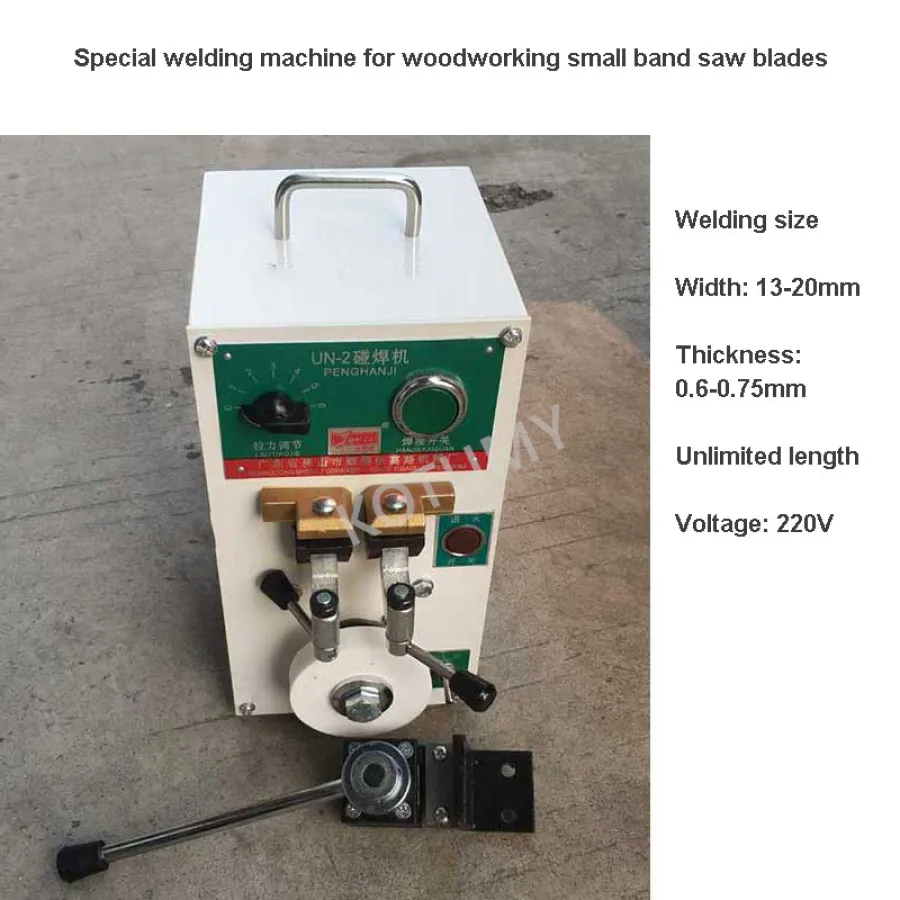

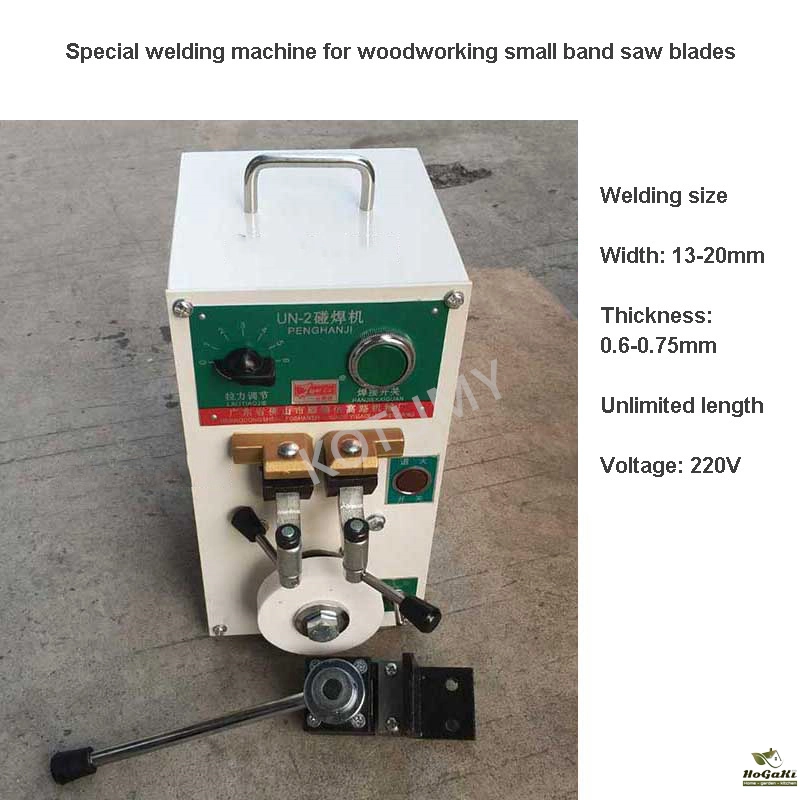

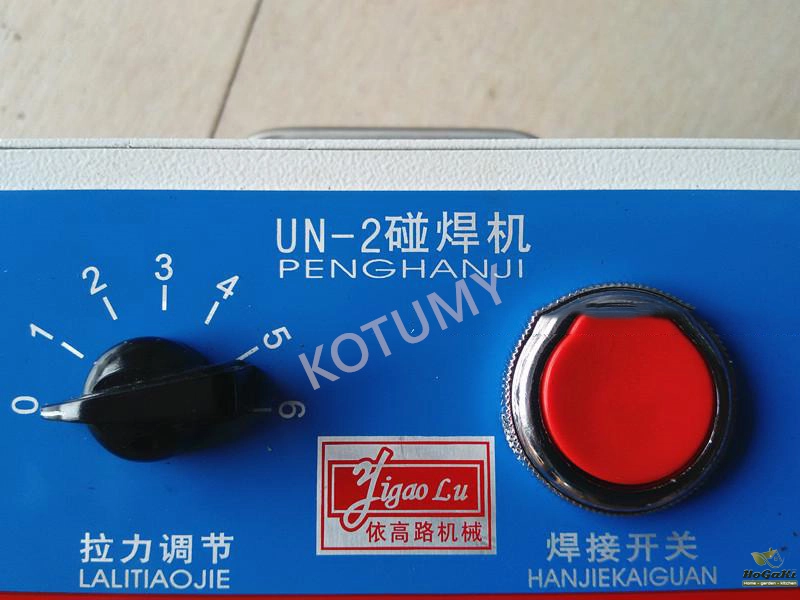

UN-2

Power supply voltage: 220V/50Hz

Power: 2KW

Maximum welding width: 8-16mm Maximum cutting width of saw blade and

scissors: 20mm

Weldable thickness: 0.65mm

Length: unlimited

Drive form: manual

Working form: butt welding

Current: AC

Object of action: metal

Working principle: resistance welding

Body size: 240 * 150 * 320mm

Packaging size: 390 * 320 * 380

Weight: 15kg

Welding principle:

1. The overall design is compact and reasonable, with light weight, low energy consumption, and a working voltage of 50HZ/220V

2. The welding speed is fast, and the required environment is simple. Welding can be done with just one rice table. The machine is equipped with annealing function, grinding small grinding wheels, white steel saw with bent blades, etc.

3. Low energy consumption, strong output: 4.8V voltage, can easily touch the saw band below 20mm * 0.75mm within 2 seconds, and the welding is firm.

4. The welded junction has strong tensile resistance after annealing treatment, and the operation is simple and easy to learn.

5. No need for auxiliary materials. It is formed by current/resistance butt welding and fusion

6. Specifically, this machine can only weld woodworking saw blades and cannot weld metal saw blades.
