2200W/1500w 2.2KW1.5kw 300/400HZ 18000/24000RPM air cooling cnc spindle motor+VFD+1set ER20/ER11 collet for CNC milling machine
777.00 477.26 $
SALE
ID: 59104
Quantity

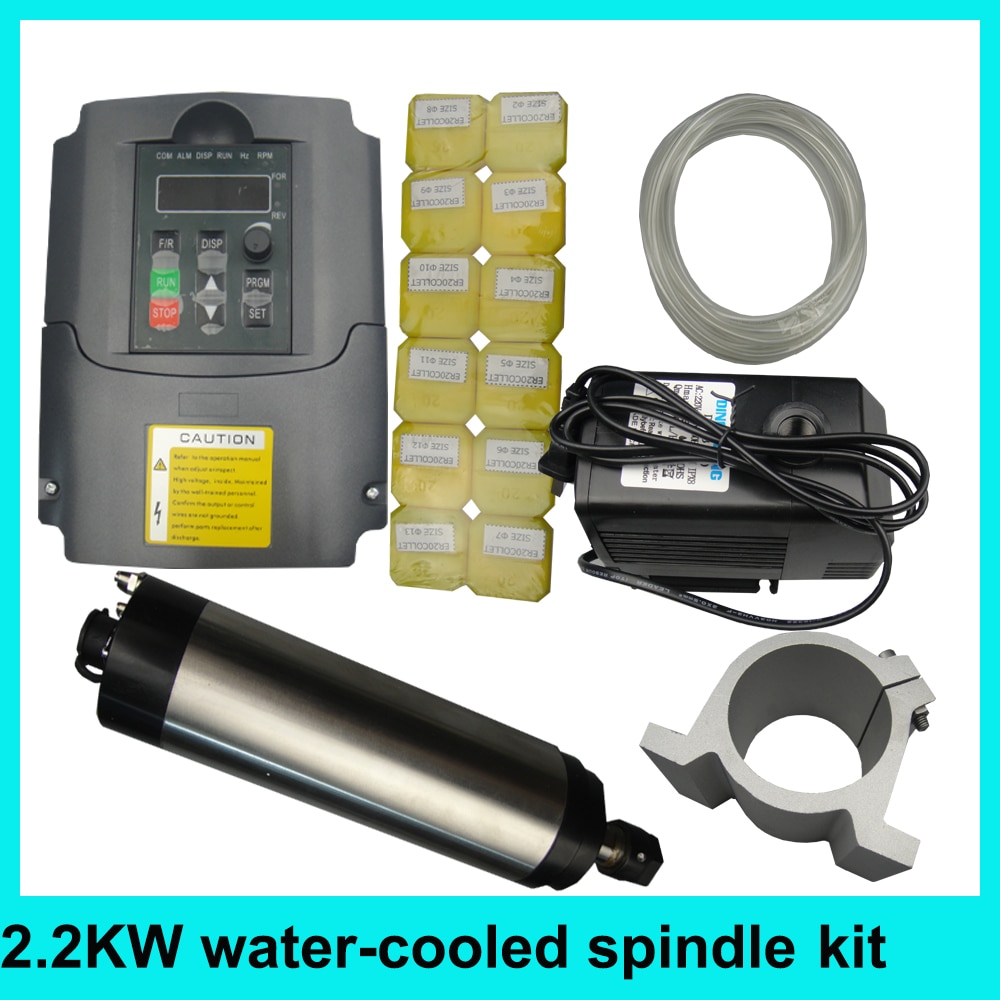

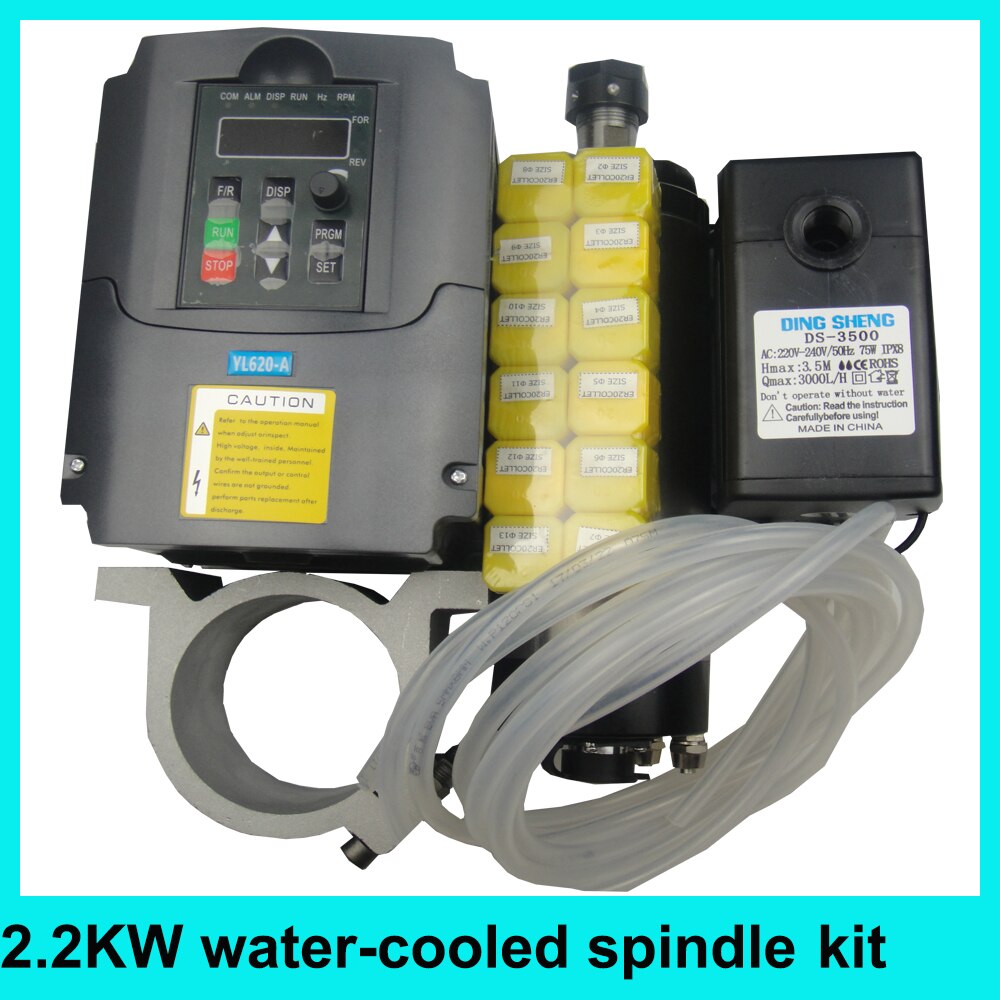

2.2KW spindle kit ER20 water cooling spindle motor +2.2KW spindle inverter+water pump+ER20 collets+water pump+80mm spindle clamp
0.0 (1 votes) | 1 orders
Price:
US $765.18
/ piece
Discount Price:
US $
739.98
/ piece
-3%
2.2KW spindle kit ER20 water cooling spindle motor +2.2KW spindle inverter+water pump+ER20 collets+water pump+80mm spindle clamp
Please kindly note the package includes

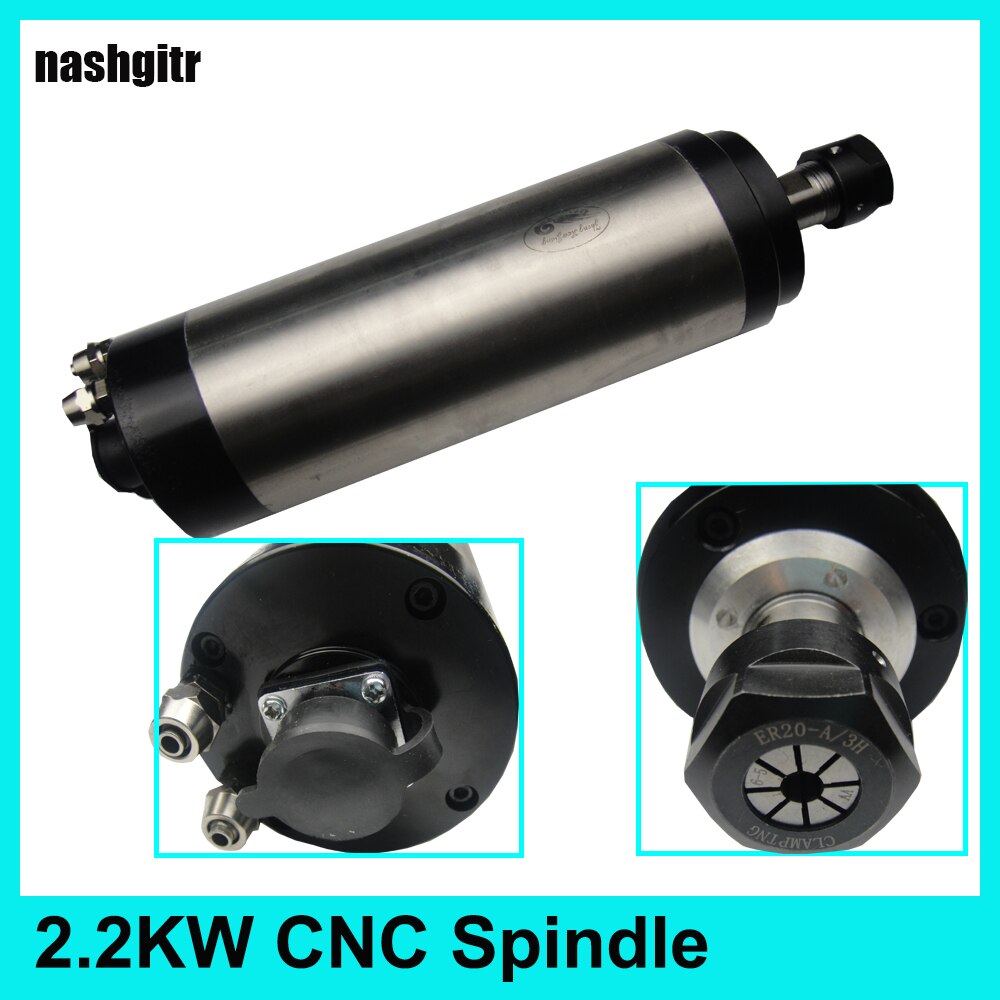

--1*ER20 2.2KW water cooling spindle
--1*2.2KW spindle inverter
--12*ER20 collets
-- 1* water pump
--1*water pipe
--1*80mm clamp
Basic parameters:
. diameter 80mm
Material: 304 stainless steel cover, high temperature copper coil
Speed Ways: Through the inverter output voltage and adjust the operating frequency can be achieved 0-24000 stepless
Cooling: water cooling mode
Power Interface:There are marked 1234,123 were connected to the inverter power supply (U, V, W), 4 connected inverter ground
Power:2.2kw
Voltage: 220V/AC
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout off: Less than 0.01mm
4pcs bearings
Bearing Type: 2×7005C P4 DT&2×7002C P4 DT
Collet: ER20
Applicable cutter diameter: 13mm,12mm,11mm,10mm,9mm,8mm,7mm, 6.35mm, 6mm,5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm
Grease Lubrication
2.2KW VFD inverter
Input Voltage: 220V(+/-15%)
Output Voltage: 220VAC
Input Frequency: 48-63 Hz
Output Frequency: 0-400 Hz
Input Phase: 1 or 3 phase
Output Phase: 3 phase

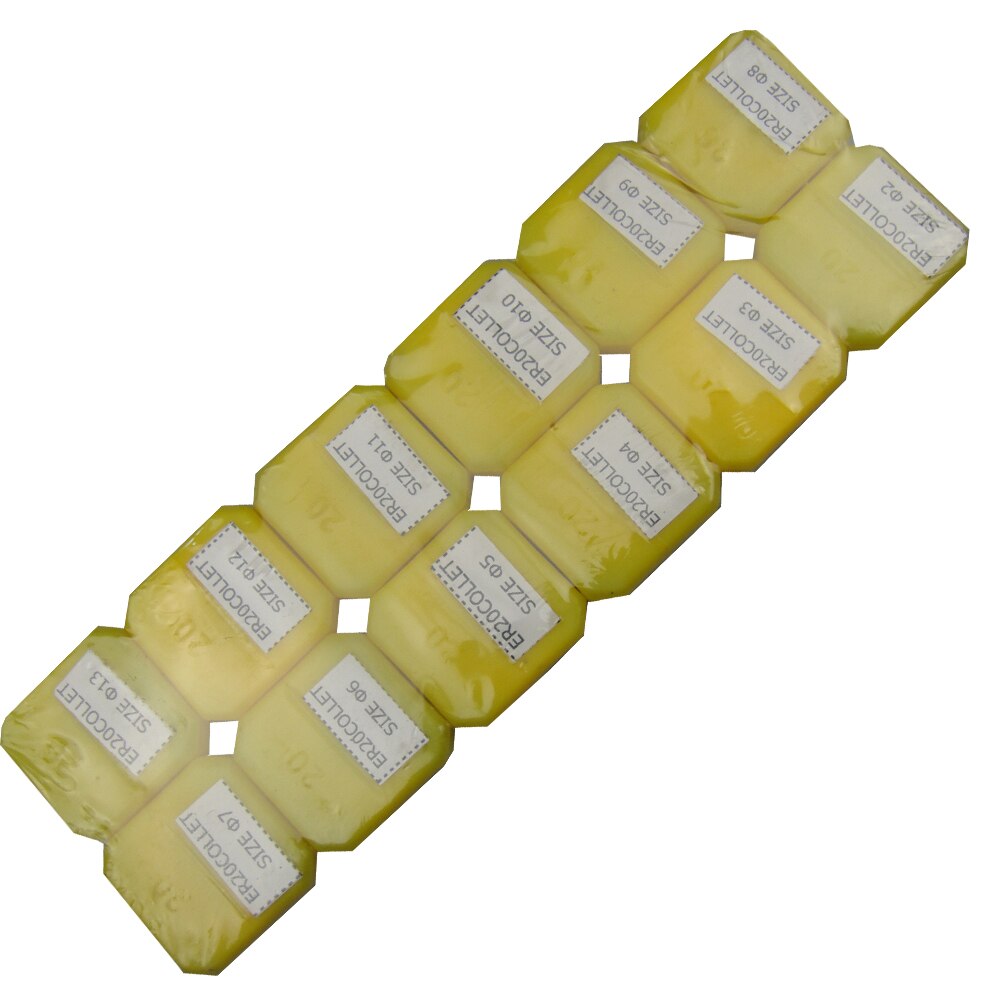

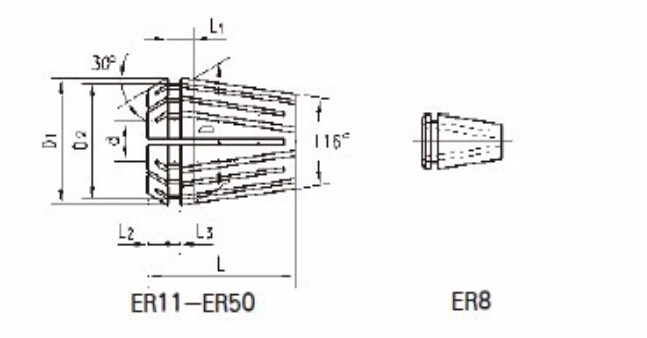

ER20 collets

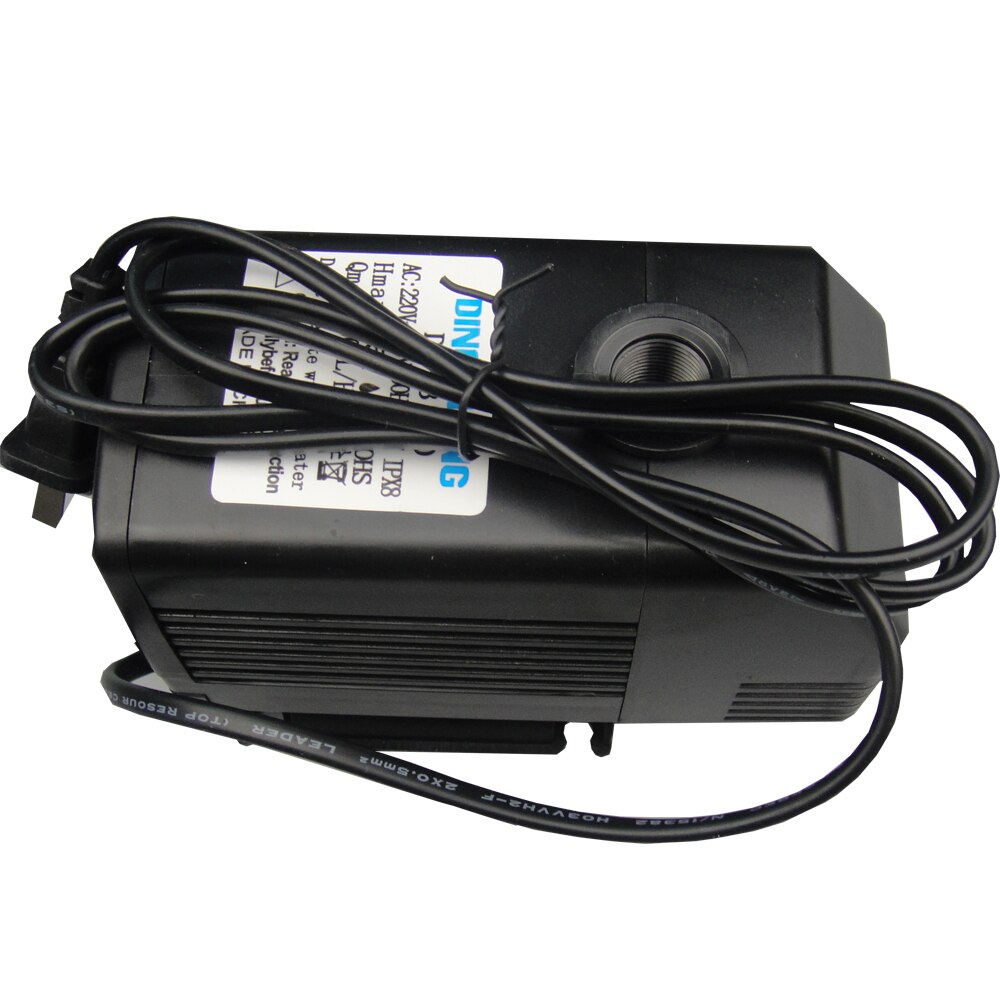

Water pump:
Power:75W
Flow:3500L/H
Max.Height: 3.5M
Voltage:AC220-240v/50HZ
Outlet size:13/16/19mm
Water pipe:
Diameter:8mm
80mm spindle clamp
material: cast aluminum
diameter:80mm
- Operating Speed: 24000rpm
- Application: Milling
- Model Number: 2.2kw
- Drive: Motor
- Brand Name: NASHGITR
- Origin: Mainland China
- Certification: NONE
- spindle cooling type: water cooling
- spindle rotate speed: 24000rpm
- frequency of VFD: 400HZ
- quantity of ER20 collets: 12pieces
- spindle collet model: ER20
