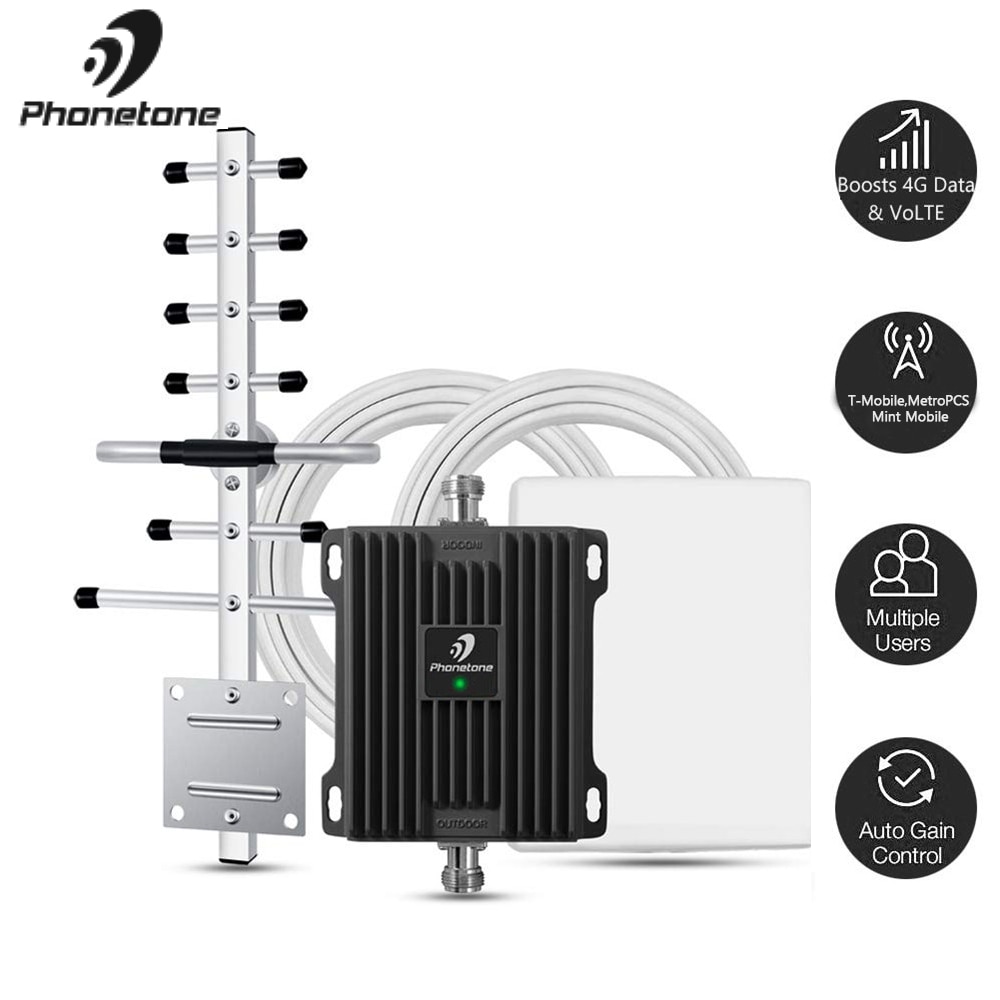

1700MHz Cell Phone Booster for Home High Gain Antenna Signal Booster T-Mobile Band 66/4 Supports Up to 2500 Square Foot Area

0.0 ( votes)
Price: US $303.96 - 322.96 / piece
Discount Price:
US $ 258.36 - 274.51 / piece
-15%
Ships From
Color
Quantity

notice

Dear All,

Please pay attention before you place the order:

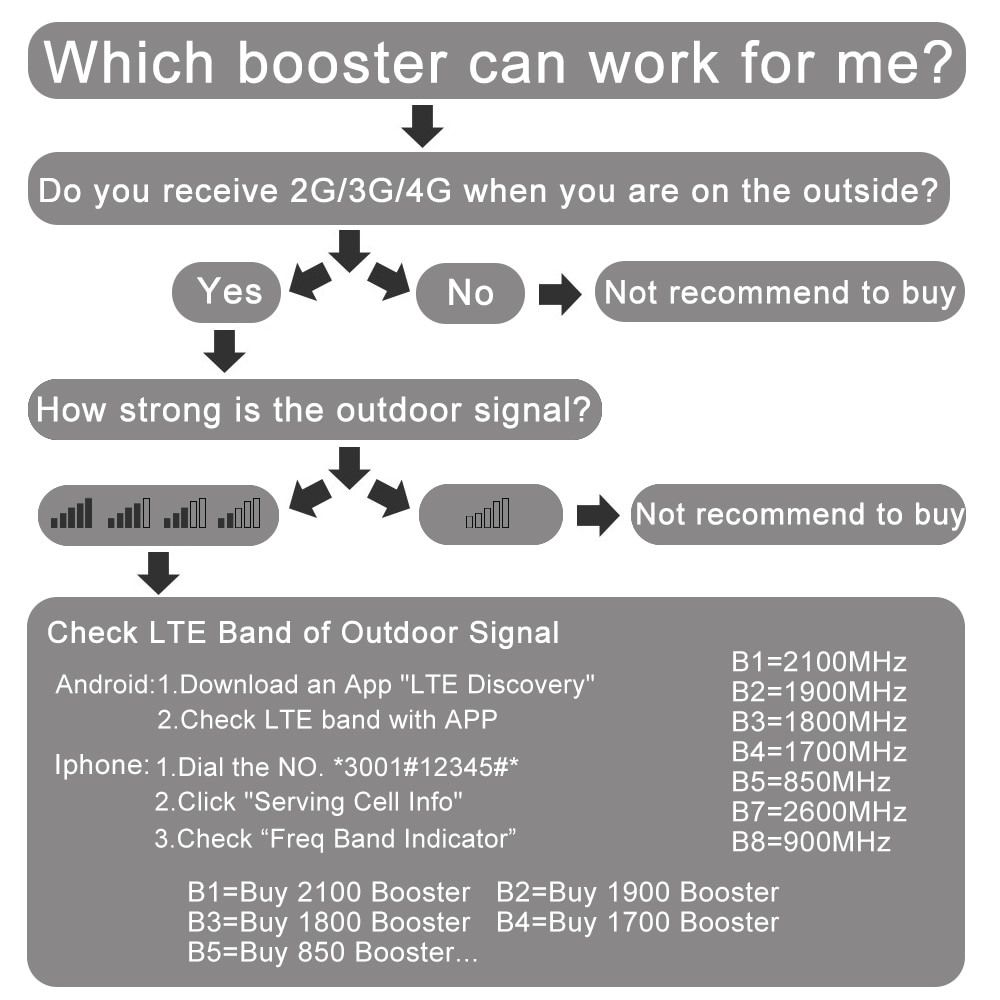

1. Please confirm your mobile phone frequency first before you purchase it, this booster is works for band 66 and band 4.if you don’t know how to check, you can contact us or call your mobile phone operator. Frequency doesn’t match, the signal booster can’t works.



2. Please make sure your mobile phone can receive at least 1 bars signals outsideotherwise this signal booster can’t works. It needs outdoor good signal to improve your indoor signal.



3. The last but not the least, please install follow our installation steps. If really can’t works, please contact us attached pictures or video, so that we can help you check and solve the problem for you.



未标题-2

PHONETONE3场景图



What makes it different with other booster?

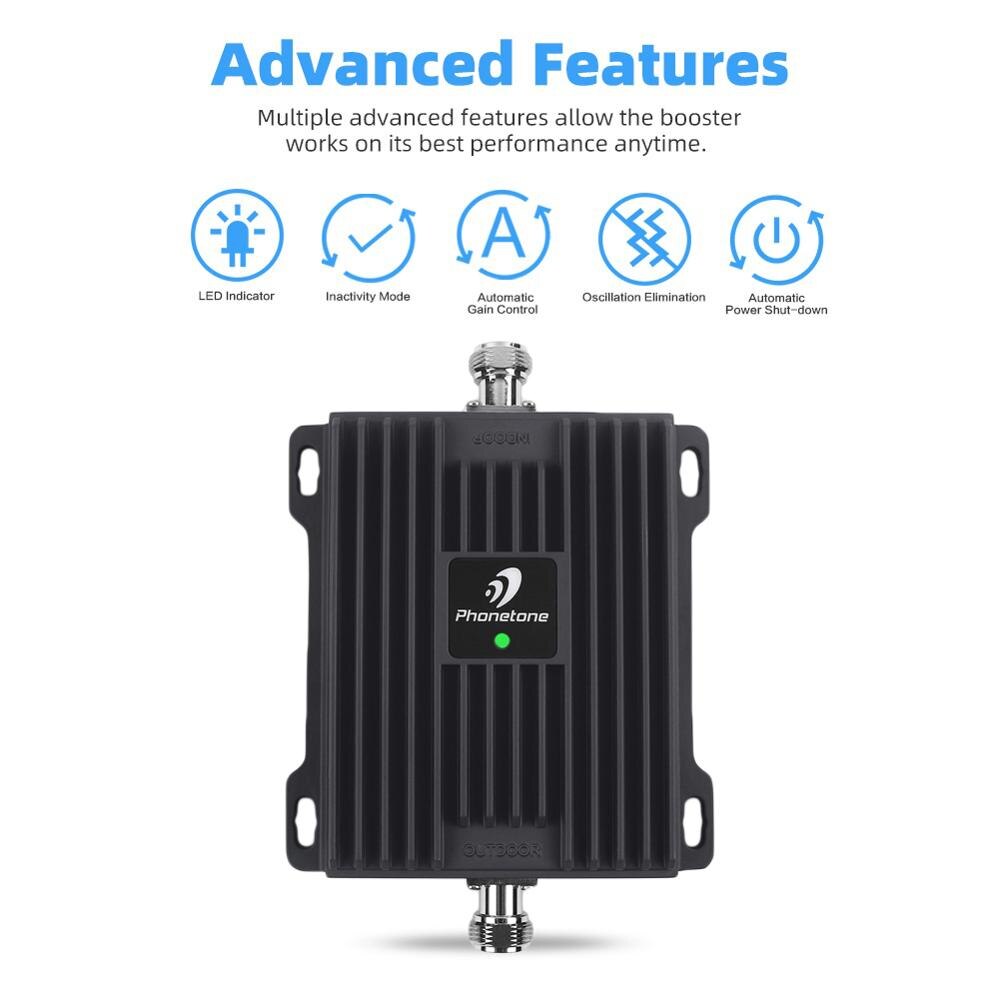

The features of our signal booster are:Wide Input Voltage;Self-oscillation Elimination;Inactivity Mode;Automatic Gain Control;Automatic Power Shut-down;Manual Gain Control;Automatic Level Control.

We offer a three-month free replacement and five-year warranty.



7-5p单频



6

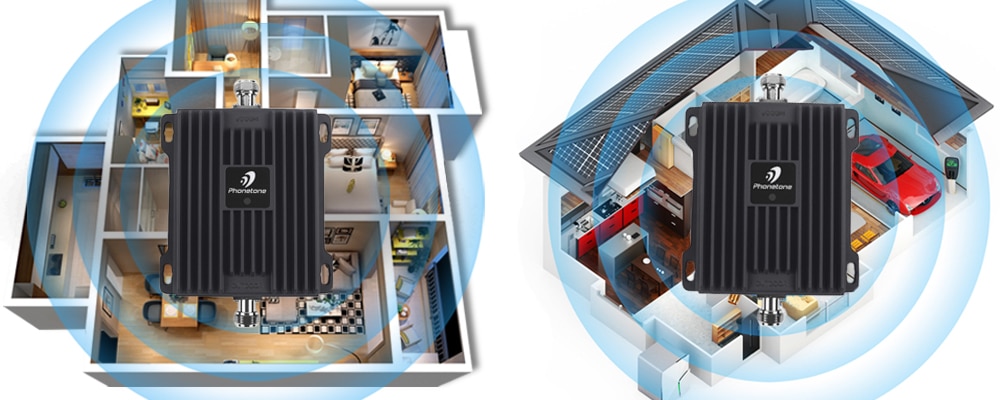

Wide coverage

It can guarantee the better signal output under the condition that the signal is weaker.A signal booster host can cover the whole family,so as to achieve all-around and no dead end coverage.



Wider coverage

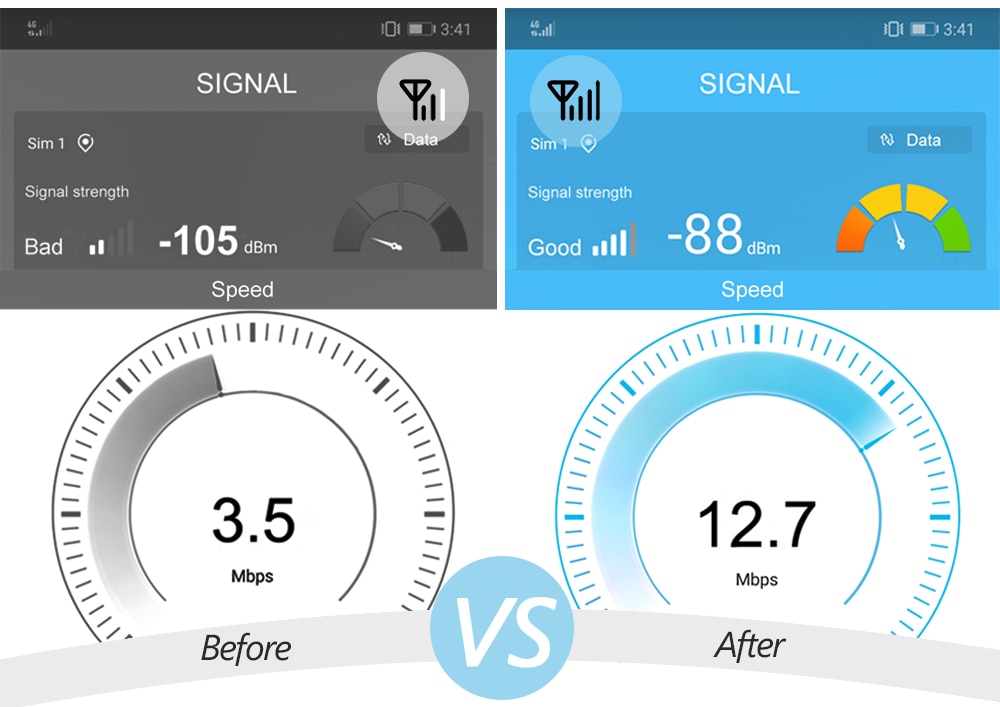

The effect of amplifying the signal is obvious

The signal is get better, the communication Internet speed is unimpeded.



signal 2



Inactivity Mode

When no user calls, the device works in standby mode, the uplink power amplifier is switched off, and the static power is decreased by 30%, so as to achieve the purpose of energy saving.



4-1

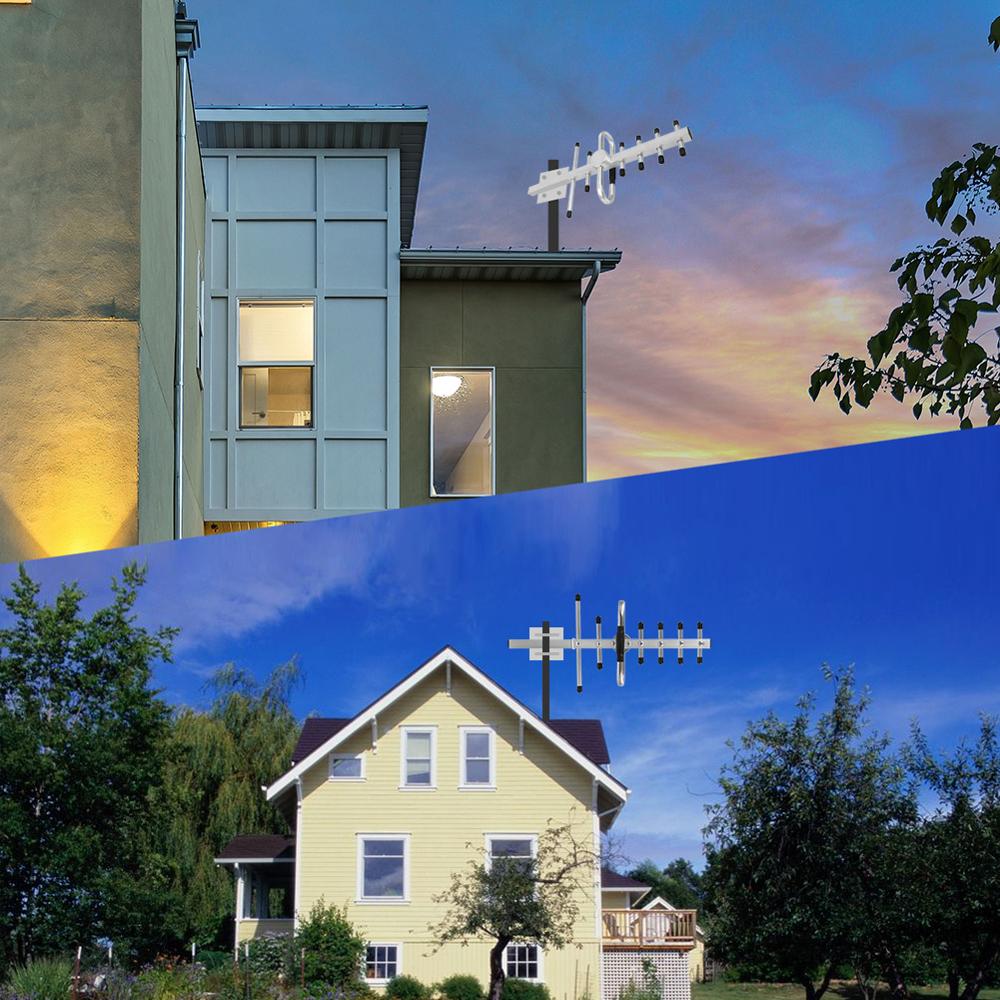

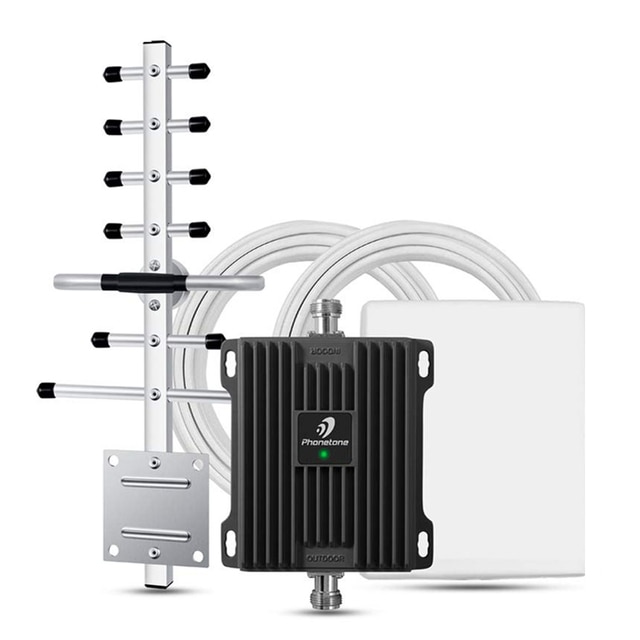

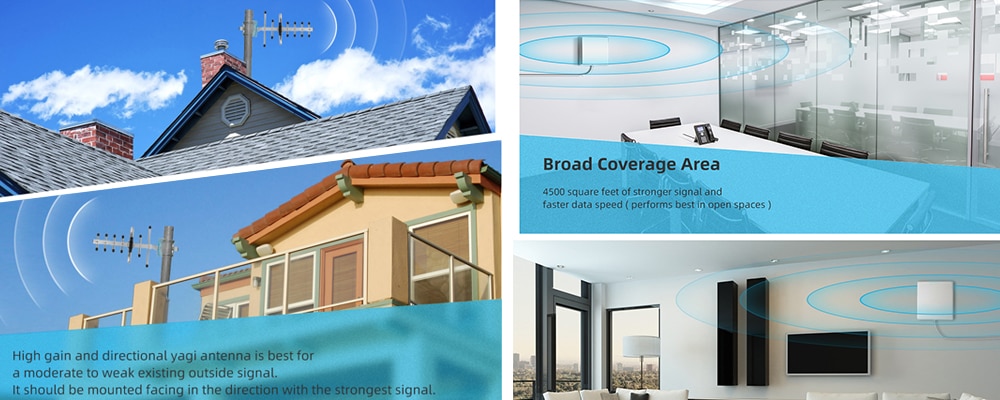

Installation method of antenna

For installation:1. Make sure there is a separate wall between indoor and outdoor antennas, so that the two antennas signal don't interfere with each other.2. Please make the distance of indoor and outdoor antenna is more than 10 meters and do not put them in the same level.



壁挂双频八木

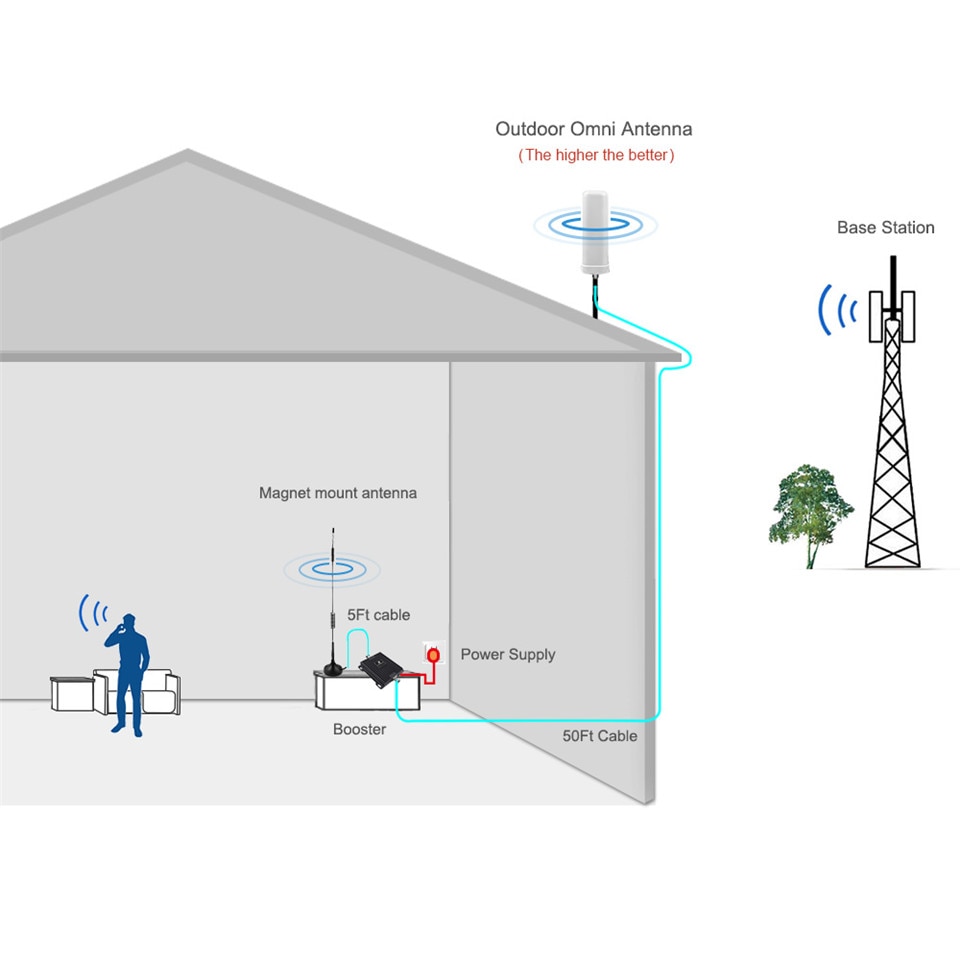

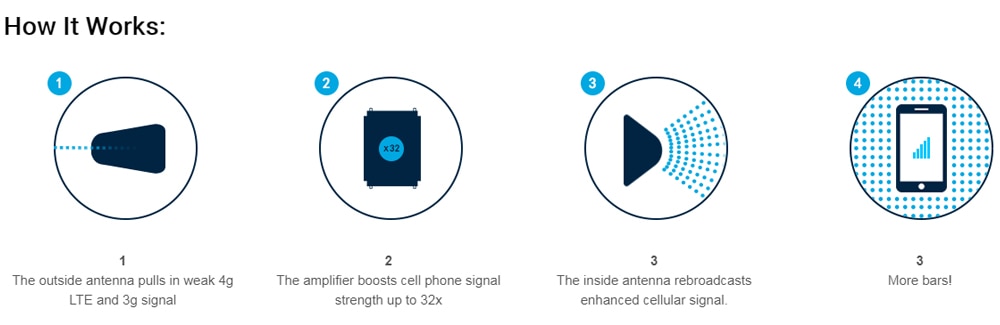

Working principle of the booster

The outside  antenna access strong signal from cell tower and send it to the booster through the cable. The booster receives the outside signal and amplifies it,  and sends it to the inside antenna. The inside antenna broadcasts the boosted signal to devices inside your home.



how it works



Electrical specification

Uplink

Downlink

Frequency Range

AWS Band 66

(Include Band 4)

1710~1780MHz

2110~2180MHz

Max .Gain

≤ 60dB

≤ 65dB

Max. Output power

≤20dBm

≤10dBm

Gain Flatness

≤10dB(P-P)

Automatic Gain Control

≧20dB

Automatic shut down

When self–oscillation occurs or attenuation value reaches 20dB, the corresponding link power supply is shut down.

Spurious Emission

9KHz~1GHz

≦-36dBm @ 3KHz

1GHz~12.75GHz

≦-30dBm @ 3KHz

Noise Figure

≦6dB

VSWR

≦1.8

Group Delay

≦1.5μs

LED  Indicator

Standard

LED  Indicator

GREEN

Normal

RED

Self-oscillation occurs and the corresponding link is automatically closed

Mechanical  Specifications



Standard



I /O Port



N-Female

Impedance



50ohm

Operating Temperature



-25ºC~+55ºC

Environment Conditions



IP40

Dimensions



147mm*105mm*23mm

Weight



 0.43Kg



Power Supply



Input AC100~240V 50/60Hz,output DC 5V






  • Model Number: PTE6604
  • Model Number:: PTE-B66-65-PYW-K4
  • Improvement:: 4G LTE Data
  • Compatible Carriers/Operator:: T-Mobile,MetroPCS,Mint Mobile
  • Connectivity:: Wireless Repeater/Multi-User
  • Frequency:: 1700/2100MHz
  • Band:: Band 66 & Band 4
  • Feature:: Cell Phone Signal Booster For Home Use
  • Gain:: 65dB
  • Type:: 4G Mobile Signal Booster
  • Warranty:: Five Years
