YAQIN MC-13S 40WPC EL34 6CA7 Vacuum Tube Push-Pull Integrated Amplifier Valve Tube Power Amplifier With Tube Protect Cover
0.0 (1 votes) | 2 orders
Price:
US $
1667.70
/ piece
Note
In 2022, Jolin's mall and Fairsz stores were merged for unified management. Our service remains unchanged. As the agent of Yaqin in China, we will provide brand-new original products.

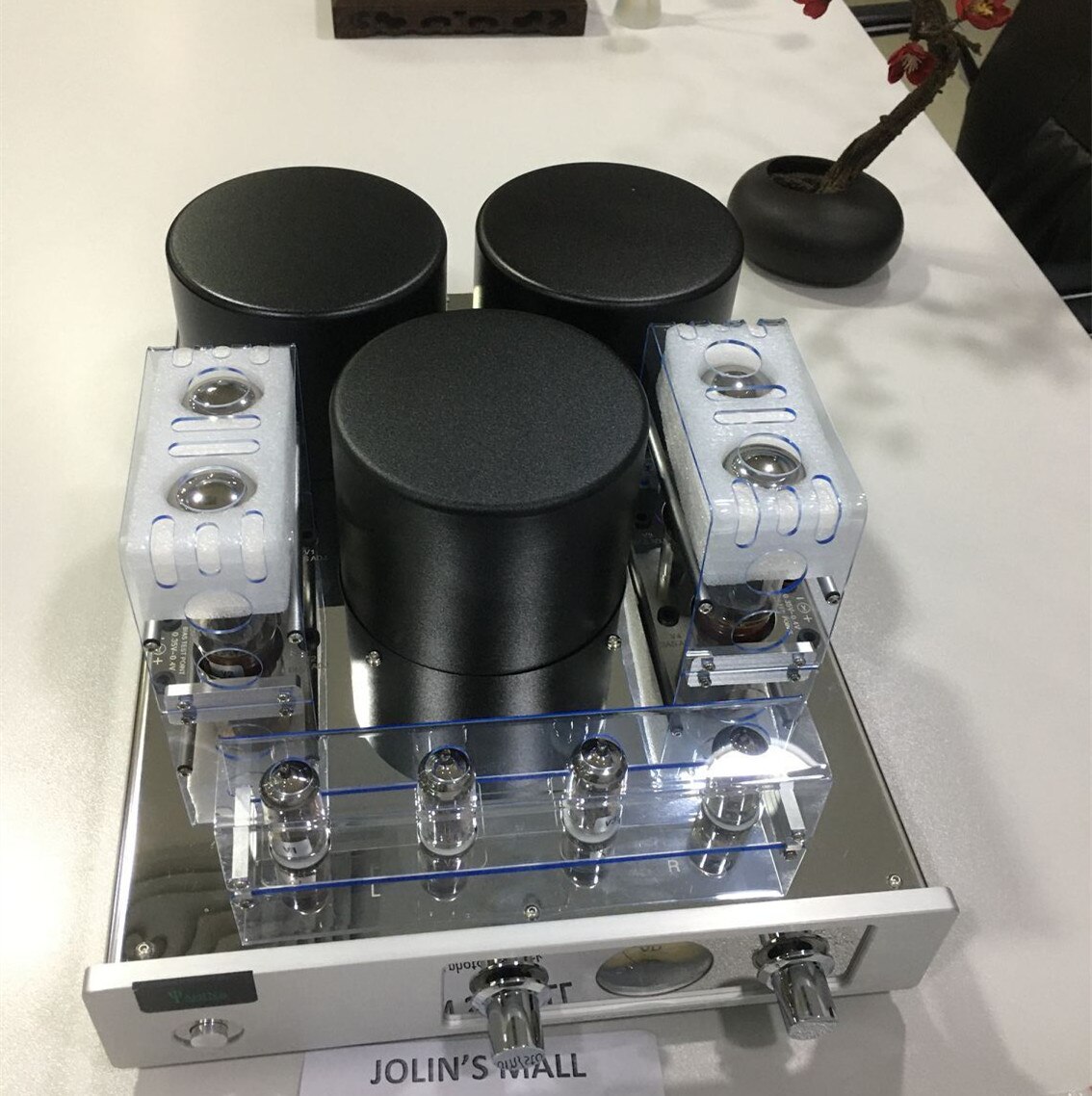

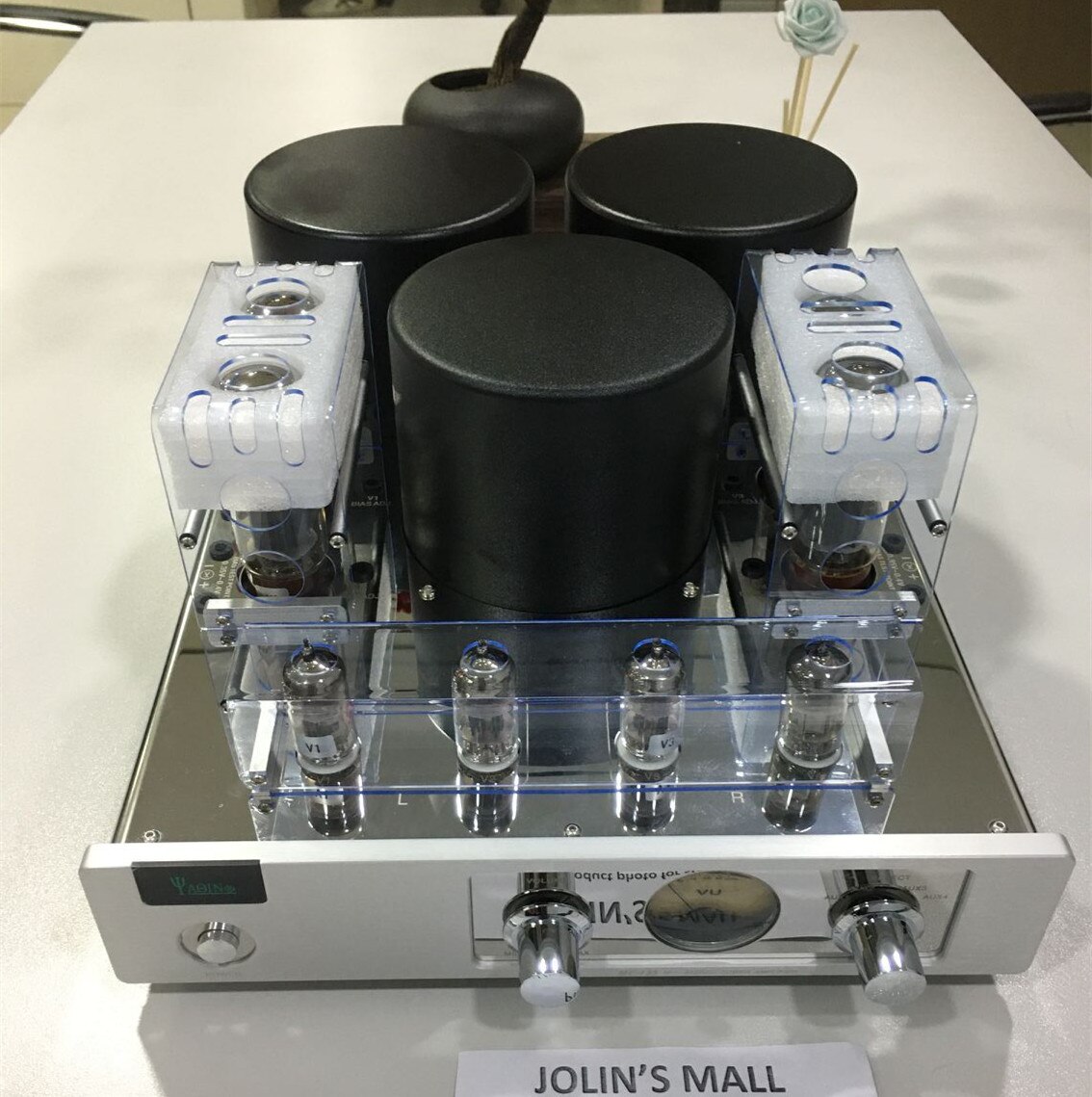

1.With Tube Cover. (Note: New update version supply metal tube cover .)
2. Agent of Yaqin. 100% orginal tube and parts.
3.About the voltage: The voltage of the Yaqin product is 110V and 230V. For tube amp, 10V difference is the allowable range. Therefore, 230V voltage can be used for 220V and 230V.

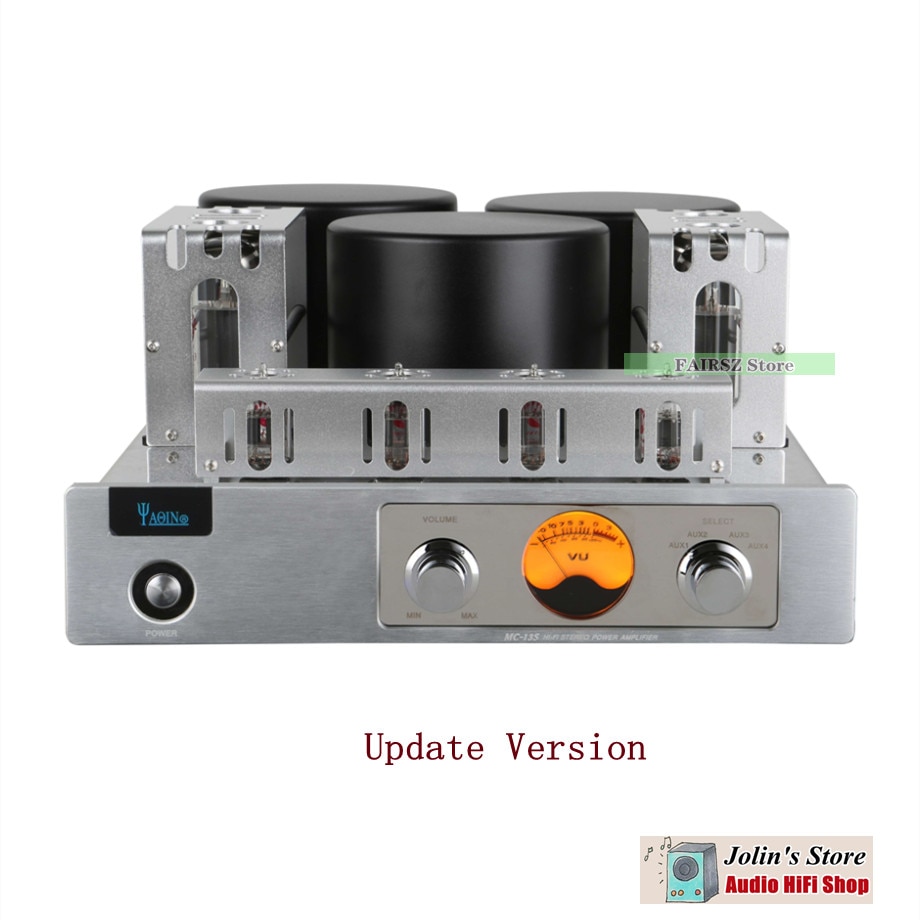

Note: New update version supply metal tube cover .
Features:
1.MC-13S is the latest upgraded version of MC-10L. It is powered by Yaqin 6CA7T tubes which are better than Shu Guang EL34B in sound quality;

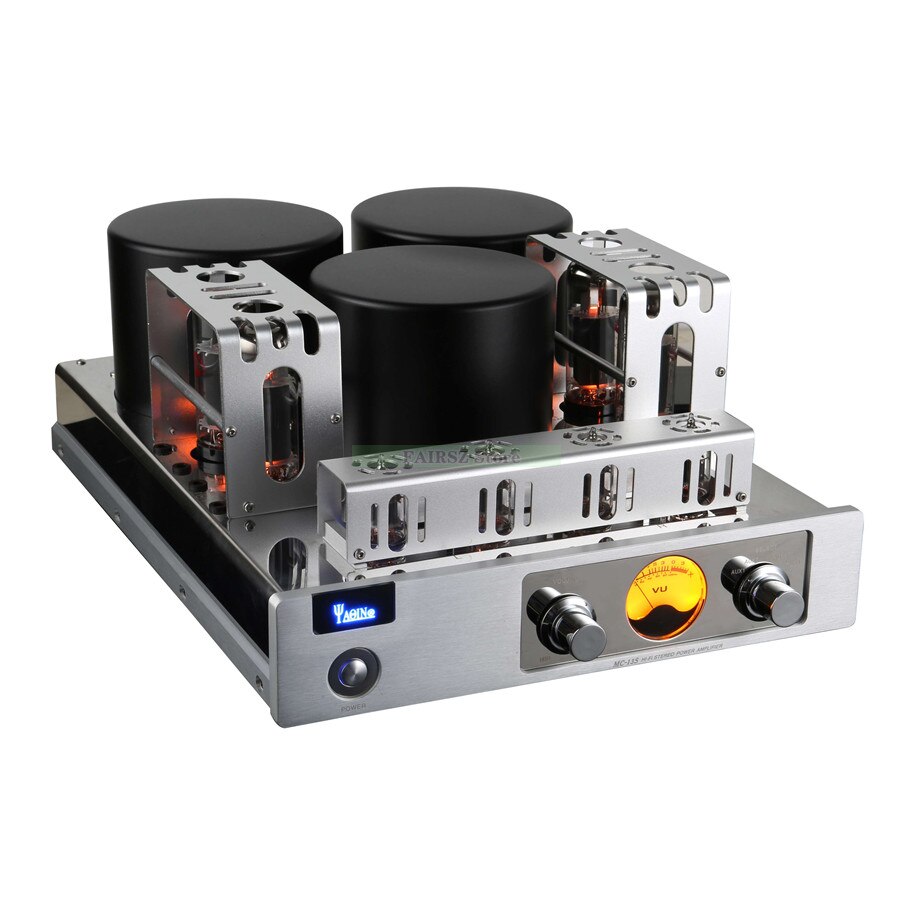

2.An analog VU meter on the front panel to monitor the average of the two channel output levels;
3.Class A push-pull power amplifier to reduce distortion;
4.Ultra linear push-pull amplifier provides greater output power;

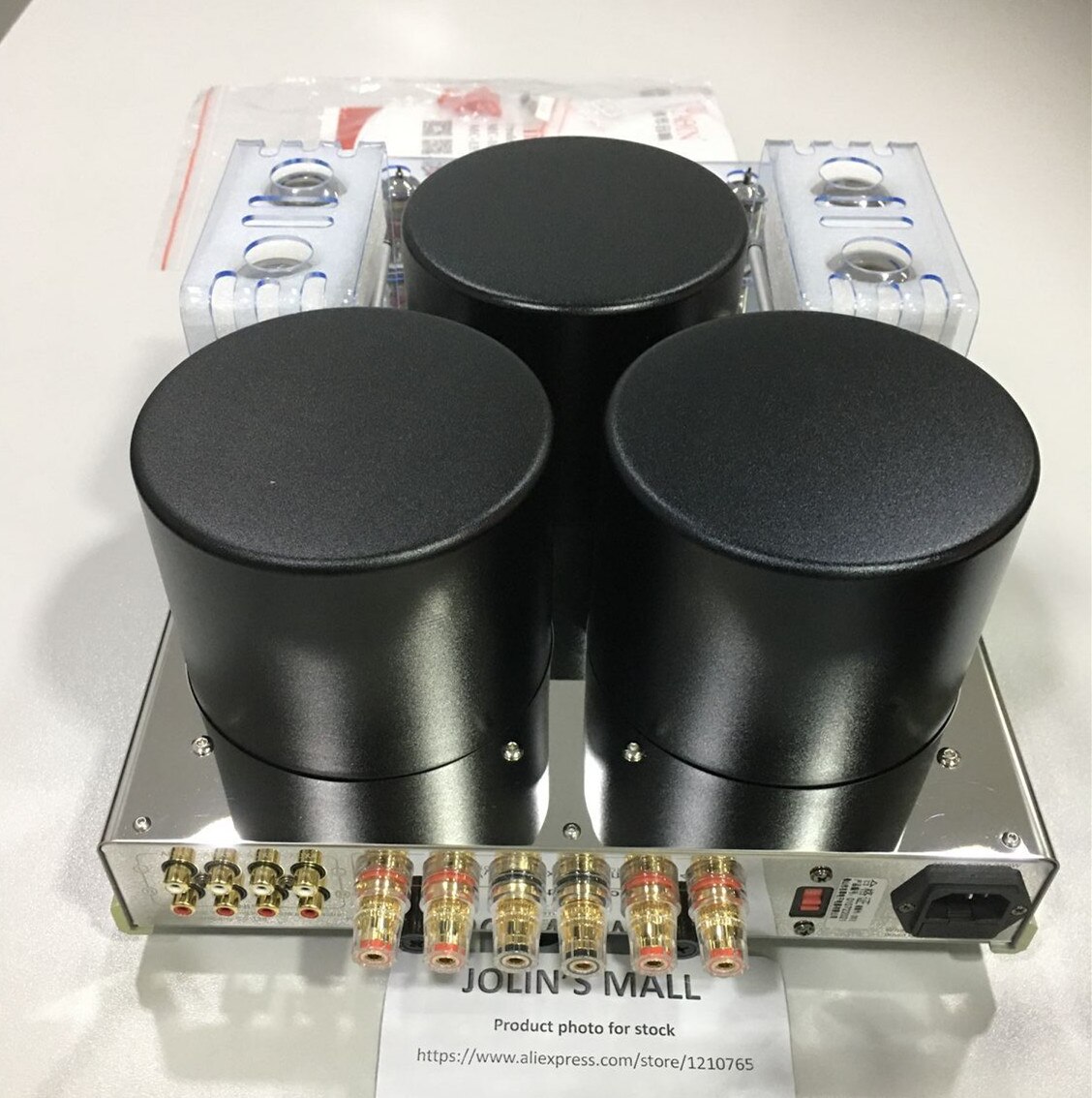

5.Output transformers manufactured with Japanese silicon steel sheet and high-quality enameled wire, which offer a wide dynamic range at full rated output;
6.Utilizes the audiophile capacitors and high quality metal precision resistors dedicated for audio frequency;
7.Beautiful heavy duty chassis (stainless steel top, steel bottom) and aluminum panel and bezels.

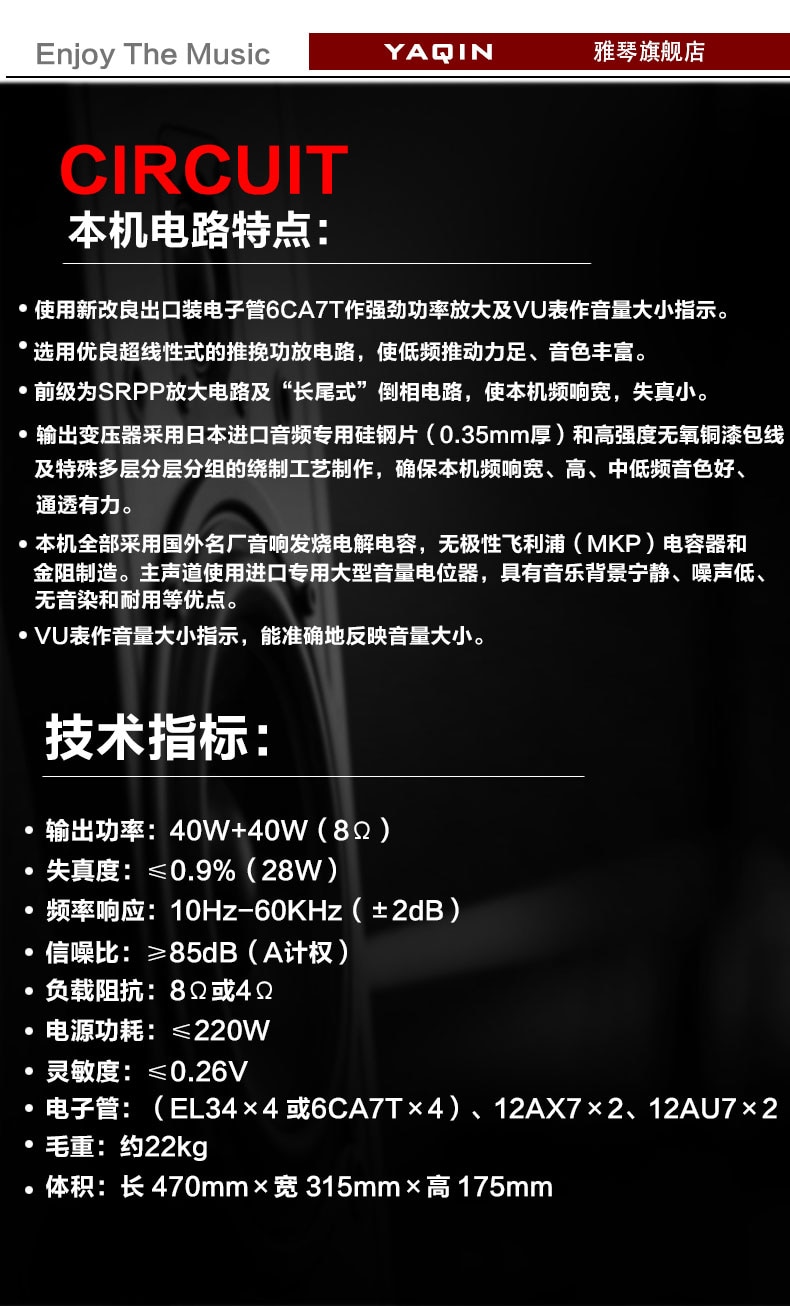

Parameters:
Tubes: EL34(6CA7)× 4 (Output Tubes)
12AT7 × 4 (Voltage amplifiers and drivers)
Maximum Output: 40W per channel (8Ω)

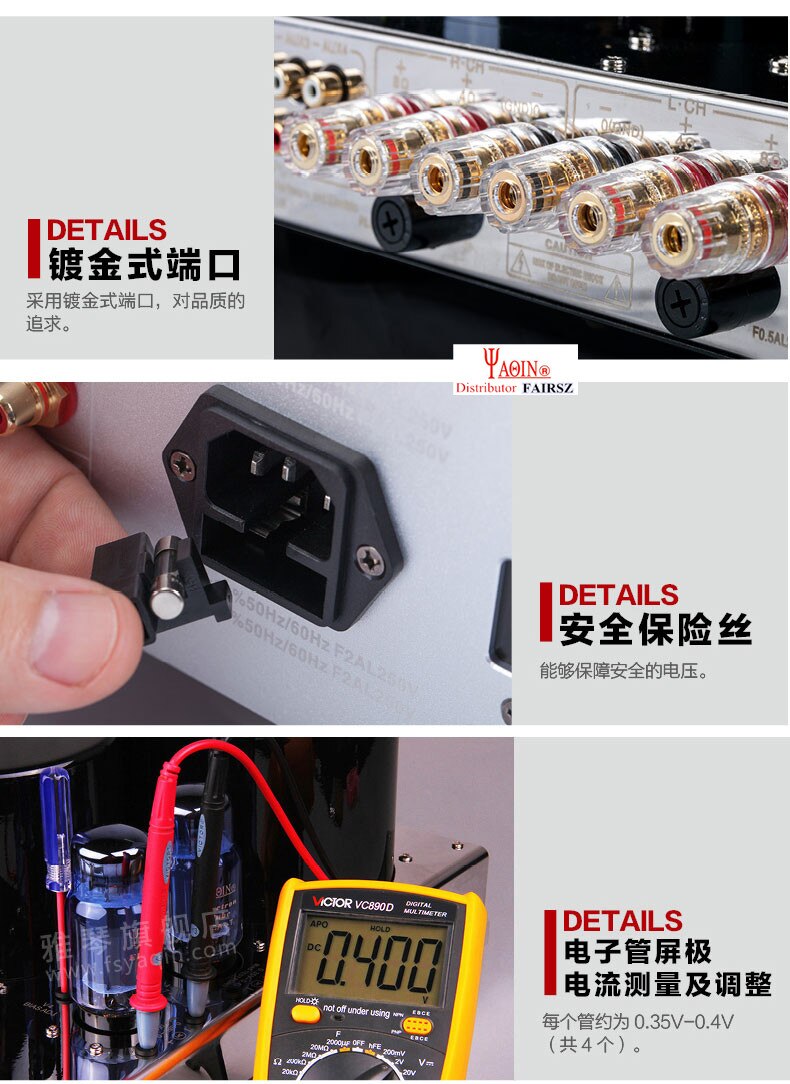

Output Jacks: Two channels with two groups gold plated jacks
Output Impedance: 4Ω and 8Ω
Input Sensitivity: 0.25V
Input Impedance: 20KΩ
Input Jacks: 4 Groups gold plated isolated RCA jacks (CD, DVD, Tape, and Tuner)
Distortion of Harmonic Wave: ≤0.9% (at 28W)
Frequency Response: 10Hz ~ 76KHz (-2dB)
Signal-to-Noise Ratio: >85dB (A weight)
Supply Voltage: AC 110V / AC 220V, 60/50Hz
Power Consumption: 220W
Net Weight: 18kg (40lb)
Shipping Weight: 23kg (47lb)
Shipping Dimension: 60 * 45 * 30 cm (24" x 17" x 12")
Notice to avoid confuse
For 220V/230V/240V Yaqin product ,the back voltage converter switch label is only 230V. For 110V ,the label is 115V. Yaqin manager explained they only have such switch type.
Package Details:
1PCS YAQIN MC-13S unit
1PCS Power cable
The manual
Hex screw drivers to adjust bias
EL34(6CA7)×4
1PCS Tube cover
- Model Number: MC-13S
- Brand Name: FAIRSZ
- Origin: Mainland China
- Certification: CE
