12V Electromagnetic Locks 180KG/350lbs Electric Magnetic Lock ZL U Bracket for Electronic Door Access Control System Waterproof
4.9 (21 votes) | 135 orders
Price:
US $140.01 - 194.43
Discount Price:
US $
49.99 -
63.18
-64%
- Color
-
-
DC12V Access Control Electric Magnetic Door Lock
Holding Force with 180KG/350lbs / High Quality
This door lock is special in design with durable material. It can protect your home or business shops.
Low operational and standby current. It's especially suitable for wooden, glass and metal doors.
Product Features
1. Brand new and high quality.
2. Secure mode: NC model (Locked when power on, unlocked when power off)
3. Especially suitable for wooden/ glass/ metal/ security doors.
4. It is made from durable and high aluminum alloy material, durable for use.
5. Can be opened by push button, remote controller, etc.
6. Built-in reverse current protection device (MOV).
7. Waterproof, can be installed outside. Suitable for wooden, glass, metal, security door.
Product Specifications

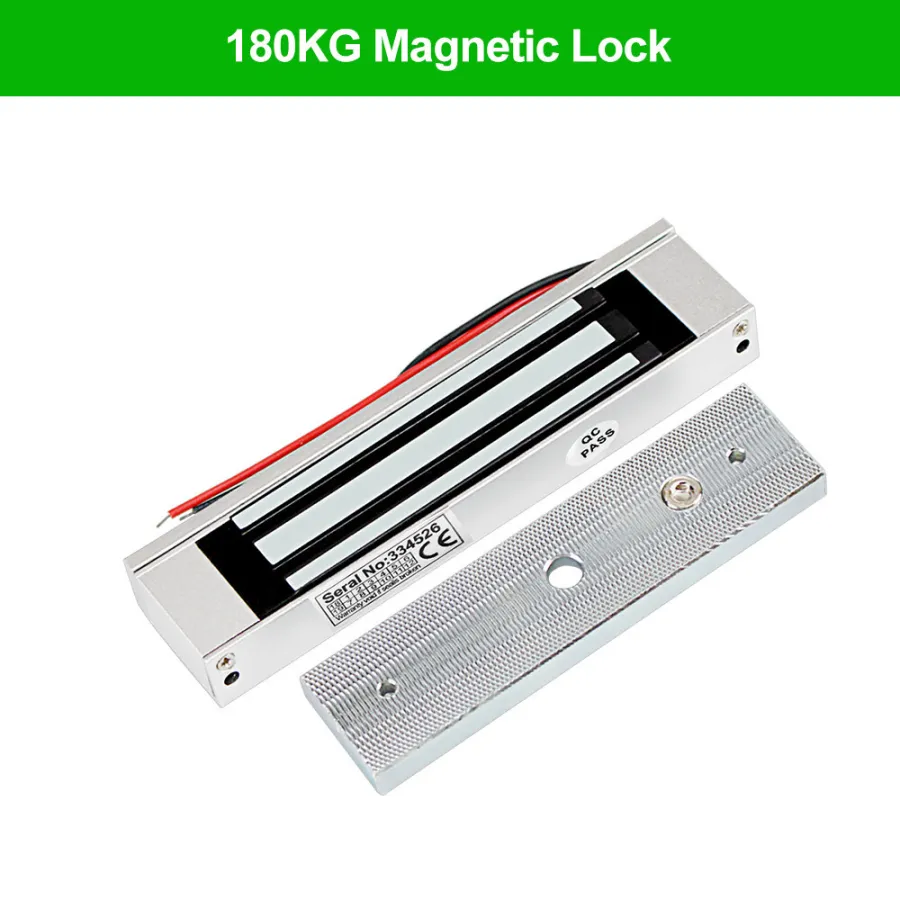

Lock Name: 180KG Magnetic Lock
Material: Aluminum alloy shell + iron plate
Working Voltage: DC12V
Working Current: 380-500mA
Holding Force: 180KG/350lbs
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be installed outside
Function: Can be used with building intercom, door access control system
Suitable For: Wooden, metal, security, glass door, etc.

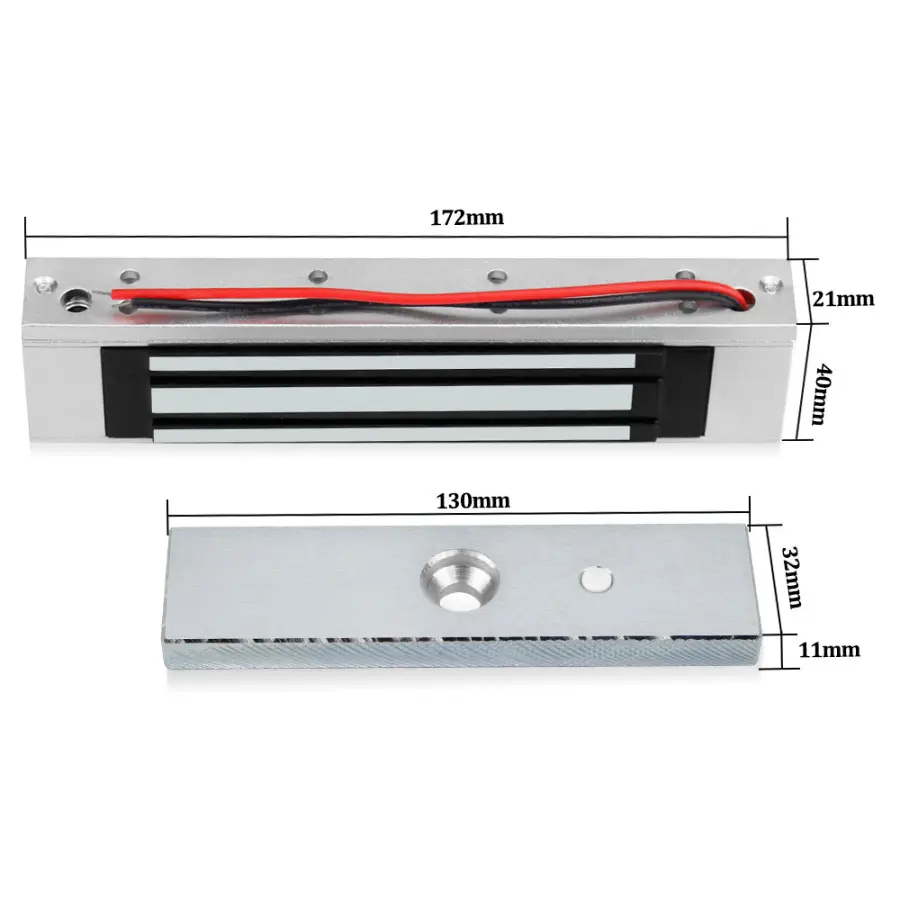

Dimension: 172*40*21mm/ 130*32*11mm
Product Details
DC12V electromagnetic lock
Fine workmanship design / Made of aluminium alloy / Sturdy and safety in using.

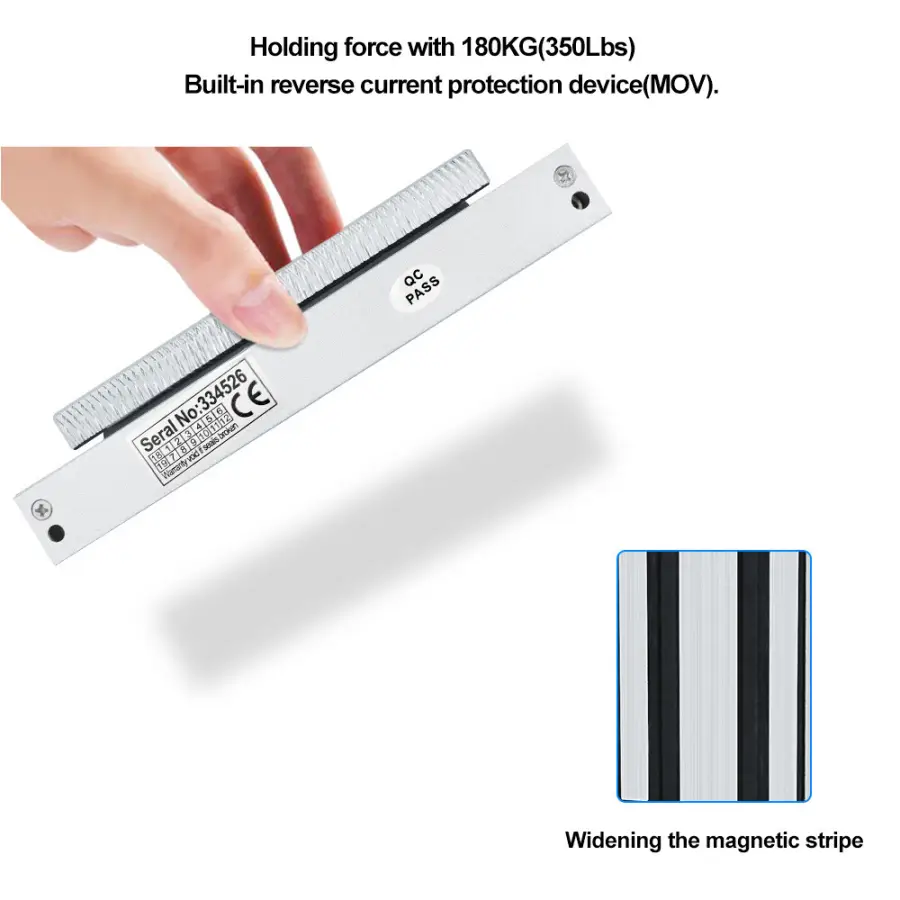

Holding force with 180KG(350Lbs)
Built-in reverse current protection device(MOV).

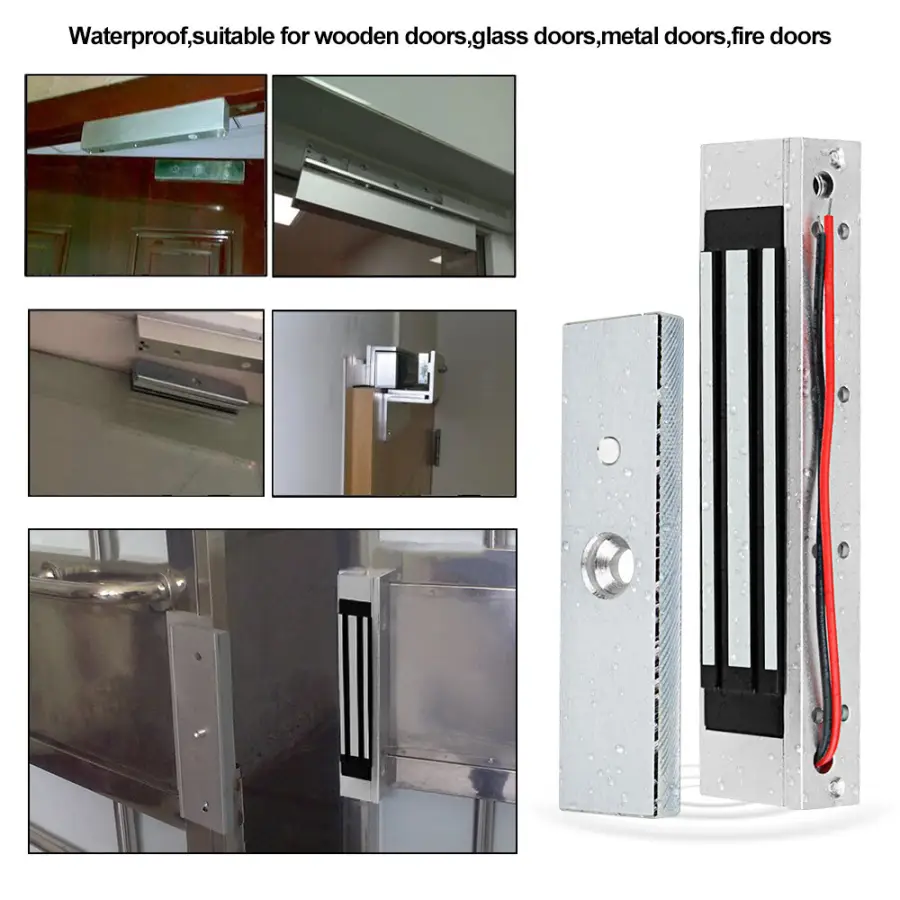

Waterproof, can be install outdoor
Suitable for wooden doors, glass doors, metal doors, fire doors

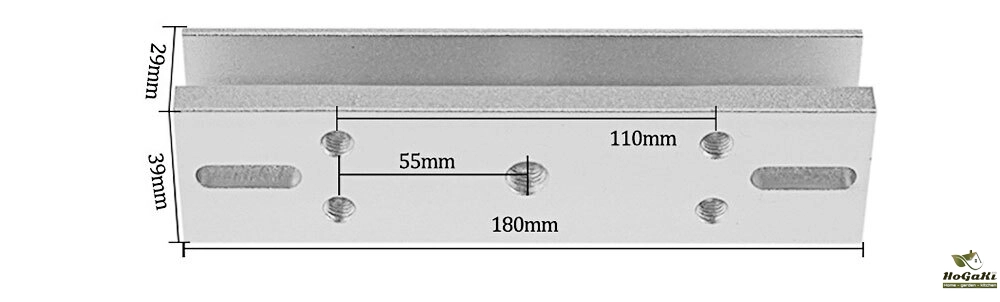

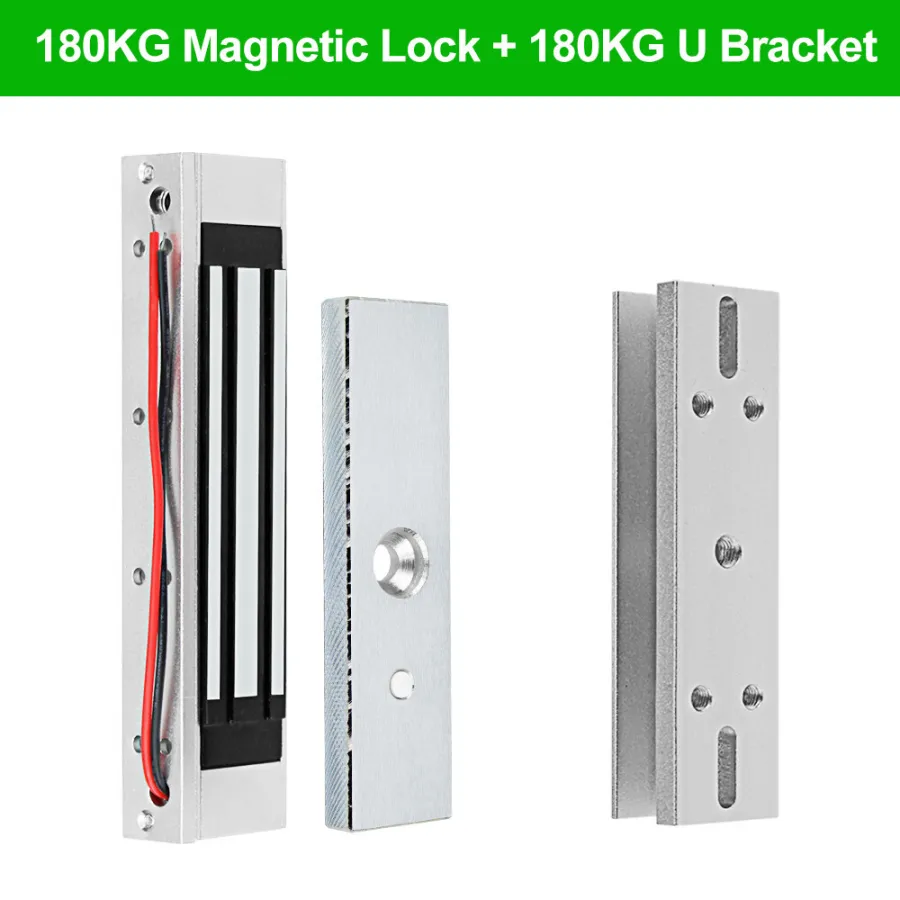

180KG U Bracket
If your door is frameless glass door, then will need a U bracket
U bracket: 180*39*29mm

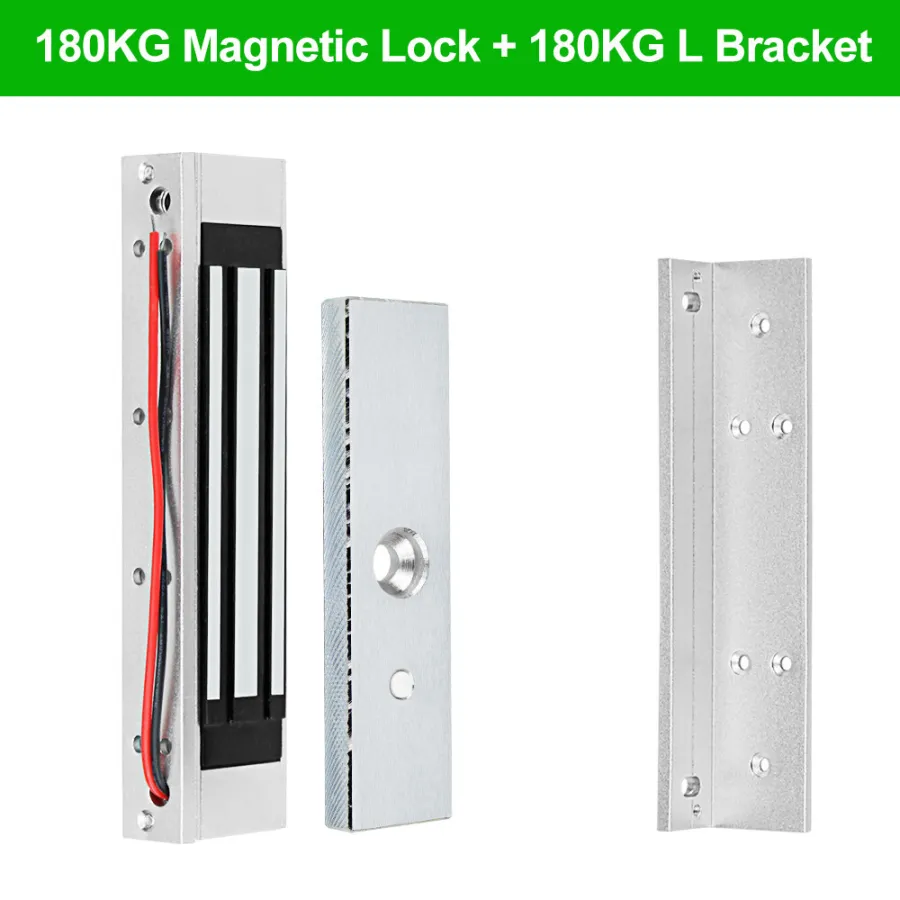

180KG L Bracket
Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.
L bracket: 168*39*24mm

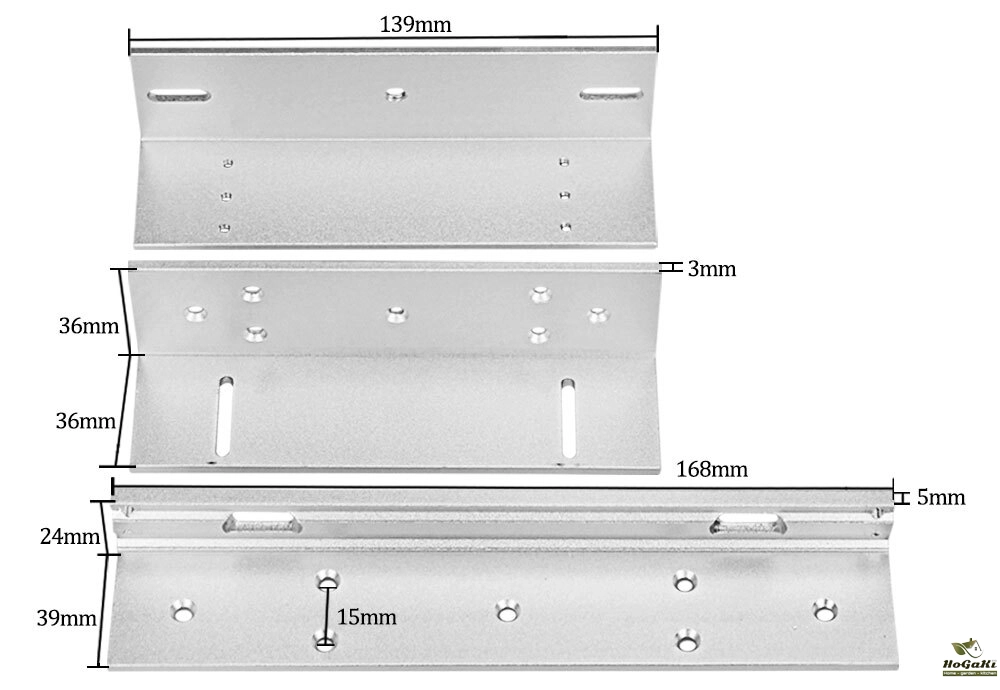

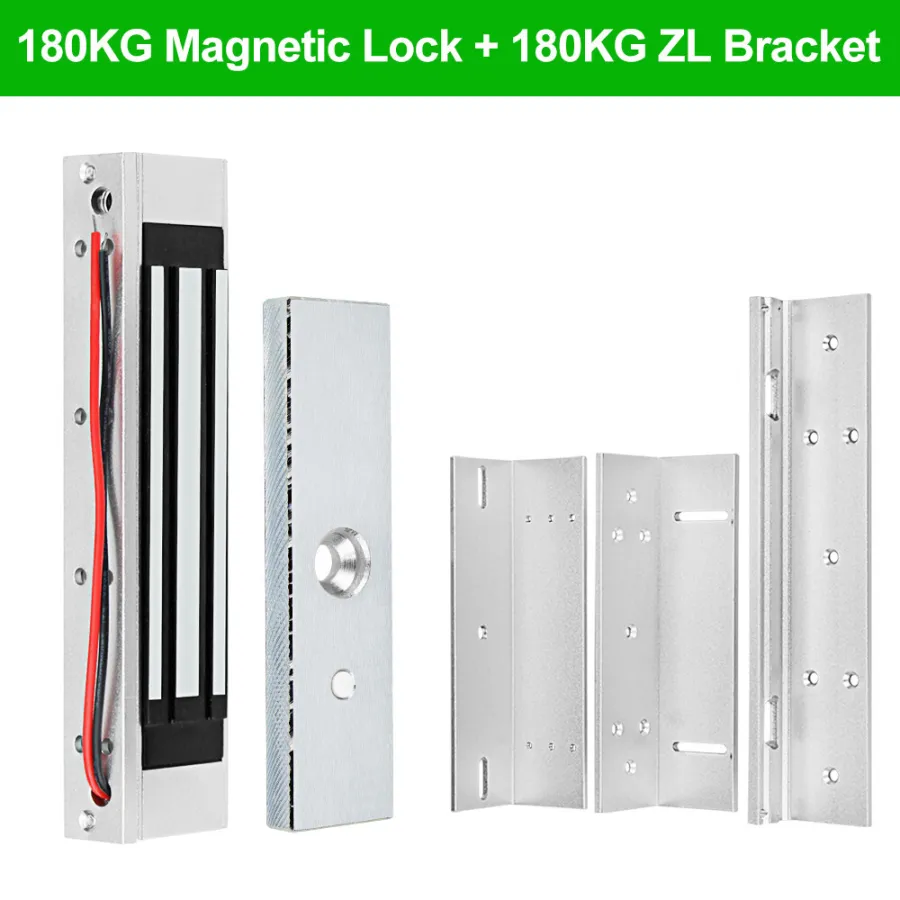

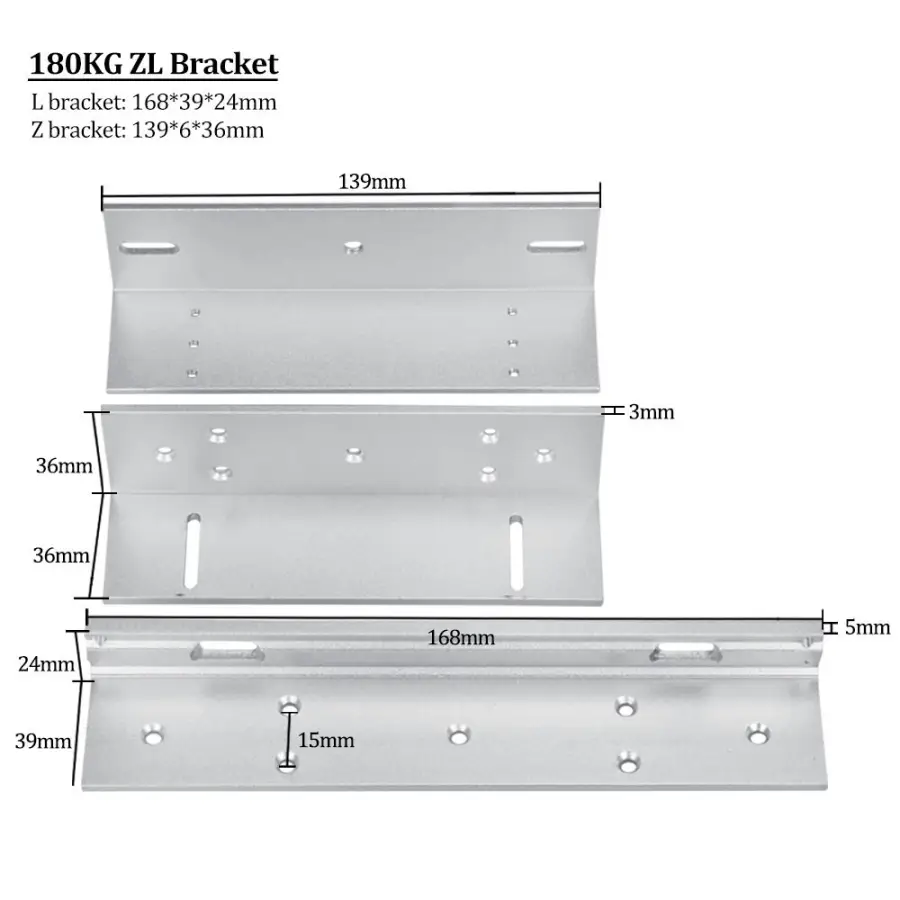

180KG ZL Bracket
If your door is open from indoor, then need to add the ZL bracket.
L bracket: 168*39*24mm
Z bracket: 139*6*36mm
Install Figure 1

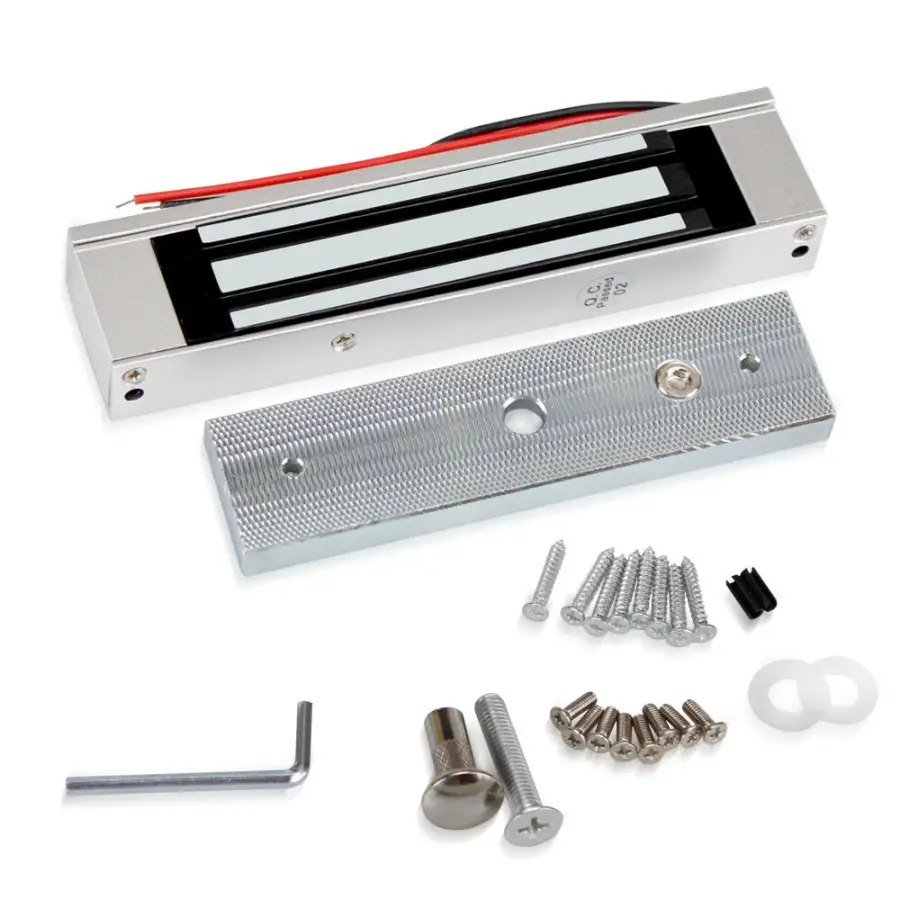

1. Put the dowel pin into the suction plate.
2. Put the bonded washer.
3. The bonded washer make suction stronger.
4. Remove the hanging plate.
5. Fixed hanging plate.
6. Using the spanner and inner hexagon screws to fix the plate on the lock body.
7. Close the door to test the pulling force, can add or delete the bonded washer to adjust the adsorption
surface of plate between with the lock body.
8. Tighten the tamper screws.

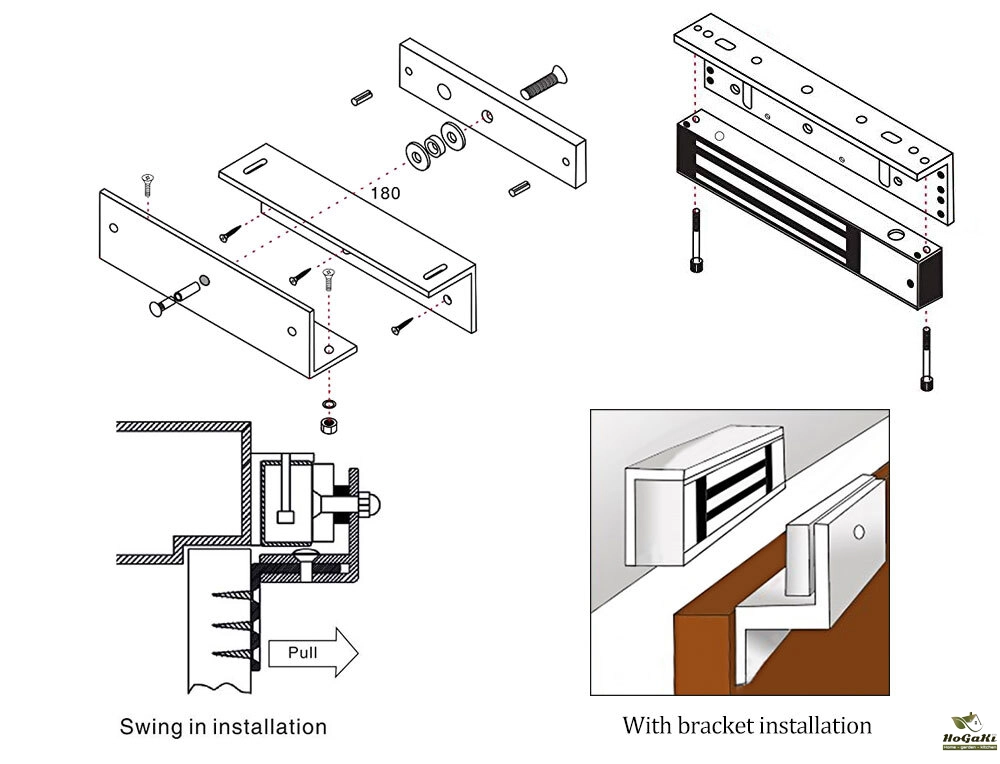

Install Figure 2
For in-swing door, install the lock body inside and then need to install the ZL bracket at the same time.
Discharge the mounting plate from lock body.
Fix the L bracket on the door frame and then fix the lock body on the L bracket.
Assemble the Z bracket and then fix it on the door frame.
Fix the armature plate on the Z bracket.

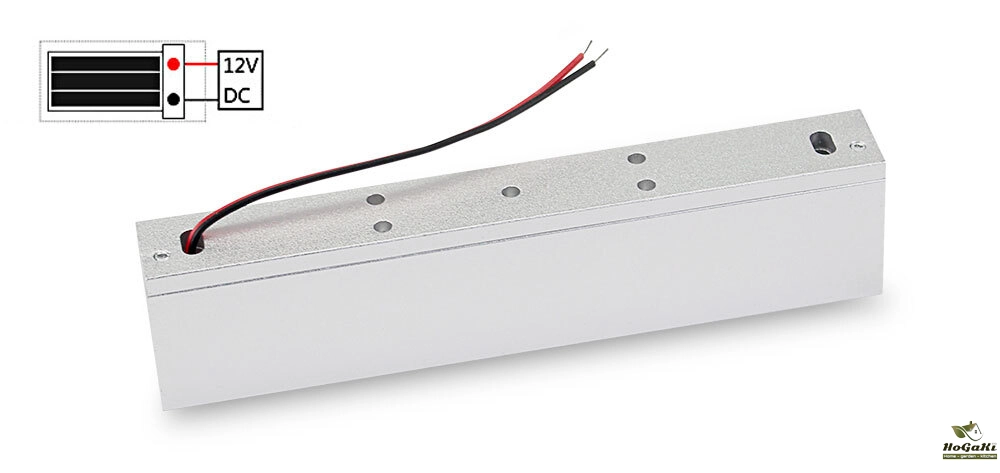

Wiring Diagram
( This package is not including the power supply, access control keypad, exit button, door bell. )
Packaging Details
- Unit Type:
- Package Weight: 1.127
- Package Size: 14x7x24
- Brand Name: OBO HANDS
- Origin: Mainland China
- Model Number: 180KG bracket
- Certification: CE
- Direction: None
- Security Mode: Fail Safe
- Material: Aluminum alloy shell + iron plate
- Working Voltage: DC12V
- Working Current: 380-500mA
- Holding Force: 180KG/350lbs
- Lock: 180KG Electric Magnetic Lock

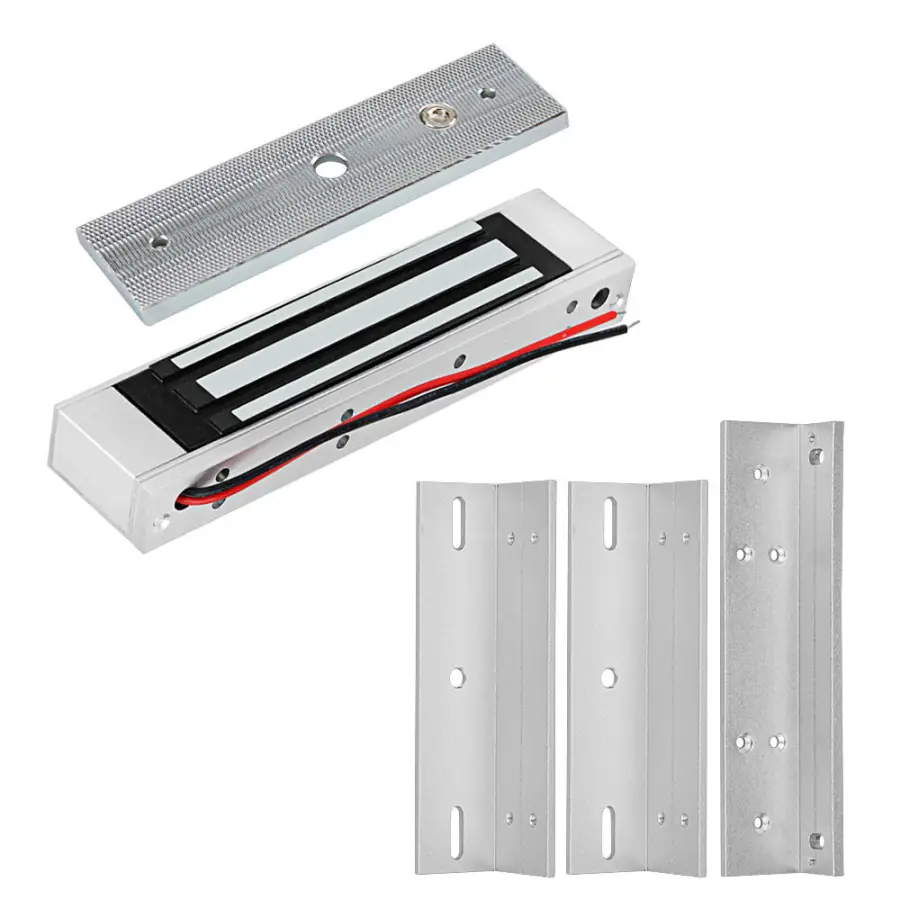

- Bracket: L Bracket / U Bracket / ZL Bracket
- Secure mode: NC model (fail safe model)
- Choice: yes
