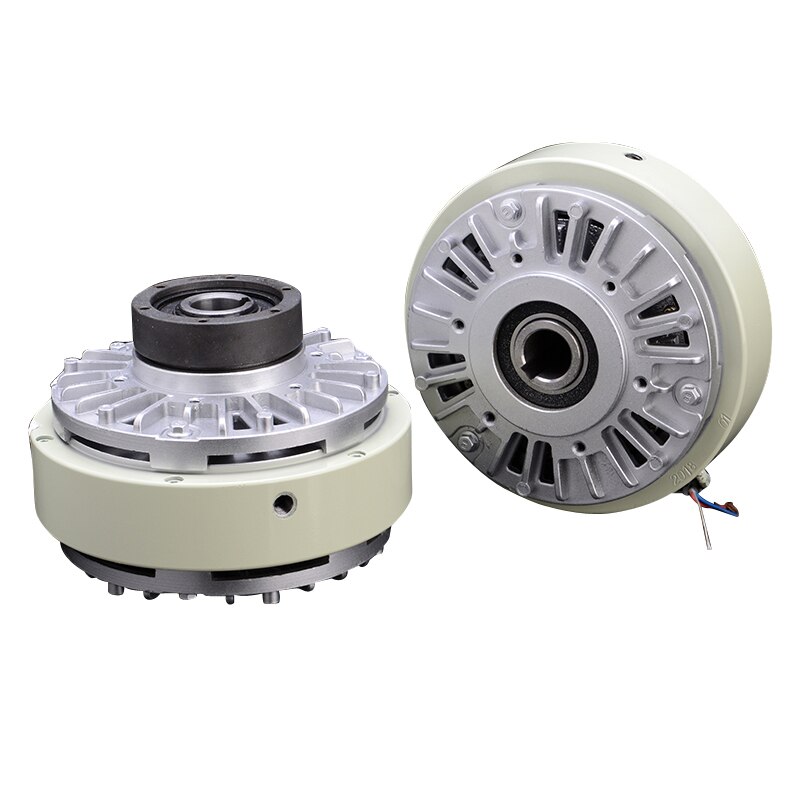

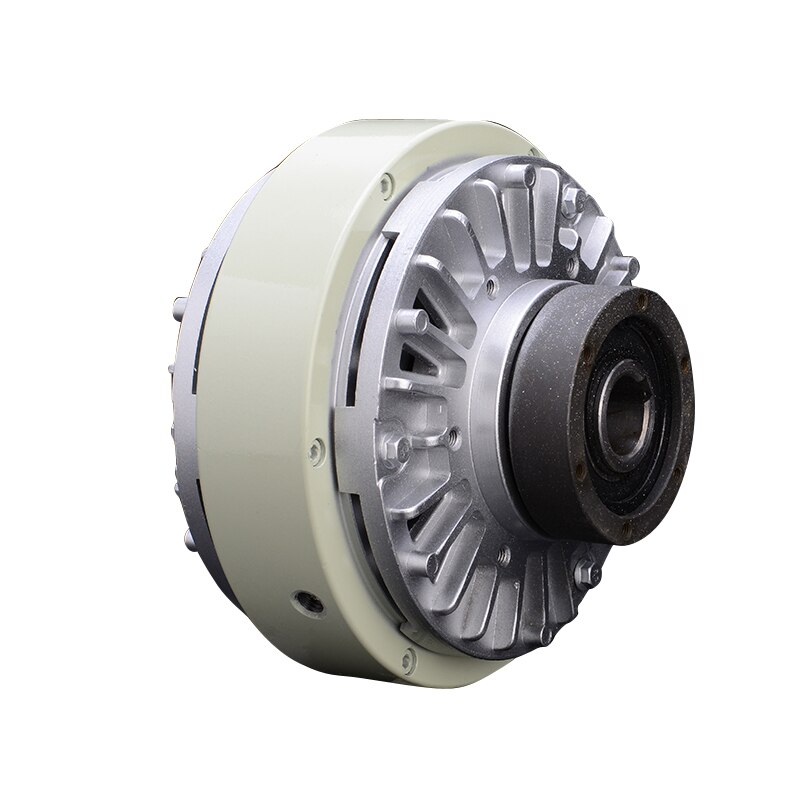

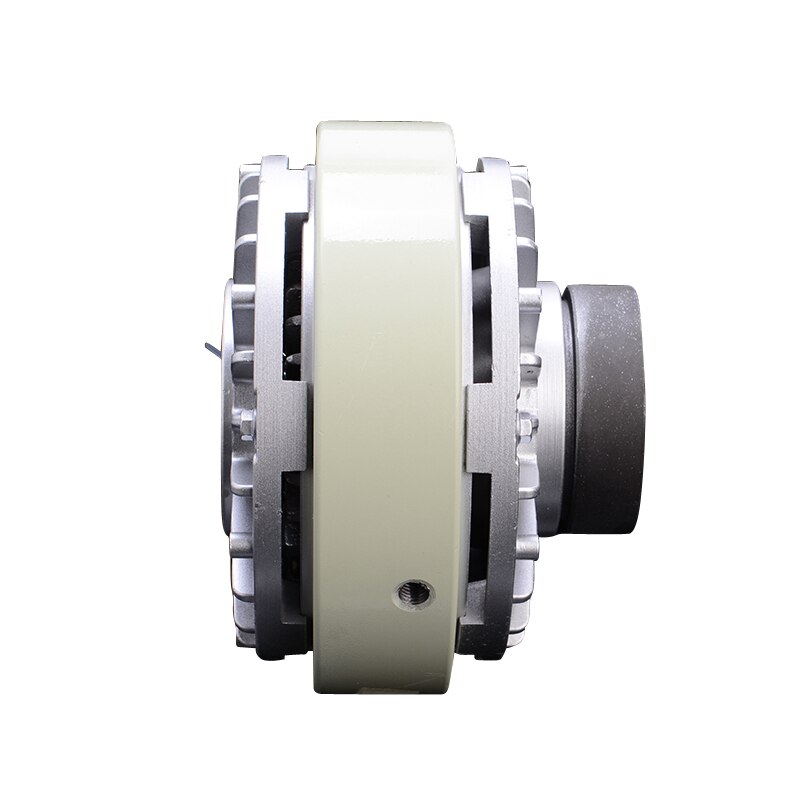

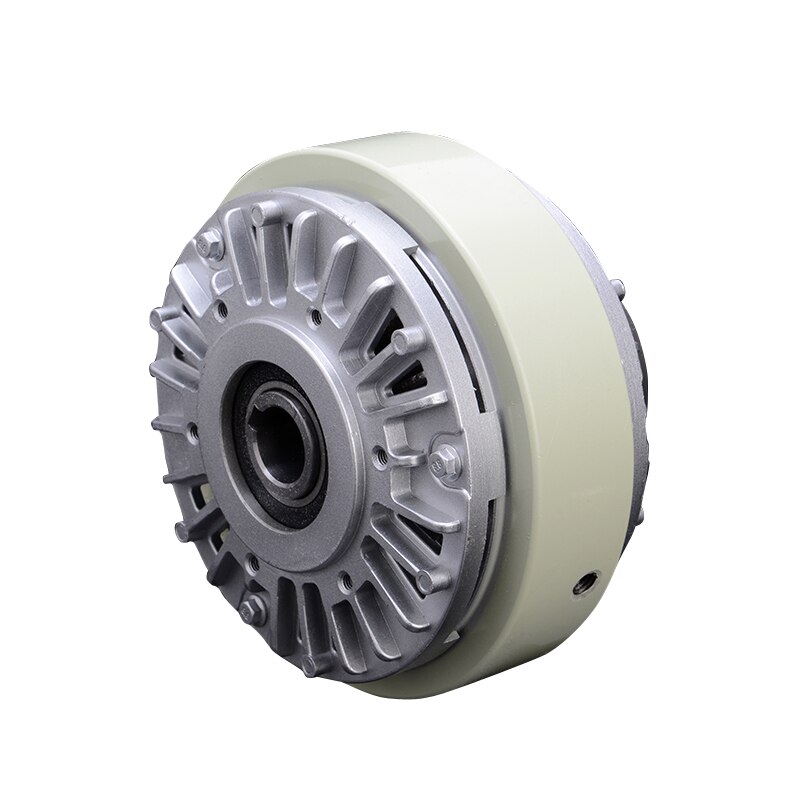

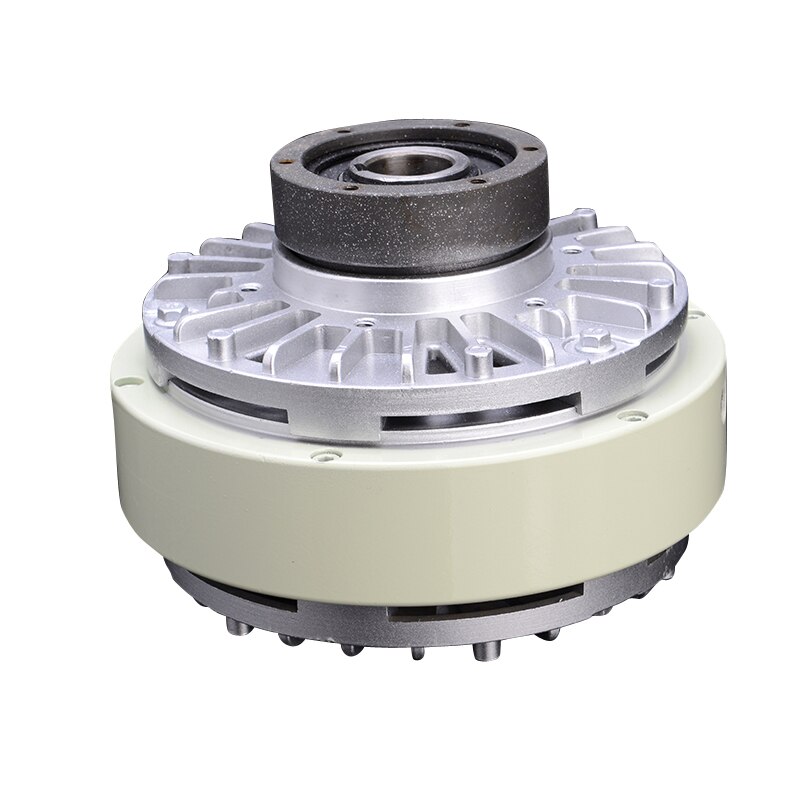

12N.M /1.2KG Hollow shaft magnetic powder clutch for Printing machine, Slitting Machine,Cutting machine
0.0 ( votes)
Price:
US $
506.77
/ piece
12N.M /1.2KG Hollow shaft magnetic powder clutch for Printing machine, Slitting Machine,Cutting machine
| model | Technical parameters | dimension | Net weight (kg) | ||||||||||||||
| Torque (N.m) | voltage | Rotate speed | Max current | D0 | D1 | D2*L1 | D3*L2 | D4 | L3 | L4 | L5 | d | t | 6-S | 6-S1 | ||
| FL-B-6 | 6 | 24V | 1400 | 0.8A | 130 | 50 | 60*16 | 62*16 | 70 | 64 | 91 | 3 | 16 | 5 | M4 | M5 | 4 |
| FL-B-12 | 12 | 1.0A | 157 | 63 | 70*18 | 72*7 | 80 | 77 | 107 | 3 | 20 | 6 | M4 | M5 | 6.5 | ||
| FL-B-25 | 25 | 1.5A | 182 | 71 | 80*20 | 82*10 | 97 | 88 | 129 | 4 | 25 | 8 | M5 | M6 | 9.5 | ||
| FL-B-50 | 50 | 1000 | 1.8A | 219 | 85 | 95*22 | 97*11 | 110 | 105 | 147 | 4 | 30 | 8 | M6 | M6 | 15 | |
| FL-B-100 | 100 | 2.0A | 290 | 105 | 125*24 | 128*14 | 145 | 134 | 182 | 5 | 35 | 10 | M8 | M8 | 32 | ||
| FL-B-200 | 200 | 2.5A | 335 | 125 | 140*28 | 145*17 | 165 | 145 | 200 | 5 | 45 | 14 | M8 | M10 | 50 | ||
Product introduction
The magnetic powder clutch is a combination of a transmission unit (input shaft) and a driven unit (output shaft). The space between the two sets of cells is filled with granular magnetic powder (recessed about 40 microns). When the magnetic coil is not conductive, the torque will not be transmitted from the transmission shaft to the driven shaft. However, if the coil is electromagnetically energized, the magnetic powder will attract hardening due to the action of the magnetic force, and the torque will be transmitted between successive slidings.
Scope of application
Printing machinery, paper machinery, bag making machinery, paper making machinery, wire and cable machinery, winding machinery, wire machinery, bale bag machinery, textile machinery, weaving machinery, woodworking machinery, test equipment, simulation load, various Mechanical precision tension control, general industrial equipment, and other general industrial machinery.
- Voltage: 24V
- Material: Cast Iron
- Model Number: FL-B-12
- Certification: NONE
- Origin: Mainland China
