1200M AHD CVI TVI HD Video Signal Amplifier Booster 1080P 720P Coax Security CCTV Camera Coaxial Cable AMP Extender by Excelax
0.0 ( votes) | 1 orders
Price:
US $
32.24 -
38.89
/ piece

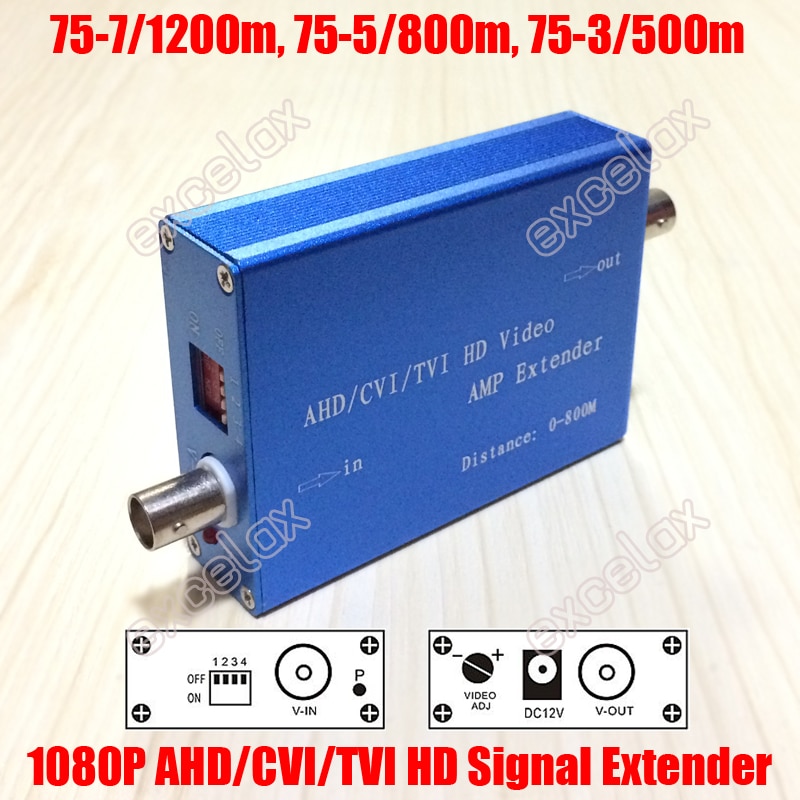

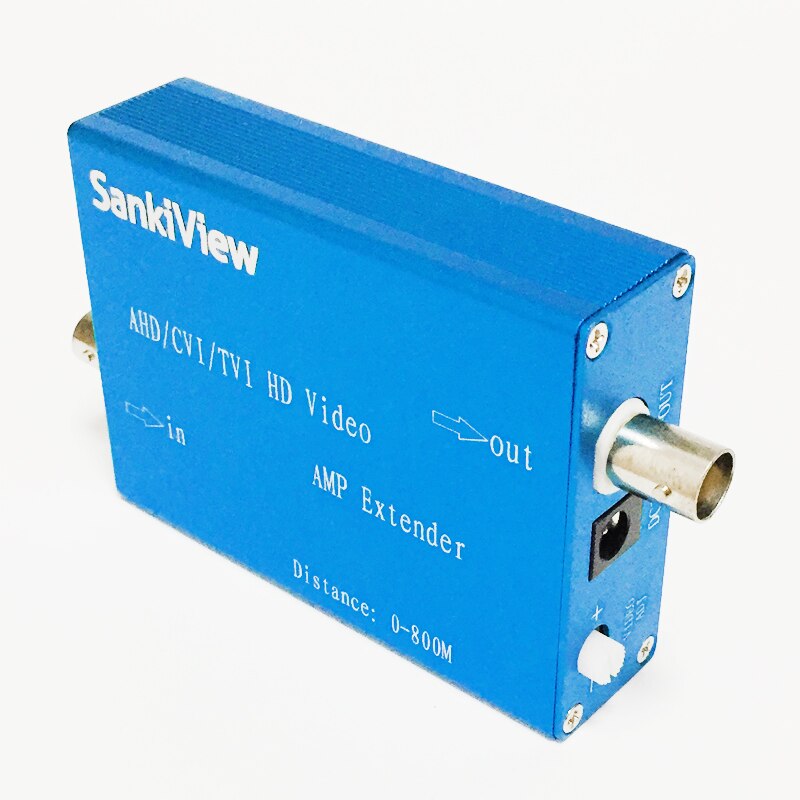

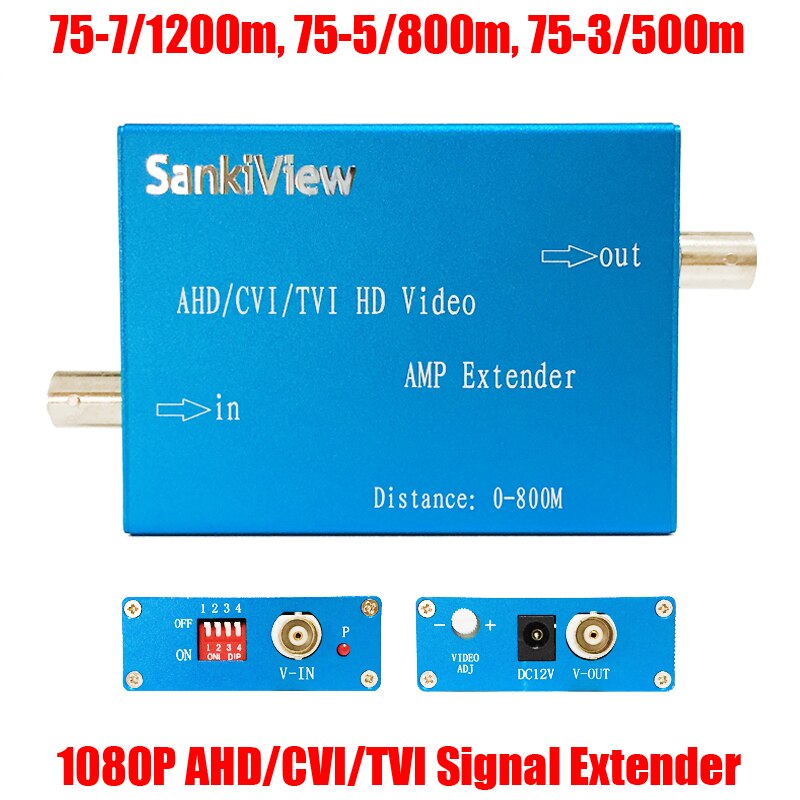

High Quality 1080P AHD/CVI/TVI/CVBS Coax Video Signal Extender Amplifier
Description:

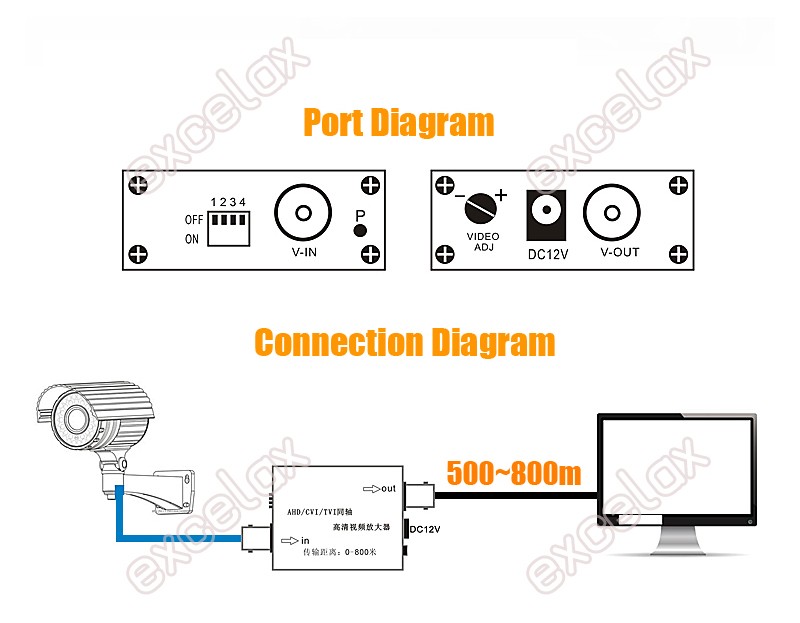

The video amplifier amplifies video signal and extend distance up to 1.2KM over coaxial cable transmission. It is applied to convert video signal to RF signal from the start of transmission. Transmitted video signal is available to keep original, stable and without distortion. The product effectively helps fix image floating, flickering, distortion, reticulation, crosswalk, snowflakes, image noise, etc.
Features:
High quality AHD/CVI/TVI video signal extender
No compression and no delay
Adopt SGM semiconductor of professional video amplification IC
Support 1080P/720P AHD/CVI/TVI/analog video
Professional broadcast level standard
Excellent processing technology of video and image signal
Coax transmission up to 1200m without signal attenuation
Suitable for 75-3/5/7 application
Plug-and-play without software setup

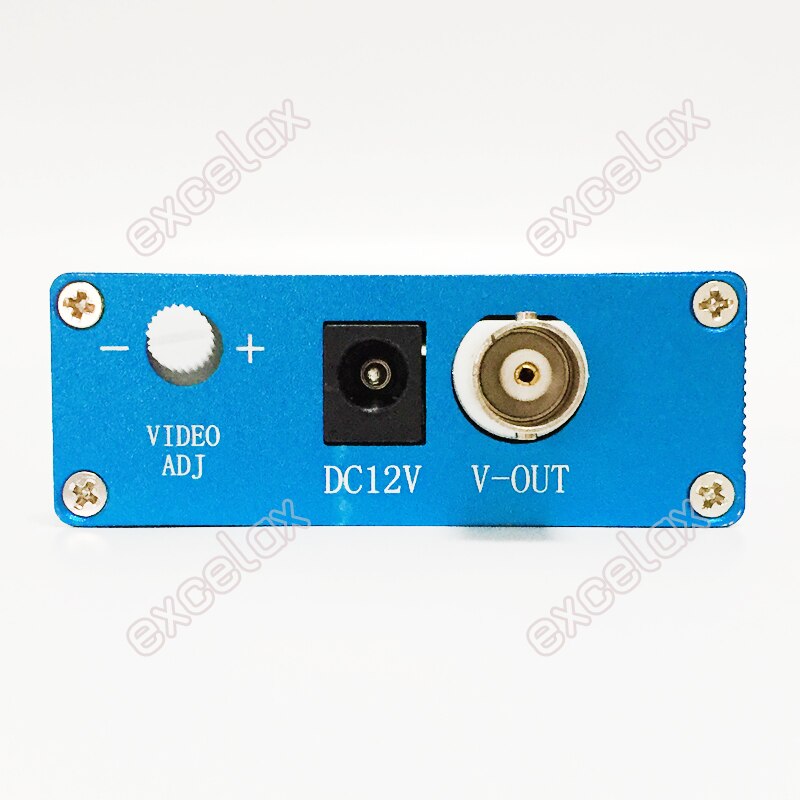

DC 12V 1A power input (Power adapter optional)
Easy to use
Specifications:
Cable Type: SYV75-5-1 coaxial cable
Port Type: BNC female connector
Power Input: DC 12V, 1A (Power adapter not included)
Working Temperature: -40 ~ 60C degrees
Case material: Aluminum alloy
Dimension: 86x63x23mm (body, not including connectors)
Net Weight: 0.11kg
Package Content:
1* AHD/CVI/TVI Signal Extender (Blue and black version is sent subject to stock availability without confirmation again.)
1* Power Adapter (Optional)
1* User Manual
Remarks:

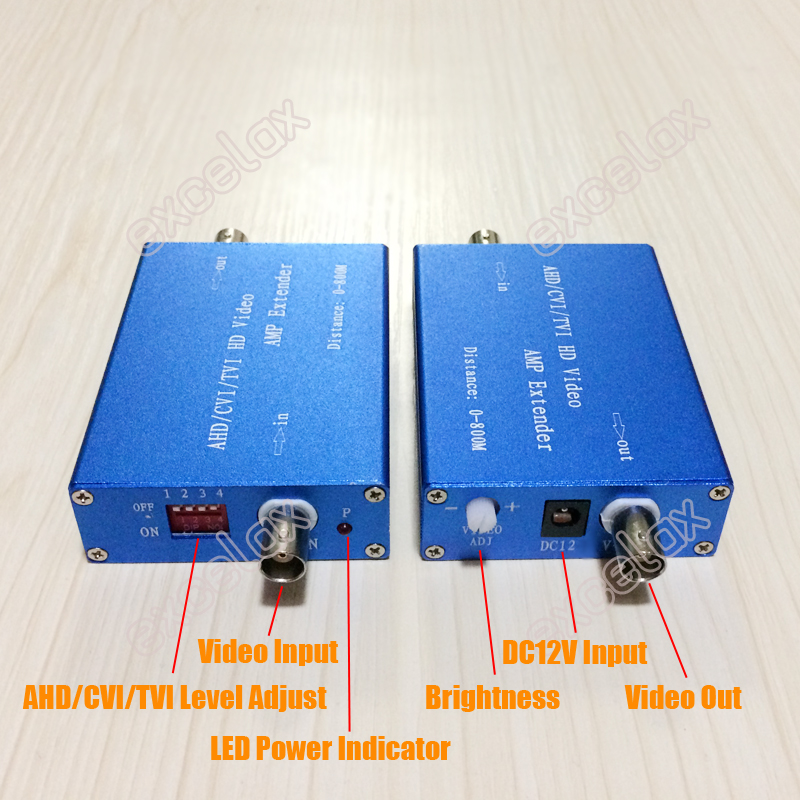

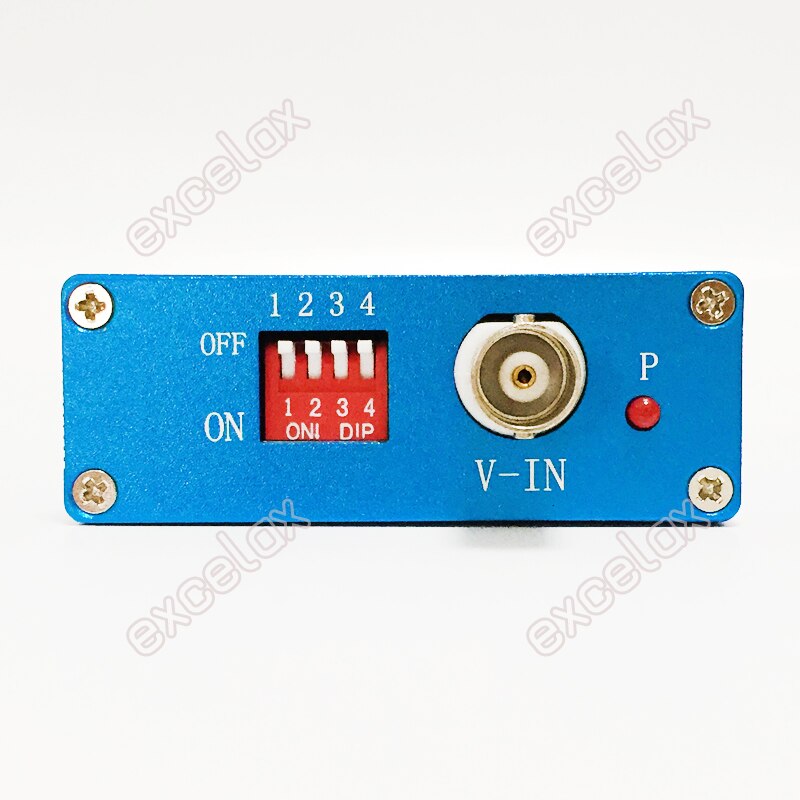

1. DIP Switches Operation:The 4 DIP switches are for adjusting signal strength. One DIP is for 5 times amplification. For example, in your test, if signal attenuation exists and images are not fine, please switch on the 1st DIP switch. If it is still not good, switch on the 2nd DIP in 5 minutes till the images are good.

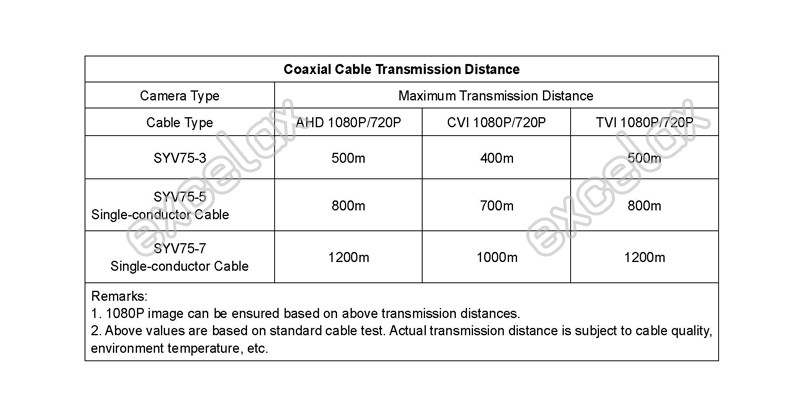

2. The actual test performance may achieve higher than 1080P. Above test distance values are based on national standard cable. The onsite transmission distance also matters with cable quality, environment temperature, interference, etc.
Save big at wholesale price:
- Model Number: AHD/CVI/TVI Extender
- Item Type: Video Converter
- Origin: Mainland China
- Certification: NONE
- Transmission Distance: Up to 1200m
- Resolution: Up to 1080P
- Case Material: Aluminum Alloy
- Power Adapter: Optional
