100% Japan Original Electromagnetic Powder Brake Controller ZA-5Y1

0.0 ( votes)
Price:
US $ 2294.86 / piece
Color
Rated Torque
Quantity

Welcome to Lixinsheng Packing Equipment Store

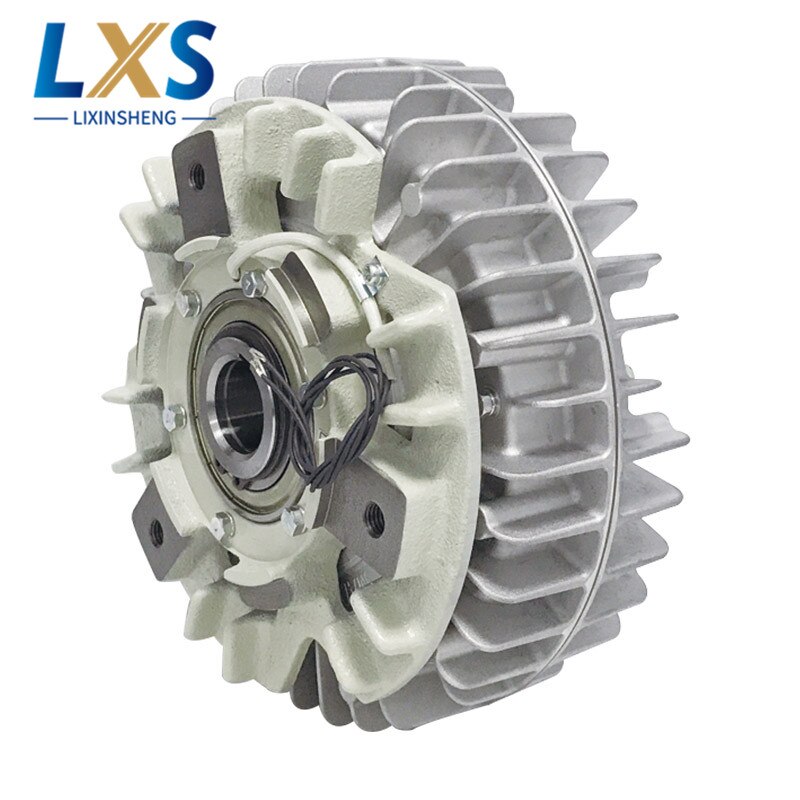

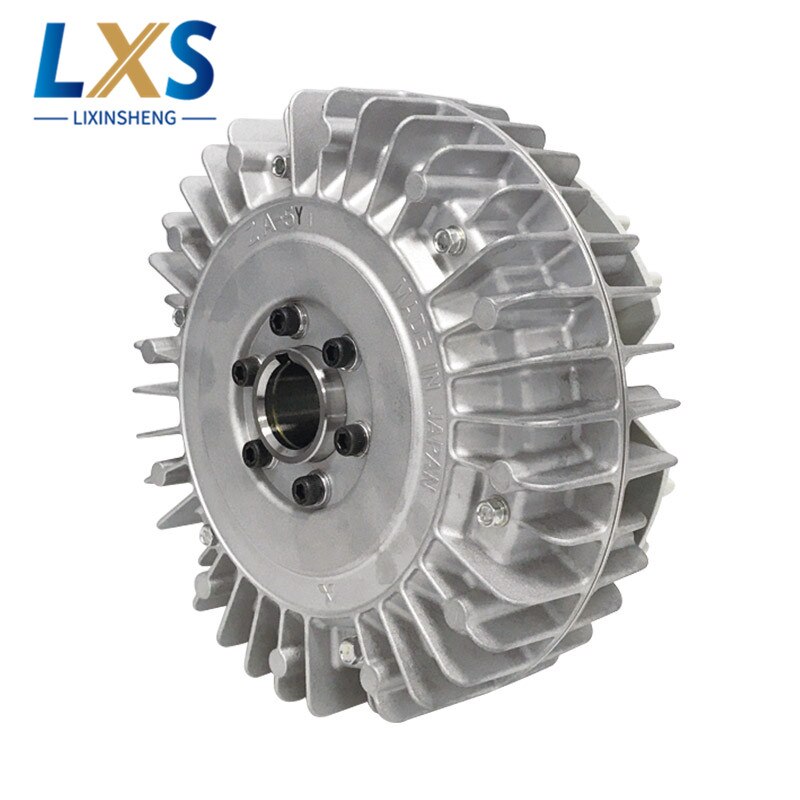

Japan Mitsubishi Electromagnetic Powder Brake Controller ZA-5Y1

1

ZA-Y-type magnetic powder brake

Brand: Mitsubishi

Origin: Japan

Model:  ZA-5Y1





>>>Feature

· Rated torque: of 6 ~ 400 (N · m),

· Naturally cooled hollow shaft type

 1, 15 r / min from available

 2, the rotary models improve the cooling performance, to increase the thermal capacity of the outer peripheral





 Specification



Model



Rated torque

(N·m)

  Coil(75℃)





Inertia moment J(kgm⊃2;)

Weight(kg)

Max. allowable speed

(m/min)

Magnetic particle weight(g)

Current (A)

Power

(W)

Time constant(s)

ZA-0.6Y

6

0.30

7.2

0.10

1.55×10^(-3)



2.4

1,800

14

ZA-1.2Y1

12

0.39

9.4

0.13

5.5×10^(-3)



5

1,800

25

ZA-2.5Y1

25

0.73

17.5

0.15

9.4×10^(-3)



7.4

1,800

39

ZA-5Y1

50

0.94

22.6

0.17

2.3×10^(-2)



11

1,800

60

ZA-10Y1

100

1.21

28.8

0.30

6.6×10^(-2)



21.5

1,800

117

ZA-20Y1

200

1.9

45.6

0.60

2.0×10^(-1)



39.5

1,000

255

ZA-40Y

400

2.2

52.8

0.60

4.6×10^(-1)

64

1,000

440

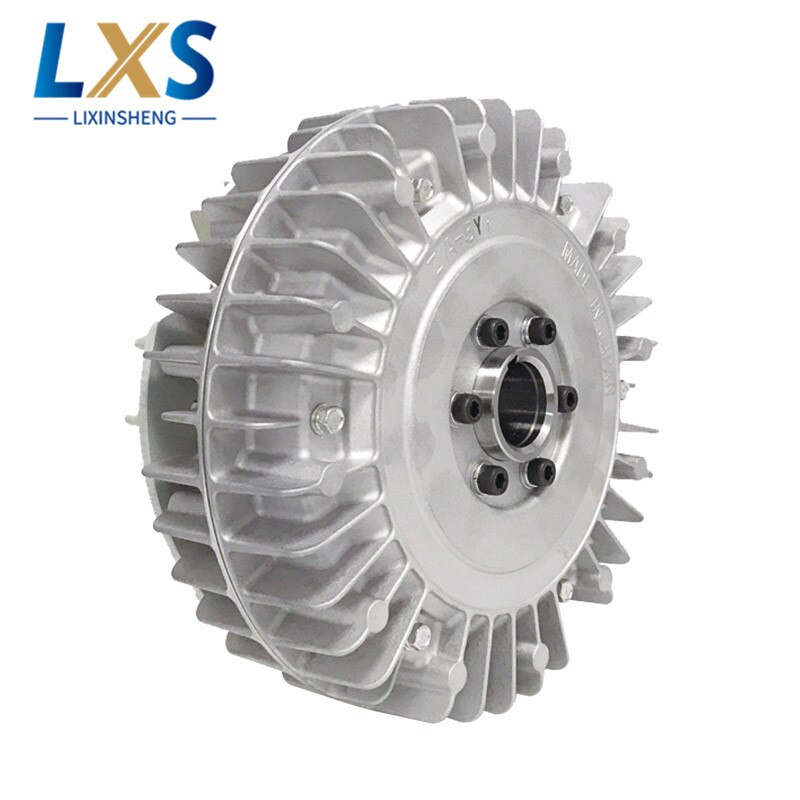

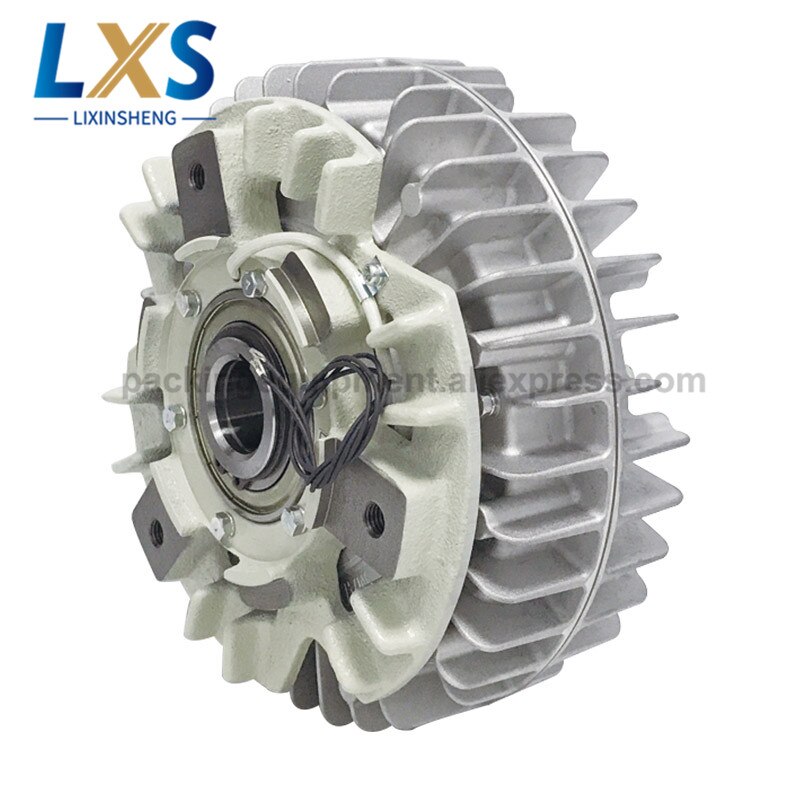

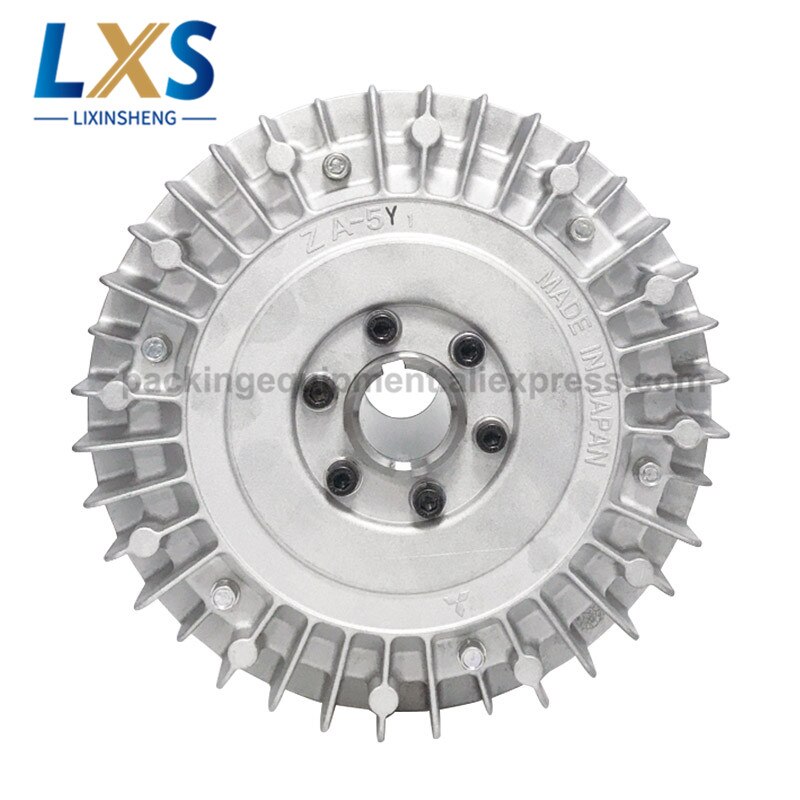

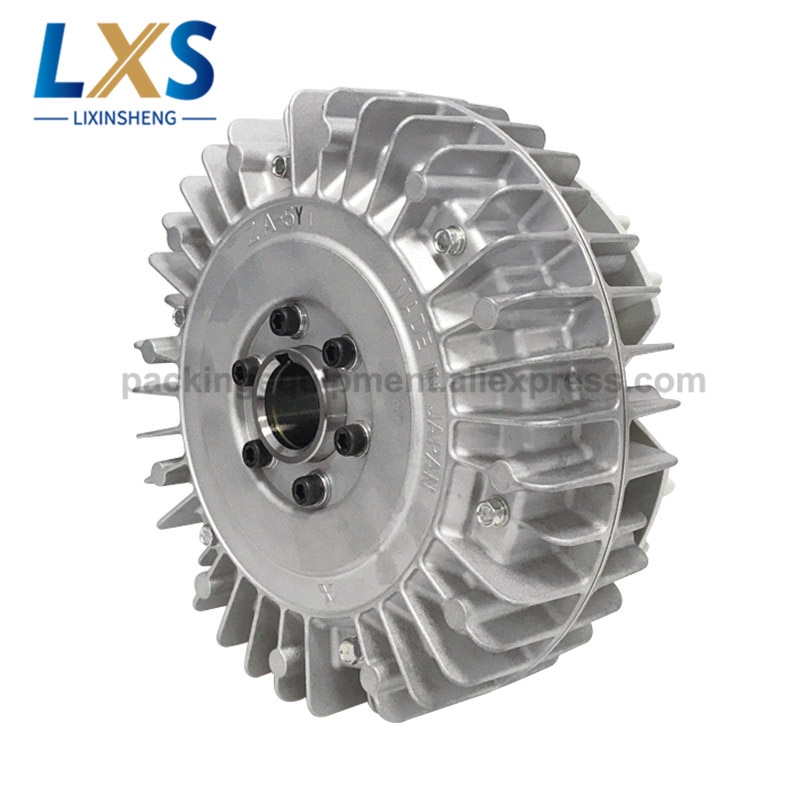

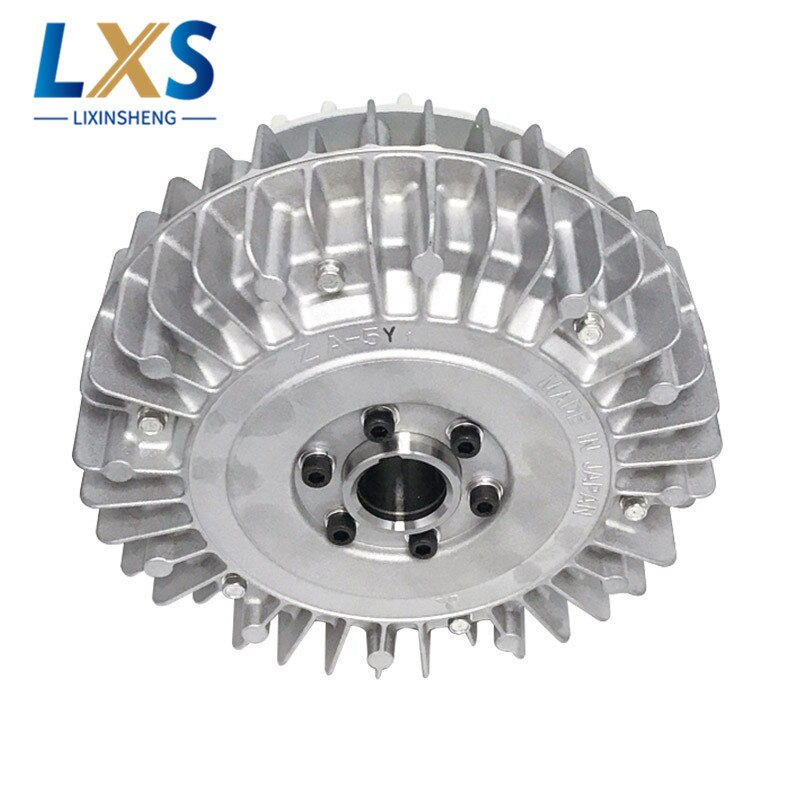

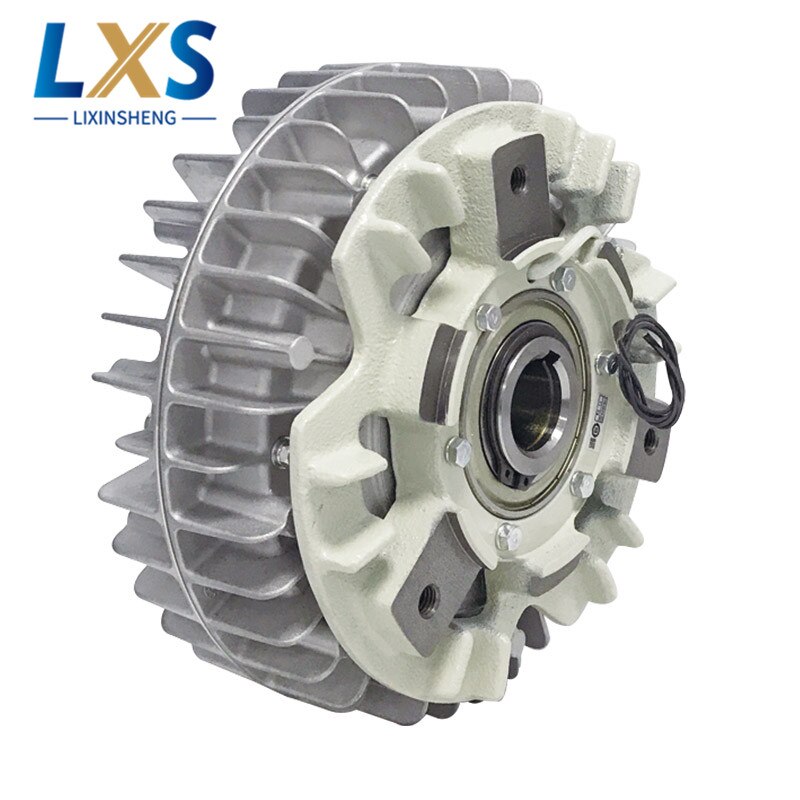

ZA-5Y1 (5)ZA-5Y1 (6)





ZA-5Y1 (3)





ZA-5Y1 (1)

1

More products pls kindly click here  : Lixinsheng Packing Equipment Co.,Ltd Store

As the following is a table of other spec. , pls choose the perfect match standard you need.


 _20181017223723

HTB1s_YJaovrK1RjSspcq6zzSXXal






  • Voltage: 22.6W
  • Material: Aluminium-copper Alloy
  • Model Number: ZA-5Y1 Mitsubishi Magnetic Clutch
  • Product Name: Mitsubishi ZA-5Y1 Magnetic Powder Brake
  • Suitable industries: Printing machine, paper machine, rewinding machine, drawing machine, f
  • Magnetic powder clutch used in: Tension control, overload protector, torque loader, etc
  • Feature: With fast response speed, simple structure, no pollution, no noise
  • The magnetic powder weight: 60g
  • Available Speed: 1800 r/min
  • Suitable for: Motor, engine, hydraulic press reducer when loading experiment of load
  • Type: Naturally cooled hollow shaft type magnetic powder brake
  • Time constant: 0.17s
  • Current: 0.94A
  • Rated torque: 50(N.m)/60g Powder Brake Controller
  • Original: Japan Mitsubishi ZA-5Y1
