【EU / RU】Water Cooled Spindle Motor CNC Kit 2.2KW ER20 220V + HY Inverter VFD + 80mm Clamp For Router Milling Machine
0.0 ( votes)
Price:
US $890.46 - 1178.46
/ Set
Discount Price:
US $
795.66 -
1040.46
/ Set
-11%
- Ships From

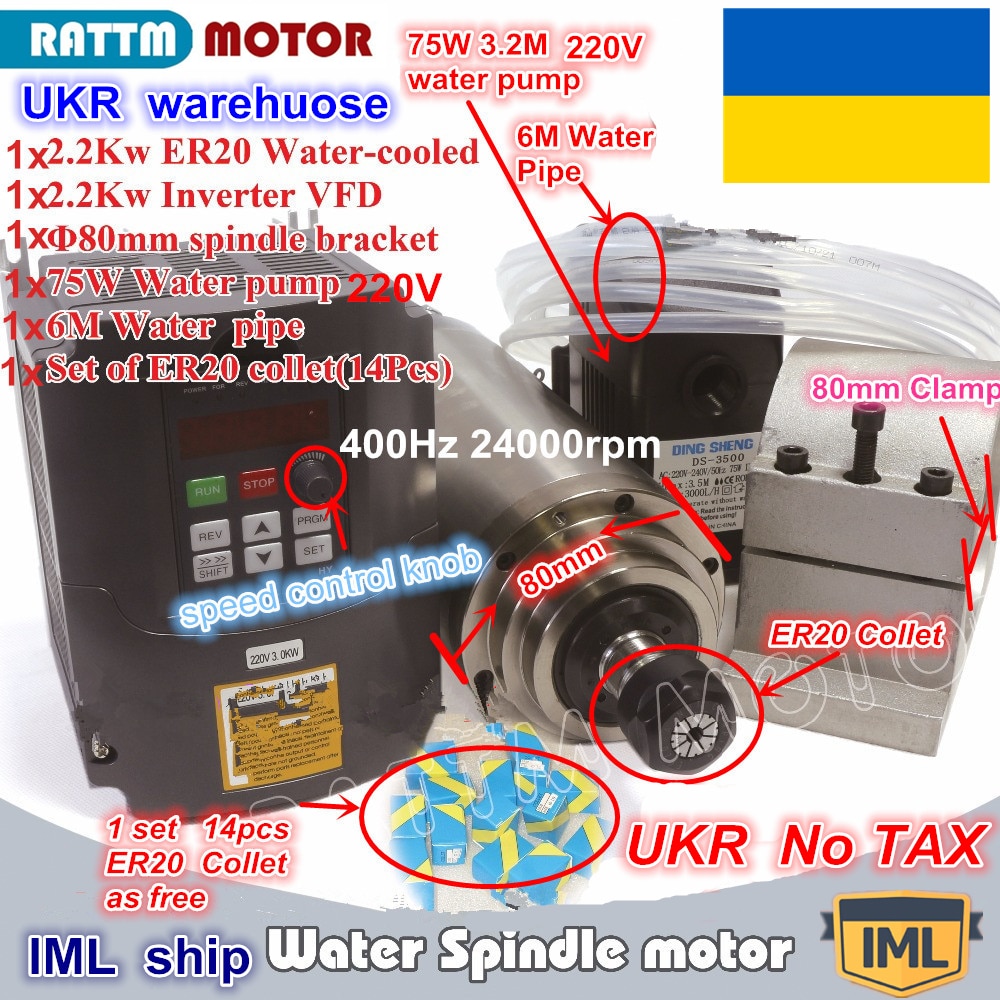

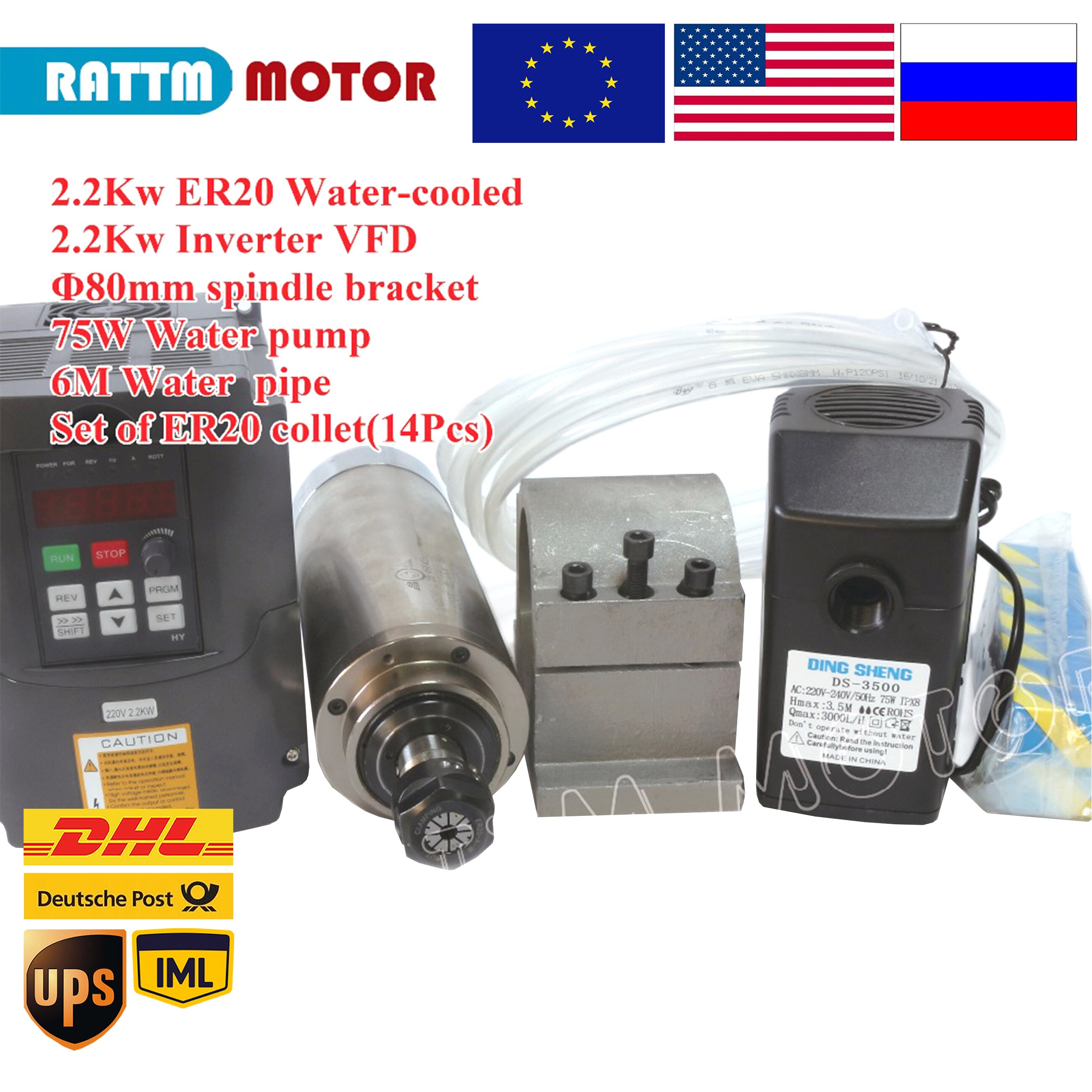

Package include:

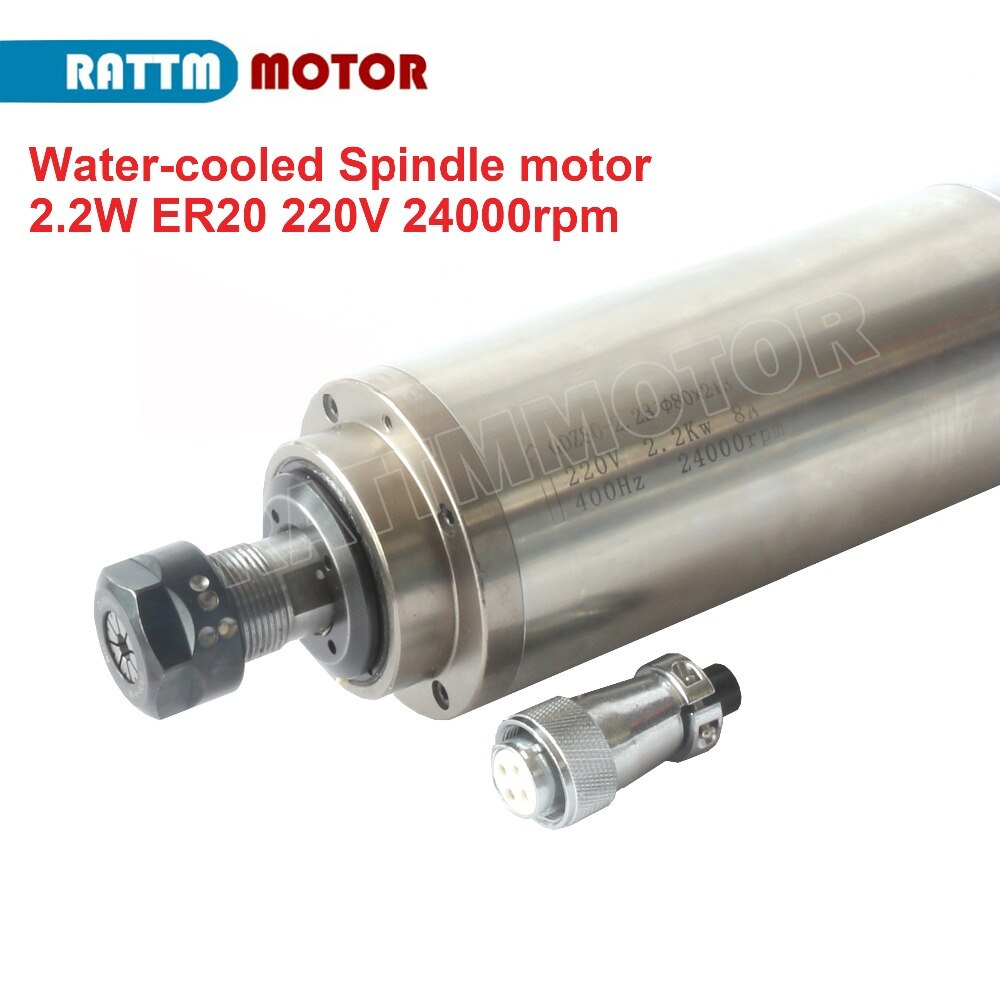

1 x 2.2KW water cooled spindle motorER20 220V 24000rpm

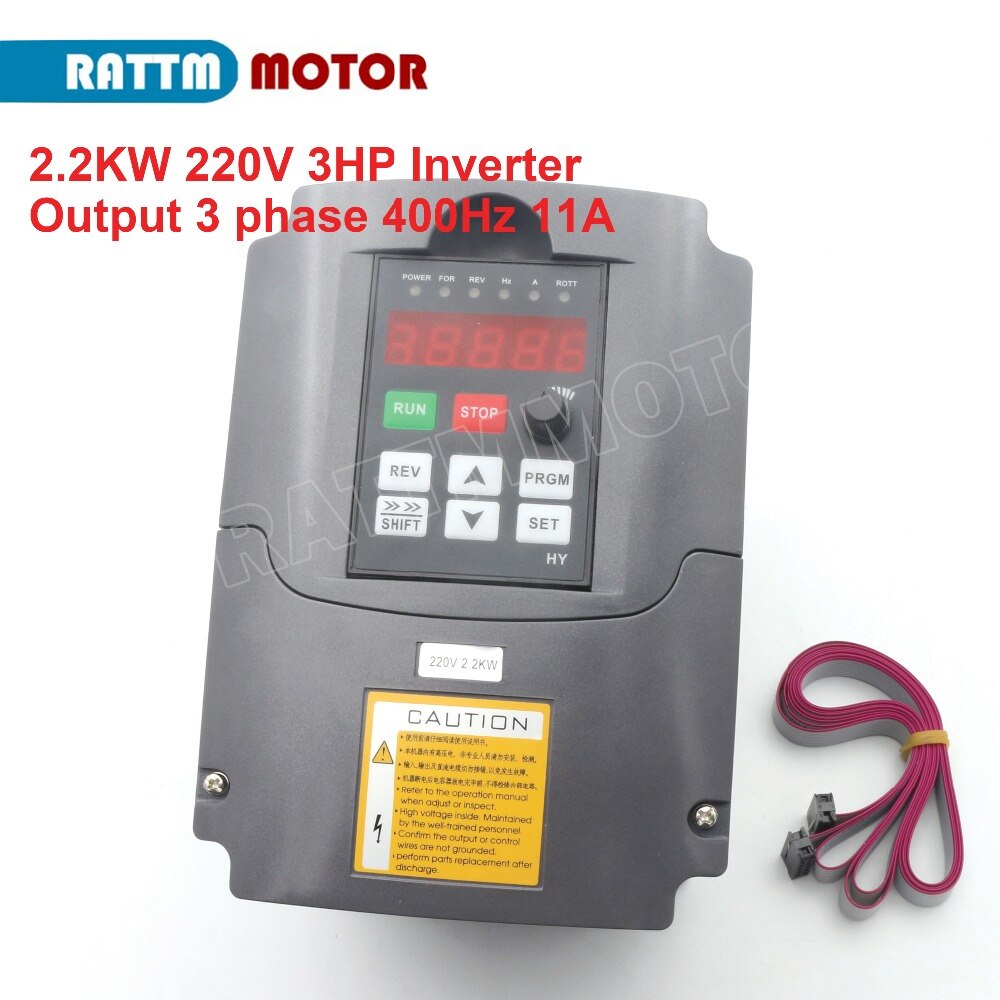

1 x Inverter 2.2KW 220V

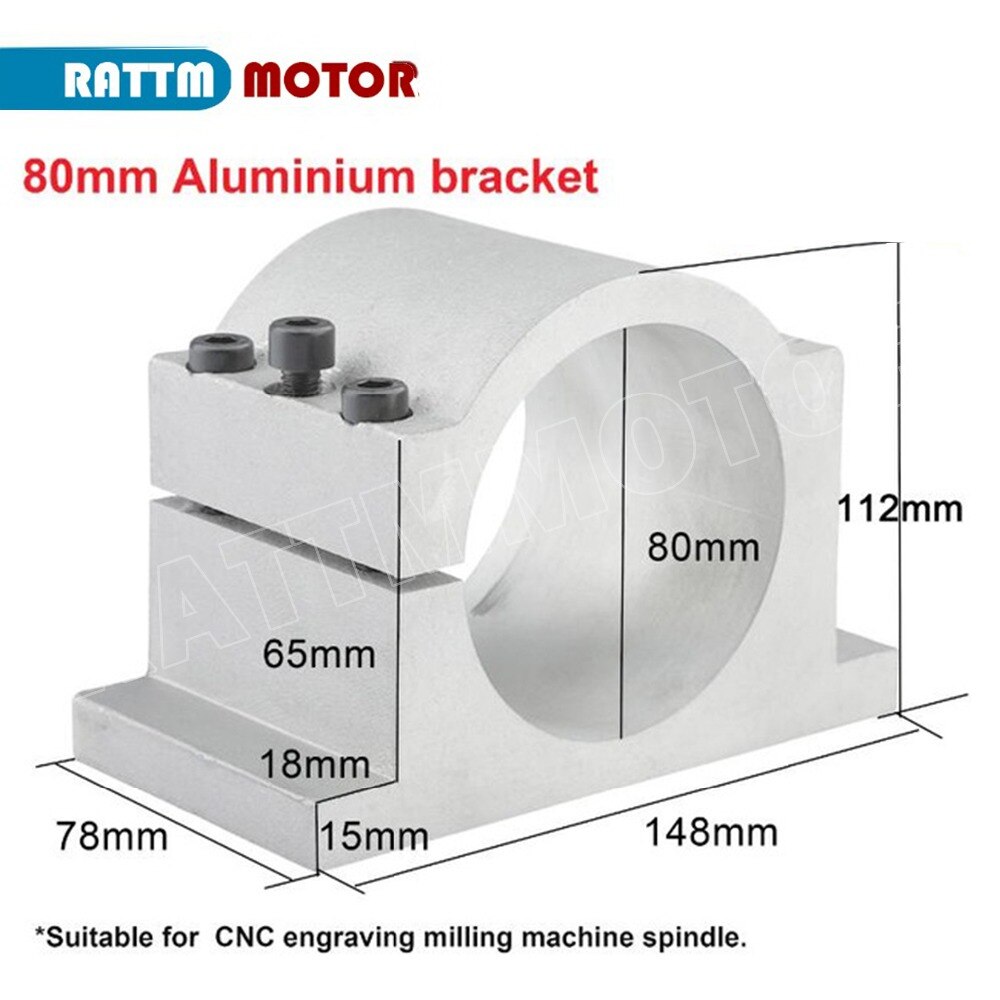

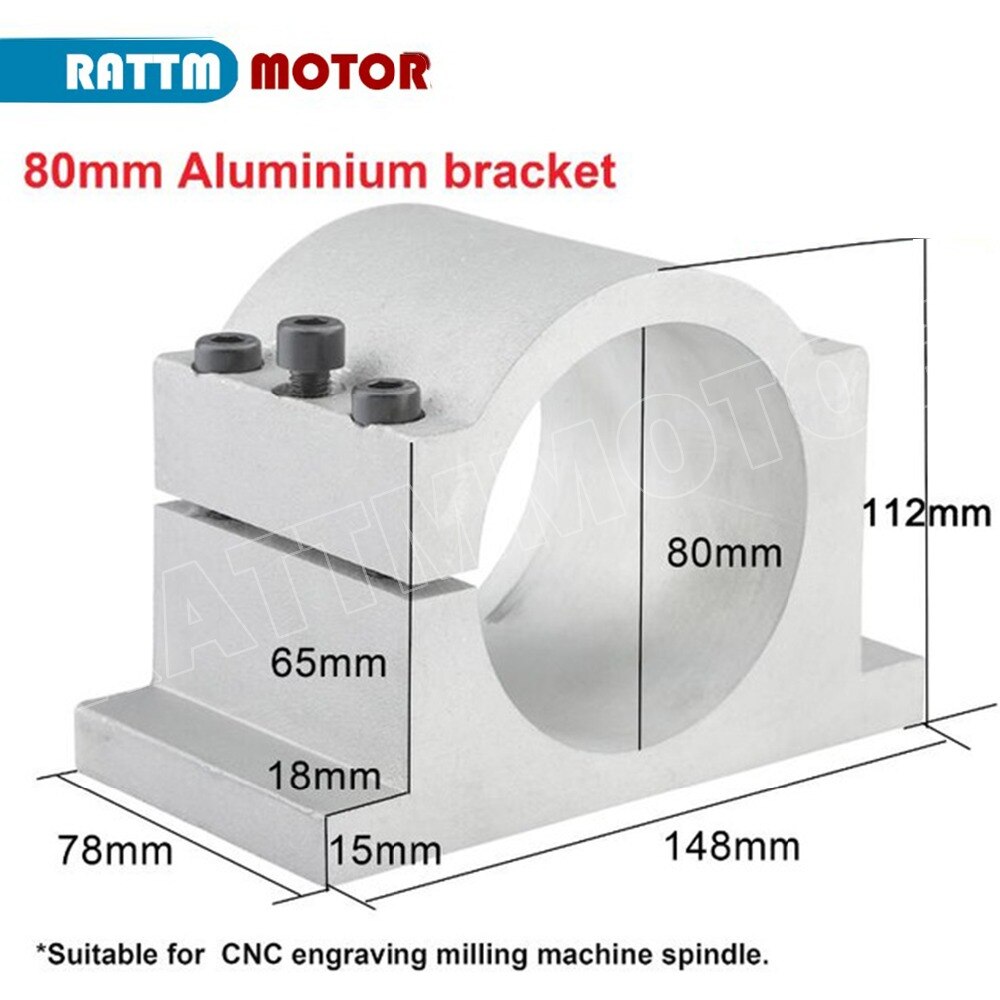

1 x 80mm cast aluminium bracket
1 x 75W Water Pump 3.5m (EU plug)
1 x 6M length water pipe

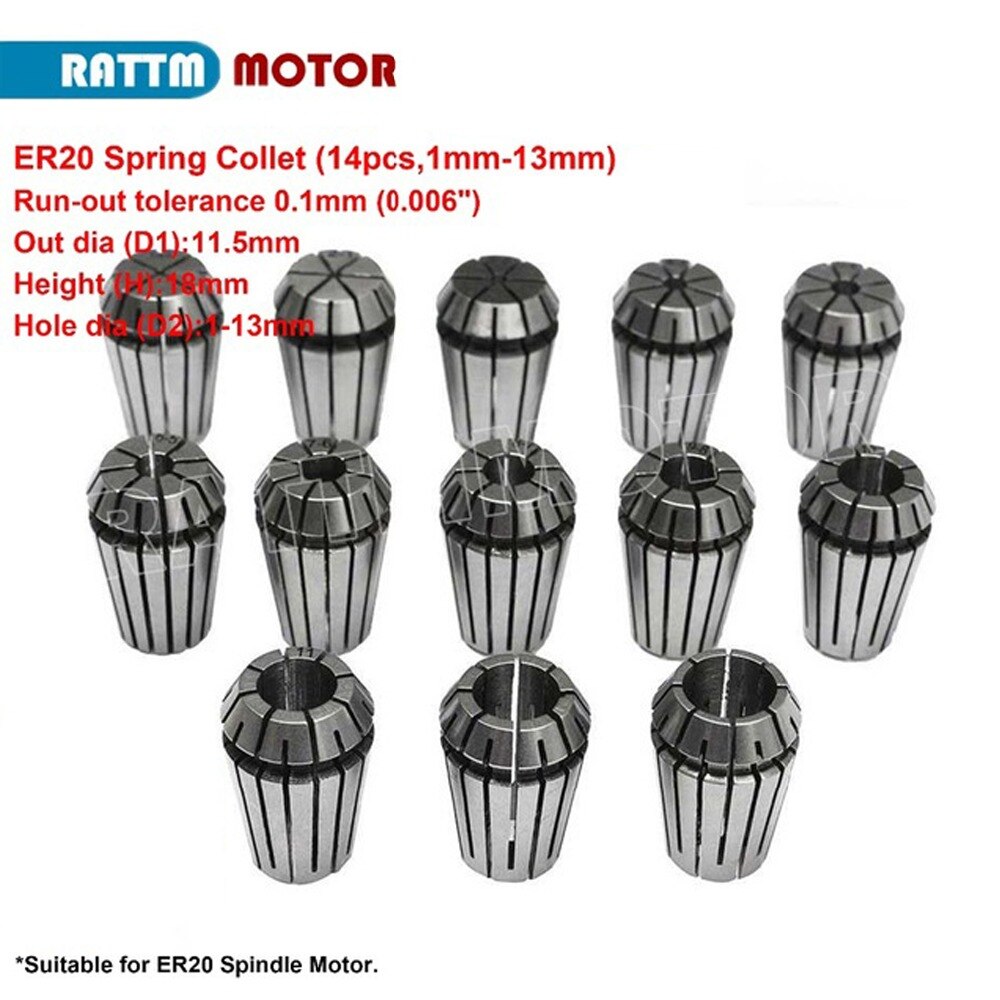

1 x ER20 collet full set 14pcs1-13mm
Englisht user manual:
https://drive.google.com/file/d/0B49xwe9ffk3fZ3VWR3NHMjB6VkU/view?usp=sharing
https://www.youtube.com/watch?v=Tdn_KANxff4
https://www.youtube.com/watch?v=1-D1gscZQvA
https://www.youtube.com/watch?v=Q9912w665RA

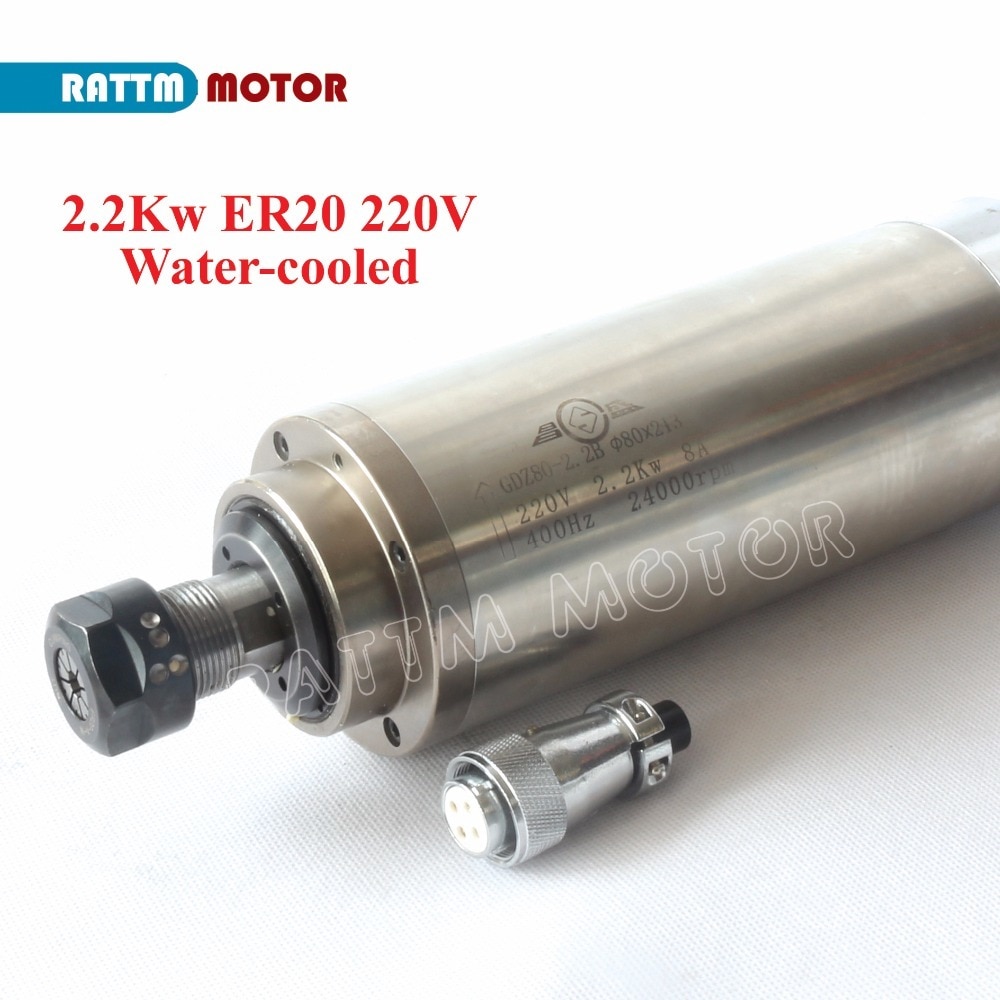

2.2KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND

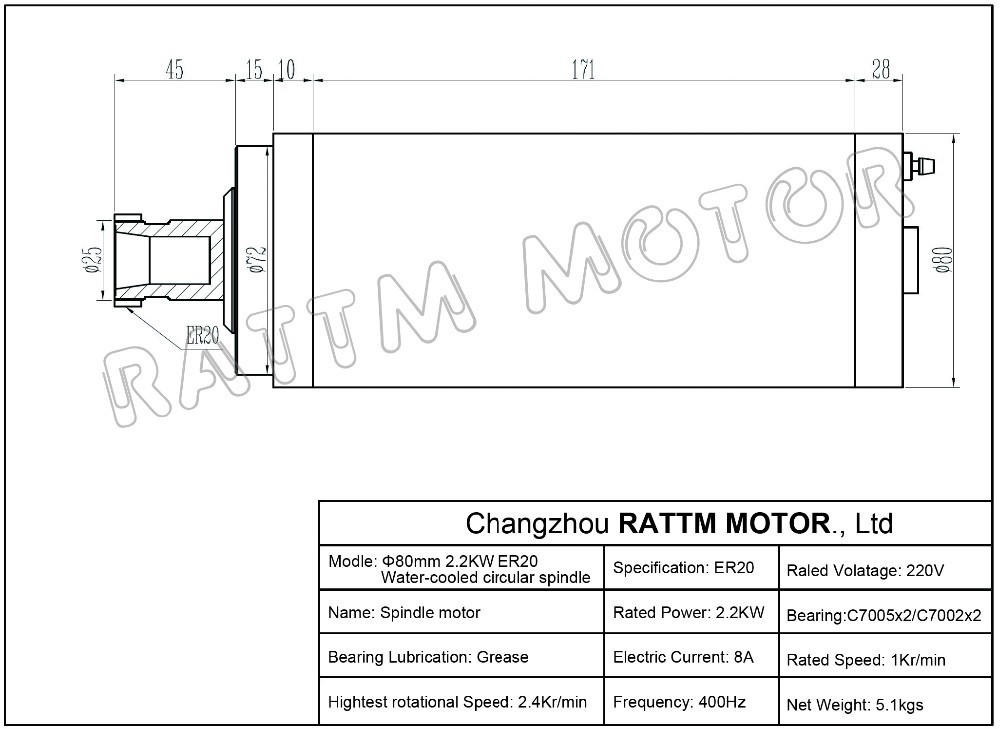

Specification:
Material:Stainless Steel
Size:Φ 80x213mm(Middle body diameter:80mmxLength:213mm)
Power:2.2Kw
Voltage:220VAC
Current:8A
Frequency:0-400Hz
Speed:10-24000rpm
Cooling:Water-cooling
Precision tapered bore:0.01mm
Runout off:Less than 0.02mm
Bearing Lubrication:Grease
Collet size:ER20
Bearings:3 bearings(C7005x2 + C7002x1),P4 class
Net Weight:5.1kg

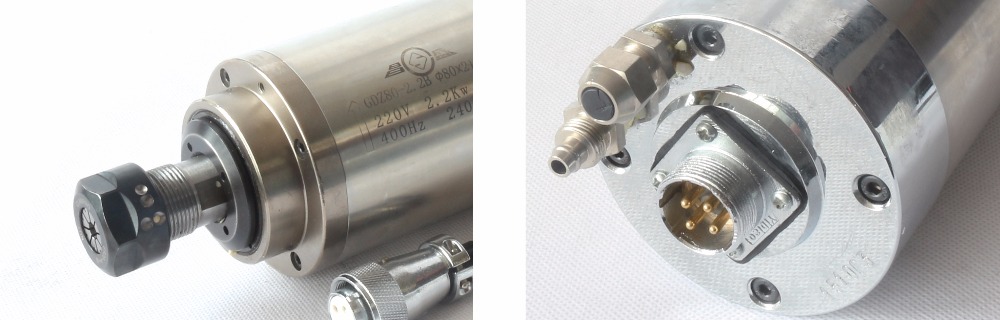

Power supply interface:Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 ground wire this interface must be safe ground.
Main application:Wood, Aluminum, Stone, metal, glass, PVC industry
ProductFeature:
1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
2)Easy PLC function can realize 16 legs of speed and inverter control function;
3)RS485 communication port, adopting standard international MODBUS main circuit control;
4)With extremely strong anti-jamming capability
5)Low output ratting torque0.5HZ-150%, low speed running ability;
6)Carrier adjustable by 16KHZ, completely soundless working environment;
7)Broad voltage working area, normal running in 304V-456V;
8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
10)With perfect error protection and short circuit starting protection capability;
Tech parameters:
1) Input Voltage: 220V(+/-15%)
2) Output Voltage:220VAC
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase
7) Warranty: 1 year from the date you purchased
Specification
Series | HY inverters | |
Control Mode | SPWM | |
Input Power | 380V class:380V(+/-15%);220V class:220V(+/-15%) | |
5-Digits Display & Status Indicator Lamp | Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc. | |
Communication Control | RS-485 | |
Working Temperature | -10~40 Celsius Degrees | |
Humidity | 0-95% Relative Humidity(without dew) | |
Vibration | Below 0.5G | |
Frequency Control | Range | 0.1~2500.0Hz |
Accuracy | Digital: 0.1%(-10~40 Celsius Degrees); Analog: 0.1% (15Celsius Degrees---45Celsius Degrees) | |
Setting Resolution | Digital: 0.1Hz; Analog: 0.1% of max. Operating frequency | |
Output Resolution | 0.1Hz | |
Operator Setting Method | Press directly keys to set. | |
Analog Setting Method | External Voltage 0-5V,0-10V,4-20mA,0-20mA. | |
Other Functions | Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set. | |
General Control | Ramp Control | Selectable 4-speed steps ramp-up and -down time (0.1-6500s). |
V/FCurve | Set V/F curve at will. | |
Torque Control | Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz. | |
Multi-Inputs | 6 multi-function input terminals for 8speed steps control, program operation, switching of 4-speed Ramp, UP/DOWN function, counter, external emergency stop and other functions. | |
Multi-Outputs | 5 multi-output for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings. | |
Other Functions | Auto Voltage Regulation(AVR), Decelerating Stop or Coasting Stop, DC Braking, Auto Reset and Restart, Frequency Track, PLC Program Control, Traverse Control, Drawing Control,Auto Energy Saving, Carrier Adjustable (Up to 20KHz), etc. | |
Protection Functions | Overload Protection | Electronic relay protection motor drive Drive(for constant torque 150% per min. for the kinds of fan 120% per min.) |
FuseProtection | When the fuse breaks, the motor will stop. | |
Over-voltage | 220V class:DC Voltage >400V 380V class:DC Voltage >800V | |
Under-voltage | 220V class:DC Voltage <200V 380V class:DC Voltage <400V | |
Restart After Instant Stop | Restart with Frequency Track after Instant Stop | |
Stall Protection | Stall protection in ramp operation | |
Output Short Circuit | Electrical circuit protection | |
Other Functions | Fin over-heat protection, restriction of reverse running, direct start after power on, fault reset, parameter lock PID, one-drive-more, etc. | |
Specification:
Size:80x213mm(Middle body diameter:80mmxLength:213mm)
Power:2.2Kw
Voltage:220VAC
Frequency:400Hz
Speed:10-24000rpm
Air Cooling ER20 collet chunk
Runout off:less than 0.01mm
4pcs bearing
Grease Lubrication

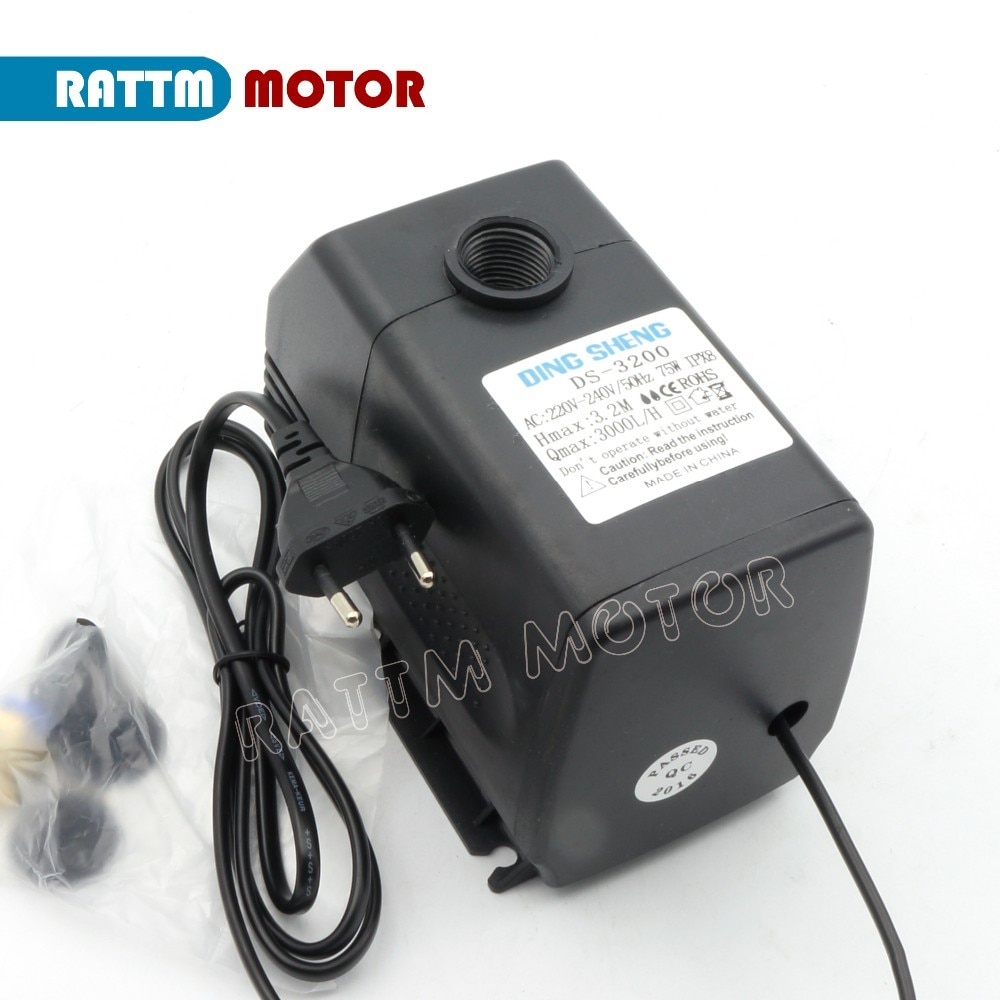

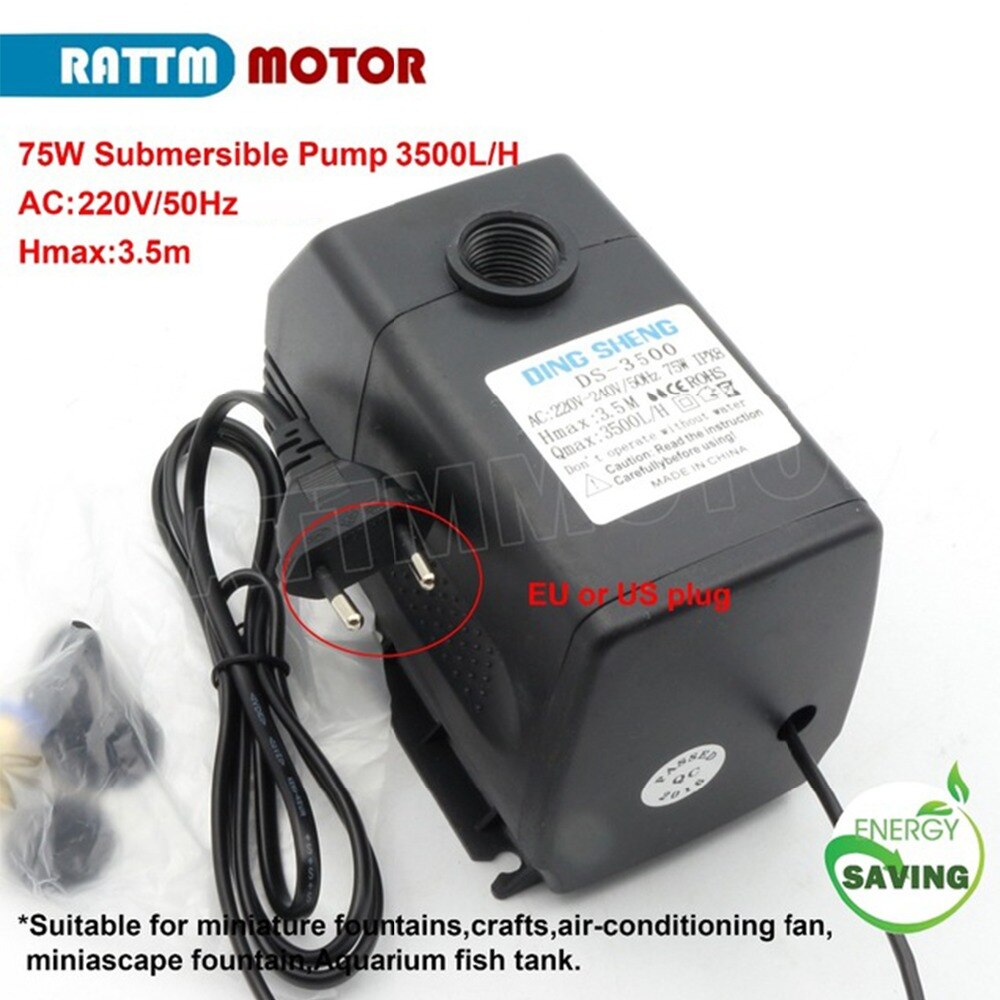

Specification:
Pump Hmax:3.5m
Voltage:220-240VAC
Power:75W
Flow:3500L/H
Ourlet Size:13/16/19mm
Size:150x80x140mm
Water nozzlediameter:6mm
Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too
Payment
We accept bank TT,credit card,moneygram,western union etc
Payment must be made within 48hours of the auction end time
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
Problem&Feedback
Please give us the opportunityto resolve any problem when you have,we concern your problem and we will try our best to resolve it.
We are a new member in ebay now,and need understand both of sides
Pls email us before you want to leave any negative feedback
Refund
When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos
Any reason required for all refund. Item must be in it's original condition and no physical damage. Buyer responsible for all shipping cost
Contact us
Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer's email within 1-2 business days,if not pls check the mail box again
Customer's satisfaction is very important to us.
- Operating Speed: 10-24000rpm
- Maximum Torque: ..
- Application: Milling
- Model Number: 2.2KW water-cooled spindle & inverter & clamp kit
- Drive: Motor
- Brand Name: RATTMMOTOR
- Origin: Mainland China
- Certification: CE
- Spindle: 2.2KW Water cooled
- Inverter: 2.2KW 220V
- Fixture: 80mm
- Runoff: less than 0.01mm
- Bearing: 4pcs
- Pipe length: 5m
- Motor Size: 80x213mm
- Motor Voltage: 220V
- Place of Origin: Jiangsu, China (Mainland)
