【EU Free VAT】 Desktop 3 Axis USB Mach3 500W 3040Z-DQ Ball Screw 3040 CNC Router ENGRAVER/ENGRAVING Milling Cutting Machine 220V

0.0 ( votes)
Price: US $2076.02 - 2497.28 / Bag
Discount Price:
US $ 1693.98 - 2005.72 / Bag
-18%
Quantity


















Notice:
this itemwill delivery from our"EU/Germany"warehouse,withinEuropean Union countriesfree VAT(import duty)andfree shippingby UPS/DHL,the package will benot easybroken with delivery.




The free ship and free VAT Europe countries area:


Austria,Belgium,Bulgaria,CzechRepublic,Denmark,Estonia,Finland,

France,Germany,Greece,Hungary,Ireland,Italy,Latvia,Lithuania,

Luxembourg,Monaco,Netherlands,Norway,Poland,Portugal,Romania,

Slovakia,Slovenia,Spain,Sweden.

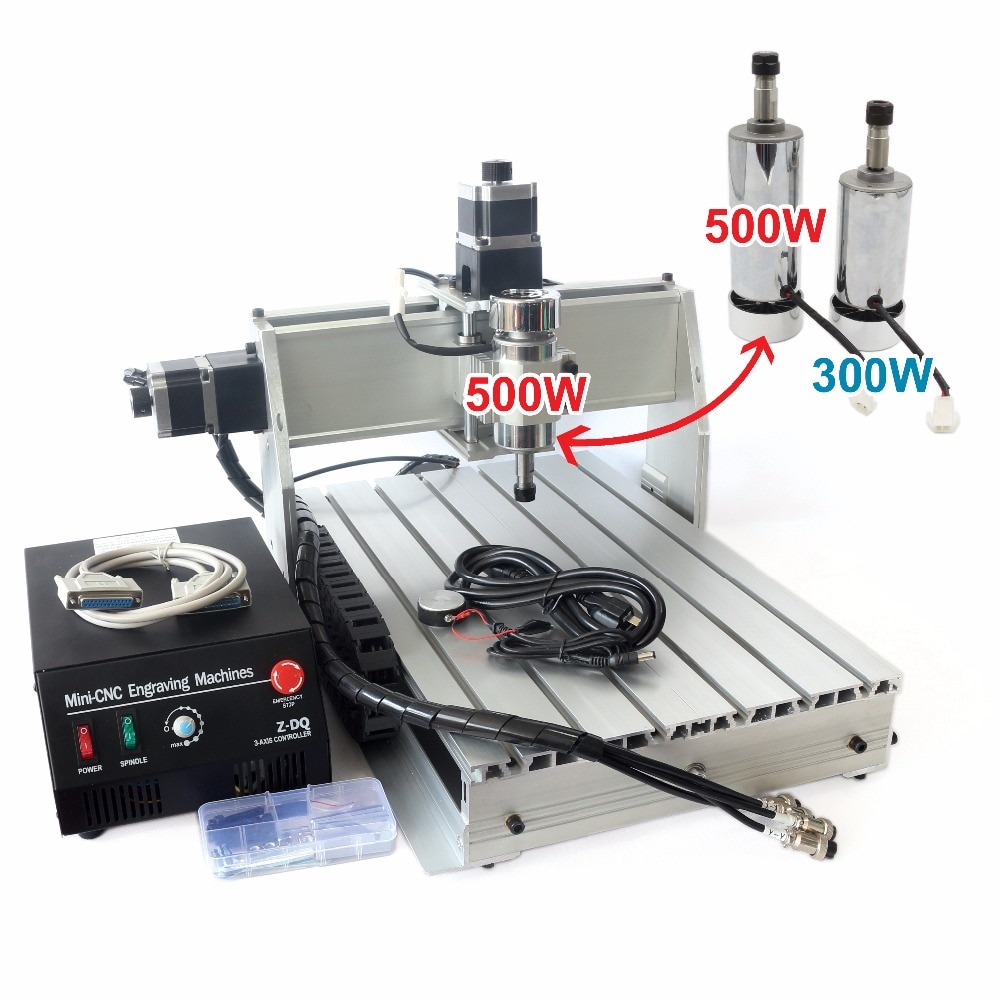

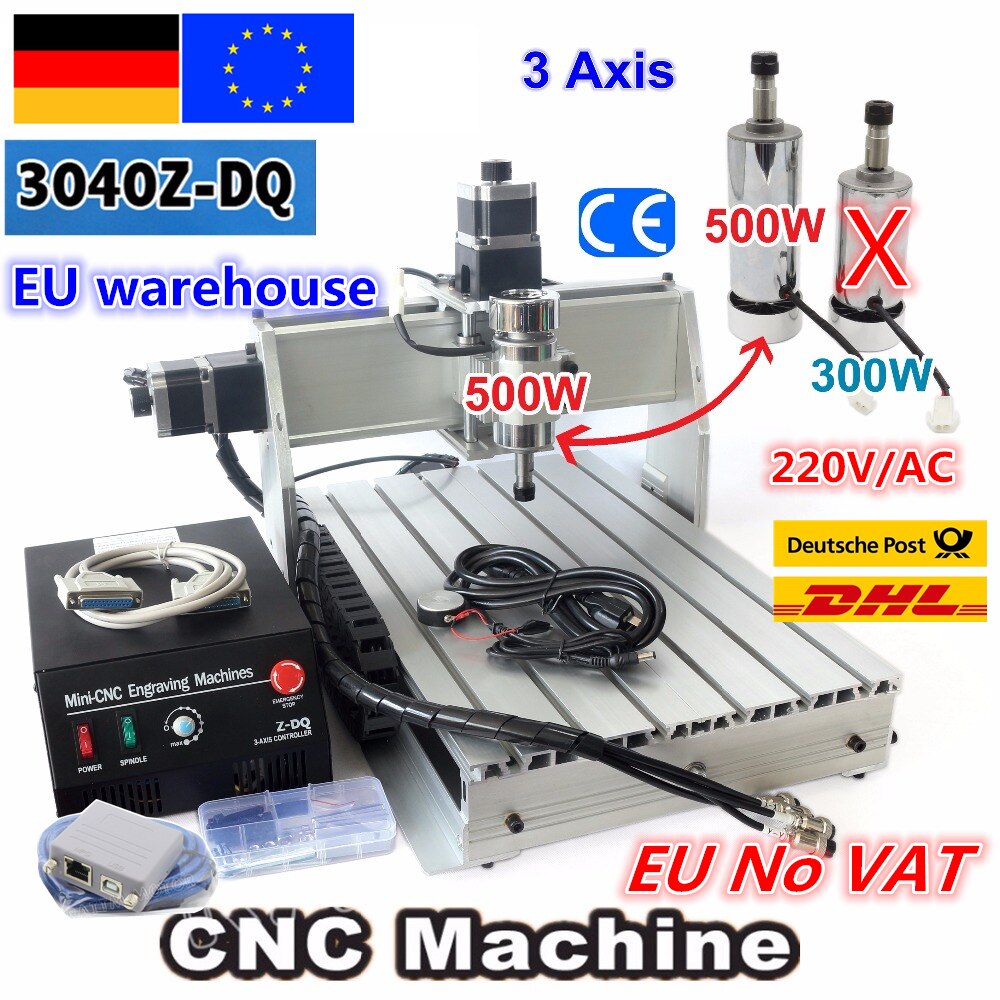

1 x 3040Z-DQ CNC Router Milling machine 220V

1 x 500W High Speed DC Spindle motor ER11

1 x 3 Axis Control box 220V

3 x Axis stepper motors

1 x Parallel cable

1 x Power cable ( EU plug )

1 x Tool box and tool

1 x RTM200 LPT ( DB25 ) to USB port Motion Controller

English User manual will send by email , pls let me know your email ID,

also we have 3040 CNC router 110V type, if you need, pls leaved message

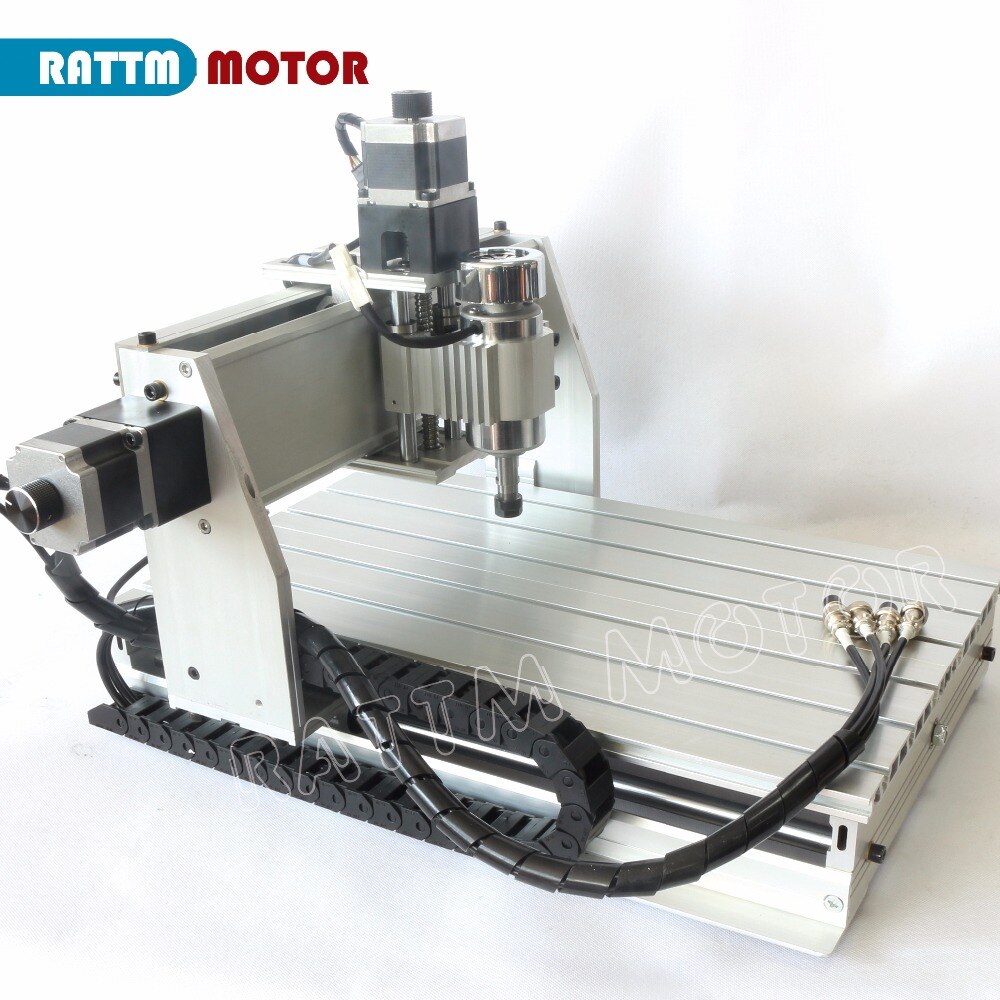

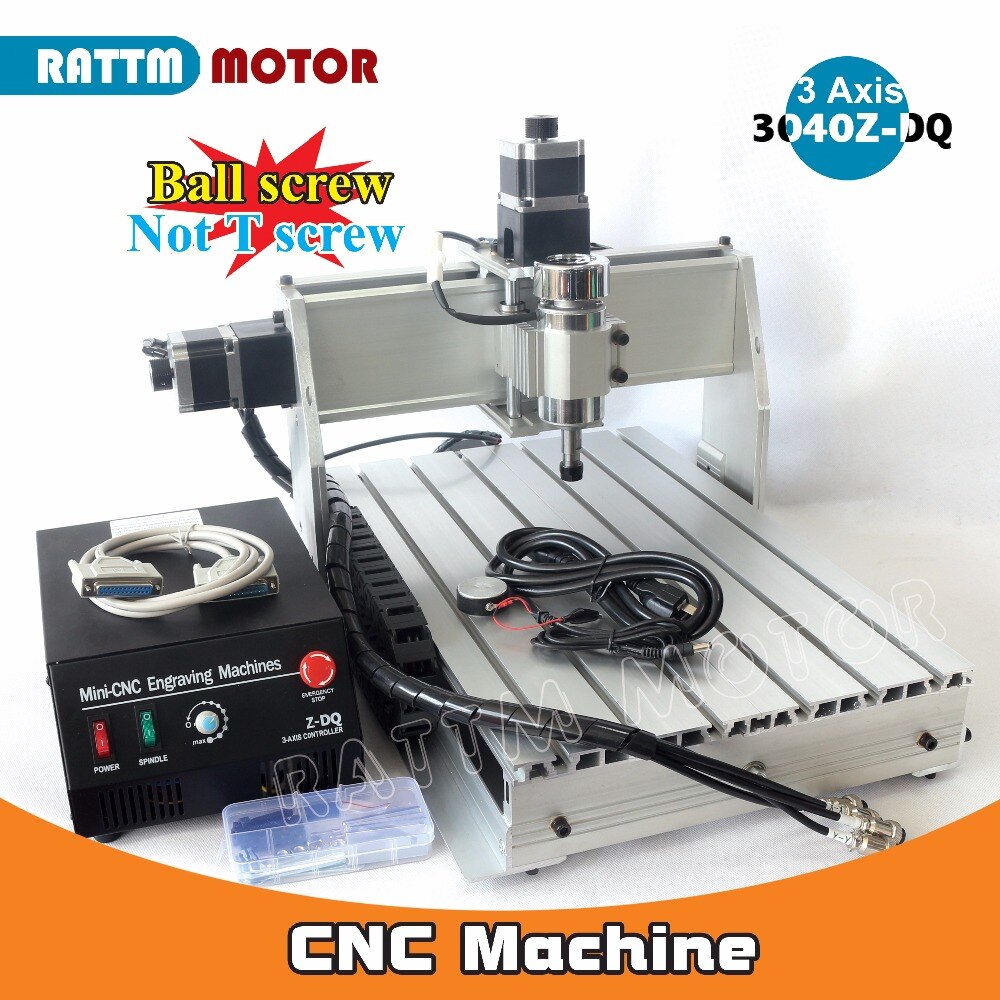

NEW 3040 CNC ROUTER ENGRAVER/ENGRAVING DRILLING Ball screw 220VAC

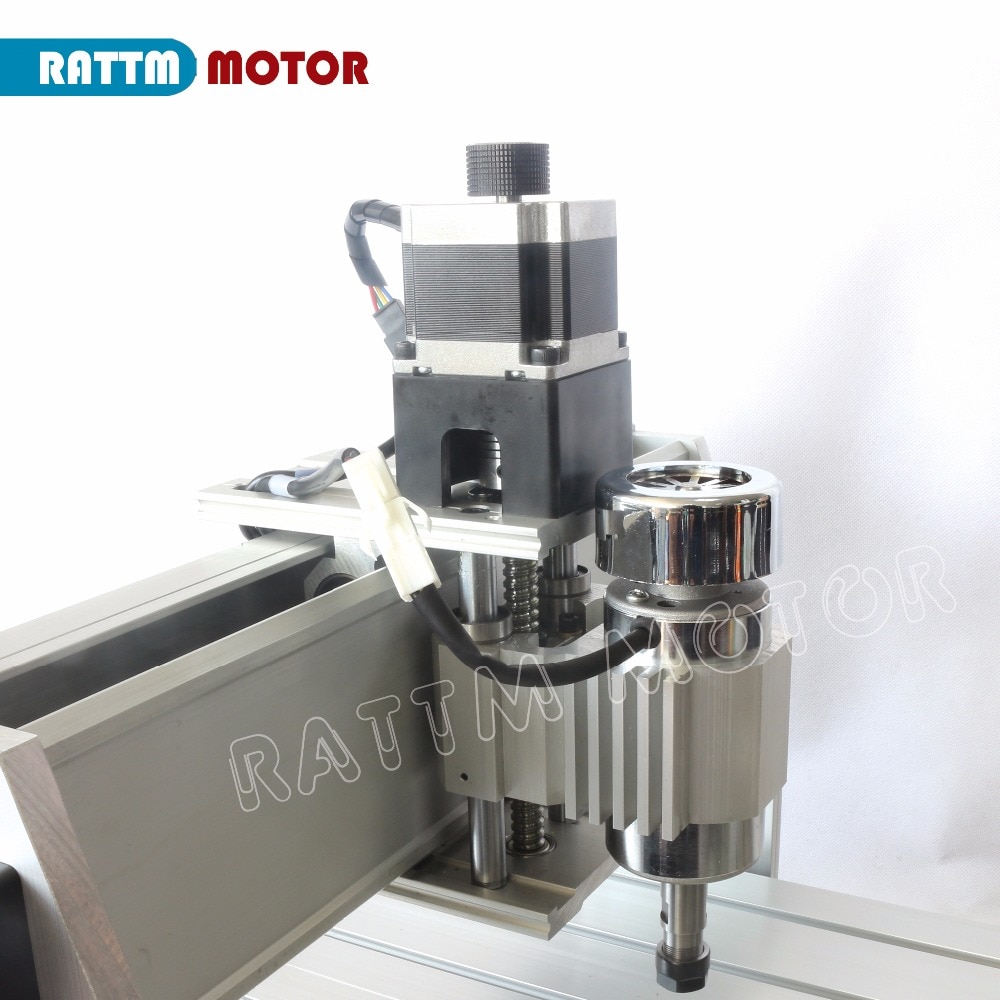

3040Z-DQ model: 500W air cooled spindle motor ER11

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

Engrave almost anything on almost any surface

X Y and Z axis carving make more precise and and three-dimensional effect.

Cover plates reducing pollution for the screws and shafts.

More steady and strong equiped with aluminum alloy frame materials.


Reinforced and thickened machine body make transportation absolutely to be safer and longer life time

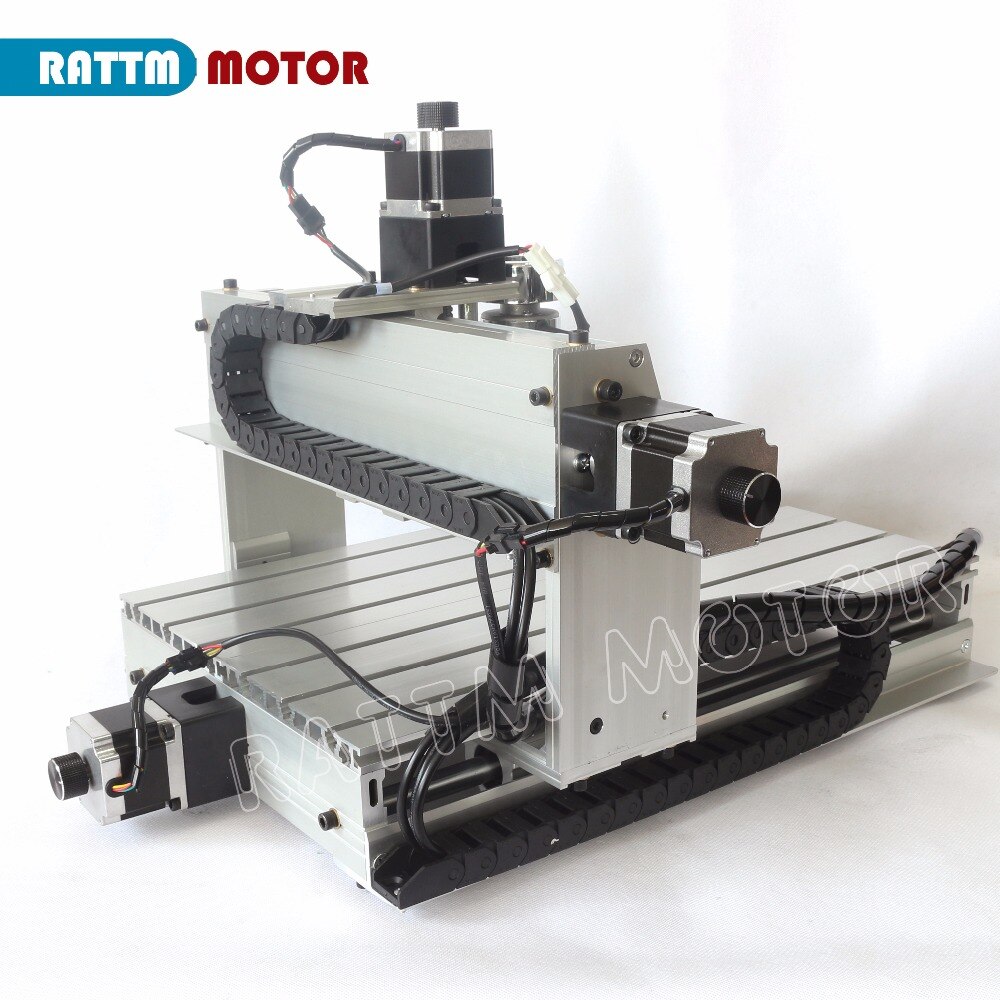

Technical Parameters

Machine Dimensions: 610×485×395mm

Rack material:6061 and 6063 hard aluminium alloy(the unique and dedicated mold extrusion profiles)

Engraving Area:390×285mm

Z-axis Stroke:55mm,Engraving depth depends on the length of the tool edge

Max workpiece thickness:<=70mm

Rail type: Chromeplate shaft+Linear Bearings(Surface hardening 61HRC)

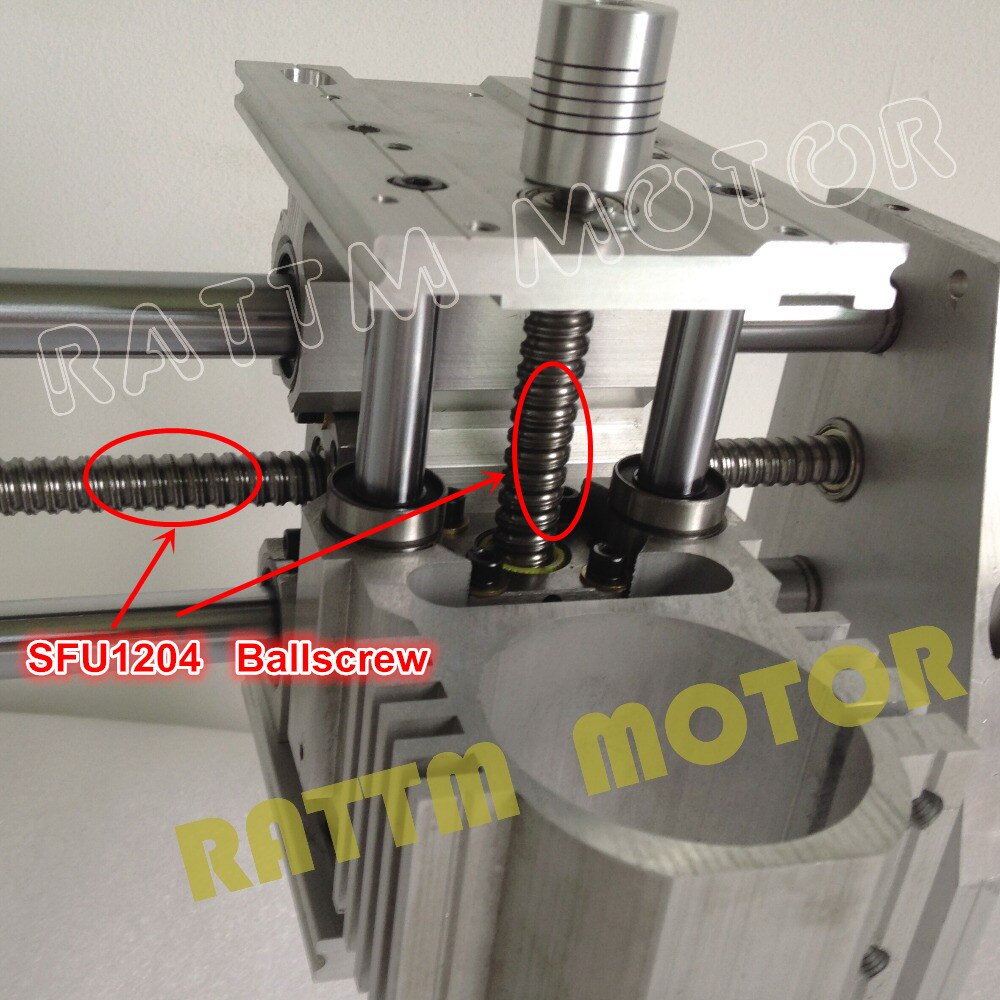

Transmission unit:SFU1204 ball screw

Spindle motor:New DC spindle motor,500W/36V.11000rpm,lower noise,high precision,Support Mach3 control

Collet: ER11,1/8”(3.175mm)

Stepping motor and controller: two-phase 57/1.8A ,8 segments driver

Maximum speed: 4000mm/min

Engraving speed: 300-3000mm/min

Repeat positioning Accuracy: 0.05mm

Interface:Parallel port

Software Compatability:Mach3/Emc2,(Type3,Wentai, ArtCAM,Coppercam)

Command code: G code/.nc/.ncc/.tab/.txt

Machine weight: 28kg(including packaging)


Main application: engrave for Wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working,but not milling working

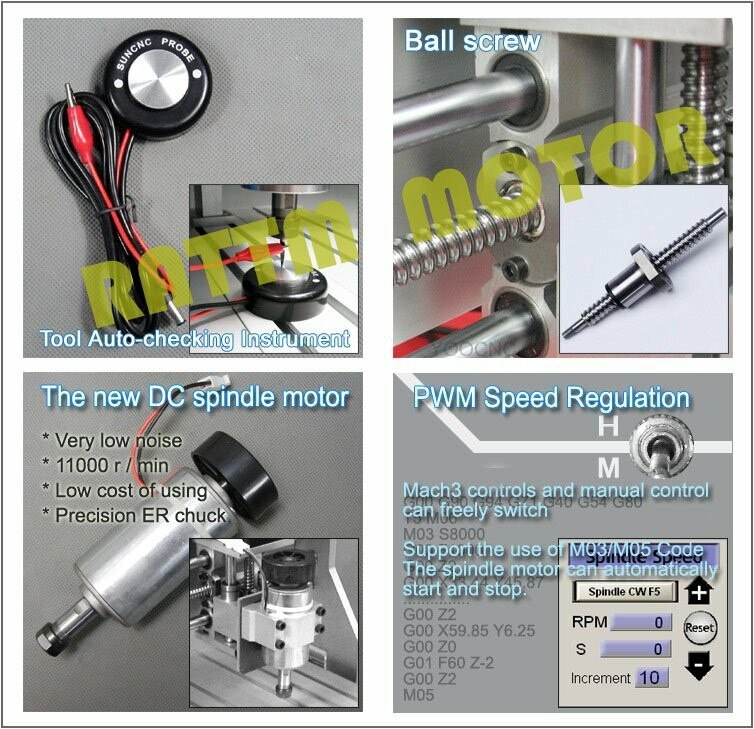

3040Z-DQ advantage(compare with 3040T+D and 3040T-DJ model) :

1.same size stepper motor but more torque,and the cables use more quality cnc flexible type

2.the power supply use ring transformer,more anti-interference and use more powerful controller

3.New 11000rpm spindle motor,and can turn and off the spindle by mach3 and PWM spindle speed control.more stable long working time

4.3 axis SFU1204 ball screw

5.95% aluminium material produced by mould extrusion forming,more beautiful and quality

6.Add the Z axis tool setting function,let user feel more better

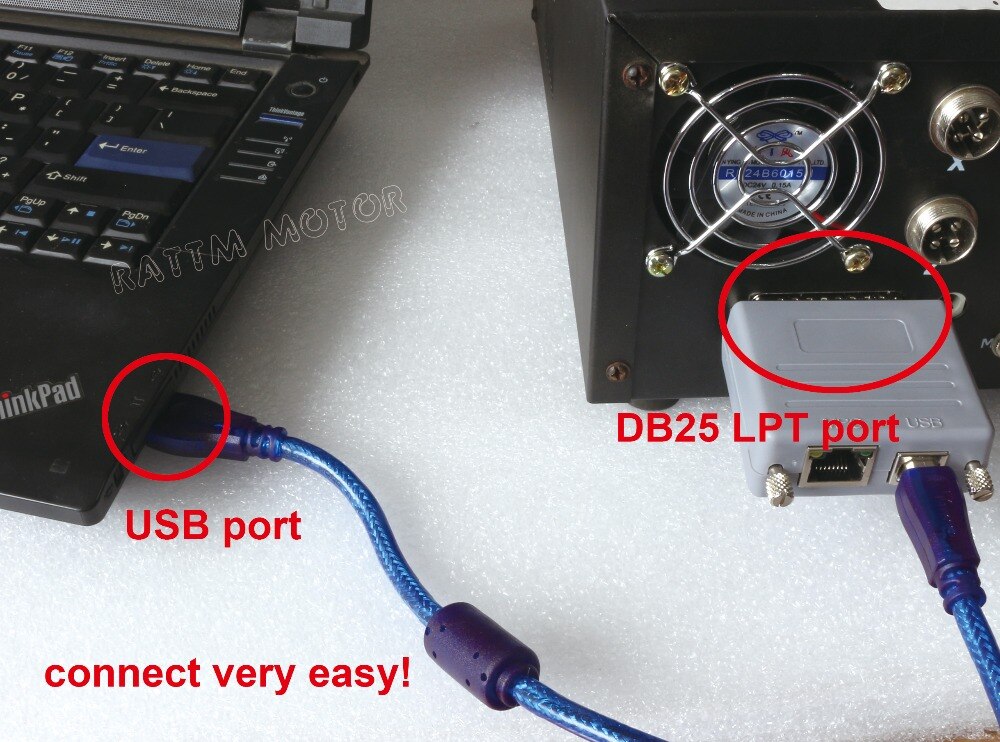

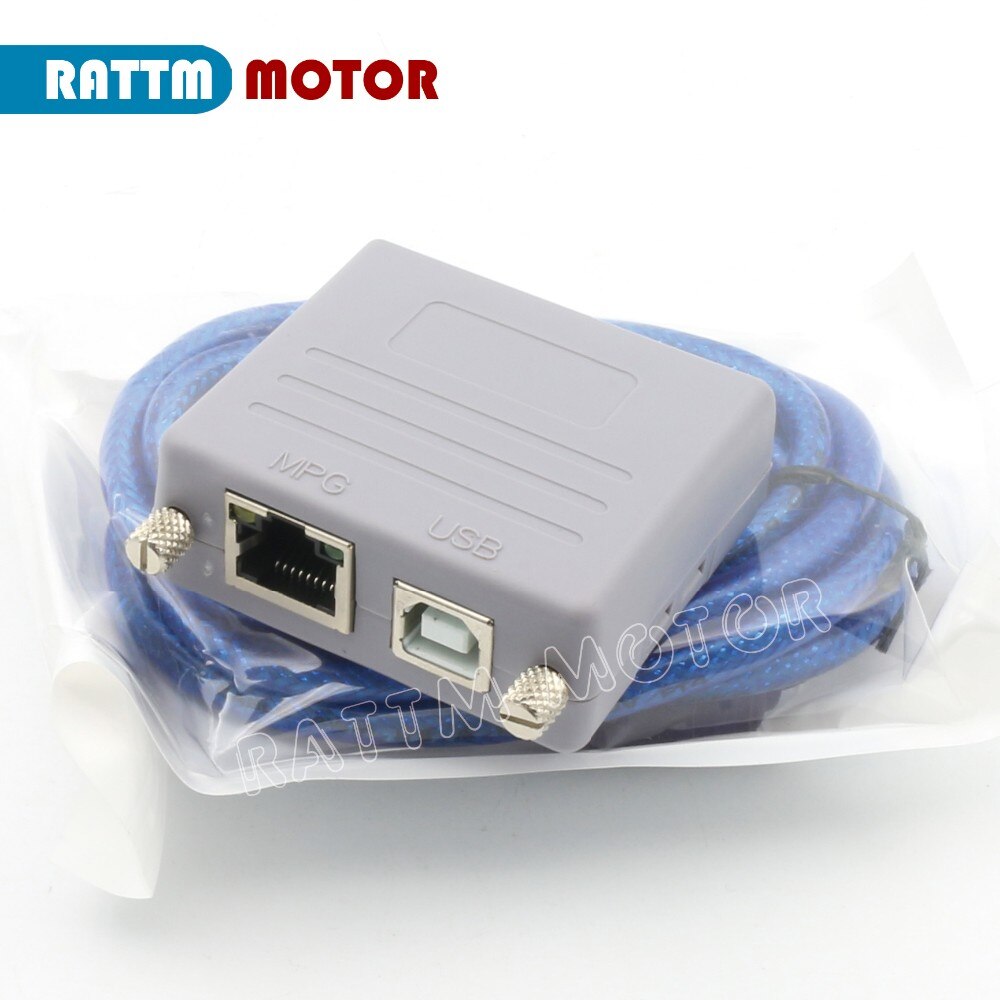

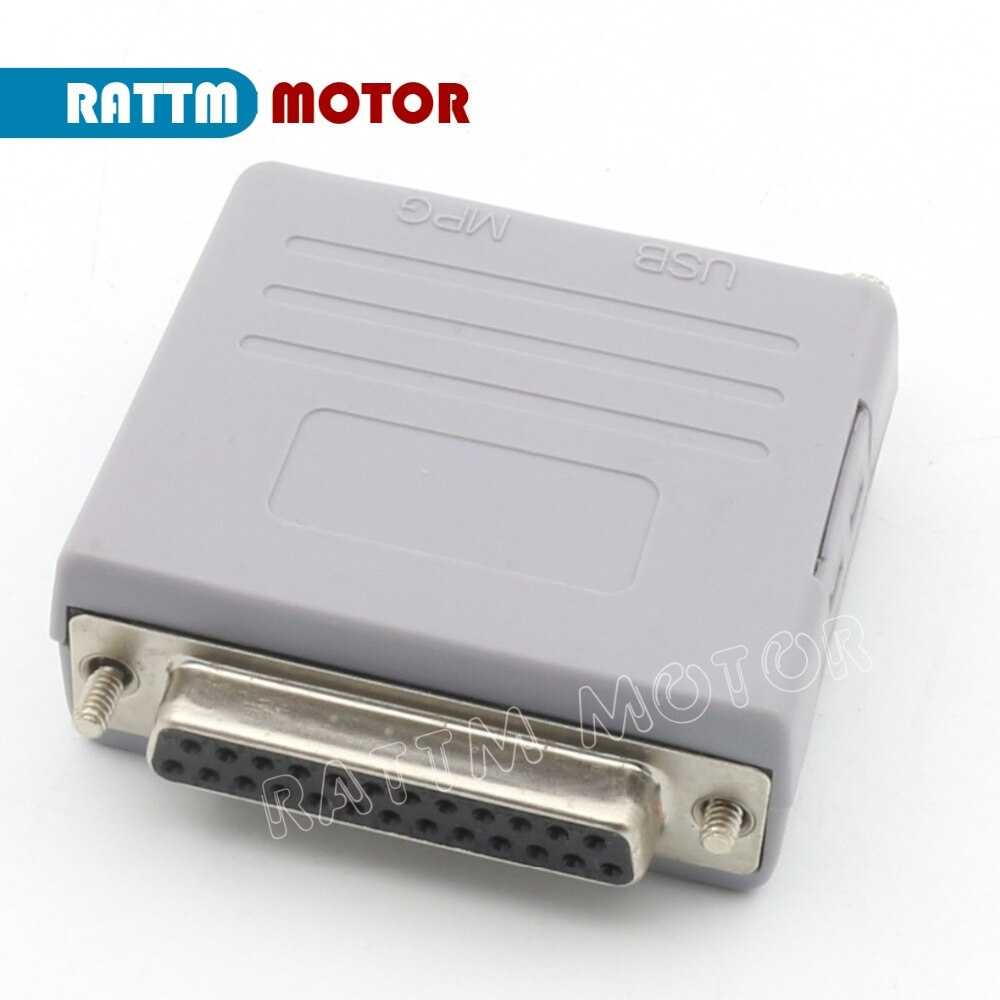

2. RTM 200 LPT (DB25 parallel) Conversion to USB port can use Mach3 software

1.1 Products Introduction

Novusun CNC has engaged in the Numerical control industry for 7 years, specialized in the research, development and production of various CNC controller systems with high quality and high reliability. We produce the Brushless DC motor, Stepper motor driver, and also 1 to 6 aixs CNC motion controllers.

NVUM_LPTv1.1 is the 4  axis motion controller we spend 4 years to design.

NVUM_LPTv1.1 support Mach3 software and serial port MPG, through USB to communicate with computer.

NVUM_LPTv1.1 motion controller adopts the ARM design framework. The ARM design includes communication,codeanalytic, underlying algorithm and pulse gerneration. Rational design, reliablecontrol, convenient operation.

This manual introduces operation, connection and usage schedule of our professional motion controller for engraving machine. Through a lot of the drawing the users can learn quickly how to use this motion controller.


1.2 Products specification

Support USB;

5 ports input interface for ordinary digital data;

3  ports output interface for ordinary digital data;

1 port 0-10V spindle speed analog output interface(can change to PWM output);

can support 4 axis stepper systems,200KHz pulse output for every axis;

ARM motion control chip;

Compatible with MPG input, support the digital display MPG from our company.

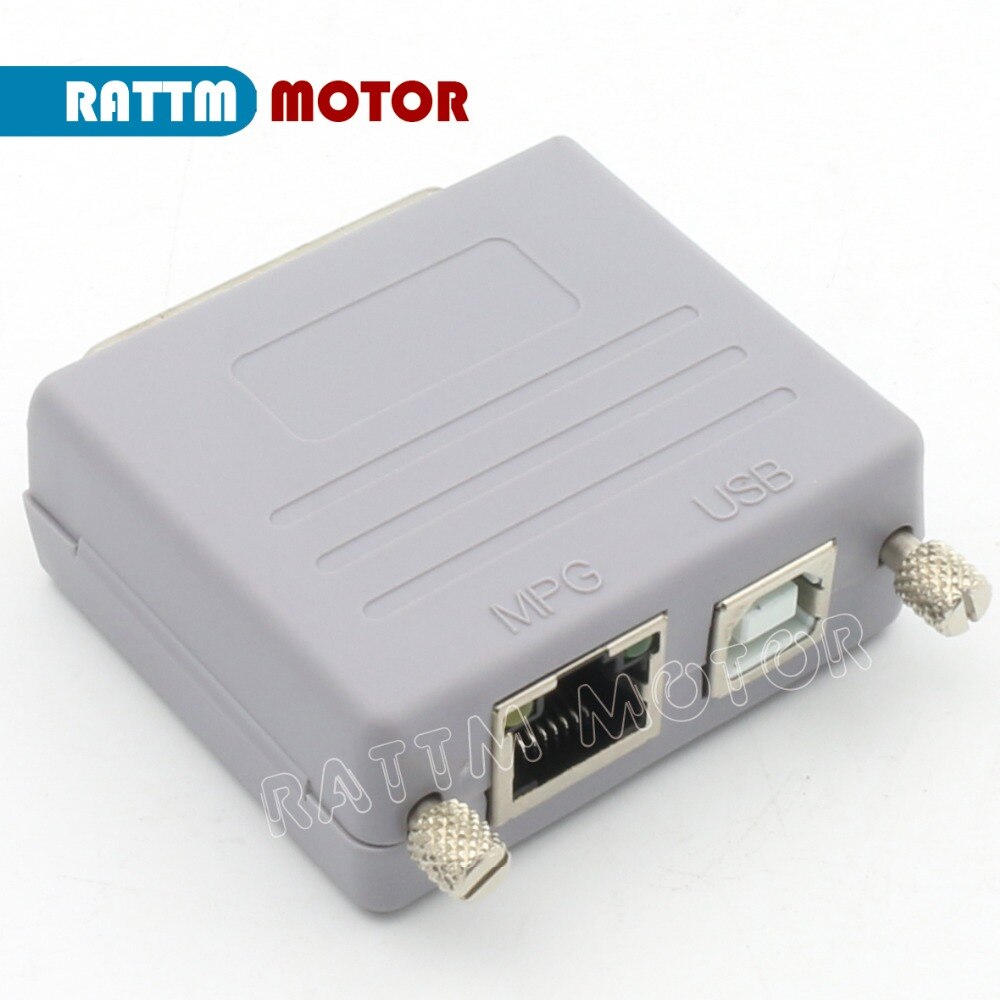

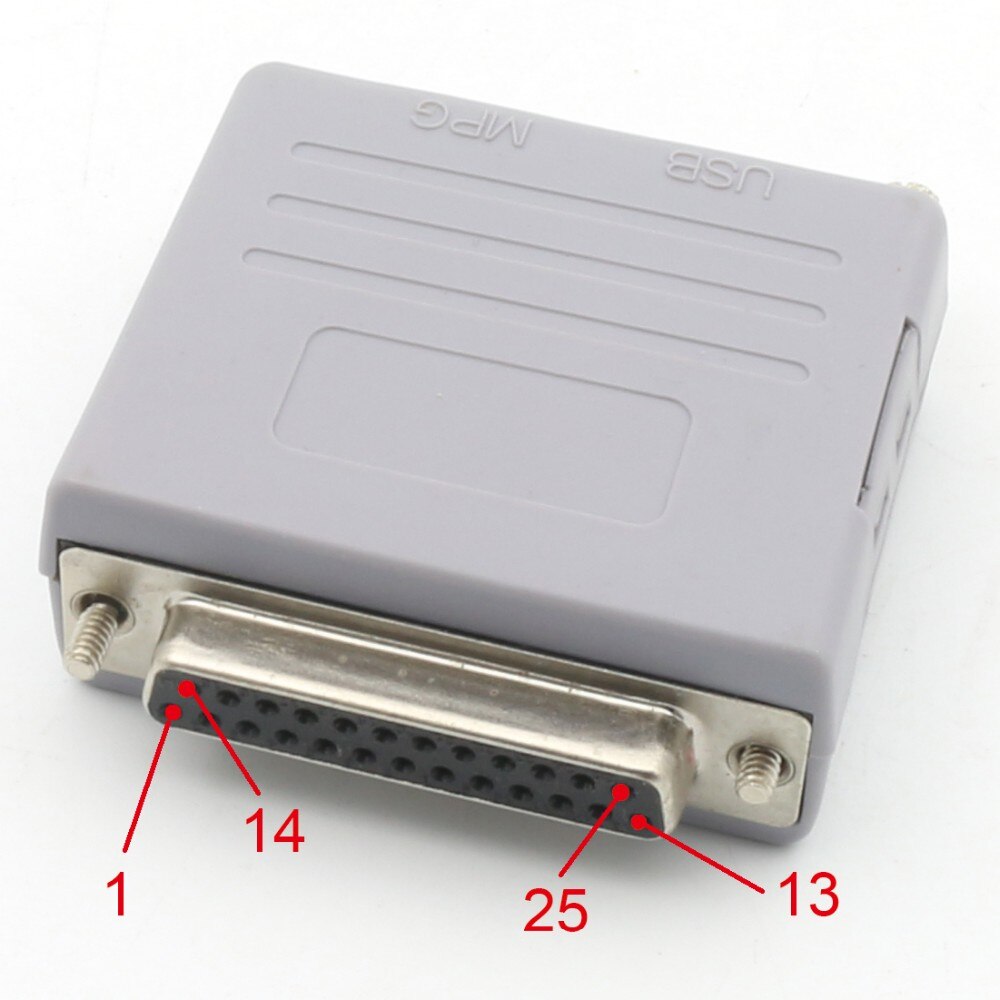

1.3 Products Appearance and size

NVUM_LPTv1.1 motion controller is with the plastic shell structure. The controller appearance as the Figure 1-1 show:

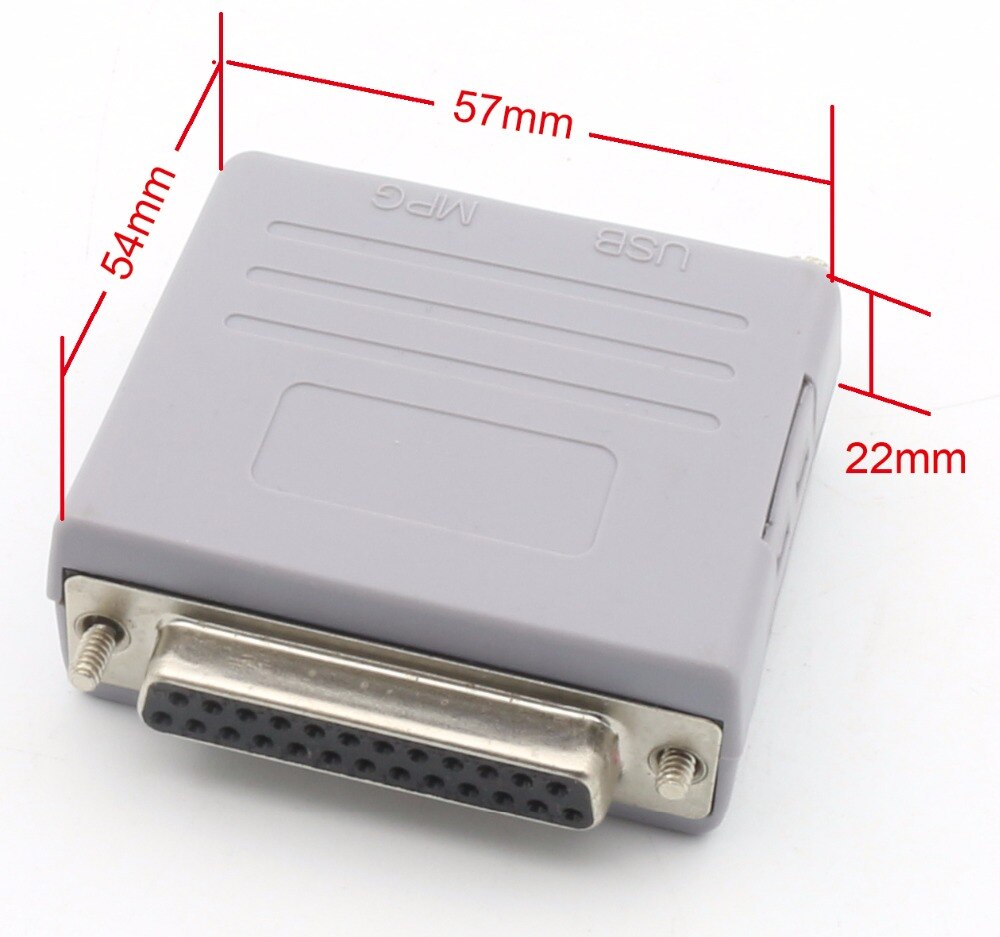

The products overall size is 57mm*54mm*22mm;


2.1 Product Features:
1) Support USB,replaces the LPT port;
2) Controls upto 6-Axis simulteneously;
3) Works with Mach3 software via plugin;
4) Upto 200Khz;
5) USB connection to the control PC;
6) Fast communication with data buffer for robust and stabile operation.
7) 5 ports input interface for ordinary digital data;
8) 3 ports output interface for ordinary digital data;
9) 1 port 0-10V spindle speed analog output interface(can change to PWM output);
10) Support 4 axis stepper systems,200KHz pulse output for every axis;
11) ARM motion control chip;
12) Compatible with MPG input(Note: this MPG input can only support the digital display MPG from our company, other brand\'s MPG not supported).

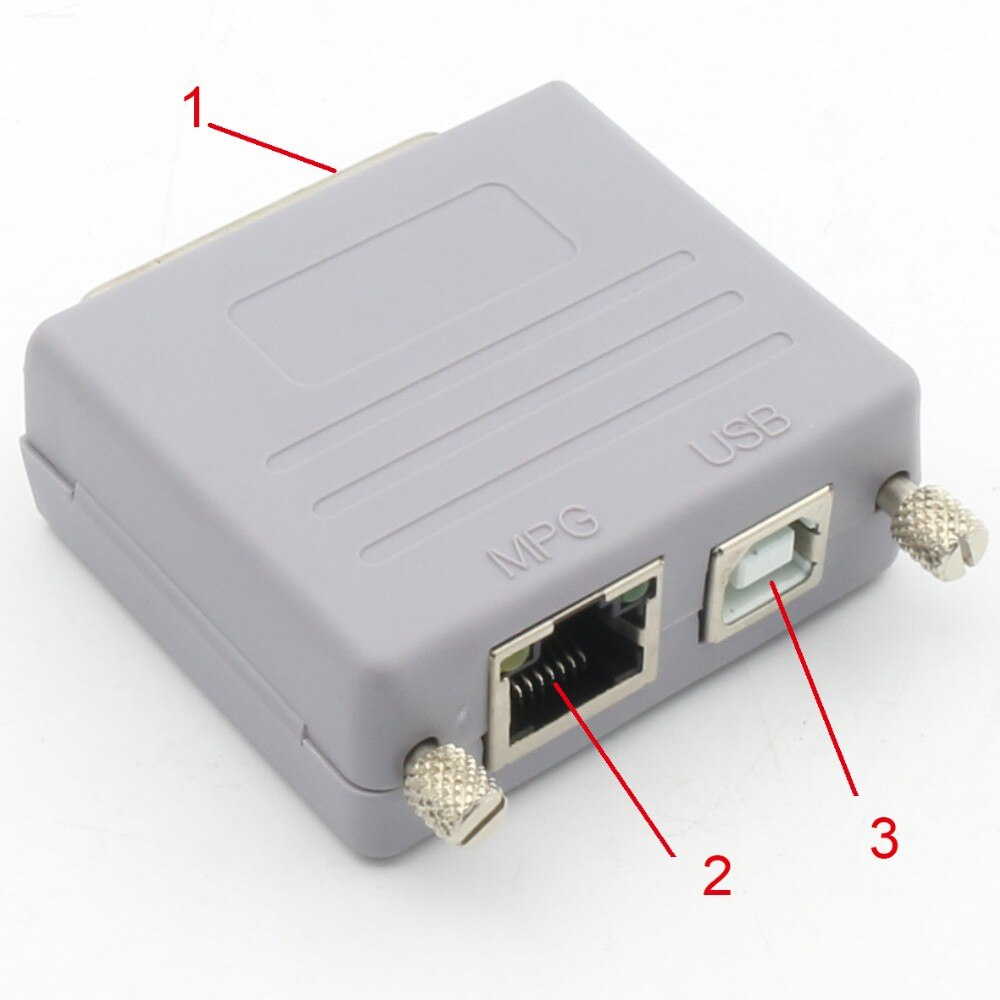

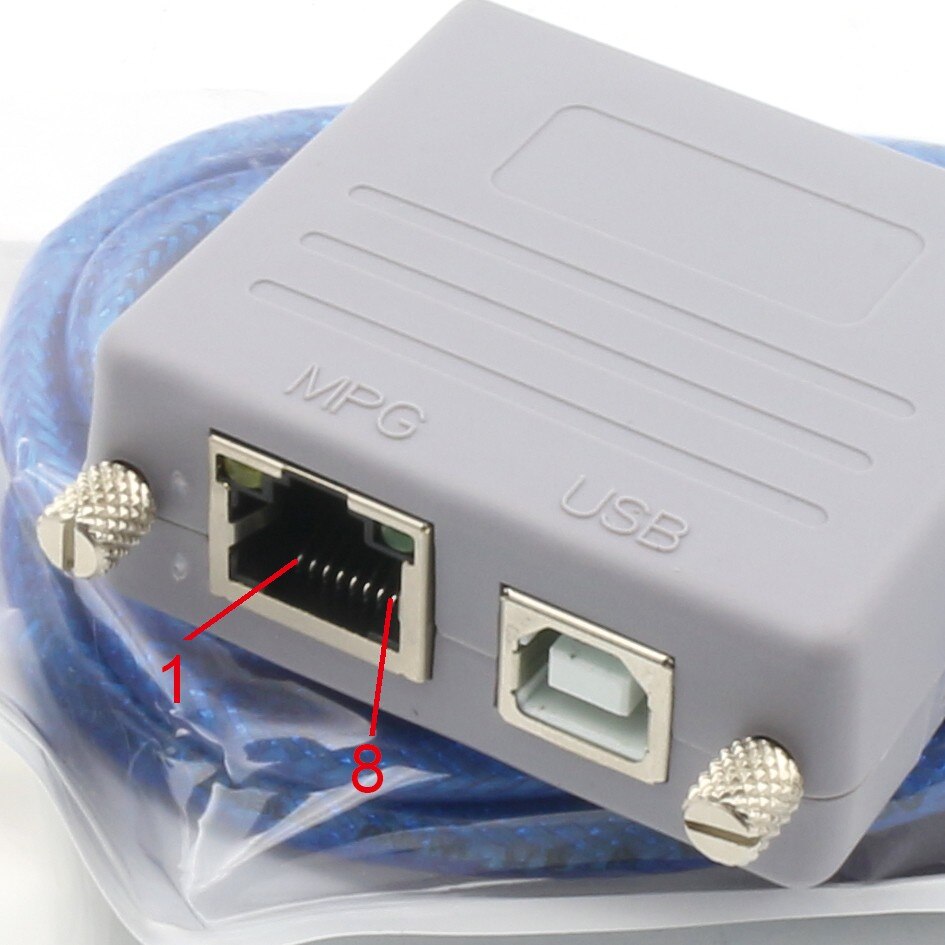

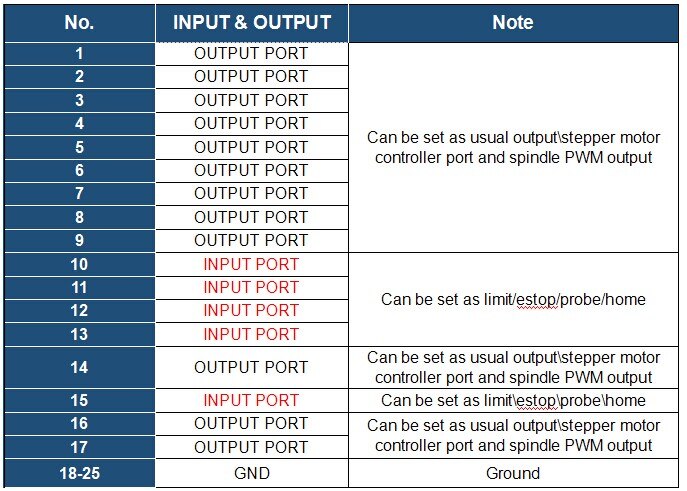

2.2 Product connection define and method

How to use

Please read the English user manual to see how to set up the software and how to use this machine.

1.Assembling and locating the CNC machine on steady desk well.

2.Make sure that your computer has a on-board parallel port output.

3.Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.

4.Connecting the control box with the CNC machine and you computer.

5.Fllowing our manual or guideline to set uo the software.

6.You can enjoy making you dream with using our CNC machine now.



Shipping

===================================================================

This Item will ship within 1-2 business days by DE DHL Paker on payment received .

We are not responsible for wrong or undeliverable address,please

Double check your address when you write in Hogaki, if you want change before we ship out.pls notice us the new address.

Delivery time :

By "DEDHL Paker" delivery 3-12 working days,tracking web:www.dhl.de/en/paket/information/sendungsverfolgung.html

If the order is during the weekends,it will take 2 days longer,we are not responsible for any delay of order if we have shipped out,because the speed of shipping is out our control, thanks for your understanding.


Payment

===================================================================

1.Free VAT( import tax)within EU counties.

2.Before purchasing, pls confirm with us whether in stock.

3.Pls make payment within 3 days of the order if possible.

4.Alipay(escrow),Credit Card,Western Union,Bank TT, paypal etc are accepted.


Problem & Feedback

===================================================================

We appreciate your positive feedback and 5 stars,this item is for getting feedback rating only without any profit

If you give us the feedback after receive the goods within 3 days,will be presented the next time you purchase a beautiful gift.

1.)we care about our valued customers,and will always try to help you,hope to establish long business with you.

2.)Pls give us the opportunity to resolve any problem, we understand the concerns and frustrations you might have,and will try our best to resolve the issues.

3.)Pls contact us by Trademanager or email before leaving any negative feedback or opening any dispute on the site,we will help you to resolve the problem,


Refund

===================================================================

Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.

When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.


Contact us

===================================================================

Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.

Customer’s satisfaction is very important to us.



  • Model Number: 3040Z-DQ parallel to USB
  • Condition: New
  • CNC or Not: CNC
  • Origin: Mainland China
  • Certification: CE
  • NAME: 3040Z-DQ parallel to USB
  • Spindle motor: 500W DC spindle motor ER11
  • Spindle motor speed: 11000rpm/min
  • Repeat positioning Accuracy: 0.05mm
  • Voltage: 220VAC
  • Engraving speed: 300-3000mm/min
  • Drive: NEMA23 Stepper motor
  • Maximum speed: 4000mm/min
  • Software: Mach3,EMC2,KCAM4,Etc
  • Z-axis Stroke: 55mm
  • Max workpiece thickness: less than 70mm
  • Engraving Area: 390 x 285mm
  • Port: LPT parallel port exchange to USB port
  • Command code: G code/.nc/.ncc/.tab/.txt
  • Dimensions: 610x485x395mm
