【DE ship】 1.5KW ER16 Water Cooled Spindle Motor & 1.5kw VFD Inverter 220V & 1 set ER16 collet &80mm Clamp & Pump & pipes CNC Kit
0.0 ( votes)
Price:
US $925.22 - 1128.66
/ piece
Discount Price:
US $
746.62 -
897.18
/ piece
-19%
Notice:
this item will delivery from our "Germany"warehouse,within European Union countriesfree shipping by Germany DHL paket, the package will be not easy broken with delivery.
The free ship and free VAT Europe countries area:
Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway,
Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

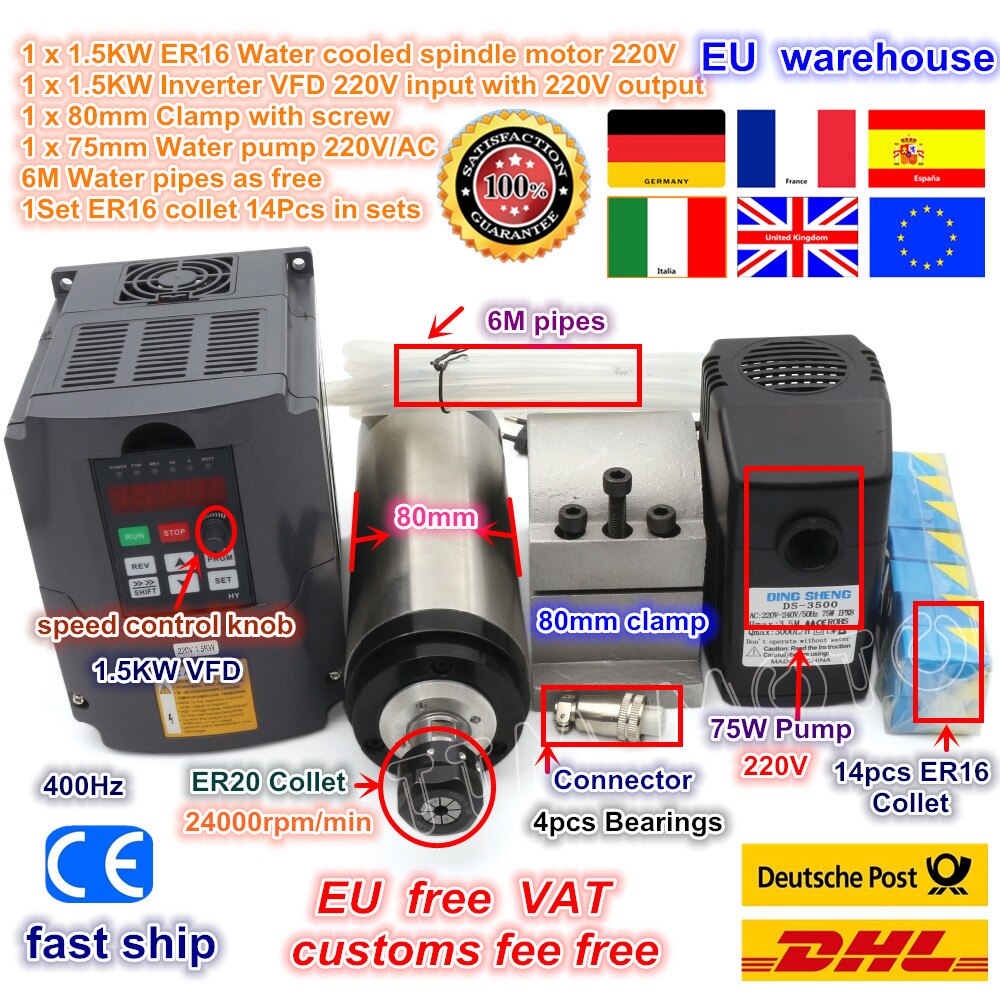

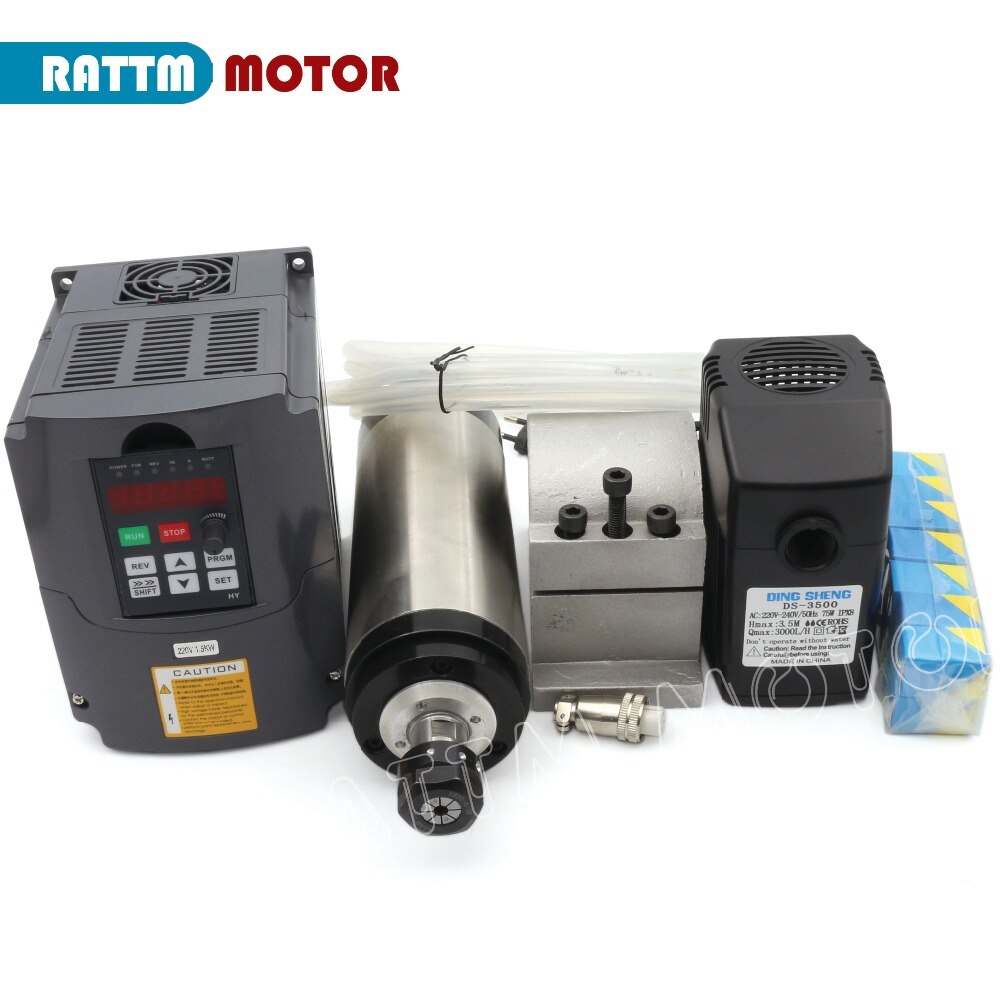

Package include:
1 x 1.5KW Water-cooled spindle motor ER16 220V,400Hz,24000rpm 4pcs Bearings
1 x 1.5KW Inverter VFD 220V input with 220V output
1 x 80mm Spindle motor Clamp bracket
1 x 75mm Water pump 220V EU Plug
5M Water pipes
1set ER16 collet (11Pcs) (1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 7mm,8mm,9mm,10mm)

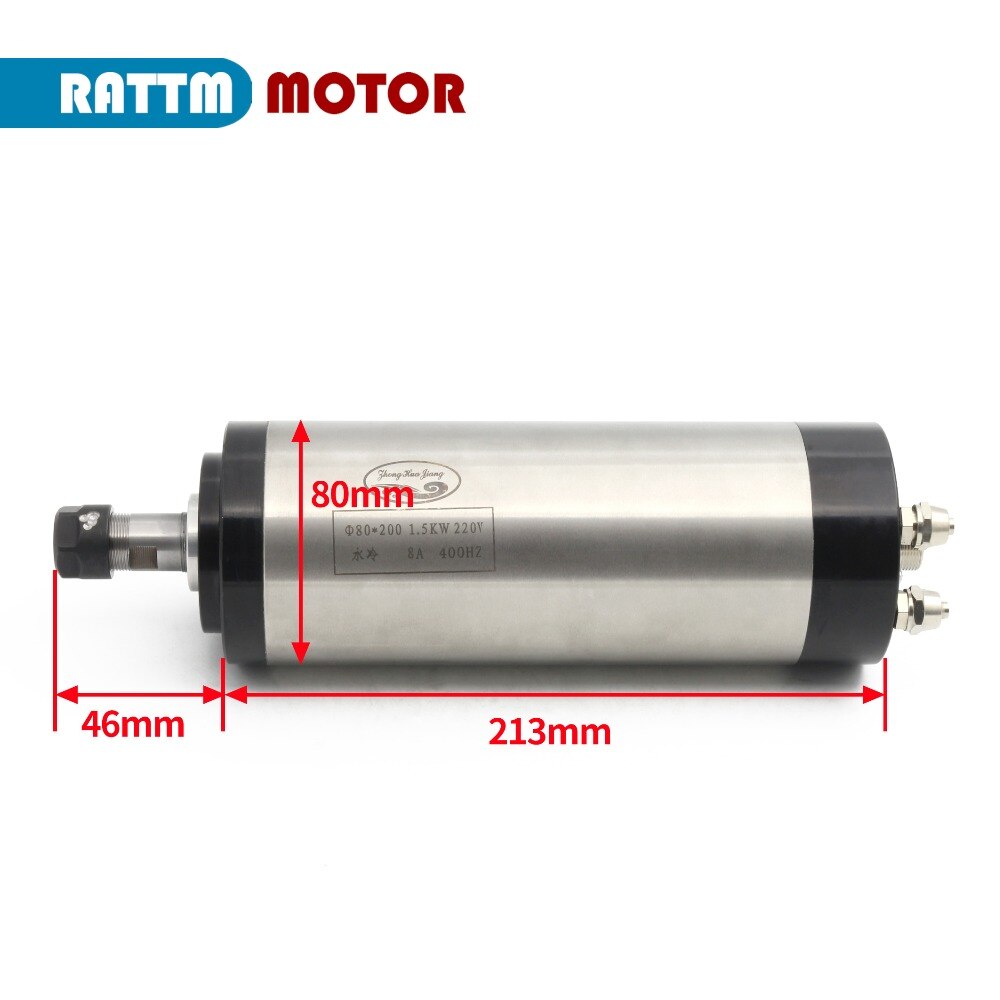

1.5KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND

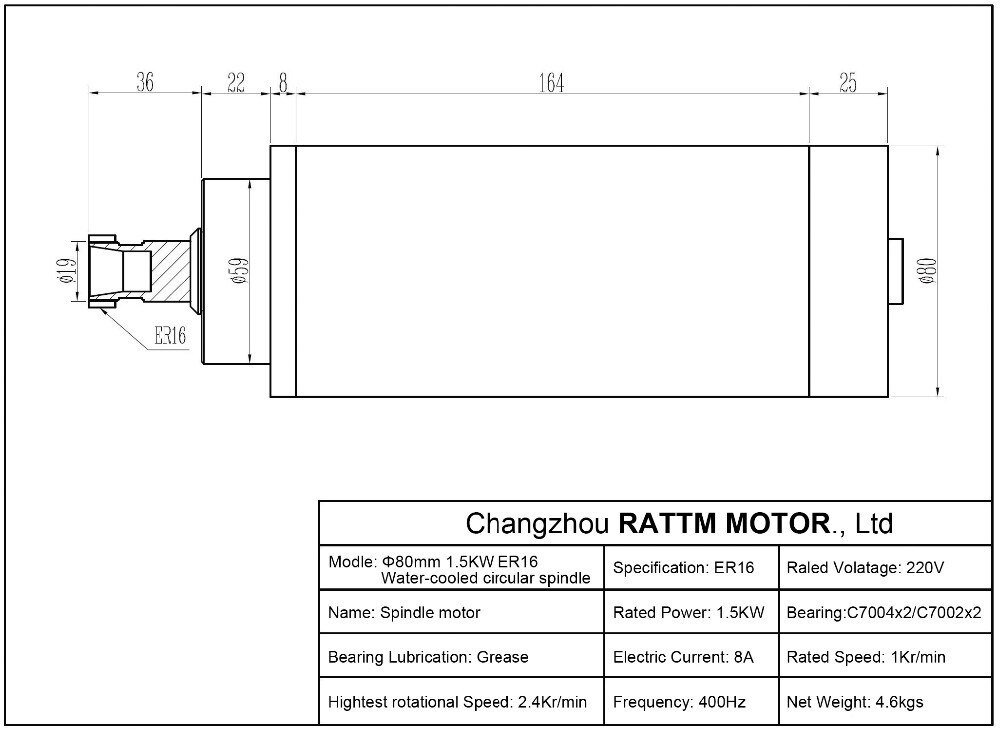

Specification:
Material: Stainless Steel
Size: Φ80x198mm
Power: 1.5Kw
Voltage: 220VAC
Current: 8A
Frequency: 400Hz
Speed: 24000rpm
Cooling: Water-cooled
Precision tapered bore:0.003--0.005
Runout off: Less than 0.02mm
Bearing Lubrication: Grease
Collet size:ER16
Bearings: 4 bearings (C7004x2+C7002x2),P4 class
Net Weight: 4.6kg

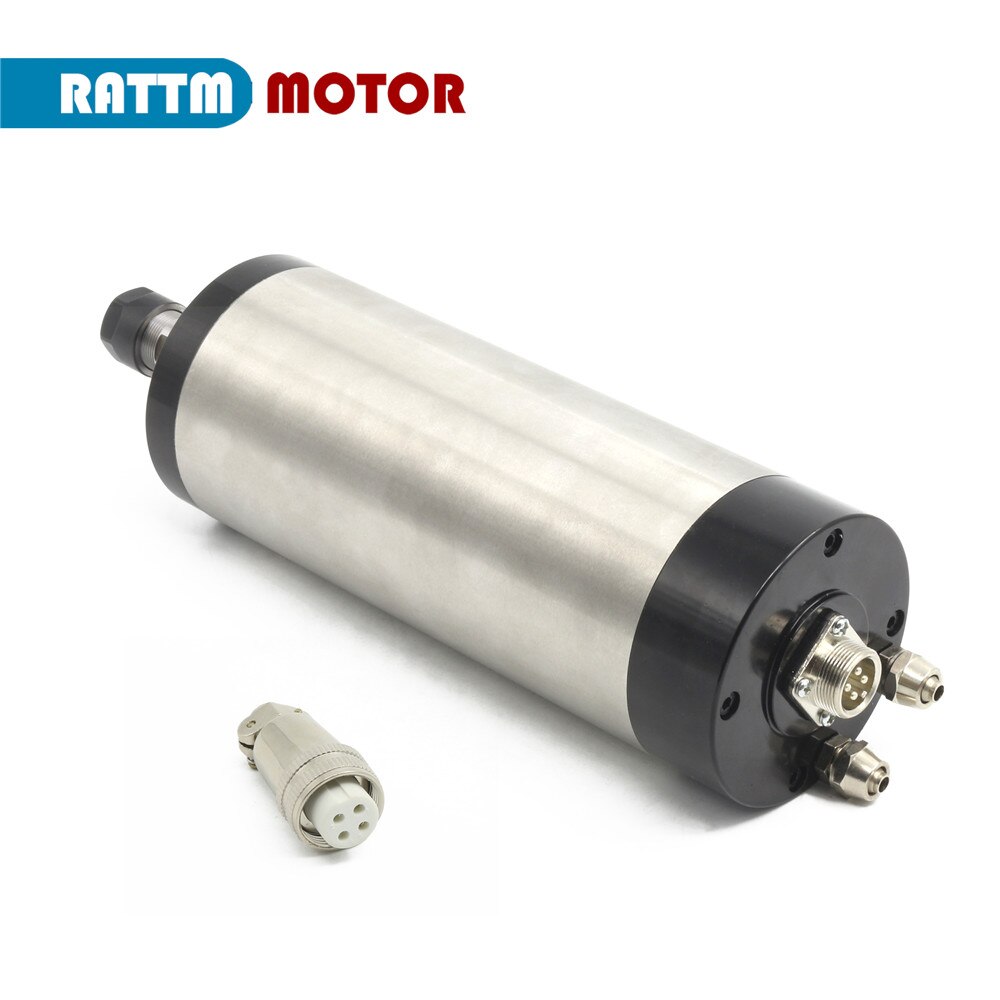

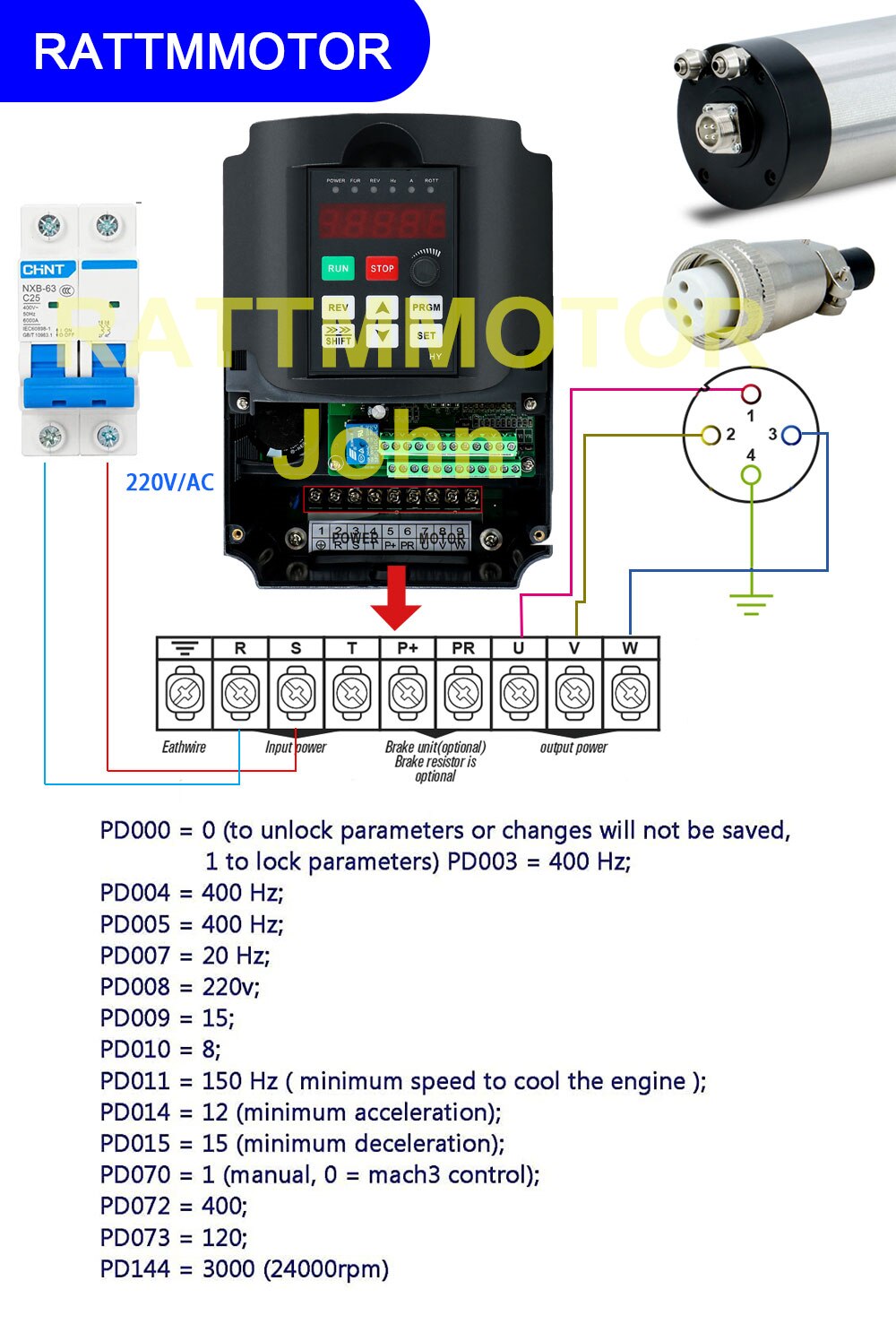

Power supply interface: Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 ground wire this interface must be safe ground.
Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

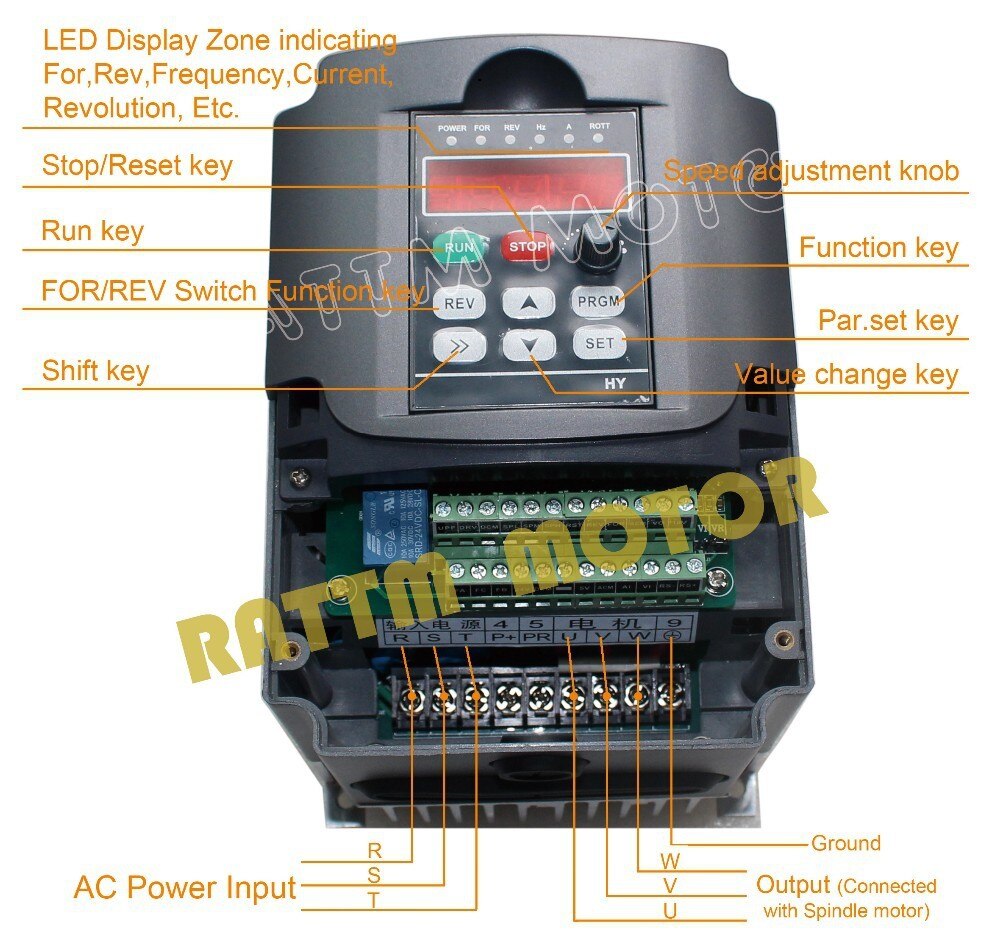

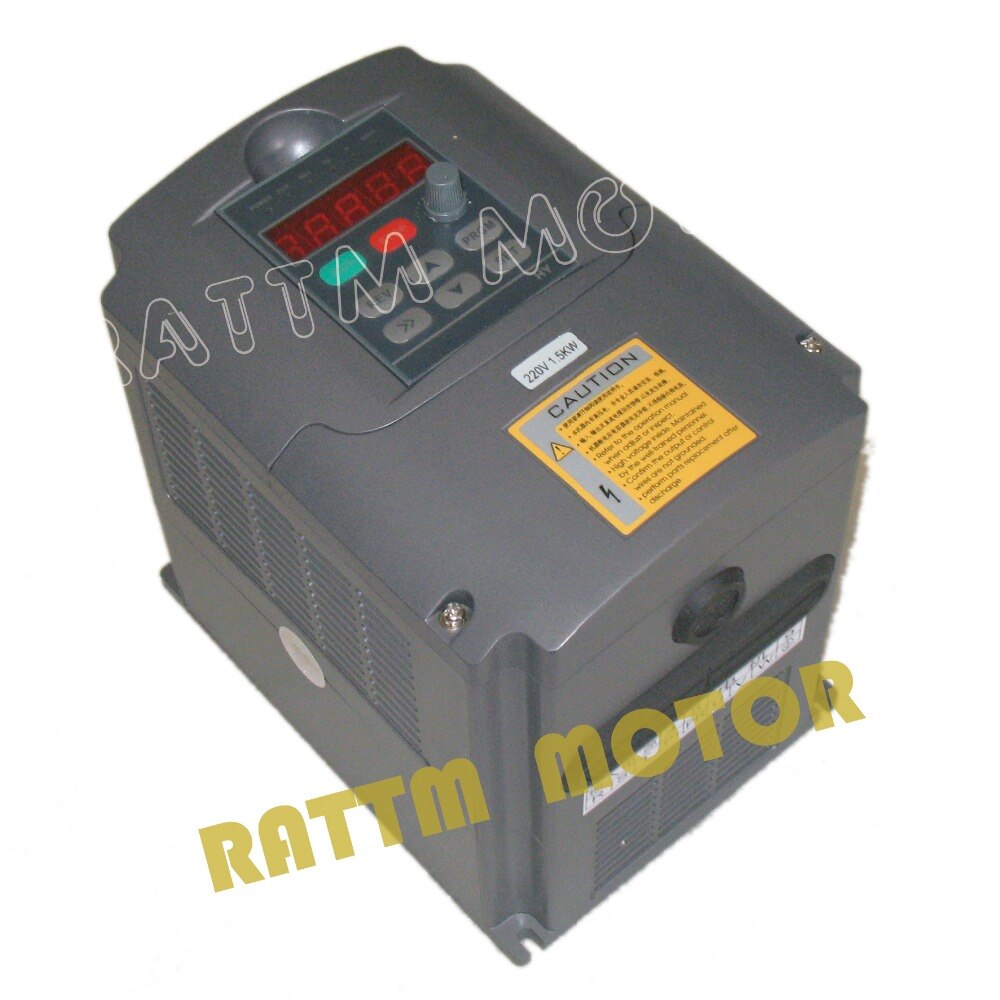

2.1.5kw Inverter VFD 220V input with 220V output
ProductFeature:
1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
2)Easy PLC function can realize 16 legs of speed and inverter control function;
3)RS485 communication port, adopting standard international MODBUS main circuit control;
4)With extremely strong anti-jamming capability
5)Low output ratting torque0.5HZ-150%, low speed running ability;
6)Carrier adjustable by 16KHZ, completely soundless working environment;
7)Broad voltage working area, normal running in 304V-456V;
8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
10)With perfect error protection and short circuit starting protection capability;
Tech parameters:
1) Input Voltage: 220V(+/-15%)
2) Output Voltage: 220V(+/-15%)
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase
7) Warranty: 1 year from the date you purchased
Specification

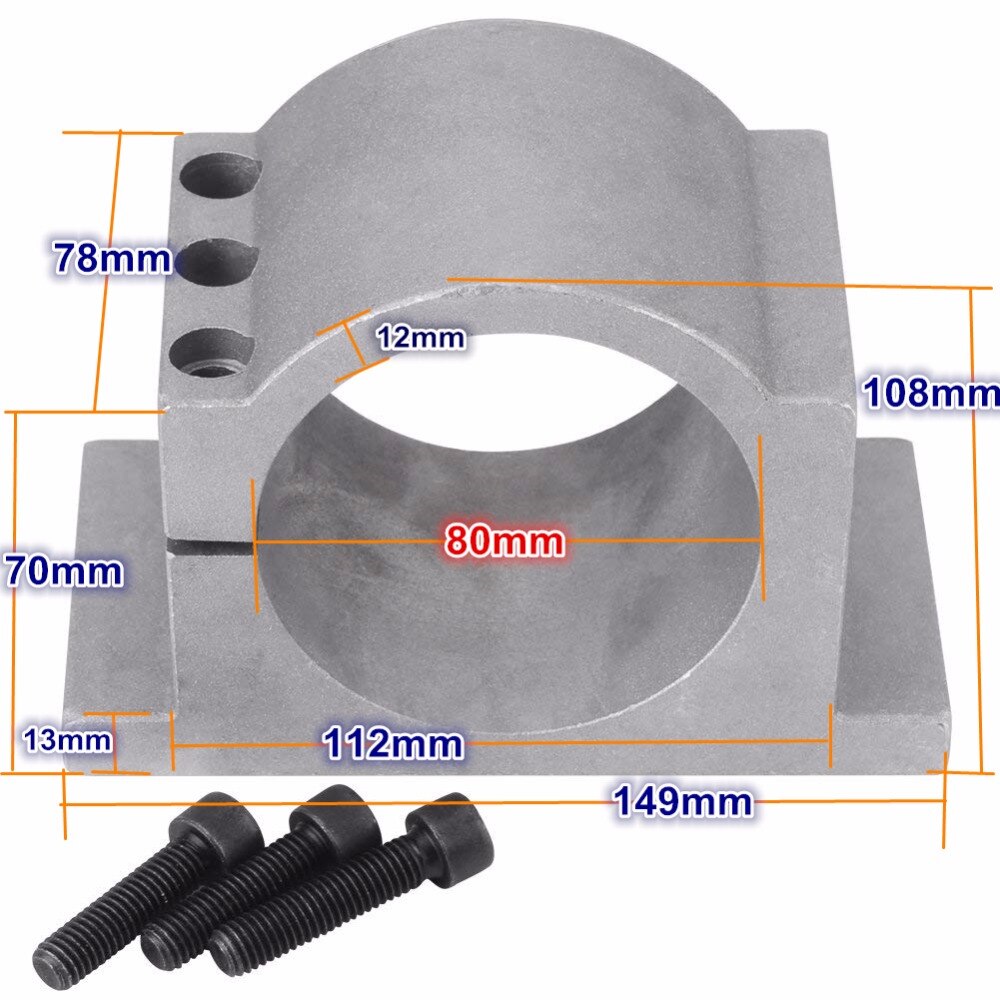

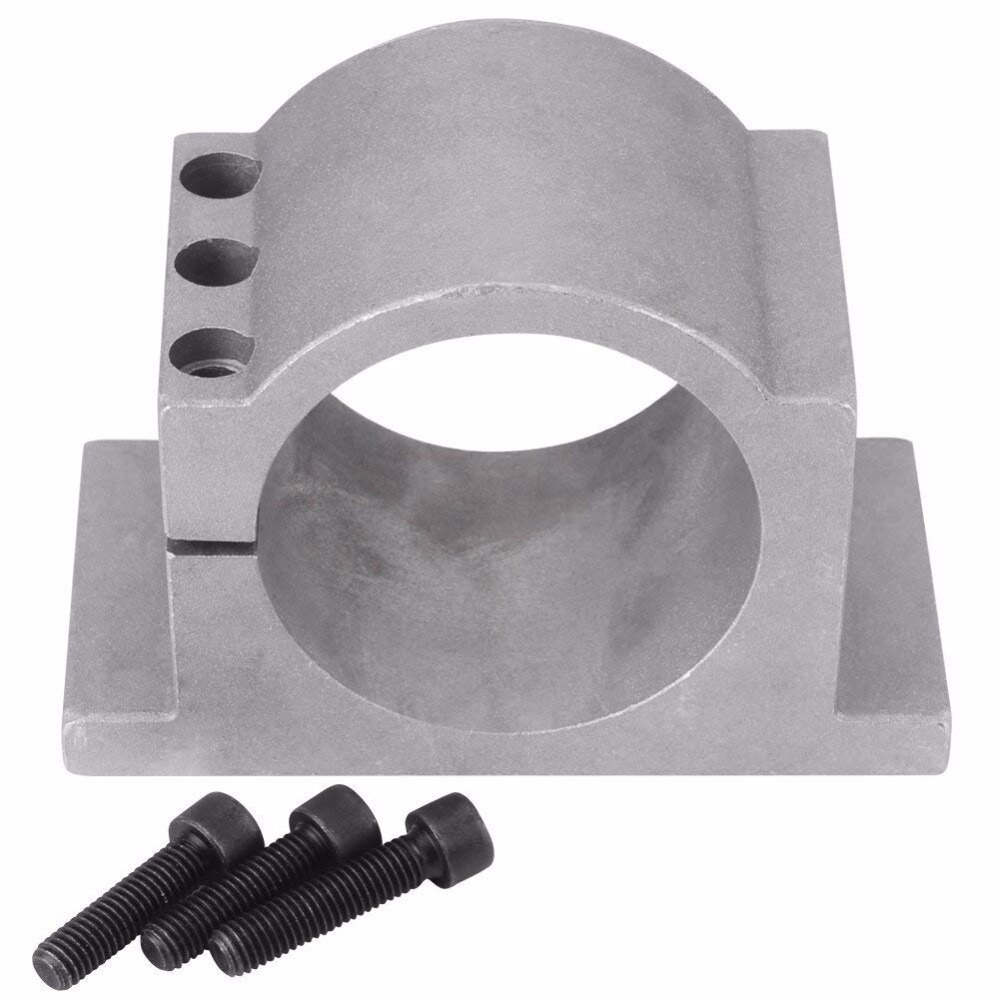

3. 80mm cast aluminium bracket

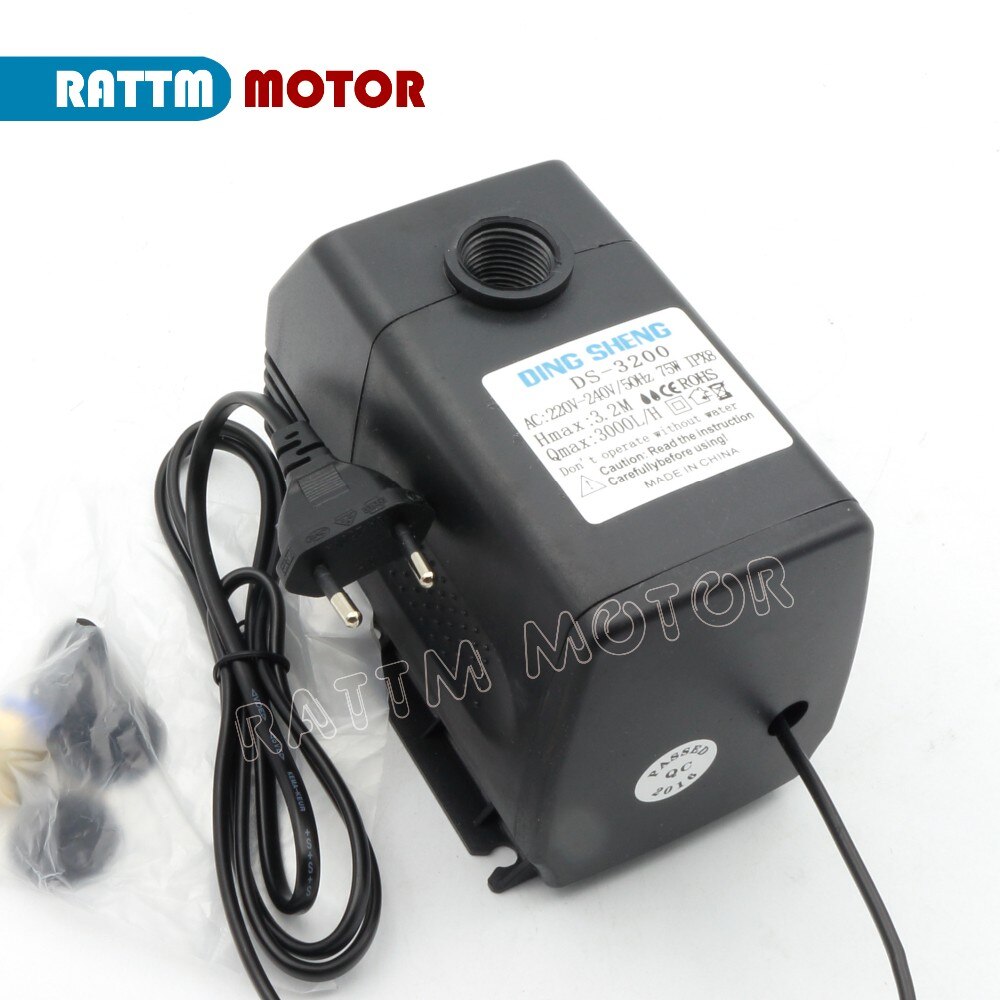

4. 75W CNC spindle motor water pump 3.2m 220VAC
Specification:
Pump length:3.2m
Voltage:220-240VAC
Power:75W
Flow:3000L/H
Size:150x80x140mm
Water nozzlediameter:6mm
Application: fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

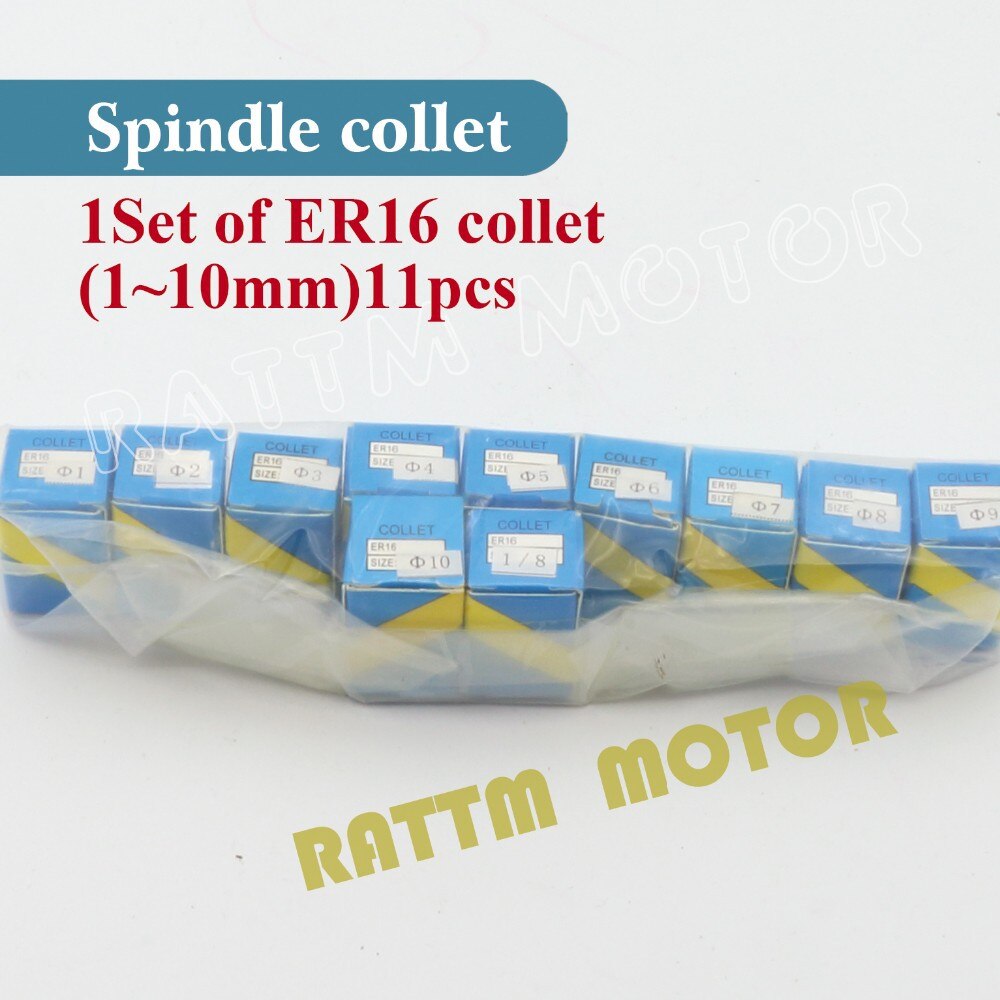

5.ER16 spring collet
1 set 11pcs Collet(1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 7mm,8mm,9mm,10mm)
Product Description
Out dia (D1):11.5mm
Height (H):18mm
Hole dia (D2):1-13mm
Run-out tolerance 0.1mm (0.006")
First class 1065 carbon steel
Hardened & precision ground
Shipping
===================================================================
This Item will ship within 1-2 business days by Germany DHL on payment received .
We are not responsible for wrong or undeliverable address,please
Double check your address when you write in Hogaki, if you want change before we ship out.pls notice us the new address.
Delivery time :
By "Germany DHL" delivery 3-9 working days,
tracking web: www.dhl.de/en/paket/information/sendungsverfolgung.html
If the order is during the weekends,it will take 2 days longer,we are not responsible for any delay of order if we have shipped out,because the speed of shipping is out our control, thanks for your understanding.
Payment
===================================================================
1.Free VAT and free import duty (TAX ) within EU counties.
2.Before purchasing, pls confirm with us whether in stock.
3.Pls make payment within 3 days of the order if possible.
4.Alipay(escrow),Credit Card,Western Union,Bank TT, paypal etc are accepted.
Problem & Feedback
===================================================================
We appreciate your positive feedback and 5 stars,this item is for getting feedback rating only without any profit
If you give us the feedback after receive the goods within 3 days,will be presented the next time you purchase a beautiful gift.
1.)we care about our valued customers,and will always try to help you,hope to establish long business with you.
2.)Pls give us the opportunity to resolve any problem, we understand the concerns and frustrations you might have,and will try our best to resolve the issues.
3.)Pls contact us by Trademanager or email before leaving any negative feedback or opening any dispute on the site,we will help you to resolve the problem,
Refund
===================================================================
Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.
When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.
Contact us
===================================================================
Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.
Customer’s satisfaction is very important to us.
- Operating Speed: 24000rpm
- Maximum Torque: --
- Application: Milling
- Model Number: 1.5KW ER16 Water Spindle & VFD
- Drive: Motor
- Origin: Mainland China
- Certification: CE
- Cooling: Water cooled
- Lubrication: Grease
- Phase: 3
- Frequency: 400Hz
- Collet: ER16
- Voltage: 220V
- Size: 80x198mm
- Spindle Power: 1.5Kw
- Inverter: 1.5Kw Inverter VFD 220V input with 220V output
- Type: 1.5kw Water Cooled Spindle motor Kit
- Runout off: Less than 0.02mm
- Bearings: 4pcs Bearings C7005 x2+C7002x2
- Water pump: 75W 220V
- Clamp: 80mm calmp
- water pipe: 5 meter water pipe
- VAT and TAX: EU,RU, free VAT and free import duty
