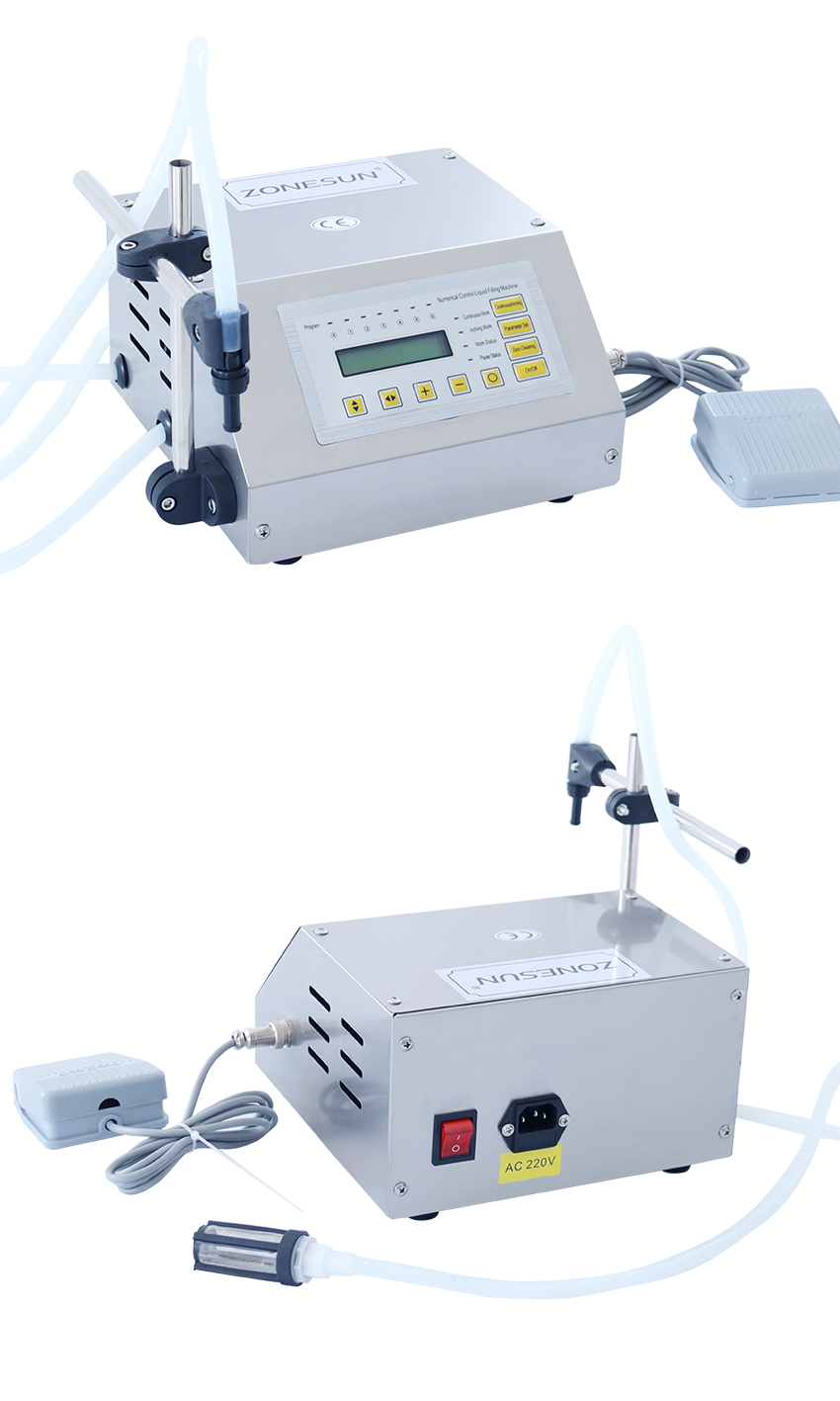

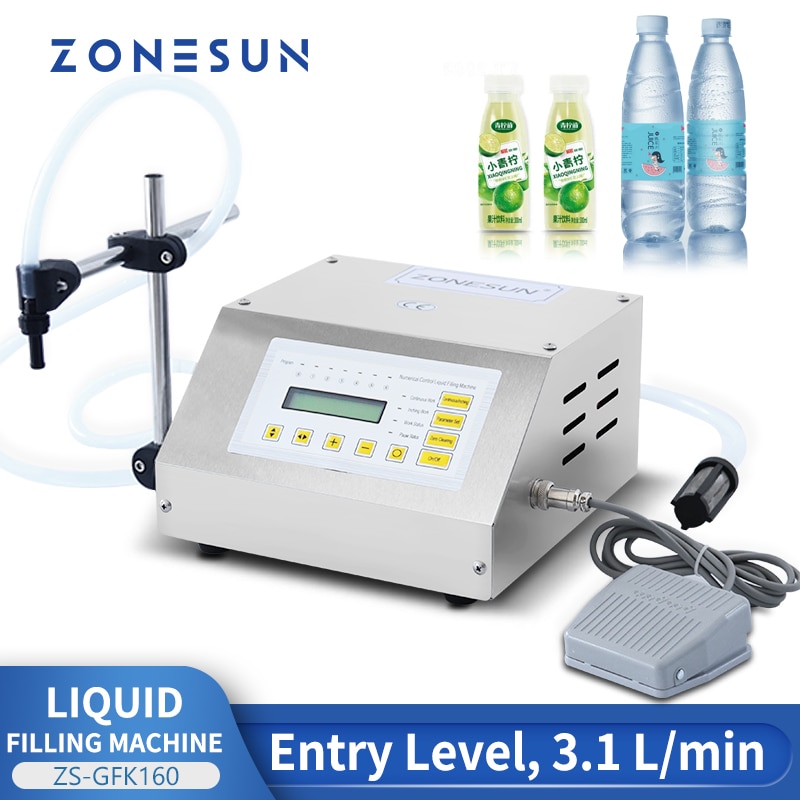

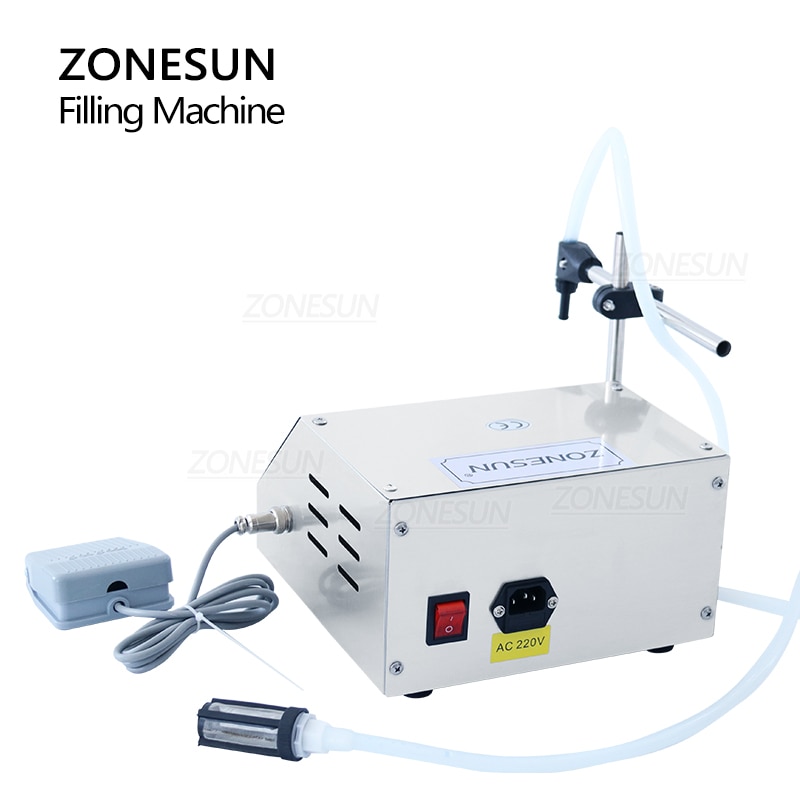

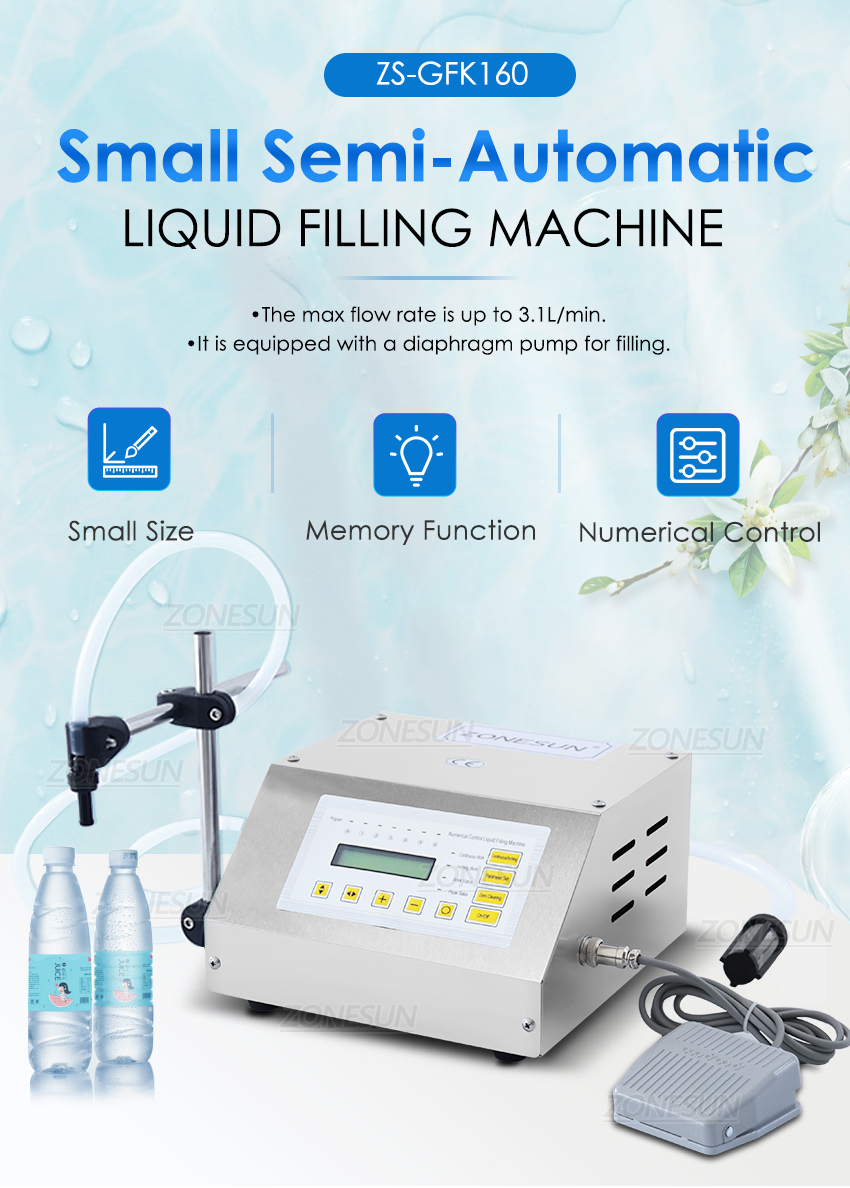

ZONESUN Liquid Filling Machine Digital Control Alcohol Drink Beverage Perfume Juice Milk Small Bottle Filler GFK-160

5.0 (2 votes)
Price: US $229.24 - 244.44 / piece
Discount Price:
US $ 134.40 - 141.80 / piece
-41%
Ships From
Color
Voltage
Quantity




Features


  • Automatic counting function, effectively control filling quantity

  • Import single-chip microcomputer control, high efficiency, low power consumption

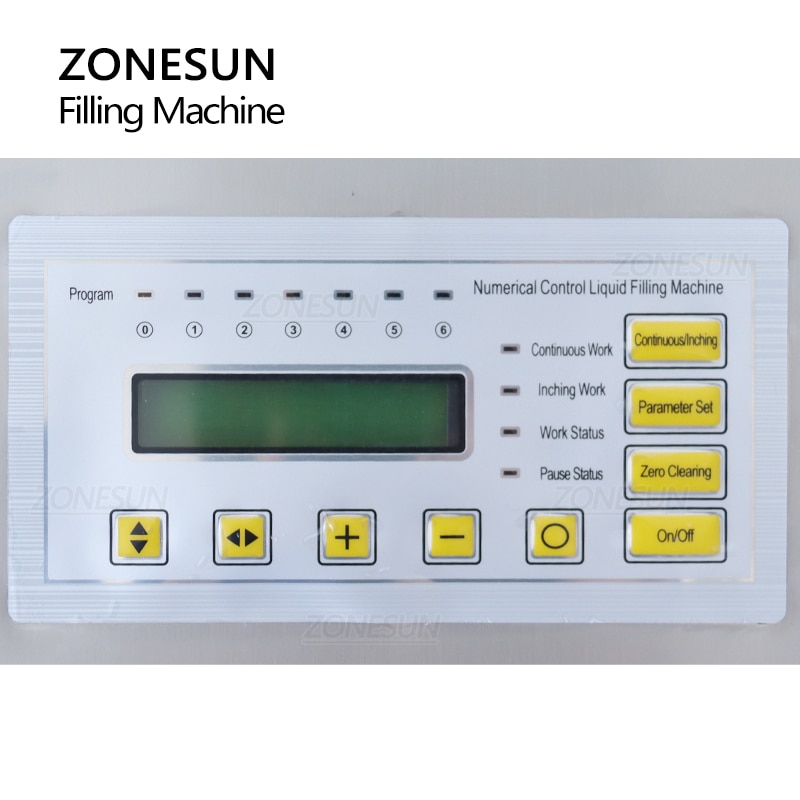

  • LCD display, touch screen is very easy to operate
  • Filling Accuracy is high, precise volume
  • Wide Voltage range
  • Working performance is stable and can be used for long time
  • Self-suck function, don\'t need to pour

  • The pump can stand for PH value within 5-8
  • Anti-dripping design

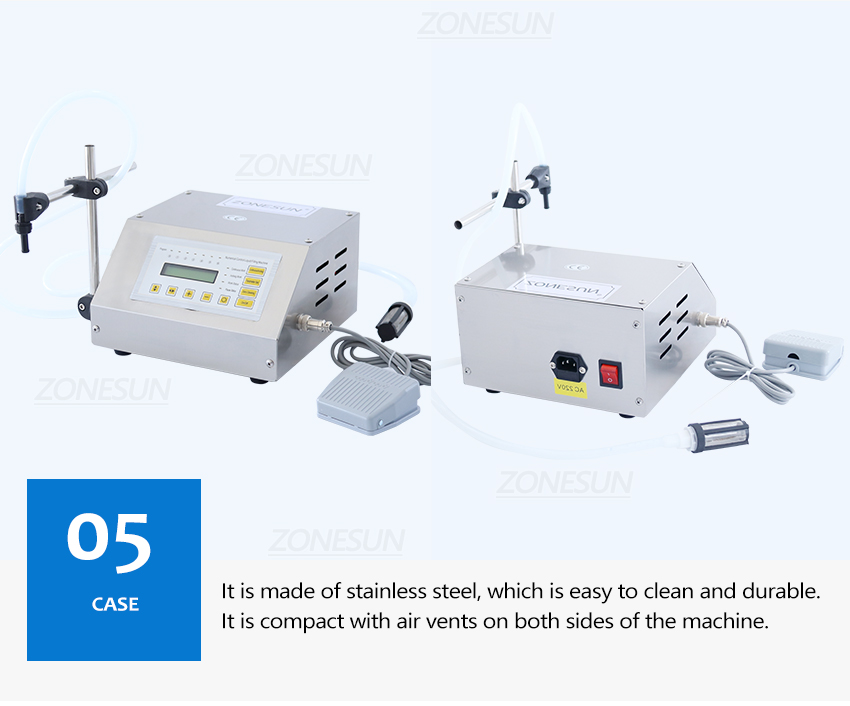

  • Reasonable design, made of stainless steel, meet GMP requirement

  • Speed Parameter Range: 1-9, Filling Time Range: 0.01-99.99s, Interval time Range: 0.01-99.99s

  • Save up to 6 sets of parameters for different-sized bottles and can choose from easily
  • Widely used in medical, chemistry, food, beverage, oil, and cosmetics, etc.

  • Suitable for filling low-viscous liquid without pellets

  • The pump can stand oil, heat, weak acid,weak alkali, abrasion and chemical products

  • Integrates the advantage of self-suck pump and chemical pump

    Self suck, heat protect, stable working and continuous idle or load operate for long time

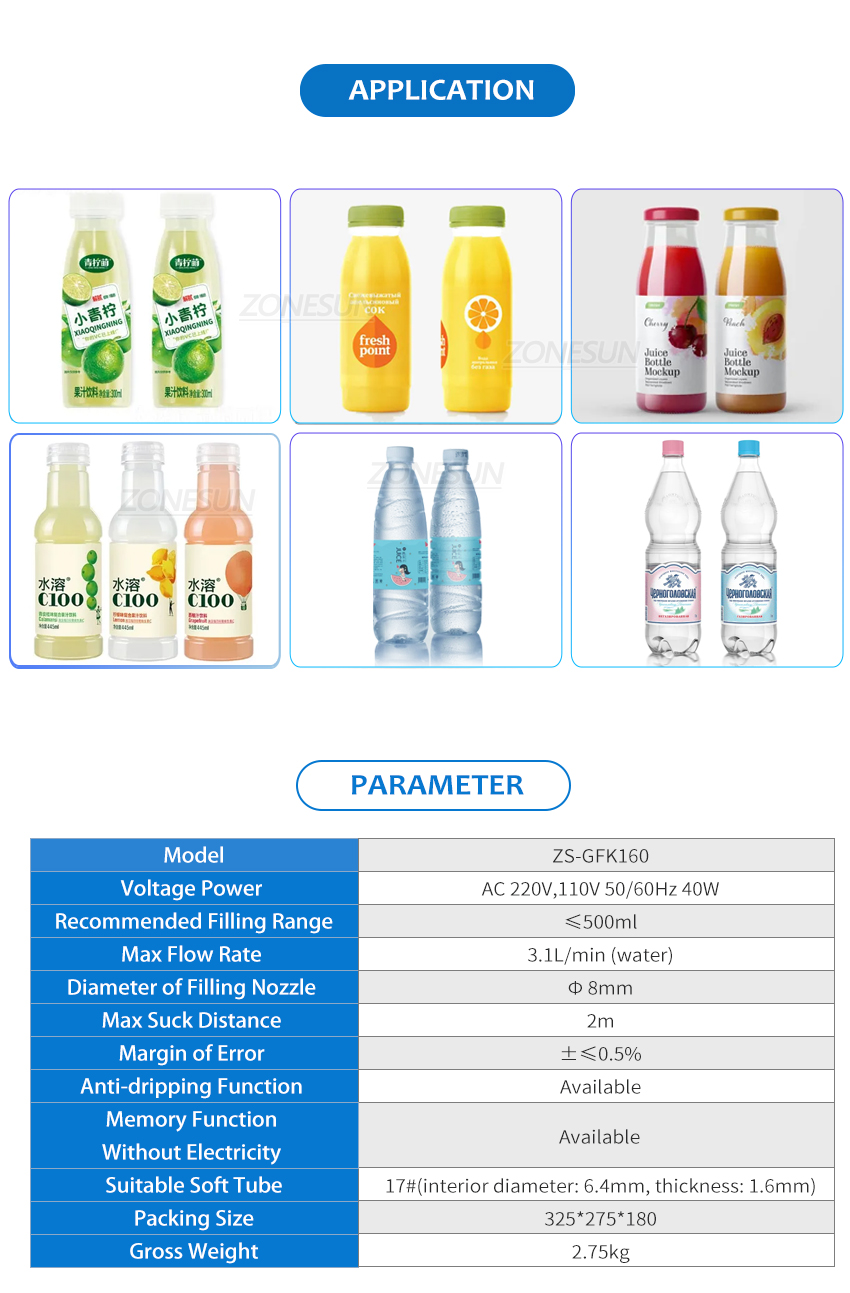

Parameter



Model

ZS-GFK160

Voltage Power

AC 220V,110V 50/60Hz 40W

Filling Range

≤500ml

Max Flow Rate

3.1L/min (water)

Diameter of Filling Nozzle

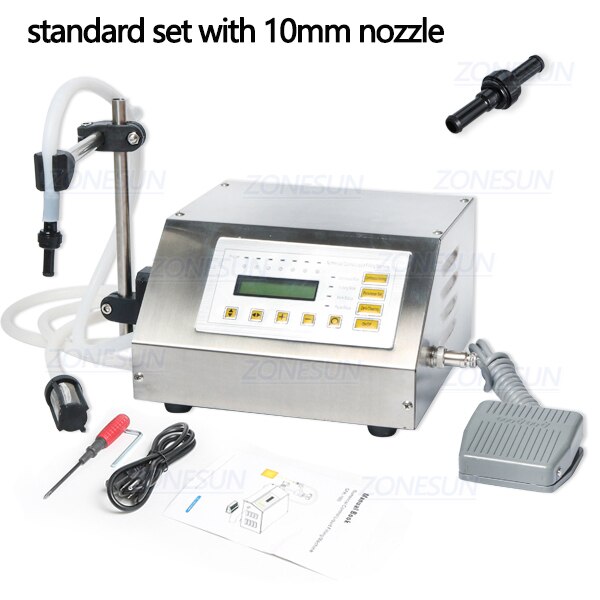

Φ8mm

Max Suck Distance

2m

Repeat Error

±≤0.5%

Anti-dripping Function

Available

Memory Function Without ElectricityMemory Function Without Electricity

Available

Suitable Soft Tube

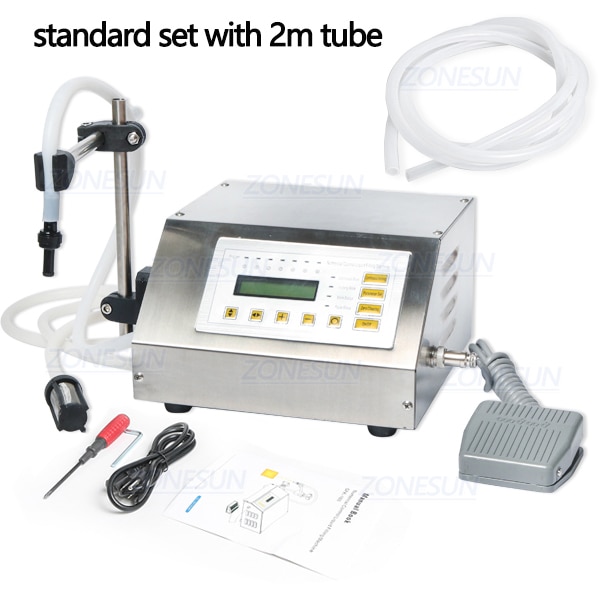

17#(interior diameter: 6.4mm, thickness: 1.6mm)

Packing Size

325*275*180

Gross Weight

2.75kg



Application



Liquid unsuitable: very thick liquid (sauce,detergent etc), or liquid containing small particles.

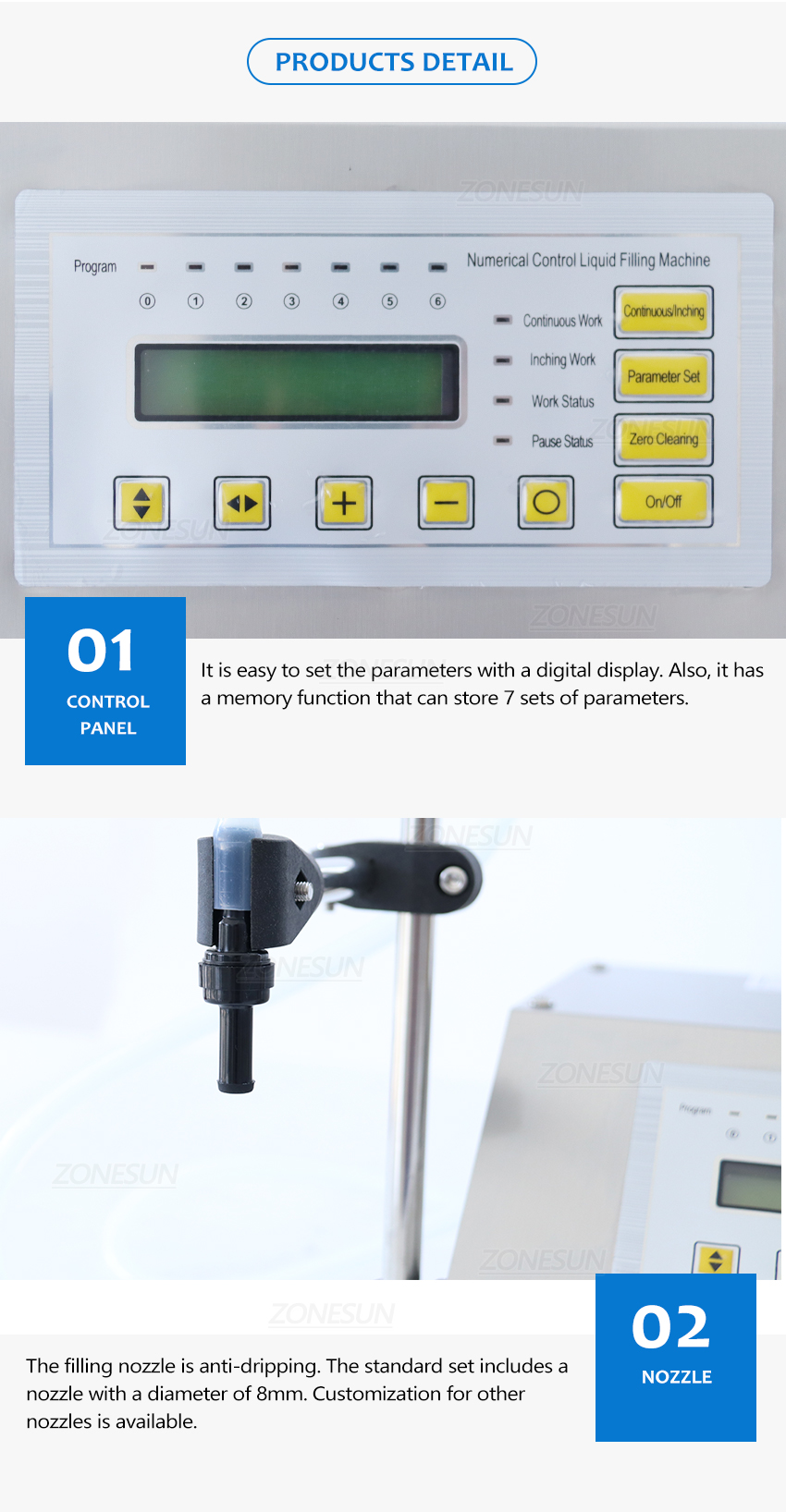

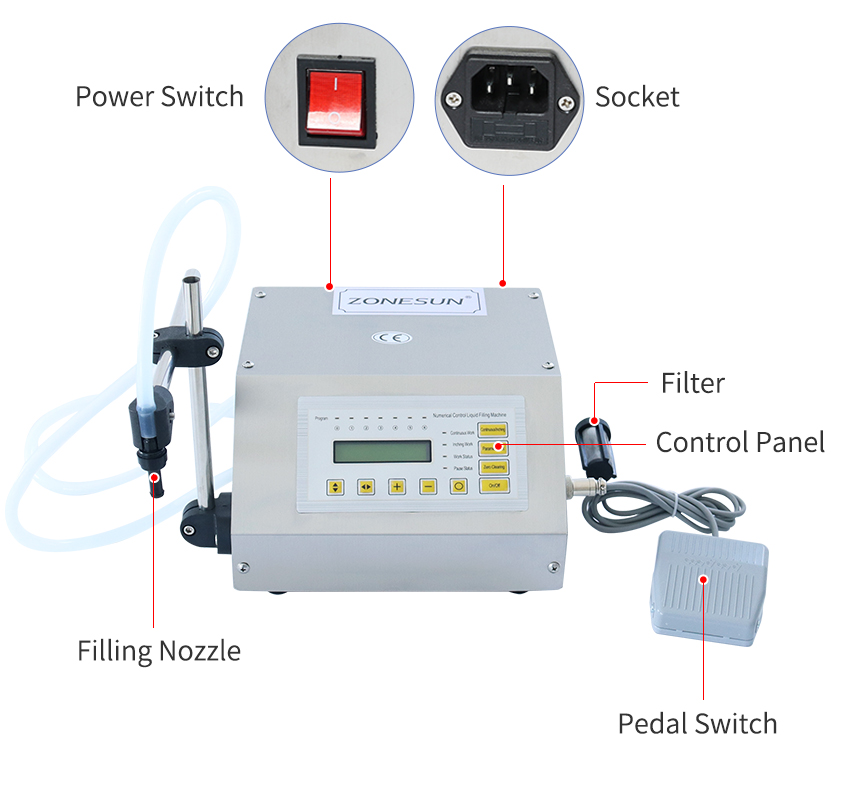

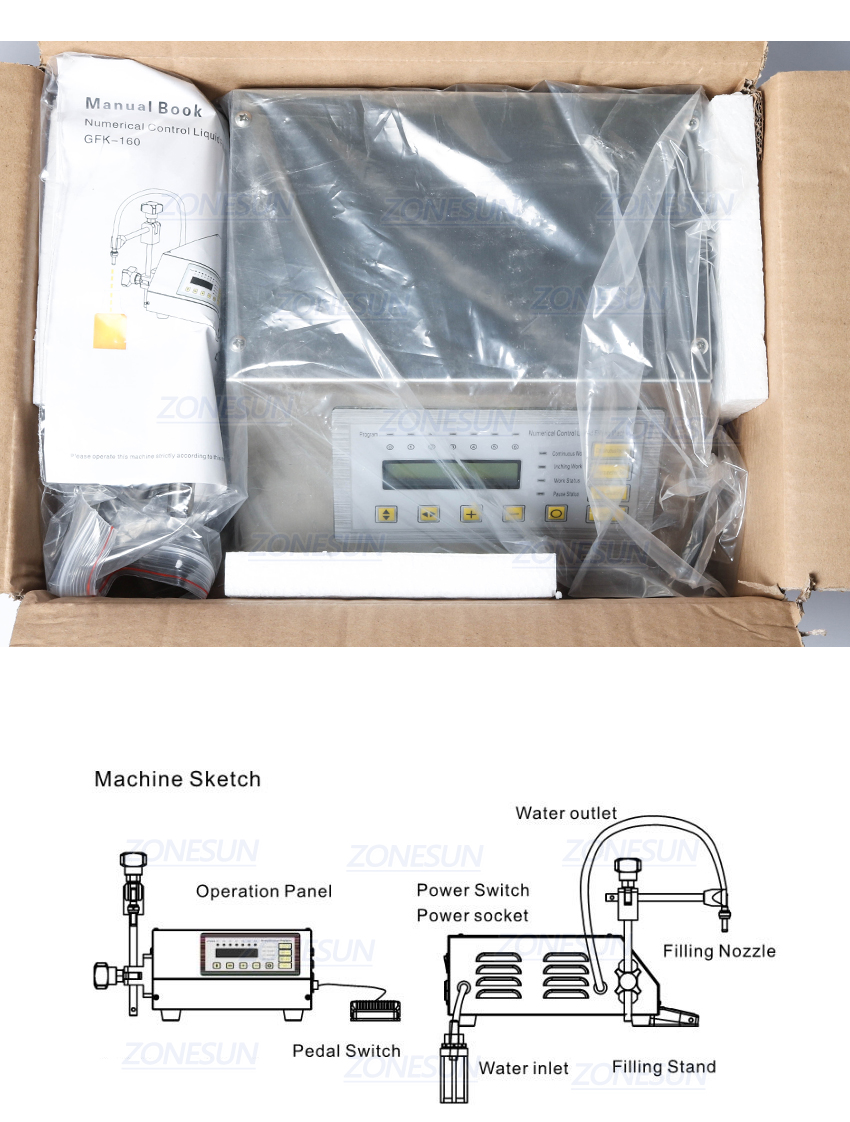

The tubes are made of silicone gel and the pump head is made of PVC plastic material so it can endure mild acid/alkaline solutions. The machine has a control front panel and digital display. You can easily enter your parameters by pressing the buttons on the control panel and the parameters will show in the LCD screen. The filling volume can be controlled via the filling time and speed parameters which give you much flexibility.







  • Filling Accuracy: 99%
  • Filling Speed: 3-2800ml/min
  • Model Number: GFK-160 Liquid filling machine
  • Brand Name: ZONESUN
  • Origin: Mainland China
  • Certification: CE
  • Filling Speed: 3-4000ml/min
  • Model Number: GFK-160
  • Filling Accuracy: 99%
  • Condition: New
  • Packaging: Type: Cartons
  • Packaging Material: Paper
  • Dimension(L*W*H): 40*38*20MM
  • Max Flow Rate: 2.8L/min
