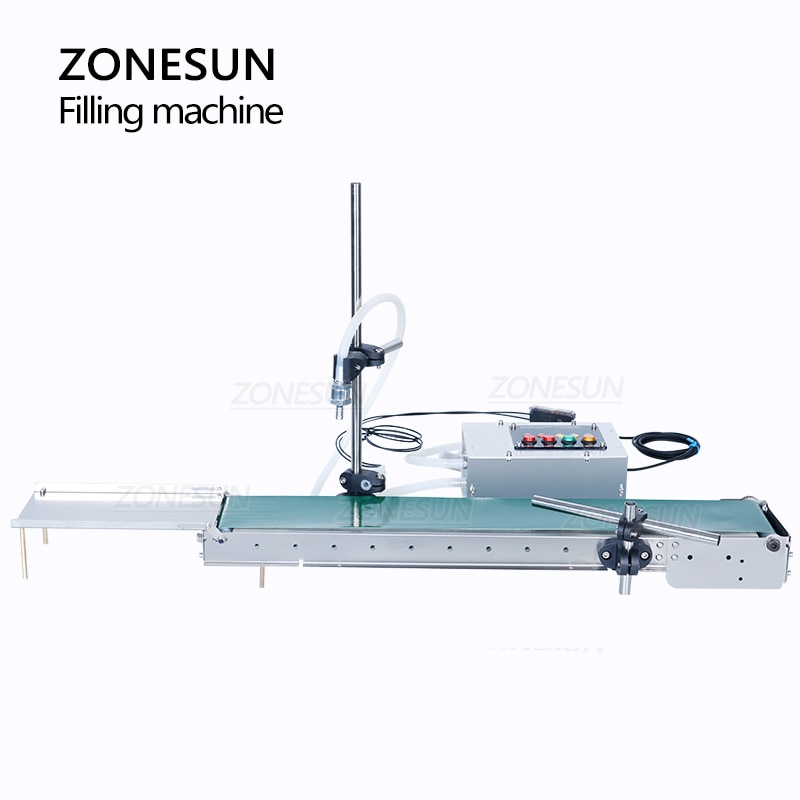

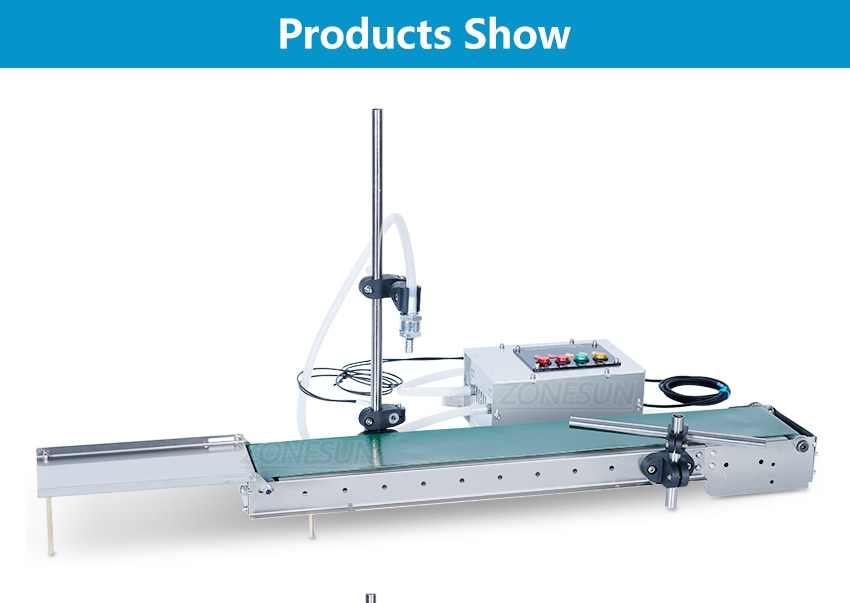

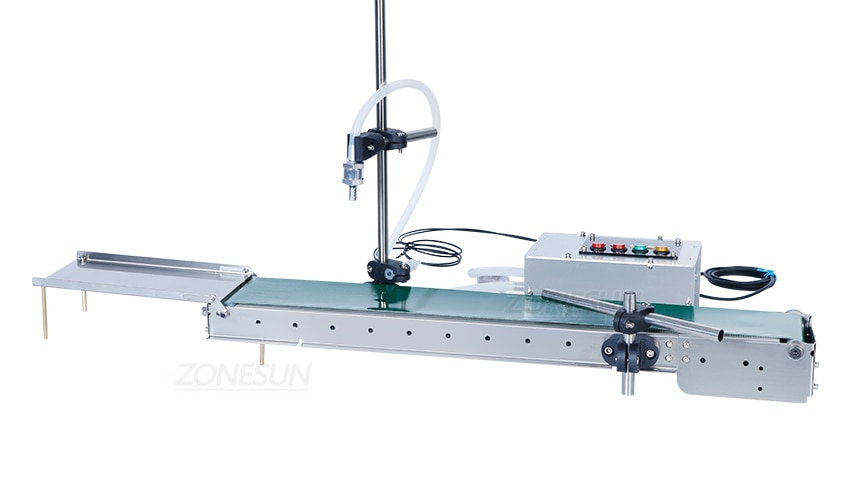

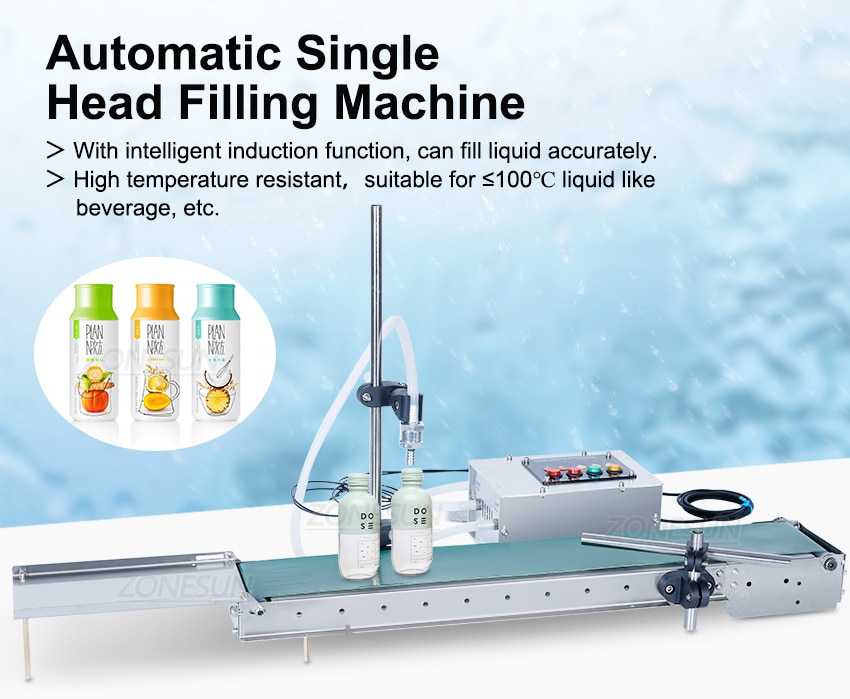

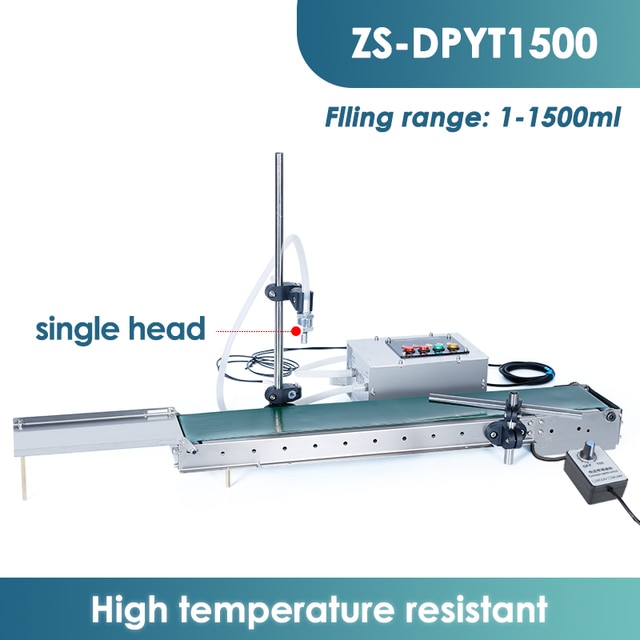

ZONESUN Automatic Single Head Liquid Filling Machine High Temperature Heat Resistance For Perfume Essential Oil blink eye drops
483.50 412.82 $
SALE
ID: 72695
Quantity
ZONESUN Automatic Single Head Liquid Filling Machine High Temperature Heat Resistance For Perfume Essential Oil blink eye drops
5.0 (4 votes) | 18 orders
Price:
US $228.61 - 483.50
/ piece
Discount Price:
US $
208.24 -
412.82
/ piece
-9%
- Color
-
-

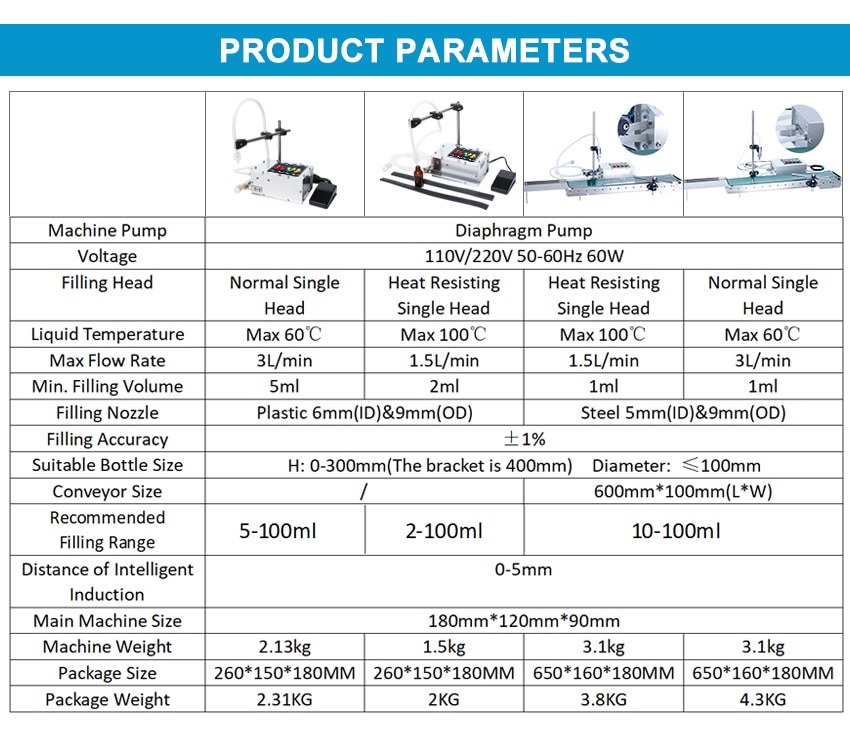

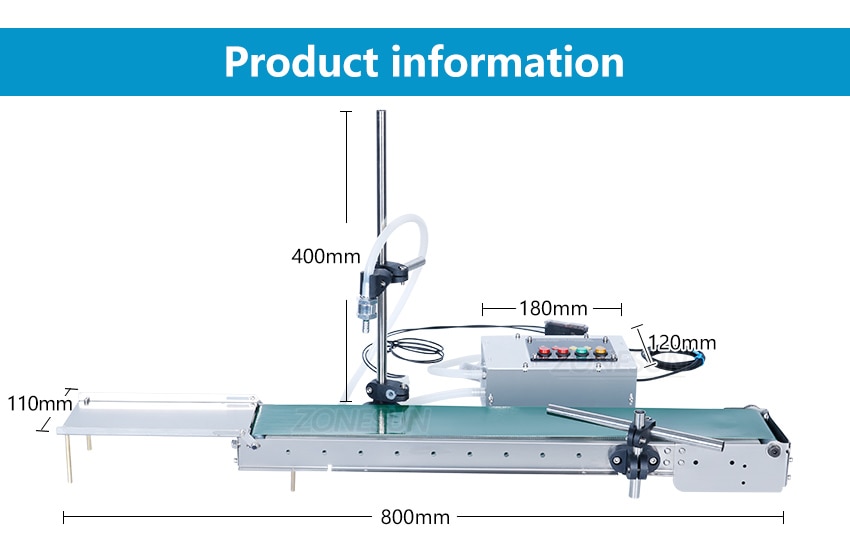

Parameter:
Machine pump:Diaphragm Pump
Voltage: 220V/110V 50-60Hz
Power: 60W
Max filling volume: 3L
Bottle height: ≤30cm
Bottle diameter:≤8.1cm
Power supply device input voltage: 100-240V
Machine input voltage: 12V 5A DC power supply
Filling time: 0-999s
Filling speed: 0-99
Filling accuracy: ±1%
Intelligent sensing distance: ≤1cm
Anti-dripping Function: Available
Power supply device input voltage: 100-240V
Machine input voltage: 12V 5A DC power supply
Filling time: 0-999s
Filling speed: 0-99
Filling accuracy: ±1%
Intelligent sensing distance: ≤1cm
Anti-dripping Function: Available
Application:
It can be used to fill low-viscosity liquid that is without particles, such as water,beverage,sauce,juice,soybean milk,toner,etc. The filling liquid must be without foam. This machine is small, which is an ideal choise for the small production.
Description:

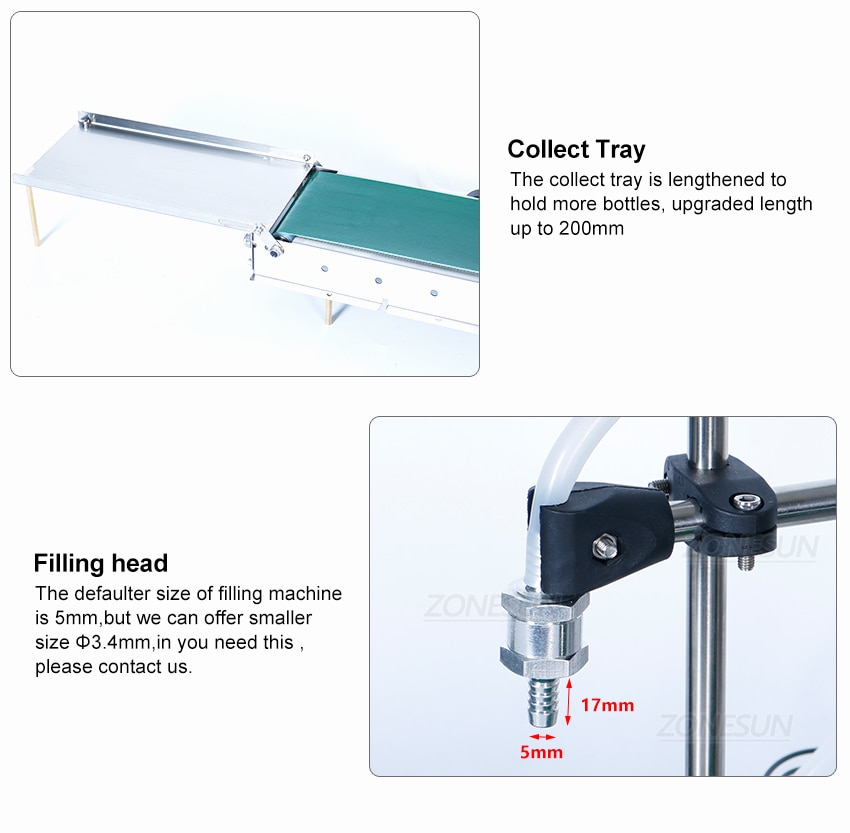

1.The filling nozzle of the machine has anti-dripping function, which can keep the conveyor clean.

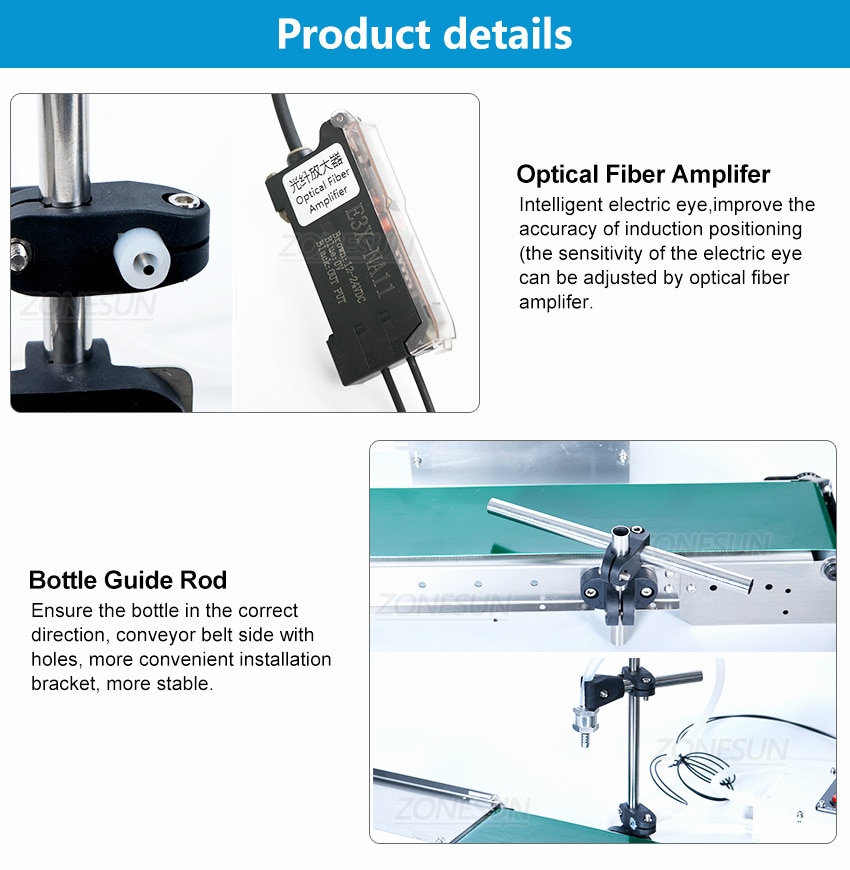

2.Equipped with an intelligent eye, making the filling process more efficient.
3.With heat resistance function, can fill liquid that is about 100℃.
4.The inlet and outlet tube can be removed and replaced.

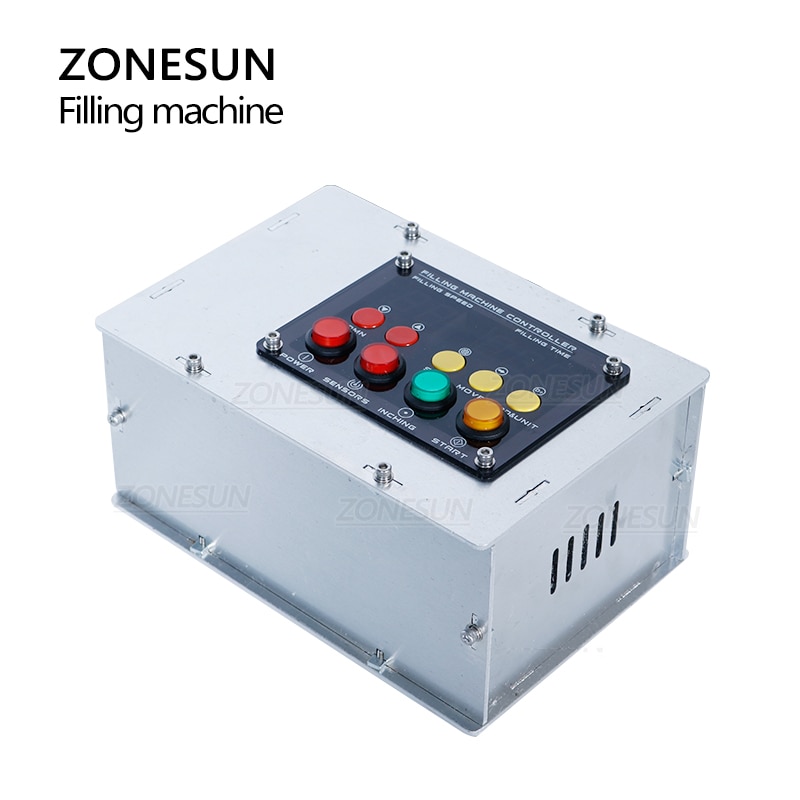

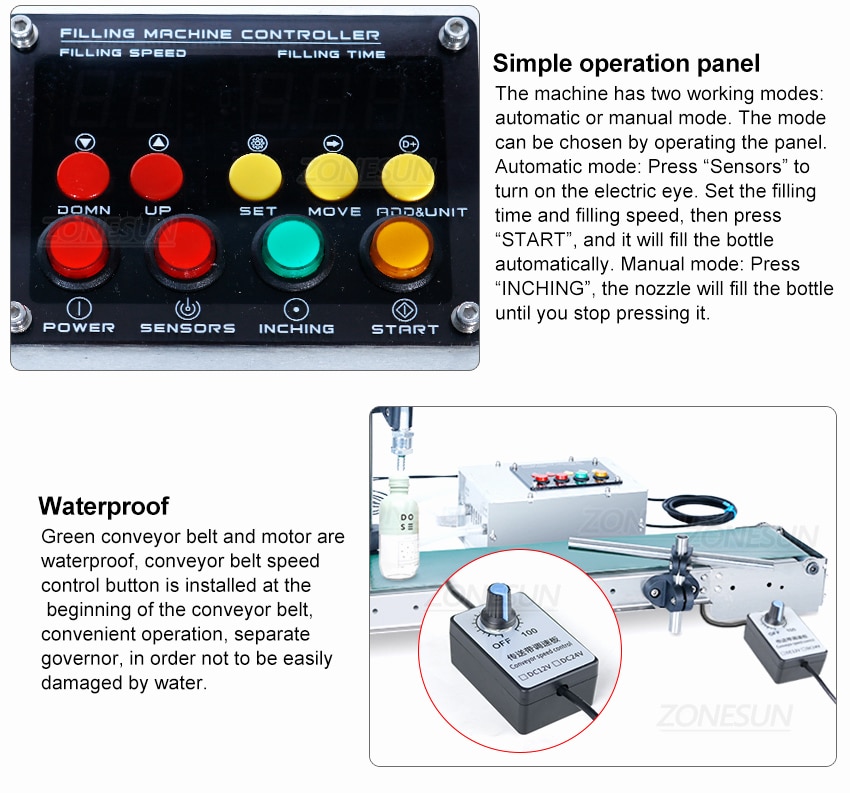

5.Microcomputer control system, the highest timing accuracy reaches 0.1 second.

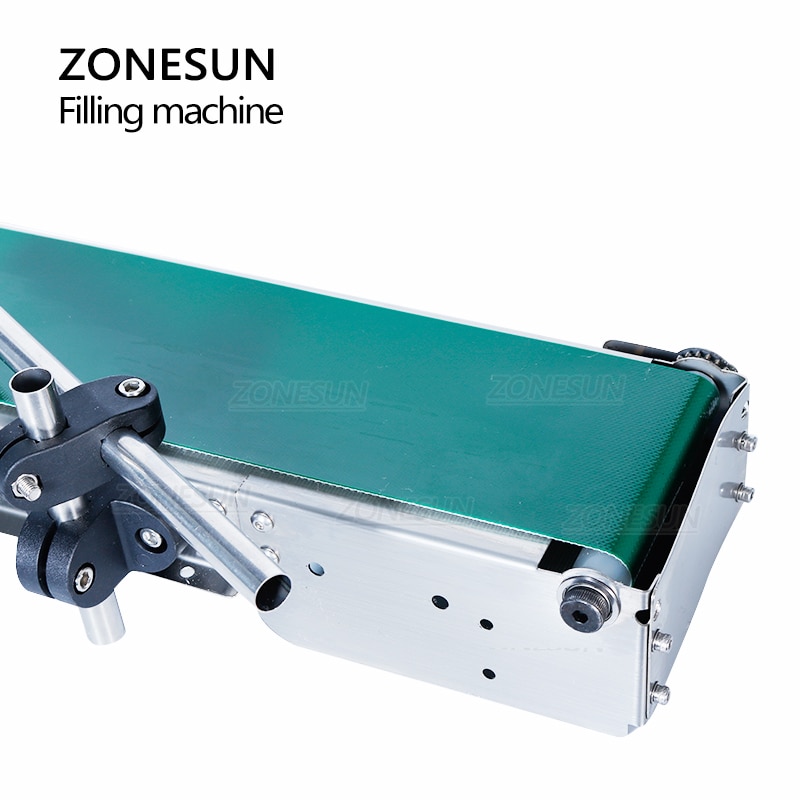

6.Waterproof conveyor belt.
Notice:
1. The load that conveyor can bear must be within 3kg.
2. It is better that the distance between electric eye and bottle is within 1cm.

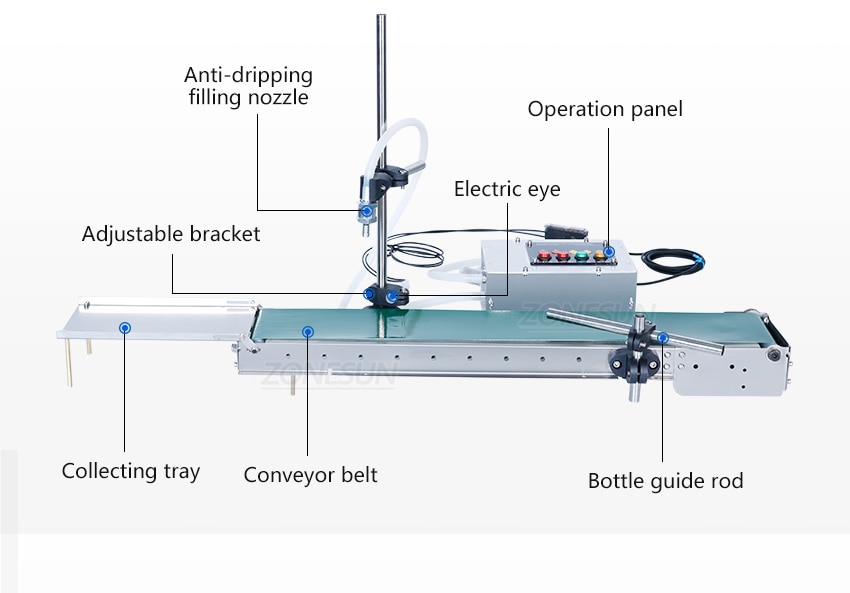

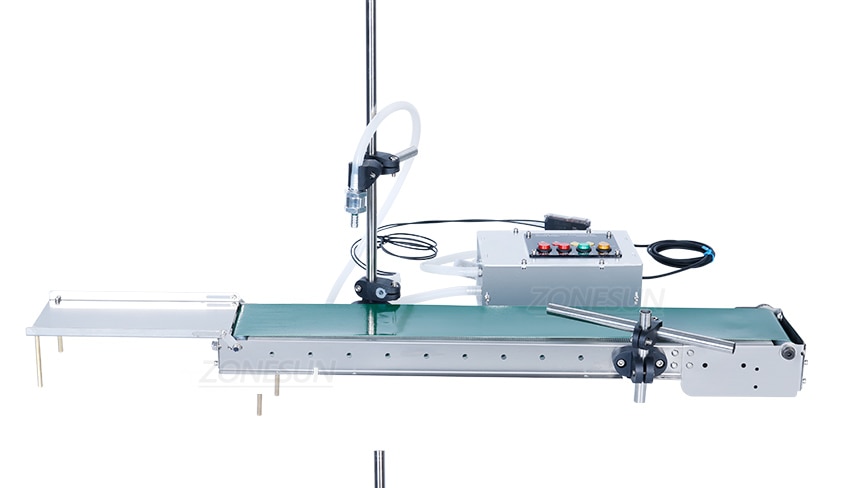

Conveyor installation and commissioning instructions:

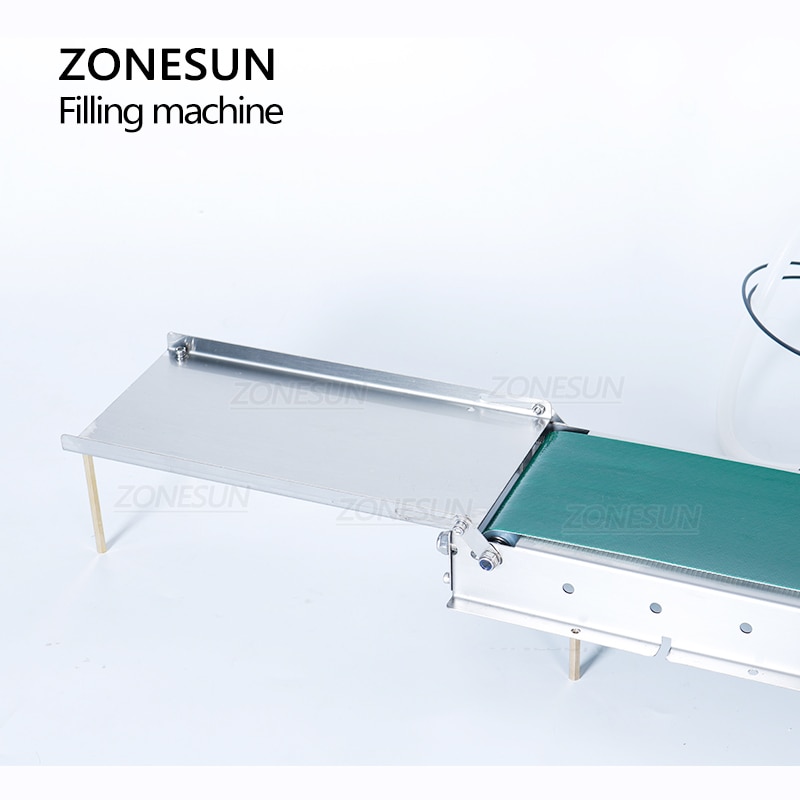

1.Insert the conveyor control cable,install copper columns and receiving tray,insert the U-shaped clip ,T-bracket and U-shaped clip ,tight the screws slowly to ensure that the bracket does not shake.
2.Install the support rod,bracket,prepare to connect the filling machine
3.Install the sensor,and inlet and outlet pipes,adjust the sensitivity of the sensor,the bottle will be filled automatically.
4.Adjust the water outlet to match the height of the bottle,comfirm the alignment of the water outlet and the bottle mouth form different angles.
5.Adjust the bottle guide rod so that the bottle just passes the sensor.
6.Start-up trial operation,after adjustment,you can start working.
5.Adjust the bottle guide rod so that the bottle just passes the sensor.
6.Start-up trial operation,after adjustment,you can start working.
- Filling Accuracy: 1%
- Filling Speed: 0-99s
- Model Number: FILLING MACHINE
- Brand Name: ZONESUN
- Origin: Mainland China
- Certification: CE
- FEATURE1: AUTOMATIC
- FEATURE2: WITH CONVEYOR

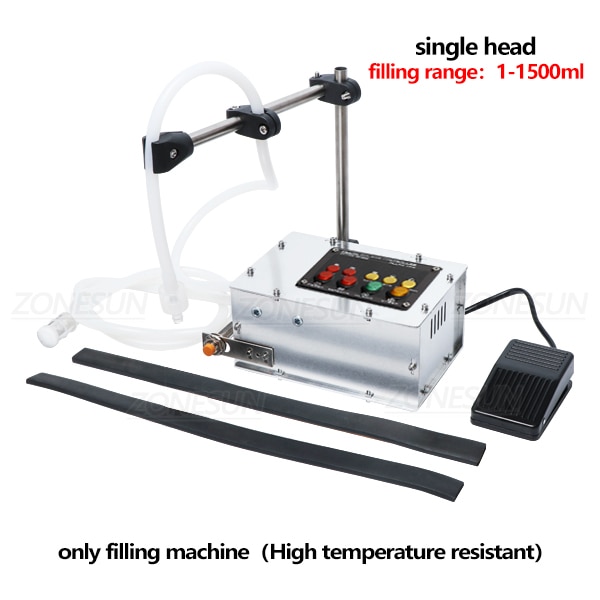

- FILLING RANGE1: 1-1500ML
- FILLING RANGE2: 1-3000ML
