6Nm 0.6kg Magnetic Powder Brake DC 24V Hollow Shaft & 3A 24VDC Manual Tension Controller Kit for Printing Packaging Machine
423.79 355.24 $
SALE
ID: 30008
Quantity
ZKG-50YN Spontaneous Cooling Solid Shaft Type Micro Magnetic Powder Brake
0.0 ( votes)
Price:
US $727.42
/ piece
Discount Price:
US $
659.22
/ piece
-9%
- Color
-
-
- Rated Torque
Welcome to Lixinsheng Packaging Equipment Store

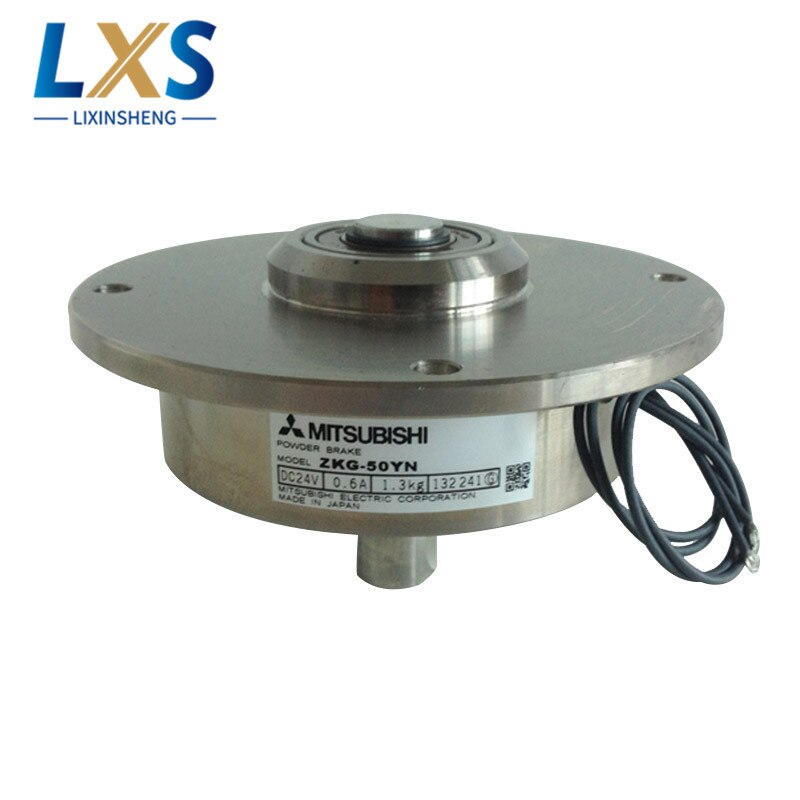

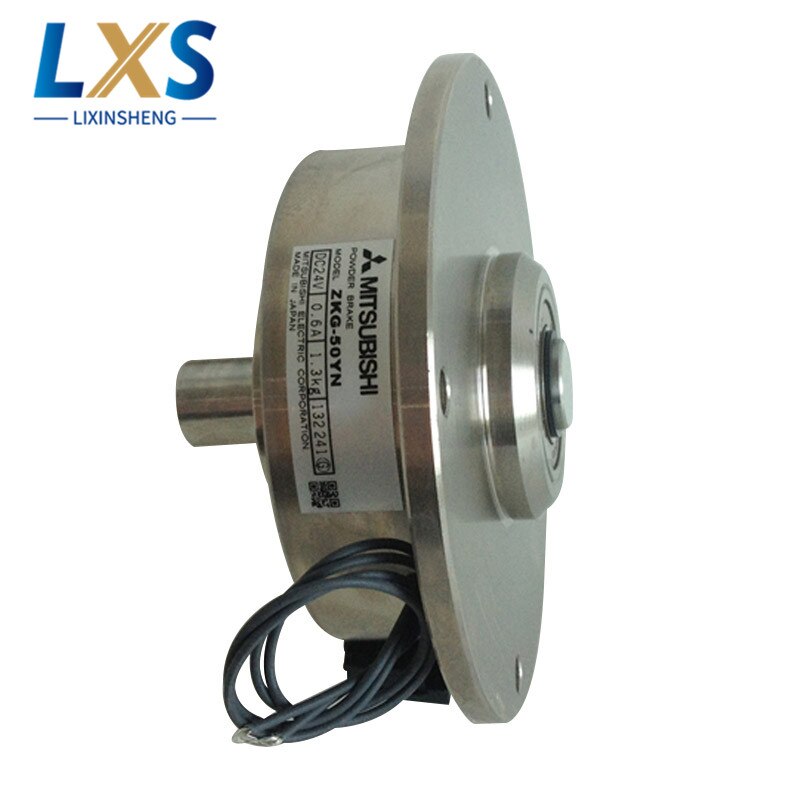

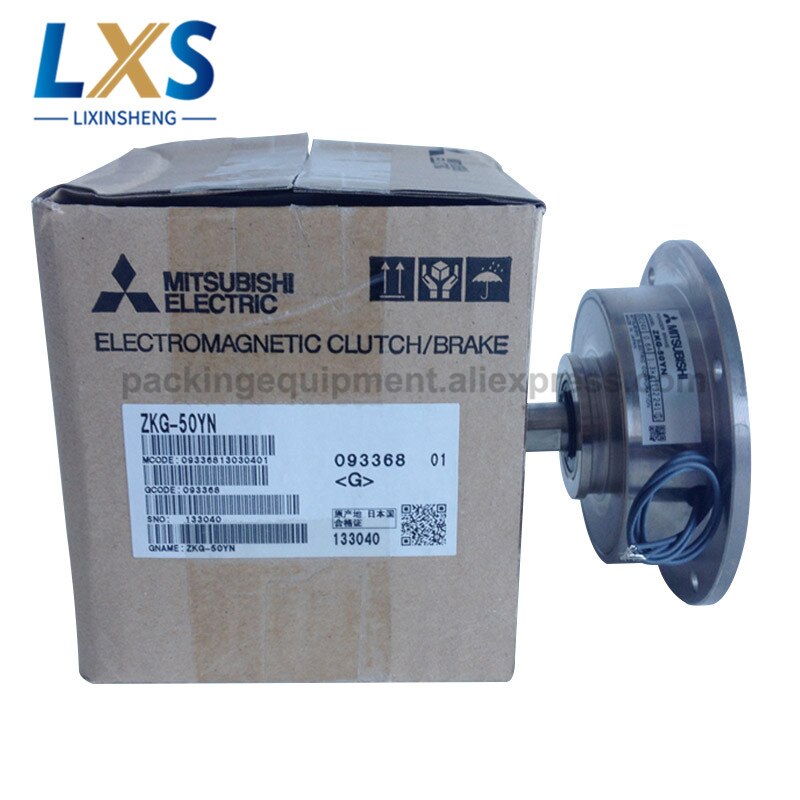

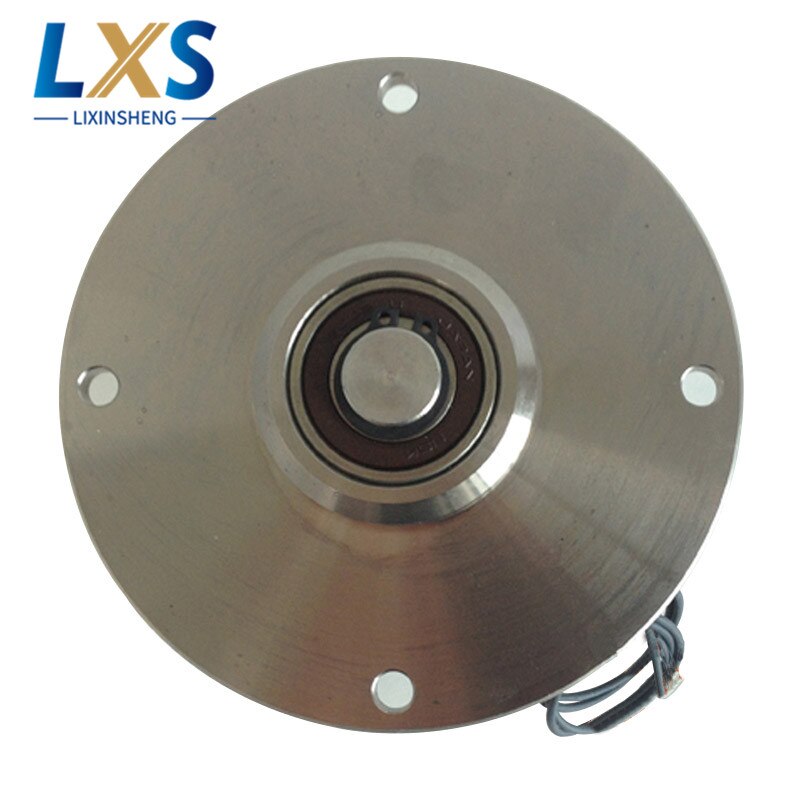

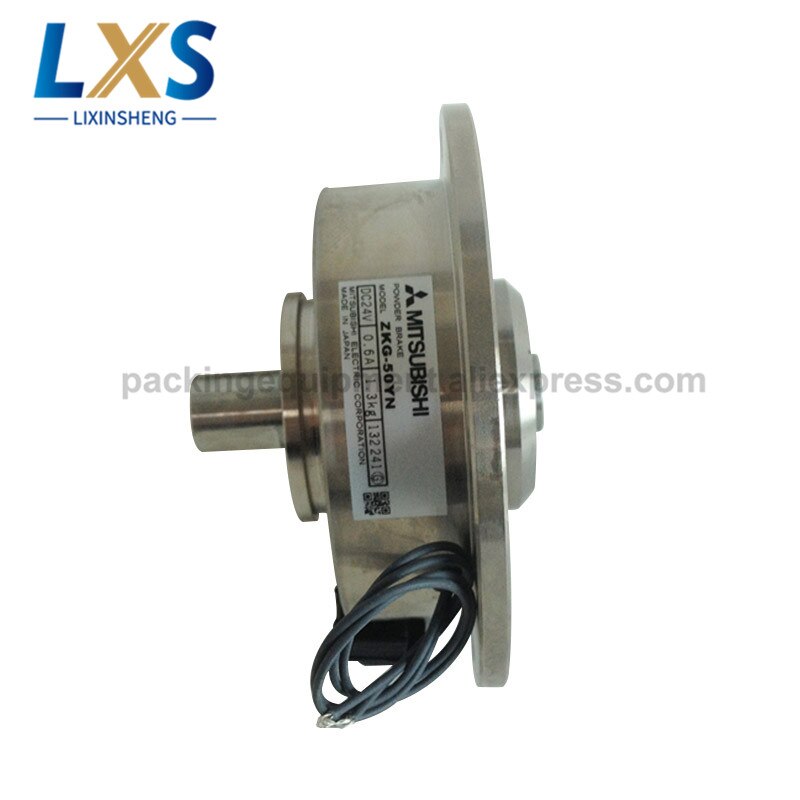

ZKG-50YN Spontaneous Cooling Solid Shaft Type Micro Magnetic Powder Brake
ZKG-YN Micro Magnetic Powder Brakes
Brand: Mitsubishi
Origin: Japan
>>>Feature
·Rated torque: 0.5 to 5 (N · m)
·Spontaneous cooling solid shaft type
1. Compact-design micro series
2. Smaller rotational moment of inertia
3. Operatable from 5 r / min
>>>Specification
|
Model |
Rated torque (N·m) |
Coil（75℃） |
Moment of Inertia J(kgm⊃2;) |
Allowable speed (r/min) |
Weight (kg) |
||
| Current (A) |
Power (W) |
Time constant (s) |
|||||
| ZKG-5YN |
0.5 |
0.35 |
8.4 |
0.02 |
9.4×10^ （-3） |
1800 |
0.4 |
| ZKG-10YN |
1 |
0.42 |
10.1 |
0.02 |
2.75×10^ （-2） |
1800 |
0.54 |
| ZKG-20YN |
2 |
0.5 |
12 |
0.04 |
5.25×10^ （-2） |
1800 |
0.96 |
| ZKG-50YN |
5 |
0.6 |
14.4 |
0.05 |
1.25×10^ （-1） |
1800 |
1.3 |
(Note) when idling torque at 1000r/min does not exceed 3% of the rated torque. In 1800r/min when no more than 5% of the rated torque.
>>>Application
Magnetic powder clutch suitable for tension control, overload protection, torque loader. Such as printing presses, paper machine, rewinding machine, wire drawing machine, metal rolling machine, film processing machines, textile machinery;
Another example is the motor, engine, hydraulic Restarder on the loading device do loading experiments.
It is based on the electromagnetic theory and using magnetic powder brake transmission torque. It has the excitation current and the torque is transmitted to a substantially linear relationship.
Transfer torque with slip-independent case, has the advantages of fast response, simple structure, no pollution, no noise, no shock and vibration energy conservation. It is a versatile, superior performance of automatic control components. The powder brake widely different purposes of brake power test load applied to a variety of mechanical unwinding tension control.
More products pls kindly click here : Xiamen Lixinsheng Packing Equipment Co.,Ltd Store
As the following is a table of other spec. , pls choose the perfect match standard you need.
>>>DT325E LED Handheld Srobescope >>>Pneumatic Diaphragm Pump BML-15P >>>Cross Hatch Cutter
>>>JSCC Speed Control Motor >>>Intelligent Krebs Stormer Viscometer >>>Electromagnetic Clutch
- Voltage: 14.4W
- Material: Stainless Steel
- Model Number: ZKG-50YN Micro Magnetic Powder Brakes
- Brand Name: LXSLIXINSHENG
- Product Name: ZKG-50YN Micro Magnetic Powder Brakes
- Suitable industries: Printing machine, paper machine, rewinding machine, drawing machine, f
- Magnetic powder clutch used in: Tension control, overload protector, torque loader, etc
- Feature: With fast response speed, simple structure, no pollution, no noise
- Weight: 1.3g
- Available Speed : 1800 r/min
- Suitable for: Motor, engine, hydraulic press reducer when loading experiment of load
- Type: Spontaneous cooling solid shaft type
- Time constant: 0.05s
- Current : 0.6A
- Original: Japan Mitsubishi ZKG-50YN
