ZHUDELE Digital non-visual building intercom system audio door phone/audio doorbell indoor unit,Top quality luxury indoor machin
0.0 ( votes) | 1 orders
Price:
US $54.15
/ Set
Discount Price:
US $
51.43
/ Set
-5%
Audio door phone outdoor station forDigital non-visual building intercom system
Please note: the price is only for one phone .
Our phone(Item Number: ZDL-008A) must can work with our own outdoor unit(Item NO: ZDL-328R) like in below picture .
If your outdoor unit is not ours,i am not sure if it can work with your audio intercom system.
We don't agree to return any money,if your outodor unit is not ours,and our phone can not work with your system,
Only you return back our phone , we will return you the phone price .
when you place order , pleas conside it .

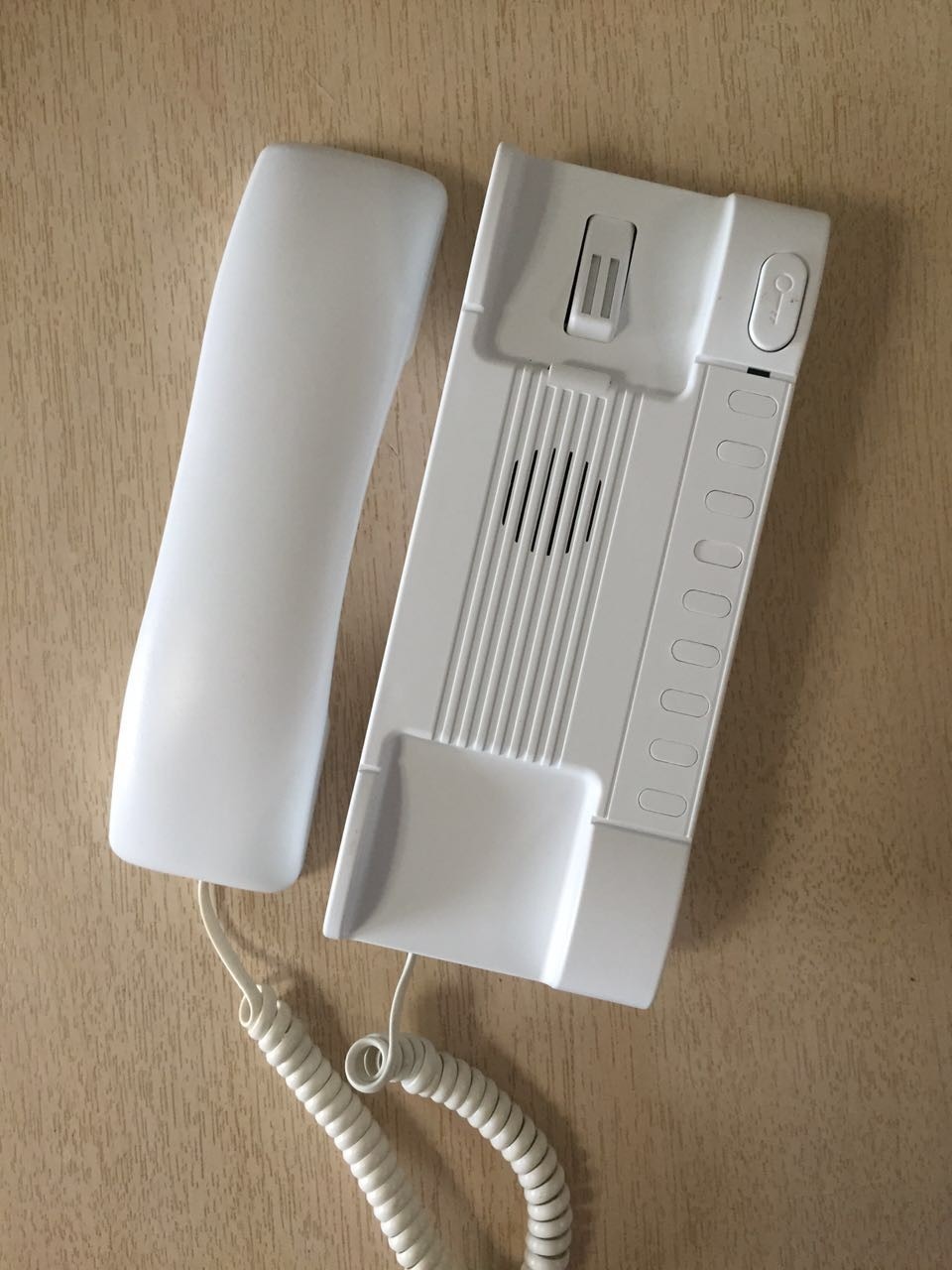

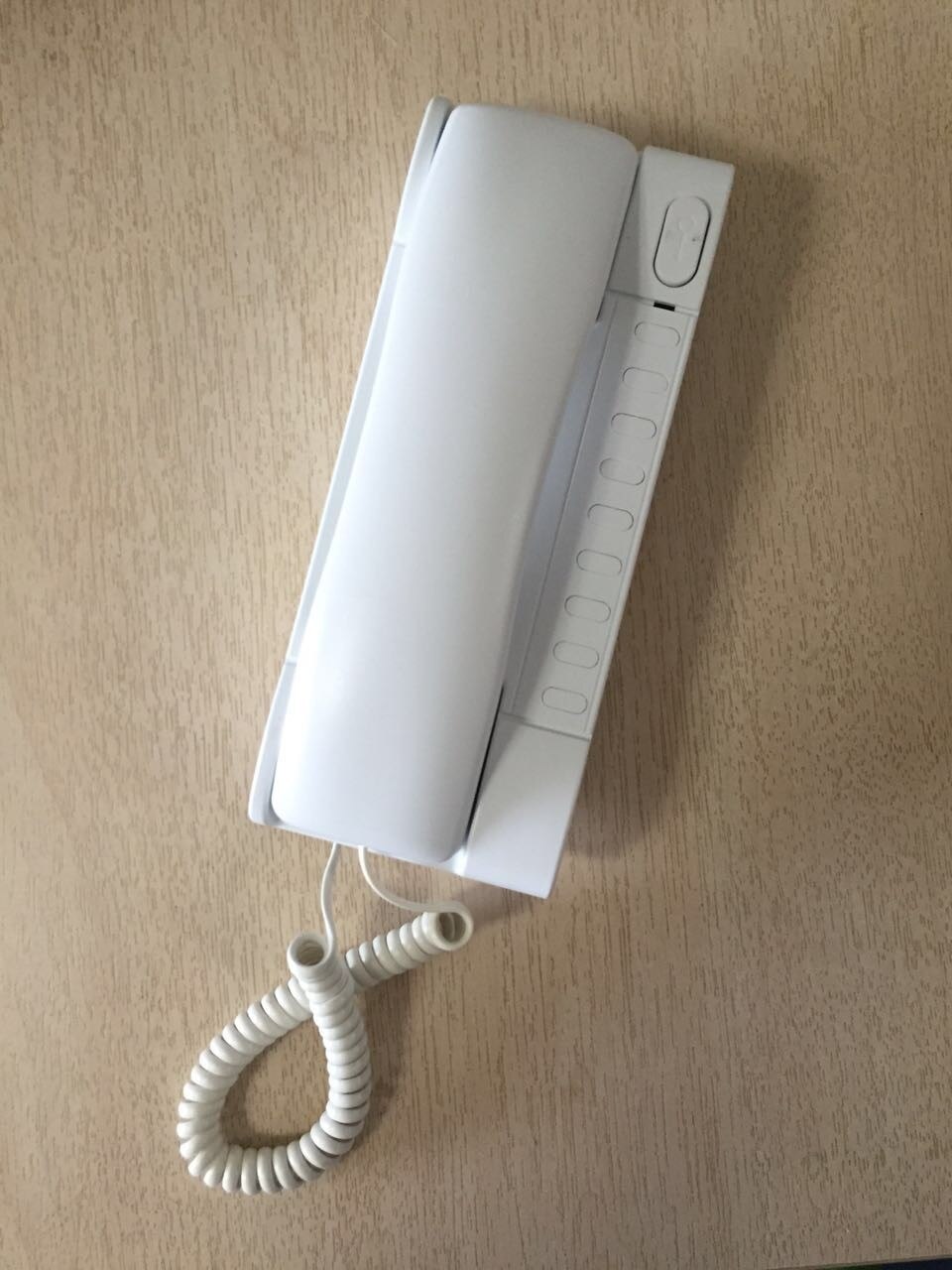

Indoor unit phone
ZDL-008A
Three wire bus two cores into the household ,
1.Adopt Press-type buttons, the service life of up to five times more than ordinary button, use the number could reach 50 million times;
2.Metal casting shell, durable;
3.using micro-controller for a variety of different floors of the structure uses;
4.Function: Call, two-way dialogue, extension lock, password lock, card lock function;
5.circuit using SMT production process, more stable performance
6.Anti-whistle features intercom voice clarity, the use of high-fidelity speakers 2W;
7.door phone waterproof and dustproof design, suitable for a variety of harsh environments;
8.Adopt Blu-ray technology, can clearly use at night, luminous buttons;
9. Power supply with lock function, to ensure the normal remote unlocking
10.Cable Connection: Mains RVV5x0.3mm, into the family line RVV2x0.3mm
11.Cable Connection: Three-wire bus, into the family two wire polarity, into the family line can be user terminal;
12.Automatic detection of subscriber lines shorted or open, reducing the difficulty of maintenance and maintenance costs;
13.Simple installation, stable performance, easy maintenance;
-------------------------------------------------- ------------
Technical parameters:
1.Working voltage: DC12V
2.Operating Current: 400mA Quiescent 50mA Dynamic
3.Frequency Response: 300Hz ~ 3.4kHz
4.Audio output distortion power: 0.1W
5.Operating Temperature: -25degrees ~ +55degrees
6.Ambient humidity: <95%
7.door installation: flush mounting
8.Extension Installation: Wall-mounted (matching mounting bracket)
-------------------------------------------------- ------------
Digital door machine ZDL-328R
Dimensions: Length 335 x Width 124 x 63mm thick
Embedded dimensions: length 295 x width 115 x 45mm thick

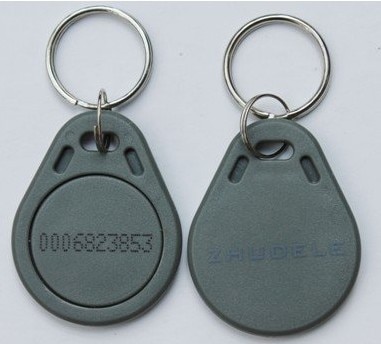

Passwor & ID card unlock
One outdoor unit can support 1~999 pcs indoor units ,you can choose as per your requirement .

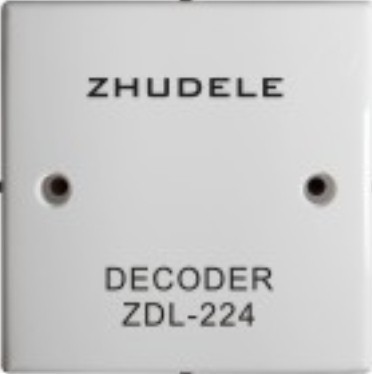

Every floor decoder support 4 pcs indoor units .
If you need other parts ,please let us know .

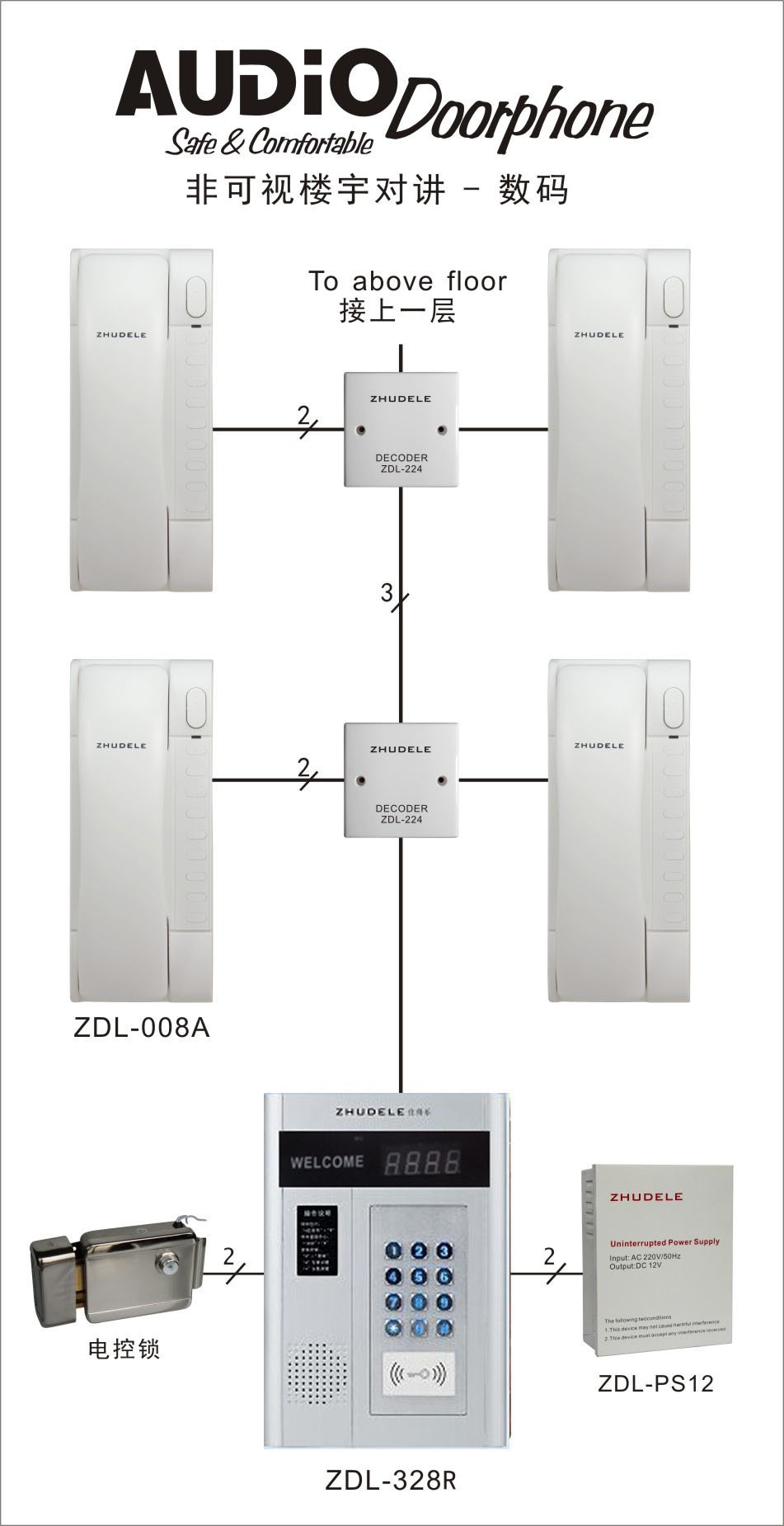

Wiring Diagram:
