Yunombo YNB-220/220B/220U Backlight Car Paint Tester Thickness Meter Coating Thickness Gauge with LED/UV Light

4.9 (265 votes) | 857 orders
Price: US $105.43 - 121.56 / piece
Discount Price:
US $ 66.67 - 76.88 / piece
-37%
Ships From
Color
Quantity

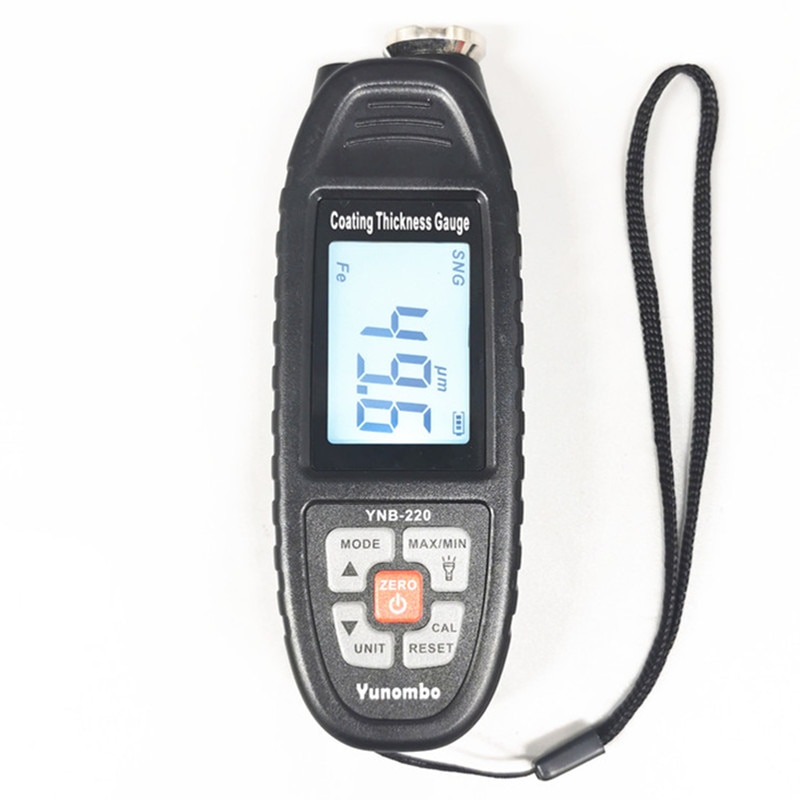

Yunombo YNB-220 Backlight Car Paint Tester Thickness Meter Coating Thickness Gauge with LED light

Note:
1.The batteries(2pcs 1.5V AAA batteries) will not come with the package.
2.Please check and choose the right package when you place order.
3.Before you use the device to measure on the car,please make sure that the car engine has been turned off and the car body has returned to normal temperature
4.After a long period of use in a sub-zero environment, it may get stuck,it is not quality problem.You only need to restart the device and calibrate it again under same temperature.
5.There is a protective film on the screen,you can remove it before using.

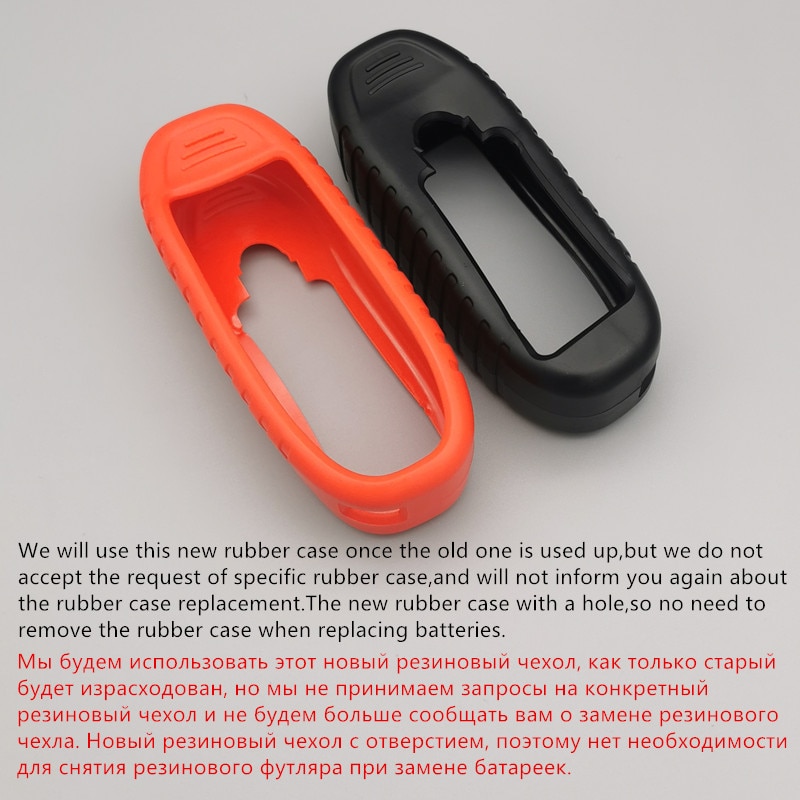

6.If you buy the package with a rubber case, since the rubber case will be squeezed inside the box,so when you receive the package,the rubber case may have some wrinkles, but the rubber case will ruturn to the normal shape automatically after you use it for a period of time. So it is not a quality problem.
Especially if your local temperature is very low, the rubber case will become harder, you can heat it up a little with a hair dryer, or put it in a warm room for a while, and the rubber case will automatically return to its normal shape.
7.The package C,package D,package G comes with a gift pouch,but this pouch is a gift only,we don't take responsibility for this pouch if damaged.

I. Product Description
This device can make a quick and effective measurement of the thickness of the non- metallic coating on the nonmagnetic metal substrate and the thickness of
the nonmagnetic coating of the magnetic metal substrate, it can also automatically identify the magnetic metal substrate and nonmagnetic metal substrate.
It is widely used in the inspection field of automobile manufacturing, metal processing industry,chemical industry, commodity inspection, etc.

II. Product Functions

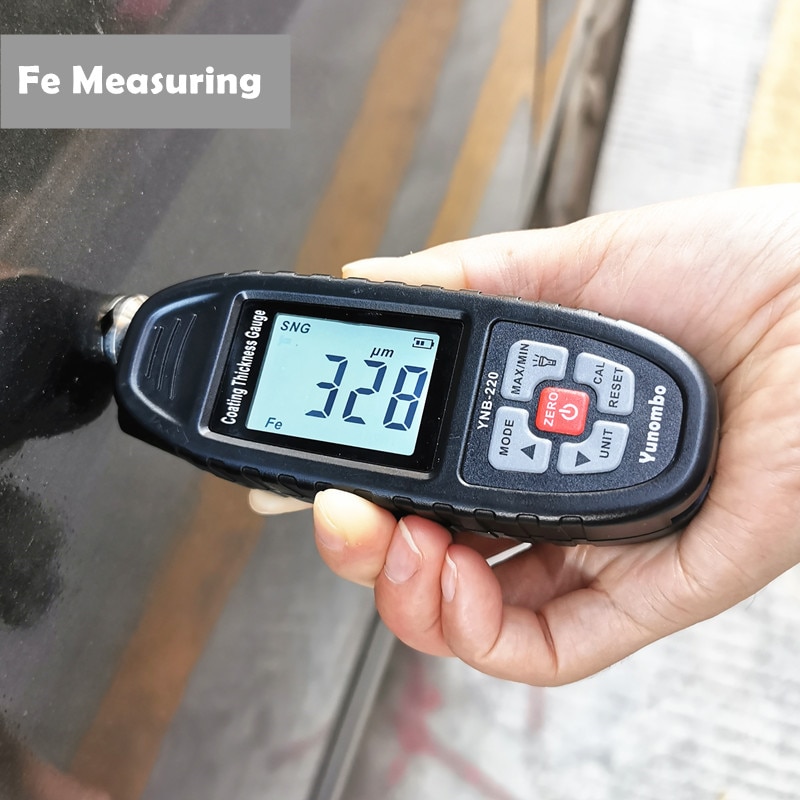

1.Measuring the thickness of non-magnetic coating on the magnetic metal substrate.
2.Measuring the thickness of the non-metallic coating on the non-magnetic metal substrate.
3.Automatically identifying the non-magnetic metal substrate and magnetic metal substrate.
4.The instrument can automatically recognize whether the magnetic metal substrate is covered with non-magnetic metal coating (usually zinc), and this function is optional.

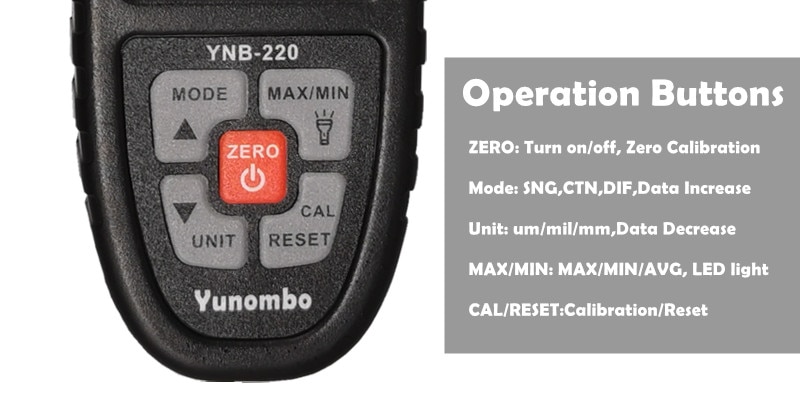

5.Single measurement, continuous measurement and differential measurement available.
6. With maximum, minimum and average value viewing function.
7.Zero-point calibration, 2-point calibration and basic calibration available.
8.Metric and imperial units of measurement optional.
9.LCD backlight.
10. LED lighting.
11. Automatic shutdown.

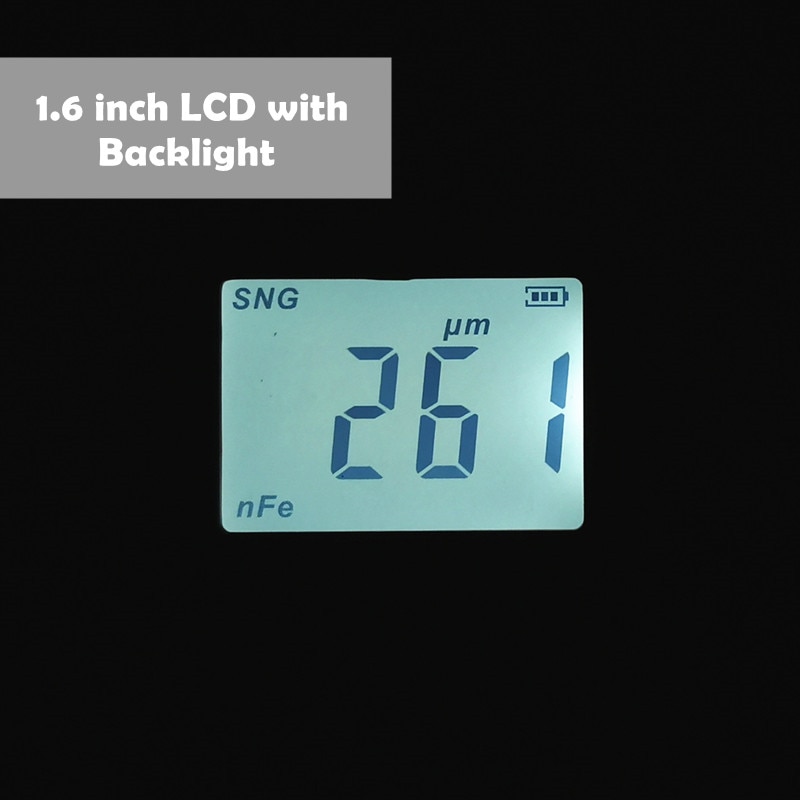

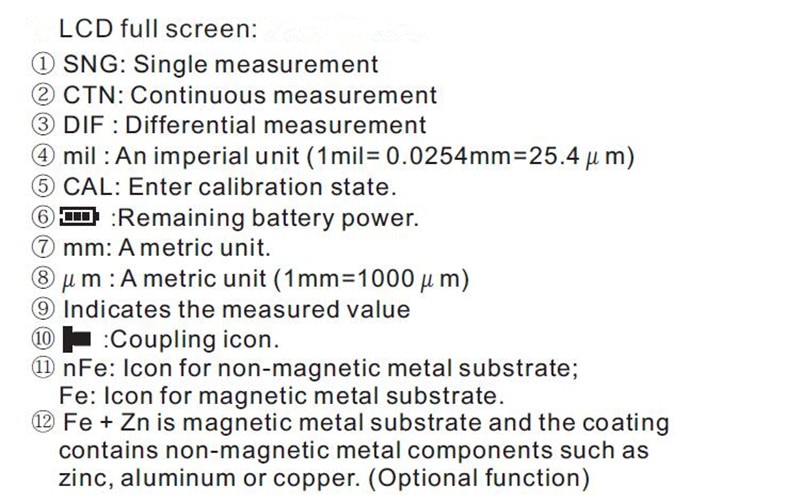

III. LCD Display Introduction

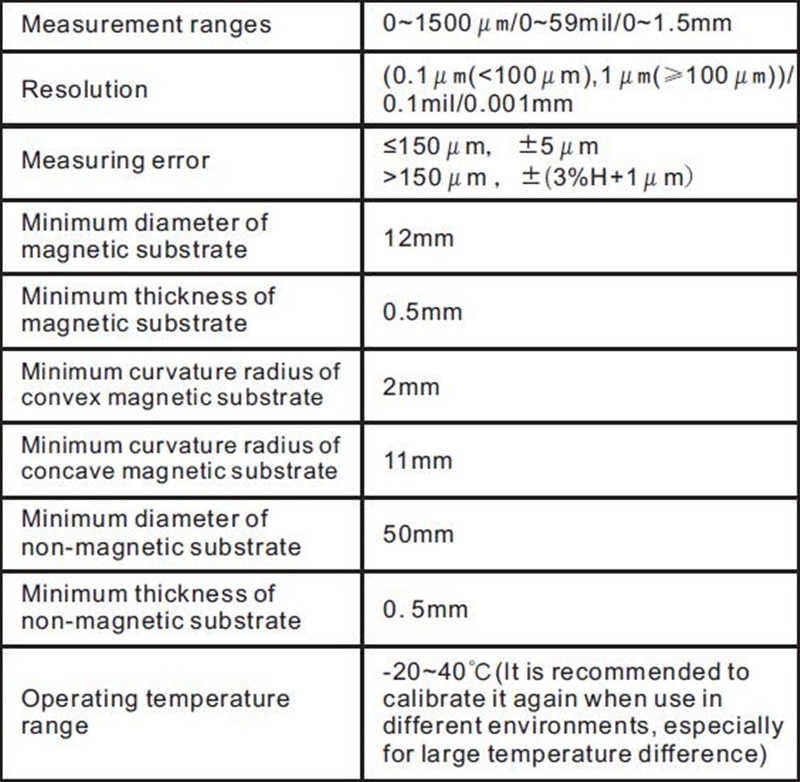

IV. Product Specification:

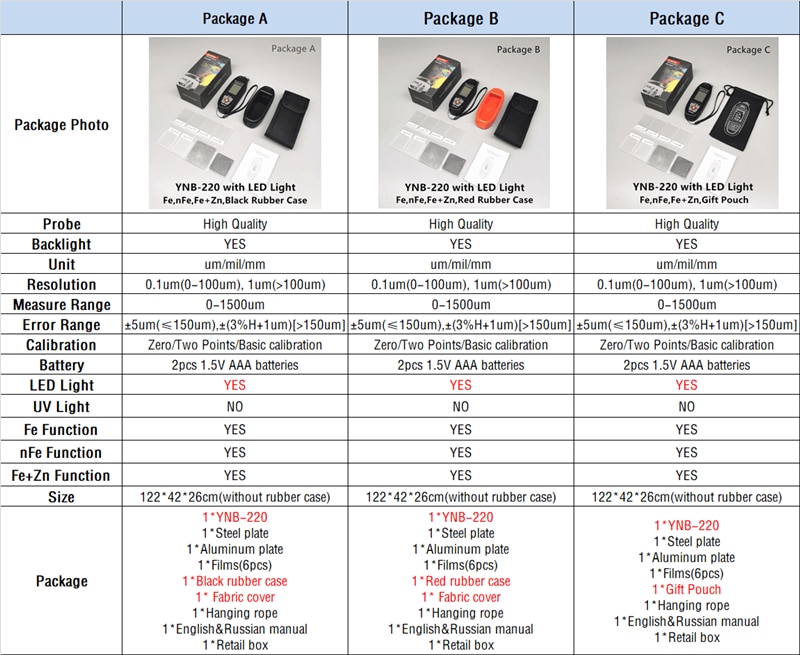

V.Different Packages:

Please choose the correct package when you place order,if you have any other question,please send us a message before placing order.

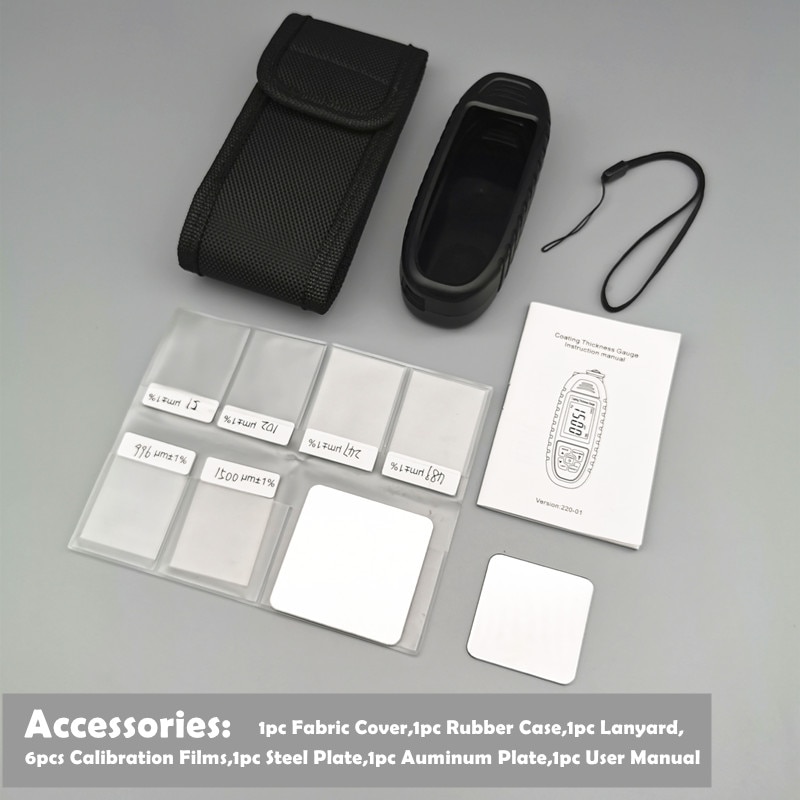

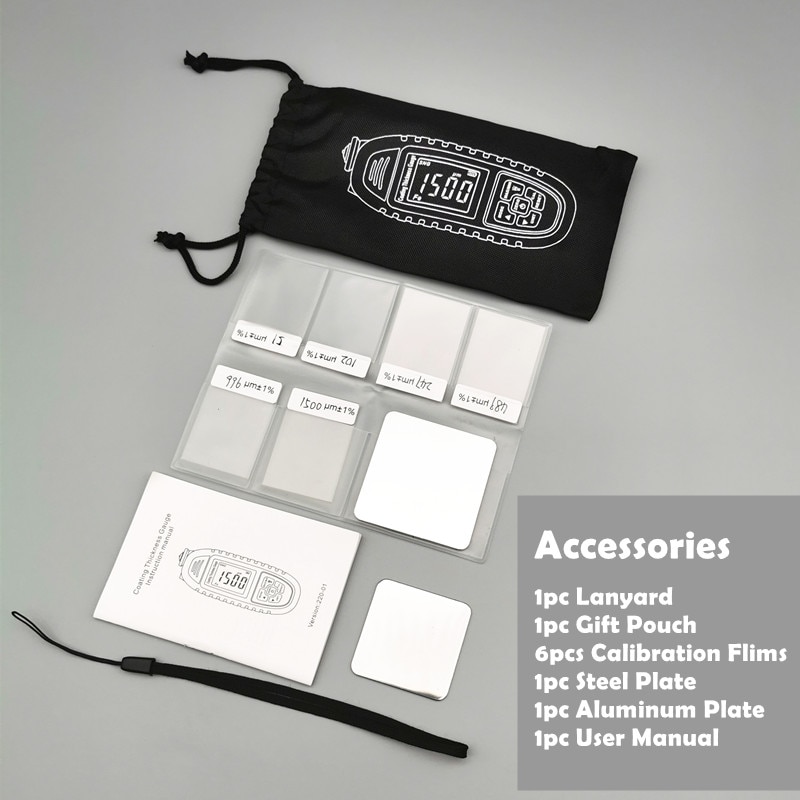

Package Includes.

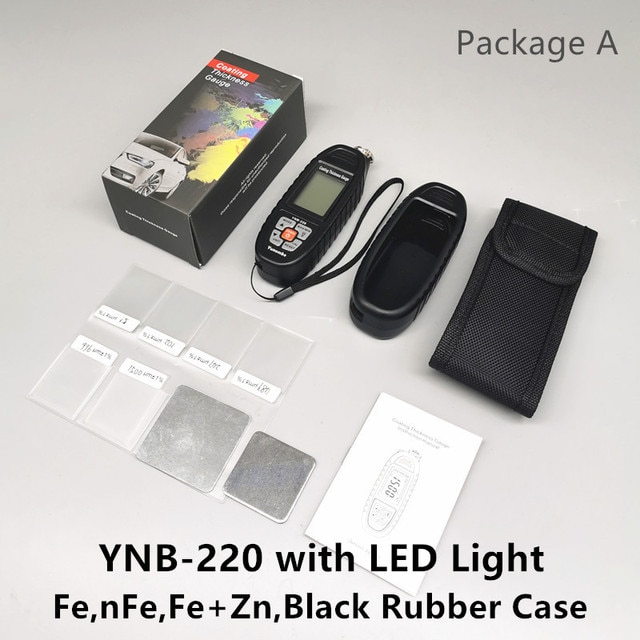

Package A:
1pc YNB-220 coating thickness gauge with LED light
1pc Steel plate
1pc Aluminum plate
1set Films

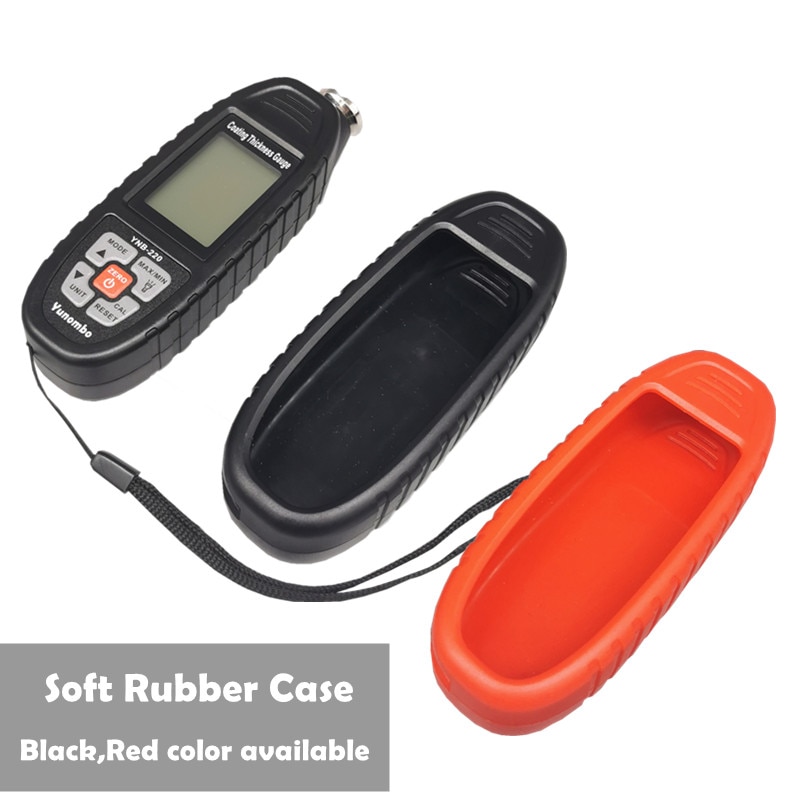

1pc Black rubber case
1pc Fabric cover
1pc Hanging rope
1pc English&Russian manual
1pc Retail box

Package B:
1pc YNB-220 coating thickness gauge with LED light
1pc Steel plate
1pc Aluminum plate
1set Films
1pc Red rubber case
1pc Fabric cover
1pc Hanging rope
1pc English&Russian manual
1pc Retail box

Package C:
1pc YNB-220 coating thickness gauge with LED light
1pc Steel plate
1pc Aluminum plate
1set Films
1pc Gift pouch(gift only,no warranty)
1pc Hanging rope
1pc English&Russian manual
1pc Retail box

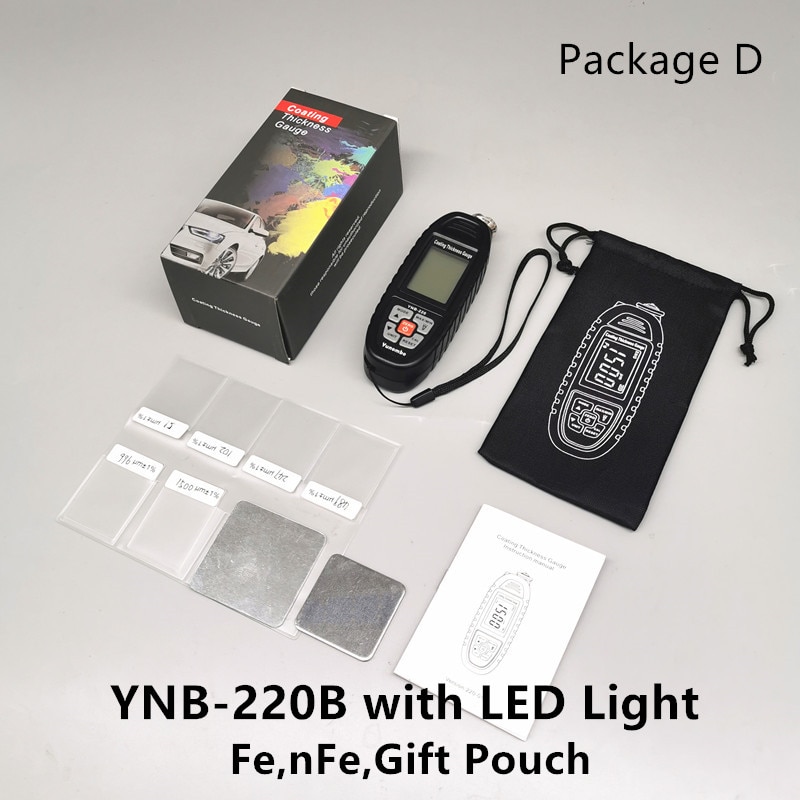

Package D:
1pc YNB-220B coating thickness gauge with LED light
1pc Steel plate
1pc Aluminum plate
1set Films
1pc Gift pouch(gift only,no warranty)
1pc Hanging rope
1pc English&Russian manual
1pc Retail box

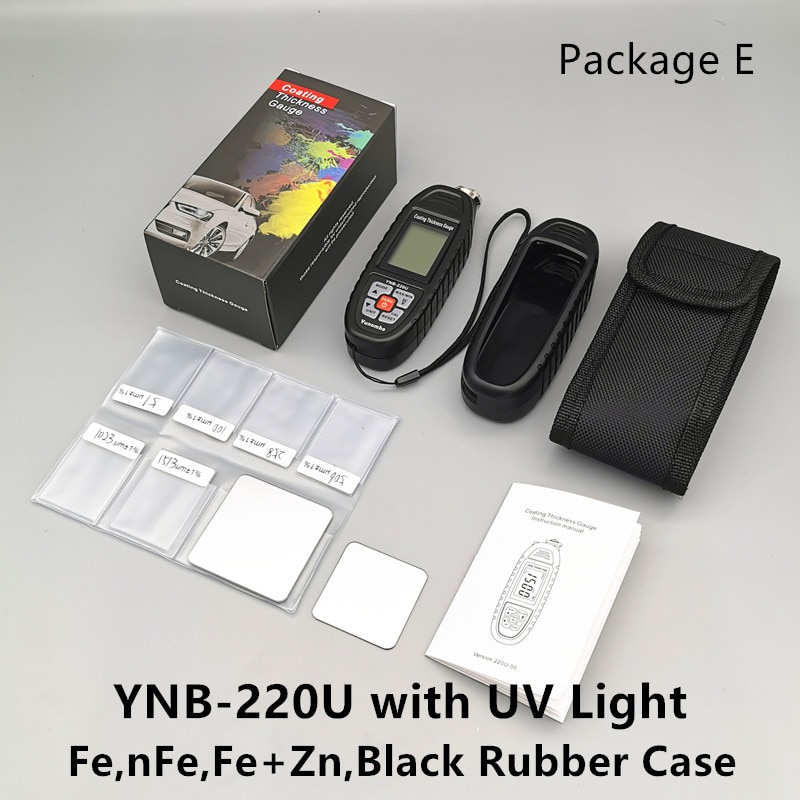

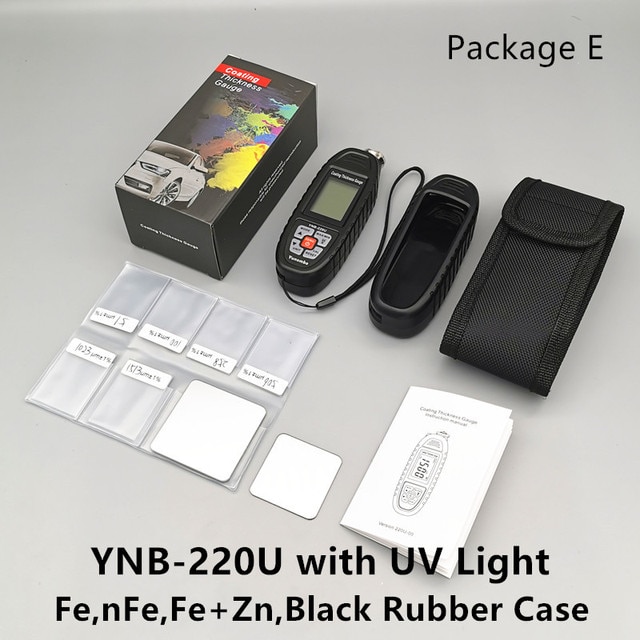

Package E:
1pc YNB-220U coating thickness gauge with UV light
1pc Steel plate
1pc Aluminum plate
1set Films
1pc Black rubber case
1pc Fabric cover
1pc Hanging rope
1pc English&Russian manual
1pc Retail box

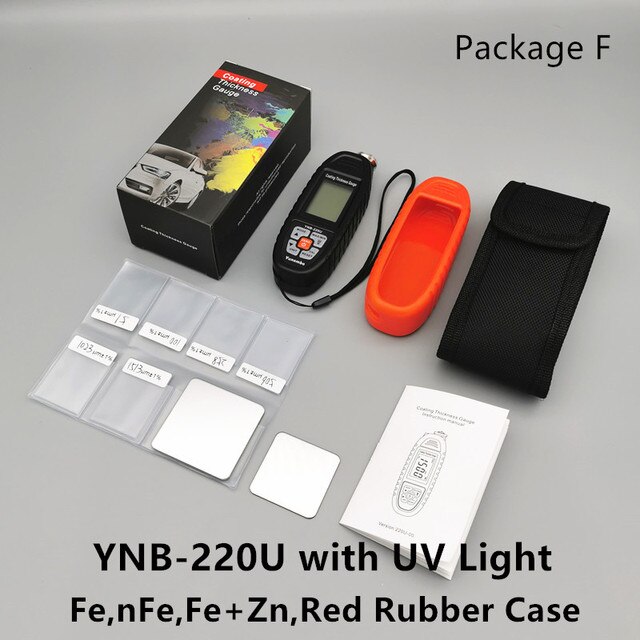

Package F:
1pc YNB-220U coating thickness gauge with UV light
1pc Steel plate
1pc Aluminum plate
1set Films
1pc Red rubber case
1pc Fabric cover
1pc Hanging rope
1pc English&Russian manual
1pc Retail box

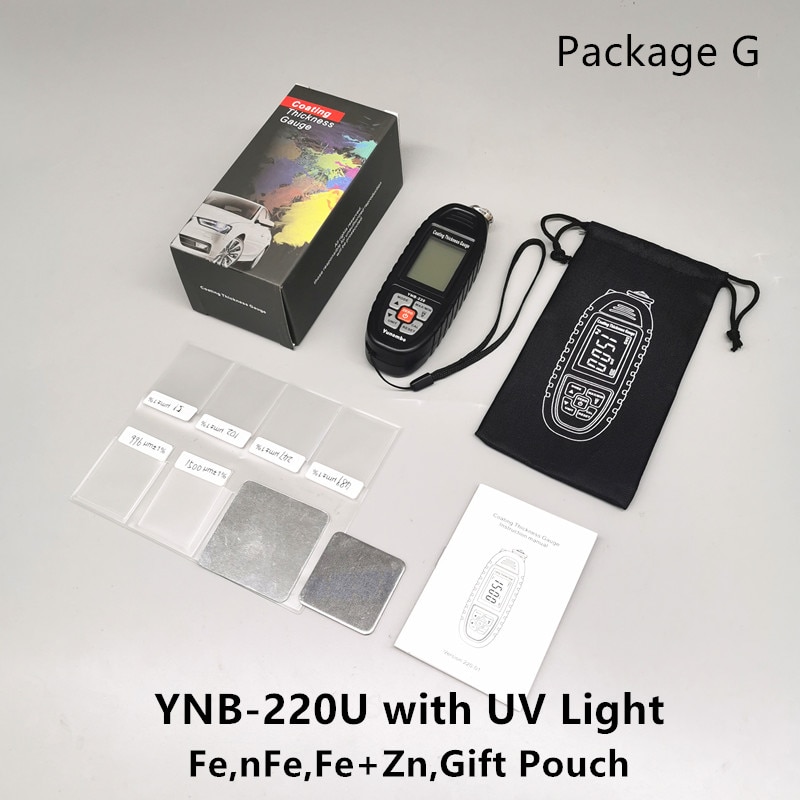

Package G:
1pc YNB-220U coating thickness gauge with UV light
1pc Steel plate
1pc Aluminum plate
1set Films
1pc Gift pouch(gift only,no warranty)
1pc Hanging rope
1pc English&Russian manual
1pc Retail box

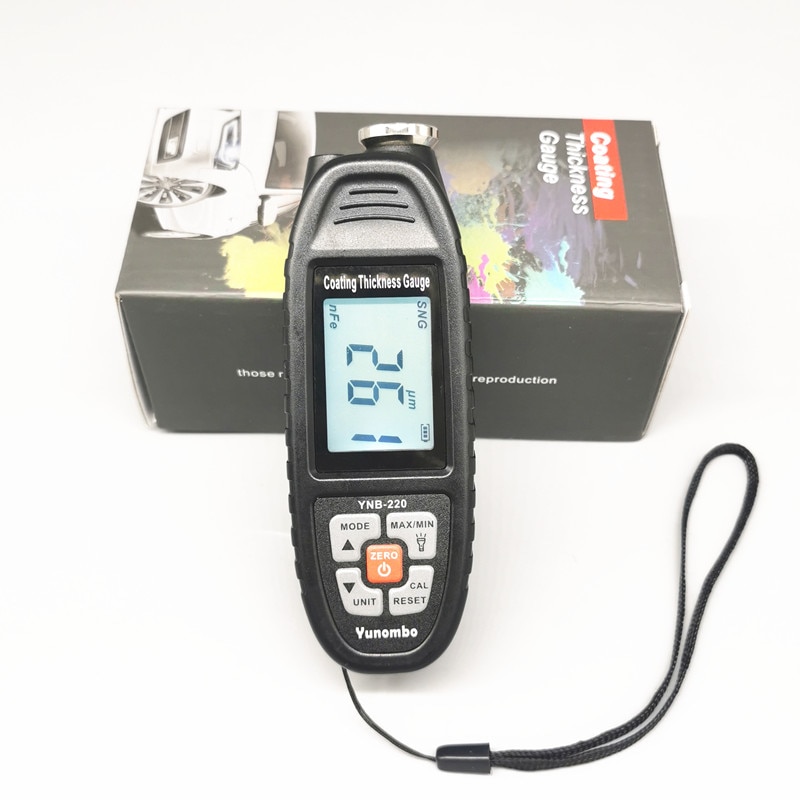

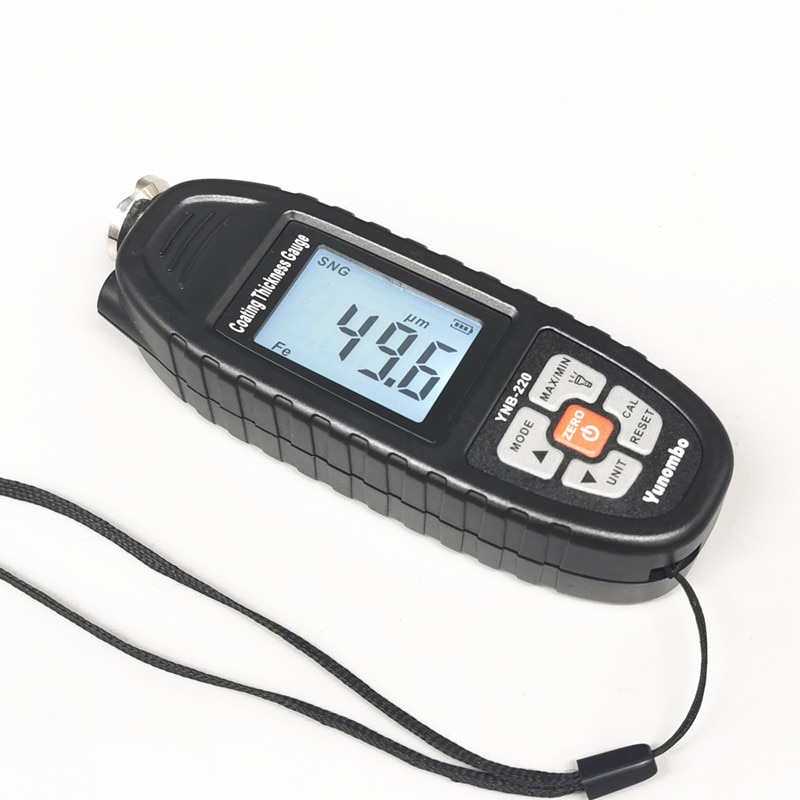

VI. Product Photos:

FAQ:

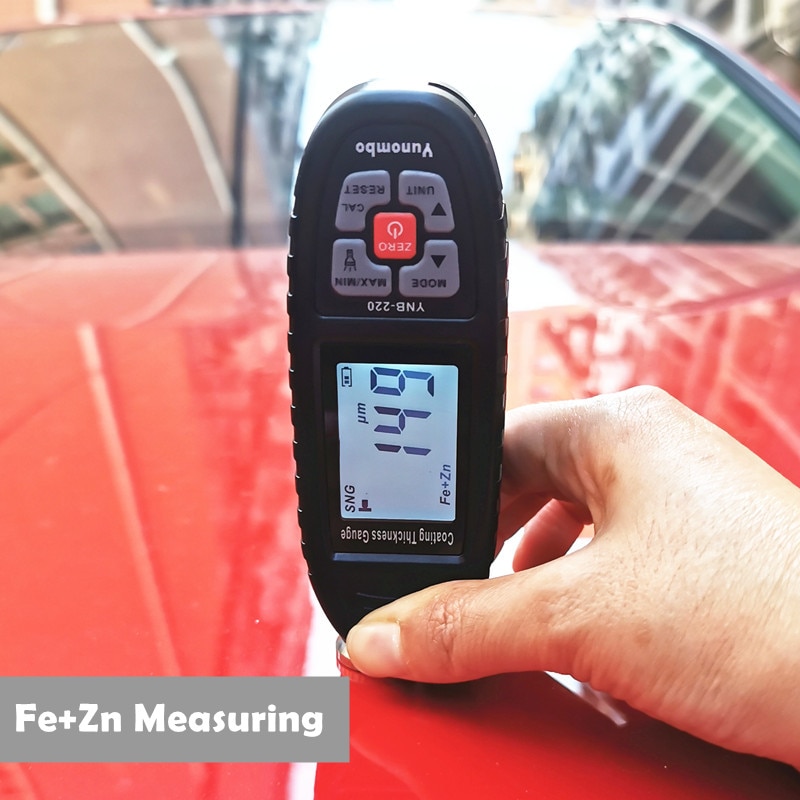

1.What is Fe+Zn?
There are some situations:
a.The steel(Fe) substrate with a non-magnetic metal layer(such as zinc,cooper etc.), and there is non-metallic paint on the layer.The device will show as Fe+Zn.
The measure result is the thickness of the layer + the thinckness of the paint.
b.The steel(Fe) substrate with a non-magnetic metal layer(such as zinc,cooper etc.), and there is non-magnetic metallic paint on the layer.The device will show as Fe+Zn.
The measure result is the thickness of the layer + the thinckness of the paint.
c.The steel(Fe) substrate with non-magnetic metallic paint(such as zinc, cooper etc.), the device will show as Fe+Zn. The measure result is the paint thickness.
d.The steel(Fe) with other non-magnetic metal layer or other non-magnetic metallic paint.



  • Model Number: YNB-220/220B/220U
  • With Backlight Or Not: YES
  • Brand Name: Yunombo
  • Origin: Mainland China
  • Certification: CE
  • Range: 0-1500um/0-59mil/0-1.5mm
  • Resolution: 0.1um(<100um),1um(>100um)/0.1mil/0.001mm
  • Error Range: <150um,+-5um; >150um,+-(3%H+1um)
  • Units: um/mil/mm
  • Power Supply: 2 x AAA batteries(not include the package)

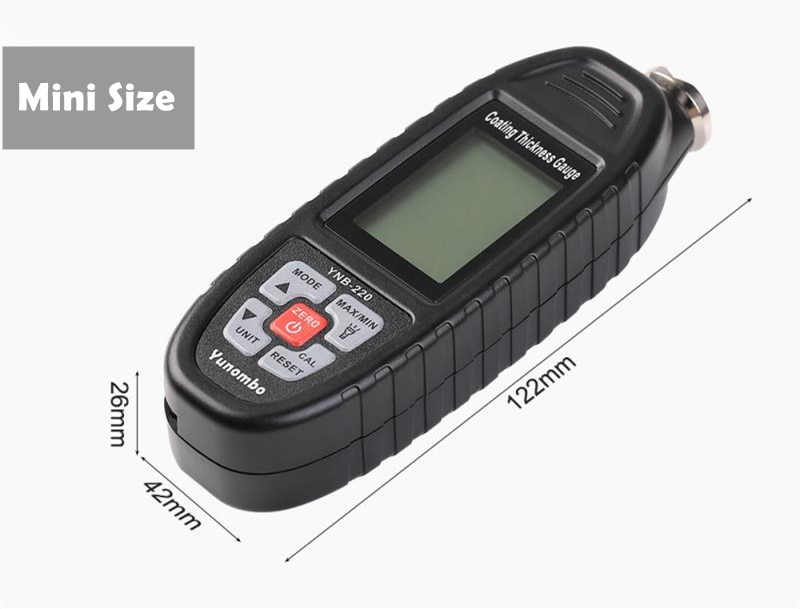

  • Size: 46.5*30.4*122.2mm(with Rubber Case)
  • Weight: 109g(battery not included)
  • Operation Humidity Range: 10-95%RH
  • Operation Temperature Range: -20~40C(Calibration needed when environment change)
