YiToo Fingerprint RFID Keypad IP68 Outdoor Waterproof Access Control Metal Case Wiegand 26 Door Opener NFC Mobile Phone Unlock
5.0 (15 votes) | 20 orders
Price:
US $15.83 - 98.03
/ piece
Discount Price:
US $
11.25 -
67.72
/ piece
-29%
- Color
-
-

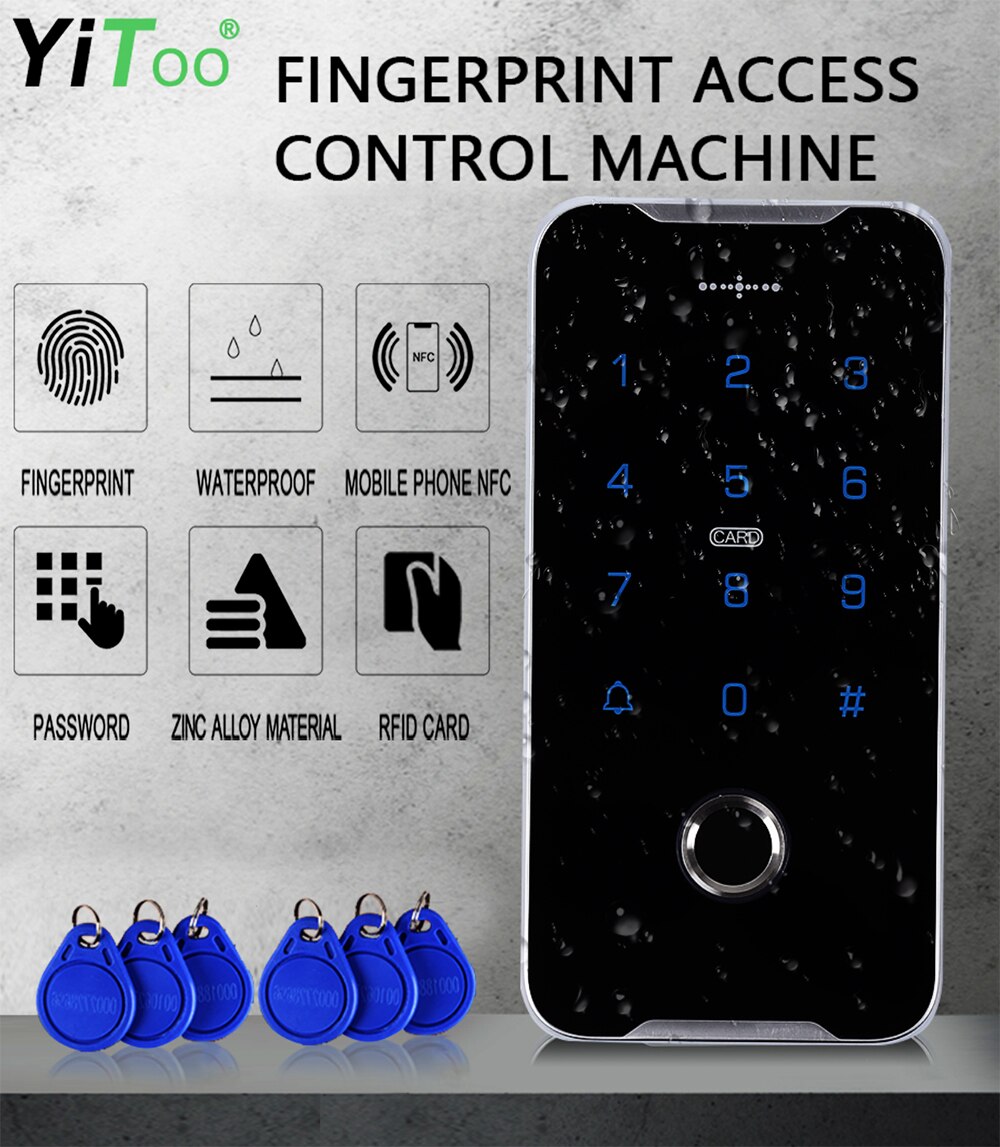

Fully Waterproof Metal Case Fingerprint RFID Keypad Access Controller
This is a stand-alone fingerprint access controller, working voltage is DC12V+/-10%. Supports four different opening door methods: fingerprints, RFID cards, passwords, Mobile phone NFC. The user capacity is 120pcs. The working frequency of RFID is 13.56MHz.
It is IP68 full level waterproof, can be installed outdoors.
It is off-line working. Don't need to connect to computer. Very suitable for access control system of home, office, apartment, etc.
Product Specification:
User capacity: 120
Material: zinc alloy material with acrylic touch panel
Keyboard: acrylic touch panel with touch keys
Working Frequency: 13.56MHz
Card Reading Type: support MF 1K cards or MF 1K compatible cards (Support IC type of cards)
Card reading distance: 0-5CM
Identification Methods: Fingerprint, RFID card, password, Mobile phone NFC.
Backlight: with blue backlight
Waterproof Level: IP68 fully waterproof, can be installed outdoor directly
Doorbell Button: supports to connect to a door bell
Wiegand Signal: WG26 input/output (Support to connect to a access control card reader)
Can Set Management Card: yes
Working Voltage: DC 12V
Working Current: ≤ 30mA
Door Opening Time: 0-99 seconds (Can set the time delay of door opening.)
Working Temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%

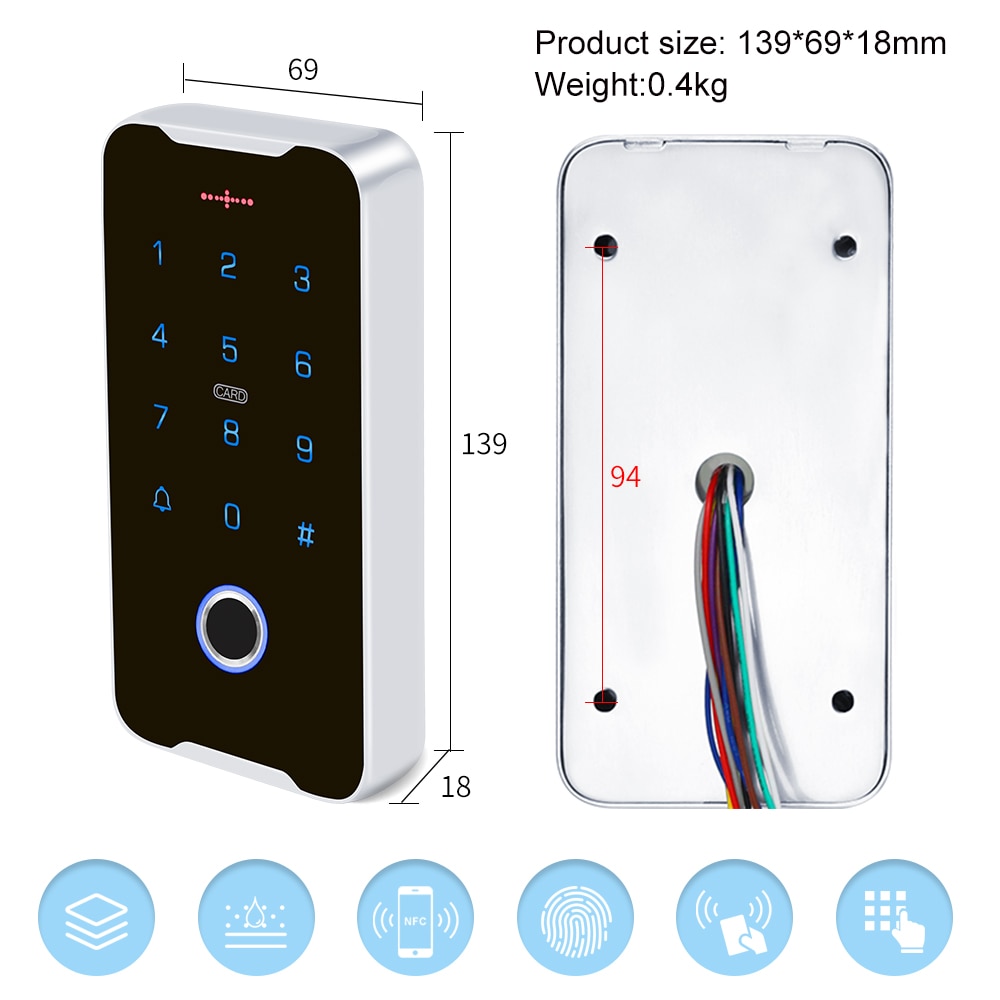

Size: 139*69*18mm

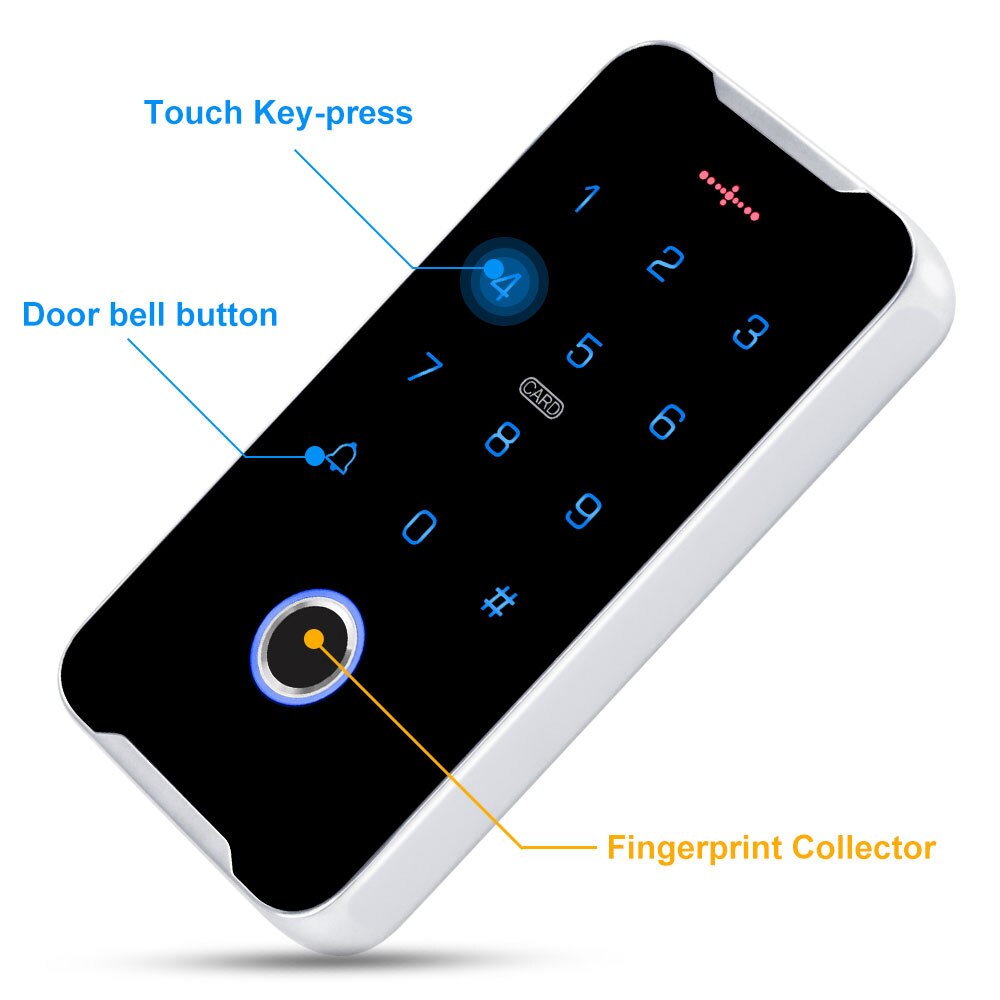

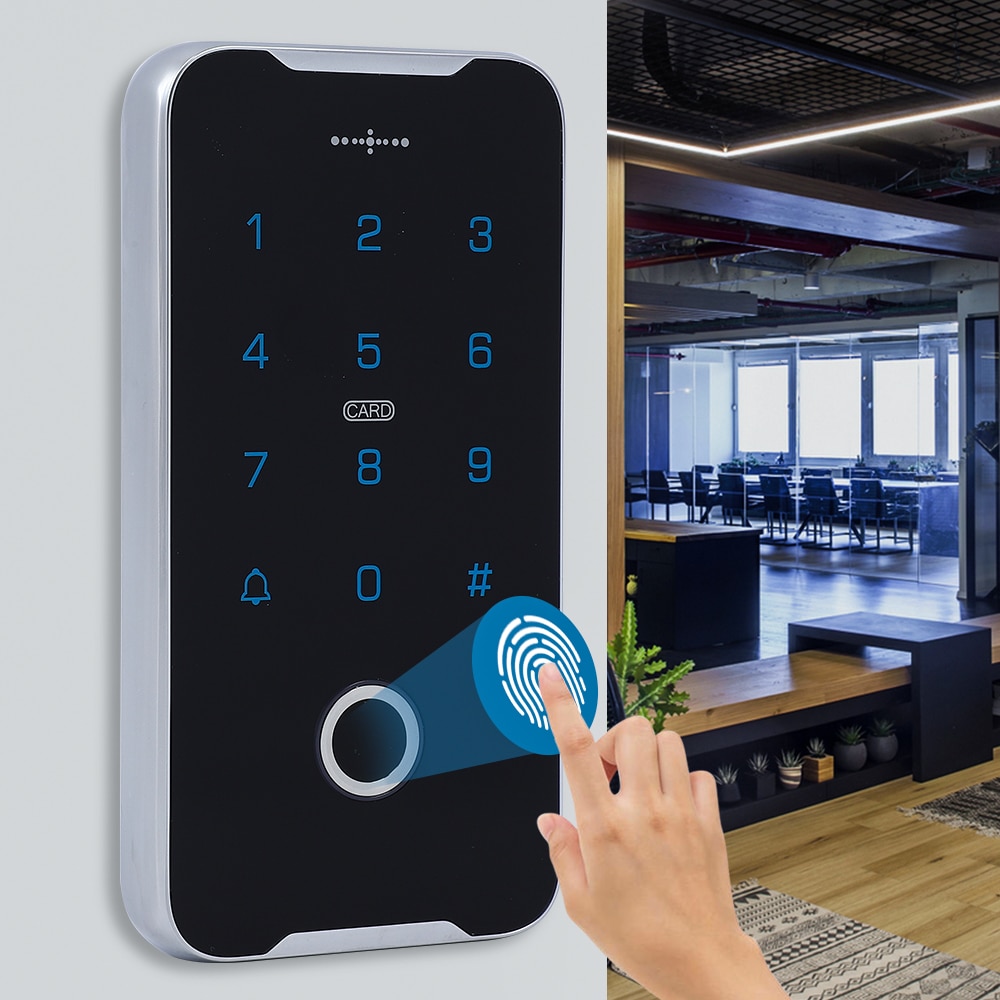

With High Quality Fingerprint Scanner.
360 degree comprehensive fingerprint recognition, fast Identify Speed. For different angles of fingerprints,
it can be quickly and accurately identified.

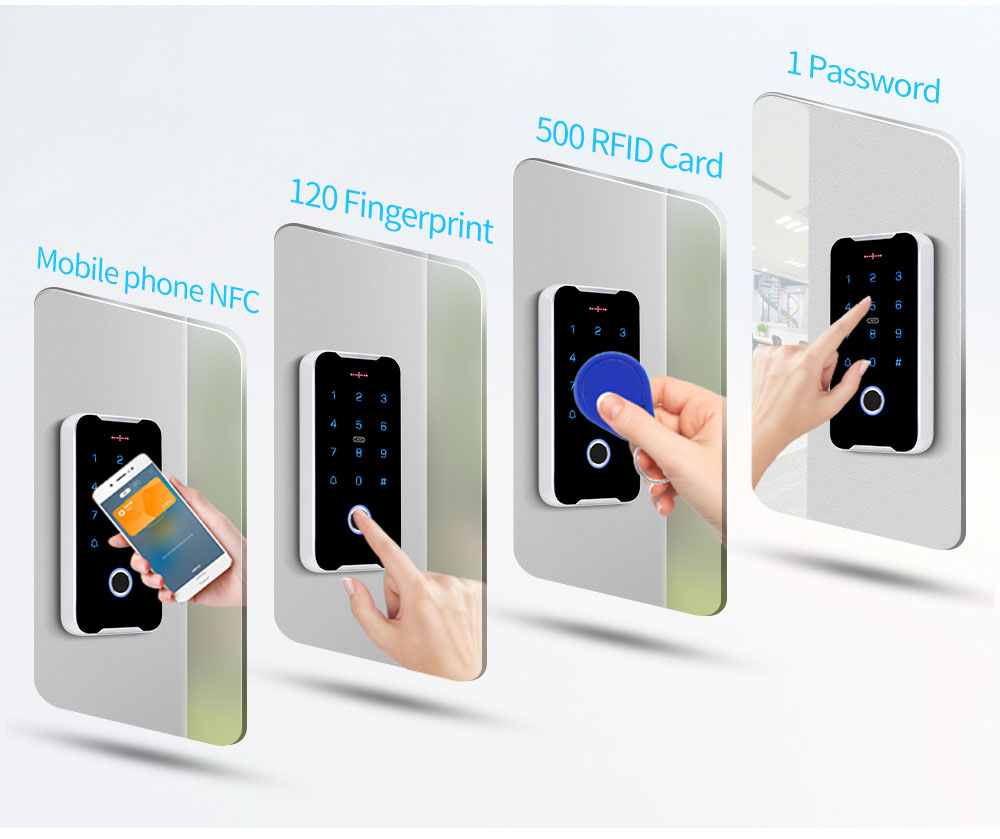

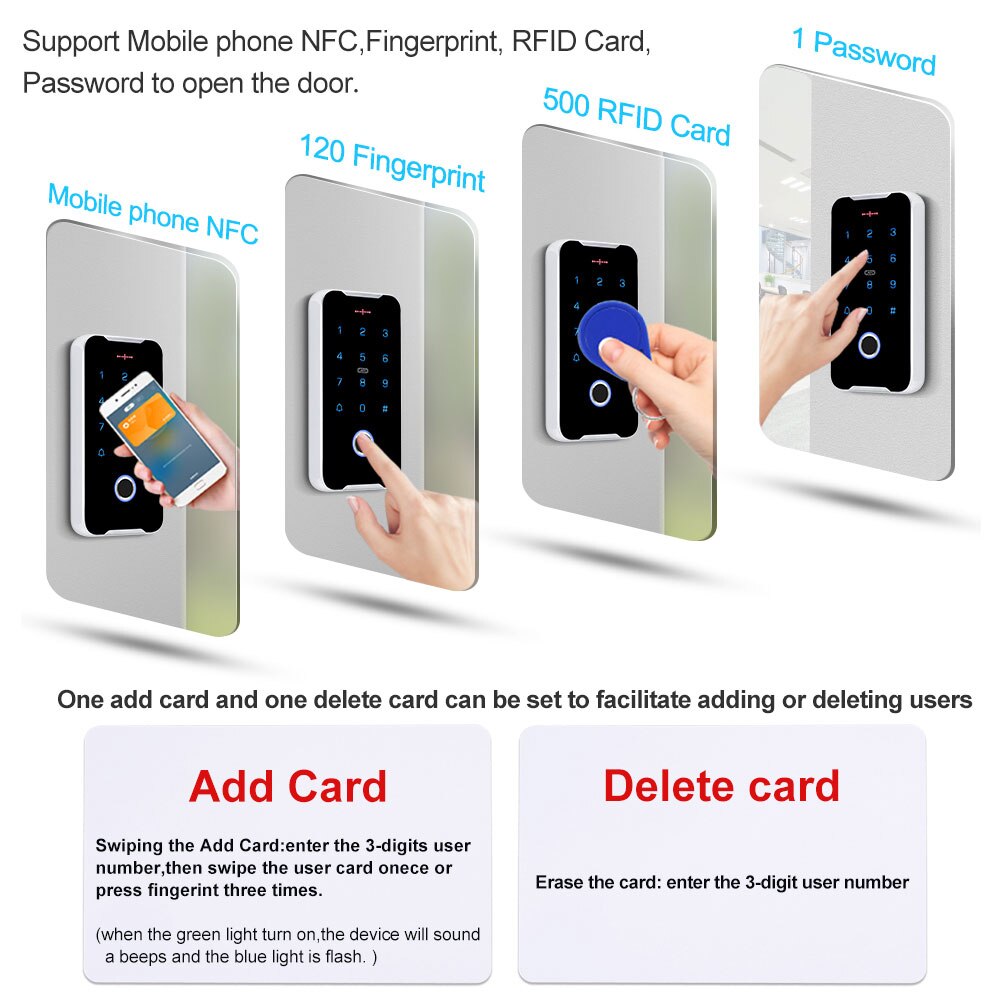

Supports 4 Different Identification Methods.
Supports 4 Different Identification Methods: Fingerprint, RFID Card, Password, and Mobile phone NFC.
Can use different methods to open the door. The user capacity is 120 fingerprints, 120 cards, 1 public password.
Can set Management card. Very easy to program!
Supports to set management cards: add management card and delete management card. Then you can try to add / delete fingerprint user, card user, password user by add management card or delete management card.
Please noted: we will provide a management card and a delete management card together with the device. You don't need to set it any more. But if you lost the management cards, you should set it again by following the user manual.

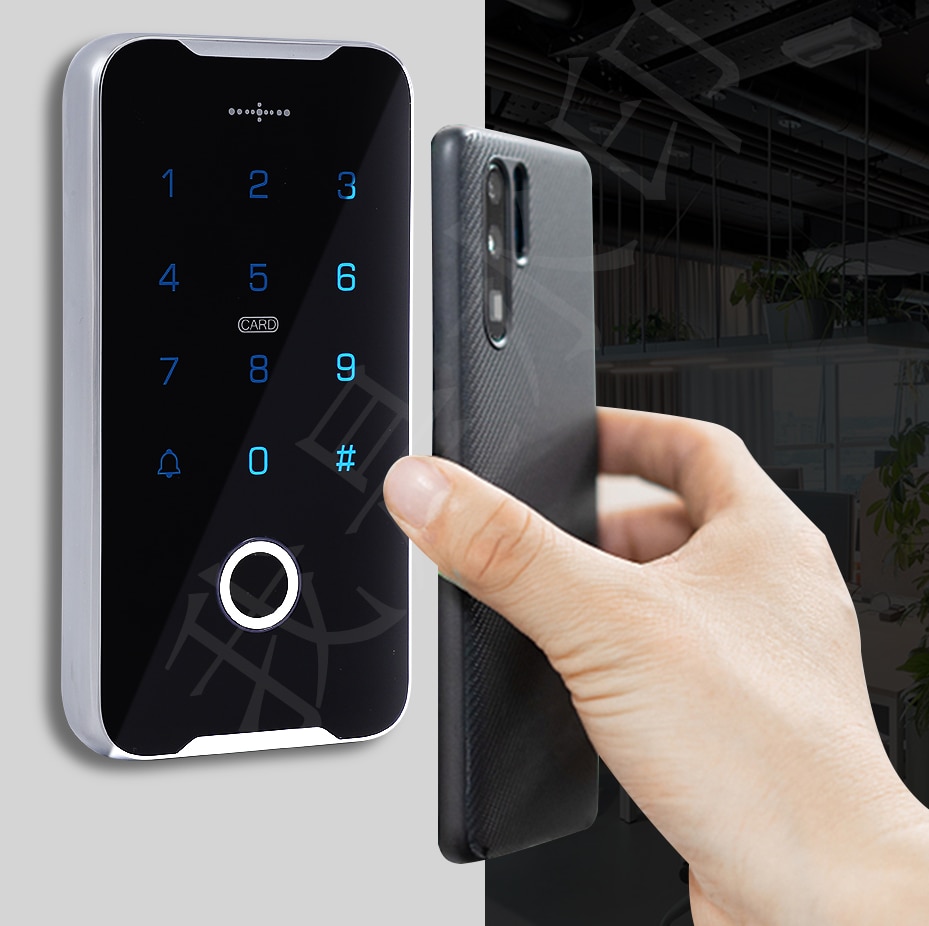

Support Mobile Phone NFC to unlock.
Please make sure that your mobile phone has NFC function. Otherwise, you can't use this function.
Instruction about how to copy cards to your mobile phone NFC:
1) Click " Wallet " APP
2) Click “ Cards ”
3) Click ADD button
4) Click " Access card “
5) Click "Copy your card "
6) Put the card under the phone, and wait reading card.
7) Add successfully.

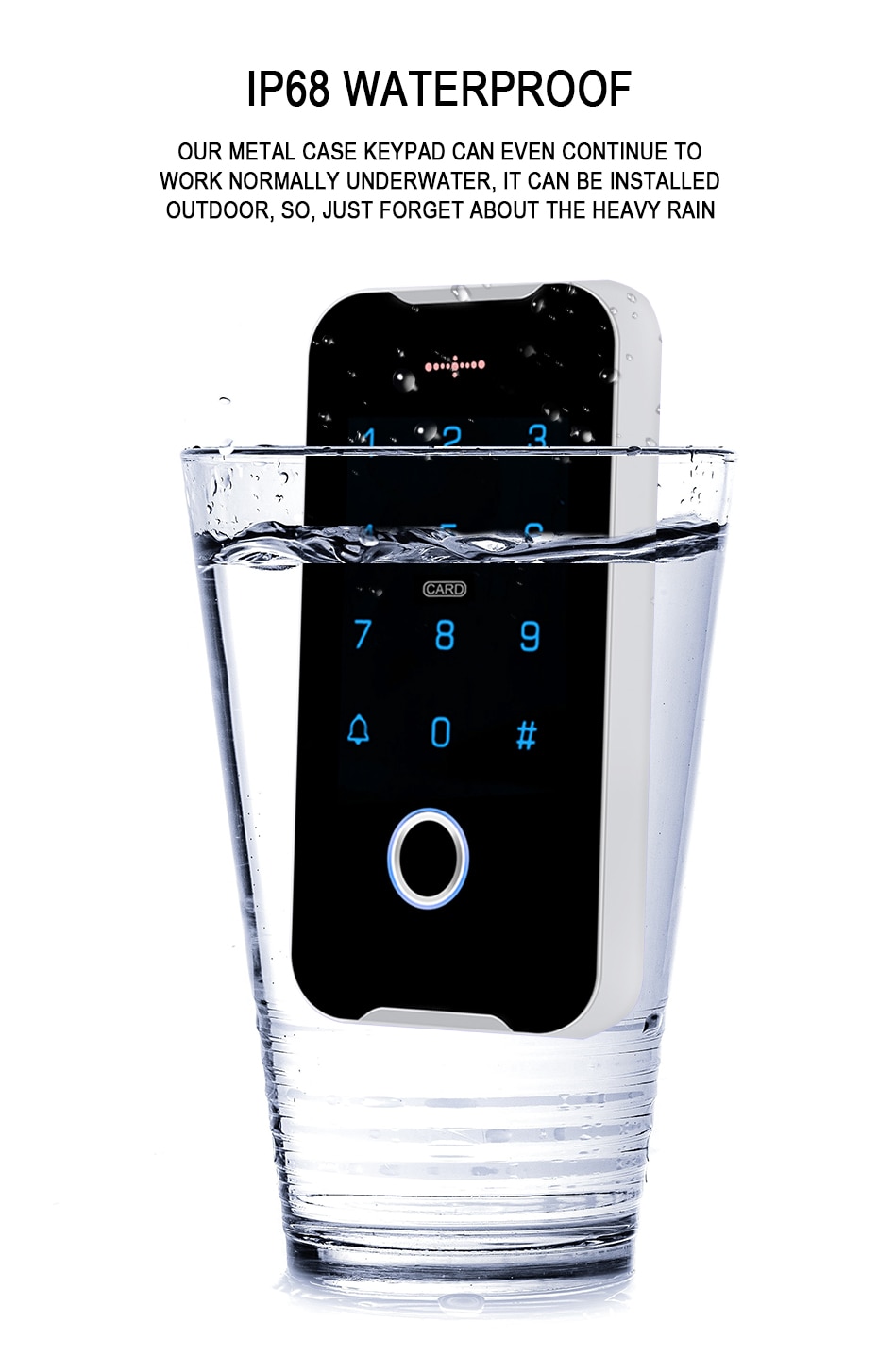

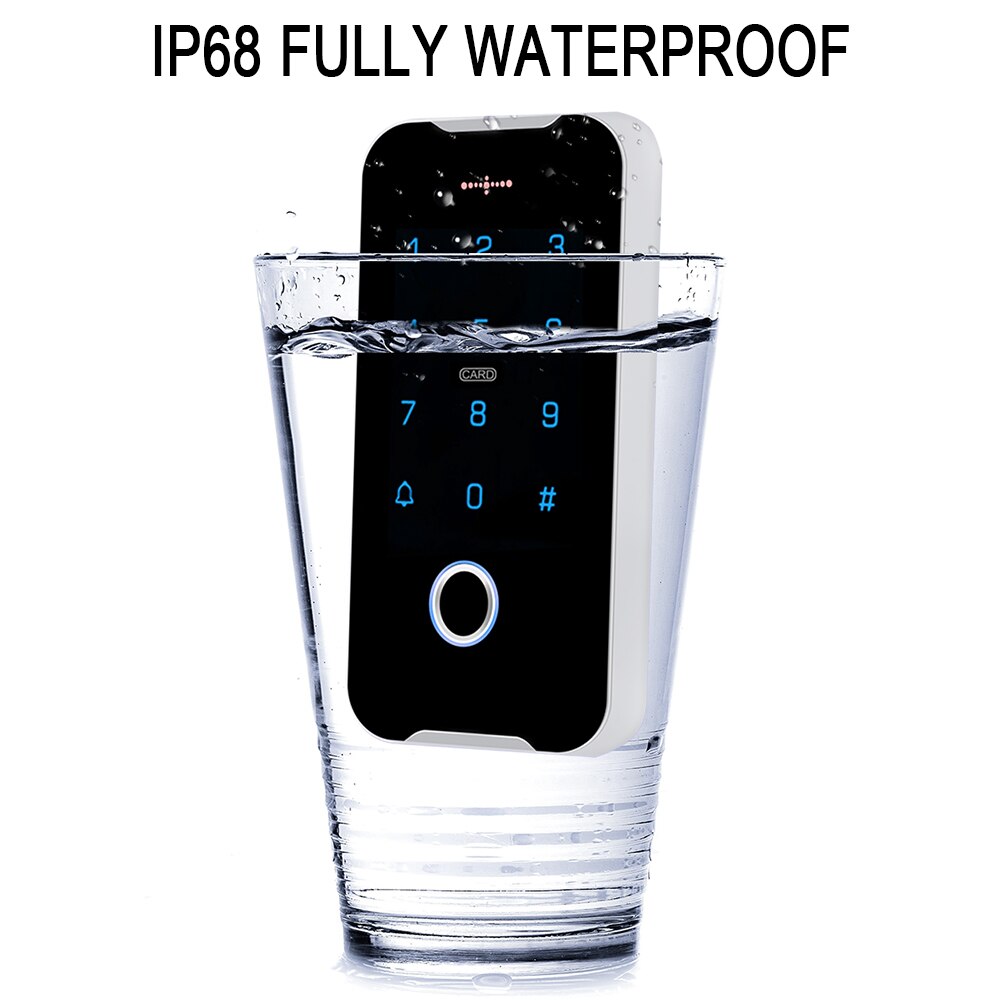

IP68 waterproof, can be installed outdoor.

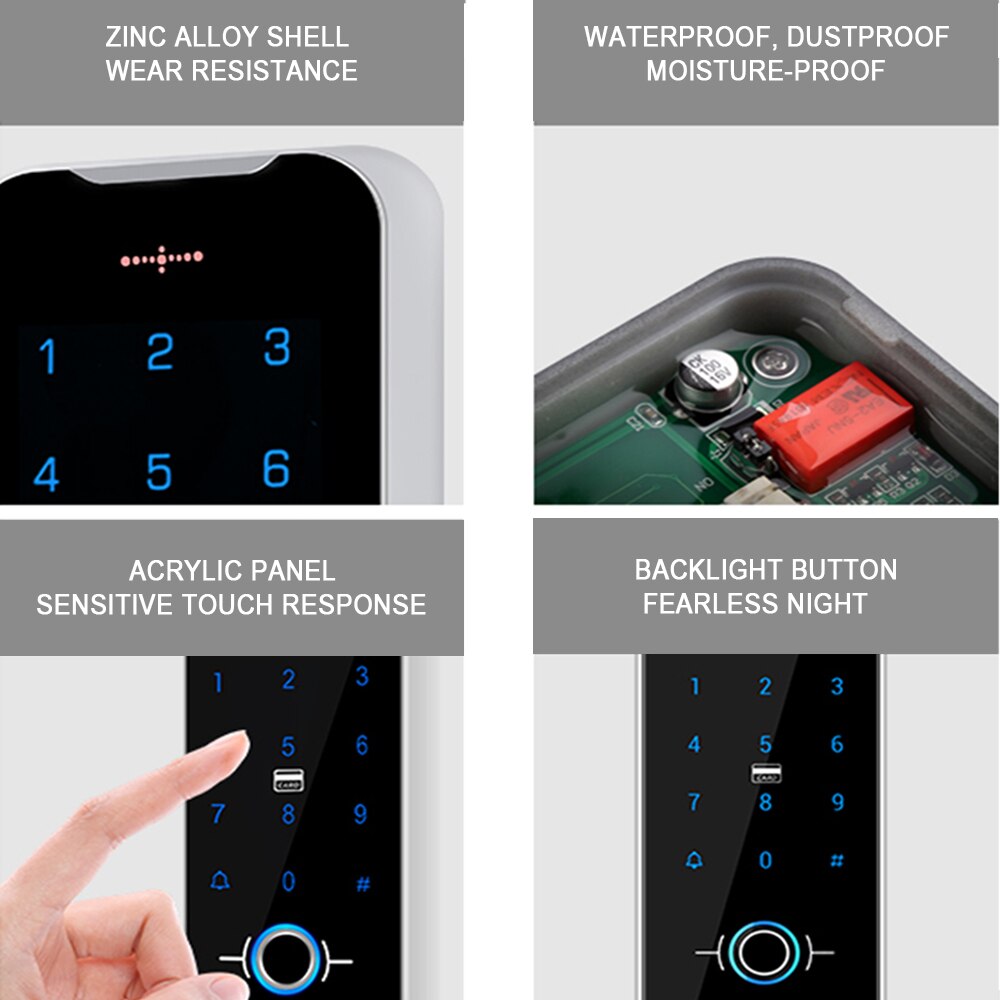

The internal circuit board is glued and waterproof, dust-proof, rainproof, and can be used normally in places where water is accumulated.
With Backlight.
With blue backlight and working indicator, can work normally even in the dark.
Made of Zinc alloy material, high quality
Touch keyboard, very beautiful design. Has a door bell button, can install a wired door bell!

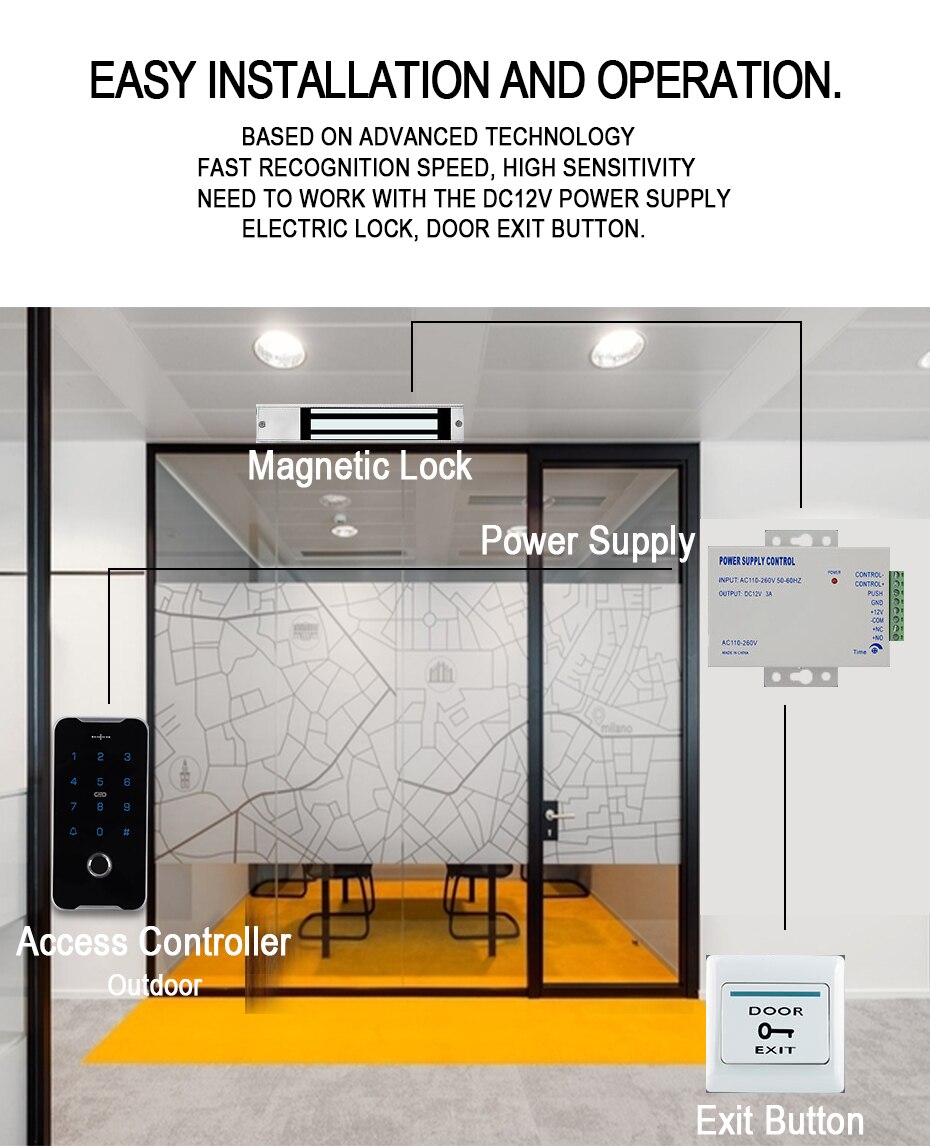

Easy installation and operation.
Based on advanced technology, fast recognition speed, high sensitivity.
Need to work with the DC12V power supply, electric lock, door exit button. (If you need the DC12V power supply, electric lock and the door exit button, you have to buy them in additional.)

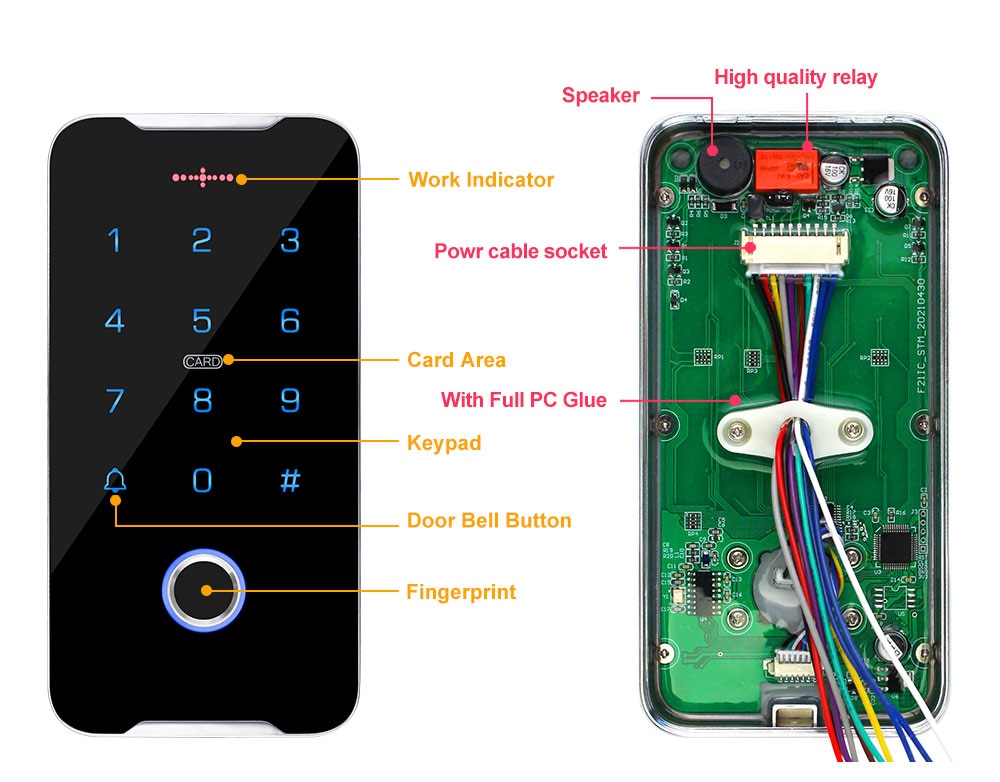

Product Analysis:
We Prepared 3 Colors For You.

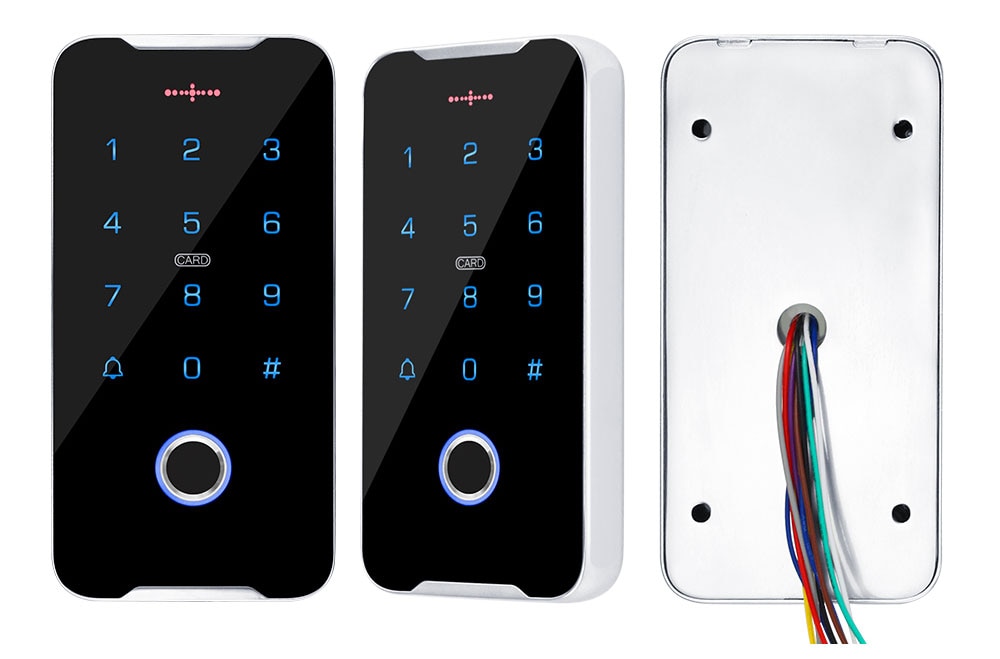

A. Silver color

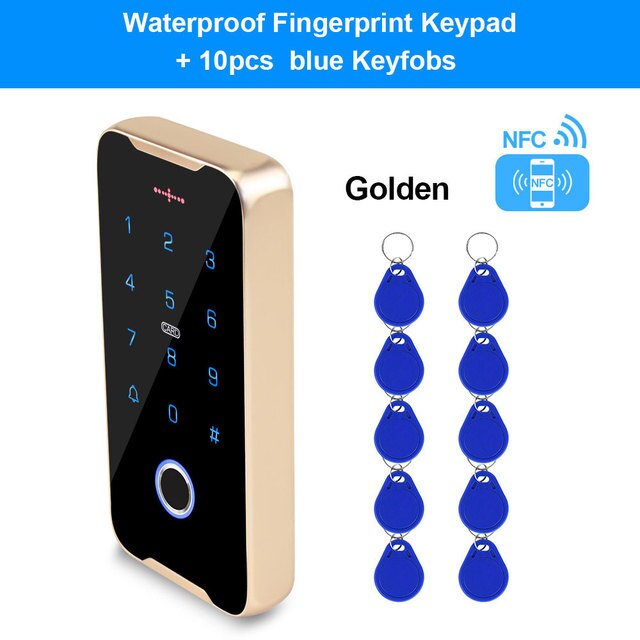

B. Golden color

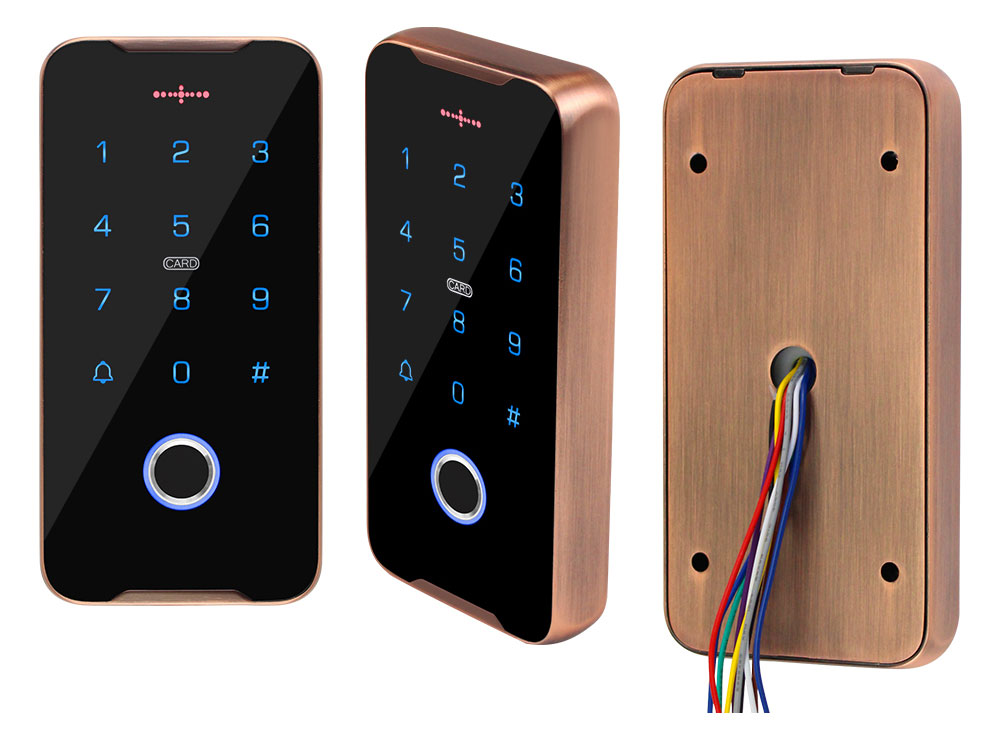

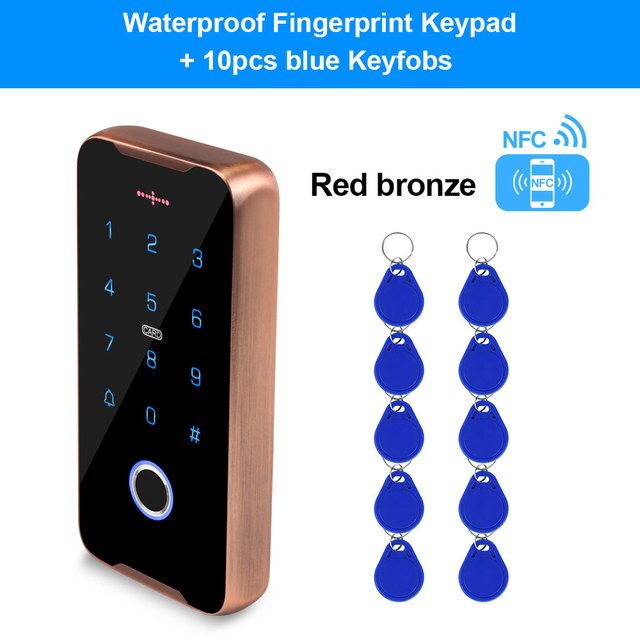

C. Red bronze color

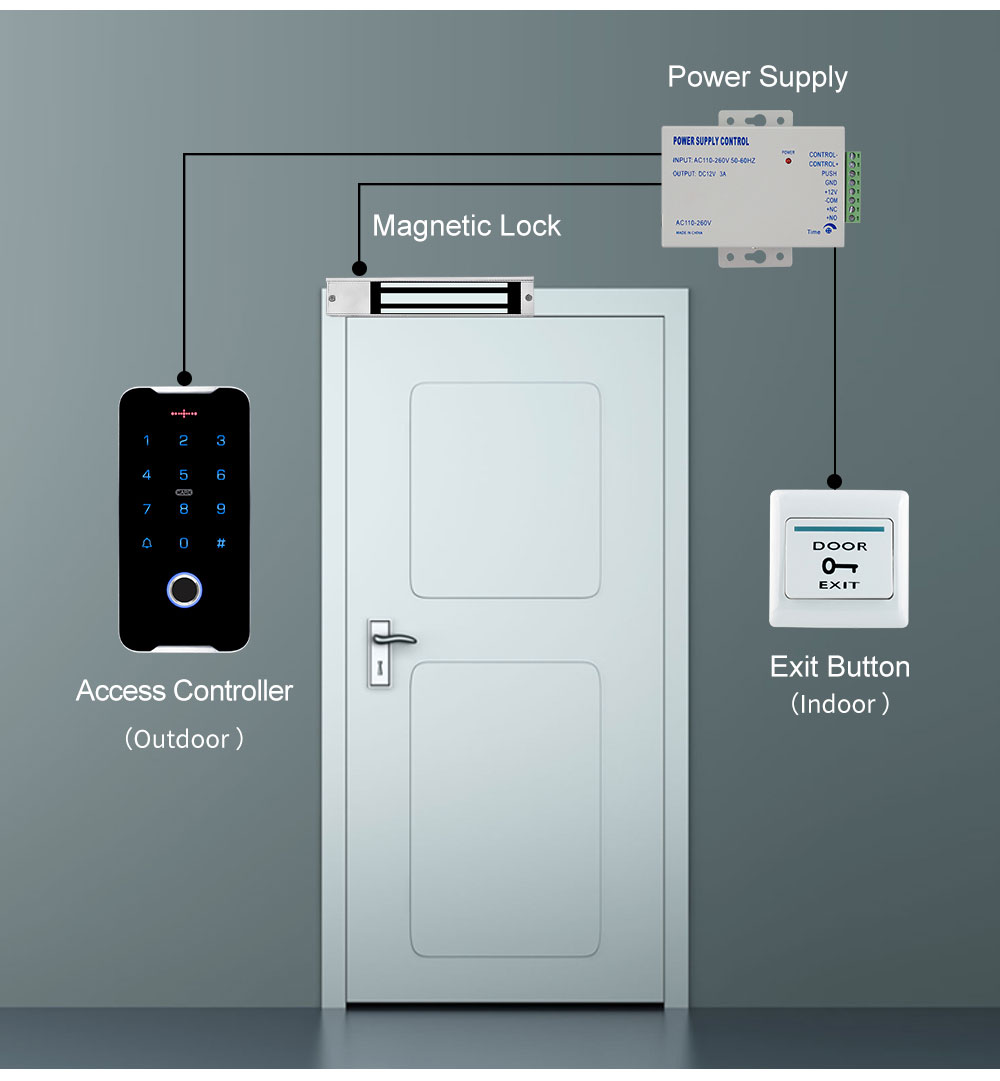

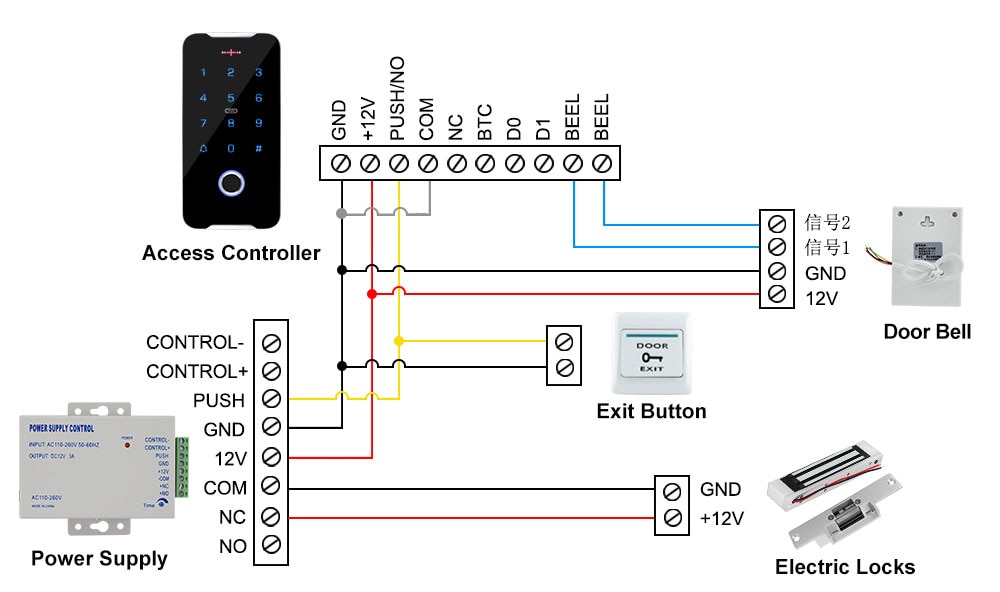

Wiring Diagram:
Please see this wiring diagram, you should follow it to connect the wires.
Please noted: the wiring diagram is for your reference only. But not mean the power supply, electric locks, exit button and door bell are included in the package. If you need them, you have to buy them in extra.
- Model Number: F60+10IC
- Origin: Mainland China
- Certification: CE
- Smart home platform: Other
- Material: Zinc Alloy
- Working Frequency: 13.56MHz
- Security Mode: Fail Safe
- WG Interface: WG26 input/output
- Waterproof Level: IP68 waterproof, can be installed outdoor directly
- Unlock Methods: fingerprint, NFC, password, RFID cards
- Keyboard: acrylic touch panel with keys
- User Capacity: 120 Cards / 120 Fingerprints / 120 Passwords
- Working Voltage: DC 12V / 30mA
- Door Open Time Delay: 0-99 seconds
- Doorbell Button Interface: Support
- Dimensions: 139 * 69 * 18 mm
- Type1: fingerprint access controller
- Type2: Door Access Controller
- Type3: Waterproof access control keyboard
- Type4: metal rfid controller
