YiToo Door Access Control System Kit RFID Keypad + Power Supply + Electric 180KG Magnetic Lock Strike Door Locks for Home Safe
SALE
ID: 100472

YiToo Door Access Control System Kit RFID Keypad + Power Supply + Electric 180KG Magnetic Lock Strike Door Locks for Home Safe

4.6 (9 votes) | 26 orders
Price: US $24.04 - 146.13 / piece
Discount Price:
US $ 16.83 - 102.29 / piece
-30%
Color
Quantity

Buy Now
Add to Cart


Product Features

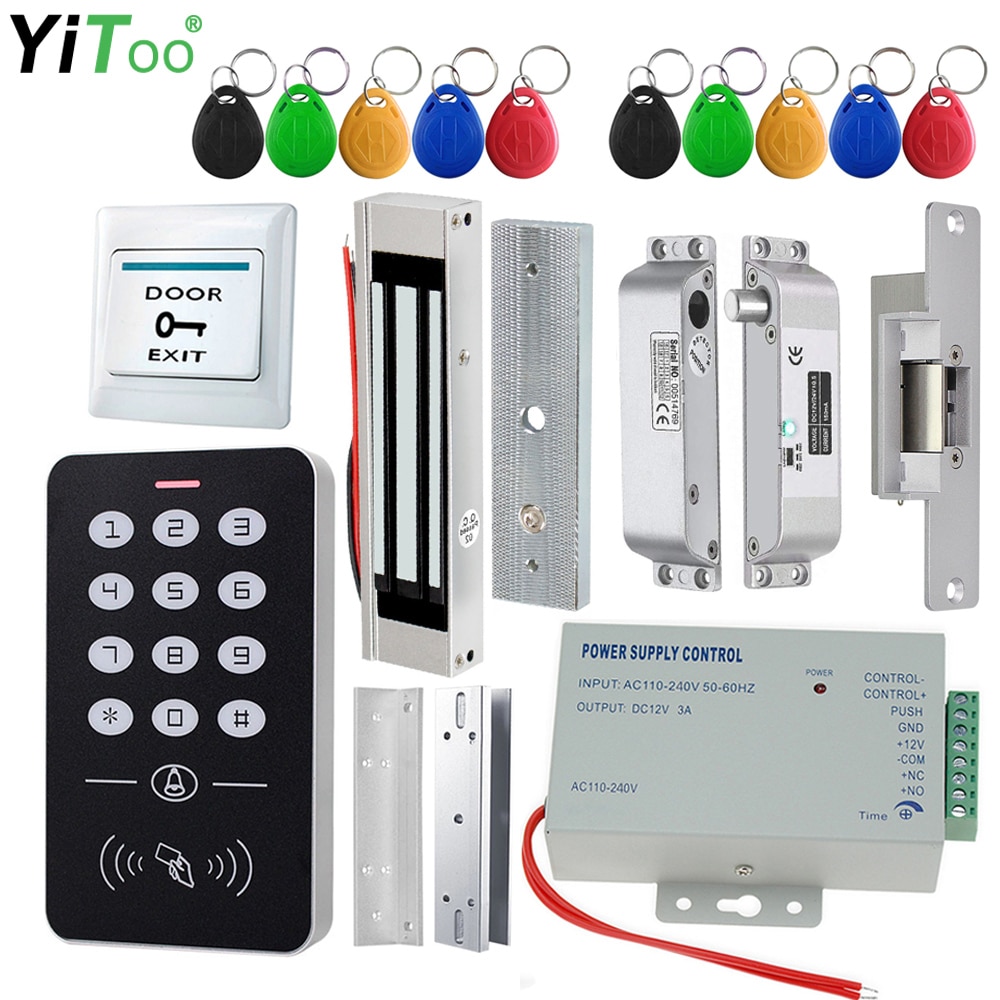

1. Access Control keypad + Power supply + Smart Electric Door Lock + Exit button + 10pcs Keyfobs(180KG)

2. Suitable for wooden,metal and glass door, not need bracket, convenient to install.

3. Surface Waterproof and dustproof panel.The ABS flame-retardant casing is integrally formed. After the installation is completed, a layer of glass glue can be applied to the back cover to achieve a comprehensive waterproof effect. (not IP65 waterproof, can't be used under the rain directly)

4. Support RFID Card, password, RFID Card+ password to open the door.Support 1000 card and password user capacity, can set card + password to open the door, the safety factor is higher.

5. Smart original chip.Large user capacity, fast identification, full-featured, stable operation and simple operation.


Product Description

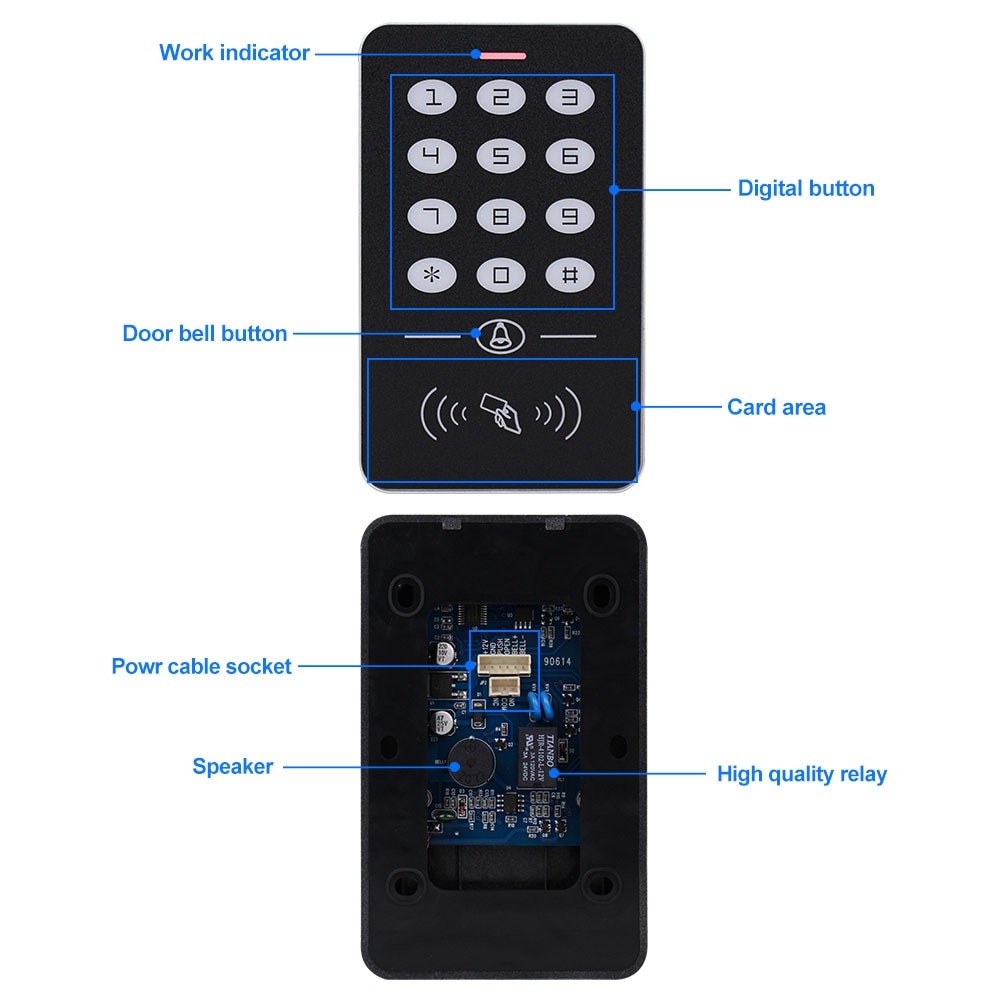

Access Controller
User capacity: 1000
Card reading type: EM card
Card reading distance: 1-5CM
Identification method: card, password, card + password
Programming password: 123456
Unlocking time: 5 seconds
Open the door input: all the way to open the button input
Doorbell output: one way wired doorbell output
Can be connected to automatic door or gate
Working voltage: DC 12V ± 10%
Working power supply: <100mA
Working temperature: 0 ° C ~ 60 ° C
Size of A1: 113*70*20mm
Surface Waterproof and Dustproof Panel
The ABS flame-retardant casing is integrally formed. After the installation is completed, a layer of glass glue can be applied to the back cover to achieve a comprehensive waterproof effect. (not IP65 waterproof, can't be used under the rain directly)

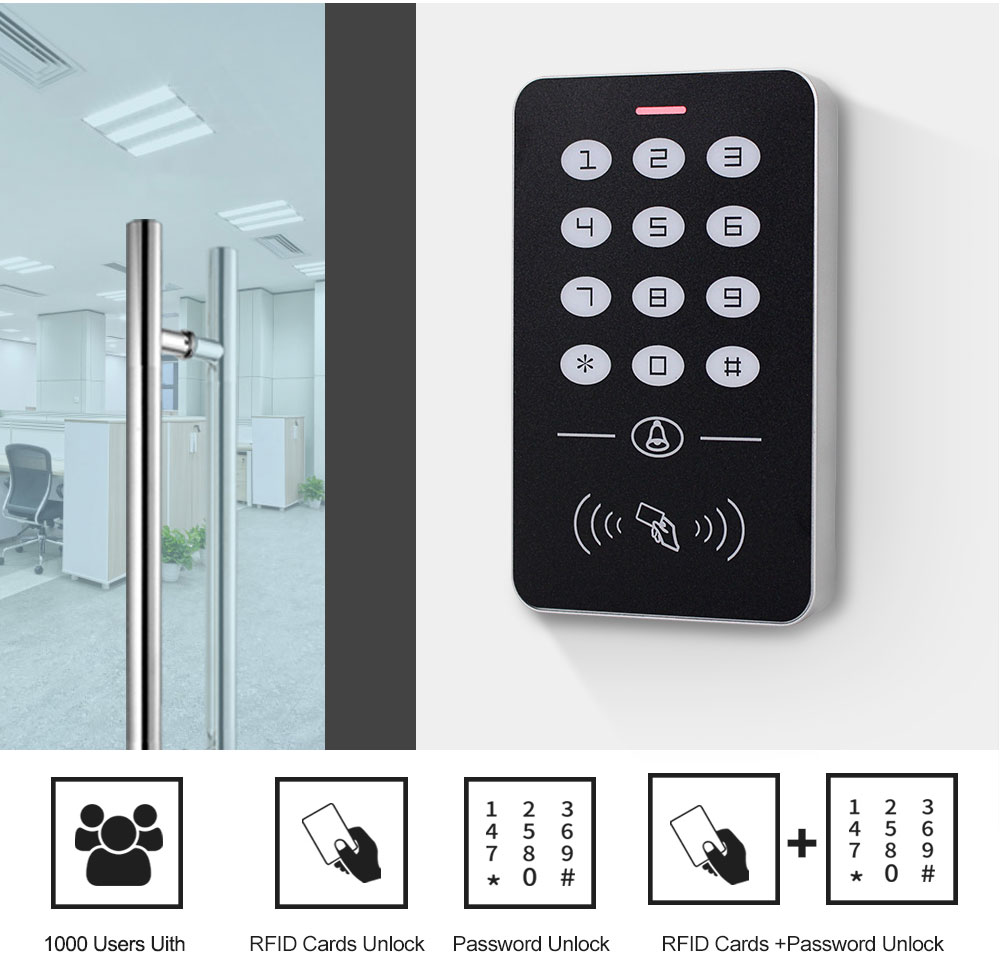

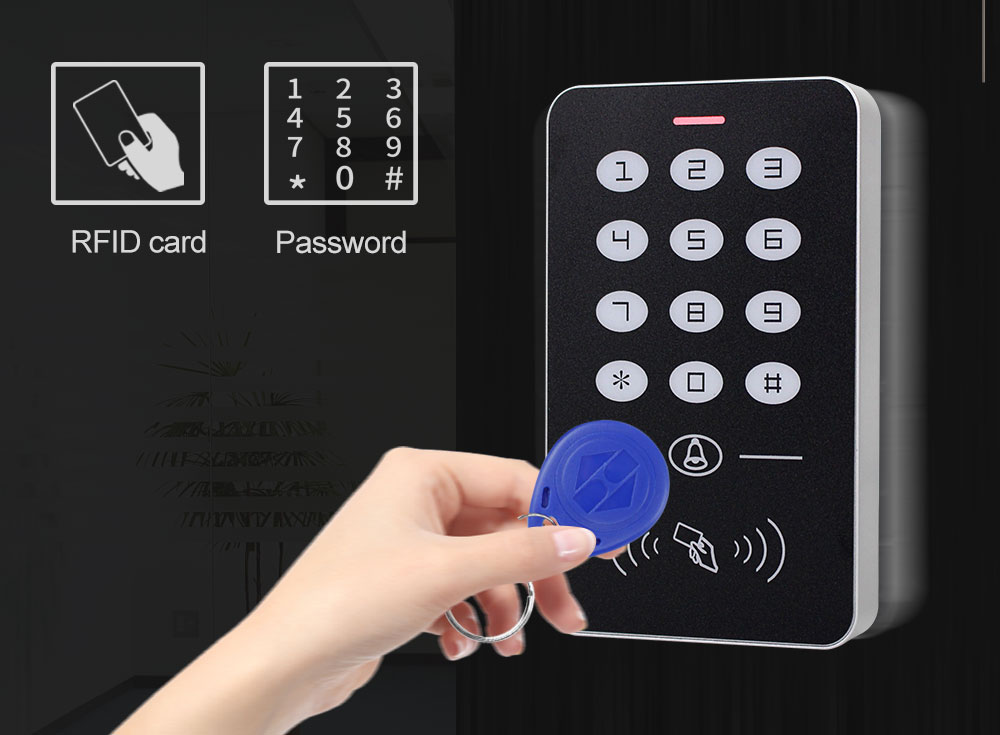

Support RFID Card, Password, RFID Card+ Password to open the door
Support 1000 card and password user capacity, can set card + password to open the door, the safety factor is higher

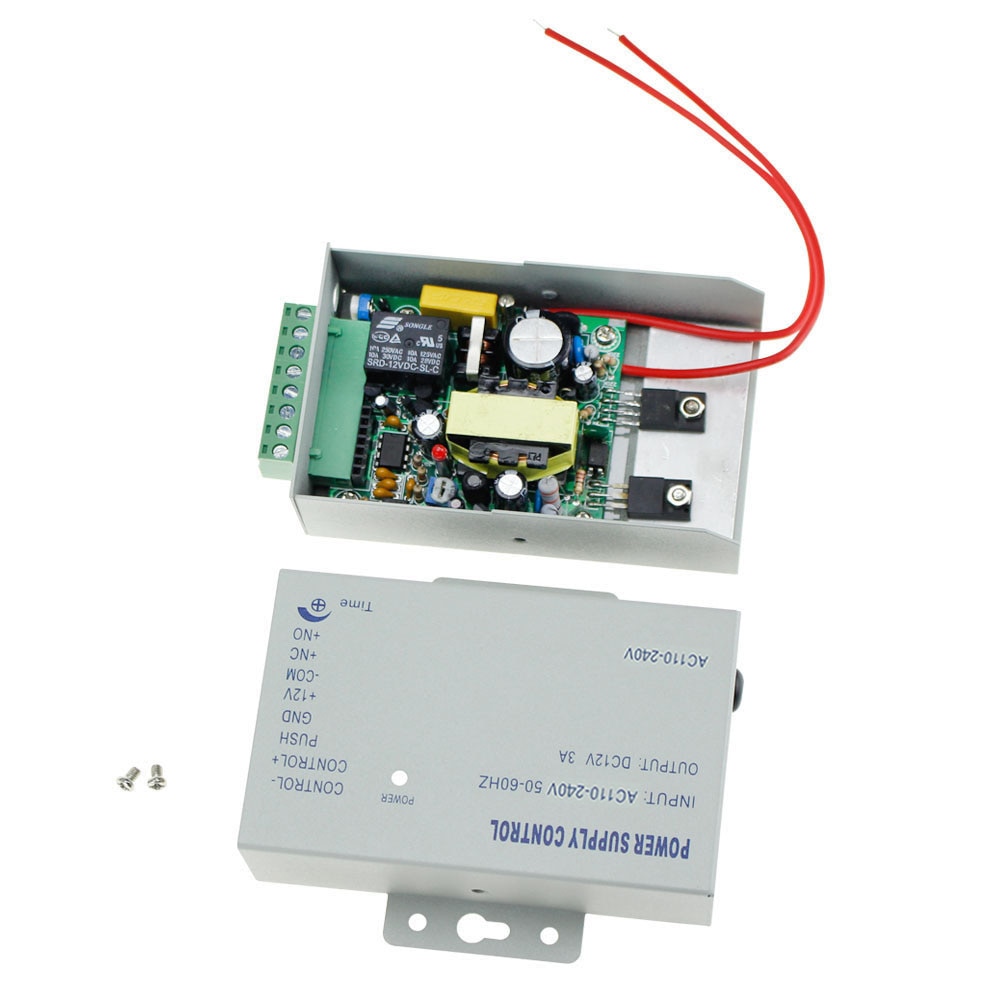

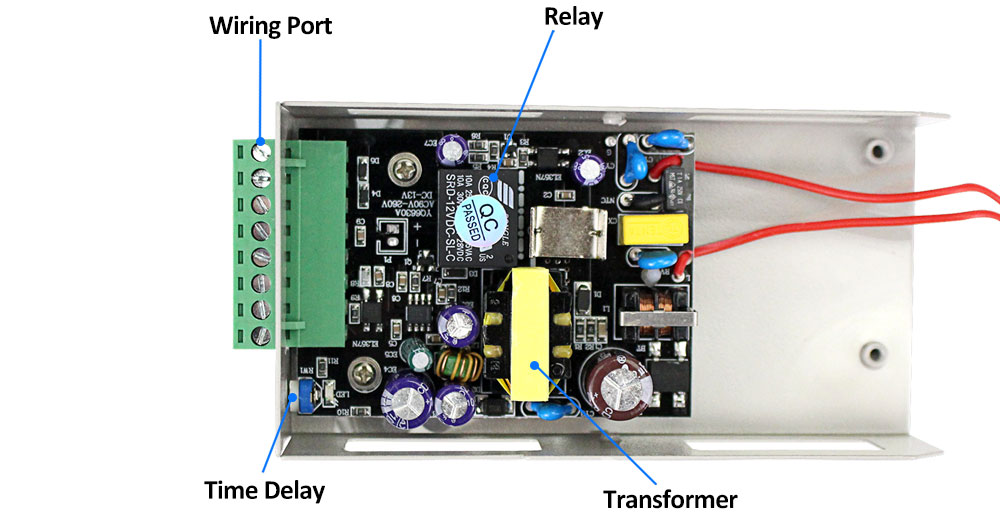

Power Supply
Material: Steel
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm


Electric Locks

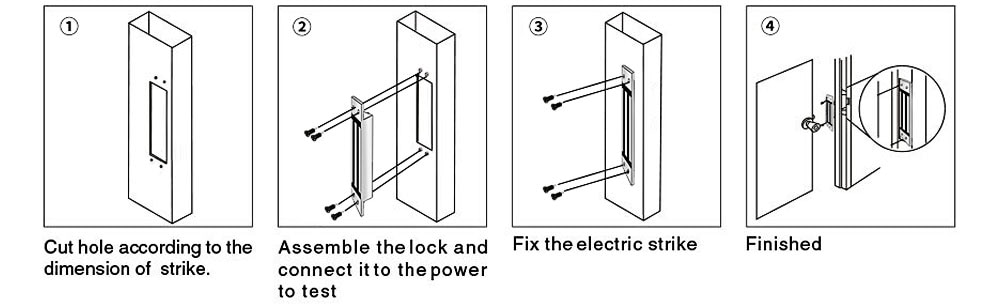

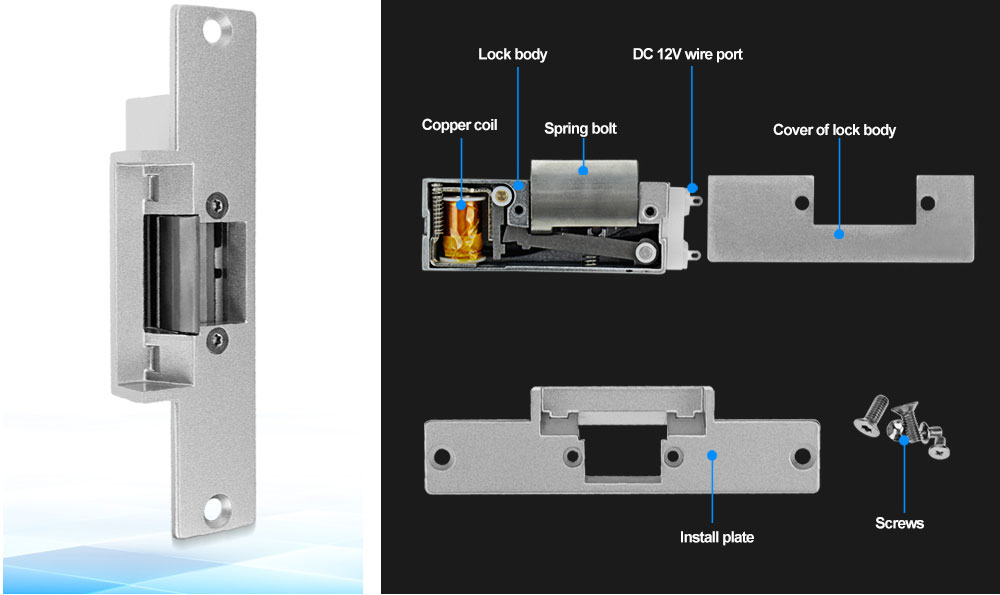

①Electric Strike Lock

Material: Stainless Steel
Holding Force: 500kg
Working Voltage: DC 12V
Working Current: 200mA
Operating Humidity: 0~90%
Face plate Housing: Painted Steel
Opening Mode: 90 Degree Swinging Door
Size: 150*28 mm
Suitable Temperature: -30~+55 Celsius Degree
Suitable for: Wooden door (90 degree swinging door)
Security Mode: NC mode (normal close), the lock will be locked when power on, unlocked when power off.

Please noted: we also have NO mode version. If you need it, please leave message to us.

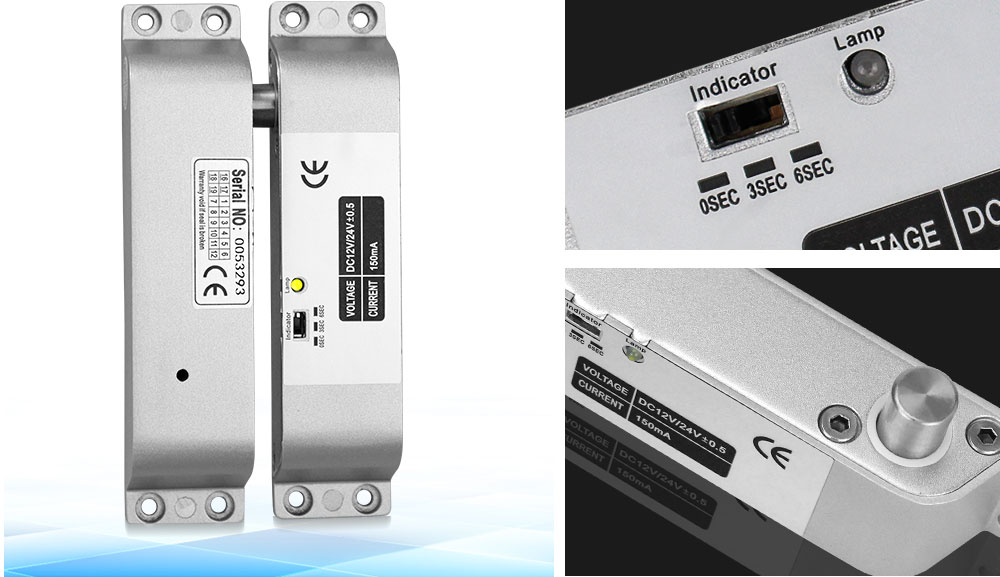

②Electric Drop Bolt Lock

Material: Aluminum Alloy
Working Voltage: DC 12V
Current: Star-up: 1.2A; Working: 0.25A
Wires: Red-power supply (+), White-COM, Black-Power Ground(-), Yellow-NC
Lock core: The diameter og 12.5MM stainless core, extending the length of 15MM
Size: 150*34*28 mm
Working temperature: -30~ 55 Degree Celsius
Time delay: 0/3/6 second ( Factory setting: 0 )
Security Mode: NC mode (Fail Safe mode: Locked when power on, unlock when power off.)
Suitable for: wooden, metal door, security door, etc.

Please noted: when you connect this lock, you should connect the red line to "NC" of the power supply and the black line to "GND" of the power supply. Other lines doesn't need to be connected.

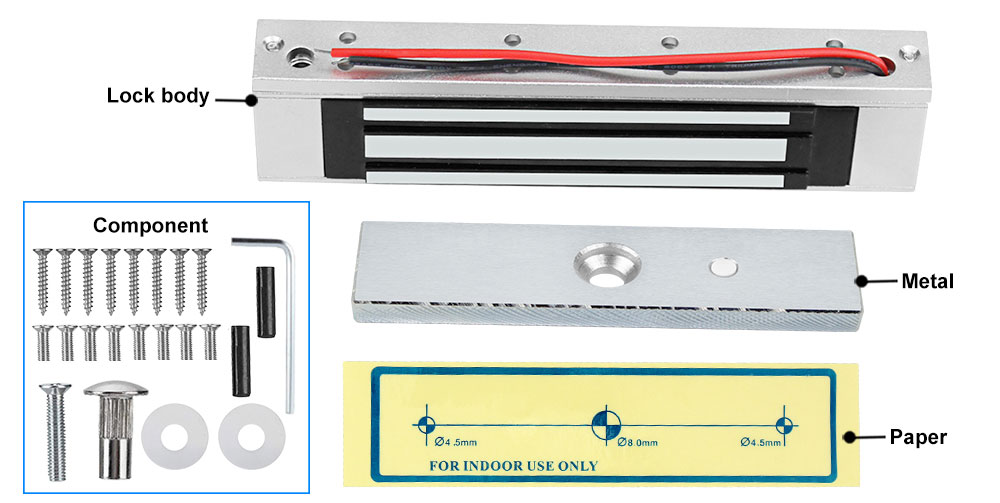

③180KG Standard Magnetic Lock

Holding Force: 180KG/380lbs
Material: Stainless steel
Working Voltage: DC 12V
Anti-Residual Magnesium Designed
Performance Testing:1000000 times aging test
Safety Function: Built-in voltage spike suppressor

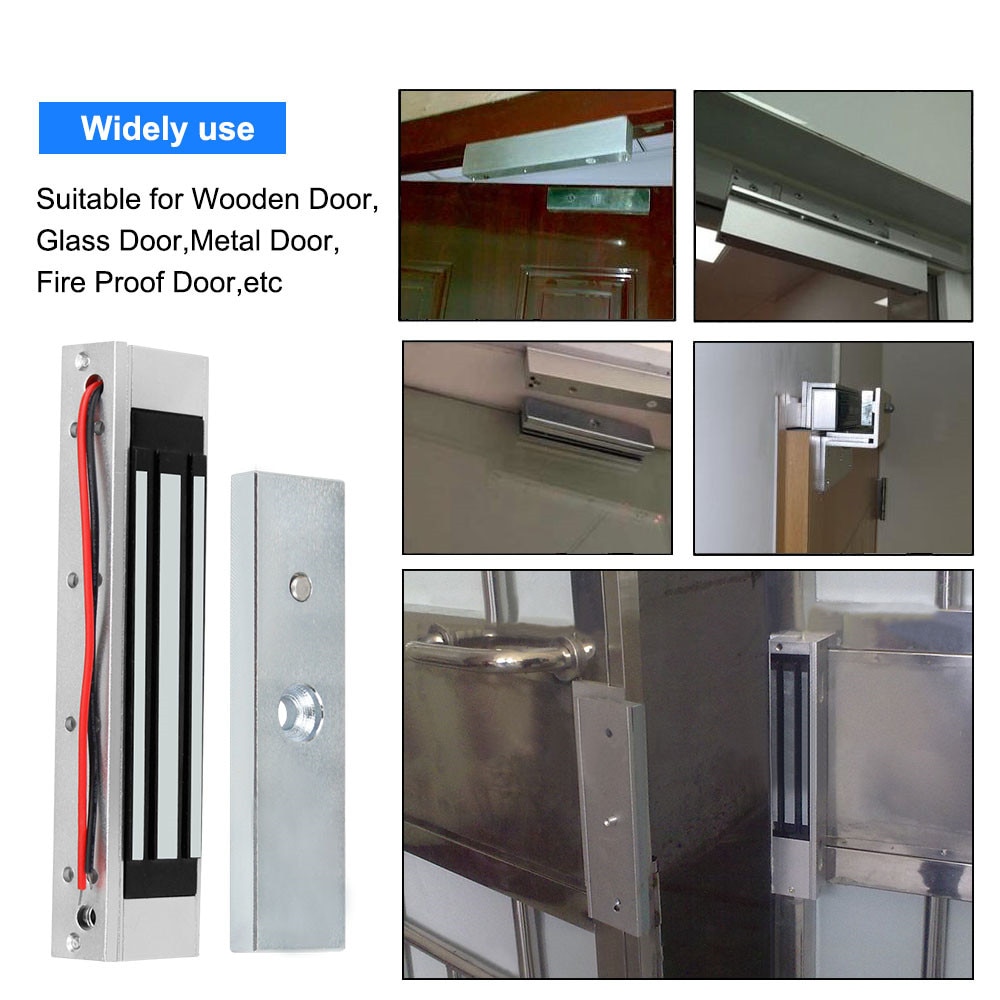

Suitable For: Wooden Door, Metal Door, Fireproof Door, Glass Door, etc.
Security Mode: NC Mode (Fail Safe Mode: Locked when power on, unlocked when power off.)
Dimension: 172*40*21 mm/ 130*33*10 mm
Feature: unfold install mode, NC type, without LED light, waterproof, can be installed outdoors.

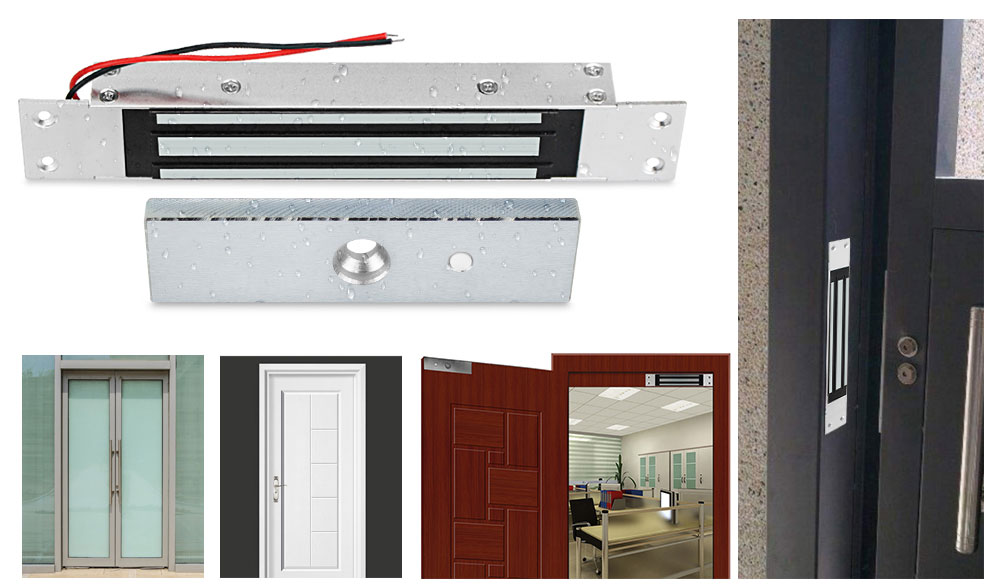

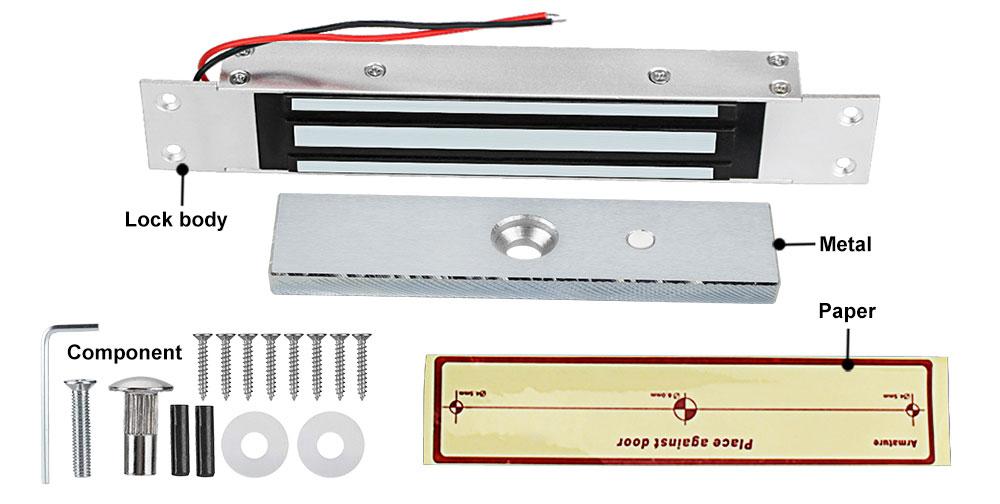

④180KG Magnetic Lock (embedded install mode)

Holding Force: 180KG/380lbs
Material: Stainless steel
Working Voltage: DC 12V
Anti-Residual Magnesium Designed
Performance Testing: 1000000 times aging test
Safety Function: Built-in voltage spike suppressor
Suitable For: Wooden Door, Metal Door, Fireproof Door, Glass Door, etc.
Security Mode: NC Mode (Fail Safe Mode: Locked when power on, unlocked when power off.)
Dimension: 190*30*20 mm/ 130*33*10 mm

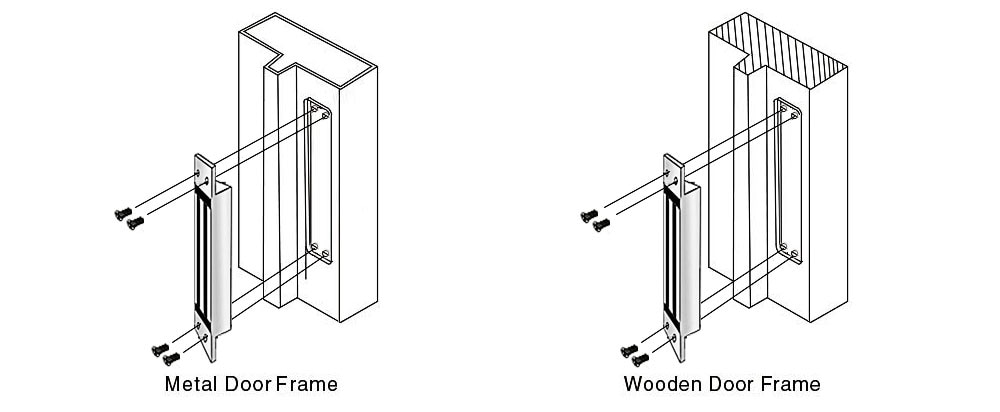

Feature: embedded install mode, NC type, without LED light, waterproof. Can be installed outdoors.

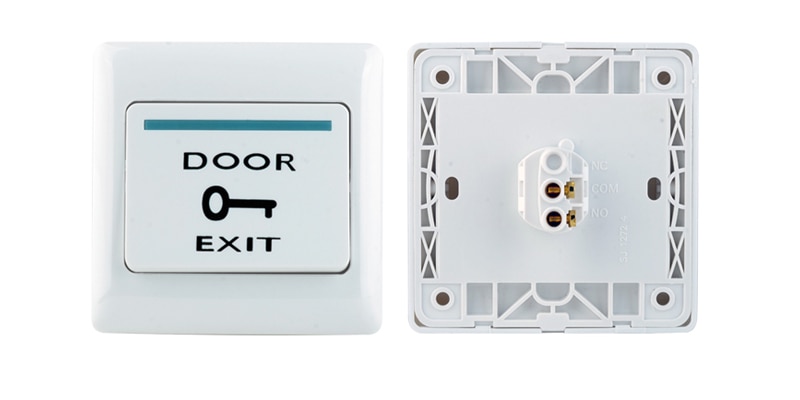

Door Exit Button
Material:Hard Plastic
Maximum Power Rating:36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:86X86MM ( L / W  )

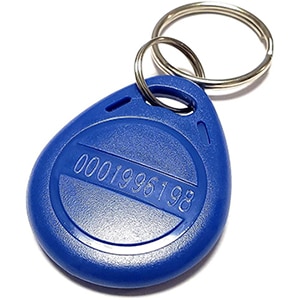

RFID Key fobs
RFID 125KHz frequency key card
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre-programmed and has a unique identity number on it.
Please Noted: There are 5 color of the RFID key fobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need single color, please leave message to us.
Kits Details

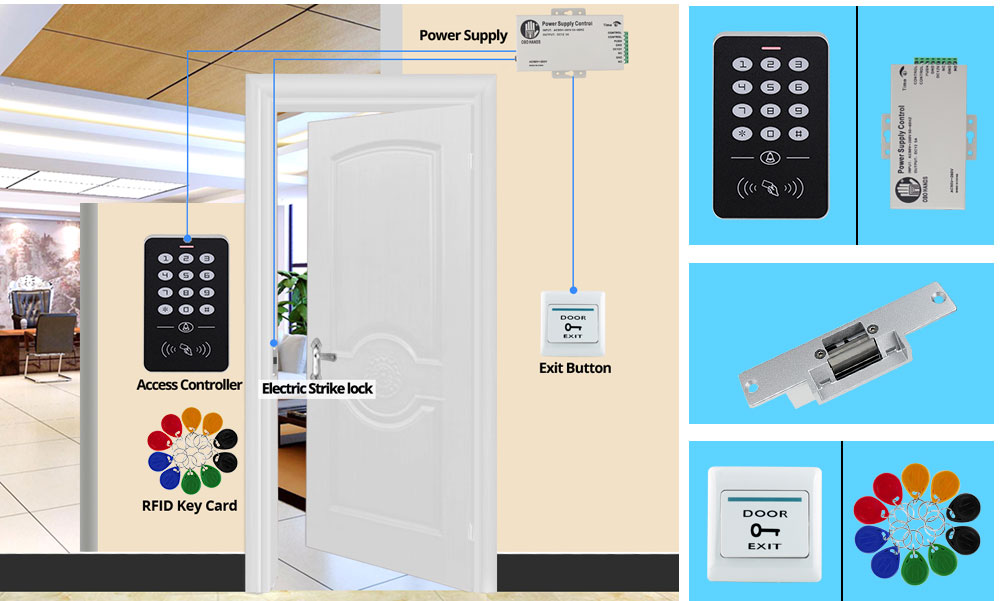

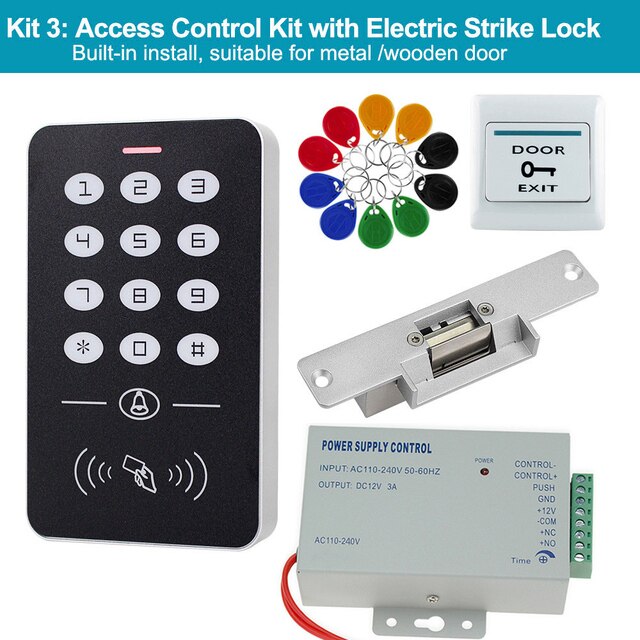

Kit3:  Suitable for wooden door, metal door. convenient and beautiful. No need bracket
Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Key fobs
(We will send the NC type by default, if you want NO type, please leave us a message.)
Working Voltage: 12V ± 10%
Current: 200mA - 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Degrees Celsius
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm（L / W / H）

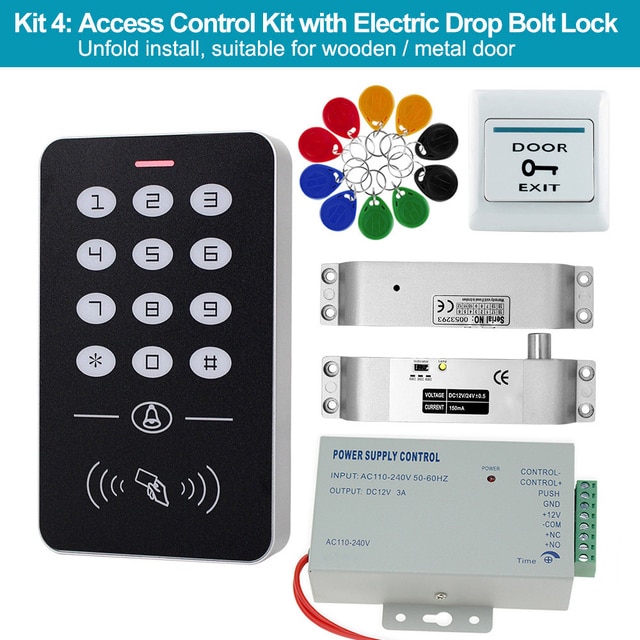

Kit4: Suitable for wooden, metal and Stainless steel door. No need bracket.

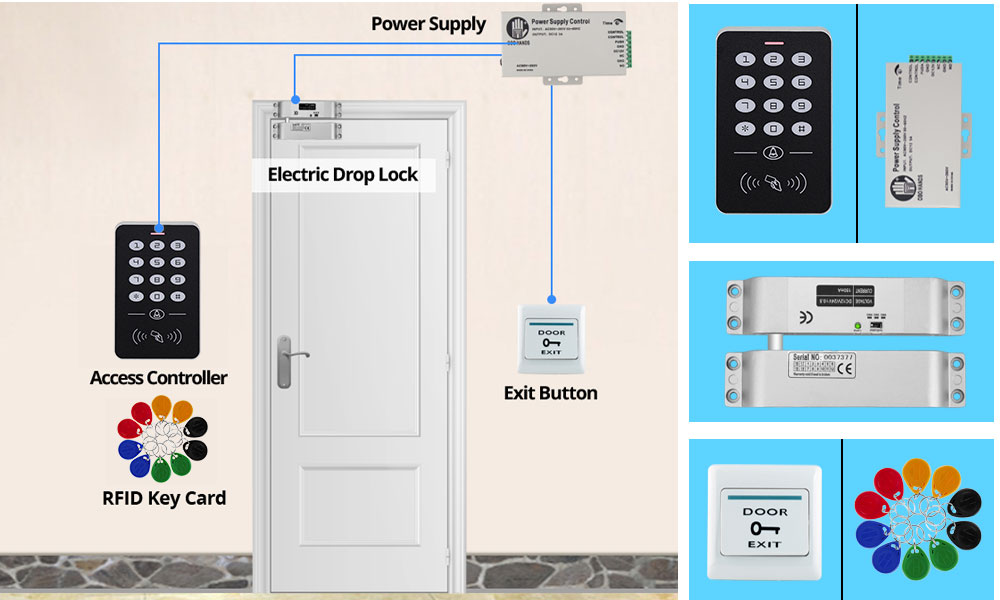

Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Key fobs
Working voltage: 12V
Time delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter of 12.5MM stainless core, extending the length of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )

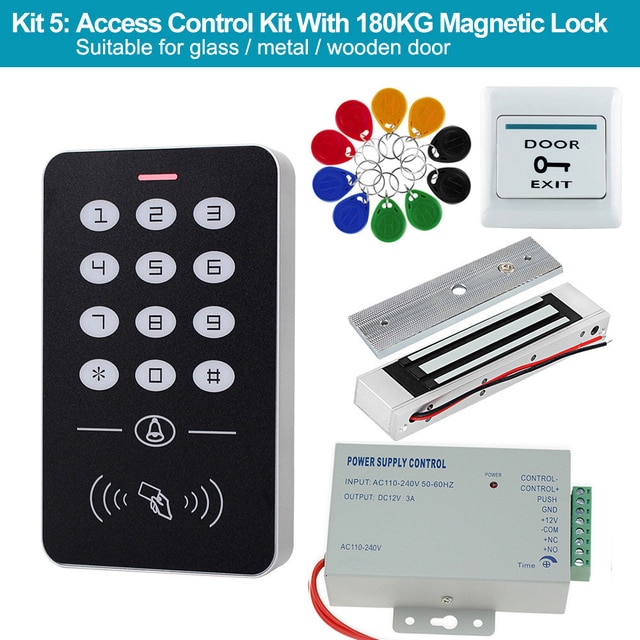

Kit5: Suitable for wooden, metal and glass frame door. No need bracket.

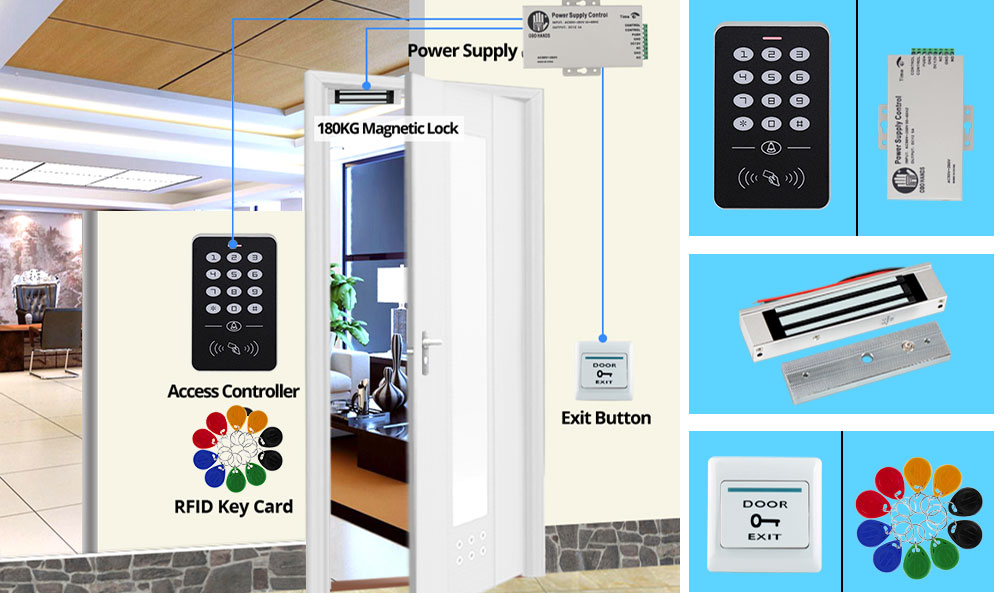

Package including: Access Control keypad + Power supply + 180KG (380lbs) Electric Magnetic Lock + Exit button + 10pcs Key fobs
Material: Aluminum alloy shell + iron plate
Holding force: 180KG (380lbs)
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 degrees Celsius
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be installed outside .

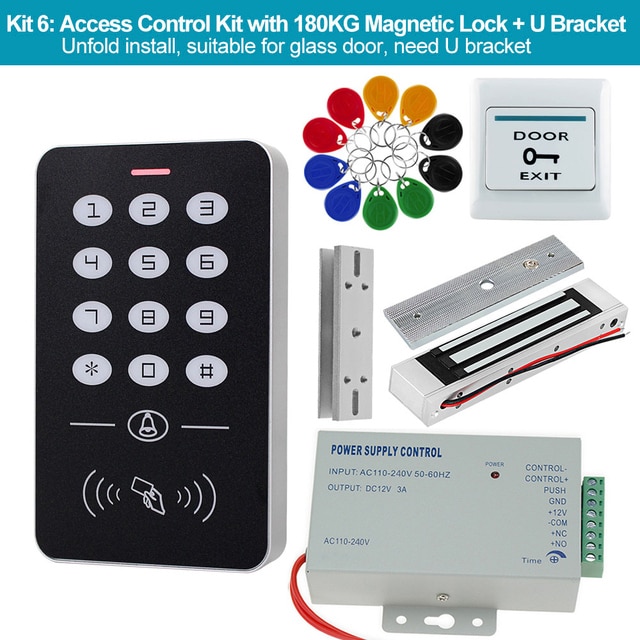

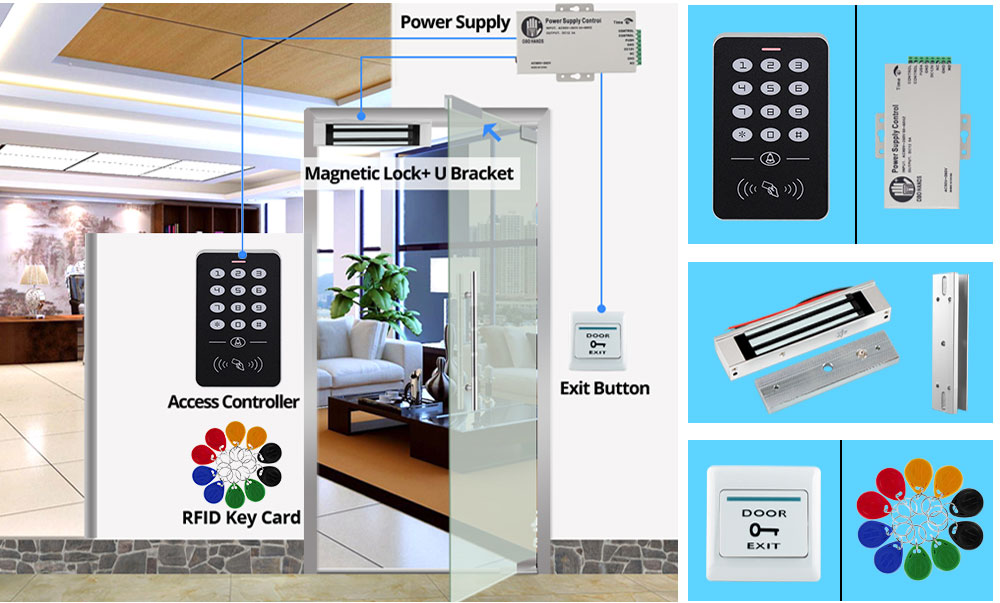

Kit6: Suitable for frameless glass door. Need U bracket.
Package including: Access Control keypad +Power supply +180KG (380lbs) Magnetic Lock +U bracket +Exit button +10pcs Key fobs
If your door is frameless glass door, then will need a U bracket
Size of  U  Bracket:  130* 33 * 26mm (L/W/H)

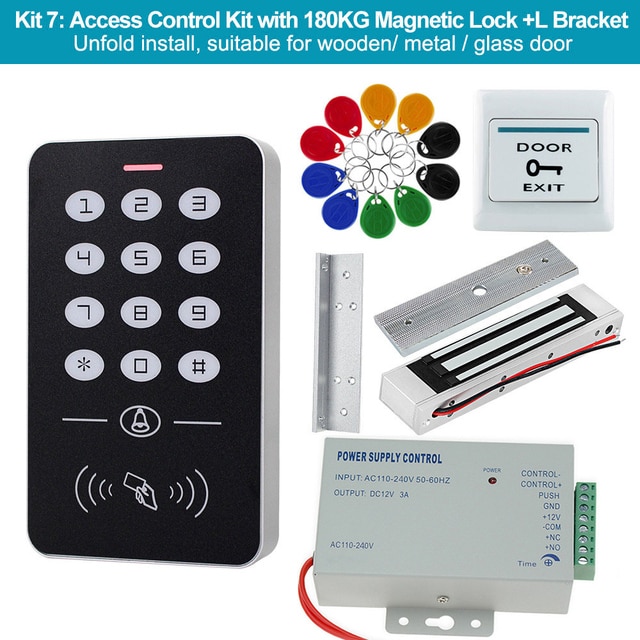

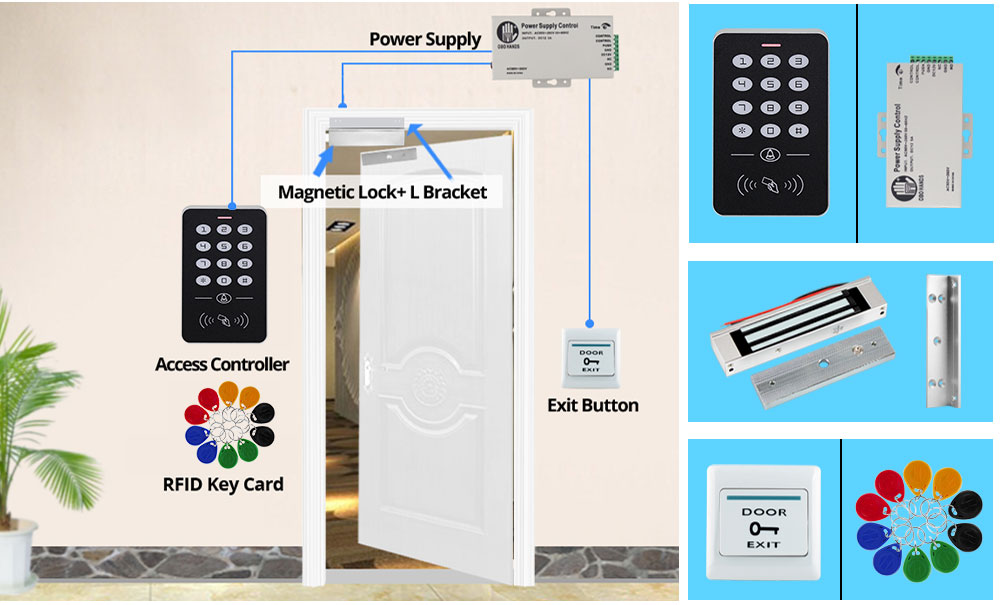

Kit7: Suitable for wooden, metal door. Need L bracket.
Package including: Access Control keypad +Power supply +180KG (380lbs) Magnetic Lock +L bracket +Exit button +10pcs Key fobs
Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.
Size of L Bracket:  170* 34 * 25mm (L/W/H)

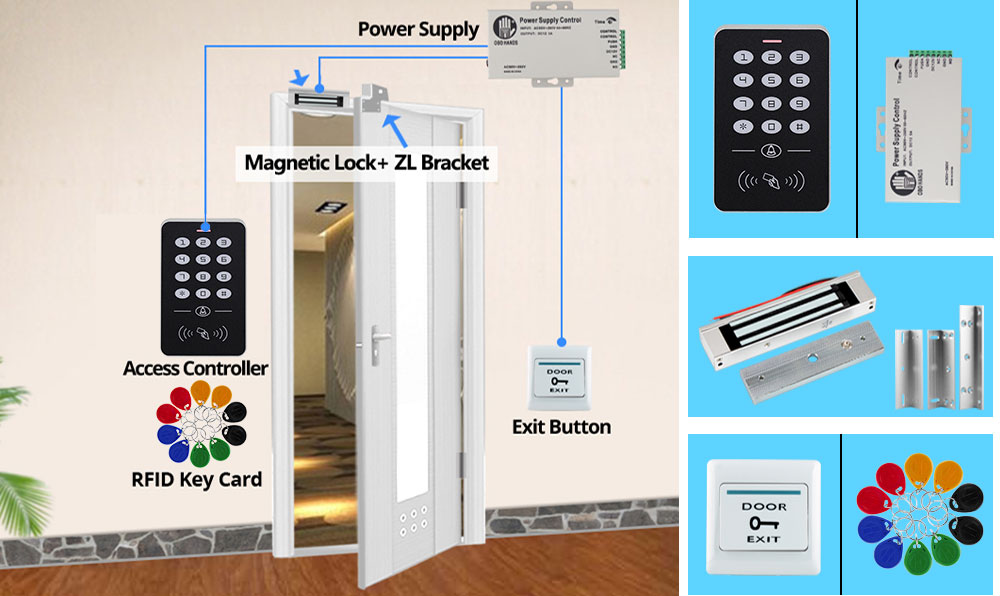

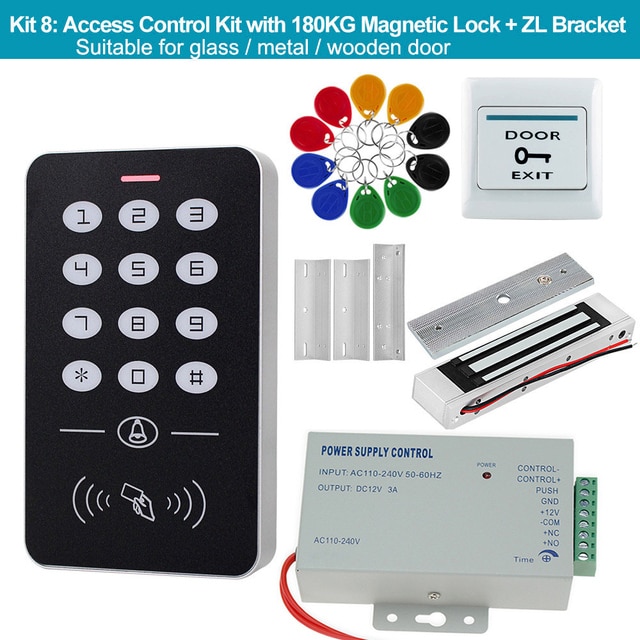

Kit8: Suitable for wooden, metal, glass door. Need ZL bracket.
Package including: Access Control keypad +Power supply +180KG(380lbs) Magnetic Lock +ZL bracket +Exit button +10pcs Key fobs
If your door is open from indoor, then need to add the ZL bracket.
Size of L Bracket: 170*34*25mm (L/W/H) ,
Size of Z Bracket: 138*45*45mm (L/W/H)

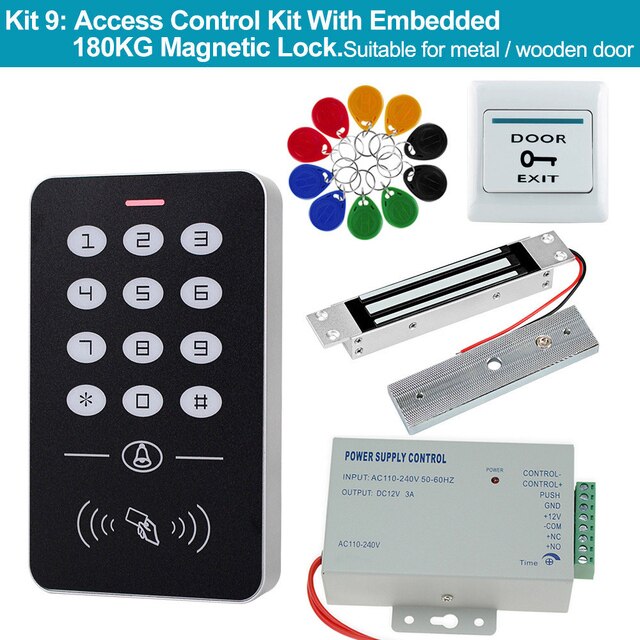

Kit9: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + Embedded 180KG(380lbs) Electric Magnetic Lock + Exit button + 10pcs Key fobs
Size of the Lock:            192Lx33Wx20H(mm)
Size of Armature Plate:  139Lx32x11H(mm)
Holding Force:                180kg(350Lbs)
Input Voltage:                  12VDC
Current:                           12V/120mA

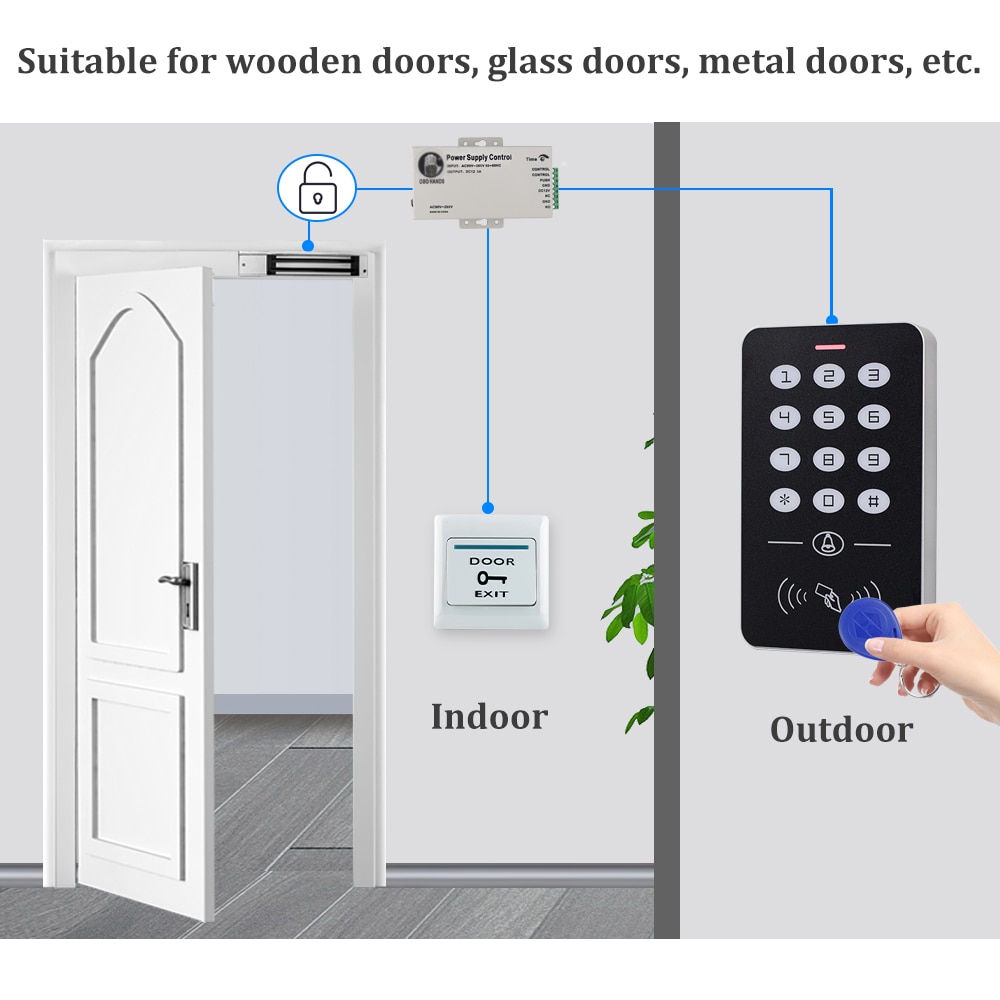

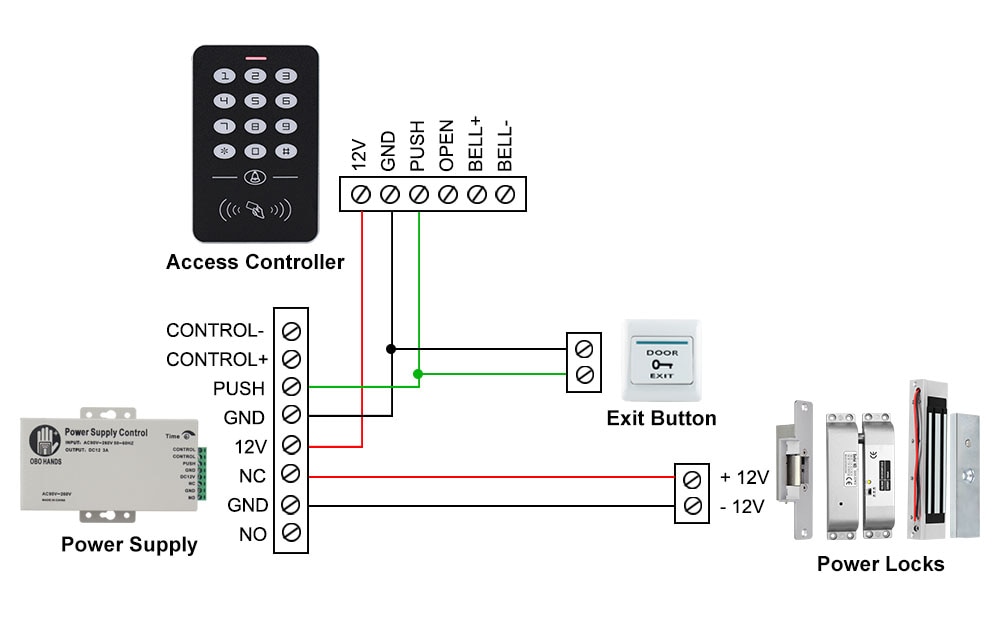

Wiring Diagram


  • Direction: None
  • Security Mode: Fail Safe
  • Model Number: A1 kits
  • Brand Name: YiToo
  • Origin: Mainland China
  • Certification: CE
  • Smart home platform: Other
  • Working Voltage: DC 12V
  • Working Frequency: 125KHz
  • Unlock Mode: Password, RFID Card, RFID Card + Password
  • Working Temperature: -20 ℃ to 60 ℃
  • Unlock Time: 5 seconds
  • Type1: access control lock waterproof
  • Type2: smart lock outdoor
  • Type3: rfid reader door lock
  • Type4: electric door lock controller
