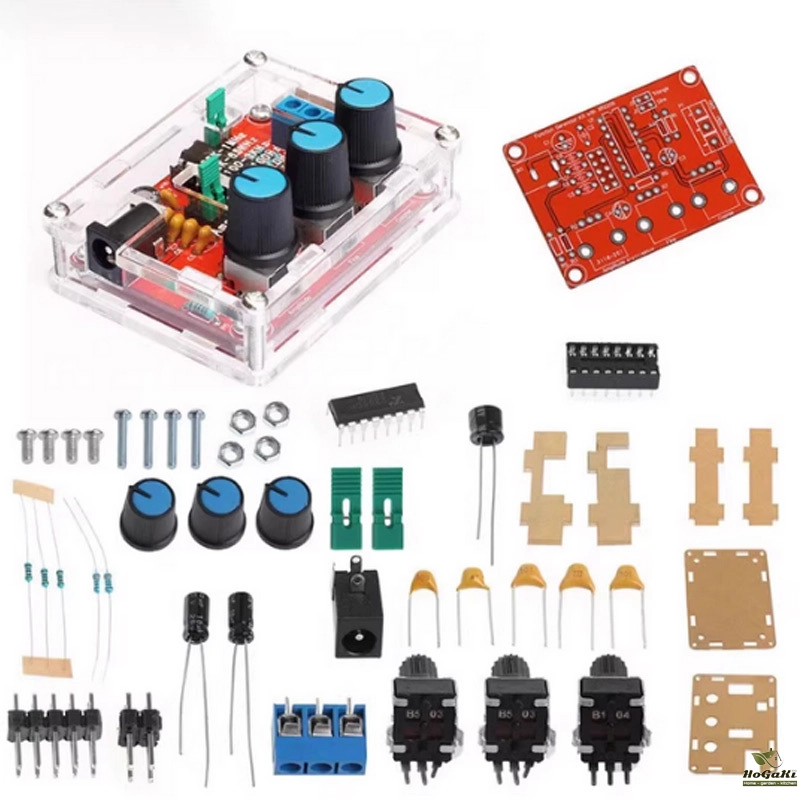

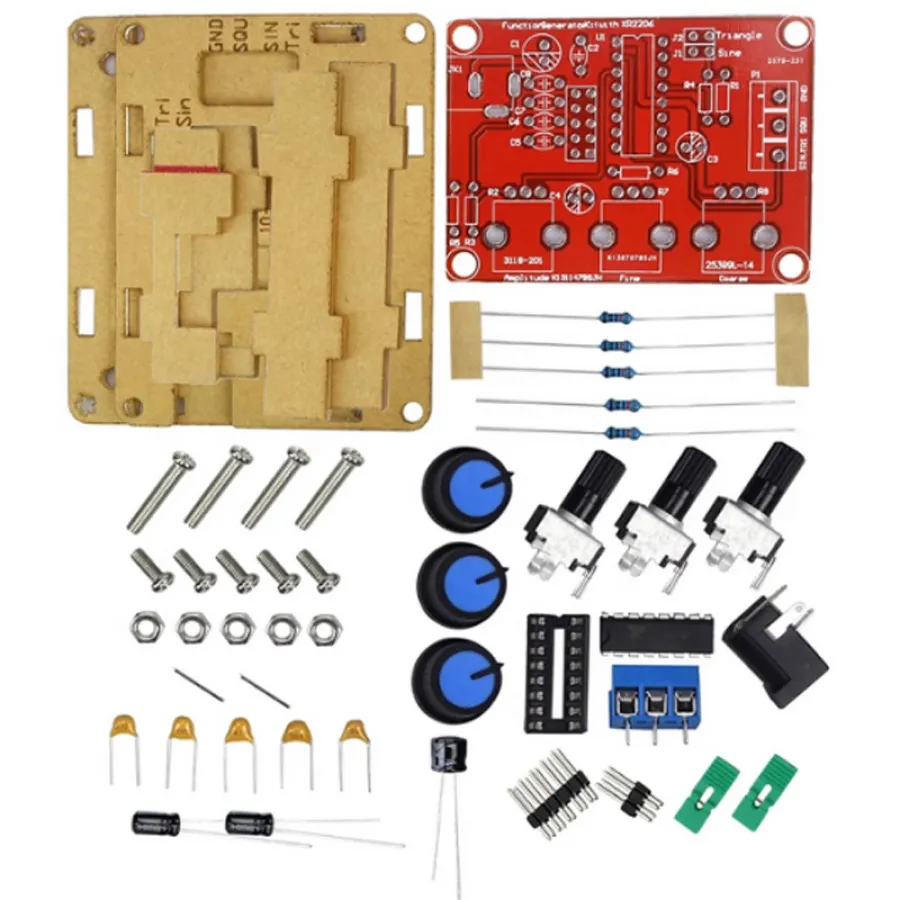

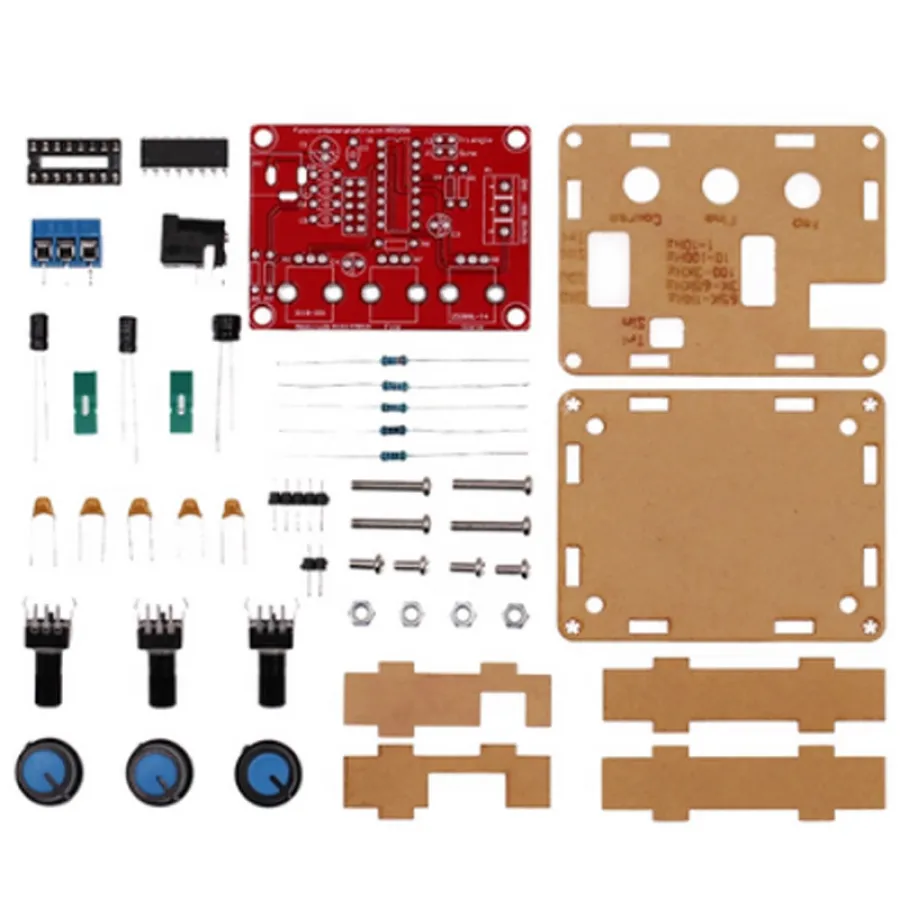

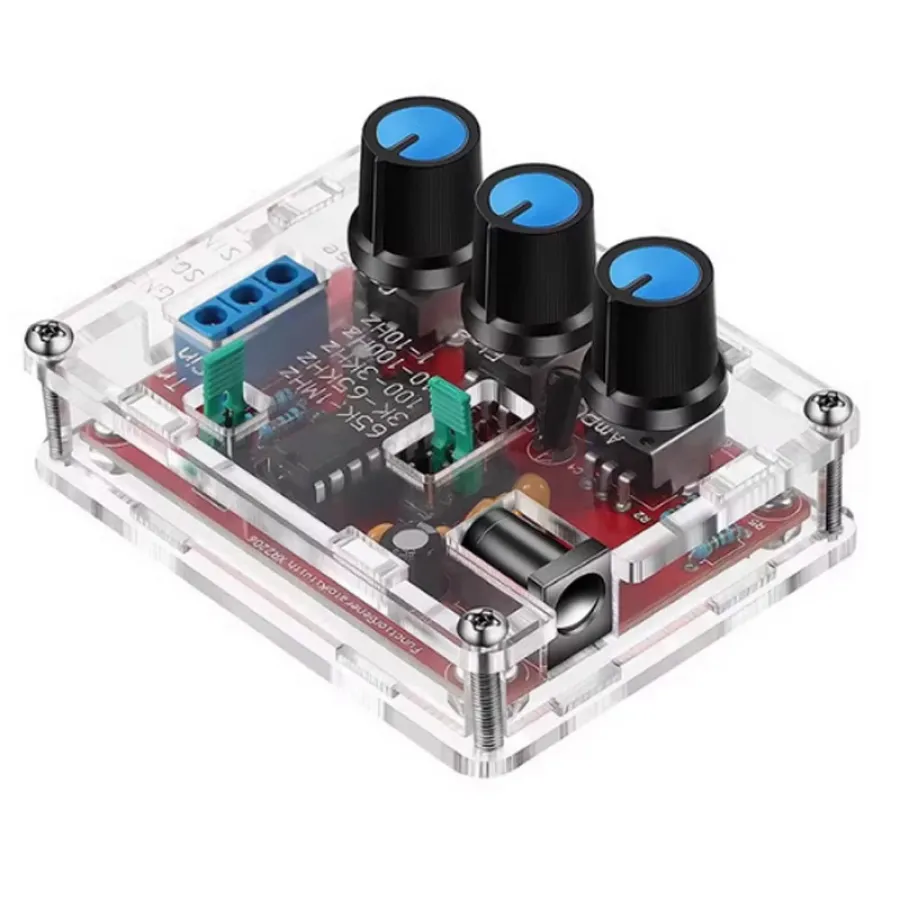

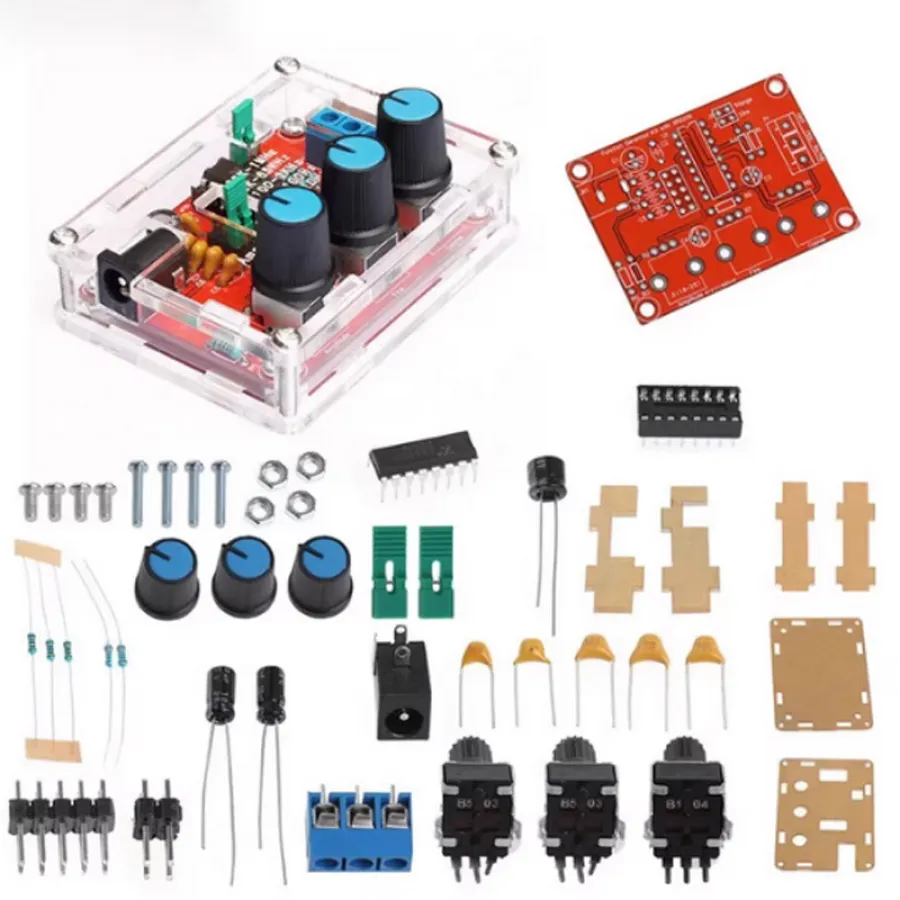

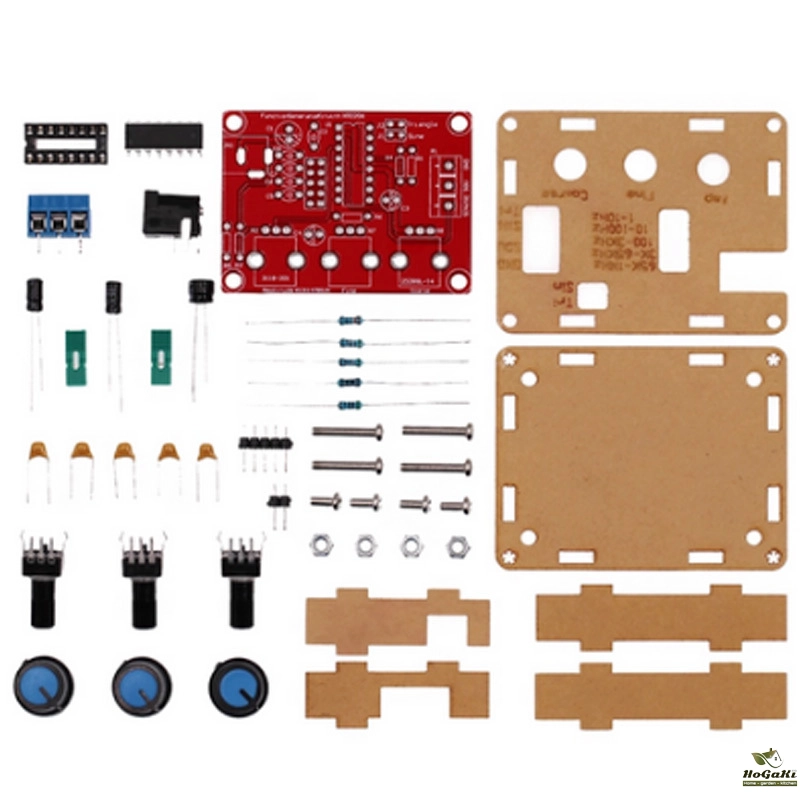

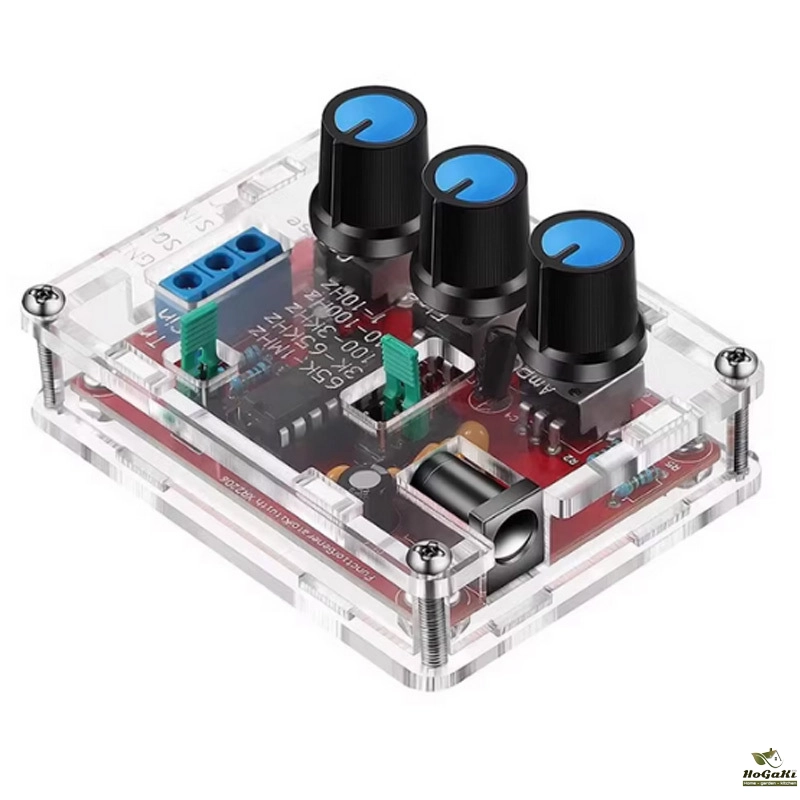

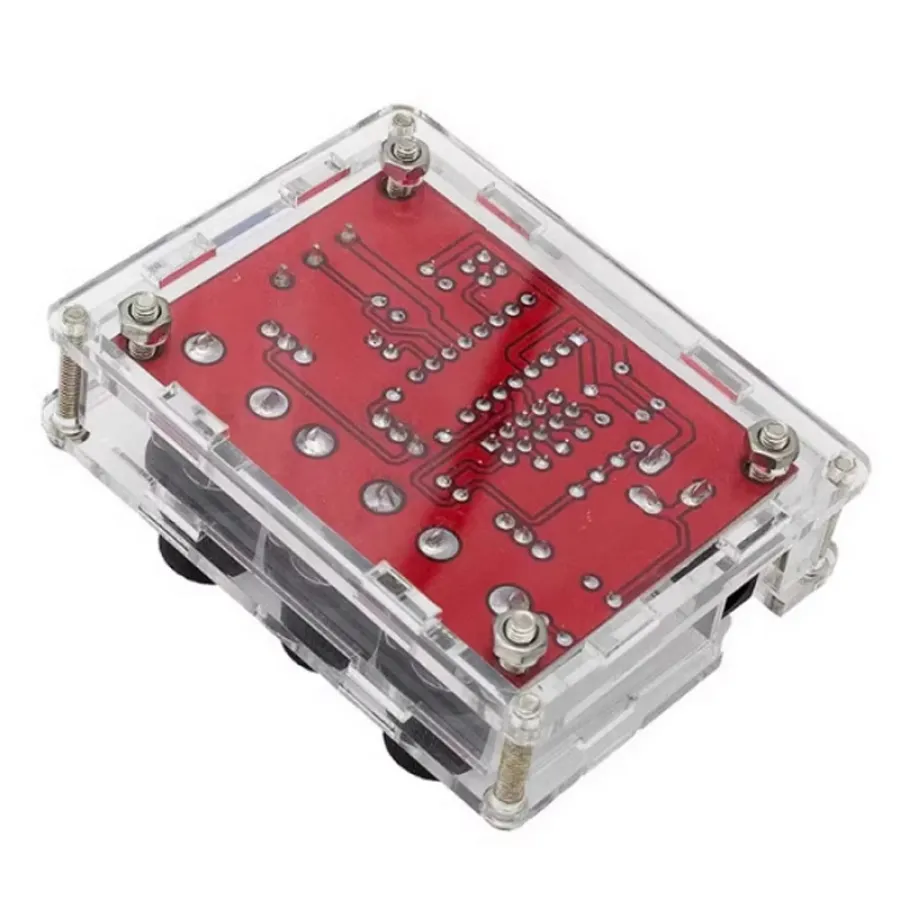

XR2206 High Precision Signal Generator DIY Kit Function Generator Sine Triangle Square Waves Adjustable Frequency
4.9 (666 votes) | 4000 orders
Price:
US $18.14
Discount Price:
US $
10.43
-43%
- Color
-
-
Circuit Features:
Generates sine waves, triangle waves, and square waves
Frequency range: 1 Hz to 1 MHz
Adjustable frequency and amplitude;
Five-digit precision resolution;
Frequency adjustment with coarse and fine tuning;
Wide power supply range, compatible with external power supply 9-
12V or 9V battery;
All through-hole components, minimal component count, simple
installation and commissioning.
Parameters: Technical Specifications:
Voltage supply: 9–12V DC input
Waveform: Square wave, sine wave, and triangle wave
Impedance: 600 ohms ±10%
Frequency: 1 Hz - 1 MHz
Sine wave
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (1 kHz)
Flatness: ±0.05 dB ±1 Hz - 100 kHz
Square wave
Amplitude: 8V (no load) at 9V DC input
Rise time: Less than 50 ns (1 kHz)
Fall time: Less than 30 ns (1 kHz)
Symmetry: Less than 5% (1 kHz)
Triangle wave
Amplitude: 0–3 V at 9 V DC input
Linearity: Less than 1% (up to 100 kHz) 10 mA
Translated with DeepL.com (free version)
