XMeye 4ch 8ch 4K 5MP POE NVR Face Recognition H.265+ Network Video Recorder 1 HDD 24/7 Recording IP Camera NETIP P2P System
4.7 (38 votes) | 107 orders
Price:
US $124.30 - 149.28
/ piece
Discount Price:
US $
55.64 -
66.82
/ piece
-55%
1. HDD question:
We recommend use the Newest HDD.
Use the security HDD will work more better.
PC HDD most can not work.
2.IP Camera 264 and 265 question:
This one only support the xmeye IP camera H.265,
if you use the dahua or hik camera, nvr will not match all of their cameras and not support h.265

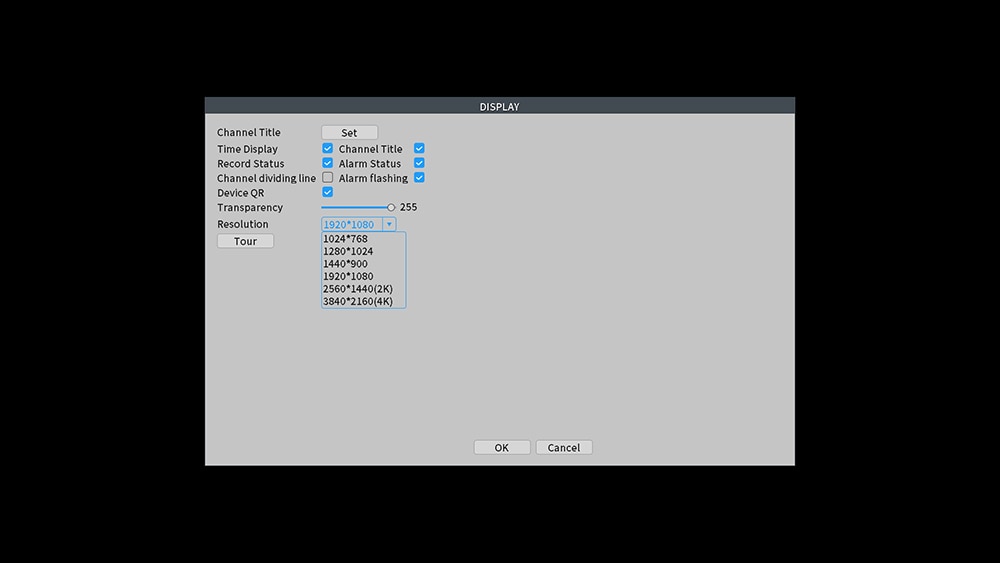

3. VGA and HD question:
NVR have a defult display resolution,Your monitor must use the same resolution then will work first time. The second you can change the nvr output resolution as you need.

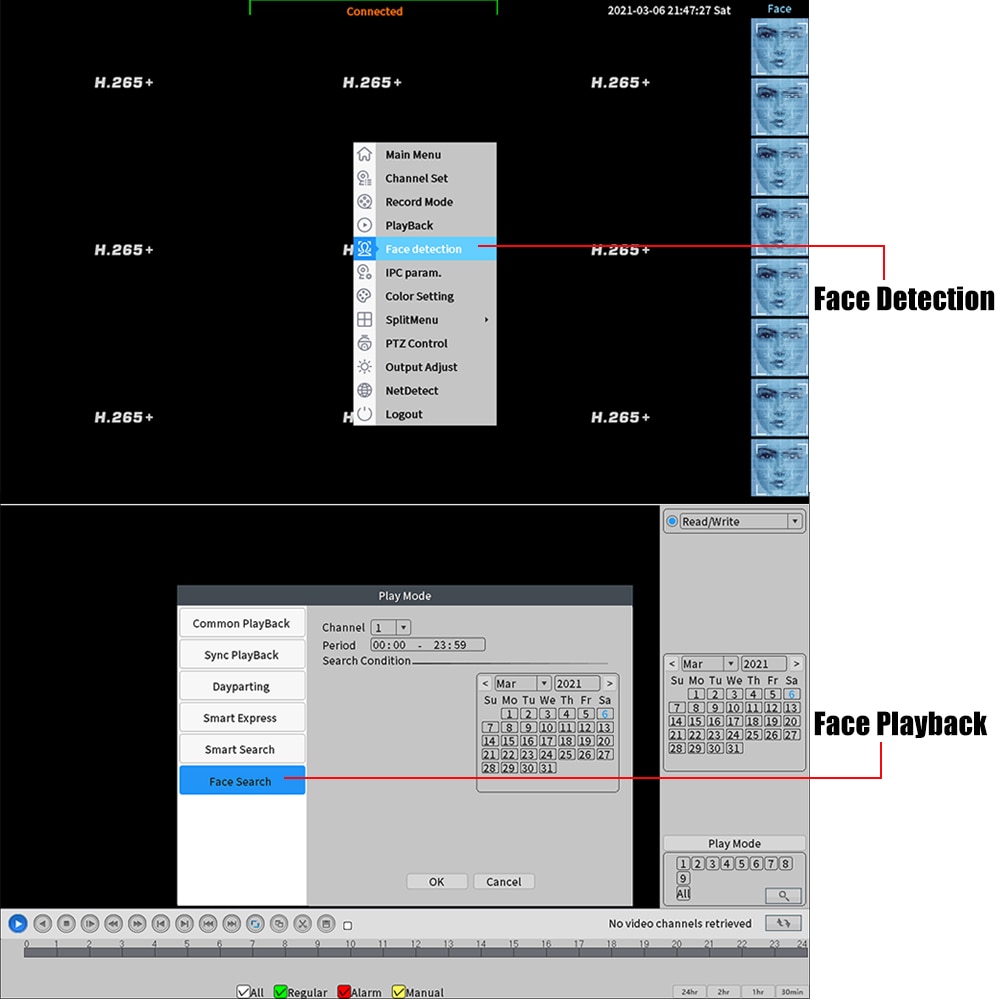

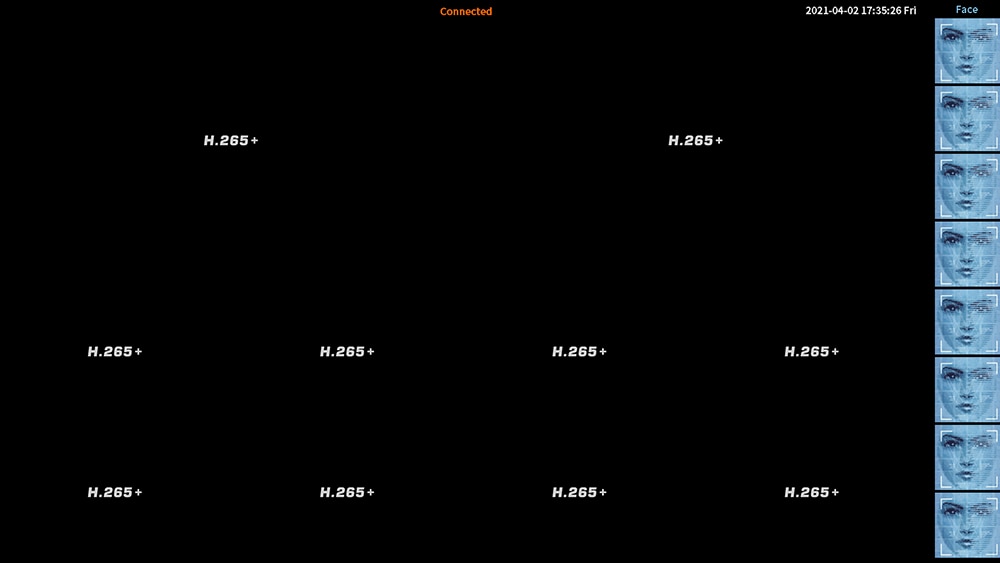

Face Record/Face Detection/Face Playback
Record every face that appears on the lens, without missing any details.
You need use the Face Detction Function IP Camera

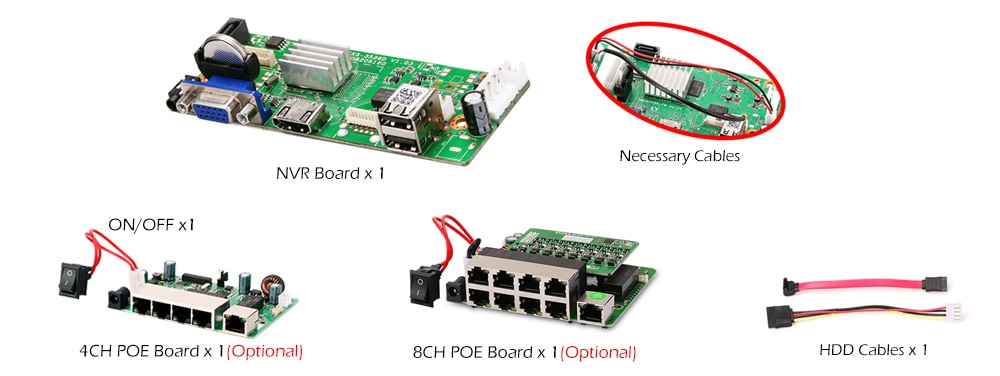

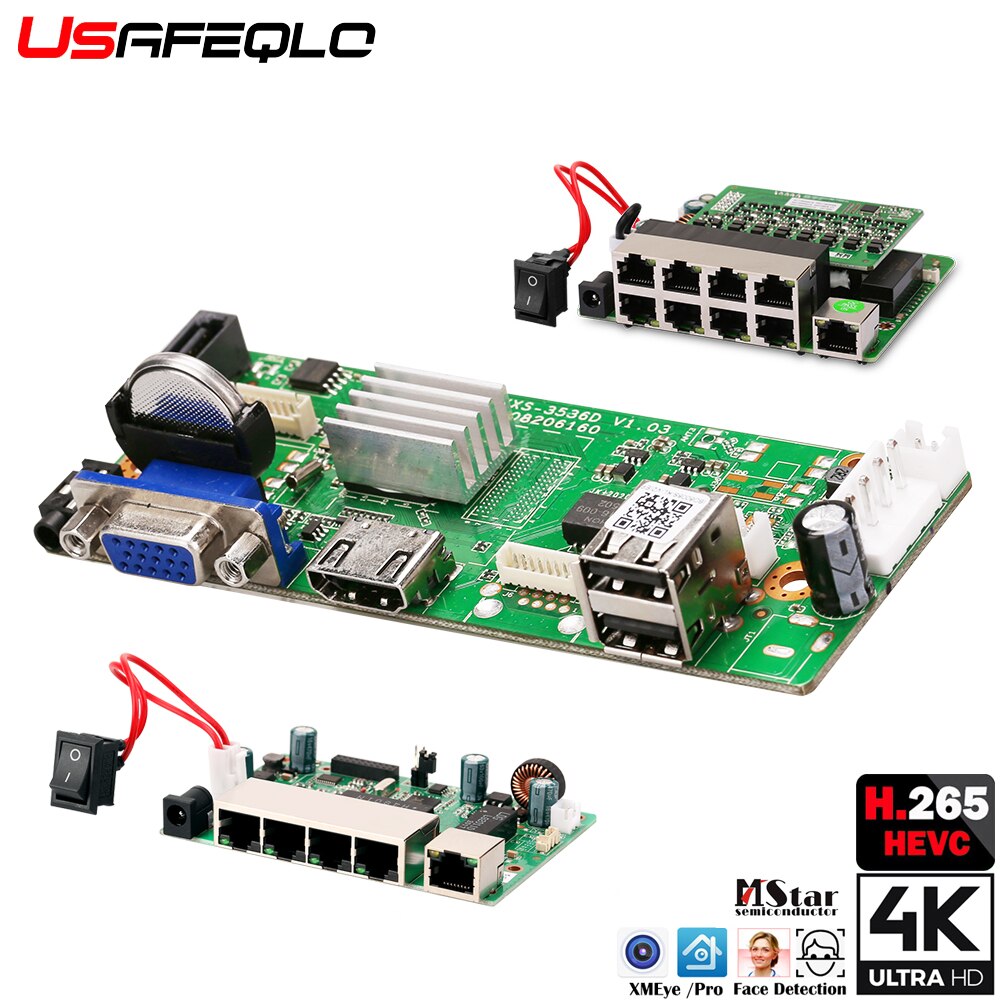

Package Information:
1: 4CH or 8CH POE board x1
2: Cables for contact boards x1

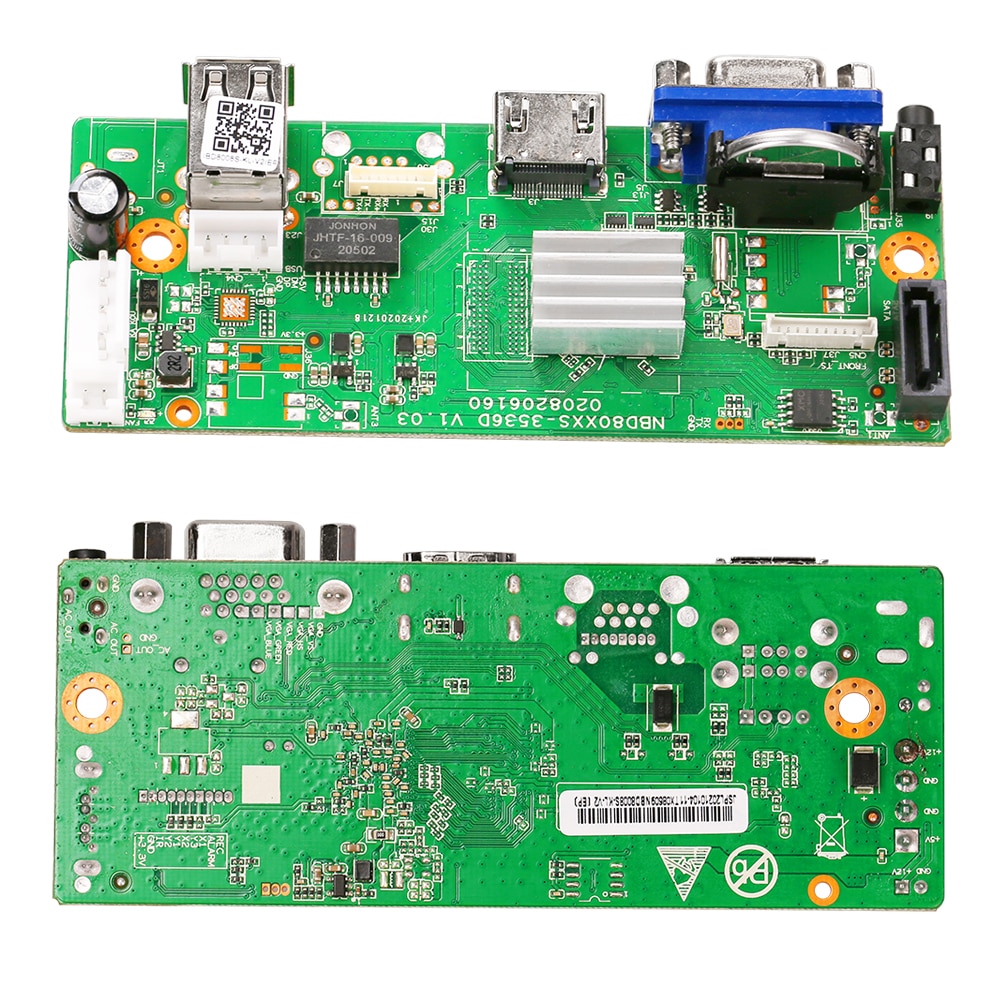

3: NVR Board x1
4: HDD Cable x1
(This link not include the Remote control,remote board and Power adapter)
Newest Firmware Support 10CH 4K/8MP IP Camera
(POE will only 4CH or 8CH for choose. Without Poe will support 10 Pcs 8MP/4K cameras)

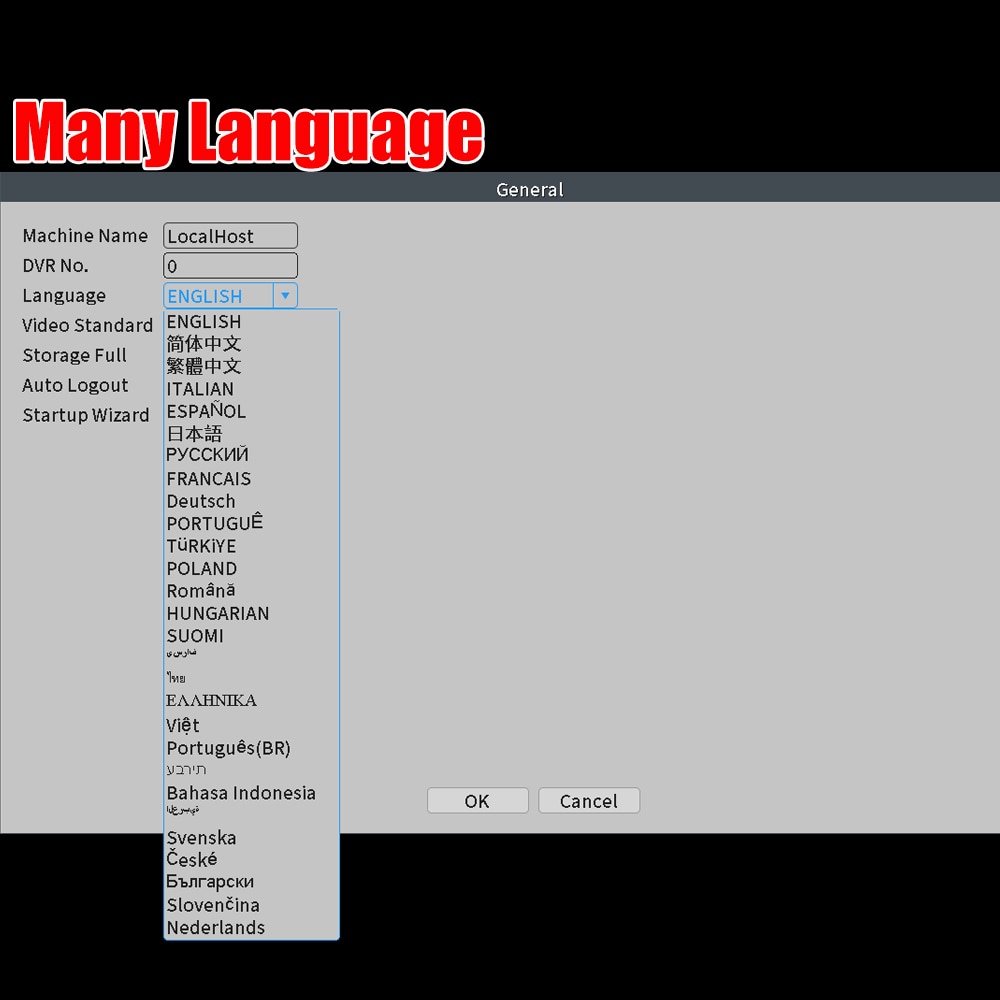

Langauages:
English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...
Total 28 languages
Motion Detection & Email Alert/Record
when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.
Max Support the 4K Display
Advanced H.265++ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.
Easy remote access Anytime anywhere
P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera.
Gift SATA Data and Power cable

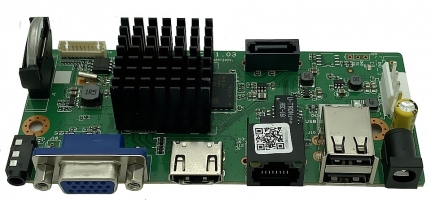

Interface Definition
This link include 4CH and 8CH POE 48V output, if you choose 4CH, will send 4CH POE board with 10CH poe nvr board, if you choose 8CH,will send 8CH POE board with 10CH POE nvr board.
Model | US-0408K-POE | |
System | Main processor | Metar Chip |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/4/9 | |
Video | Video input (IP) | 10*4K (4CH POE/ 8CH POE Optional) |
Access bandwidth | 64Mbps | |
Forwarding bandwidth | 36Mbps | |
Video compression | H.265AI/H.265+ (Compatible with H.265/H.264) H.265 Model must be the same brand,if your camera from another brand,should change to H.264 then contact camera by onvif. | |
Display quality | Max: 3840x2160 | |
Playback quality | 4K | |
Decode | 4K | |
VR | Unsupport | |
human shape / Face | Support(Depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | unsupport | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Local payback | 4K | |
Search mode | Search by Time/Calendar/Event/Channel | |
Record storage | HDD,Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA,1ch HD output |
Audio I/O | 0/1(3.5MM audio output) | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports | |
HDD | 1* SATA(Up to 14TB for each disk) | |
ESATA | No | |
Serial interface | No | |
Other | ||
Power supply | 4CH 52V1.25A(Not include) 8CH 52V2.3A(Not include) | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |
Dimension | 118mm*48mm(NVR PCB) | |
Weight | A total of about 63g (NVR PCB) |
Neutral style
How to receive the parcel without problem ?
When the item dispatch to your place, the first need to check weather have Severely deformed, if yes, You can take some photos and reject the parcel.
Then send the photos to us, we will help you make full refund first, then if you need, you can make a new order to us.
All the International mail allow receiver to check the parcel before receive it.
Shipping
Orders prcessed timely after the payment vrification within 1-3days, we only ship to confirmed order addresses.
If you do not receive your shipment within Delivery protection time, please contact us at firstly.
Warranty&Returns
12 months Manufacturer's limited Warranty for defective items (excluding temns damaged and/or misused after recelpt).
Defective items must be reported and returned within the warranty period.
Feedback
We maintainhigh standards of excellence and strive for 100% customer satisfaction! Feedback is very imporant.
Please contact us before you give us neutral or negative feedback, so that we can address your concerns satisfactorily.
- POE: 8 Port
- e-Cloud(P2P): YES
- Two-way Audio: YES
- Alarm Action: FTP Photo,Email Photo,Local Alarm
- Backup Type: Hard Drive
- Supported Operating Systems: Microsoft Windows 98,Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows 7,Mac OS
- Supported Mobile Systems: iPhone OS,Android,Windows Mobile
- IP Mode: Static IP address
- Wireless Security: WEP
- Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,PPPoE,FTP,DNS
- Communication Interface: None
- Network Interface: RJ45 10/100M
- Hard Drive Size: 3.5''
- Hard drive Interface Type: SATA
- Audio Output: None
- Video Output: 1VGA + 1HDMI-Compatible
- Video Standard: NTSC,PAL
- Audio Compression Format: G711A
- Audio Input: 1 Channel
- Video Input Interface: RJ45
- Compression Format: H.265,H.264
- Technology: Network
- Model Number: USA-04/08E
- Brand Name: USAFEQLO
- Origin: Mainland China
- Certification: NONE
- Smart home platform: Other
- Main processor: Mstar
- Video compression: H.265/H.264
- Display quality: Max: 4K
- Playback quality: 4K
- HDD: 1* SATA(Up to 14TB for each disk)
- 4CH /8CH POE: optional
- Face Identification: Support
