WSDCAM IPC Tester 8MP AHD/CVI/TV/SDI CCTV Tester with HDMI VGA Input 5in CCTV Monitor for IP Camera Tester CFTV Tester
5.0 (10 votes) | 31 orders
Price:
US $937.34 - 1046.88
Discount Price:
US $
502.65 -
561.39
-46%
- Color
-
-
Features/ Model | IPC-5000Plus | IPC-5100Plus | IPC-5200Plus |
8MP AHD/8MPTVI/8MPCVI | √ | √ | √ |
4K IP /Analog | √ | √ | √ |
DC12V 3A /48V PoE output | √ | √ | √ |
HD-SDI/3G-SDI/EX-SDI 2.0* | X | X | √ |
HD output,1080P | √ | X | X |
HD INPUT 4K 30 FPS* | X | √ | √ |
VGA IN* | X | √ | √ |

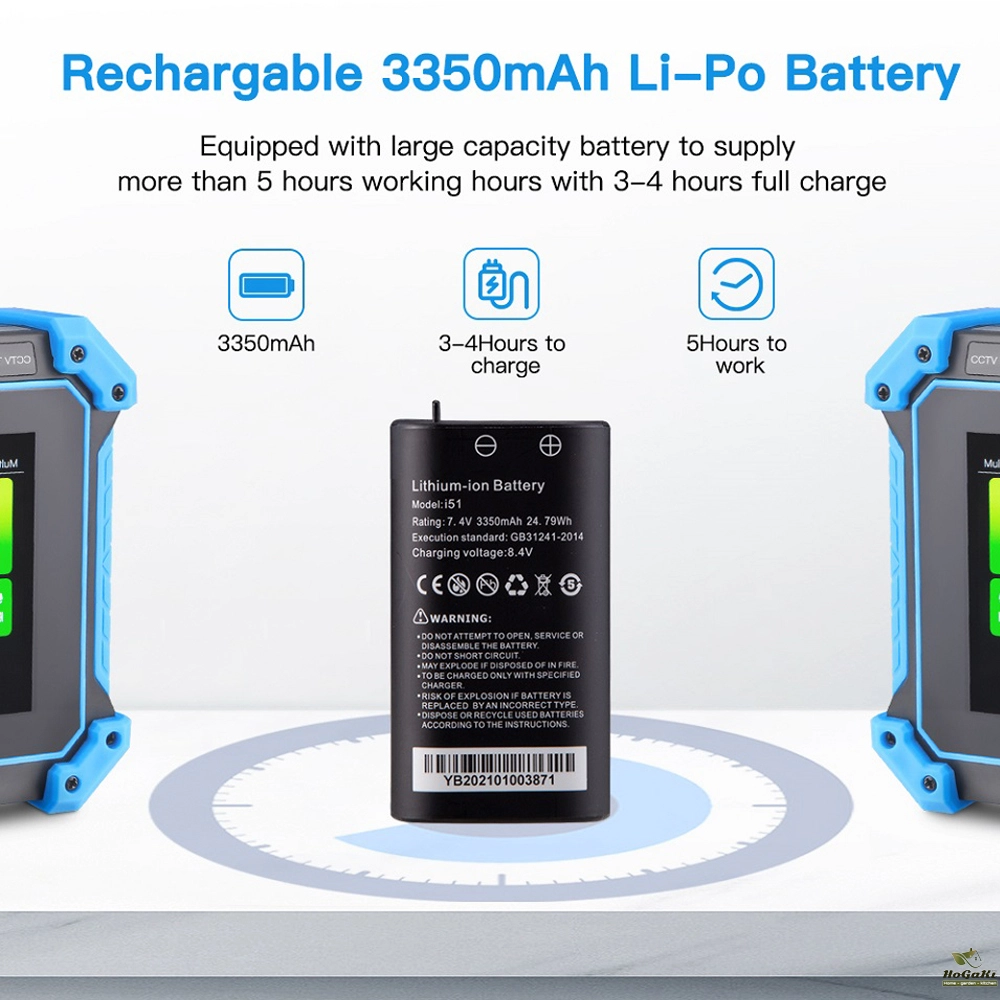

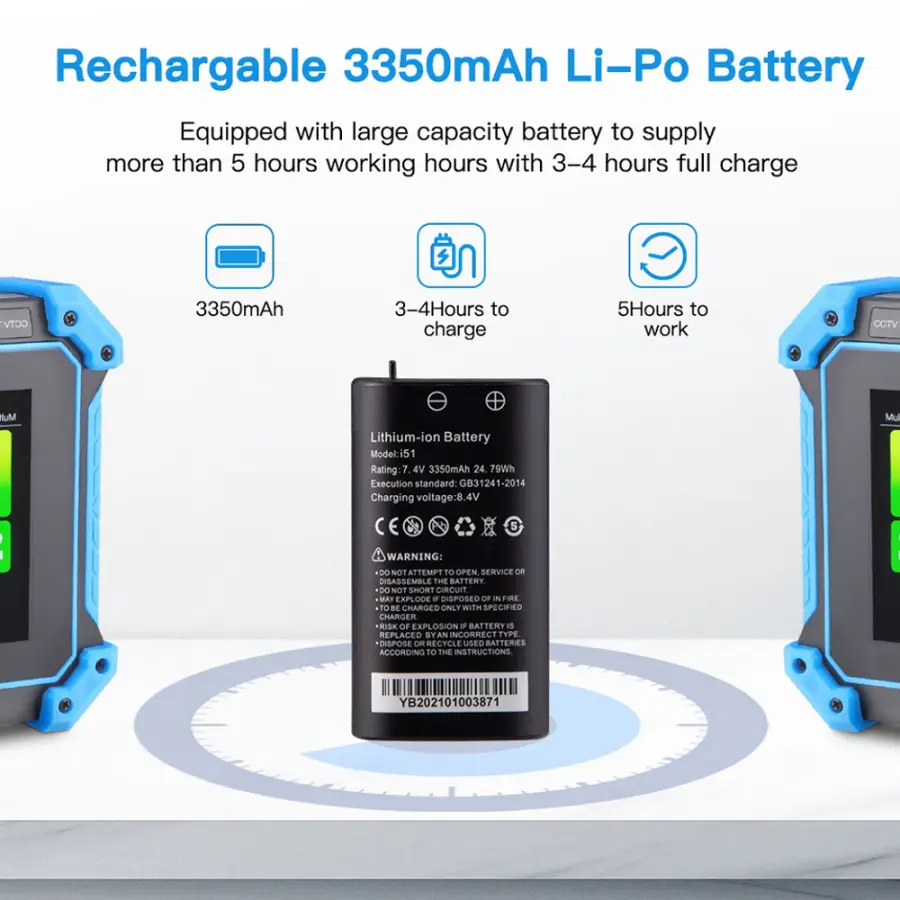

Battery | 2600mAh | 3350mAh | 3350mAh |
Working hours | 5 hours | 6 hours | 6 hours |
Digital Cable tracer | Optional | Optional | Optional |
Advanced UTP cable test, check fault point of the RJ45 cable plug | √ | √ | √ |

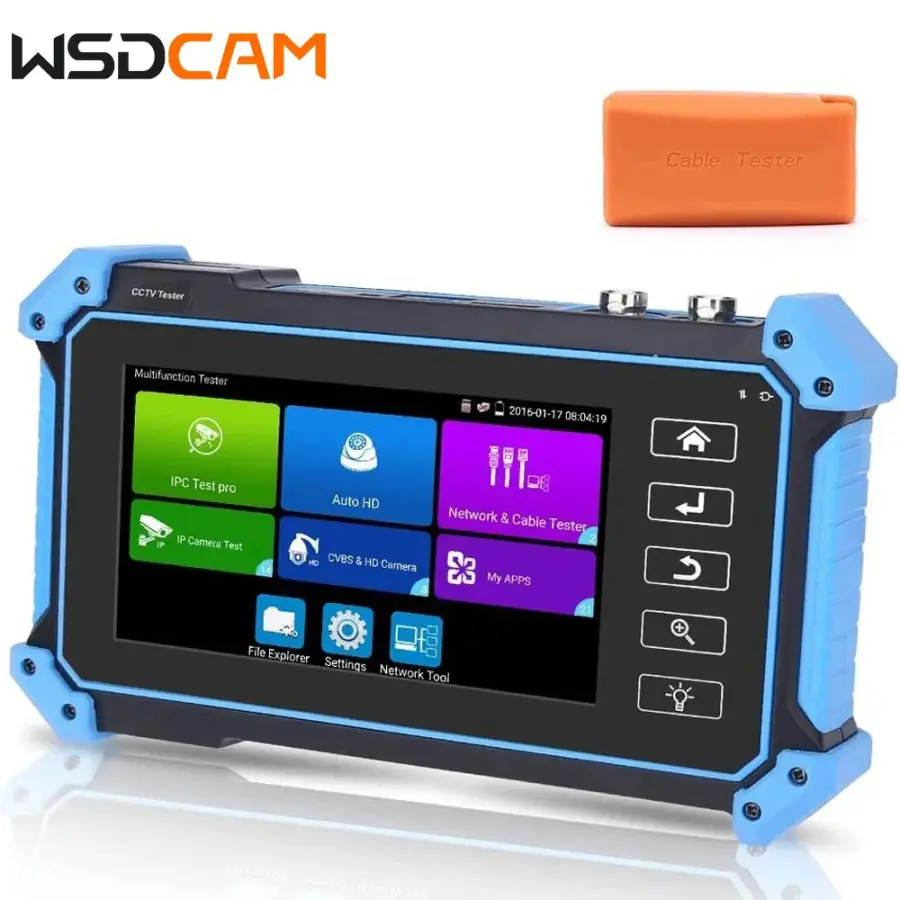

Newest 5 inch 4K IP CVI TVI AHD SDI All in one VGA & 4K HD input IP Camera Tester

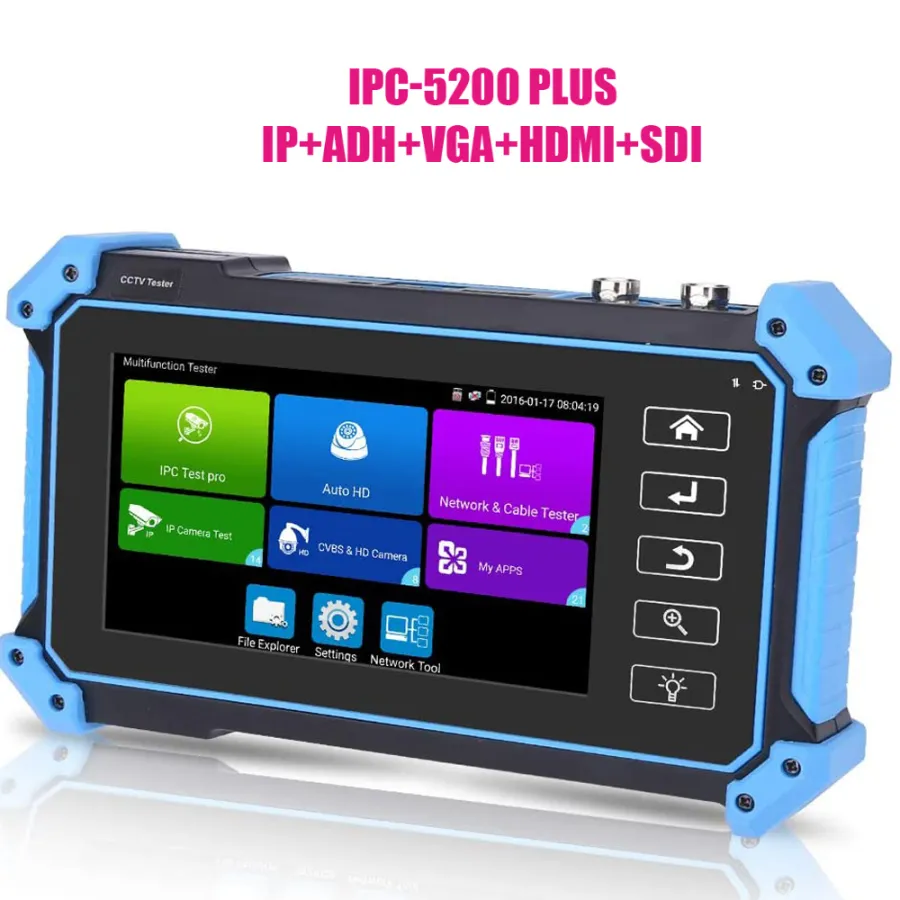

Model: IPC-5200 Plus

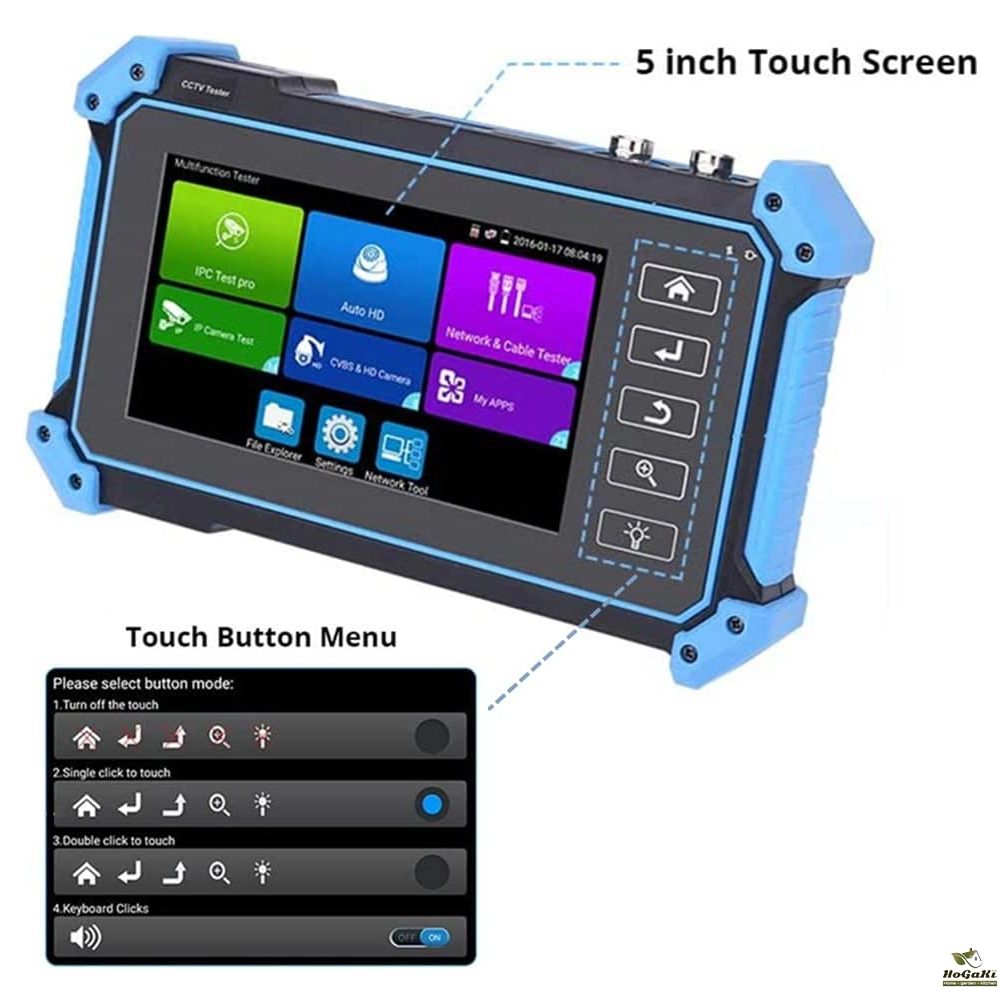

● 5 inch IPS touch screen, 1920x1080 resolution
● 8MP CVI/ TVI/ AHD camera test
● 8MP EX-SDI, HD-SDI, 3G-SDI camera test
● H.265/H.264, 4K video display via mainstream

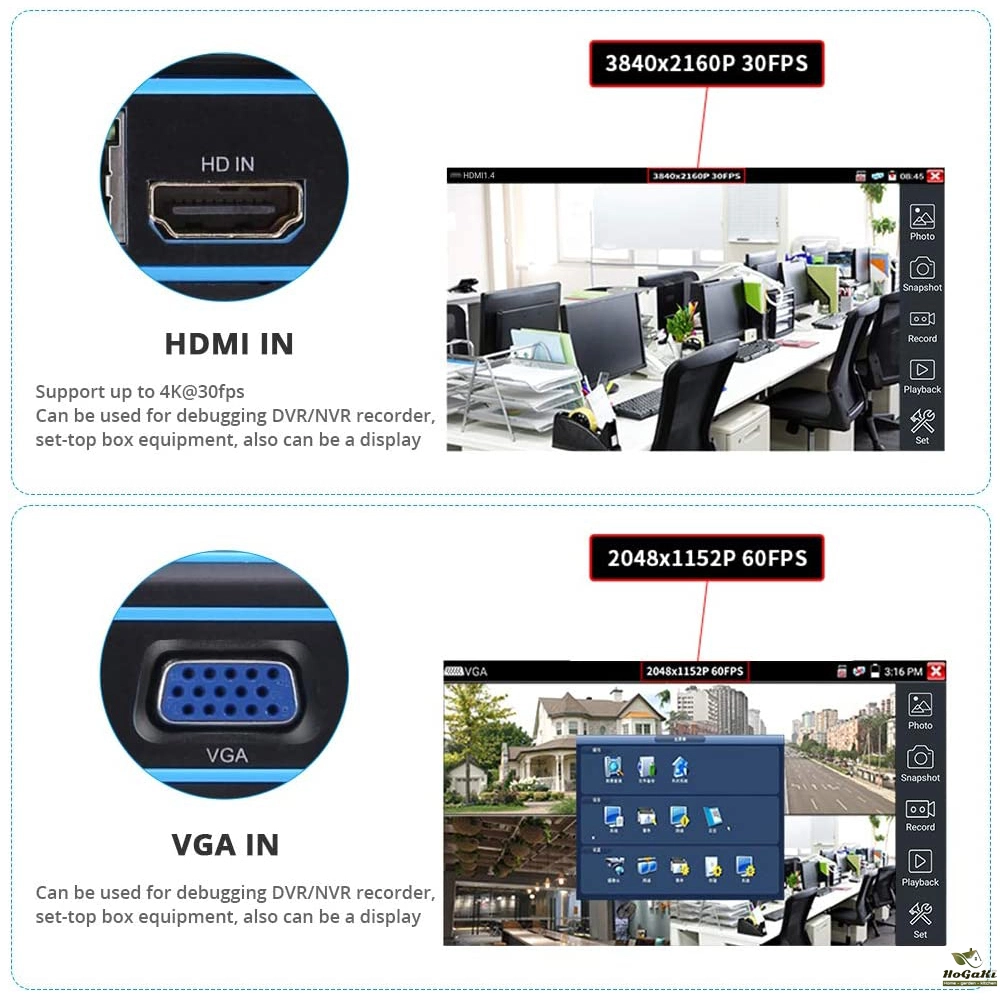

● VGA input, support 1920 x 1200 60FPS
● HD input, support 4K 30FPS
● DC12V 3A, 48V PoE power output
● Auto HD, auto recognize HD coax camera type and resolution
● RJ45 TDR cable test, cable opens ,shorts and length test ,Max180m.
● UTP cable test, detect the near-end, mid-end and far-end fault pointof the RJ45 cable plug
【IP Camera Tester】The network camera tester supports the maximum 8MP 4K H.265/H.264 IP POE camera test. Powerful network tools can help you detect and set various network parameters. Support POE IEEE802.3AF/48V, maximum power 25.5W, UTP cable test, POE test RJ45 TDR cable test.
【5 -in -1 Coaxial CCTV Camera Tester】Support maximum 8MP (3840x2160P) TVI / AHD / CVI / camera test, supports UTC PTZ control and call OSD menu. The built -in "Auto HD" APP can automatically identify the camera type when watching HD AHD / TVI / CVI Camera. The CCTV tester also supports the CVBS simulation camera test.

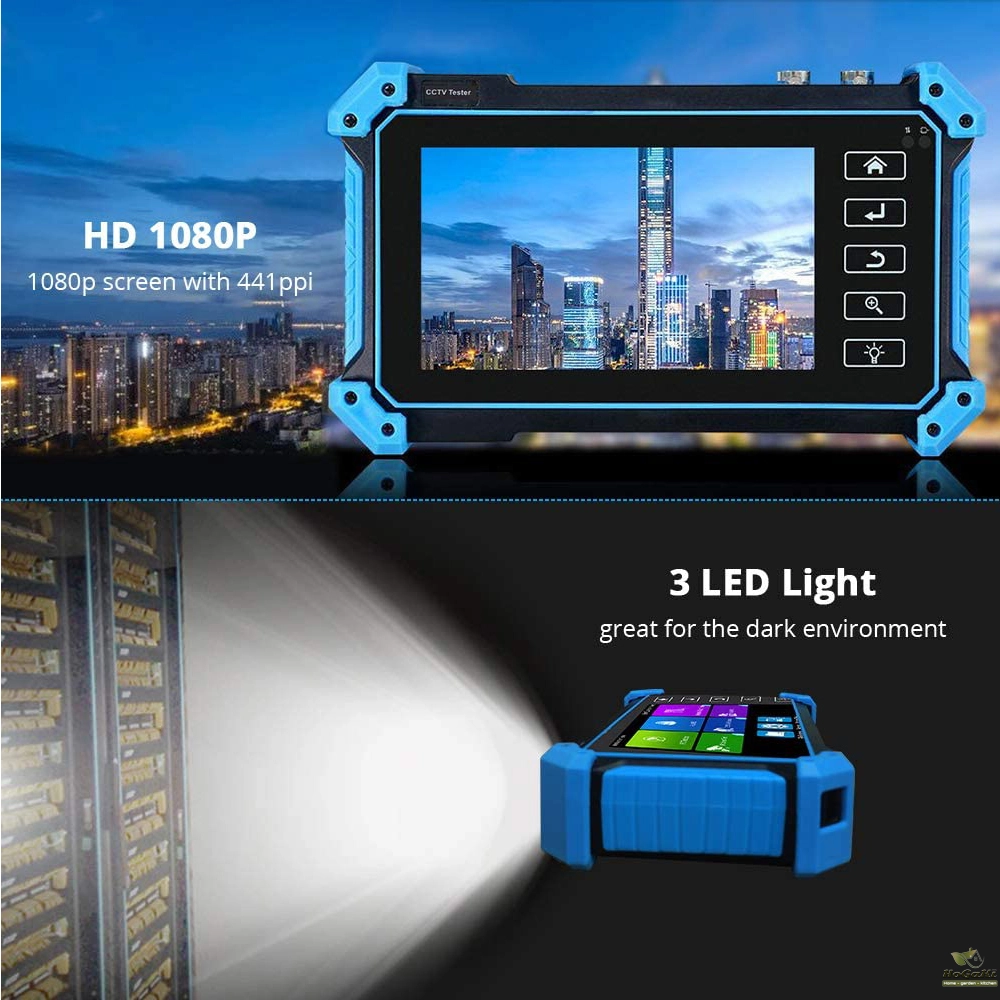

【Multifunctional Tester】The CCTV tester has a 5 -inch (about 12.7 cm) 3840 x 2160P touch screen, which can display the real resolution of the IP camera image. Built -in media player. Built -in WIFI to create WIFI hotspots. VGA and HDMI input, LED lights, calculators, supporting snapshots, video recording and playback; camera tester using Android systems, so you can also install the required applications.
【PTZ Controller】Video monitor tester built-in PELCO-D / P PTZ control protocol, etc. Through their own RS485 interface, users can control the upper and lower, left, and right rotation of the clouds, and adjust a machine zoom, focus, aperture size.
【Warranty & Professional Technical Support】Video monitor tester built-in PELCO-D / P PTZ control protocol, etc. Through their own RS485 interface, users can control the upper and lower, left, and right rotation of the clouds, and adjust a machine zoom, focus, aperture size.
Packaging Details
- Unit Type:
- Package Weight: 1.650
- Package Size: 10x3x10
- Brand Name: WSDCAM
- Lens: Security Camera Tester
- Origin: Mainland China
- Hign-concerned Chemical: None
- Sensor Size: 1/4 inch
- Maximum IR Distance(m): 0
- Sensor Type: CMOS
- Model Number: IPC-5200 Plus
- Certification: CE
- Sensor Size: 1/3 Inch
- IP Camera Test:: Support 4K H.265/H.264
- CVI TVI AHD EX-SDI Camera Test:: Support 8MP
- Analog Camera Test:: Support
- UTP cable test:: Support
- HD Input:: Support 4K 30FPS
