Wireless Light Wall Switch Relay Receiver RF 433Mhz 1/2/3Gang Panel Switch Remote Control Interruptor for LED Lamp 10A 110V 220V
ID: 151118

Wireless Light Wall Switch Relay Receiver RF 433Mhz 1/2/3Gang Panel Switch Remote Control Interruptor for LED Lamp 10A 110V 220V

4.7 (913 votes) | 4000 orders
Price: US $13.01 - 31.84
Discount Price:
US $ 9.95 - 20.59
-24%
Color
Quantity

Buy Now
Add to Cart

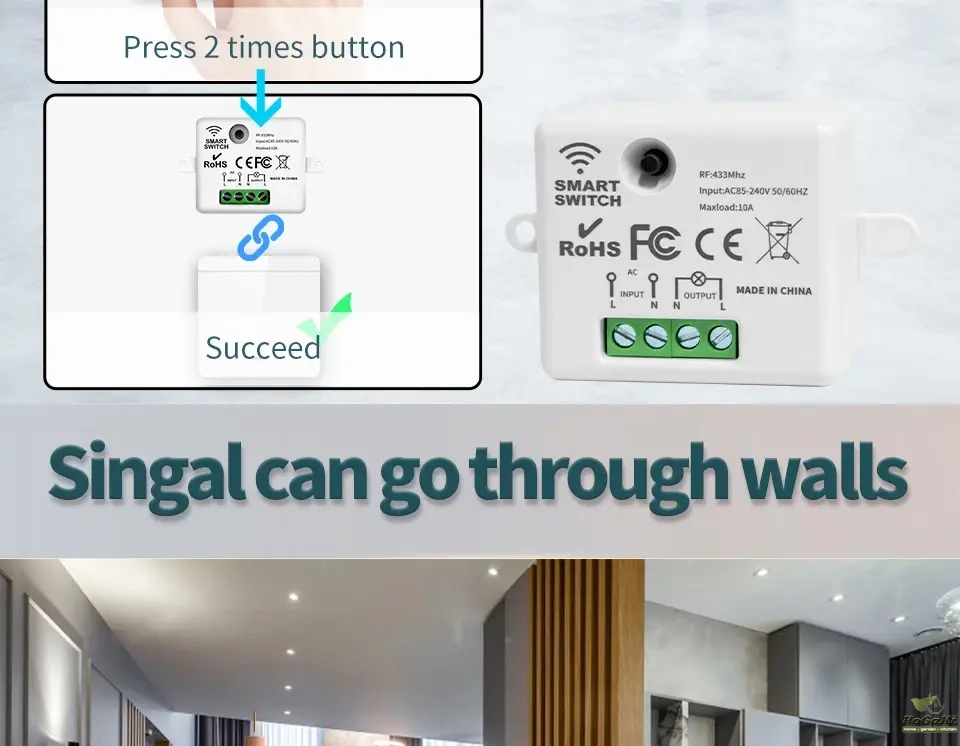

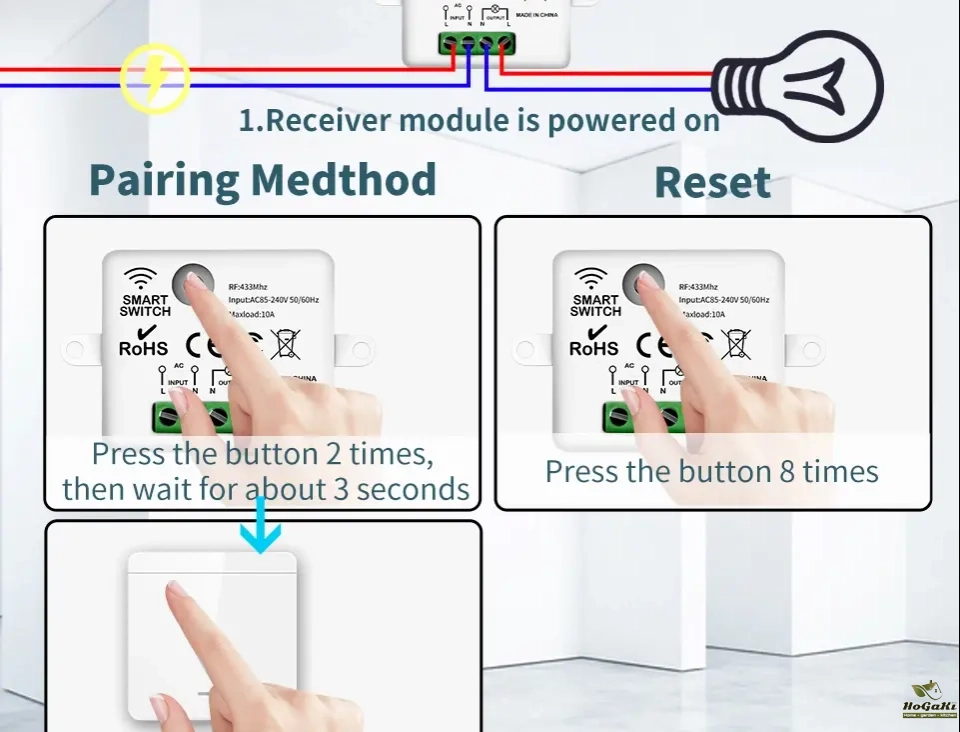

How to get the signal?

Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.

How to clear the signal?

Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;

Specification:

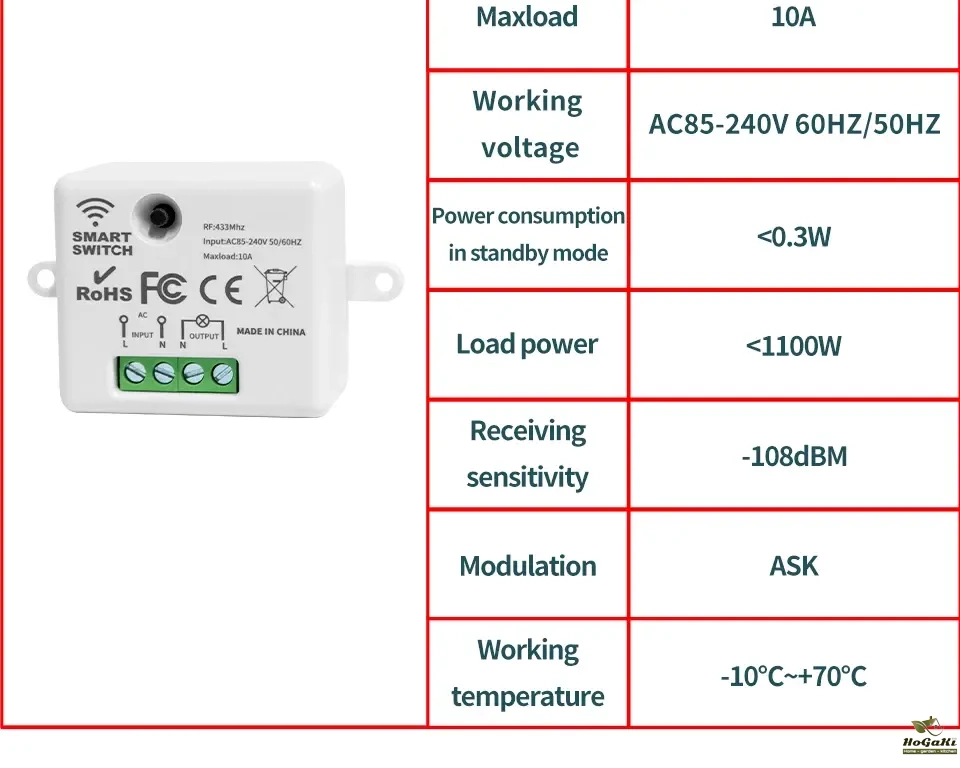

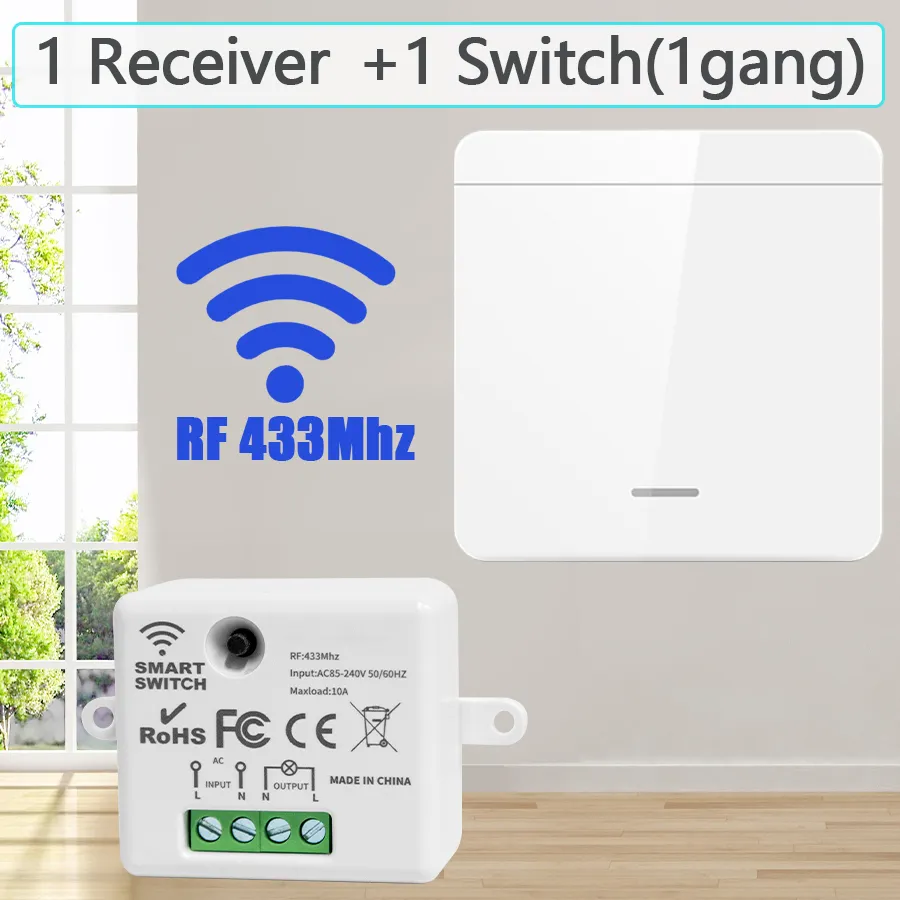

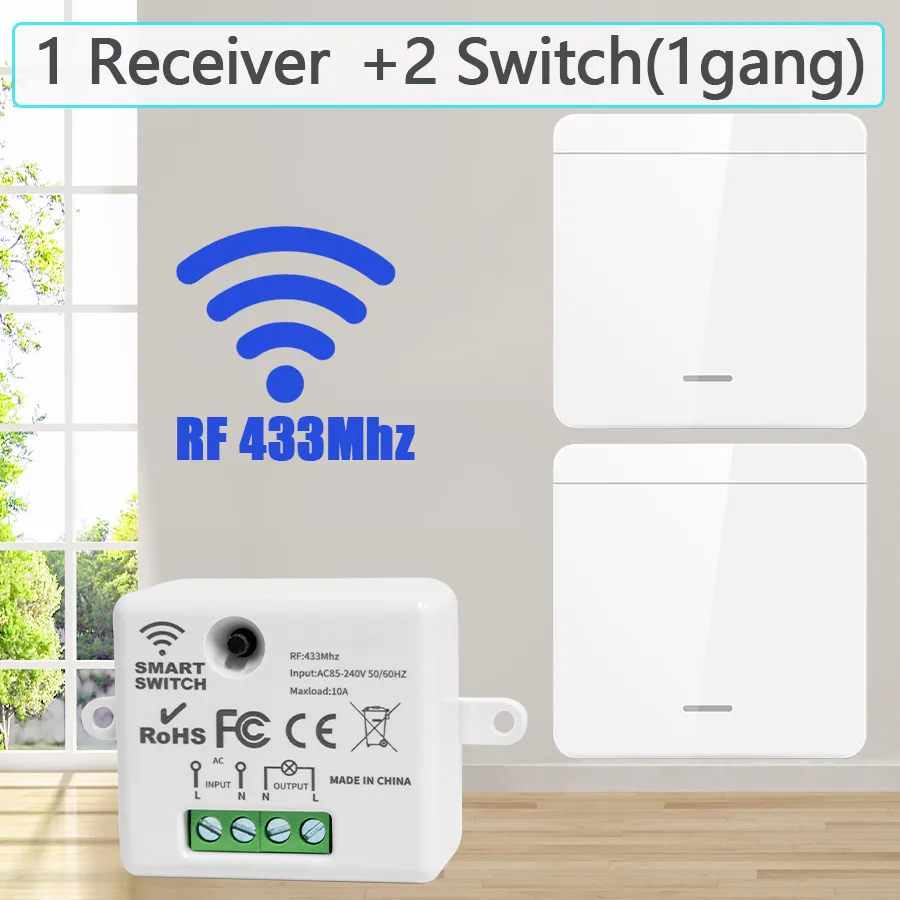

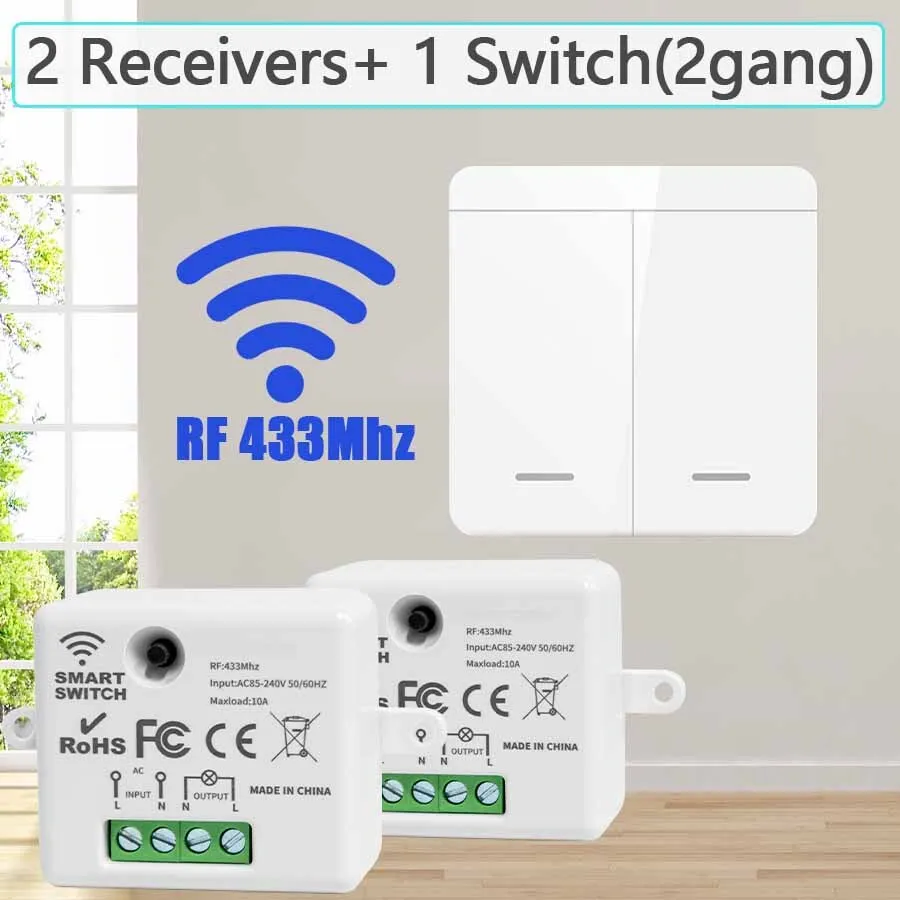

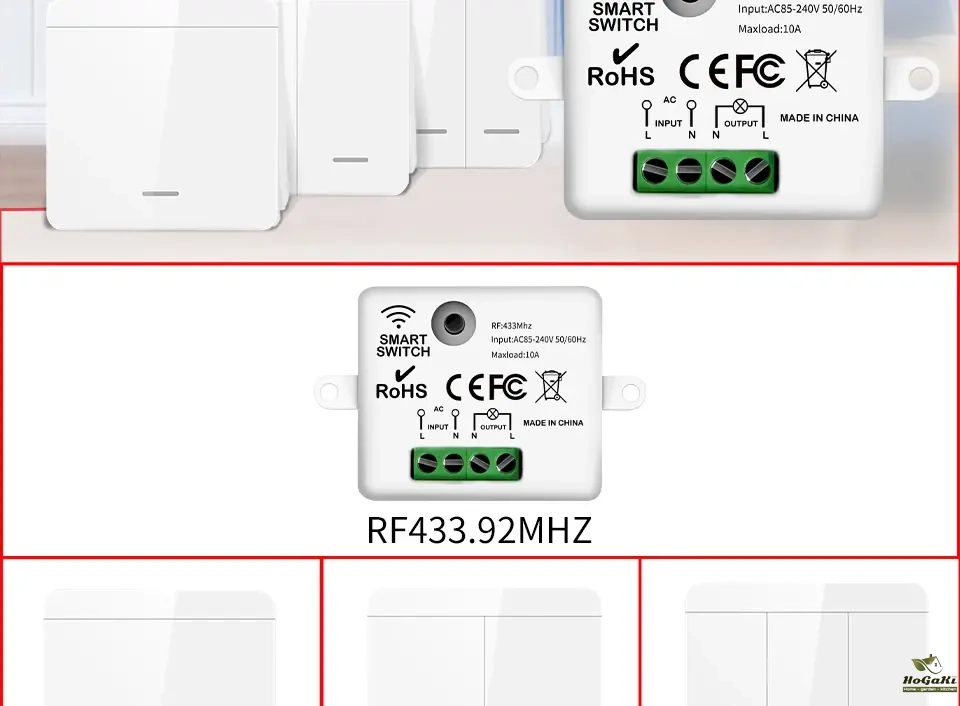

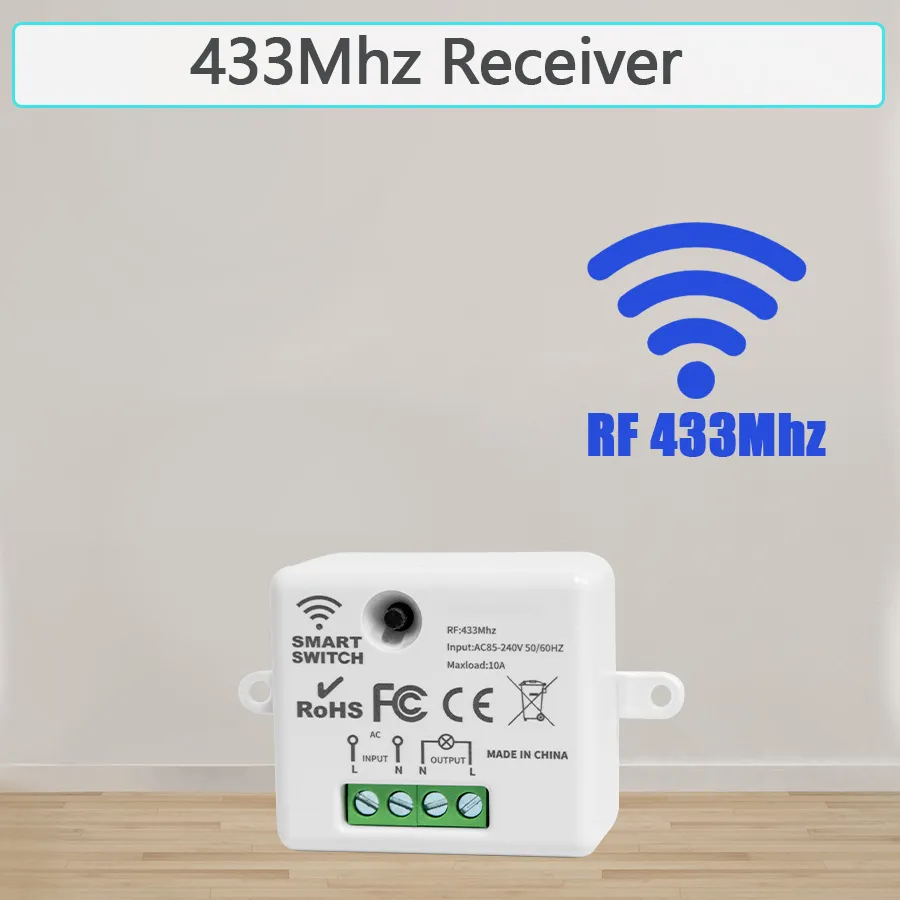

controller (Receiver):
Working voltage: AC85-240V 60HZ/50HZ
Working frequency: 433MHZ
Power consumption in standby mode: <0.3W
Load power: <1100W
Receiving sensitivity: -108dBM
Working way:wireless control
Coding way: learning code
Modulation: ASK
Working temperature: -10*C~+70"C

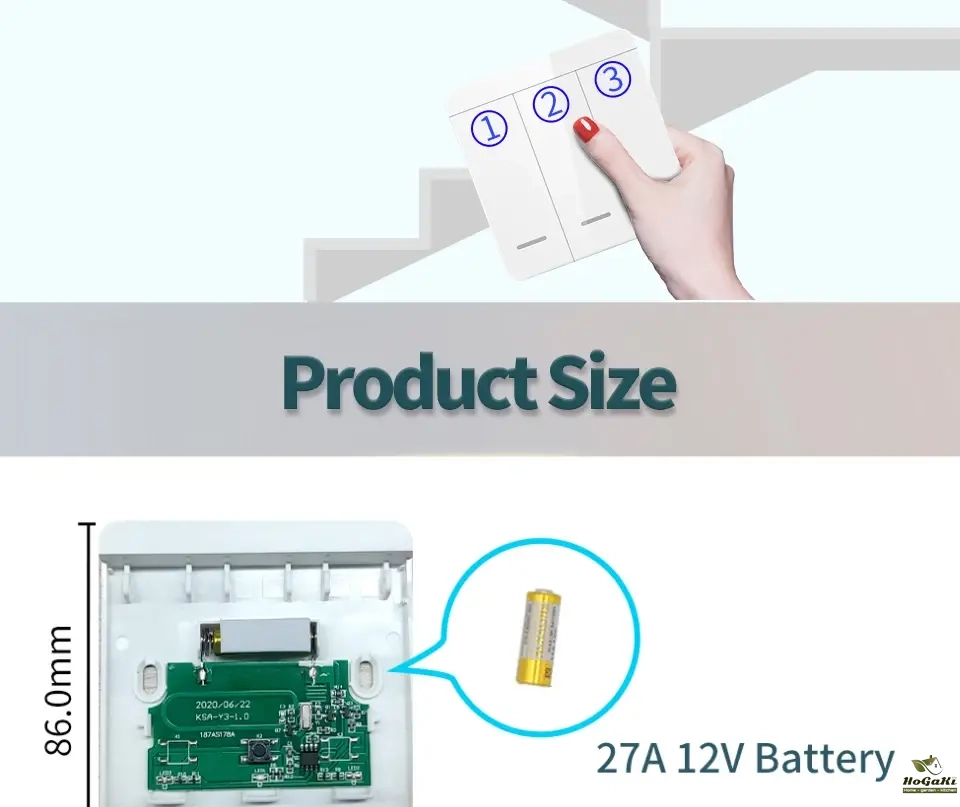

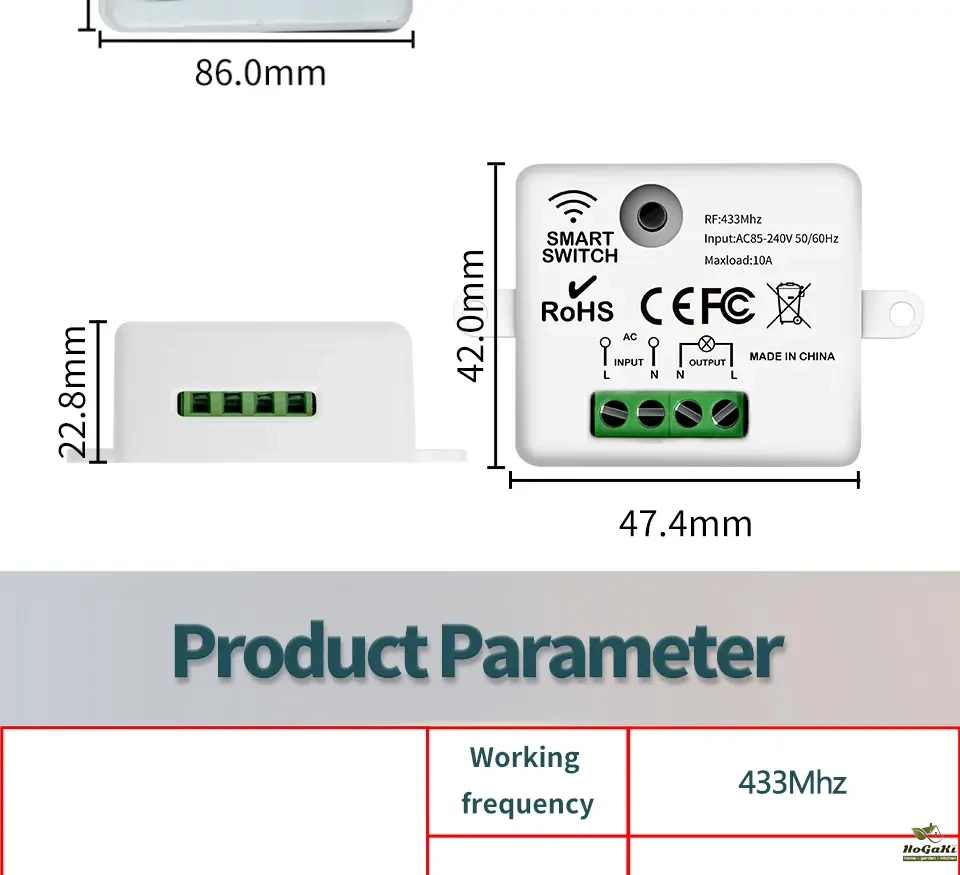

Size: 47.4*42*22.8 (mm)

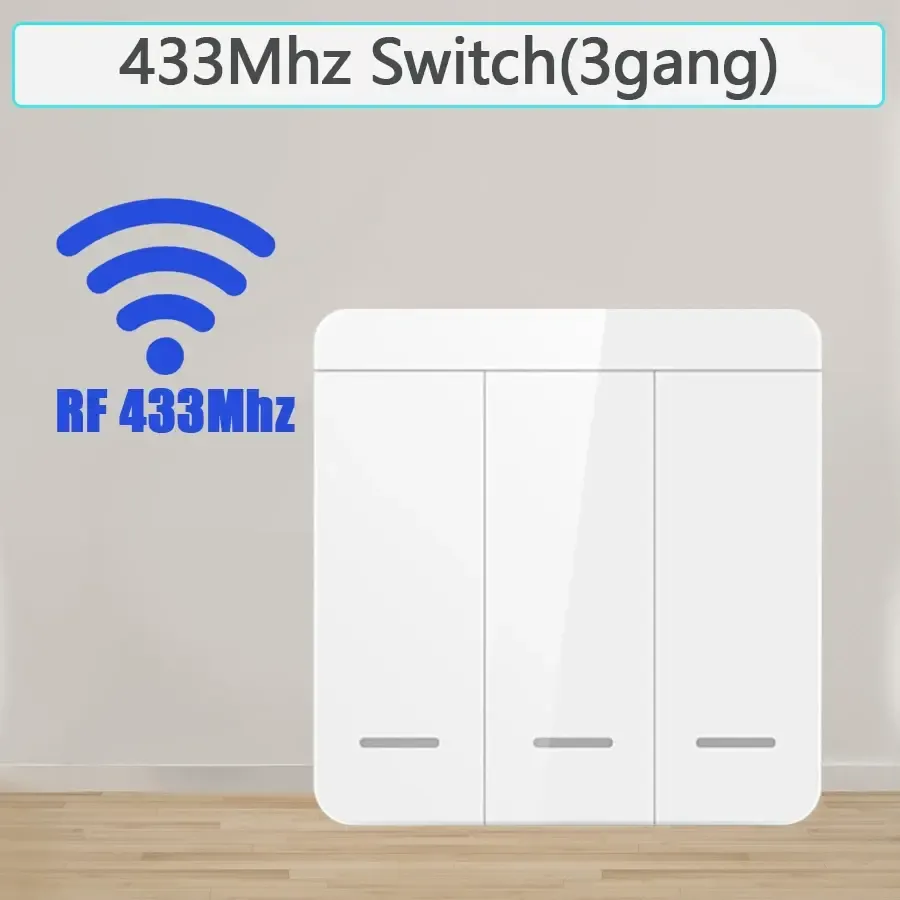

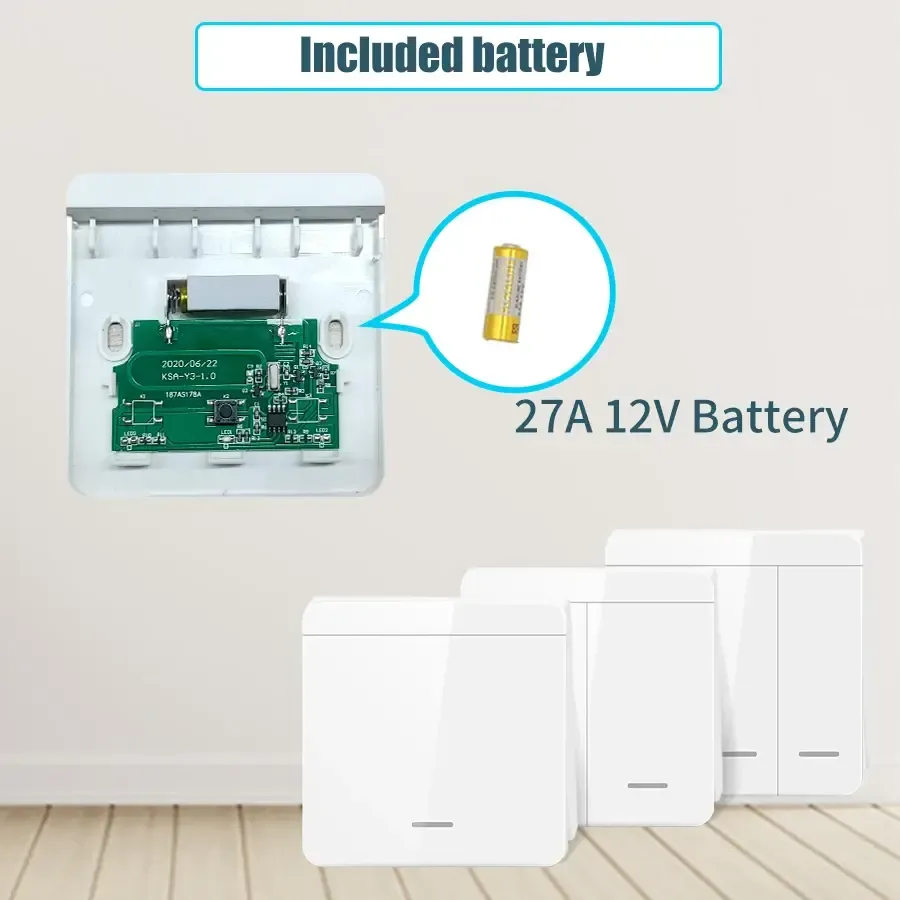

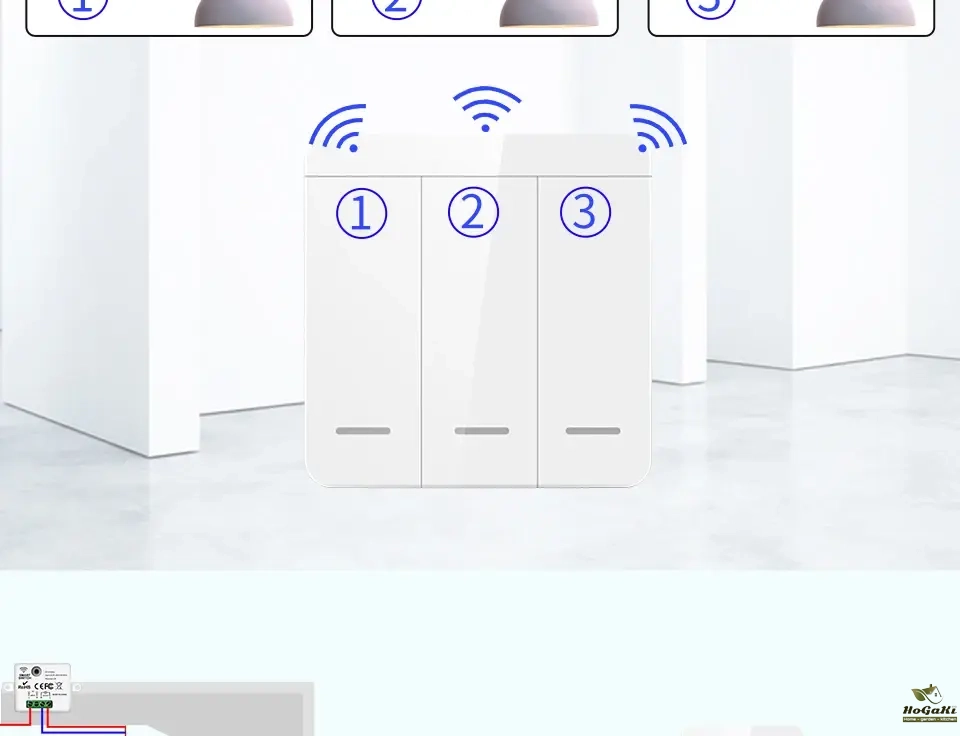

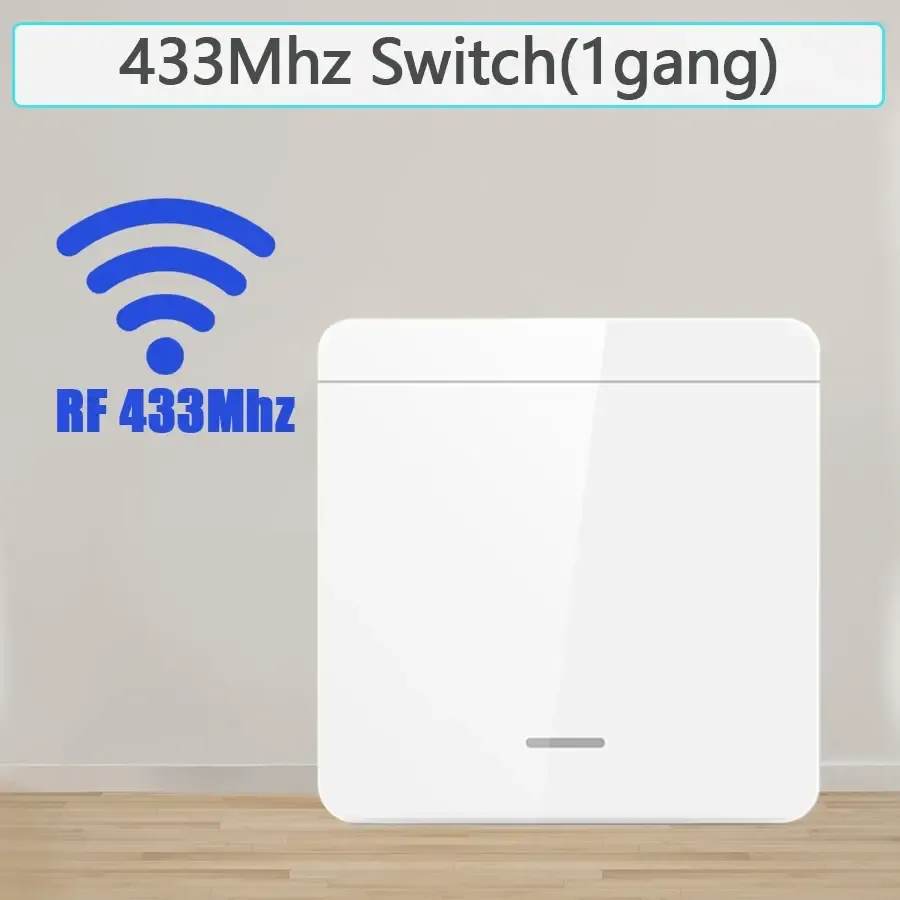

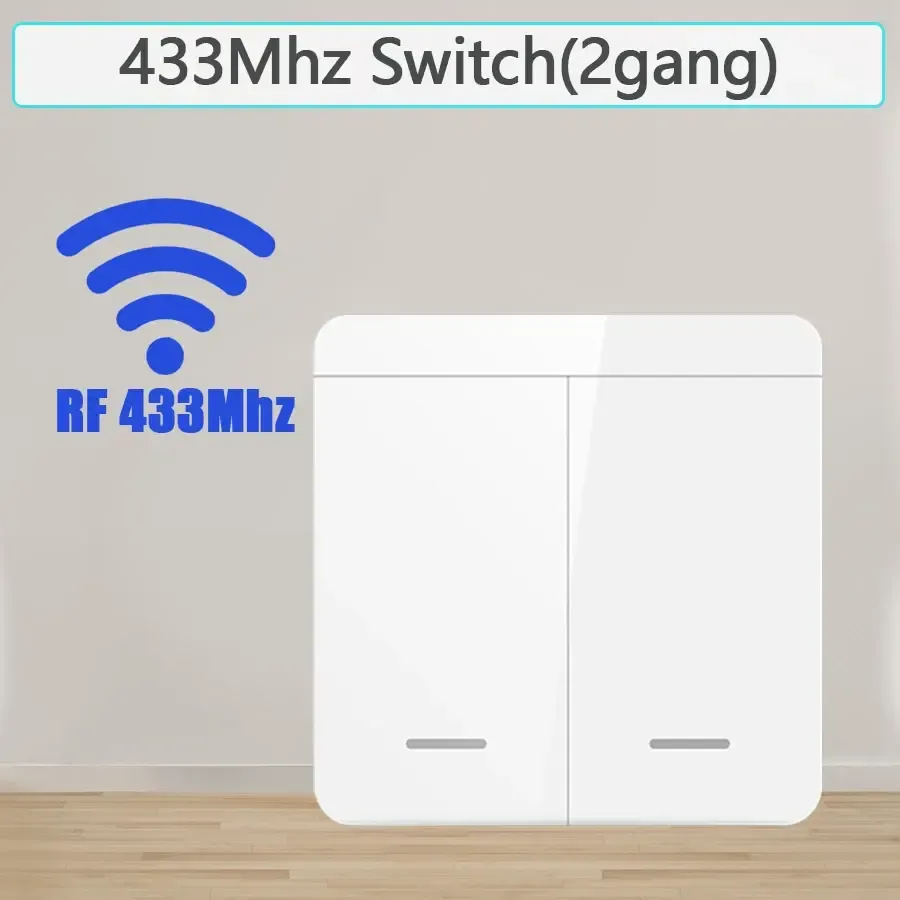

Wireless Wall Switch:
Working voltage: DC3.0V
working frequency:433MHZ
Power consumption in standby mode:<1uA
Transmitter power: <10mW
Working way: wireless control
Coding way: EV1527 learning code
Modulation: ASK
Working temperature:-10"C~+70*C
Size: 86*86* 15mm

Feature:

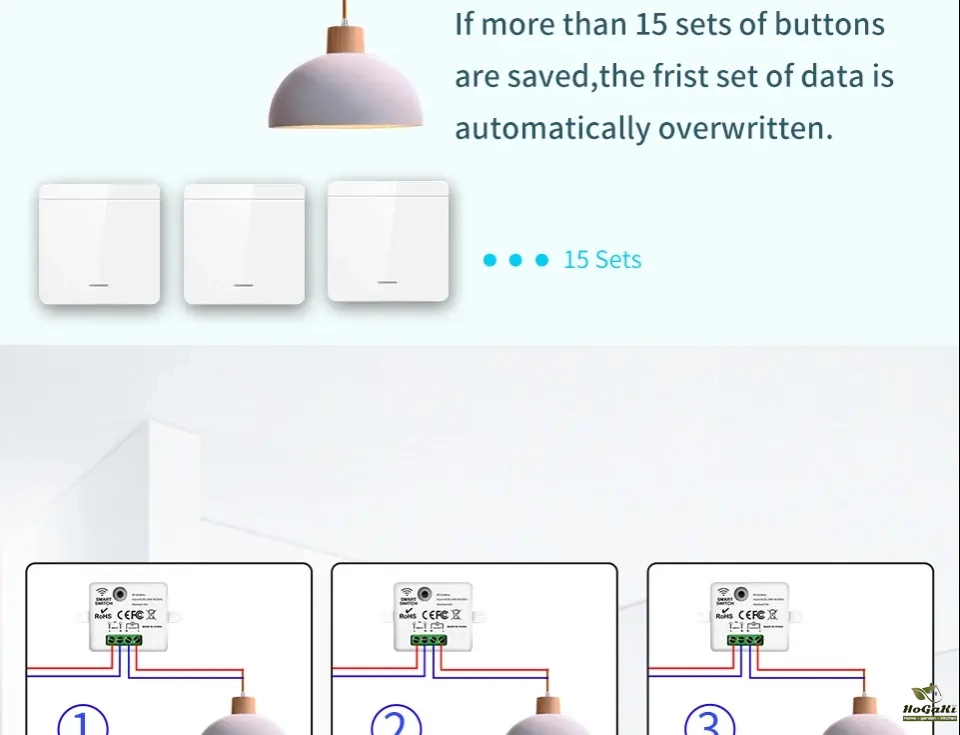

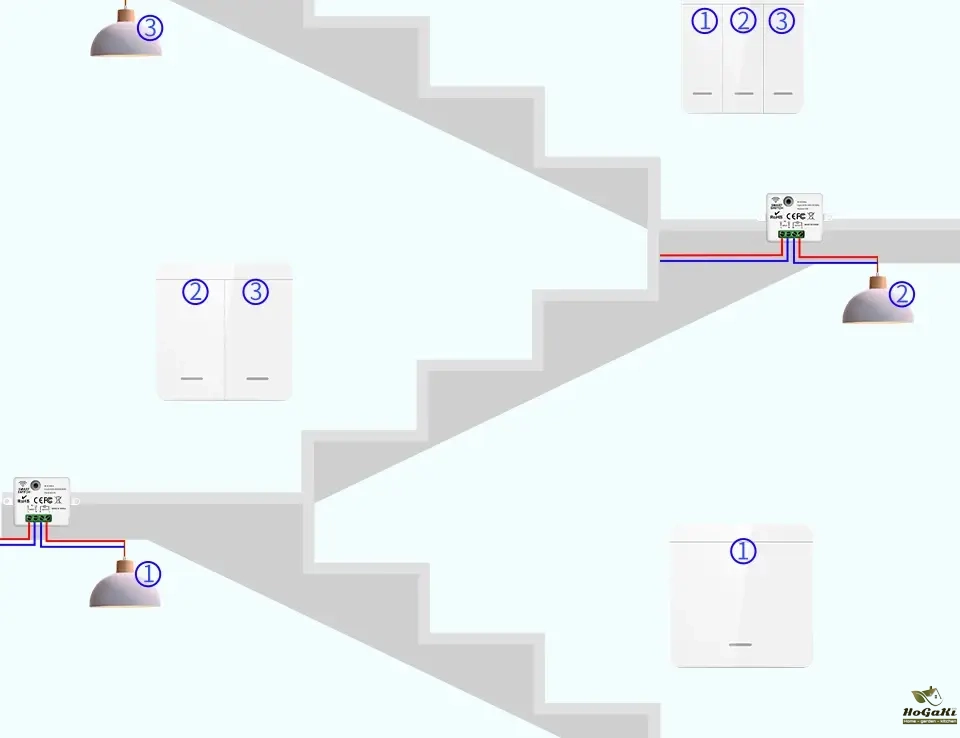

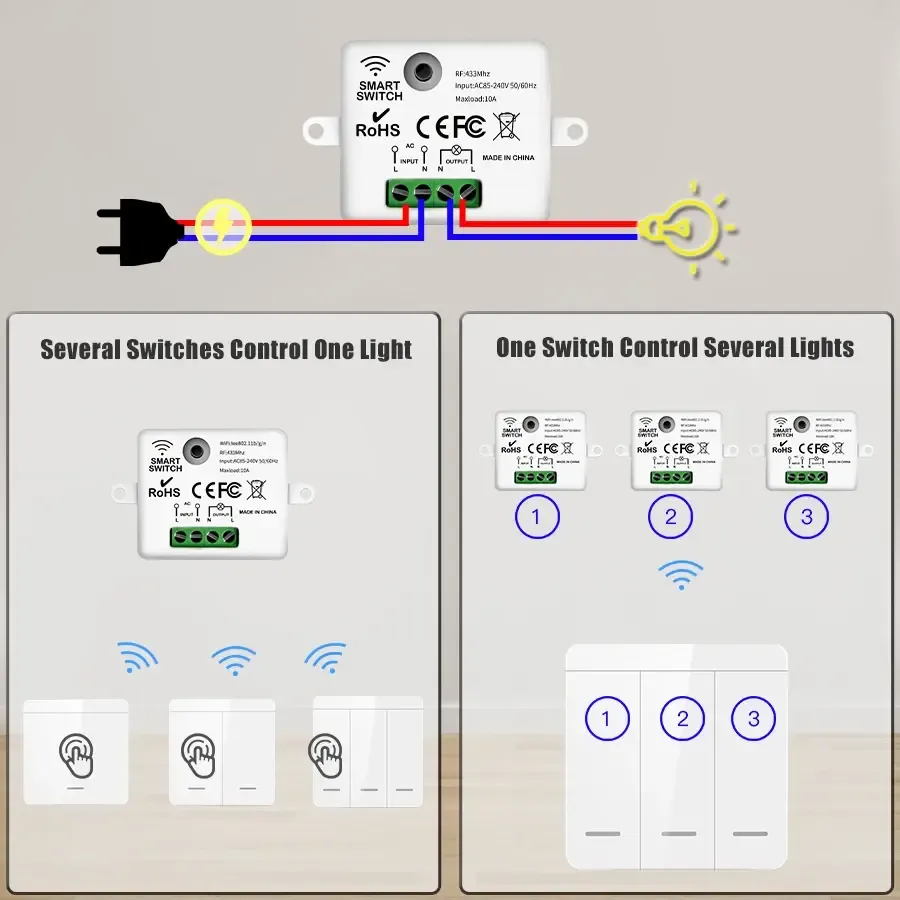

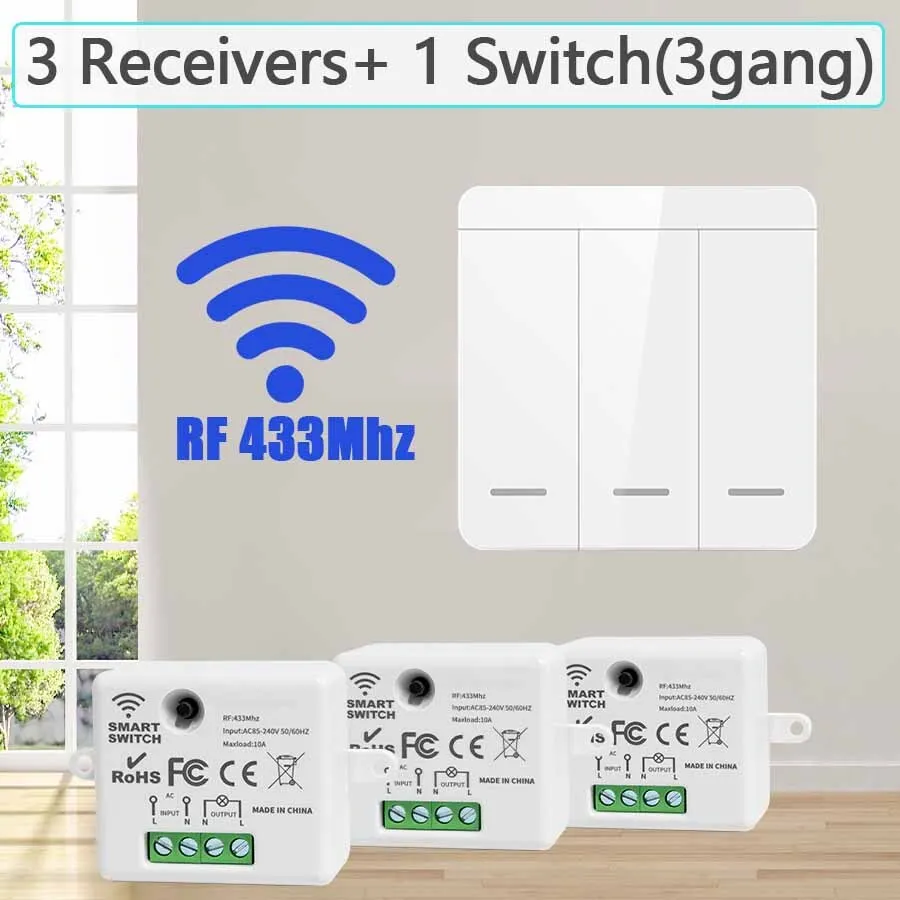

1.Multi switches can control different receivers.Save energy,avoid darkness.
2.Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.
3.It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.






Packaging Details

  • Unit Type:
  • Package Weight: 0.062
  • Package Size: 9x2x9

  • Brand Name: GGBEE
  • Material: Plastic
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Current: 10A
  • Features: RF 433
  • Item Type: SWITCHES
  • Switch Type: REMOTE CONTROL
  • Certification: CE
  • Certification: ce
  • Certification: ROHS
  • Model Number: Smart switch
  • Is Smart Device: No
  • Choice: yes
