I.Key Features

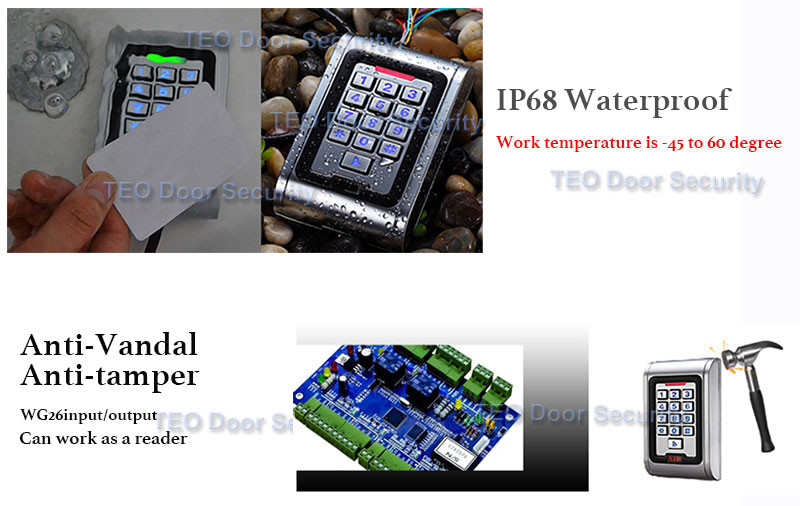

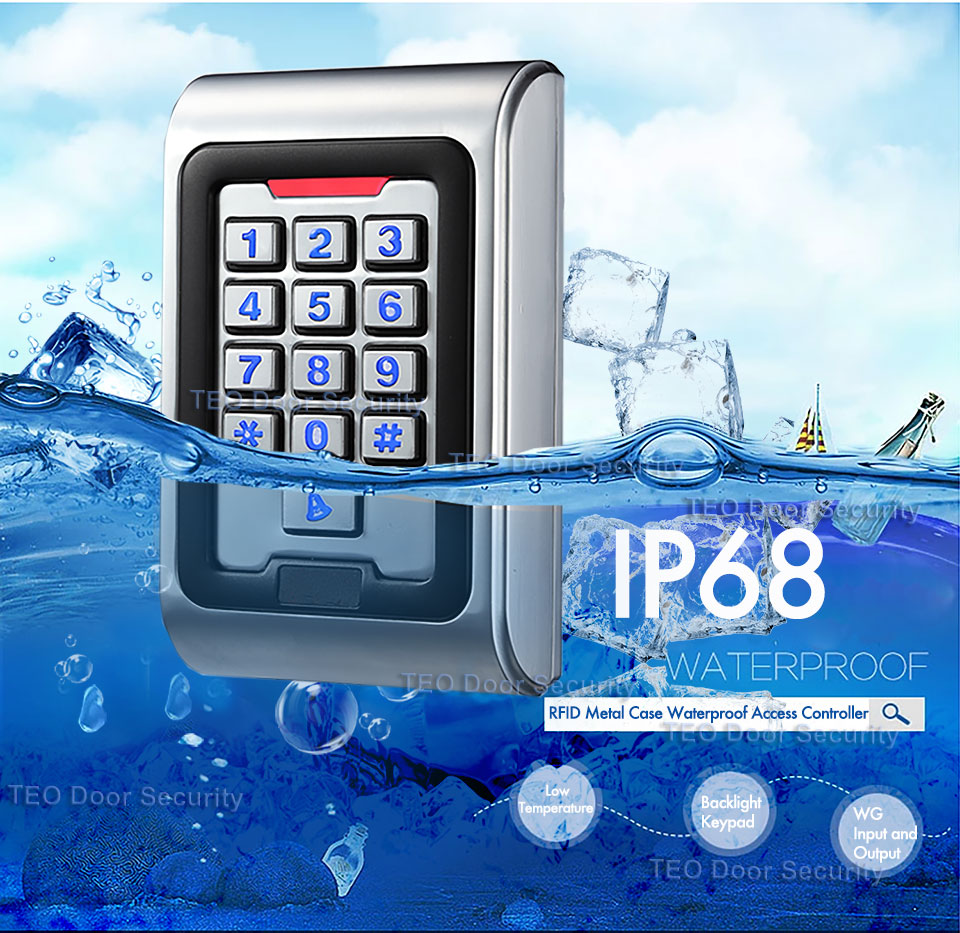

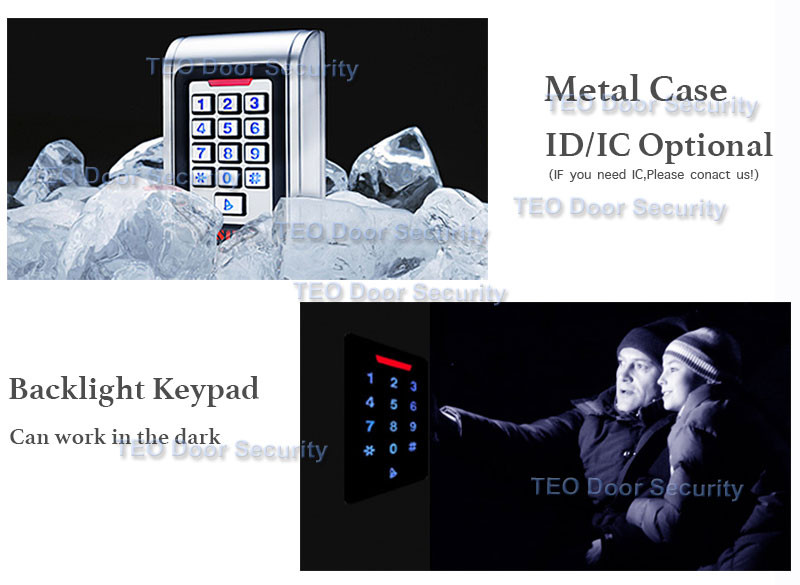

  • Metal structure design, anti-vandal,IP68Waterproof

  • Digital backlit keyboard

  • All-in-one, WG26 output / input

  • User capacity: 2000 card user card, 2000 user password

  • Three way to open the door, card, password, card + password

  • The doorbell button and interface: buttons and isolation circuit,

  • Connect to any external bell

  • Size:118L *78W*25H mm

II.Specification


  • Waterproof, conforms to IP68

  • Strong Zinc Alloy Electroplated anti-vandal case

  • Full programming from the keypad

  • 2000 uses, supports Card, PIN, Card + PIN

  • Can be used as a stand alone keypad

  • Backlight keys

  • Wiegand 26 input for connection to external reader

  • Wiegand 26 output for connection to a controller

  • Adjustable Door Output time, Alarm time, Door Open time

  • Very low power consumption (30mA)

  • Fast operating speed, <20ms with 2000 users

  • Lock output current short circuit protection

  • Easy to install and program

  • Built in light dependent resistor (LDR) for anti tamper

  • Built in buzzer

  • Red, Yellow and Green LEDS display the working status

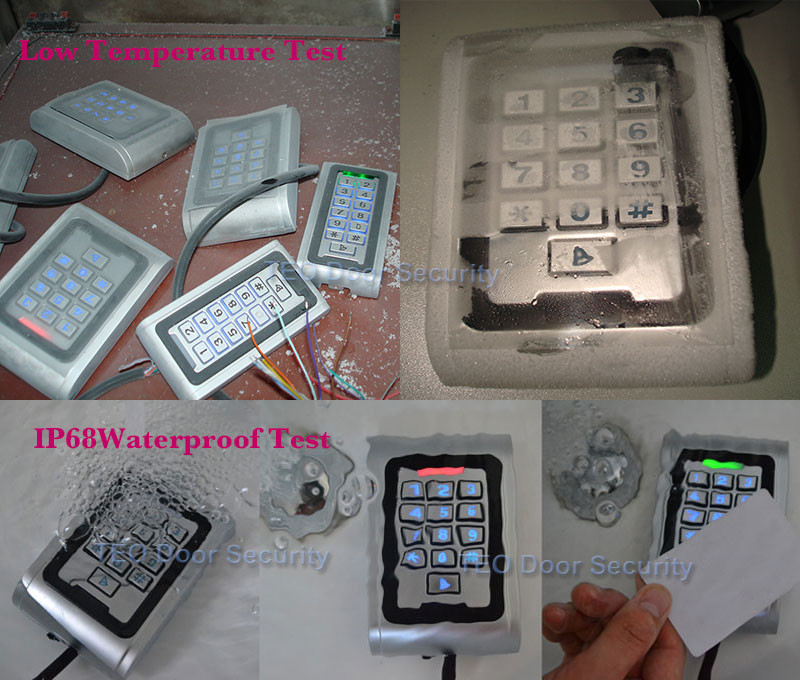

  • Can work in the low temperature: -45 to 60degree


III.Technical parameters


Operating Voltage

DC12V&DC24V

User Capacity

2000Users

Card Reading Distance

3-6 cm

Active Current

<60mA

Idle Current

25±5 mA

Lock Output Load

Max 3A

Alarm Output Load

Max 20A

 Operating Temperature

-45 to 60degree

Operating Humidity

10%- 90% RH

Waterproof

Conforms to IP68

Adjustable Door Relay time

0 -99 seconds

Adjustable Alarm Time

0- 3 minutes

Wiegand Interface

Wiegand 26

Wiring Connections

Electric Lock, Exit Button, External Alarm,External reader

Pls Note: Factory Default is 125KHZ RFID Card,If you need Mifare,pls contact.

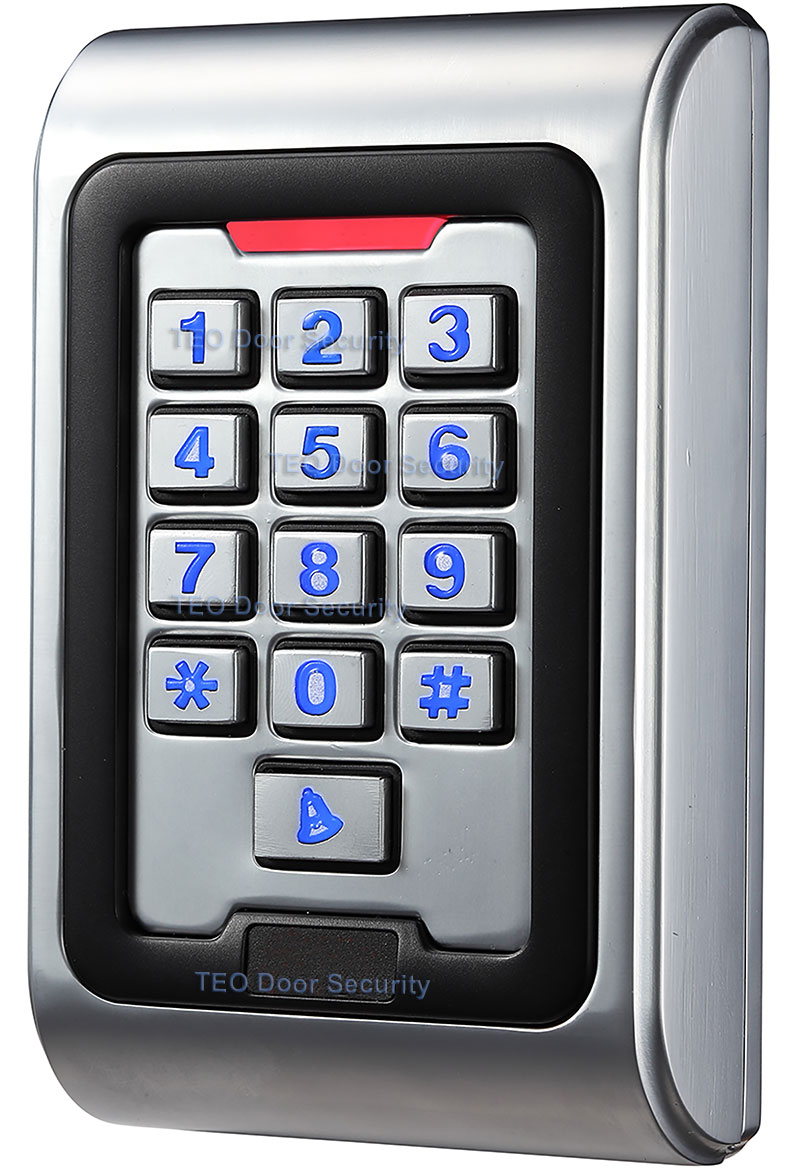

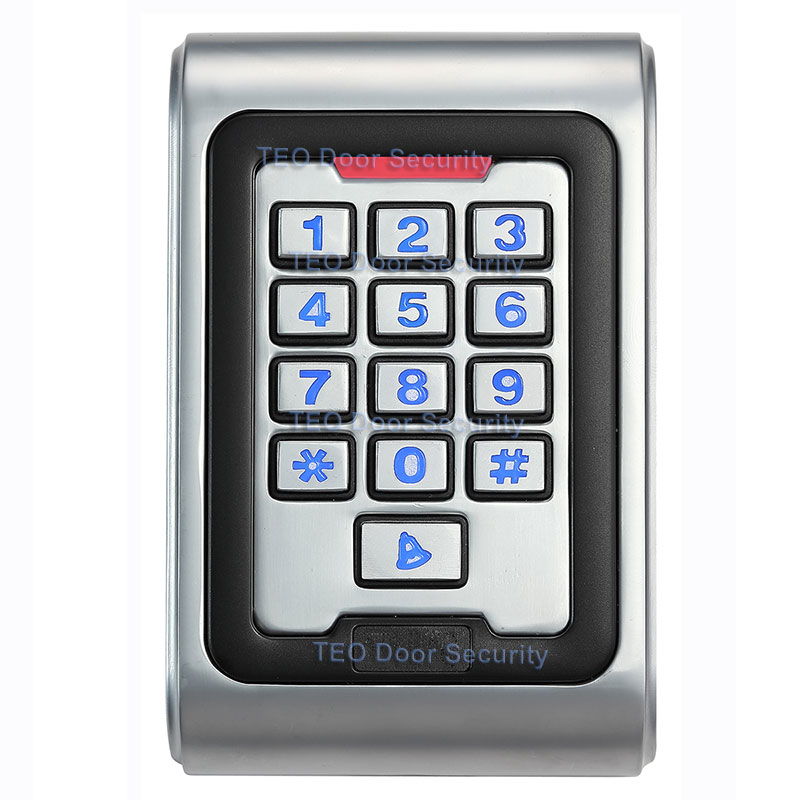

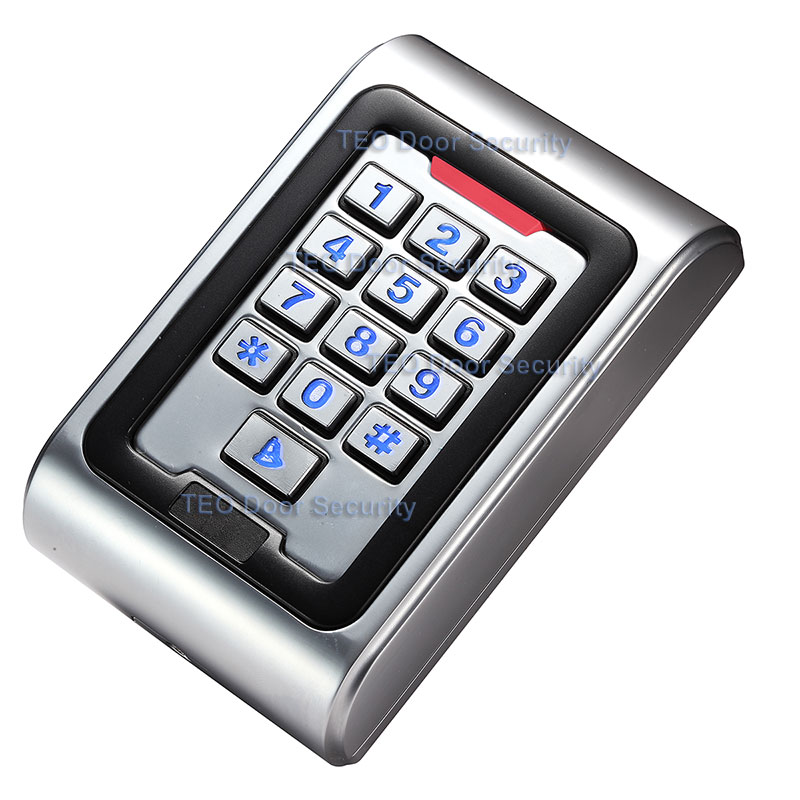

IV.Machine details

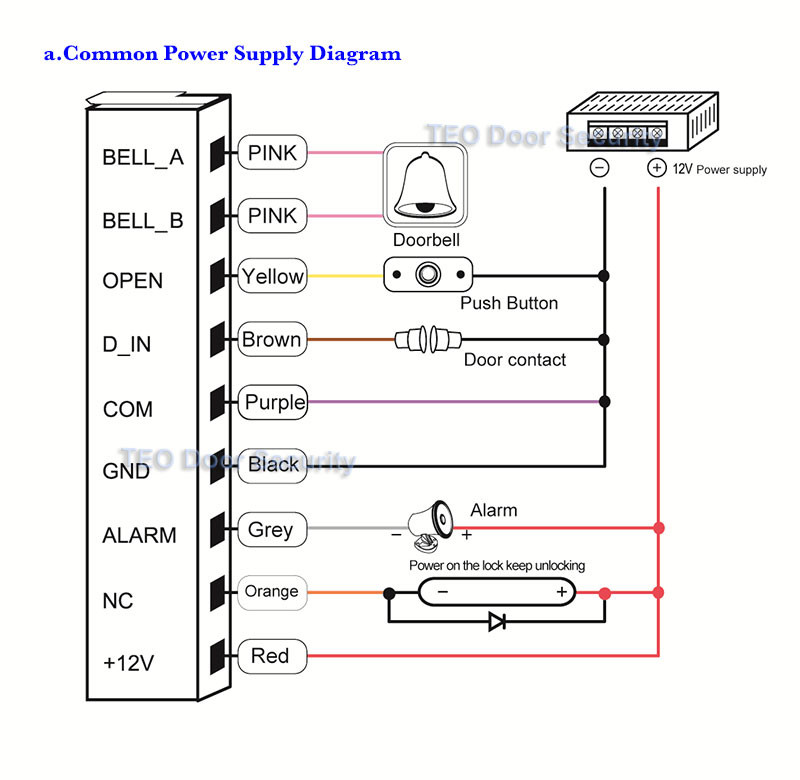

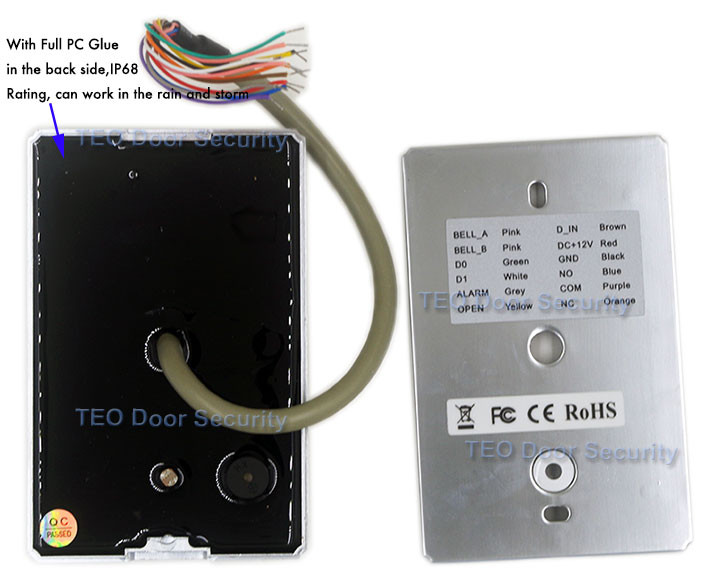

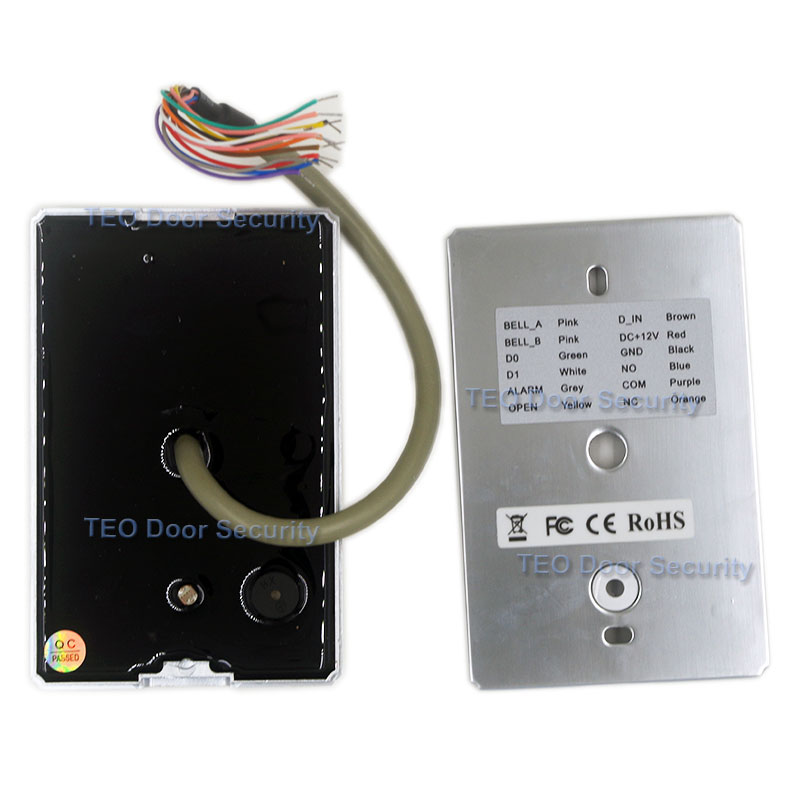

V.Wiring

Colour

Function

Description

Pink

BELL_A

Doorbell button one end

Pale blue

BELL_B

Doorbell button to the other end

Green

D0

WG output D0

White

D1

WG output D1

Grey

ALARM

Alarm negative(alarm positive connected 12 V+)

Yellow

OPEN

Exit button one end(the other end connected GND)

Brown

D_IN

Magnetic switch one end(the other end connected GND)

Red

12V+

12V + DC Regulated Power Input

Black

GND

12V - DC Regulated Power Input

Blue

NO

Relay normally-on end(Connect positive electric lock "-")

Purple

COM

Relay Public end, connect GND

Orange

NC

Relay Closed end(connect negative electric lock "-")

VI.Anti Tamper Alarm

The unit uses a LDR (light dependent resistor) as an anti tamper alarm.

If the keypad is removed from the cover then the tamper alarm will operate.

VII.To Reset to Factory Default

a. Disconnect power from the unit
b. Press and hold # key whilst powering the unit back up
c. On hearing two “Di” release # key, system is now back factory settiing

Name

 Quantity

Remarks

Keypad

   1

IP68Waterproof,with Full PC Glue in the back side

User manual

   1

English

Screw driver

   1

Φ20mm×60mm,Special for keypad

Rubber plug

   2

Φ6mm×30 mm, used for fixing

Self tapping screws

   2

Φ4mm×28 mm, used for fixing

Star screws

   1

Φ3mm×6mm, used for fixing


1.You have 7days to contact us and 10days to return it from the date it was received. IF this item in Your Possession more than 7days,It is considered used and WE WILL NO ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS!

2.All returned items MUST BE in the original packing and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your Hogaki ID.

3.We will refund YOUR FULL WINNING BIG AMOUNT, upon receipt of the item in its original condition and Packaging with allComponents and accessories included, After BOTH Buyer and seller cancel the transaction from Hogaki. Or, You may choose to have a replacement.

1. 12 months Manufacturer’s warranty for defective items(excluding items damaged and/or misused after receipt).Accessories come with a 3-month warranty.

2. Defective items MUST BE reported and return to us within the warranty period(and in the original packaging,IF possible)You must tell us what the defect is and give us your Hogaki ID,WE DO NOT REPAIR

OR REPLACE ITEMS WITH AN EXPIRED WARRANTY!

1. Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed
2. Delivery,We will ship every order with their tracking numberm and you can view the shipment status on the corresponding website.
DHL/Fedex/Aramex: 3-7 days                     EMS: 5-15 days
HK post: 10-30 days           China post:10-30 days
3.We are not responsible for any accidents,delays or other issues that are the responsibility of the shipping service.
4. Please make sure that you have no difficulty to clearing customs and make sure you are available in the address you filled on Hogaki.
5. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.

  • Model Number: K8EM
  • Brand Name: Realhelp
  • Certification: CE,FCC,RoHS
  • Origin: Mainland China
  • Smart home platform: NONE
  • Work Voltage: AC&DC9-28V
  • Static Current: ≤30mA
  • Reading Range: 3 - 8cm
  • Capacity: 2000 users
  • Environment Humidity: 10%-90%
  • Electric lock output: ≤3A
  • Alarm output: ≤20A
  • Output short-circuit protection time: ≤100μS
  • Open-door time: 0 - 99 seconds (adjustable)
  • Size: 118 *78*25mm
