Waterproof 125khz RFID Card Reader Wiegand 26 34 Card Reader LED Indicators Security RFID EM ID Card Access Control Reader
5.0 (7 votes) | 19 orders
Price:
US $18.72
/ piece
Discount Price:
US $
16.48
/ piece
-12%
- Color
-
-

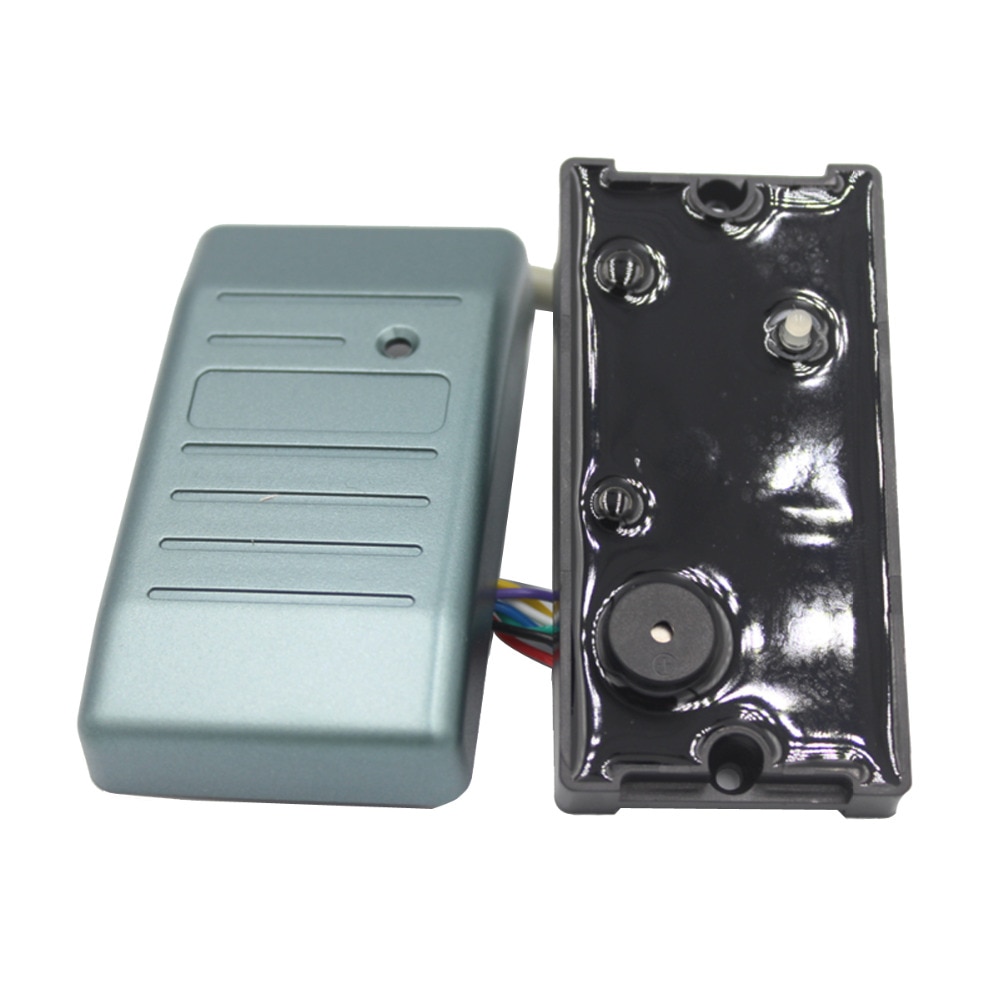

LUCKING DOOR Waterproof 125khz RFID Card Reader Wiegand 26 34 Card Reader LED Indicators Security RFID EM ID Card Access Control Reader
Brief introduction:
It is a 125KHz contactless access control reader, preclude the use of advanced RF receiver circuit design and embedded micro-controller, combined with efficient decoding algorithms. It has received high sensitivity, current, single DC power supply, low price, high performance characteristics. Dust, moisture, fully sealed design allows users to install the outdoor and other harsh conditions, no mechanical wear and durability.
Specifications:
Operating Voltage :DC 12V
Consumed Current :0-100mA
Support cards :TK4001\EM4100 etc.
Read Range :0mm-100mm(related to the card or the environment)
reader interval :＜0.5S
Format :Wiegand 26/Wiegand 34(Setting by oneself)
Distance of transmission :WG26/34≥100M
Service Temperature :-25℃ ~ +75℃

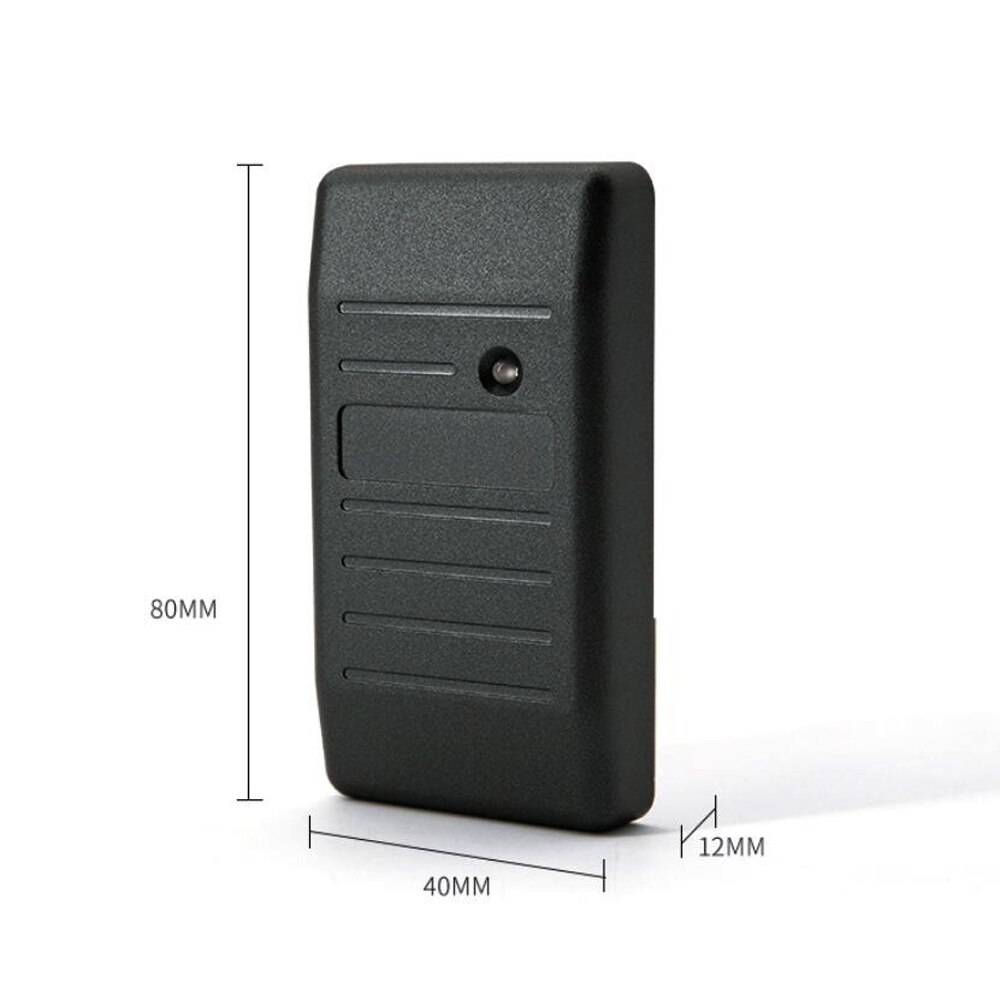

Size :41mm x 80mm x 12mm
Weight :About 60G
Lead Length :180mm±5mm
Material :PVC & Resin adhesive（it's waterproof ip65）

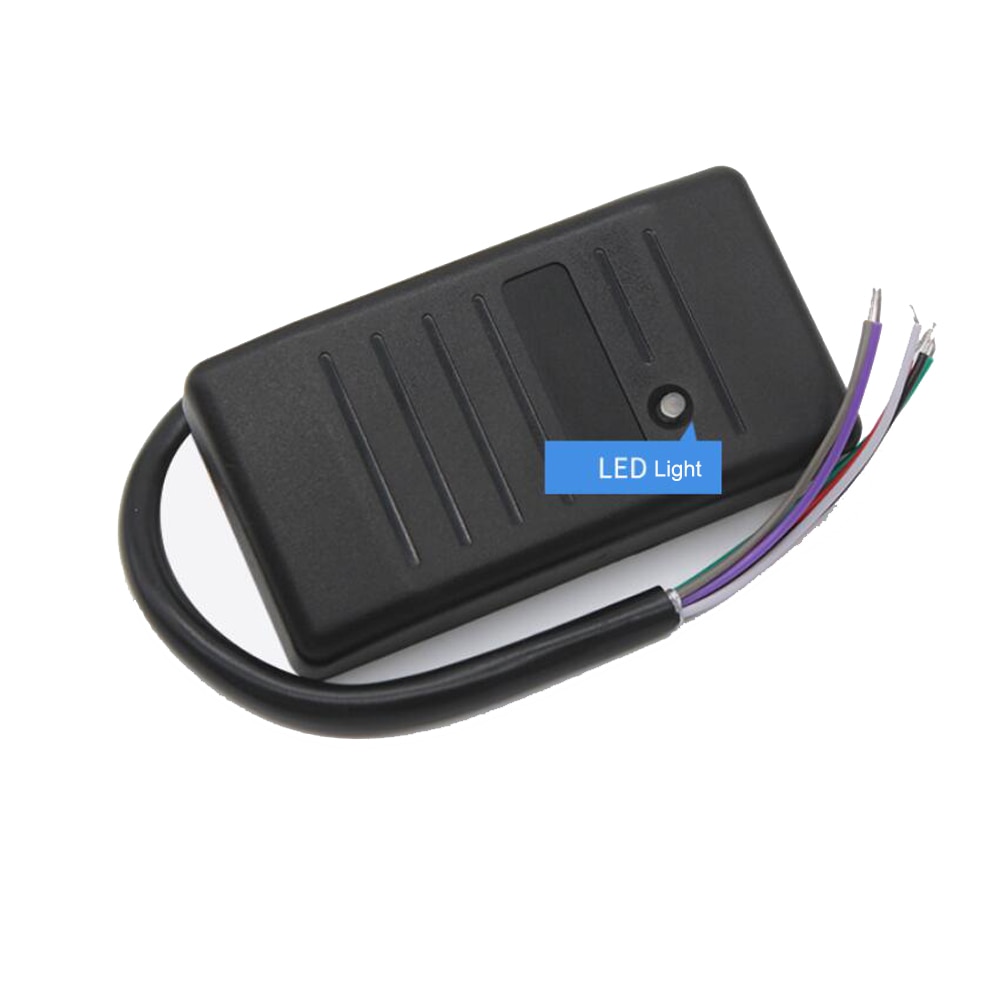

Status Indication :2PC LED (Blue means standby, Green means reader success)

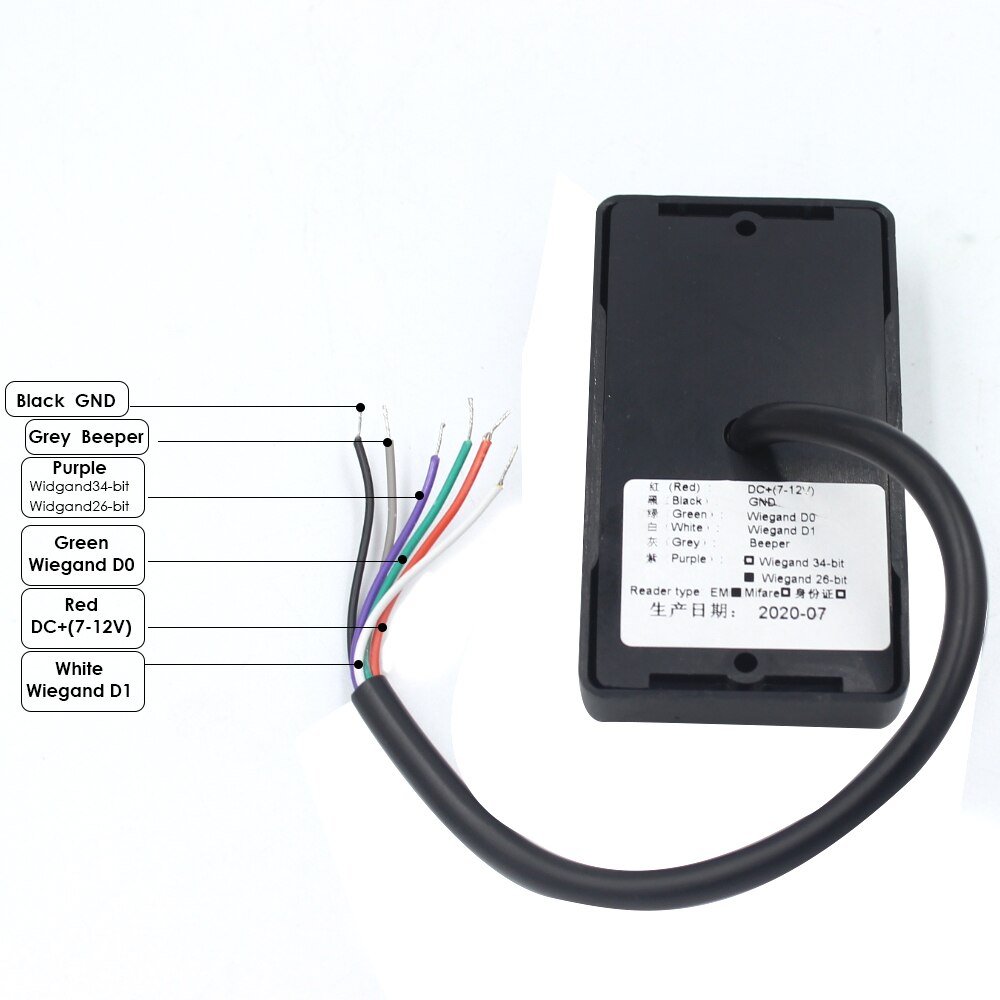

Line definition:
Red: VCC 12V+
Black: GND
White: D1/RX/4R+
Green: D0/TX/4R-
Blue:LED
Yellow:BEEP
Grey: WG26/WG34
Notes:
1. Turn off the power and don't live operation when installing or disassembing
2. The reader must be installed on wooden, concrete or brick wall, or placed on the table. It may not have a large area of iron and steel products within a radius of around 10 centimeters
3. Different cards has affect the distance of reader
4. If the distance of reader between two machines <0.3 m, will interfere with each other. In other words, the best distance between the reader is kept at 0.3 meters above.
5. If the card still in the sensing area, the reader without any prompts, and also don't send data.
6. Access Control Reader cann't store user data and information, we can't increase the card, password and fingerprint user. It's a tool for unlocking that just expanding into the card or password , you need to rely on the access controller, attendance card machines, or multi-door controllers.
Package Included:
1 x Card Reder
- Model Number: HID803
- Brand Name: LUCKING DOOR
- Origin: Mainland China
- Certification: NONE
- Operating Voltage: DC 12V
- Support cards: TK4001 EM4100
- reader interval: 0.5S
- Distance of transmission: WG26 34
- 0.5sFormat: Wiegand 26 Wiegand 34(Setting by oneself)
- Read Range: 0mm-100mm
