Water Liquid Level Switch Contactless Detector Outer Adhering Type Level Sensor NPN PNP Rs485 Interface Power Adapter DC 5-12V
5.0 (4 votes) | 15 orders
Price:
US $19.50
/ piece
Discount Price:
US $
15.48
/ piece
-21%
- Voltage
Water Liquid Level Switch Contactless Detector Outer Adhering Type Level Sensor NPN PNP Rs485 Interface Power Adapter DC 5-12V 24V

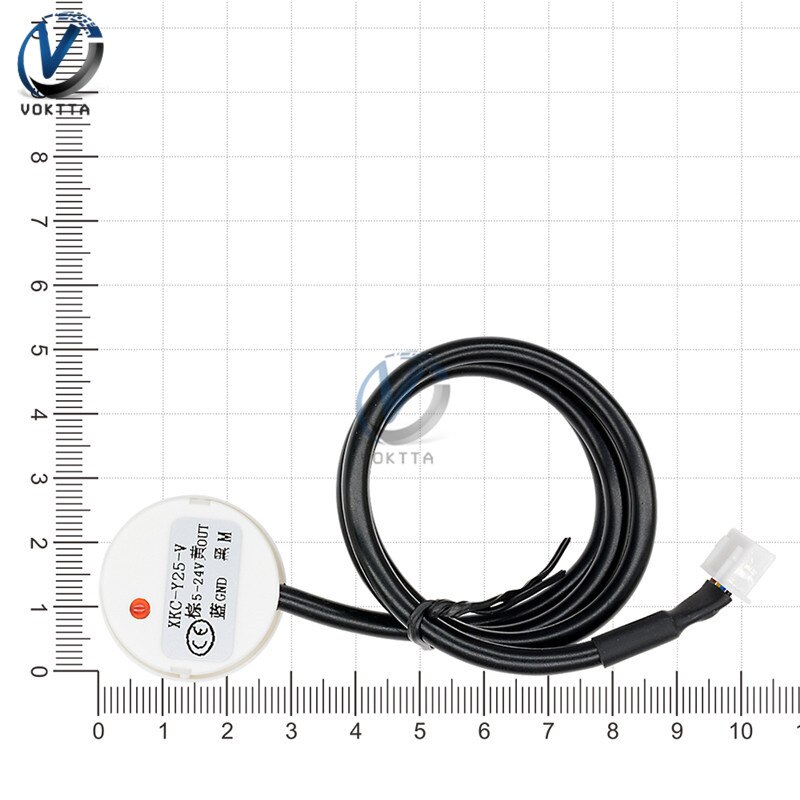

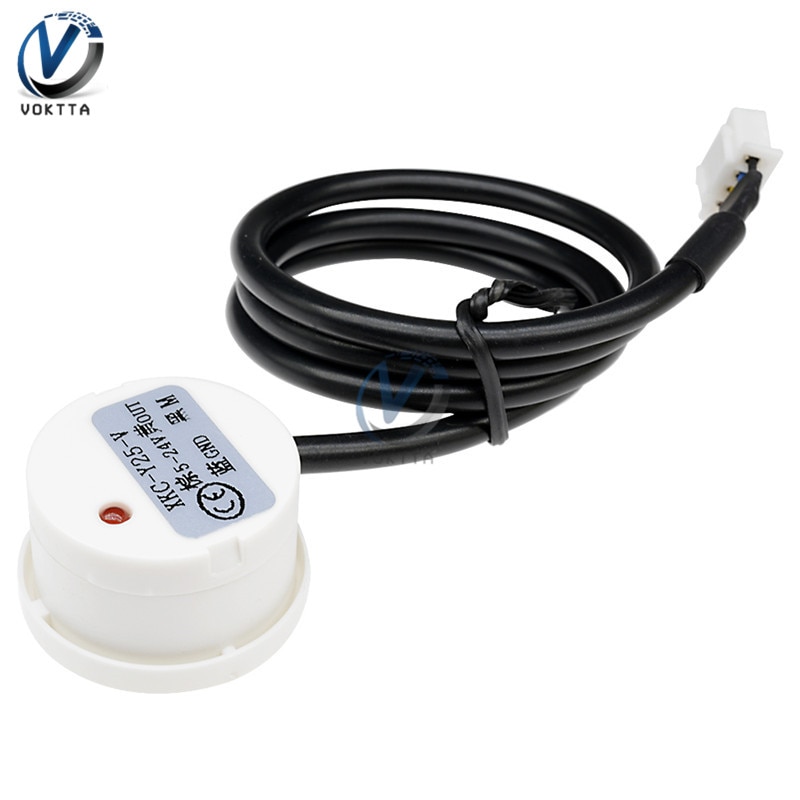

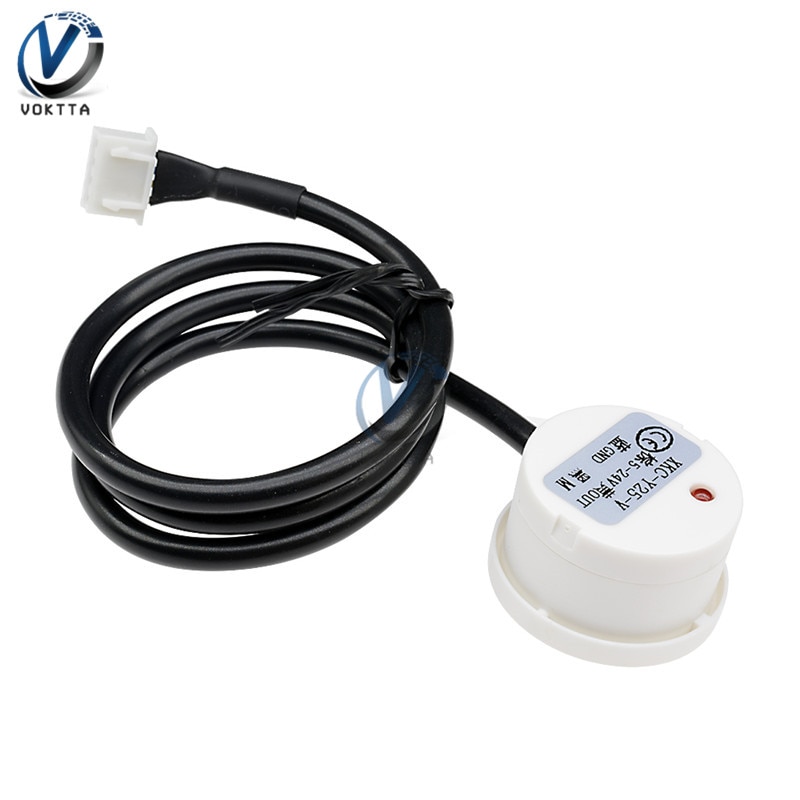

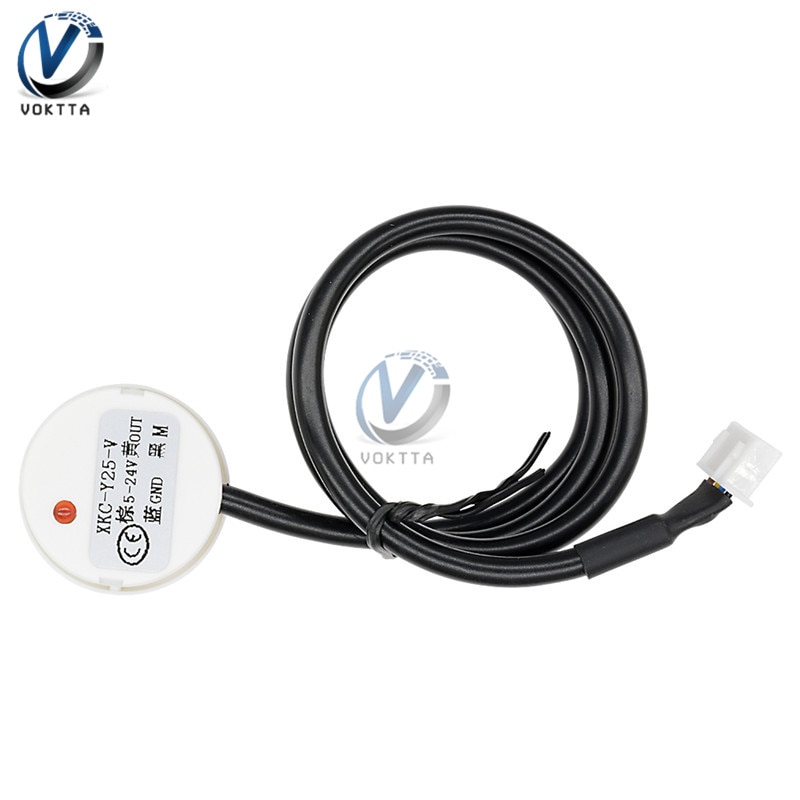

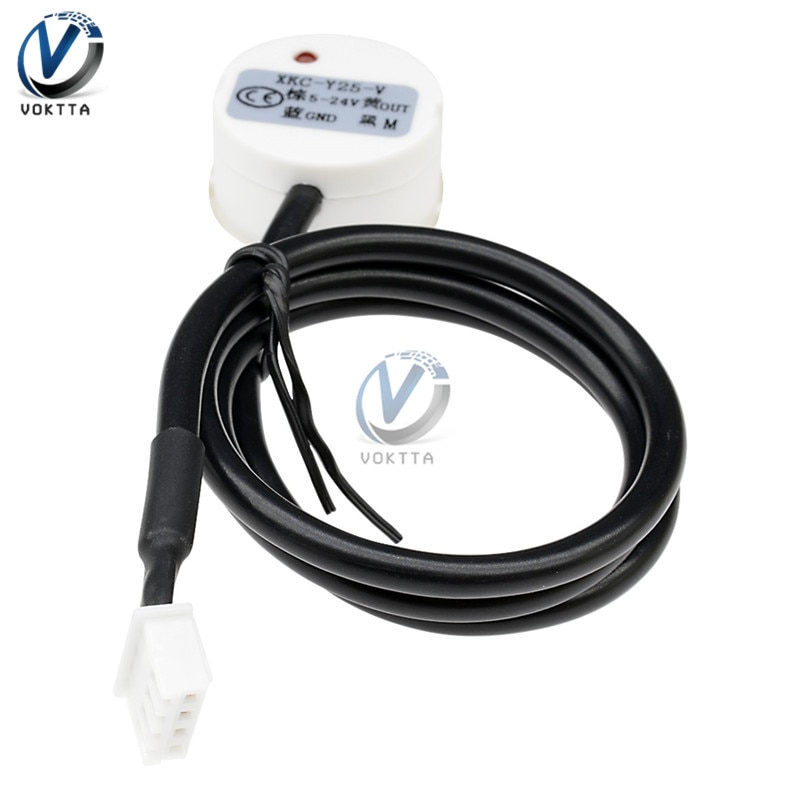

XKC-Y25-V
Description:
Non-contact level sensor for non-metallic container wall without direct contact with the liquid will not be corrosive acids such as strong acid and alkali corrosion, free from scale or other debris.
intelligent level adjustment and liquid level memory function, liquid level status display, multi-point series connection can be achieved; can support high and low level output, NPN output, PNP output, MC output, RS485 data signal output With the manufacturer's instructions can be).detection is accurate and stable, boiling water level can be detected.pure electronic circuit structure, non-mechanical work, stable performance and durable life.High stability, high sensitivity, just interference ability, free from external electromagnetic interference, for the frequency interference and common mode interference have special treatment to be compatible with all available on the market 5 ~ 24V power adapter.Strong compatibility, through a variety of non-metallic containers, such as plastic, glass, ceramics and other containers, sensing distance up to 12mm or more; liquid, powder, particulate matter can be detected.open collector output, wide voltage range (5 ~ 24V), suitable for connecting a variety of circuits and product applications.Intelligent non-contact level sensor is the use of water sensing capacitor to detect whether there is liquid in the absence of liquid proximity sensor, the sensor due to the presence of distributed capacitance, so there is a certain inductor static capacitance, When the liquid level rises slowly approaching the sensor, the liquid parasitic capacitance will be coupled to the static capacitance, the final capacitance of the inductor becomes larger, the change of the capacitance signal is then input to the control IC for signal conversion, will change Of the capacitance into a change in the amount of electrical signals, and then by a certain algorithm to detect and determine the extent of this change, when the amount of change exceeds a certain threshold when the liquid level to reach the sensing point.
Parameter:
Input voltage (InVCC): DC 5 ~ 24V
Current consumption:5mA
Output voltage (high level): InVCC
Output voltage (low level): 0V
Output current: 1 ~ 50mA
Response time: 500mS
Working temperature: 0 ~ 100 ℃
Sensing thickness (sensitivity) range: 0 ~ 20mm
Communication: RS485
Humidity: 5% ~ 100%
Material: ABS
Waterproof: IP67

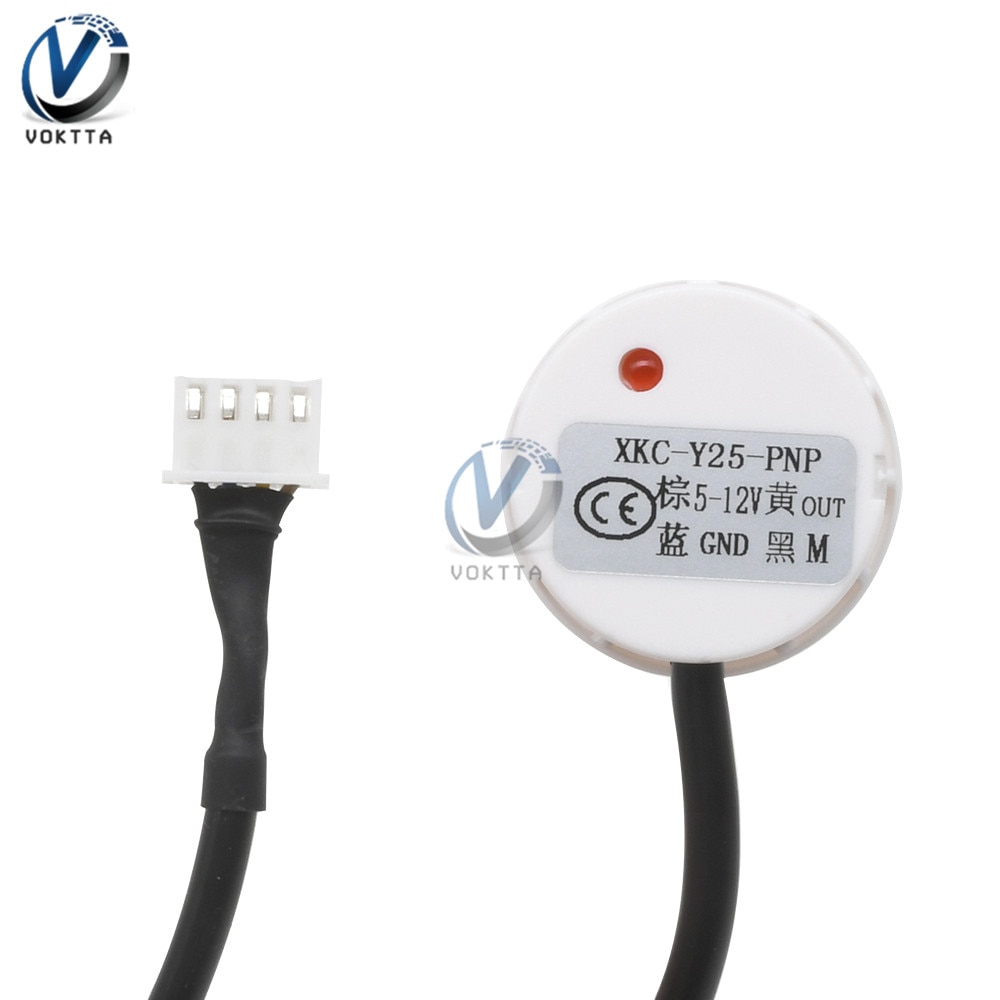

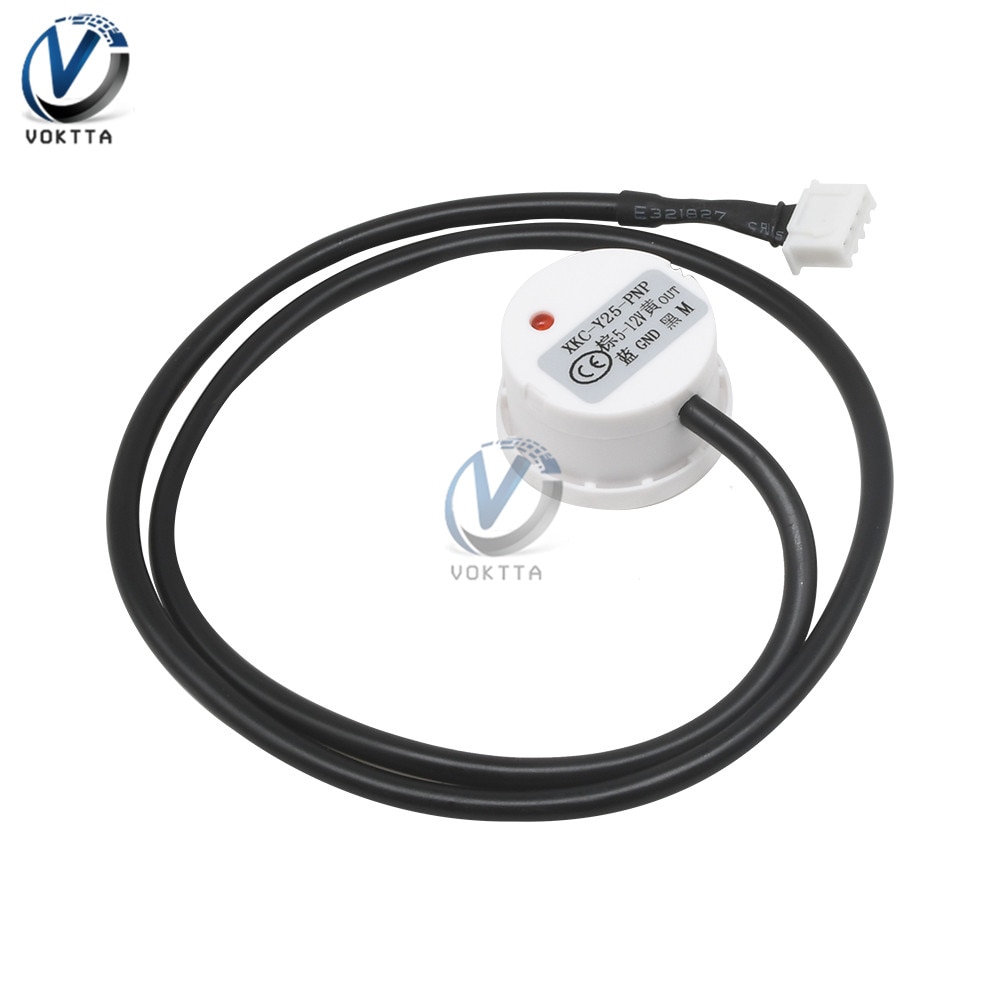

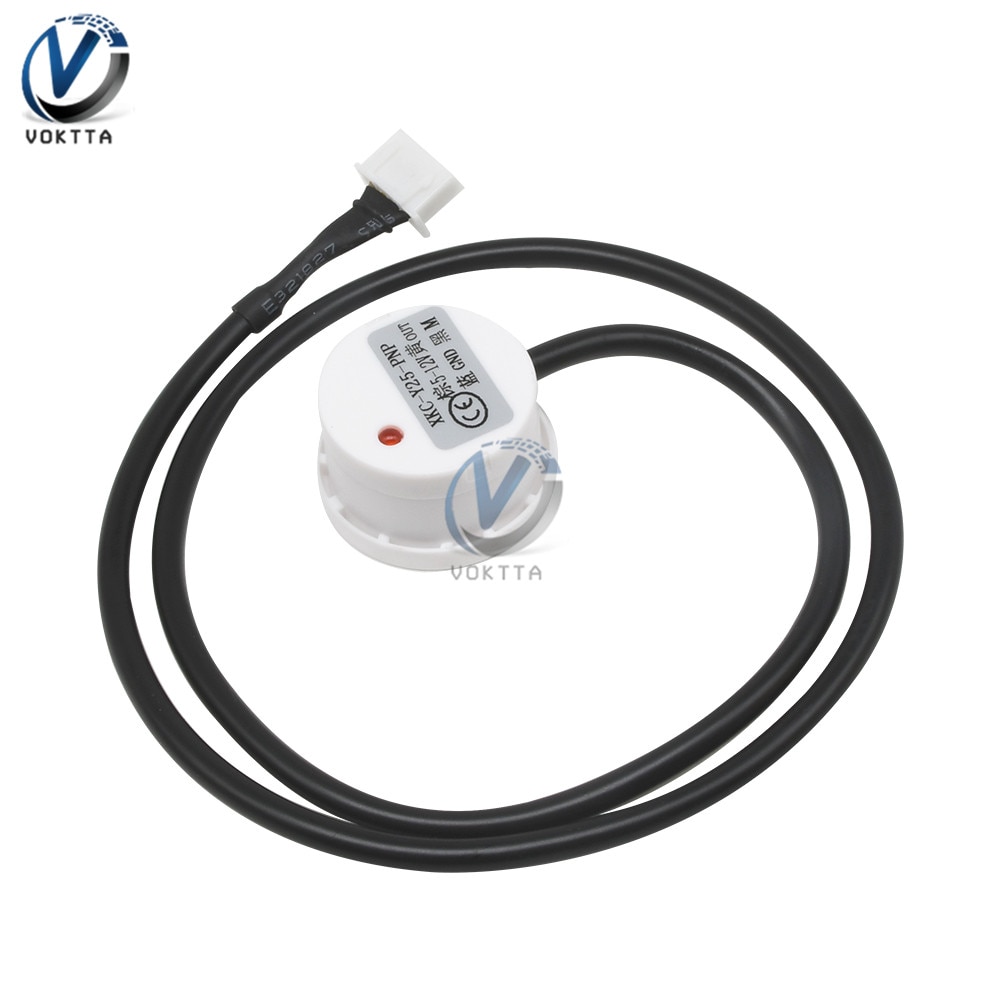

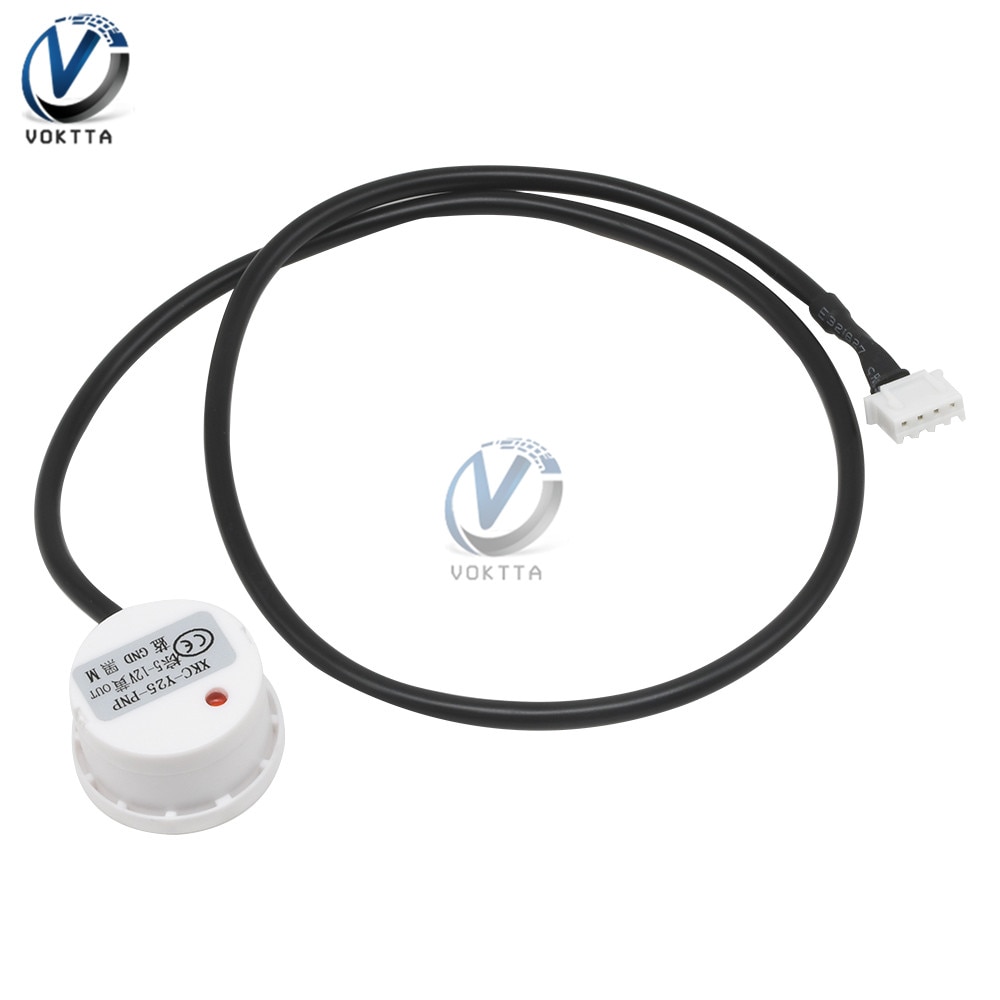

XKC-Y25-PNP 5-12V
Description:
Intelligent non-contact Level Sensor / detector(Hereinafter: the level sensor / detector),It adopts advanced signal processing technology and high speed of the signal processing chip,the thickness of the container will be less relevant for the measure level,and the high level of the sealed container, the true non-contact measurement is made.
the level sensor (detector) will be mounted on the top / bottom of the outer container(The high level and low level), it will be useless to drill a hole to the non-metal container,the installation is very simple. this measure level sensor sensor is the most ideal for various toxic materials, strong acid, strong alkali and various liquids in high pressure sealed container.there will be no special requirements for the liquid medium and the material vessel, and 'widely used.
Product Features:
1: Non-contact liquid level sensors for non-metallic wall the container without direct contact with the liquid,They are not subject to corrosion acids and alkalis and other corrosive liquids,or other debris from the scale effect.
2: Intelligent memory function and the level of regulation of the level,
Status display level, multi-point serial connection;supports NPN output, high-low output level, PNP output, RS485 output signal
3: Detection is accurate and stable,able to detect the level of boiling water
4: Pure structure of the electronic circuit, not-mechanical work,
duration of life and stable performance.
5: High stability, high sensitivity, strong interference capability,
free from external electromagnetic interference,There are a special treat for frequency interference common mode noise,compatible with all 5 ~ 12 V Power adapter in the market.
6: Strong compatibility, penetrate various non-metallic containers, such as plastic, glass, ceramic and other containers,
sensing distance up to more than 10mm; liquid, powder,Particulate can be detected.
7: Open collector output, wide voltage range (5 V ~ 12 V),suitable for connecting the various circuits and applications of the product.
Technical parameters:
voltage input (InVCC): DC 5 ~ 12 V
power consumption: 200 uA
output current; 1 ~ 100mA
Response time: 500 mS
Operating temperature: 0 ~ 100 degrees
thick induction (sensitivity) range: 0 ~ 20mm
humidity: 5% to 100%
material containers; plastic, glass, ceramics and other containers
Sensor protection: IP67
Principle of operation:
Intelligent non-contact level detector detection is the use of capacity in water detect whether the liquid is present, when there 'is liquid access to the detector,it is static due to distributed capacitance capacity exists in the detector,when the increase in level and close to the detector, the parasitic capacitance of the liquid will couple to this static capacity,capacitance value of the final detector becomes larger,
this change in IC input capacitance signal to convert the signal,make the change of capability to convert some of the signal change,and then by a certain algorithm to detect and determine the measure of the amount of change,when the change exceeds a certain threshold level reaches the sensor point.
XKC-Y25-NPN 24V
Descriptions:
Intelligent non-contact level sensor / detector
(Hereinafter: the level sensor / detector)
It adopts advanced signal processing technology and
high speed of the signal processing chip,
the thickness of the container will be less relevant for the measure level,
and the high level of the sealed container, the true non-contact measurement is made.
the level sensor (detector) will be mounted on the top / bottom of the outer container
(The high level and low level), it will be useless to drill a hole to the non-metal container,
the installation is very simple. this measure level sensor sensor is the most ideal for
various toxic materials, strong acid, strong alkali and various liquids in high pressure sealed container.
there will be no special requirements for the liquid medium and the material vessel, and 'widely used.
Features:
1: Non-contact liquid level sensors for non-metallic wall
the container without direct contact with the liquid,
They are not subject to corrosion acids and alkalis and other corrosive liquids,
or other debris from the scale effect.
2: Intelligent memory function and the level of regulation of the level,
Status display level, multi-point serial connection;
supports NPN output, high-low output level, PNP output, RS485 output signal
3: Detection is accurate and stable,
able to detect the level of boiling water
4: Pure structure of the electronic circuit, not-mechanical work,
duration of life and stable performance.
5: High stability, high sensitivity, strong interference capability,
free from external electromagnetic interference,
There are a special treat for frequency interference
common mode noise,
compatible with all 5 ~ 24 V Power adapter in the market.
6: Strong compatibility, penetrate various non-metallic containers,
Parameter:
Input voltage (InVCC): DC 24V
Current consumption: 200 uA
Output voltage (high level): InVCC
Output voltage (low level): 0V
Output Current: 1 ~ 100mA
Response time; 500mS
Working temperature: 0 ~ 100 degree
Induction thickness (Sensitivity) Range: 0 ~ 20mm
Communication: RS485, RS232
Humidity: 5% to 100%
Container material: plastic, glass, ceramics and other containers
Sensor Protection: IP67

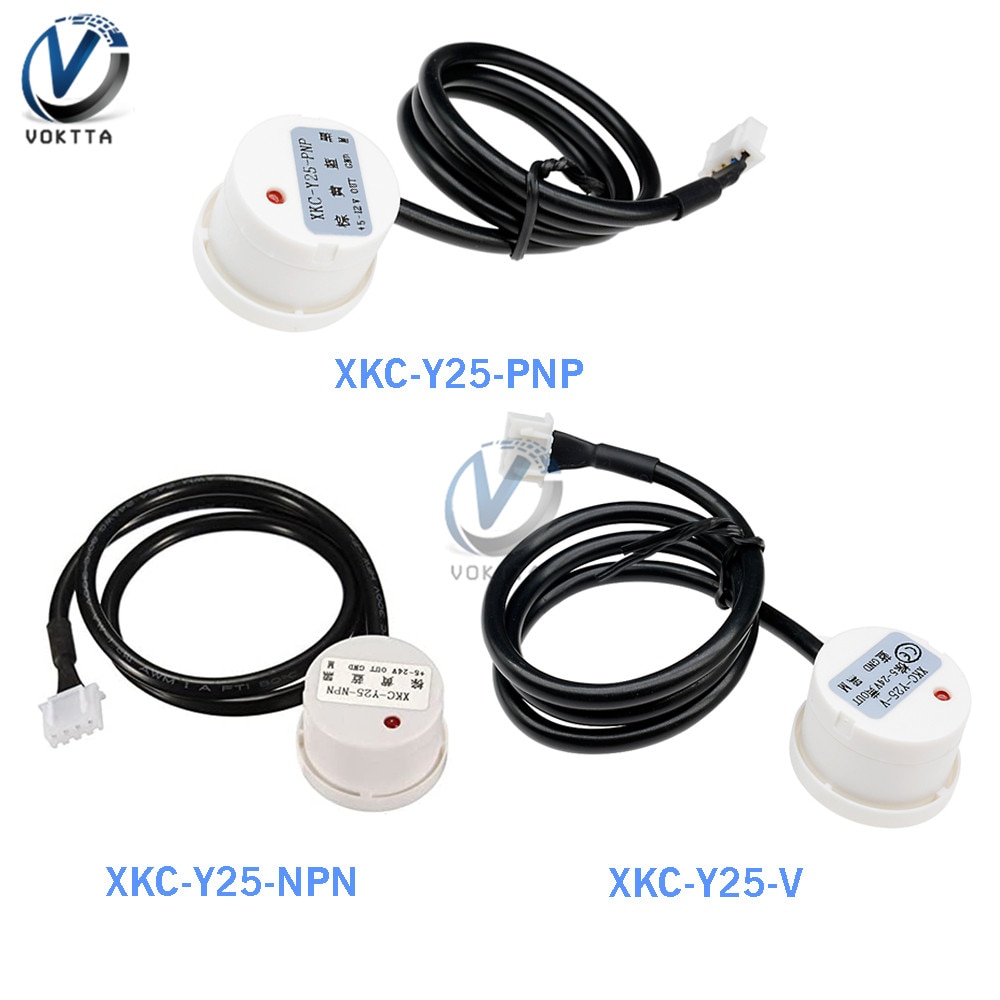

- Model Number: XKC-Y25-V XKC-Y25-PNP XKC-Y25-NPN
- DIY Supplies: ELECTRICAL
- Brand Name: Voktta
- Origin: Mainland China
- Certification: NONE
- name: xkc y25
- feature: water level sensor
- feature 1: Outer liquidizer
- feature 2: water level
- feature 3: ultrasonic level sensor
- feature 4: water level detector
- feature 5: water level module
- feature 6: Water level sensor
- feature 7: liquid level sensor
- feature 8: xkc-y25
