Wanglu 7 Inch 4K 6 In 1 CCTV Tester Monitor IP Analog AHD TVI CVI SDI 8MP Camera Testing Multimeter Optical Fiber TDR VFL POE

0.0 (1 votes) | 9 orders
Price: US $1180.00 / piece
Discount Price:
US $ 1073.80 / piece
-9%
Quantity

Model: IPC9800MOVTADHS plus+ 7 Inch IP CCTV Tester Monitor  Onvif  WIFI POE 48V output,  cable tracer.  TDR function



IP +Analog+AHD 8MP max+TVI 8MP +CVI 8MP +SDI (HD-SDI EX-SDI)camera testing


Multimeter+Optical fiber power meter+Visual fault locator+TDR



Support WIFI  ONVIF/H.264/H.265 4K 4096x2160/Rapid onvif/POE 12V output/UTP cable tester


TDR for RJ45/PTZ control/    Updated to: 7500mAh battery+DC24V 2A Output+Dual 1000M Enthernet Link Lan port+WIFI analyzer etc

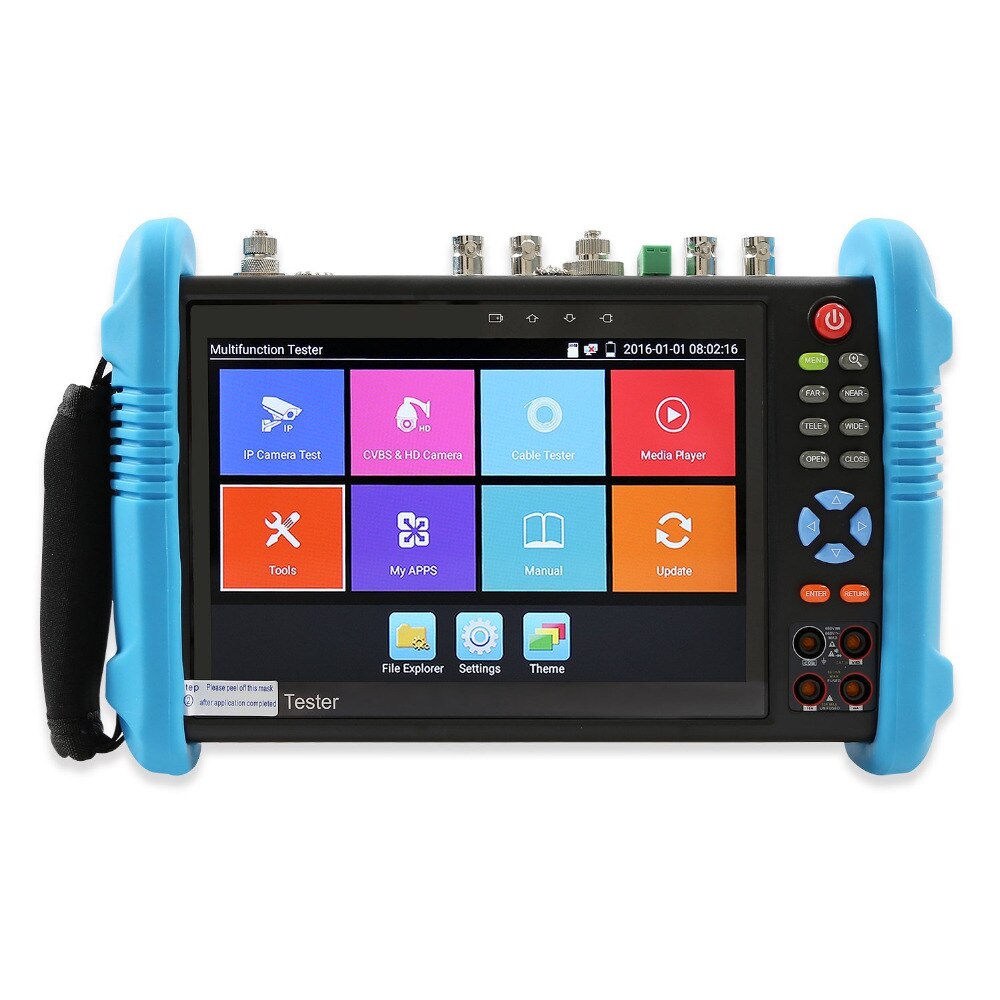

7 inch IPS touch screen, 1280*800 resolutions

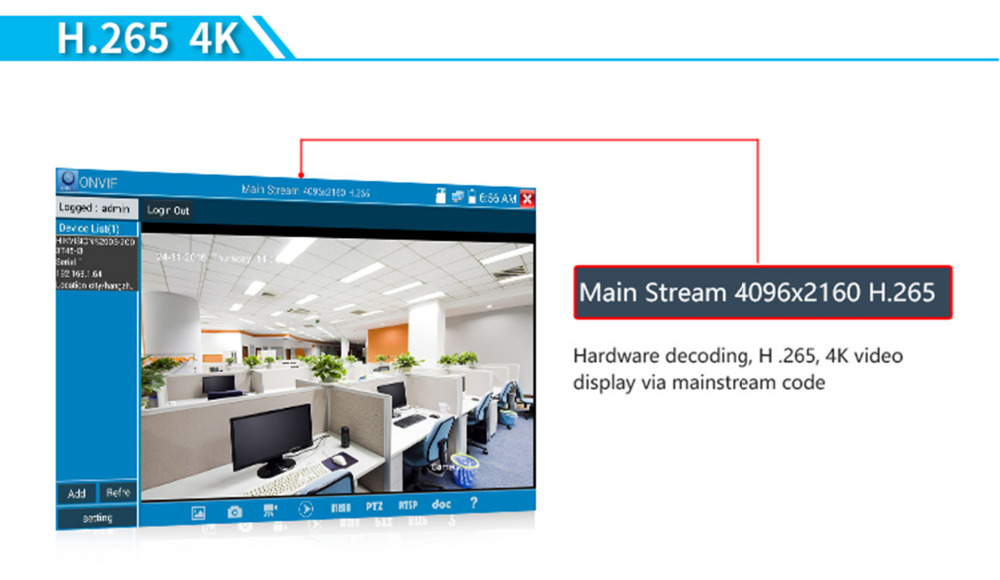

● H.265 & H .264 IP, 4K video display via mainstream

● 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu

● 8MP AHD test, 3840 x 2160P 15 fps,4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP CVI test, 3840 x 2160P 12.5/15fps,4xzoom, video record& playback, coaxial PTZ & call OSD menu

● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu

● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu

● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu

● Rapid ONVIF, Auto log in and display image, create testing report

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● CVBS camera test and PTZ control

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)

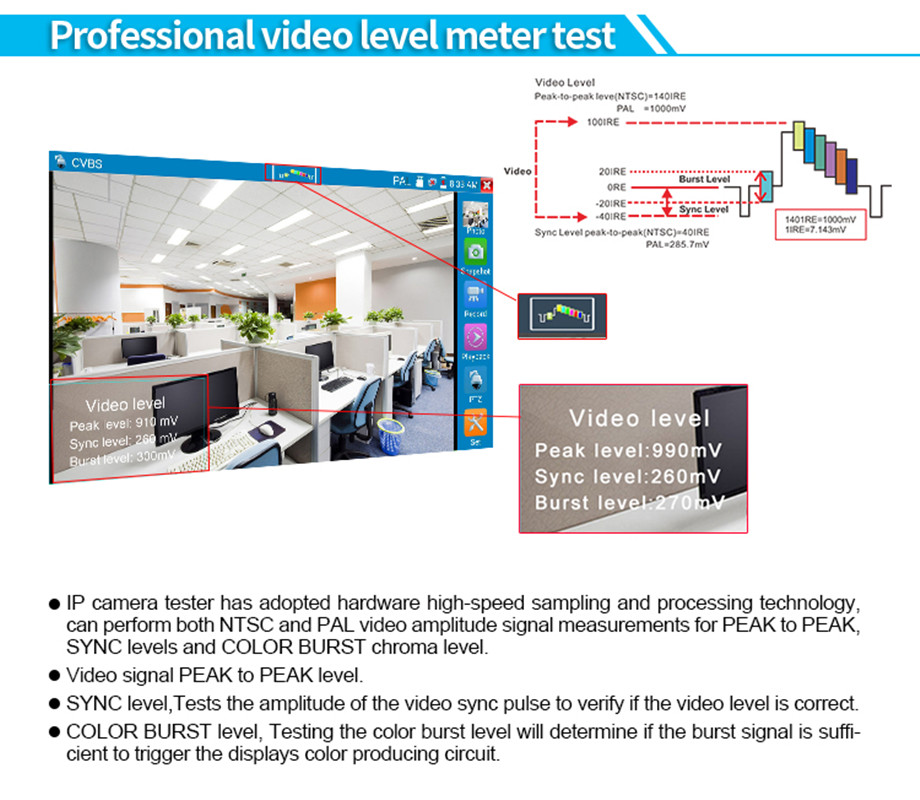

● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

● DC12V/3A power output, camera can be powered from DC 12Votage. DC24V 2A output

● 48V PoE power output power

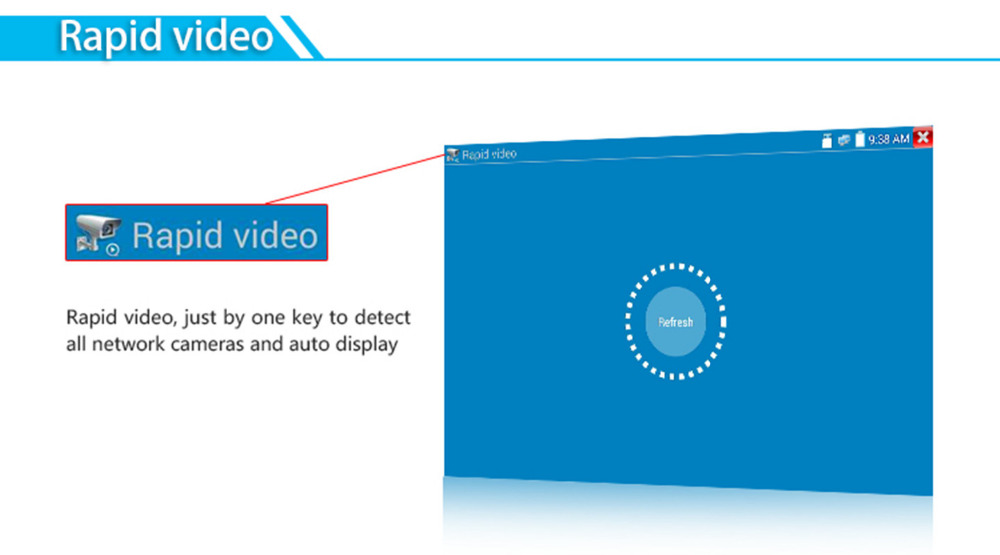

● Rapid video, just by one key to detect all network cameras and auto display

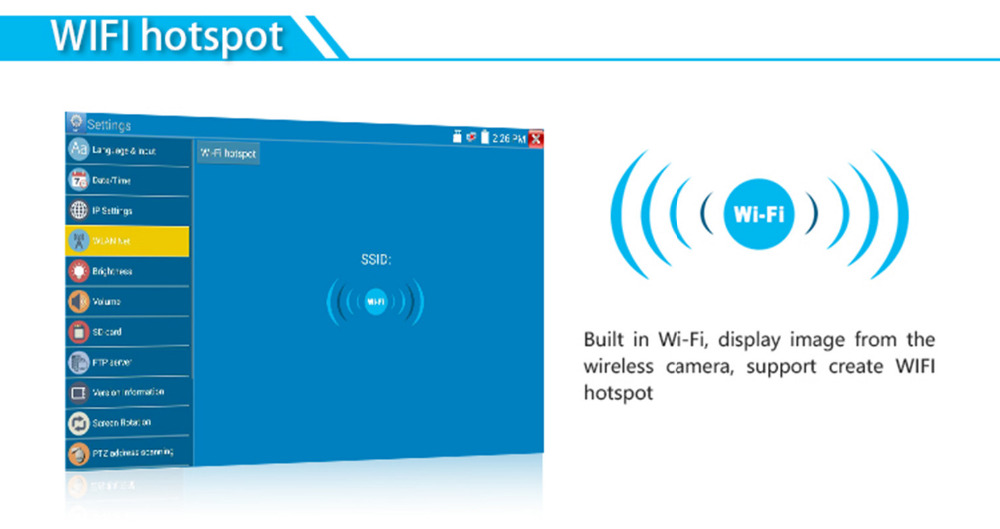

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

●Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

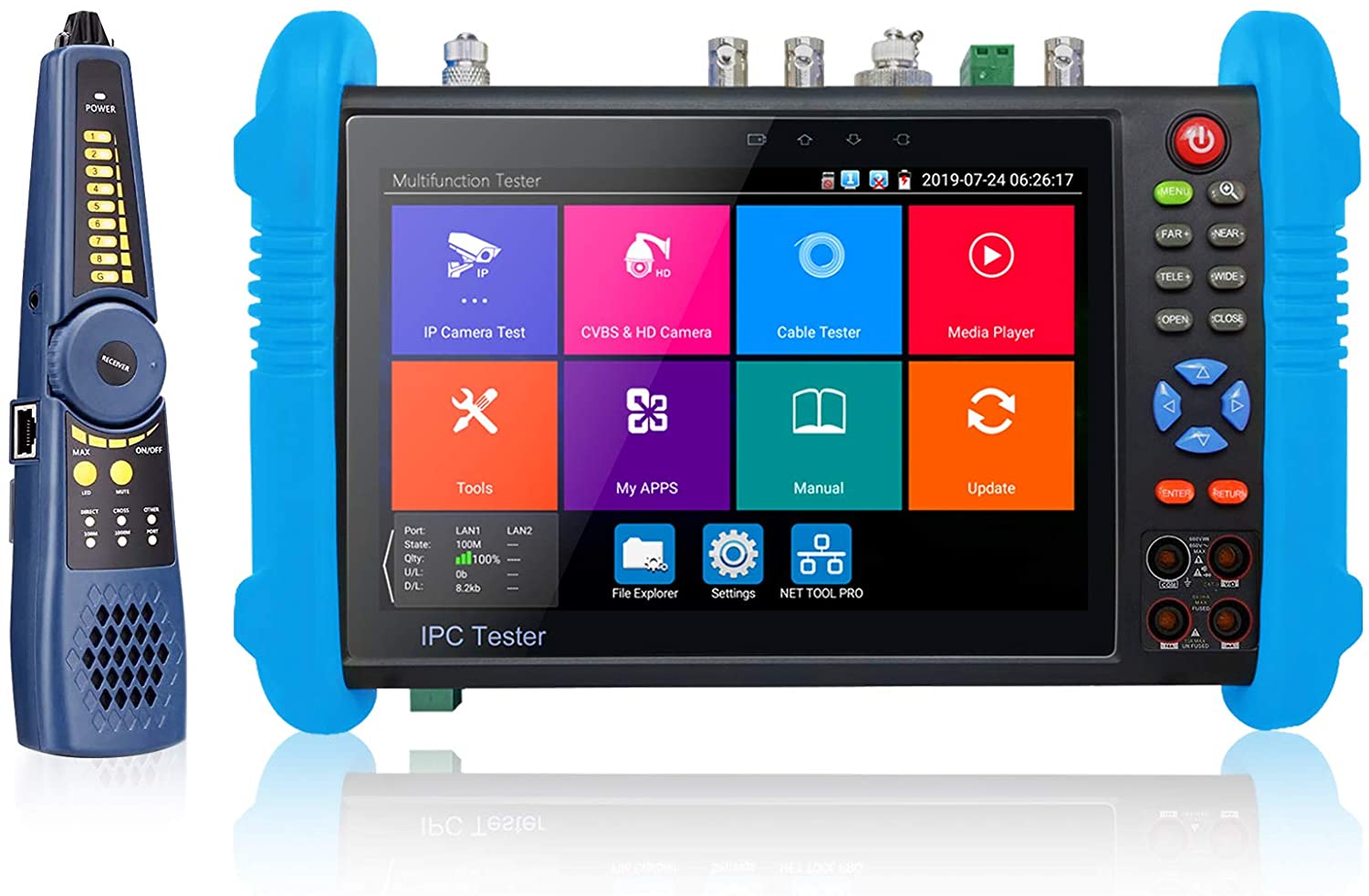

● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables *

● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM

Other functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● POE & power information, DC12V& PoE power and voltage output /input measurement

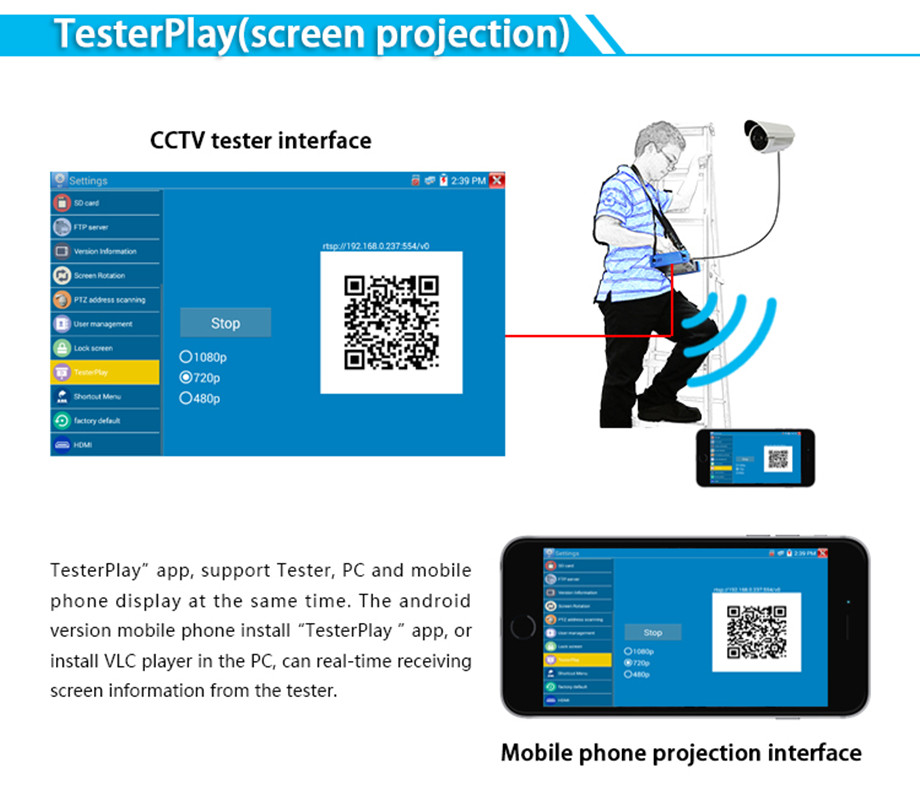

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

● HD input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display, record and snapshot *

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Self -update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Quick office, quick office app (support excel, word, ppt format) doc. editable

● 8GB SD card including

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /7500mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time lasts 10 hours

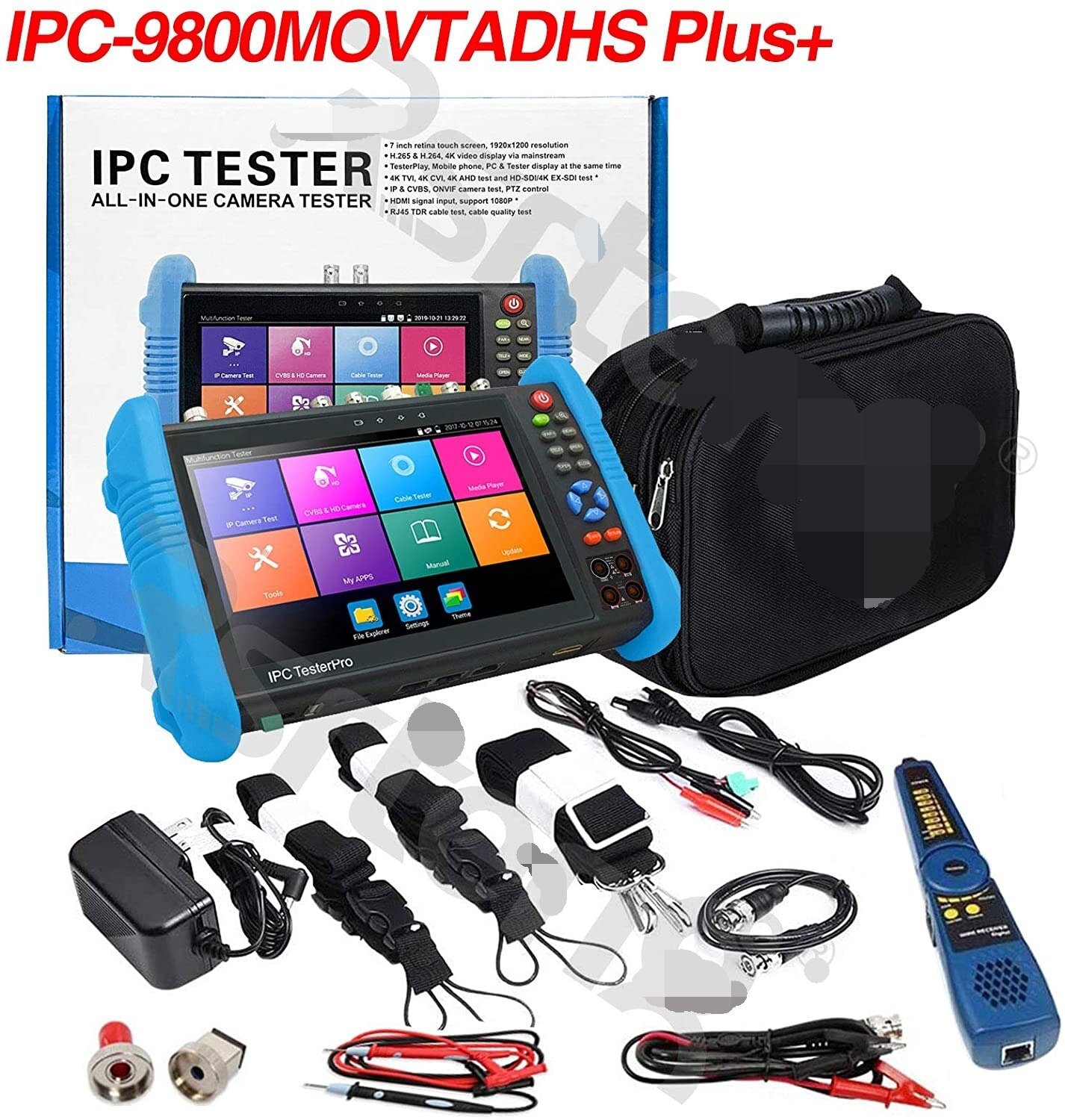

All accessories and cables will come with the machine and it is in English version. It supports more than 12 languages.







Multi-functions CCTV tester





LCD

Item series

IPC-9800 CLMOVTADHS Plus+

Display

New 7 inch IPS touch screen ,1920*1200 resolution

Video Mode

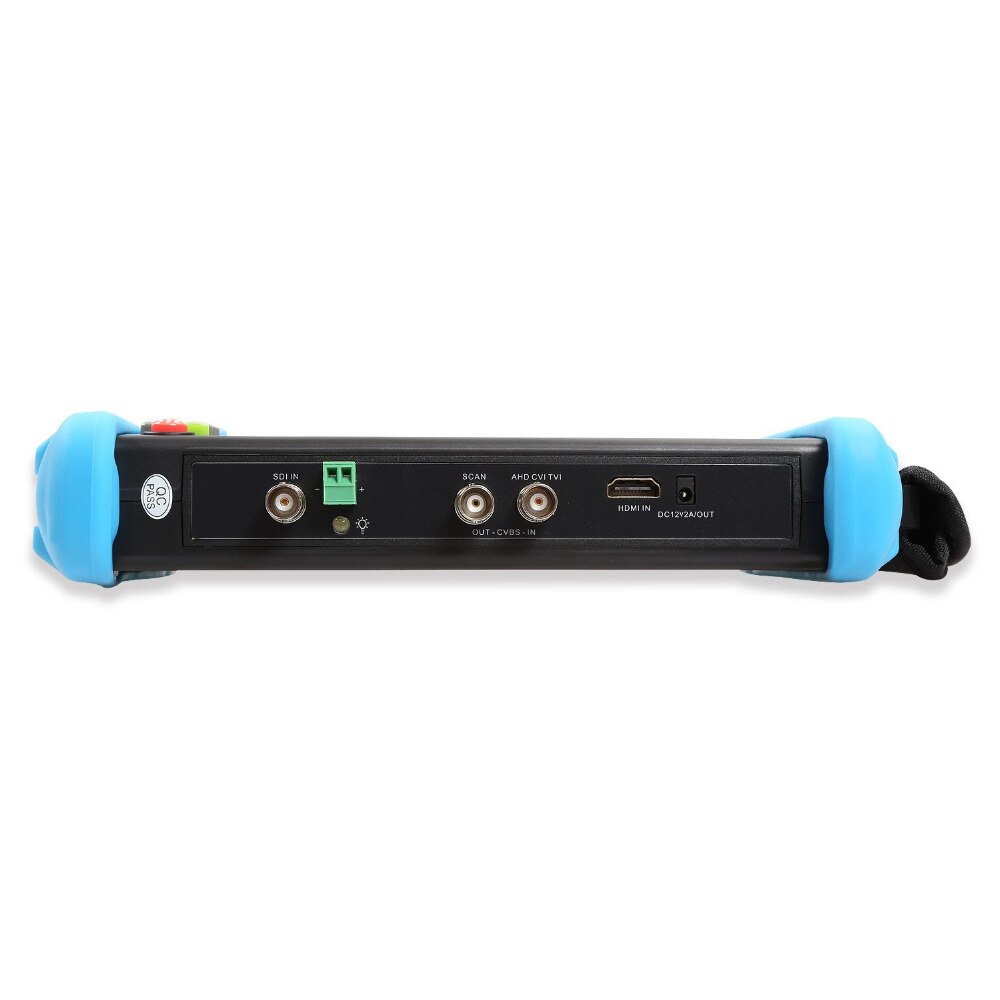

CVBS

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement


PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

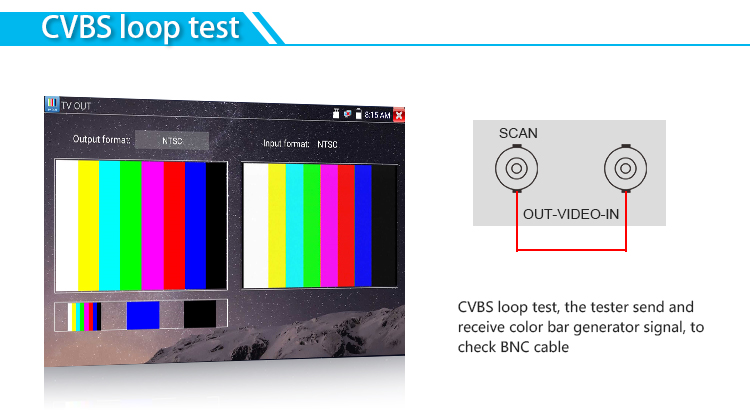

CVBS loop test

the tester send and receive color bar generator signal , check BNC cable


IP camera test

IPC test /IPC viewer /Rapid Video/RTSP /ONVIF


Rapid Video

Auto view the video, create testing report


Hik test tool

pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters


Dahua test tool

Dahua camera test, modify the user name, password and IP parameters


IP& CVBS test

IP& CVBS test at the same time ,converter test from analog to digital with dual test window


Coaxial HD test

8MP TVI camera test,


8MP CVI camera test,


8MP AHD test,


HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS


HDMI input

1 channel HDMI input, support 1080P


Zoom Image

4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back


Analog Video out

color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable


HD output

1 channel HD output, support 1920*1080P



12V/2A power

Output DC12V/2A power out ,supply temporarily power for the camera



Power output

PoE power output

48V PoE power output, max power 24W


5V/2A power output

USB 5V 2A power output, as a power bank


Cable test

TDR cable test

BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM


Cable tracer optional function

search BNC cable, network cable and telephone cable from the mess cables


UTP cable test

Test UTP cable connection status and display on the screen. Read the number on the screen

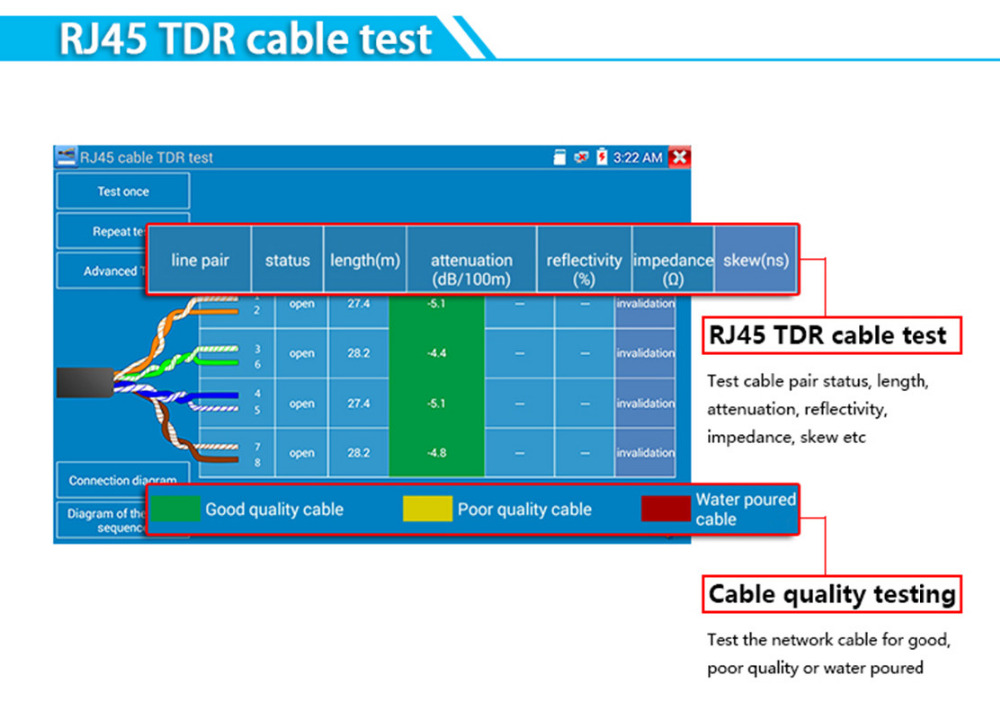

RJ45 cable TDR test

test cable pair status, length, attenuation, reflectivity, impedance, skew etc


TesterPlay

screen projection:tester, mobile phone and PC display at the same time (For android version mobile phone)


Network test

Trace route, Link monitor , DHCP server, port flashing , Ping test


Wi-Fi

Built in WIFI,speeds150M,display wireless camera image

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling device,also can send hexadecimal

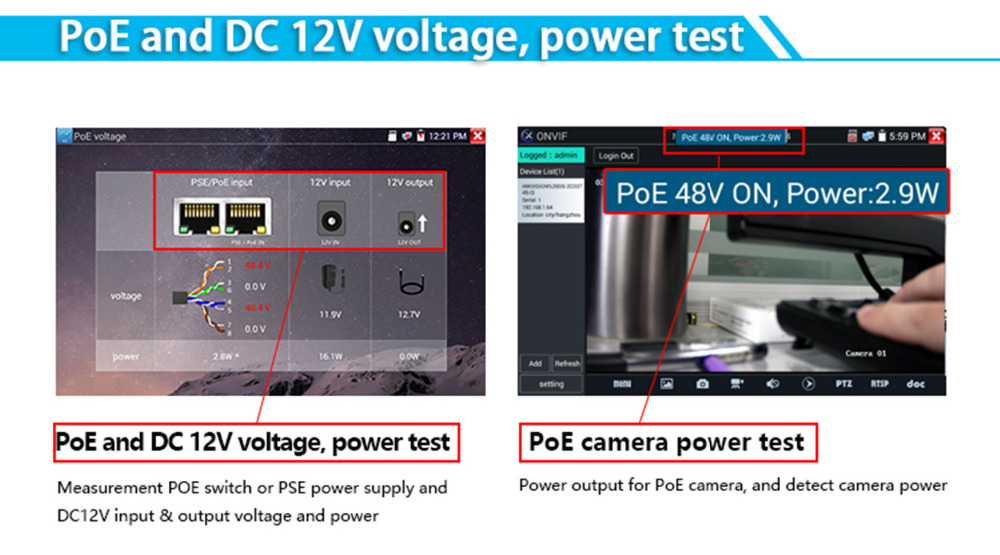

PoE test

Measurement POE switch or PSE power supply voltage and cable connection status

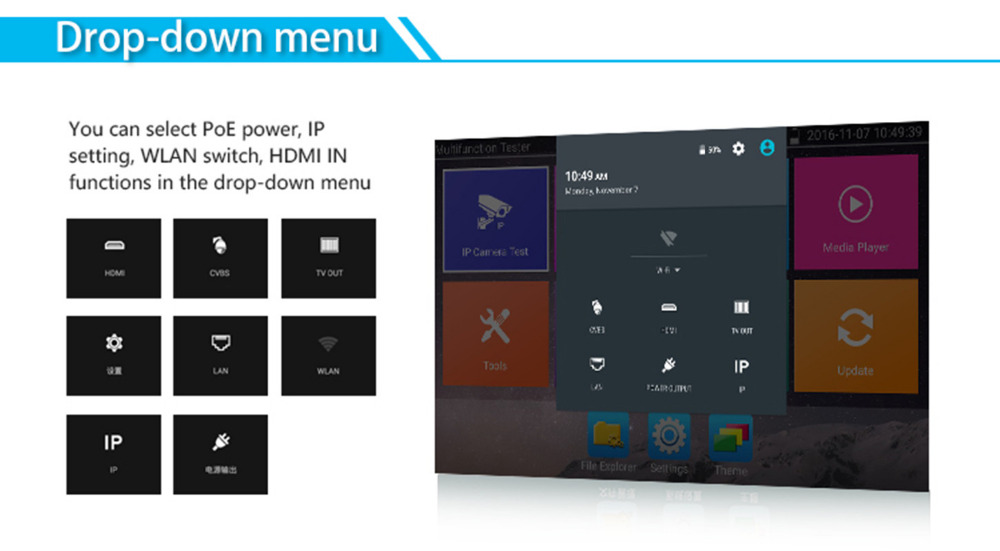

Drop-down menu

You can select PoE power switch ,IP setting, WLAN switch , HDMI IN functions etc in any interface

External power supply

DC 12V 2A   24V2A

Battery

Built-in 7.4V Lithium polymer battery ,7500mAh

Rechargeable

After charging 5~6 hours, normal working time 10 hours

Operation setting

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto off

5-30 (mins)

Working Temperature

-10℃---+50℃

Working Humidity

30%-90%

Dimension/Weight

240mm x 154mm x 46mm / 620g


M

Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement

O

Optical power meter, Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ~ +10 dBm, for optical power testing and Fiber link loss relative measurement

V

Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM

T

TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM

A

AHD camera test, 8MP TVI camera test,

H

TVI camera test: 8MP TVI camera test,

D

CVI camera test : 8MP CVI camera test

S

HD SDI/EX-SDI camera test ,

L

Video level meter:PEAK ,SYNC signal level, color burst chroma level measurement

C Optional

Cable tracer :search BNC cable, network cable and telephone cable from the mess cable





  • Plug Type: EU plug
  • Sensor Type: FULL
  • Model Number: IPC9800MOVTADHS plus
  • Maximum IR Distance(m): INTERNET
  • Sensor Size: 1/4 inch
  • Lens: FULL
  • Brand Name: Precamview
  • Origin: Mainland China
  • Certification: CE,FCC,RoHS
  • 7 inch touch screen: 1280*800
  • IP analog camera: video testing H.265 H.264
  • AHD TVI CVI SDI: video testing 8MP 4K
  • multimeter: built in
  • optical fiber: support
  • visual fault locator TDR: support
  • Cable tracer: support
  • HD Input output: support
  • POE 12V output: power supply
  • Power plug: AU, EU, UK, US
