Video Card Capture HDMI Video Capture USB2.0 Cards Grabber Streaming Live Broadcasts Video Recording PC Live Streaming
52.61 22.13 $
SALE
ID: 79218
Quantity
VGA-to-USB adapter converter， Support audio and video capture card 1080p with VGA cable , VGA signal input USB2.0 Output
0.0 (1 votes) | 1 orders
Price:
US $68.40
/ piece
Discount Price:
US $
58.14
/ piece
-15%
- Color
-
-

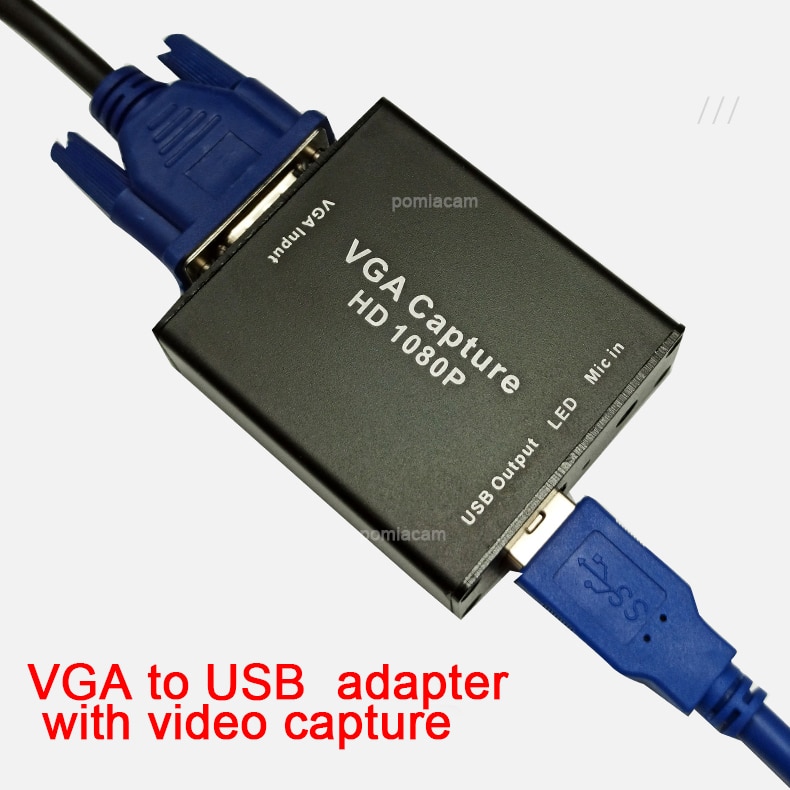

VGA to USB adapter converter with audio and video capture card 1080p Drive-free high-difinition picture quarity

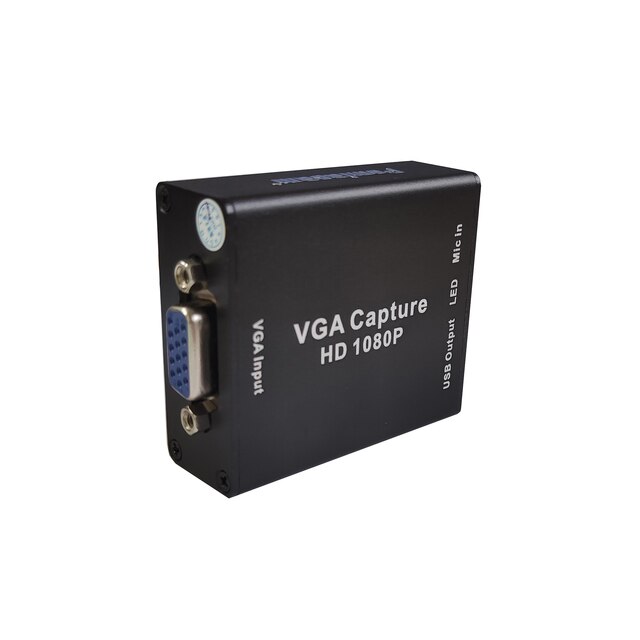

About old VGA Capture as follow :
About New VGA Capture as follow :
VGA Capture Card Plug-and-play USB Drive-free HD Video Capture Tool Driving DVR for Windows,Linux,and Android ,USB2.0 Output
1. VGA to USB adapter converter
2. Suppoirt audio and video capture
3. 1080P
4. Drive-free
5.High-didinition picture quarity
VGA Capture manual :

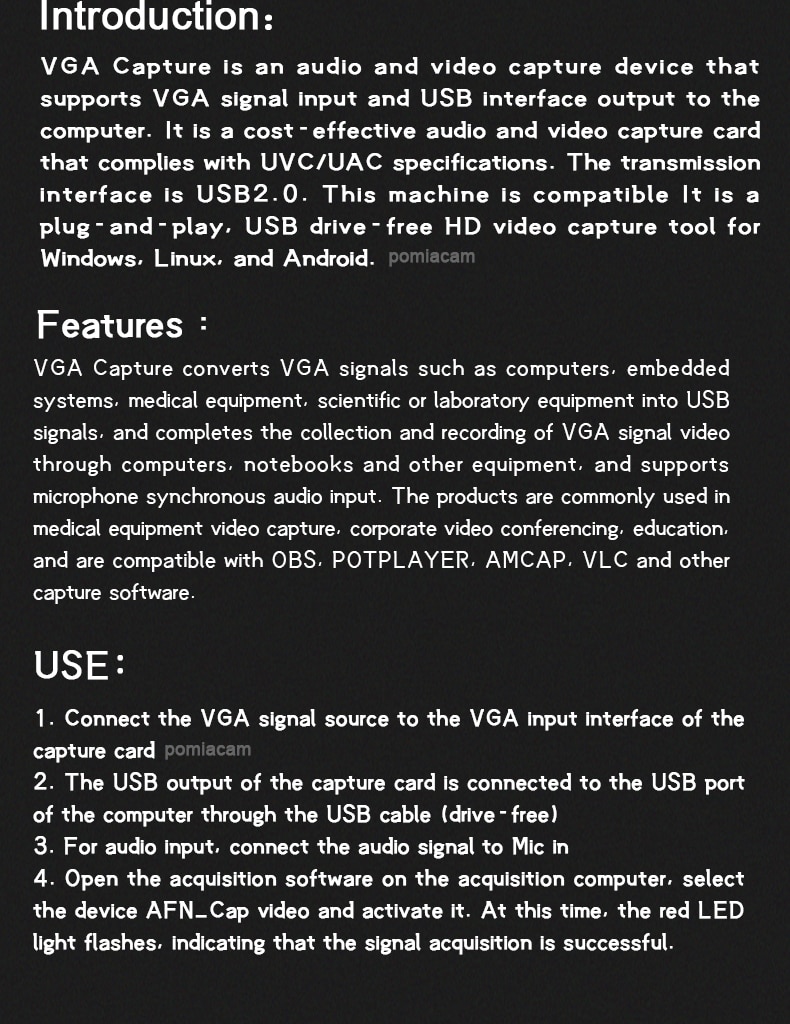

About VGA capture :
VGA Capture is an audio and video capture device which support VGA inout and USB output .
it is support UVC/UAC standard , transport port is USB2.0 , it compatible with Android , windows and linux system , it is a driver free HD capture also support plug and play .
Freatures :

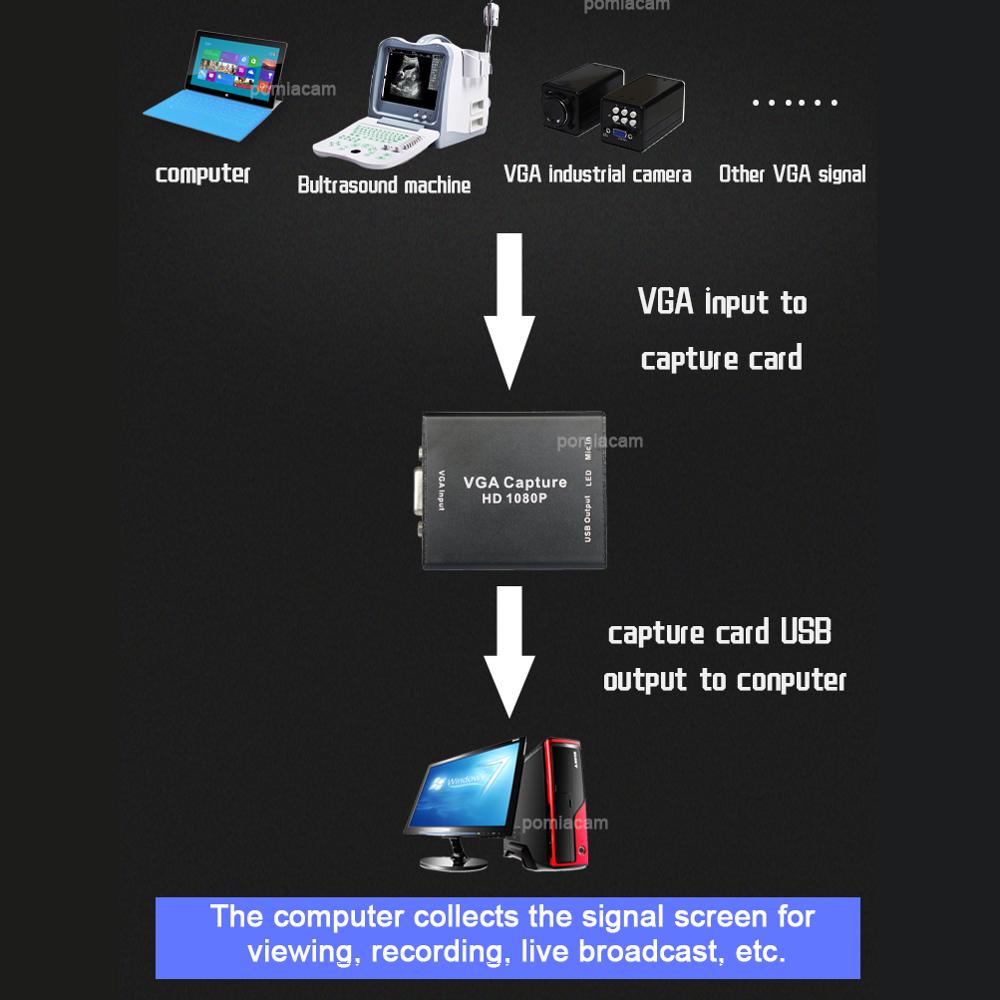

VGA caputre is convert VGA signal form PC , medical machine , and expreimental machine to USB signal . it capture and recording the AV signal via computer or laptop . microphone for audio pick up is available also . it is widly used in medical video capture, cooperation video meeting , education , it compatible with OBS , potplayer , AMCAP , and VLC software .
How to use :

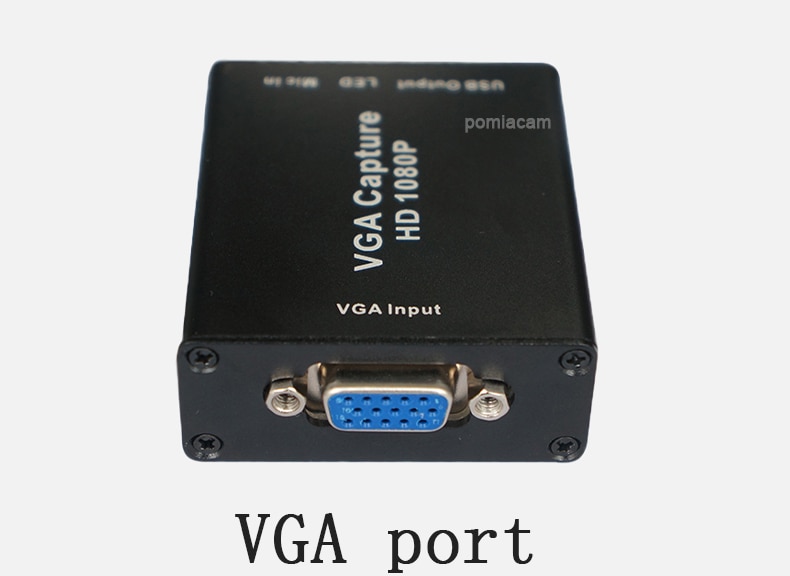

1. Connect VGA signal source to VGA input port .
2. Connect USB output port to computer USB via USB cable . (Driver free)
3. A separate microphone connect to MIC IN , if you need it (The package does not include microphone/voice pickup )
4. Running capture software on computer , selext device "ANF_Cap video " and avtivate it .Res LED light flashing means signal captured.
Sweet tips:
Because of mini size designed , it is normal if the device is hot in working mode .

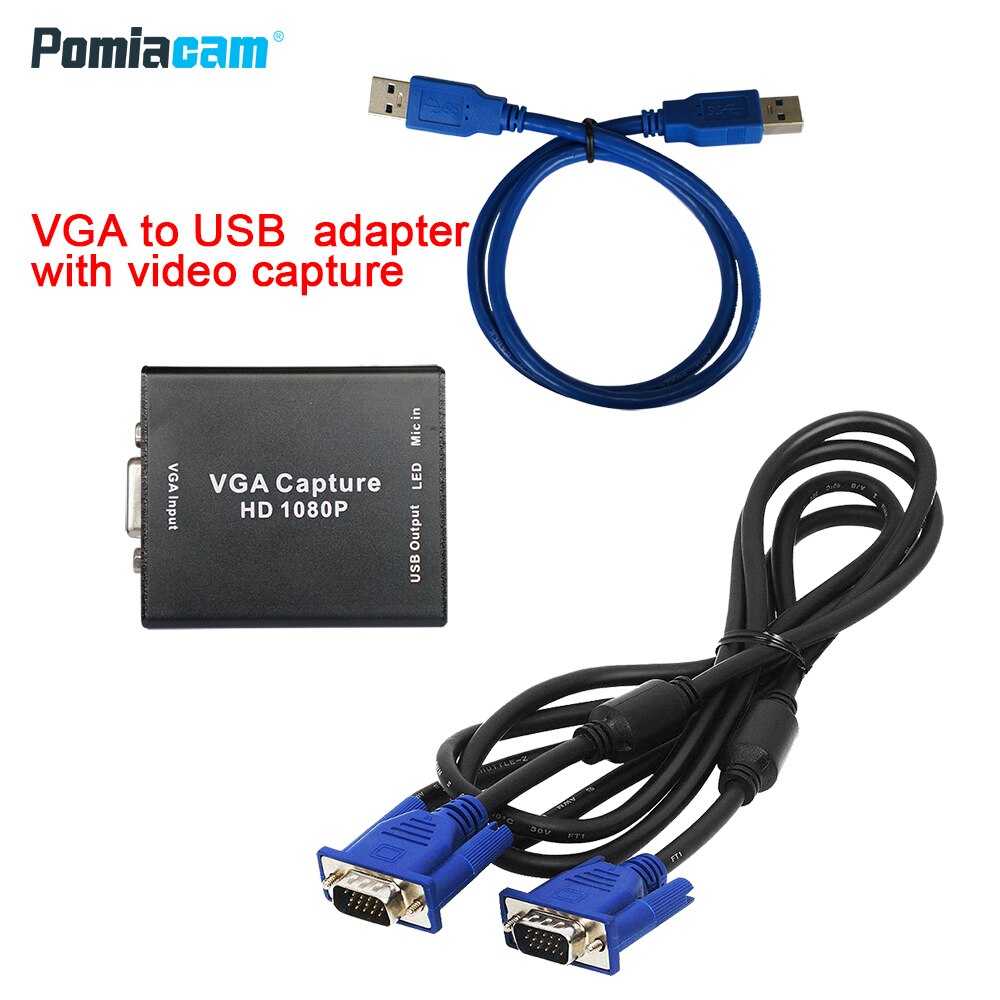

Accessories :
VGA capture *1

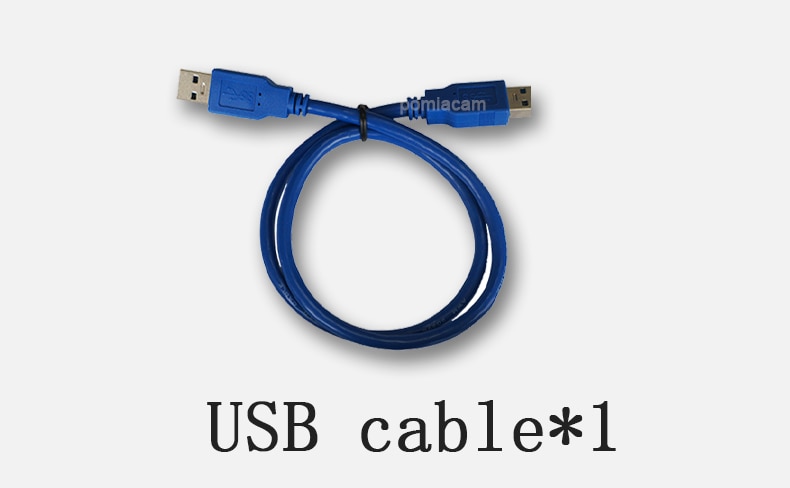

USB cable *1

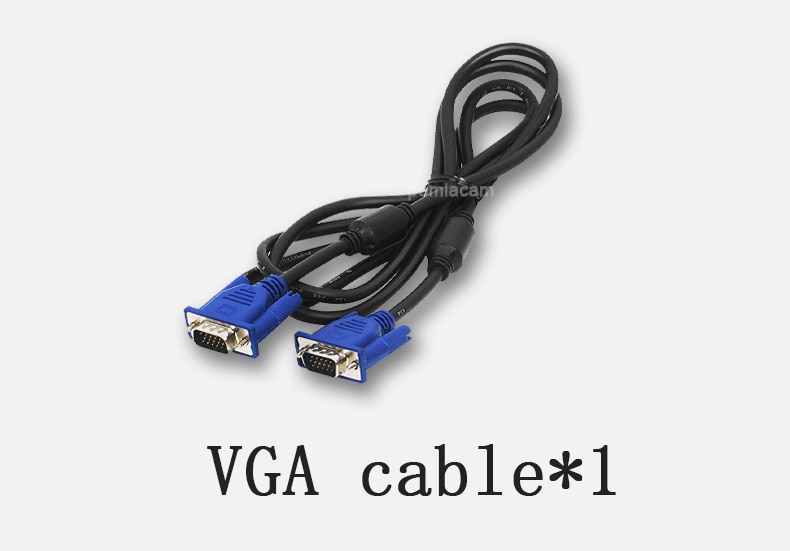

VGA cable *1

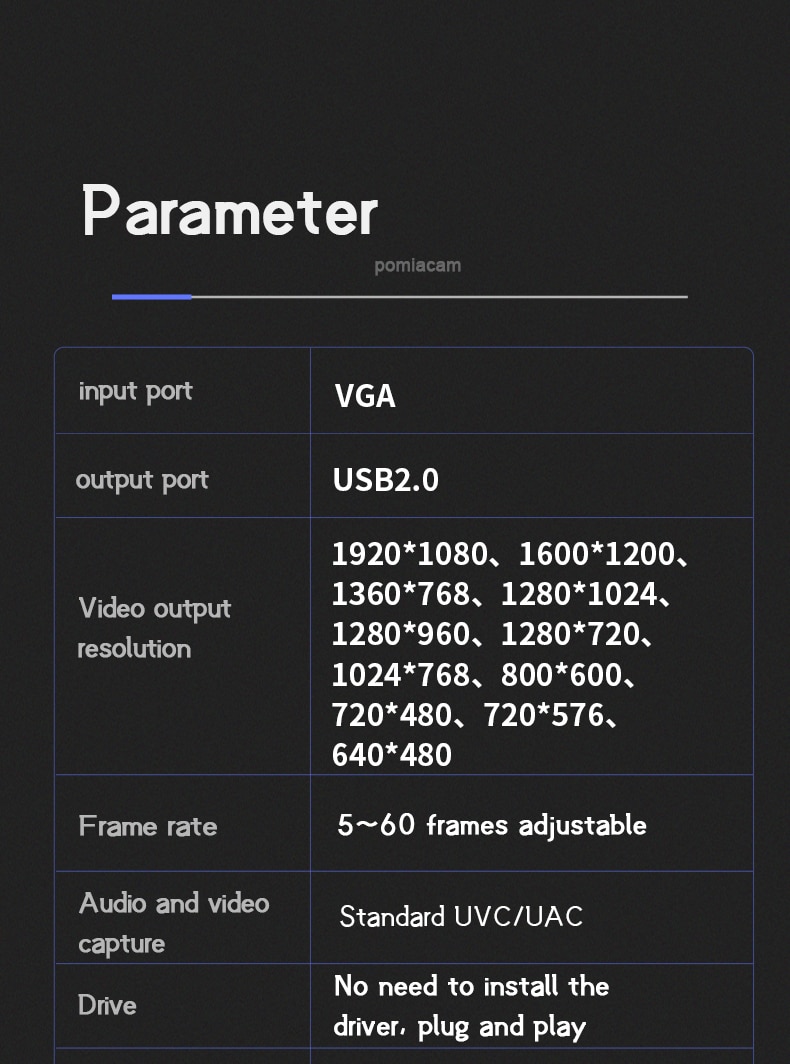

Parameters :
Input : VGA
Output : USB3.0
Video output Resolution : 1920*1080, 1600*1200, 1360*768, 1280*1024, 1280*960, 1280*720,1024*768, 800*600, 720*480, 720*576, 640*480
Frame : 5-60 Frame adjustable
Standard : UVC/UAC
Driver : free
Operation system : Windows/Linux/Android
Capture software : OBS/potplayer (Windows )
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

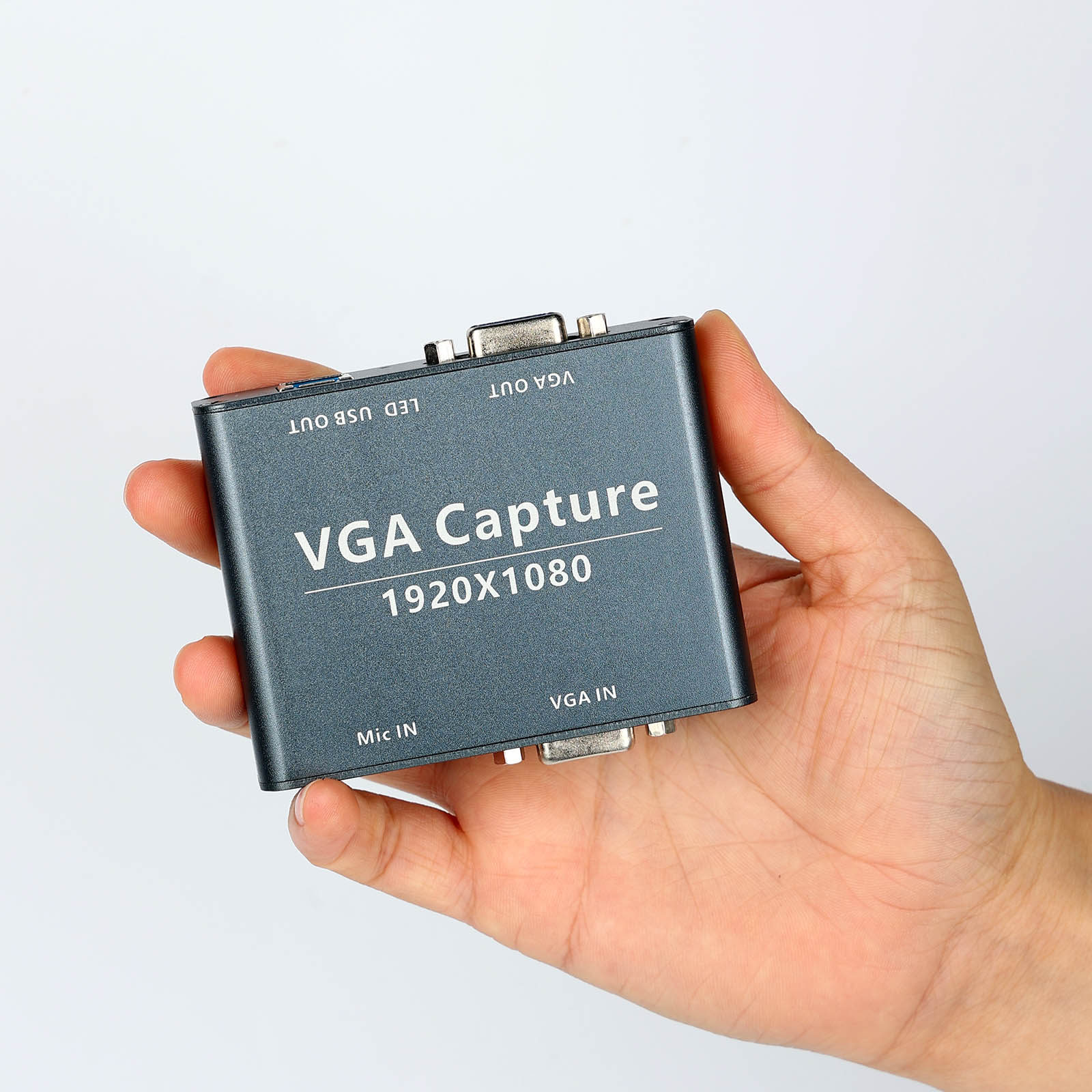

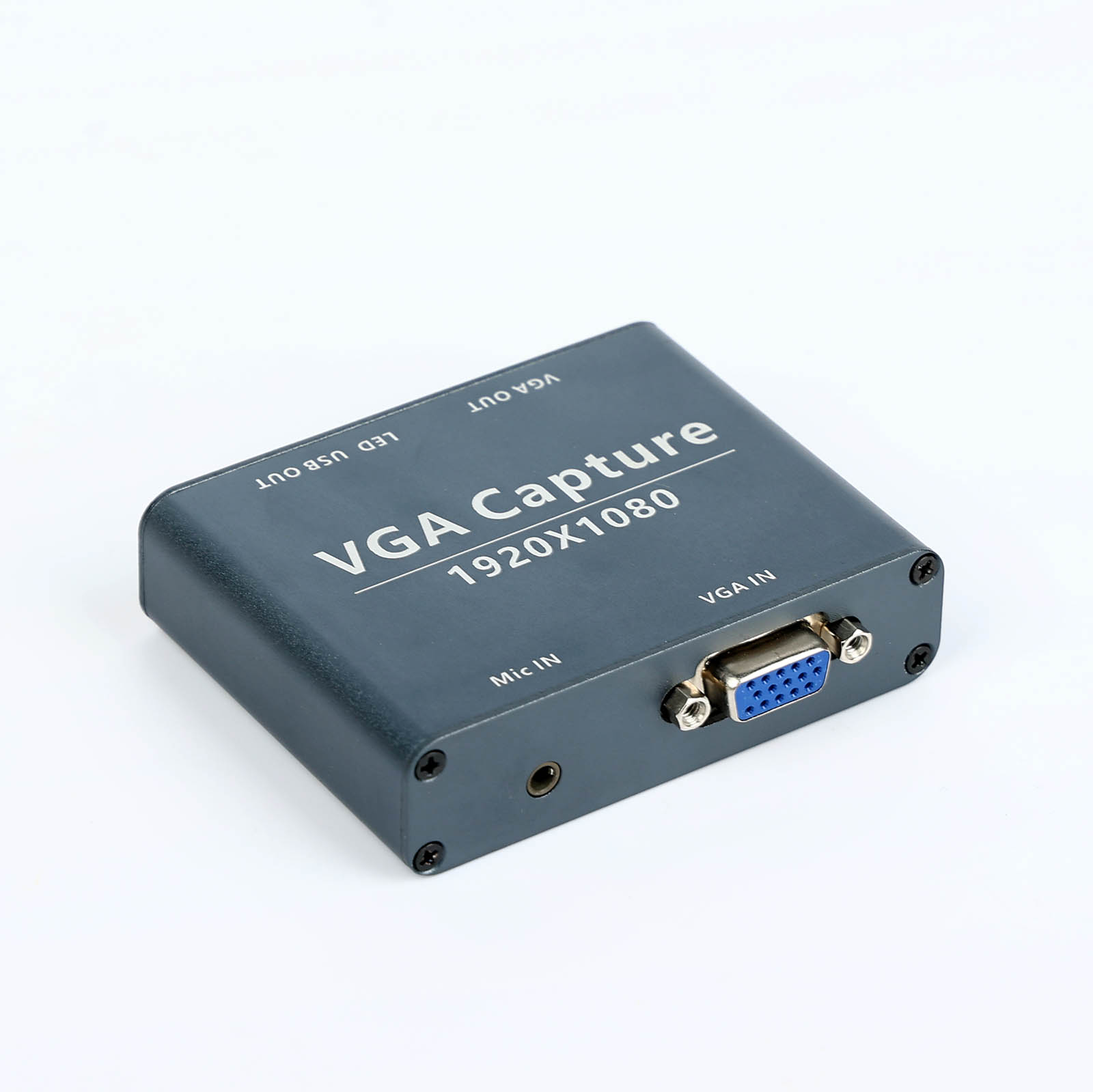

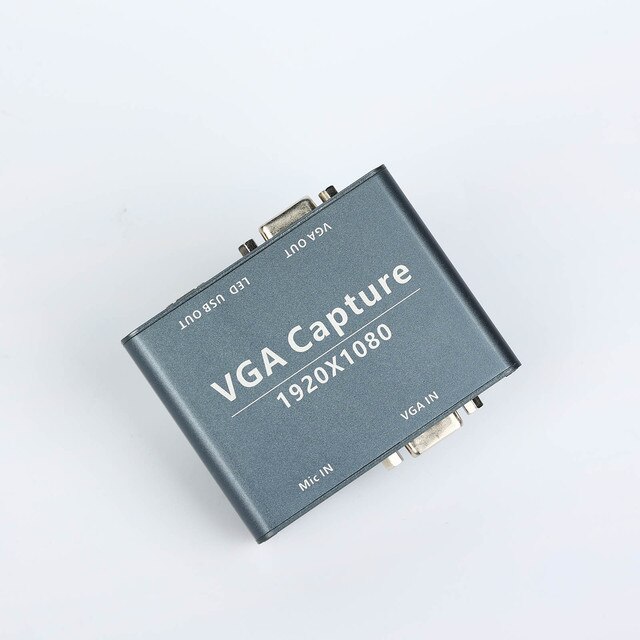

About New VGA Capture as follow :
VGA Capture 1080P is an audio and video capture devicewhich support VGA input and USB output. It is support UVC/UAC standard, transport port is USB 2.0(loop out version is USB 3.0),it compatible with Android, Windows and Linux system. It is a driver free HD capture device also support Plug and Play.
Features:

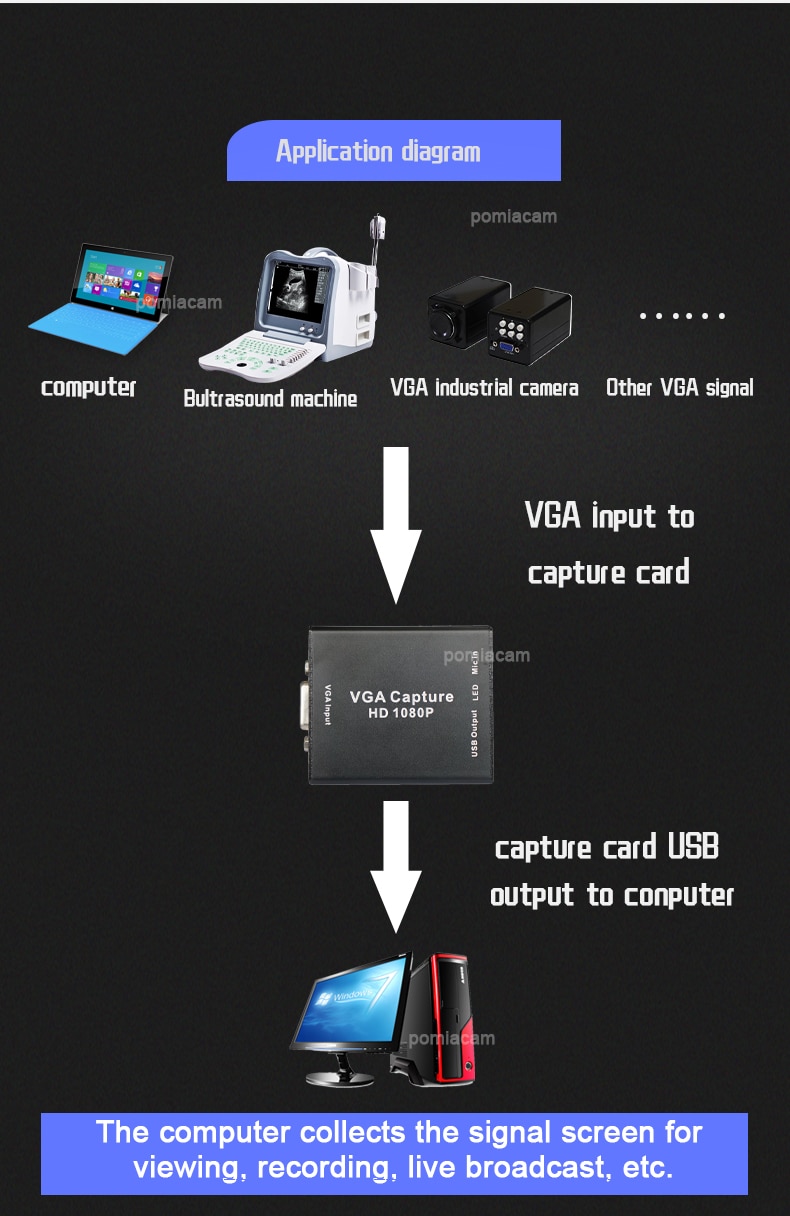

VGA capture convert VGA signal to USB signal from PC, PSP,industrial camera microscopes,medical devices, it capture the VGA signal and recording by PC, notebook, cell phone. The device support audio input too. This capture card is always use in medical, video meeting, live stream for game, education. It compatible software such as OBS, POTPLAYER,AMCAP,VLC and so on, and also support USB camera in Android system.

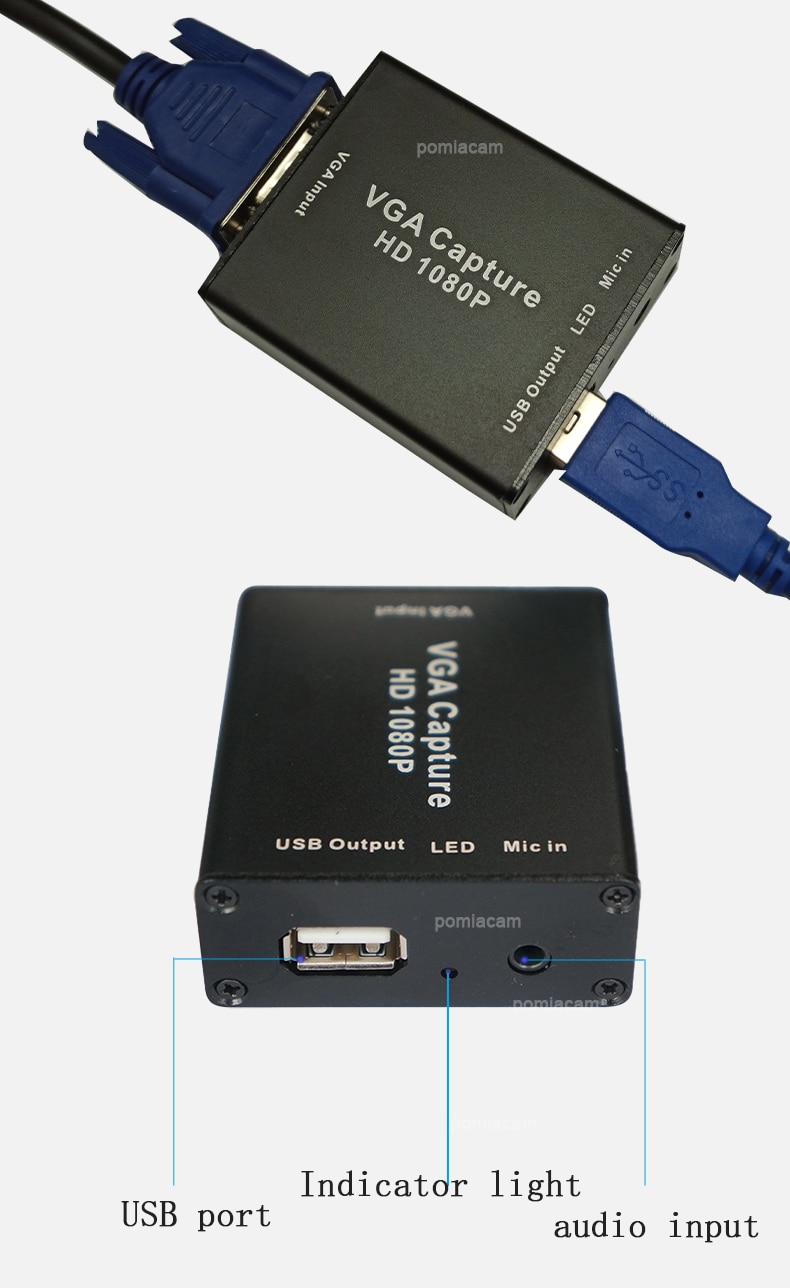

How to use:

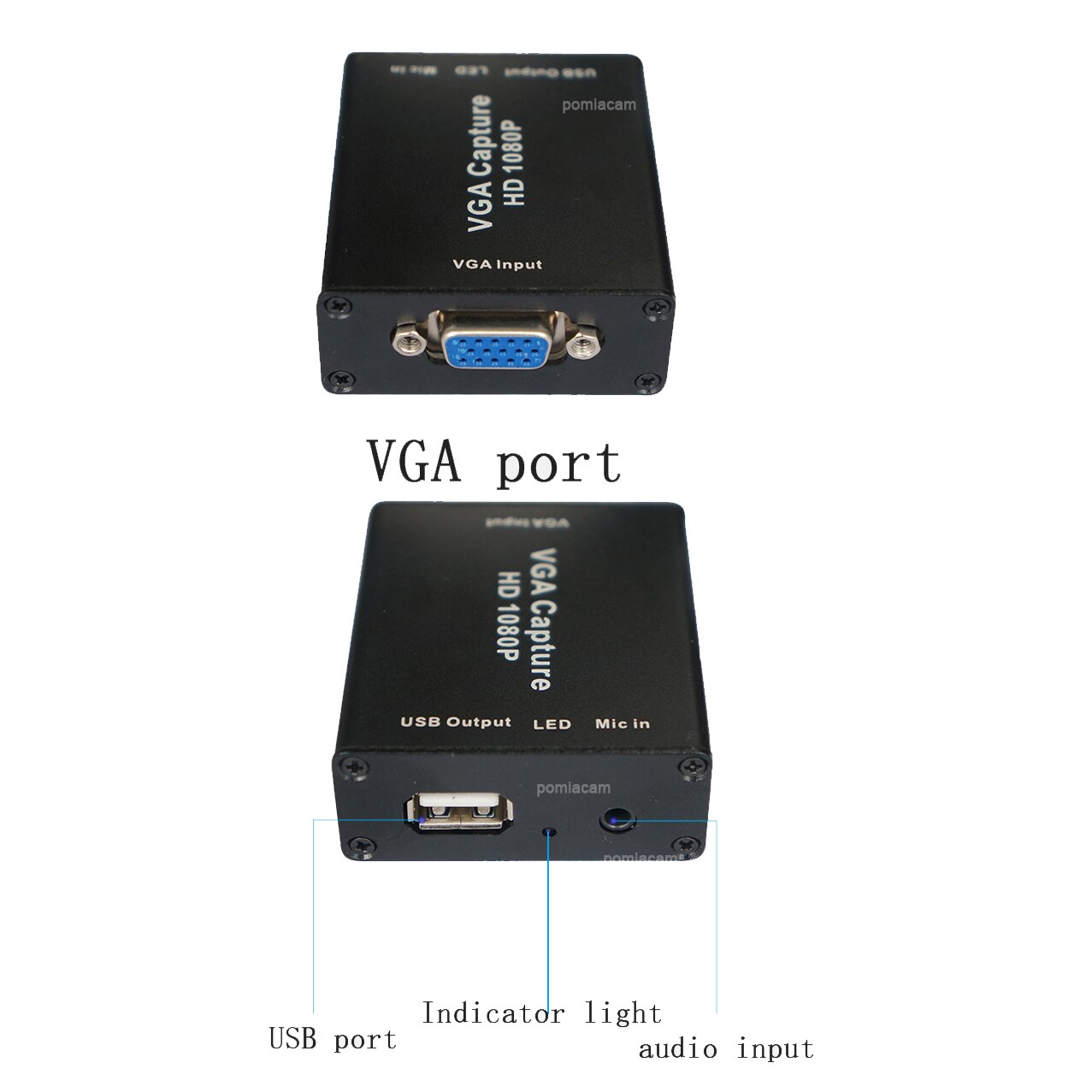

1,Connect VGA signal source to VGA INPUT port. (Resolution only same as in spec. sheet)
2,Connect USB OUTPUT port to computer USB via USB cable.(Driver Free)
3,A separate microphone connect to MIC IN if necessary.

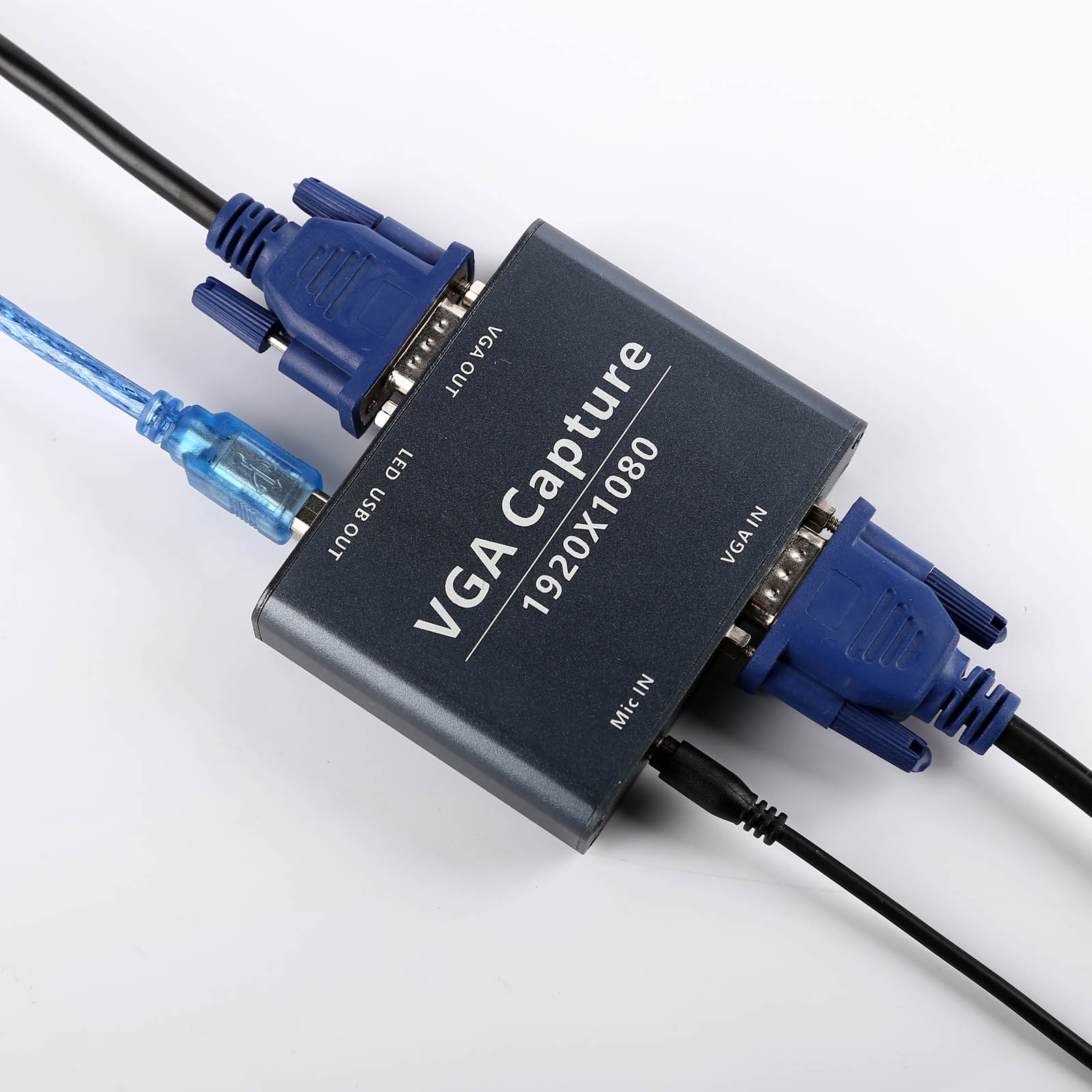

4,Loop out version support VGA out connect to monitor.
5,Running capture software on computer, select device "ANF_Cap Video" and activate it. Red LED light flashing means signal captured.
Sweet tips:
Because of mini size designed, it is normal if the
device is hot in working mode.

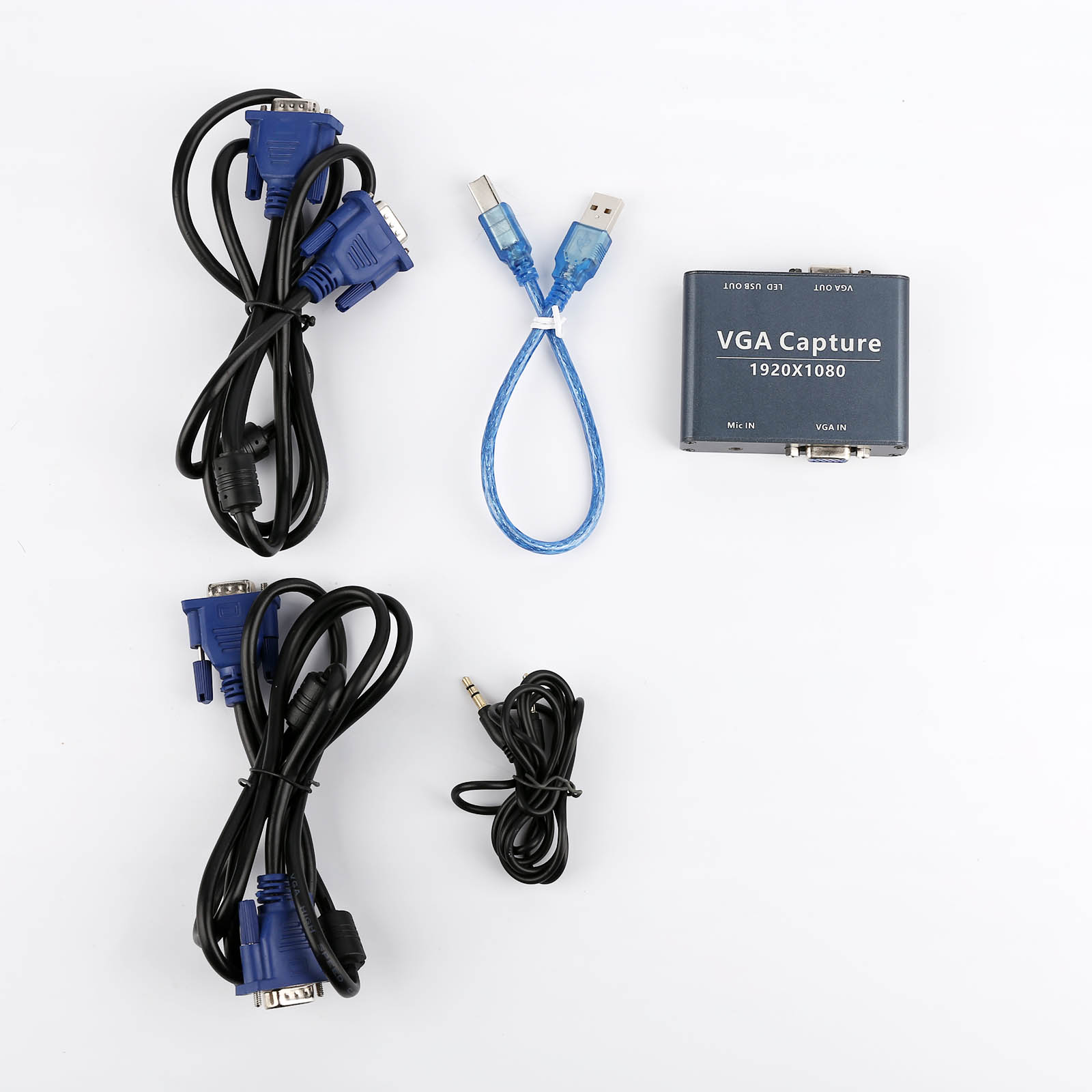

Accessories:
Standard version:
USB cable:1,Manual:1,VGA cable:1
Loop out version:
Audio cable:1,USB cable:1,Manual:1,VGA cable:2
-20~65℃

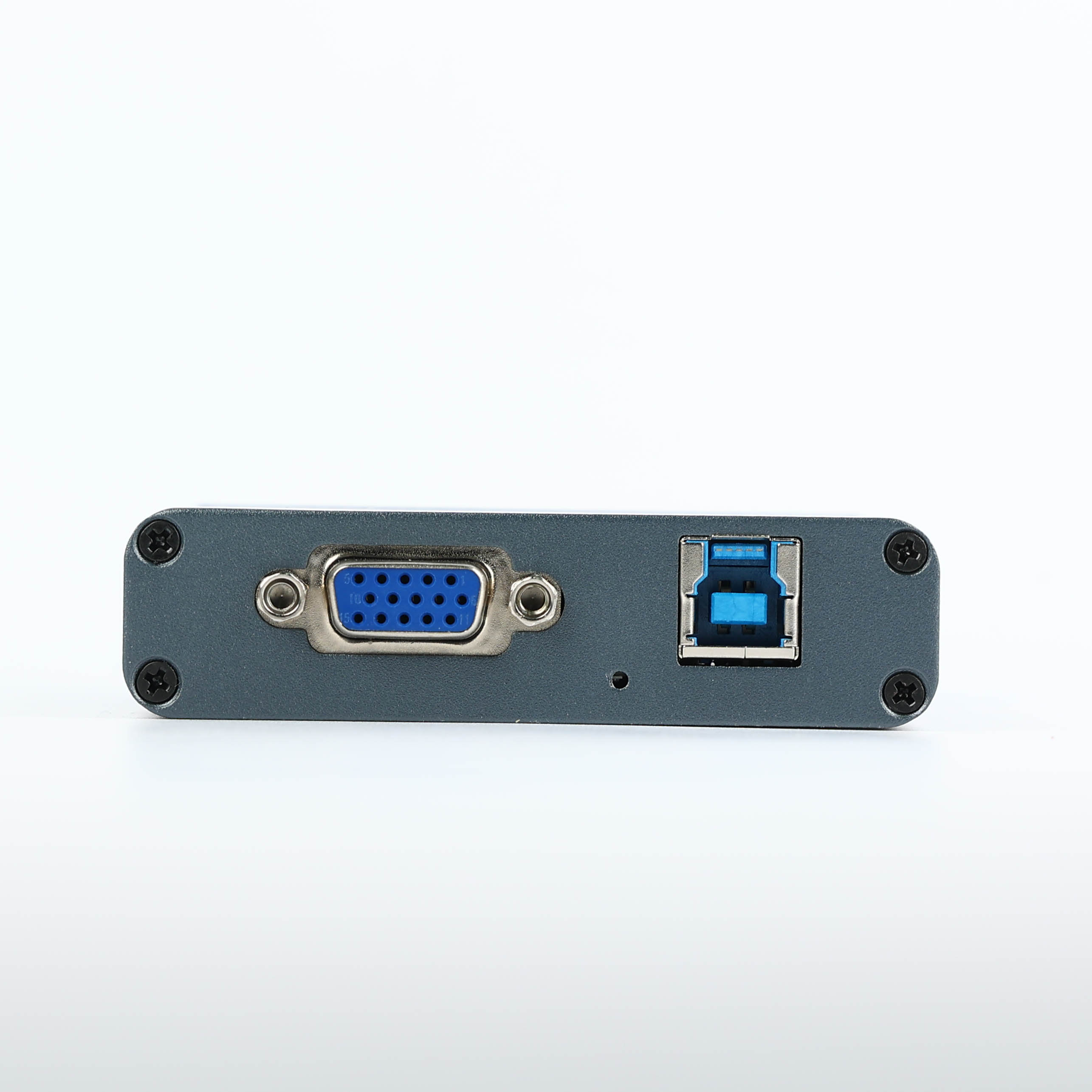

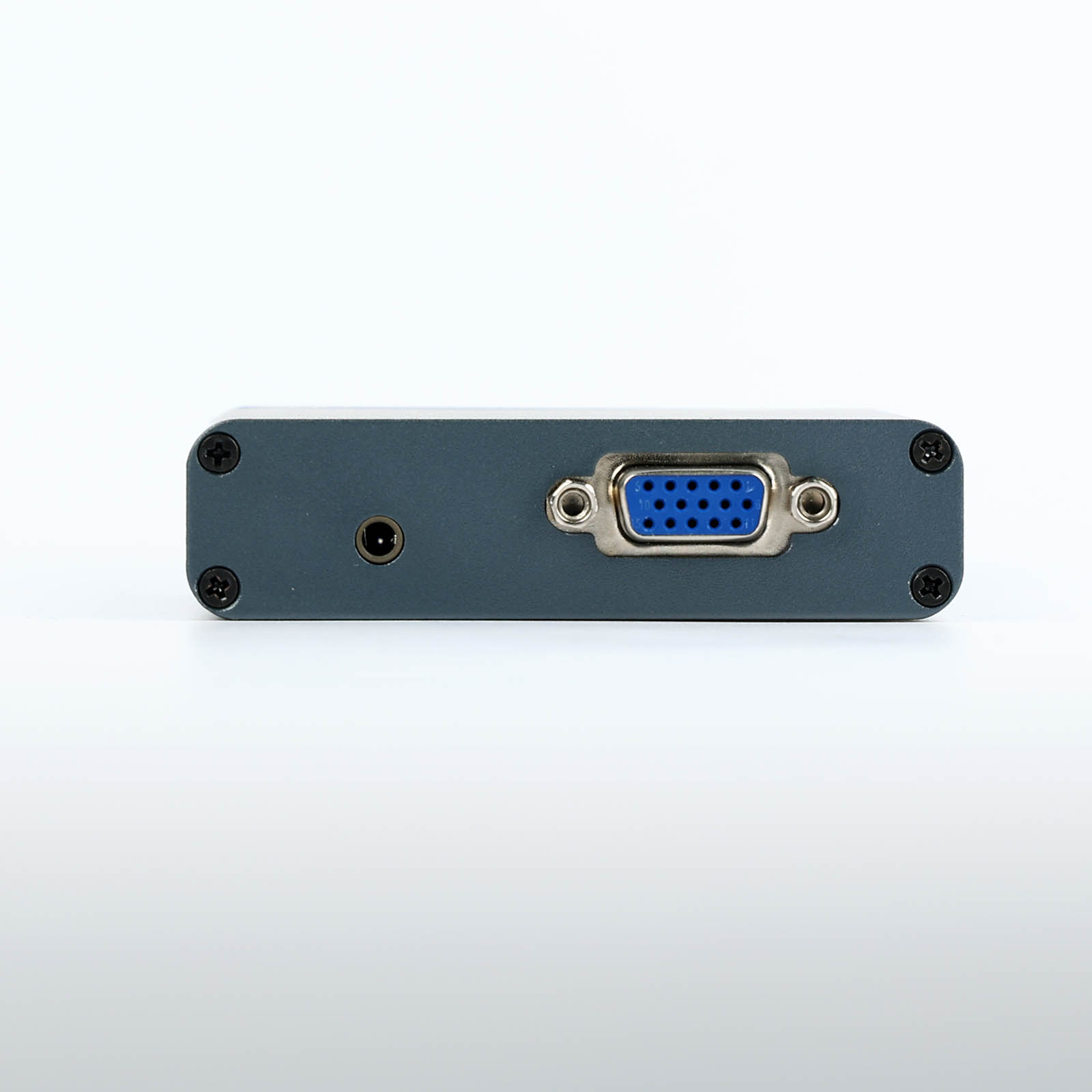

Input VGA,3.5mm connector
Output
Standard USB2.0,loop out
version USB 3.0,VGA
Video output resolution
1920*1080 , 1600*1200 ,
1360*768 , 1280*1024 ,
1280*960 , 1280*720 ,
1024*768 , 800*600 ,
720*480,720*576,640*480
Frame 5-60 frame adjustable
Standard UVC/UAC
Driver Free
Operation system Windows/Linux /Android/MAC
Capture software
OBS/Potplayer(Windows)
/USB camera(Android)
Consumption ＜1.5Wat
Working Temp.
Workng Hum. 5%-90%

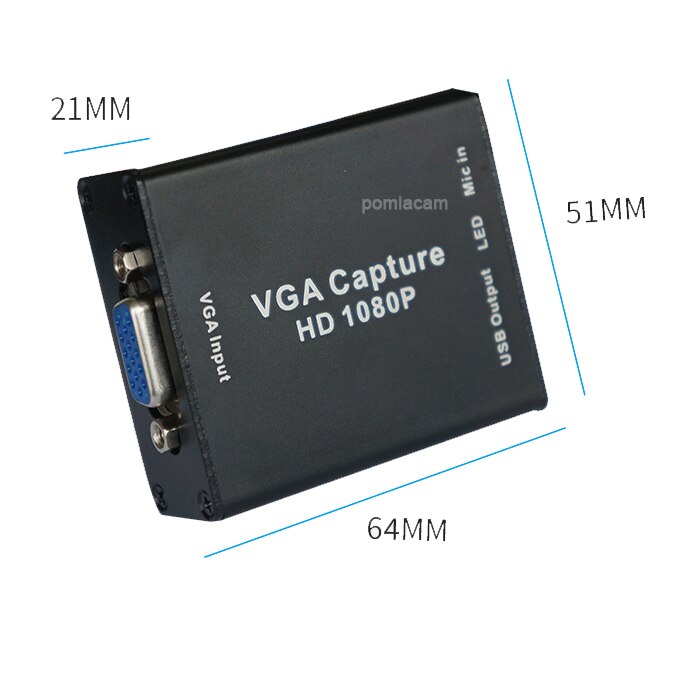

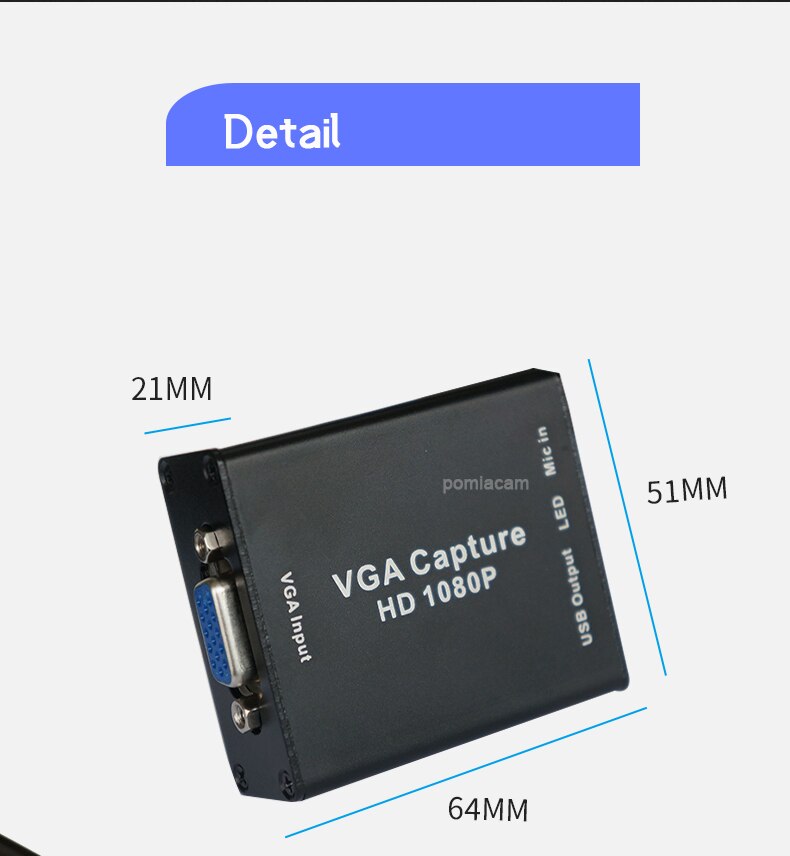

Size 82mm*63mm*21mm
Weight 100
- Model Number: AT-VGA
- Brand Name: POMIACAM
- Origin: Mainland China
- Smart home platform: Other
- Certification: NONE
SHIPPING AND DELIVERY
We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.
How do you ship packages?
Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.
Do you ship worldwide?
Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.
What about customs?
We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.
How long does shipping take?

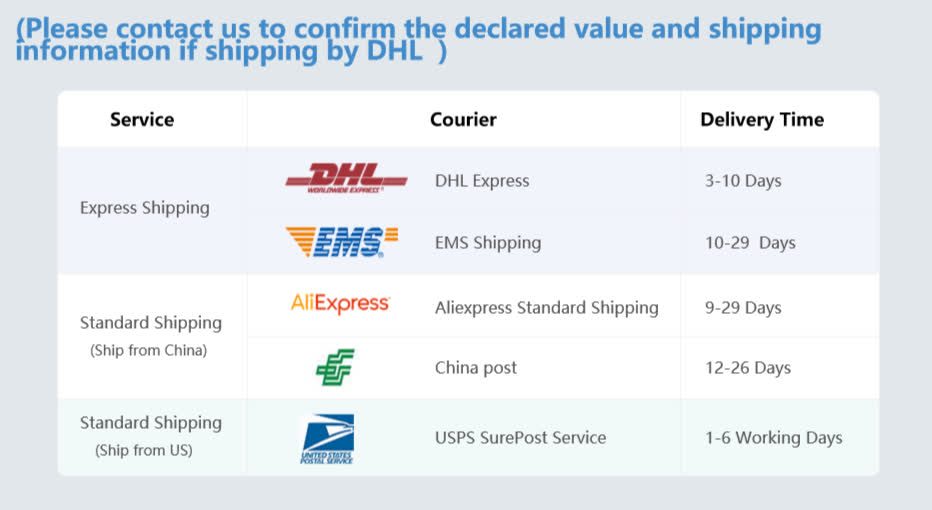

Shipping time varies by location. These are our estimates:
