VFD Inverter VFD 0.75KW1.5KW2.2KW Frequency Inverter 1P 3P 220V 380V Output Frequency Converter Variable Frequency Drive SUSWE
SALE
ID: 141862

VFD Inverter VFD 0.75KW1.5KW2.2KW Frequency Inverter 1P 3P 220V 380V Output Frequency Converter Variable Frequency Drive SUSWE

4.8 (261 votes)
Price: US $195.72 - 680.44 / piece
Discount Price:
US $ 97.20 - 329.67 / piece
-50%
Ships From
Color
Input Voltage
Socket Type
Quantity

Buy Now
Add to Cart

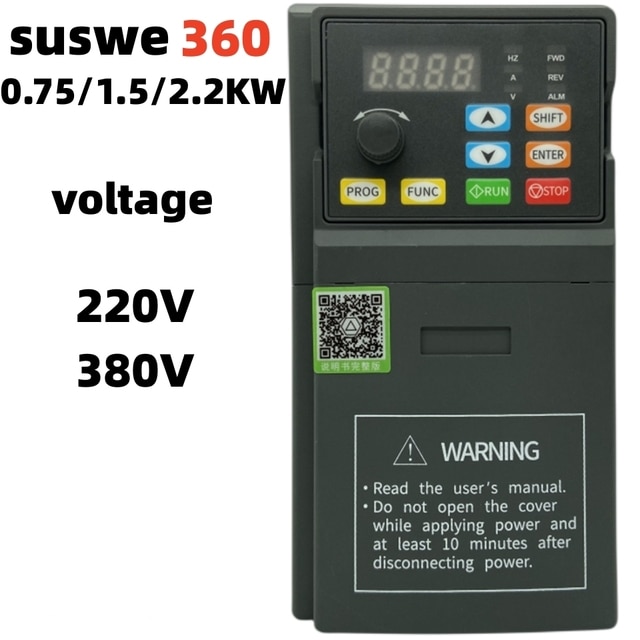

SUSWE360 series inverter is a small general-purpose inverter with multi-function low-noise voltage vector & V/F control, which realizes quick response and precise control of torque, and runs through the inverter for speed regulation. Extremely high control accuracy, automatic tuning of motor parameters, online switching between automatic control and torque control, and torque tracking. Built-in PID controller, simple PLC, 17 kinds of fault monitoring, rich I/O terminals and multiple speed setting methods, which can meet the requirements of various loads for drive control.


■Dual analog input


■Overcurrent, overvoltage, overload, phase loss, short circuit protection


■Simple PLC function


■Built-in PID controller


■Output voltage regulation AVR function


■Built-in EMC filter

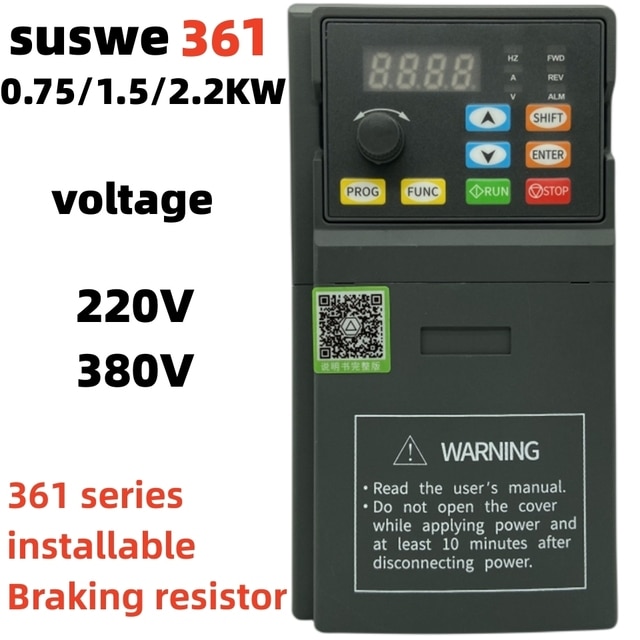

361 can install braking resistor

3-phase TO 3-phase：HS360 series VFDThree-phase 380Vinput & Three-phase 380V output
Equipment input side connected to three-phase power supply,Equipment output side connected to three-phase motor.

1-phase TO 3-phase：HS360 series VFDSingle-phase 220V input & Three-phase 220V output
Equipment input side connected to single-phase power supply,Equipment output side connected to three-phase motor(Guarantee the torque,motor connection changed from Y to △)
1-phase TO 3-phase(Voltage-increase)：HS360 series VFDSingle-phase 220V input & Three-phase 380V output Equipment input side connected to single-phase power supply,Equipment output side connected to three-phase motor.
Installation Instructions
Model
Power
Input
Power
Source
Output
Voltage
Output
Frequency
Output
Current(A)
Overall Dimension
Net Weight(KG)
360-0.4G1
0.4KW
Single-phase AC 220-240V
50Hz-60Hz
Three-phase AC 0-240V
0-999Hz
2.3
(H*W*D/MM) 170*78*135
0.8
360-0.75G1
0.75KW
4
360-1.5G1
1.5KW
7
360-2.2G1
2.2KW
9.5
360-0.4G3
0.4KW
Three-phase AC 380-440V
50Hz-60Hz
Three-phase AC 0-440V
0-999Hz
2.1
(H*W*D/MM) 170*78*135
0.8
360-0.75G3
0.75KW
2.5
360-1.5G3
1.5KW
4.1
360-2.2G3
2.2KW
5.8
360-4.0G3
4.0KW
9.4
(H*W*D/MM)
212*95*151
1.3
360-5.5G3
5.5KW
12.6
360-7.5G3
7.5KW
16.1
Name
High Performance Universal VFD
Model
HS360
Power
0.4KW-7.5KW
Input
220V/380V±20%    50-60Hz
Output
0-240V/0-440V     0-999Hz
Size
170*78*135/212*95*151
Product Paramenters



  • is_customized: Yes
  • Output Current: 4A/7A/9A
  • Output Frequency: 0-999HZ
  • Weight: 1KG
  • Size: 170*78*135MM
  • Output Type: triple
  • Output Power: 1 - 200KW
  • Model Number: SUSWE360/361
  • Type: AC/AC
  • Brand Name: SUSWE
  • Origin: Mainland China
  • Output waveform: Sine Wave
  • Display: LED
  • Protection: Short Circuit Protection
  • Application: Fan
  • Inverter type: Ac -Dc-Ac Frequency Inverter
