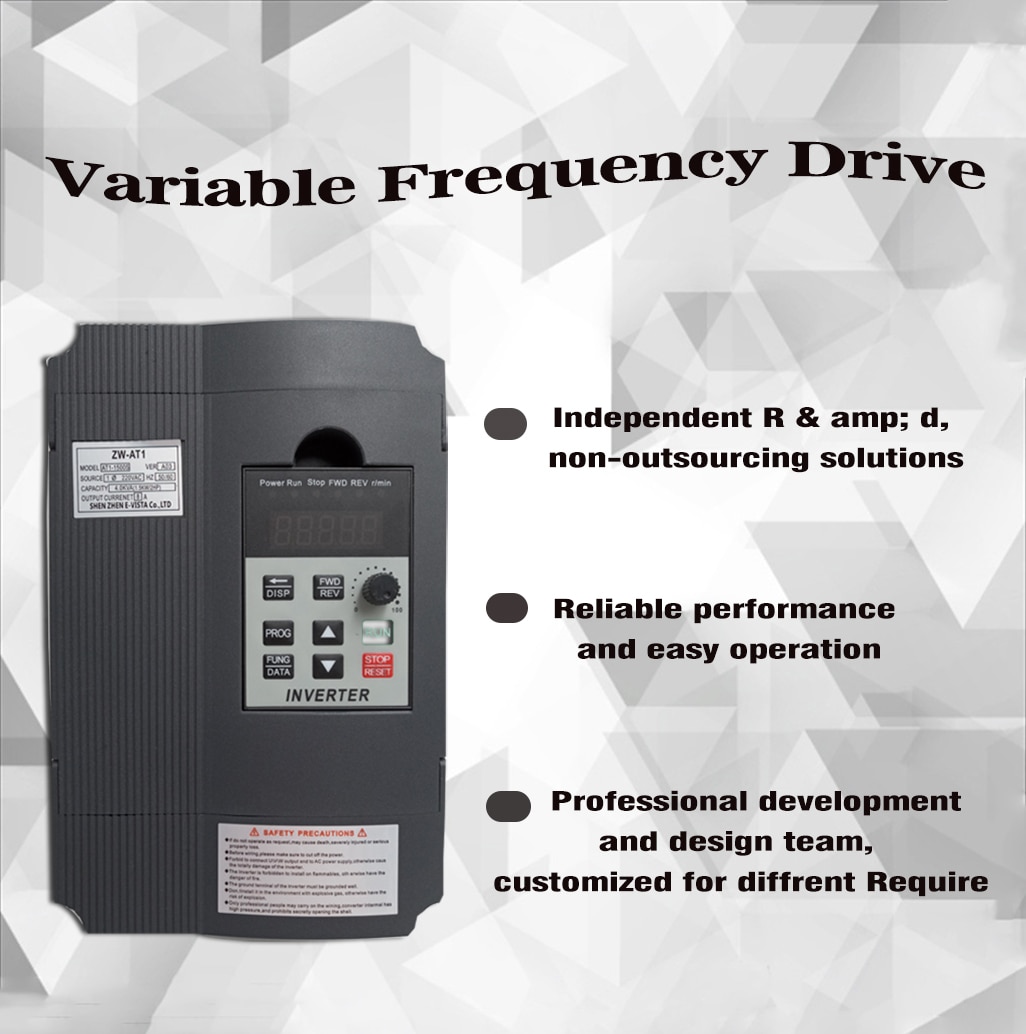

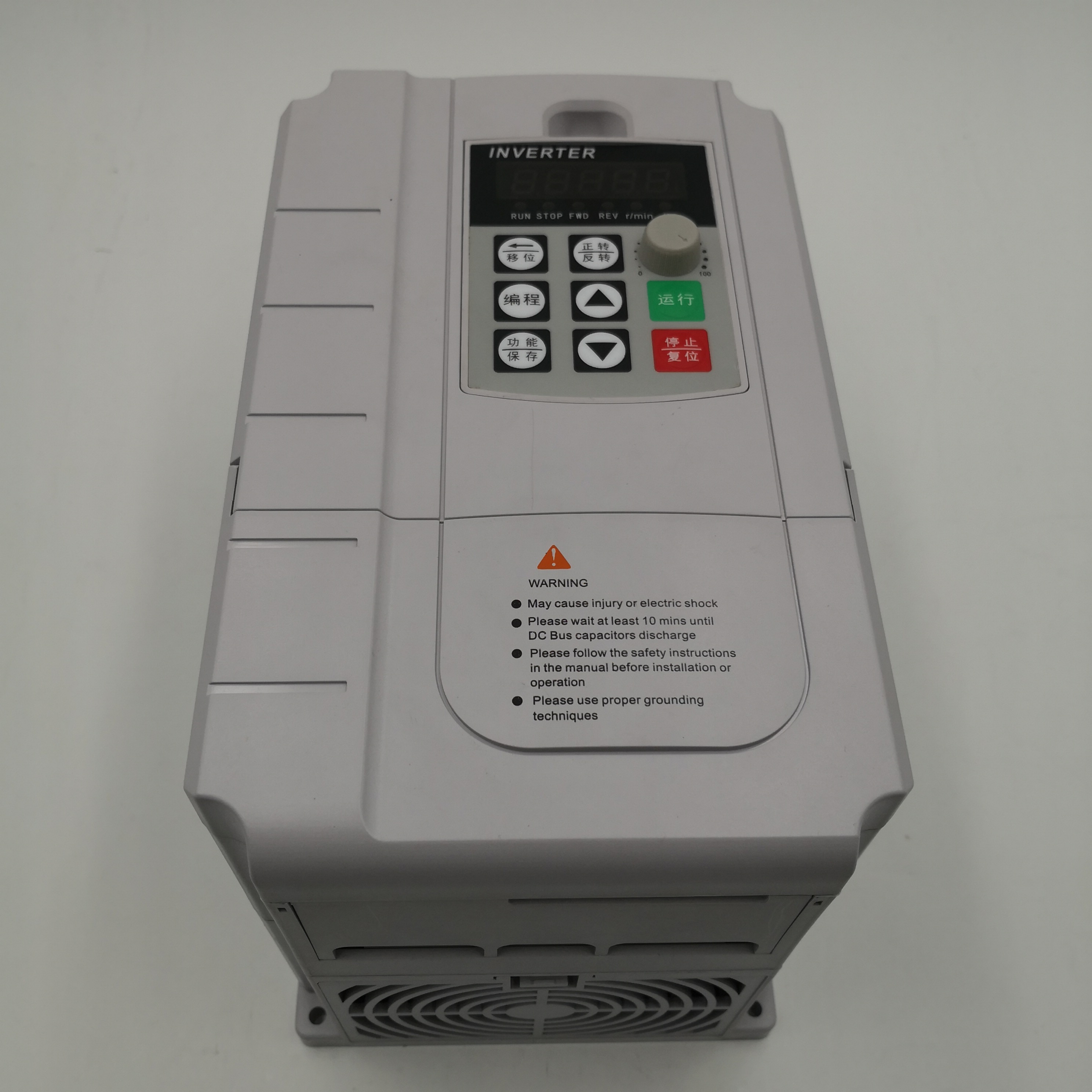

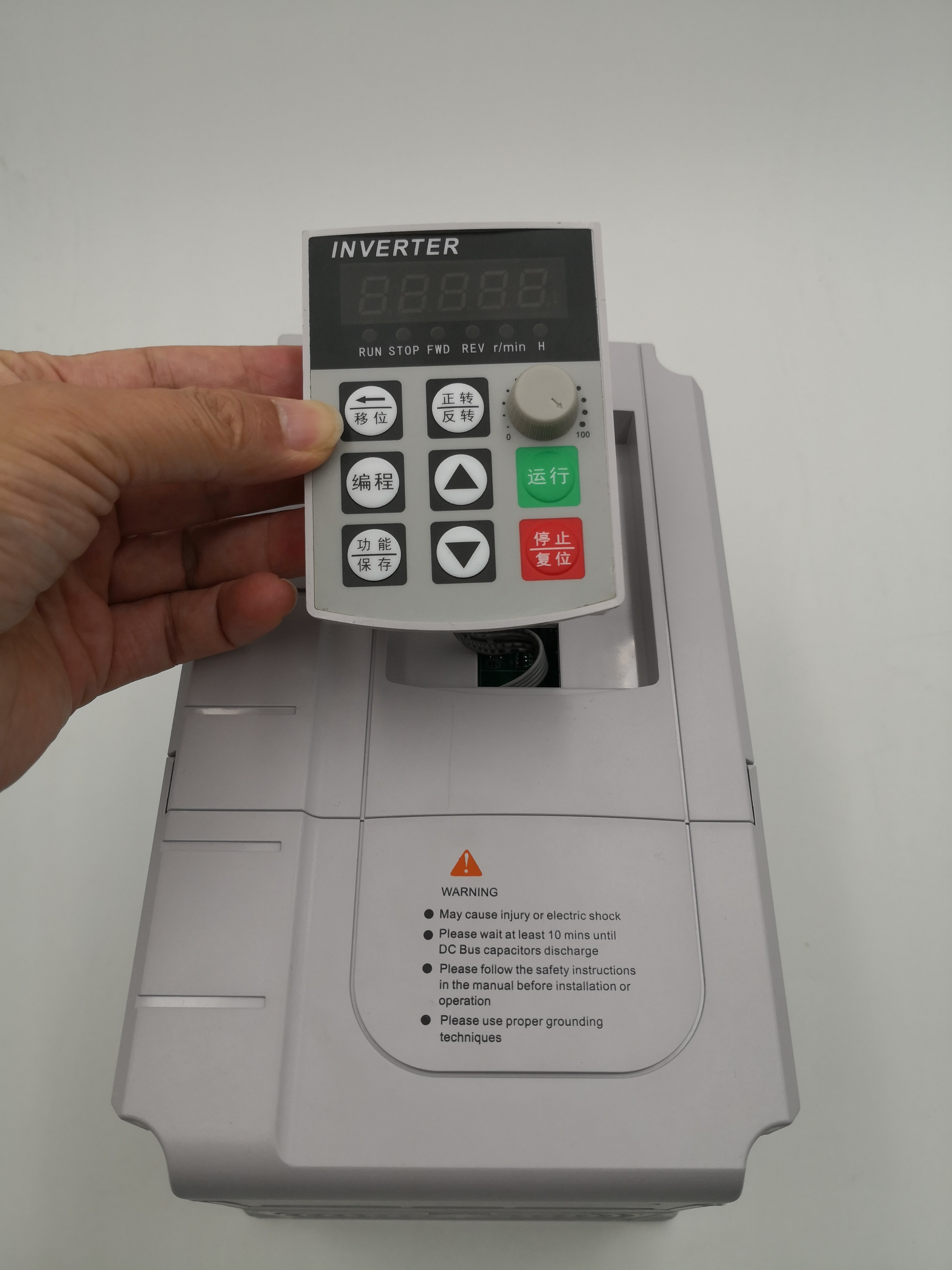

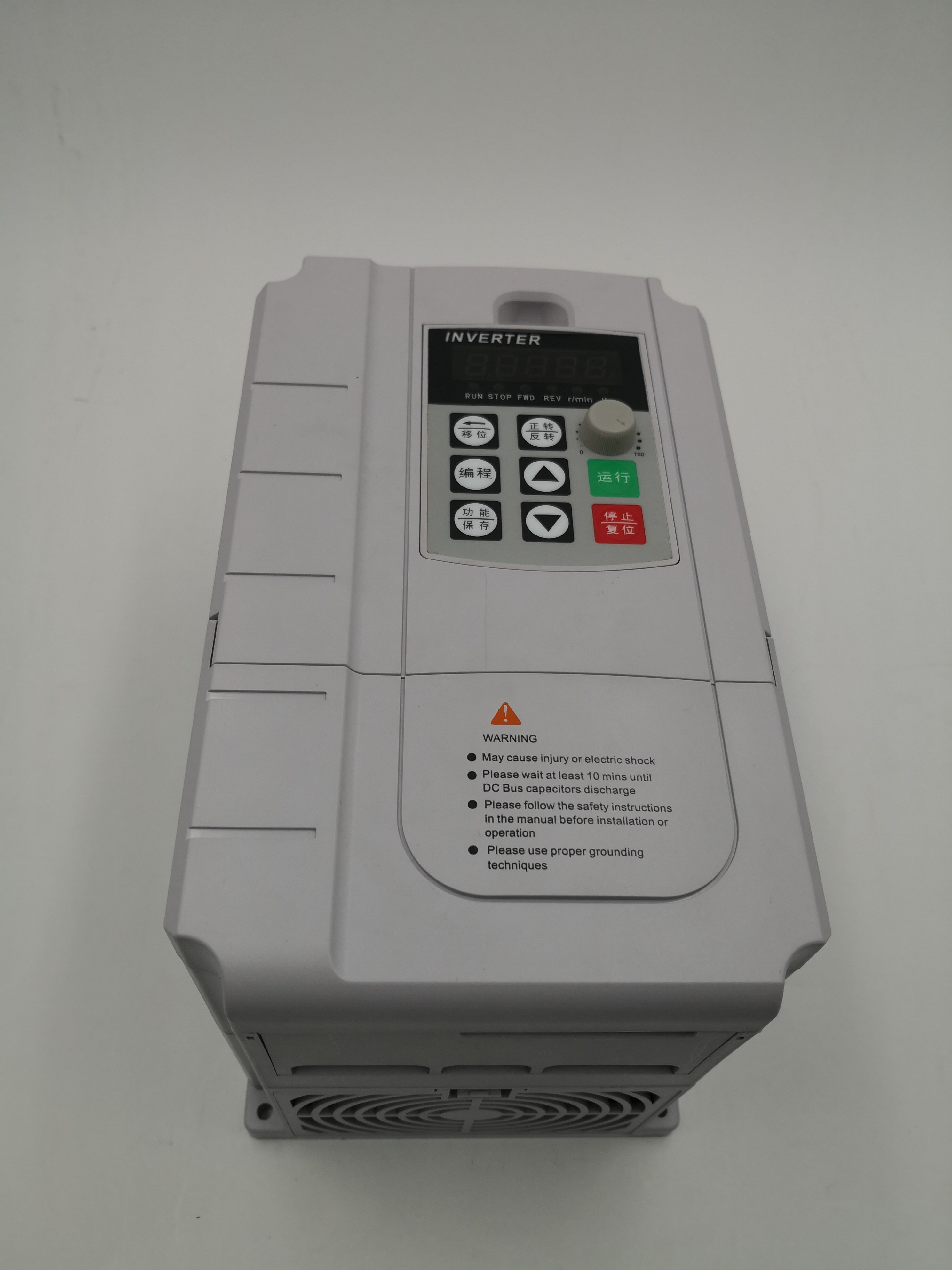

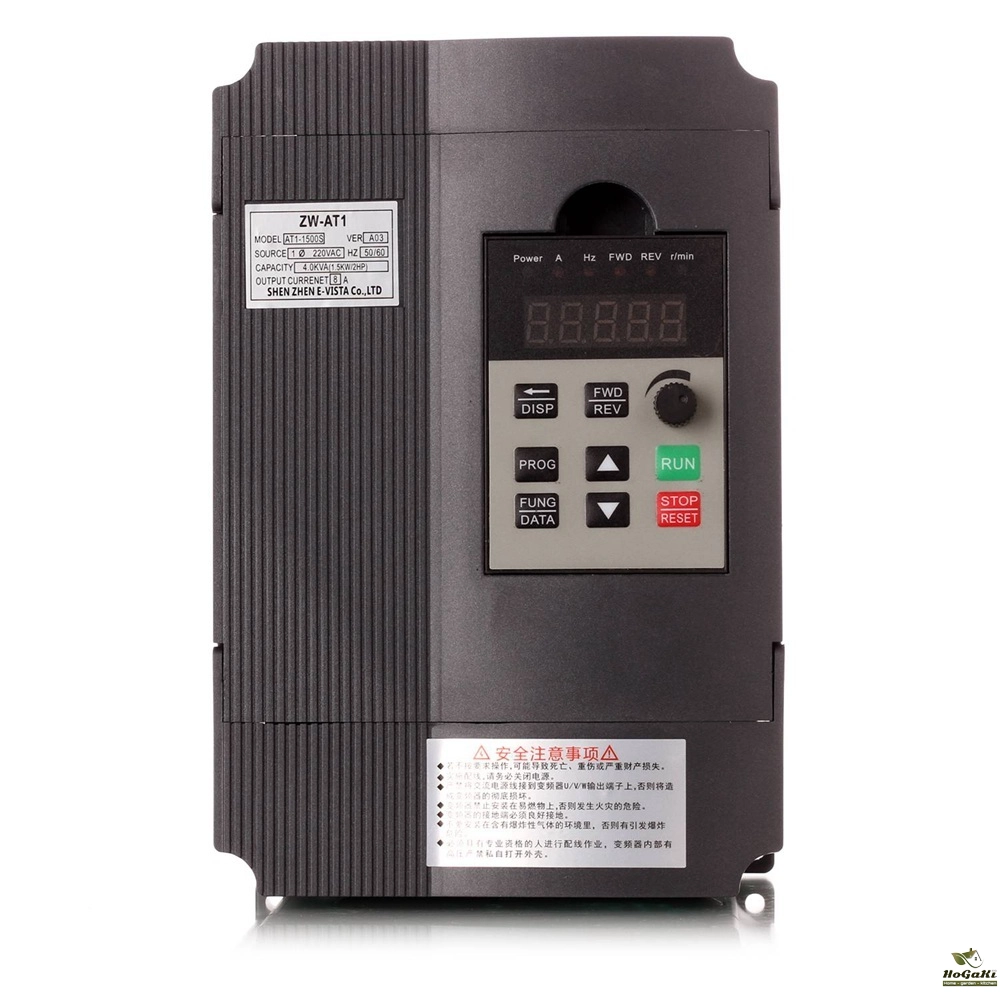

VFD Inverter 1.5KW/2.2KW/4KW Frequency Converter ZW-AT1 3P 220V/110V Output CNC Spindle Motor Speed Control XSY-AT1

5.0 (6 votes) | 51 orders
Price: US $249.51 - 1189.04 / piece
Discount Price:
US $ 154.14 - 648.36 / piece
-38%
Ships From
Color
Quantity


Buyer Please Notice,If you Have some question,First Contact us,Not Open dispute


Dear Buyer: We will be not responsible for your customs duty(Tax);

If Buyer do Not agree,please ask us and leave your Email for us before you make order

----------------------------------------------------------------------------------------------------------------------------------------------
Below area Please Do not make order:
Spain:    51xxx,52xxx,07xxx
(Balearic Islands+Ceuta and Melilla)    35xxx,38xxx (Canarias)
France:    971-978xxx,984xxx,986-988xxx
United States: Hawaii,Alaska,Puerto Rico,Guam,Virgin Islands,American Samoa,Northern Mariana Islands,Palau,Micronesia,The Republic of Marshall Islands

Brazil:5xxxxxxx,6xxxxxxx(Post Code),Not make order.

from 1th December 2019,Brazil buyer Need give CPF(Personal tax ID),Otherwise your Parcel will be destroied.
---------------------------------------------------------------------




Type

1.5KW  220V  VFD

2.2KW  220V  VFD

4KW  220V  VFD

Input Voltage

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

Output Voltage

220VAC

220VAC

220VAC

Input Frequency

50/60Hz

50/60Hz

50/60Hz

Output Frequency

0~400Hz

0~400Hz

0~400Hz

Rated current

8A

12A

20A

Input Phase

1 phase

1 phase

1 phase

Output Phase

3 phase

3 phase

3 phase

Capacity

4.0KVA(1.5KW/2HP)

8.0KVA(2.2KW/3HP)

11KVA(4KW/3HP)

Adapter motor power

1.5KW

2.2KW

4 KW

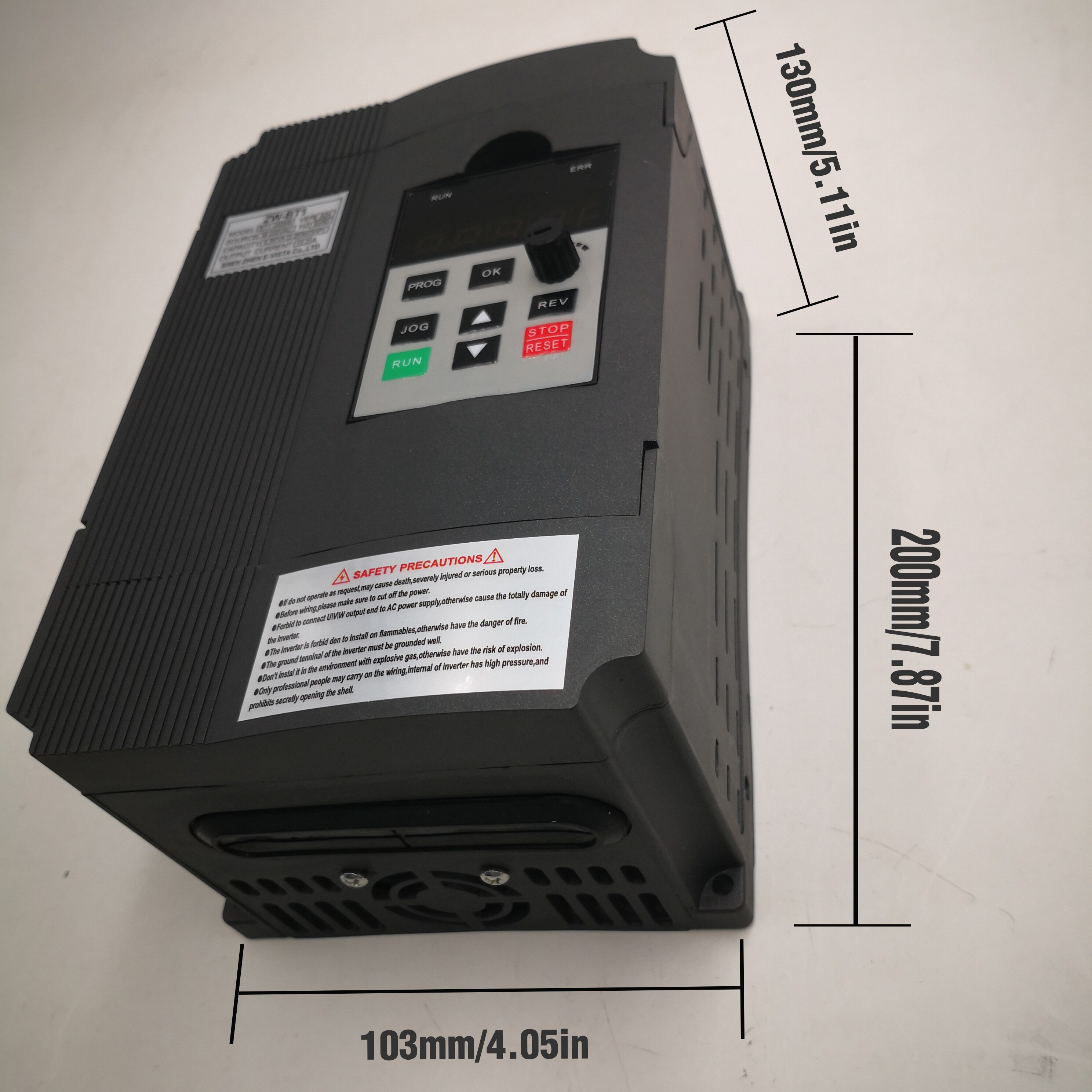

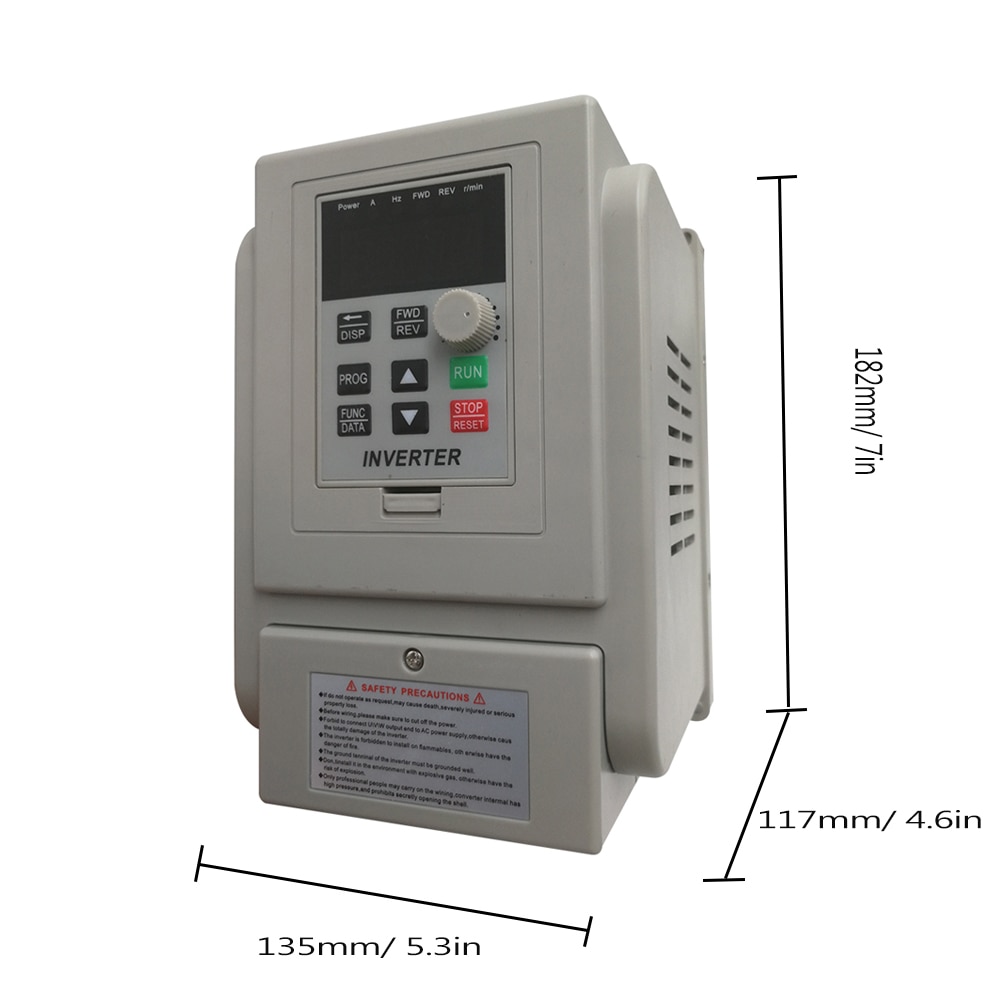

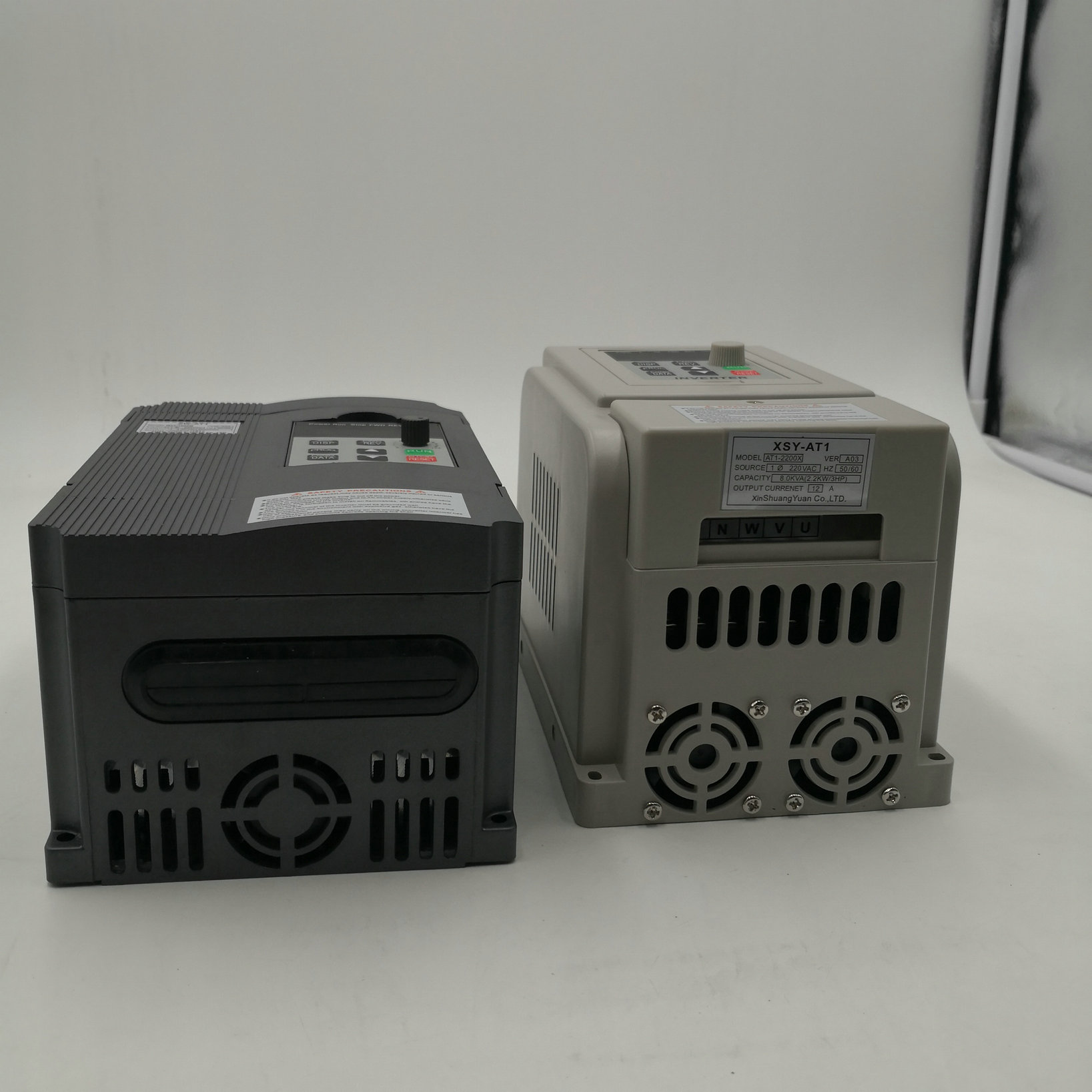

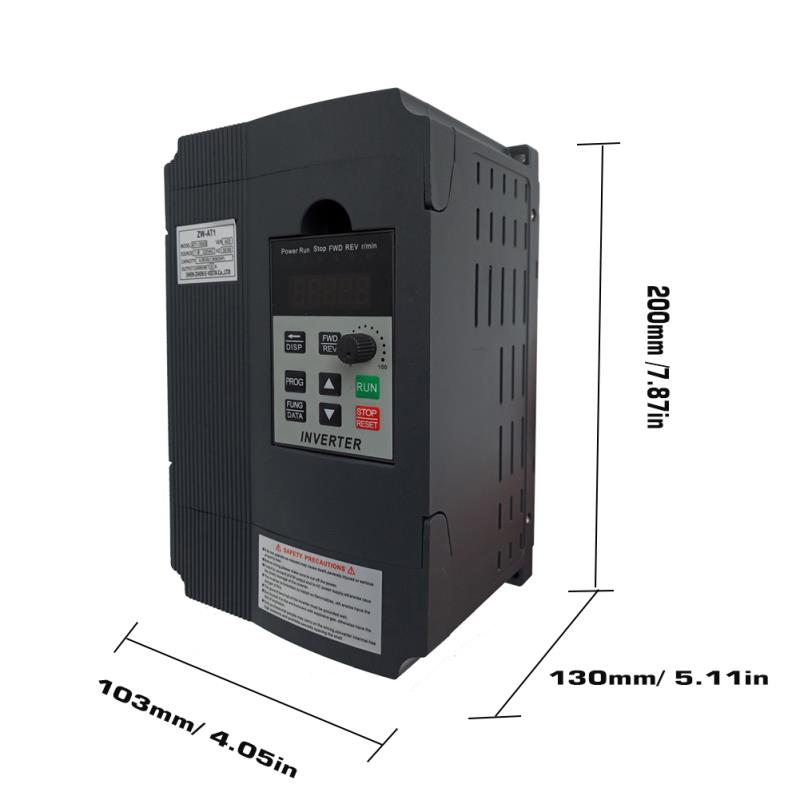

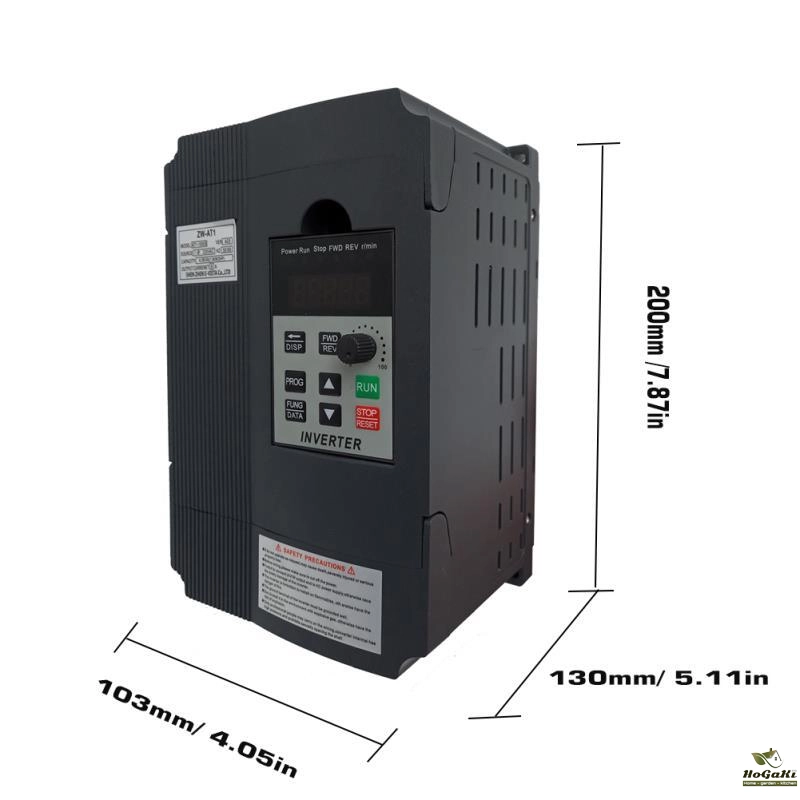

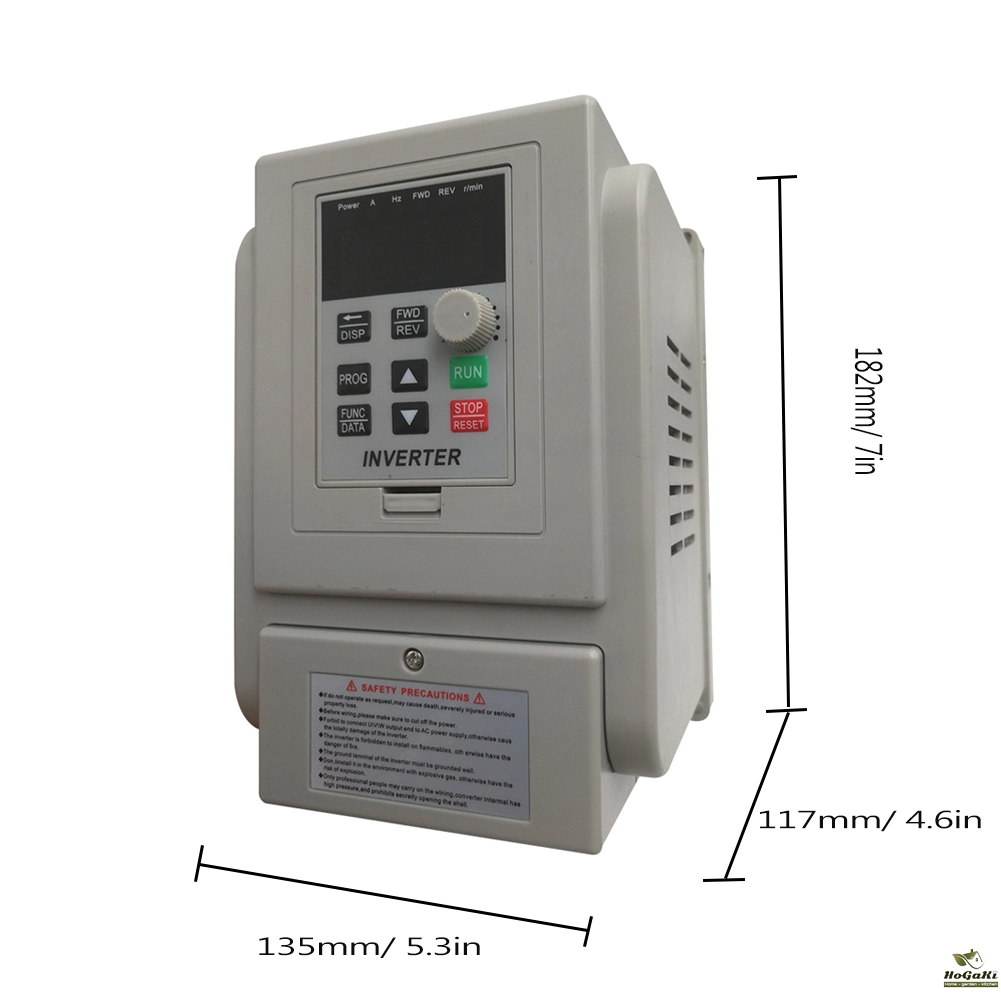

Size

approx. 200*130*103mm(black)

182*135*117mm(white)

approx. 200*130*103mm(black)

182*135*117mm(white)

approx.182*135*117mm(white)

Note: This model can be equipped  with multi -function relay.


Output voltage regulation mode:PWM control

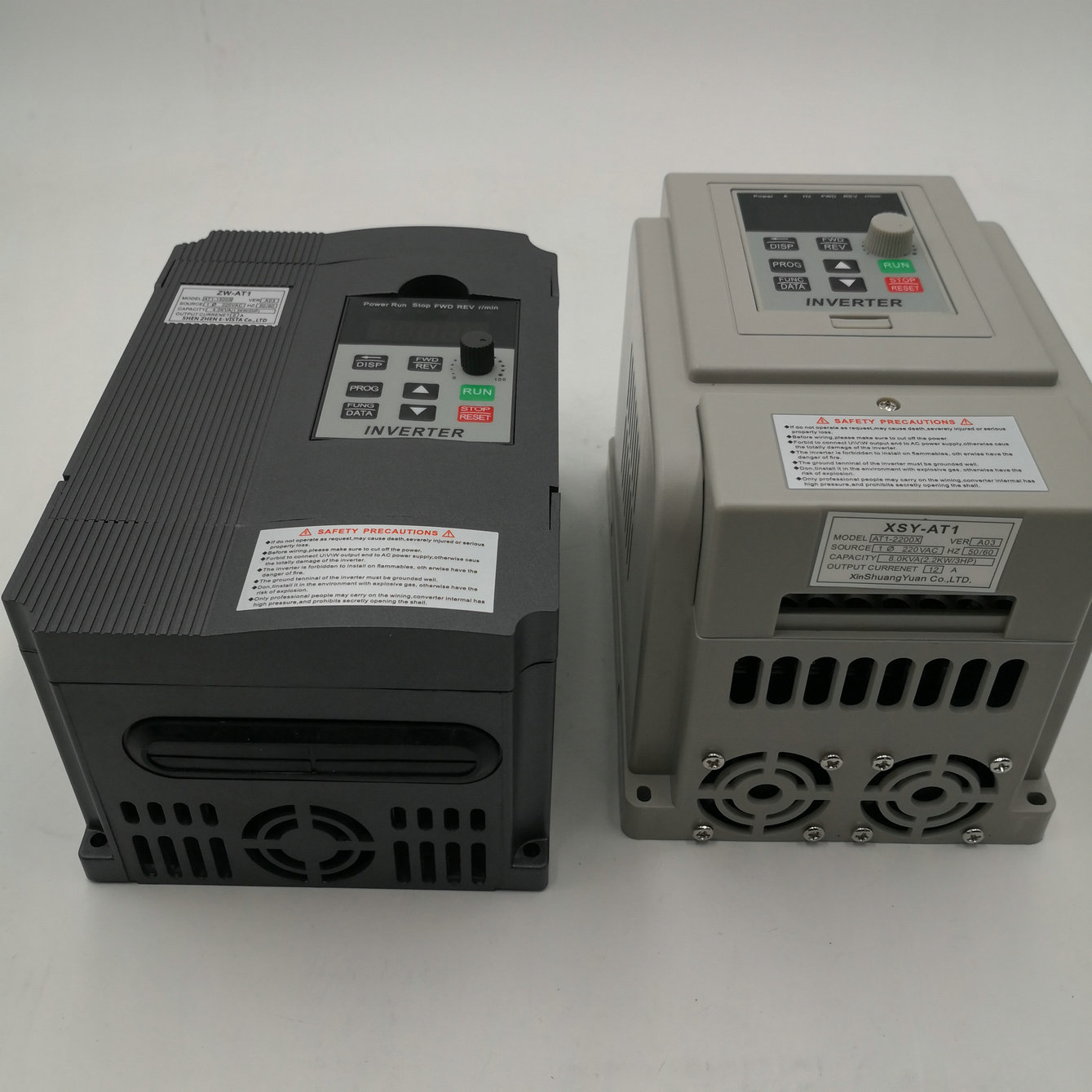

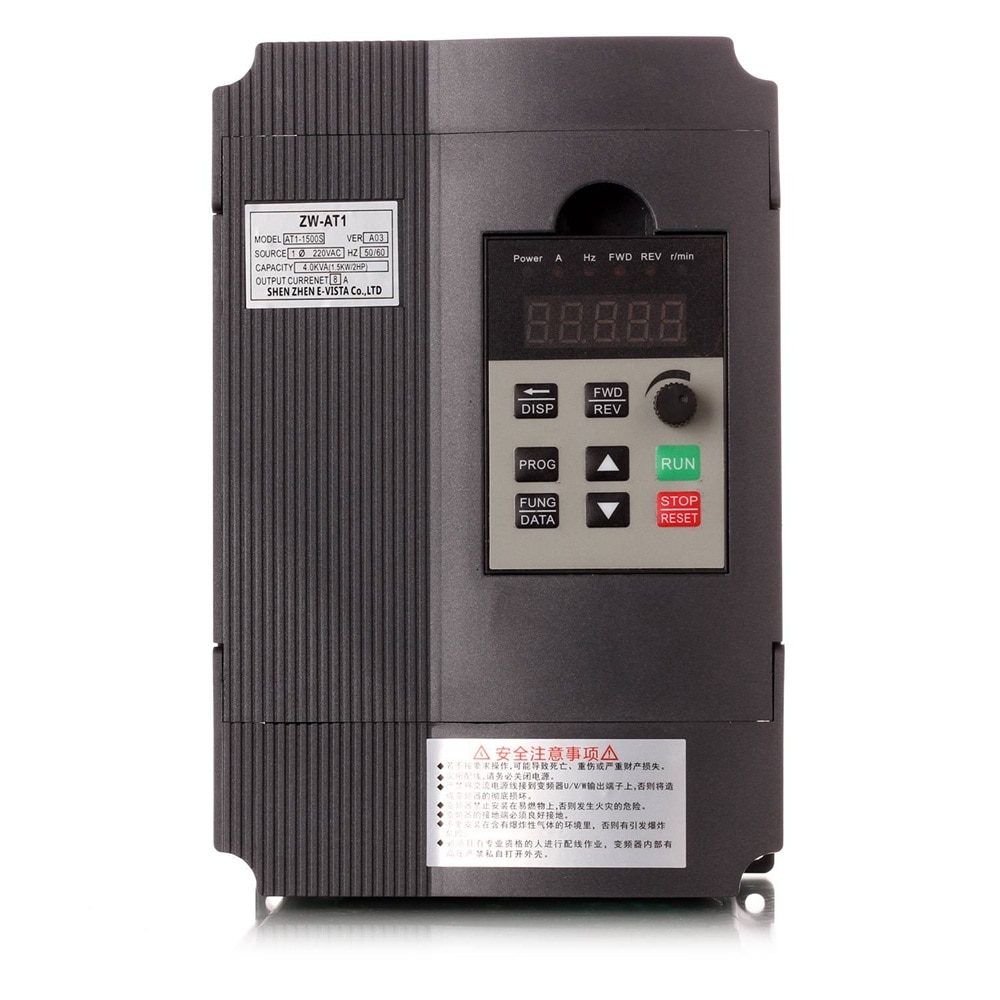

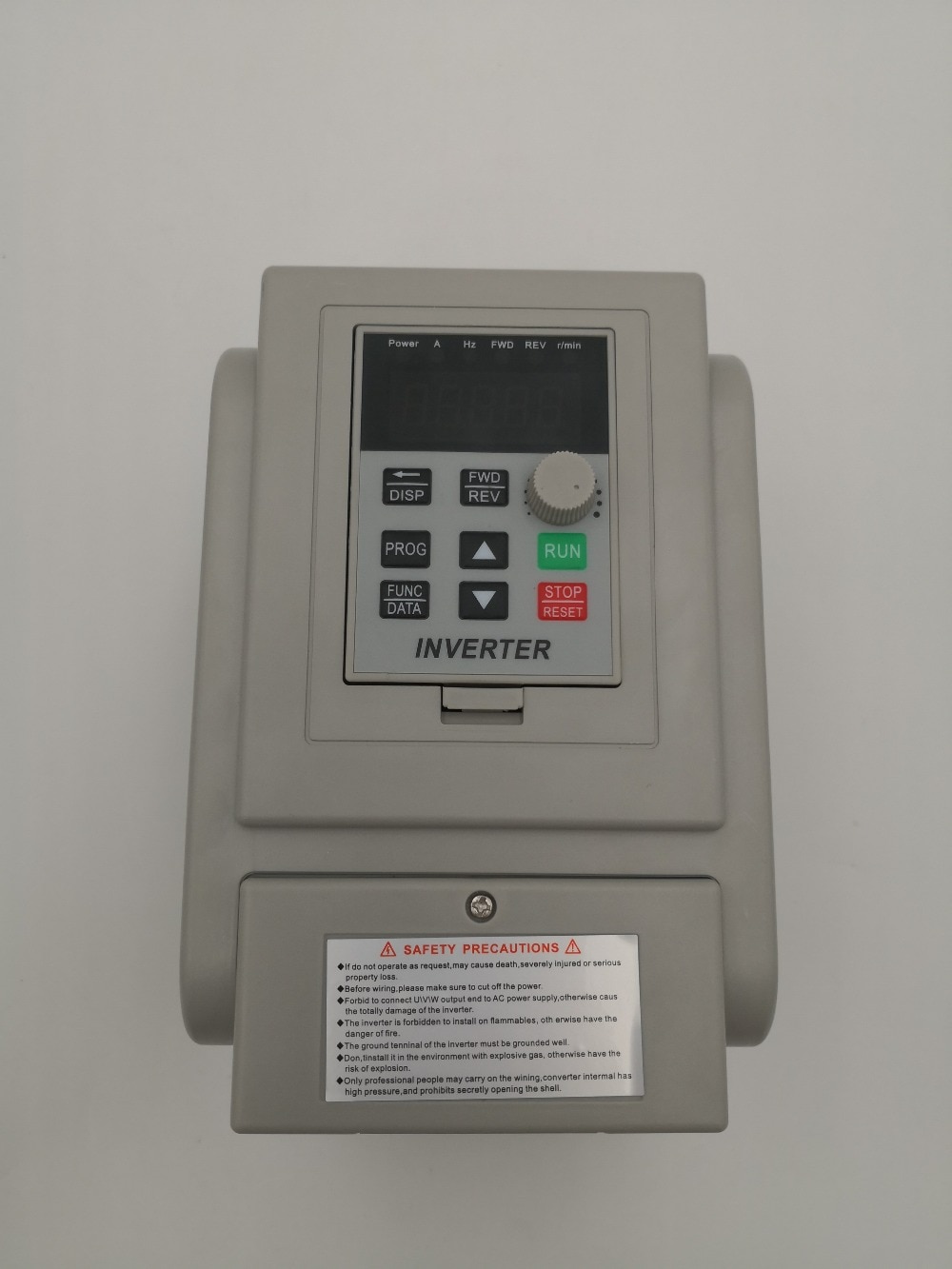

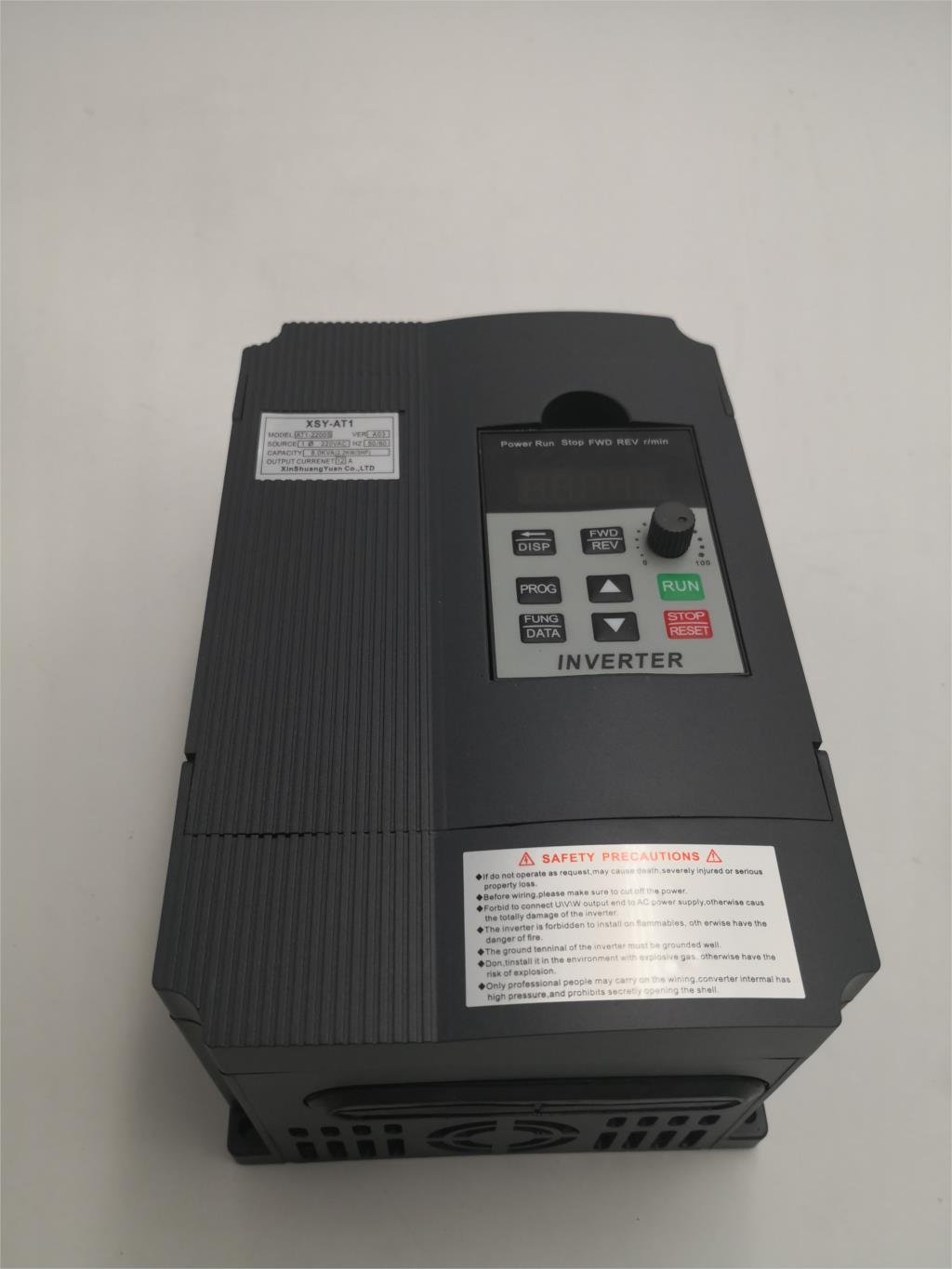

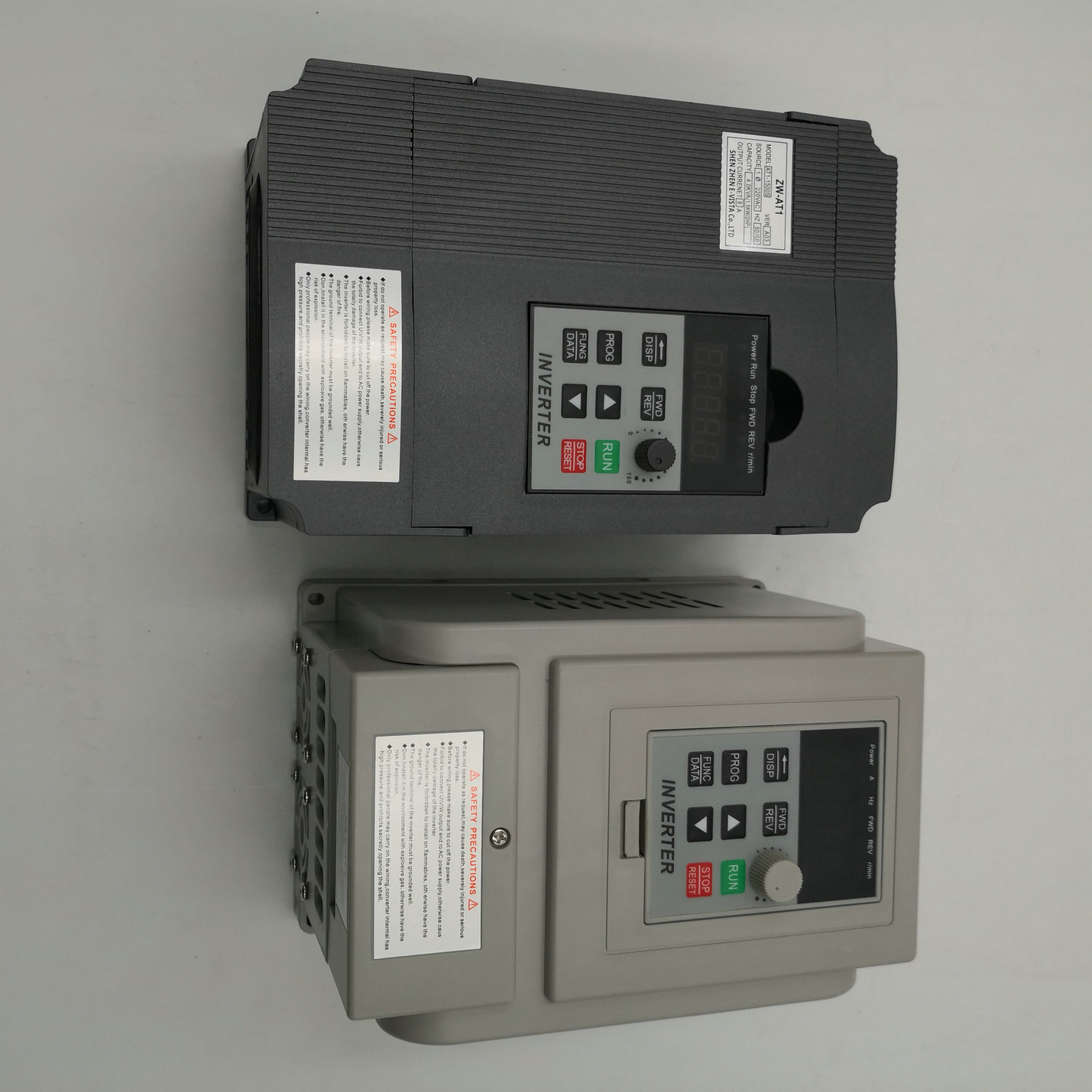

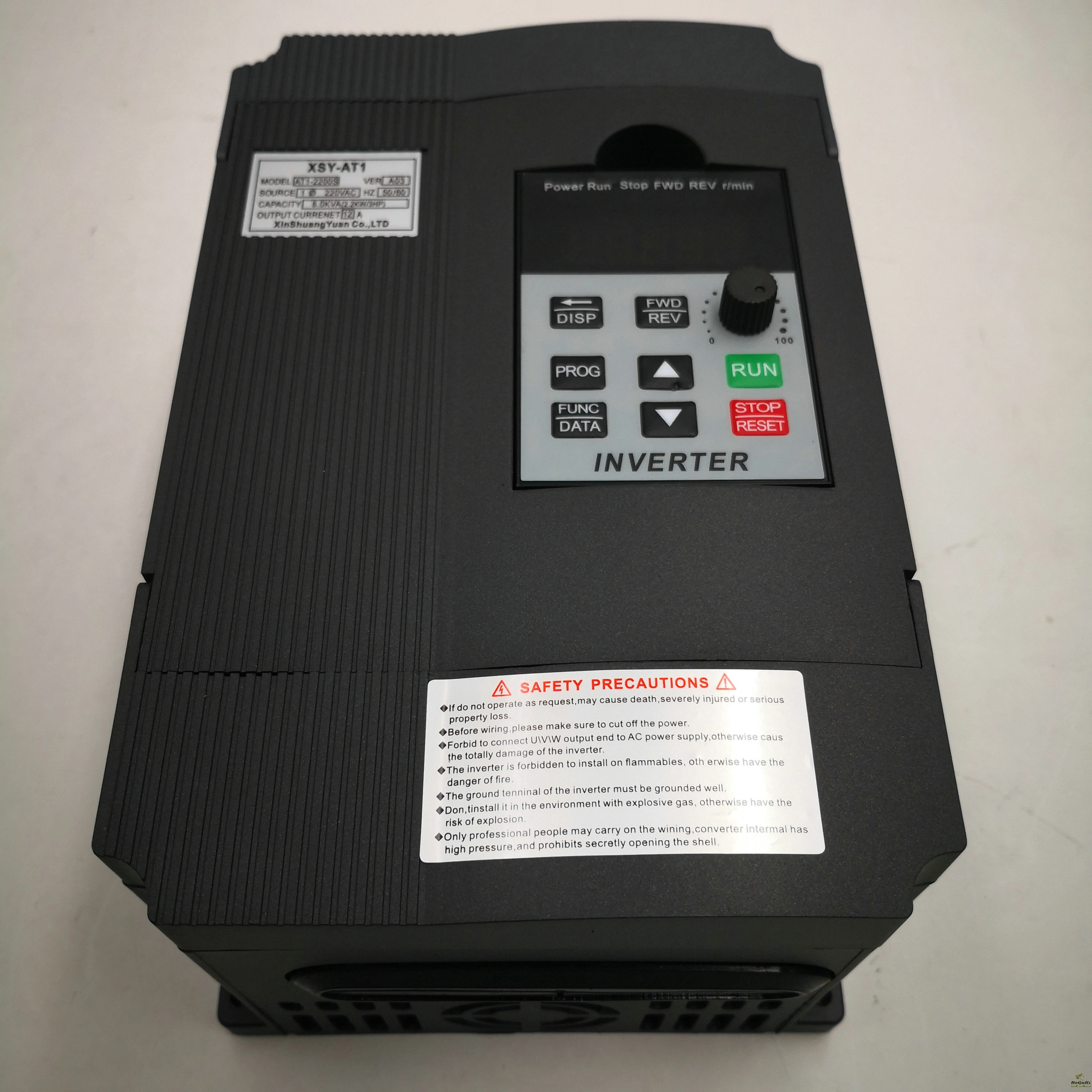

XSY-AT1=ZW-AT1 450W 750W 1500W 2200W 4000W 5500W Frequency Converter or Inverter
Input 220v single-phase

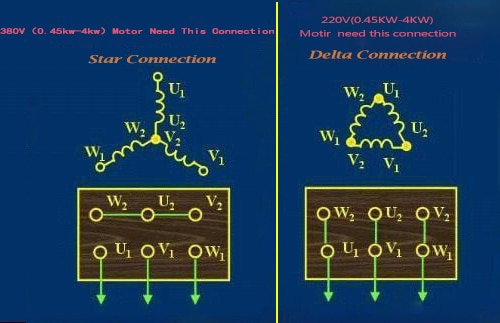

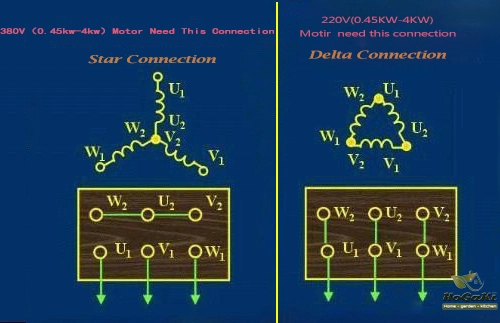

Output 220v 3-phase 220V Delta/380V Star Motor

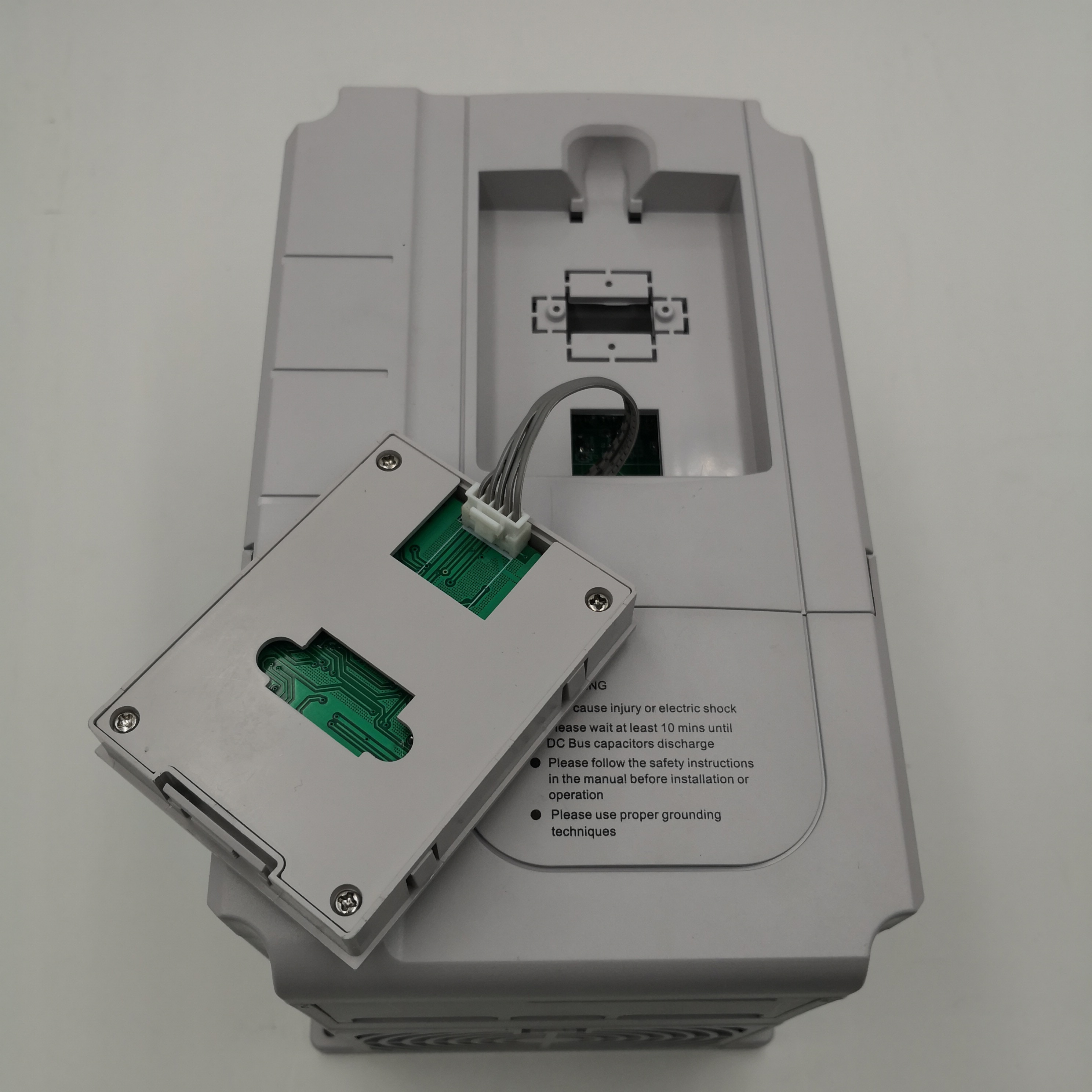

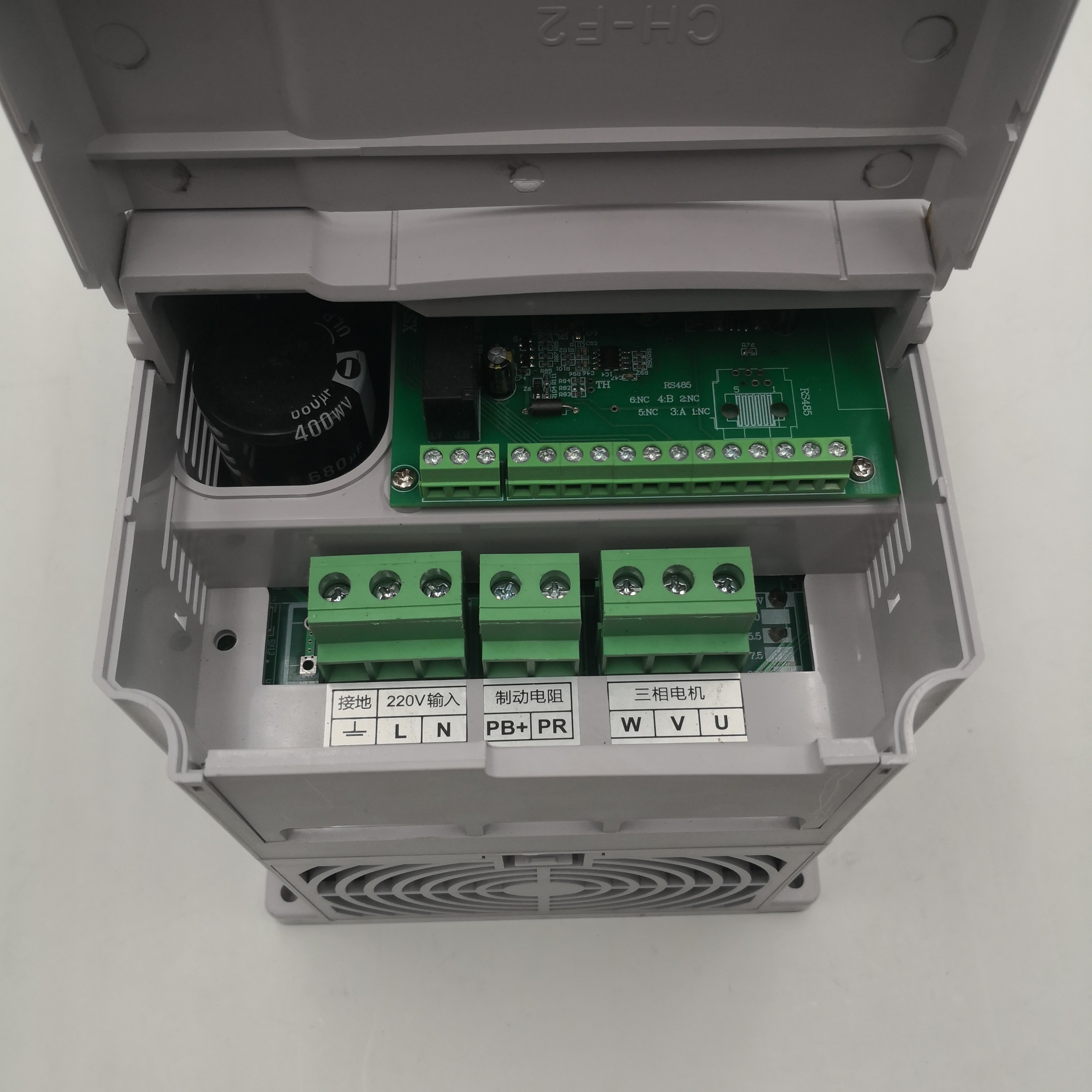

Below is 5.5KW 220 1P-220V 3P Pictures:


Our 5.5KW 220V 1P-3P Support Brake,

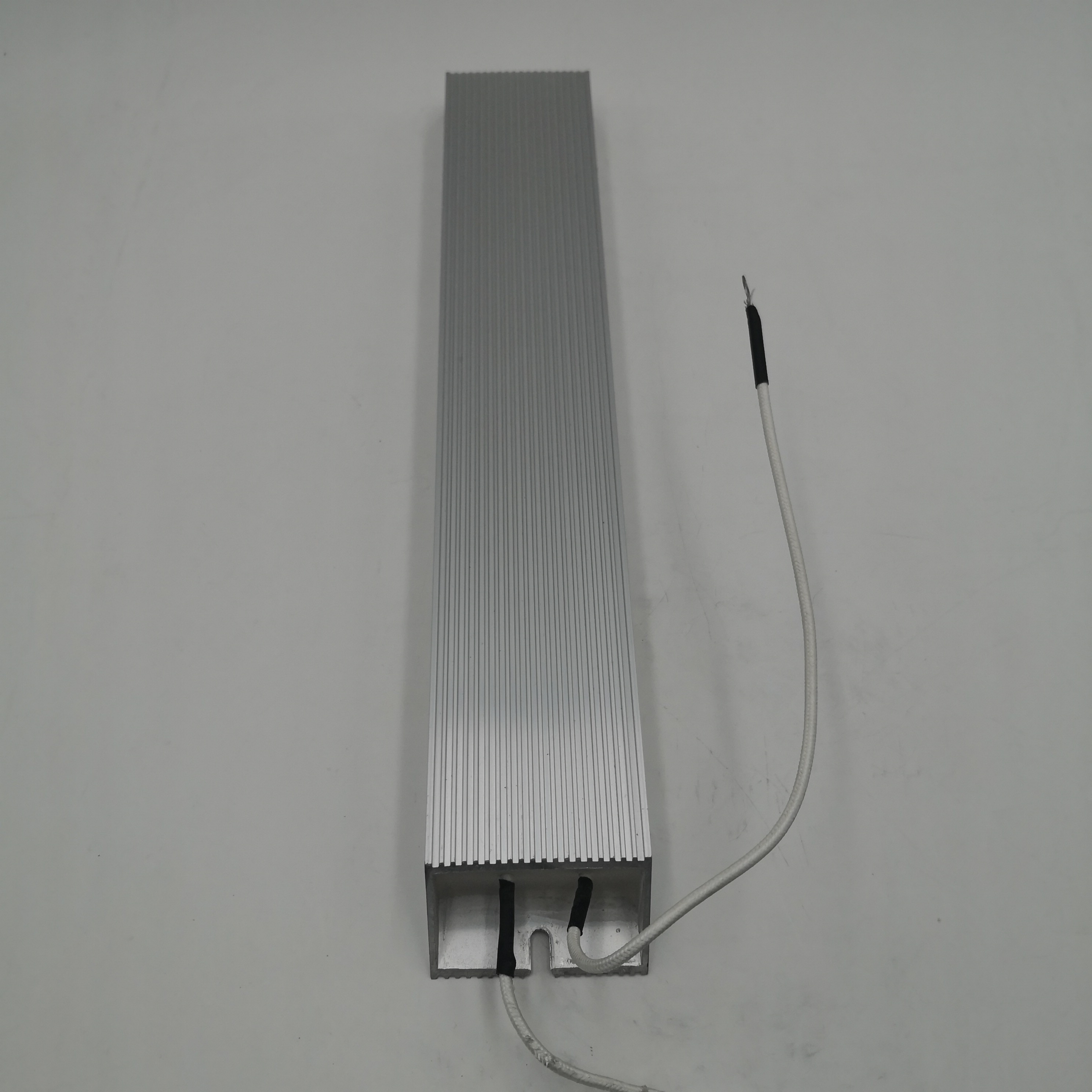

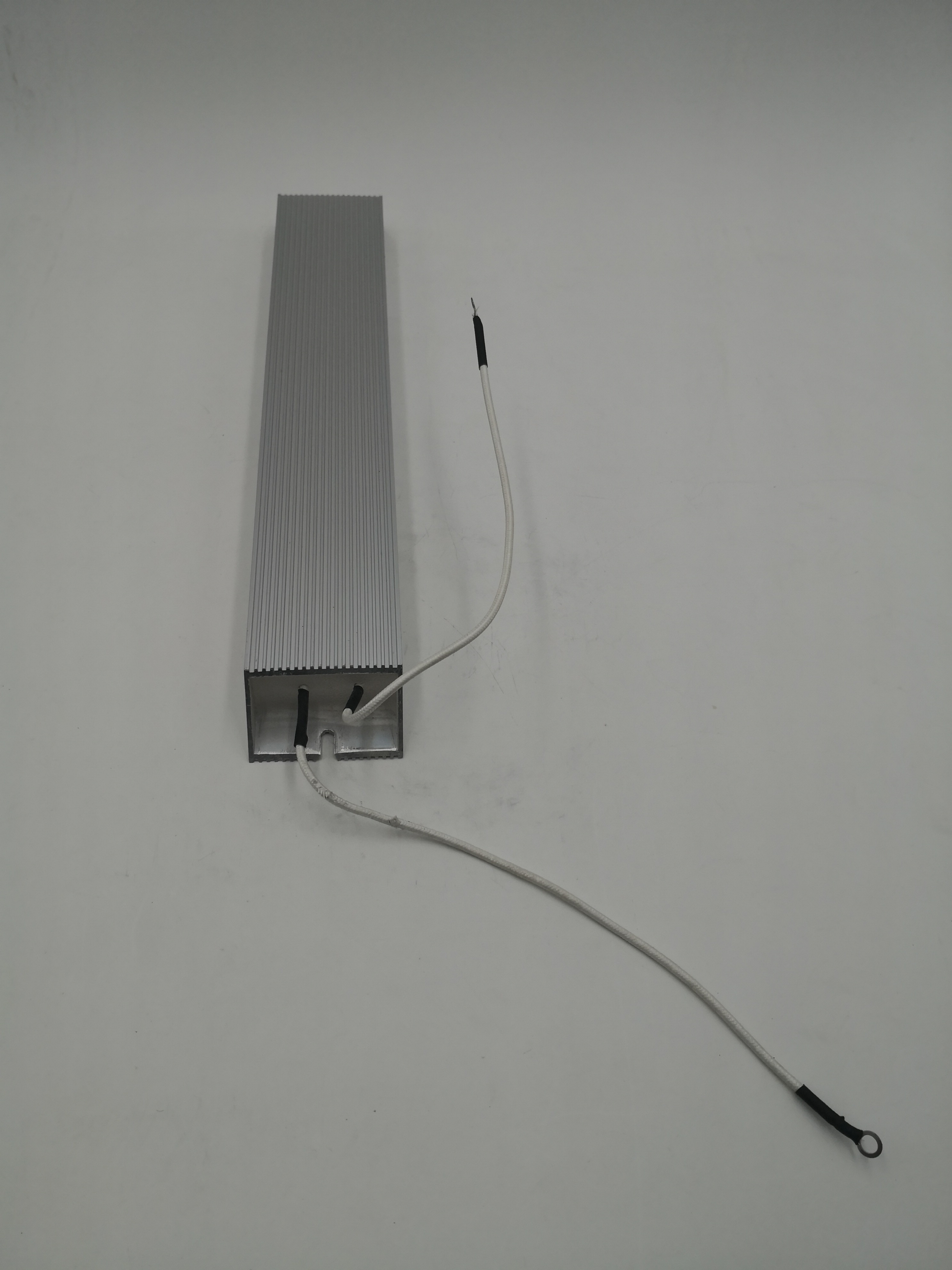

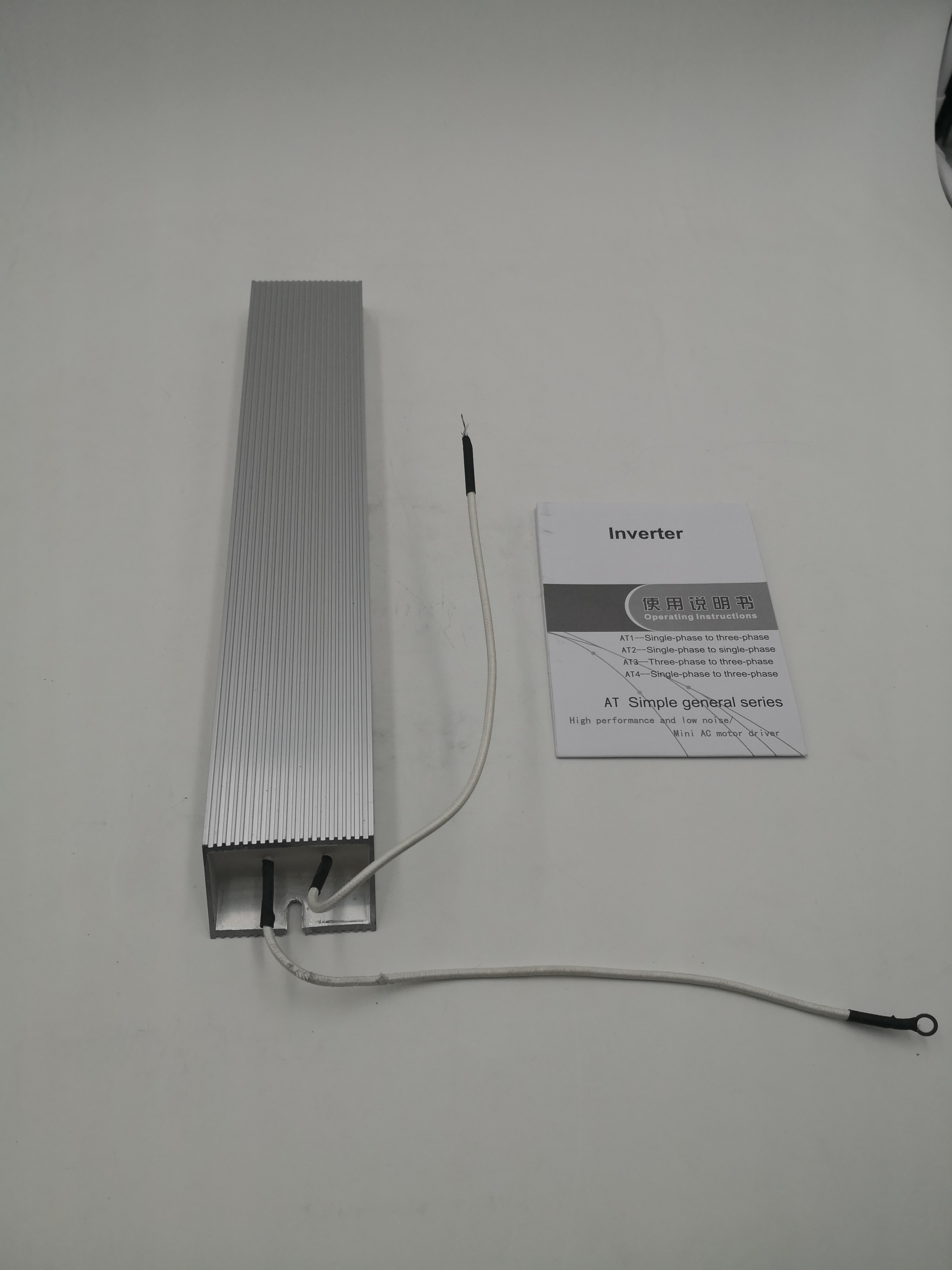

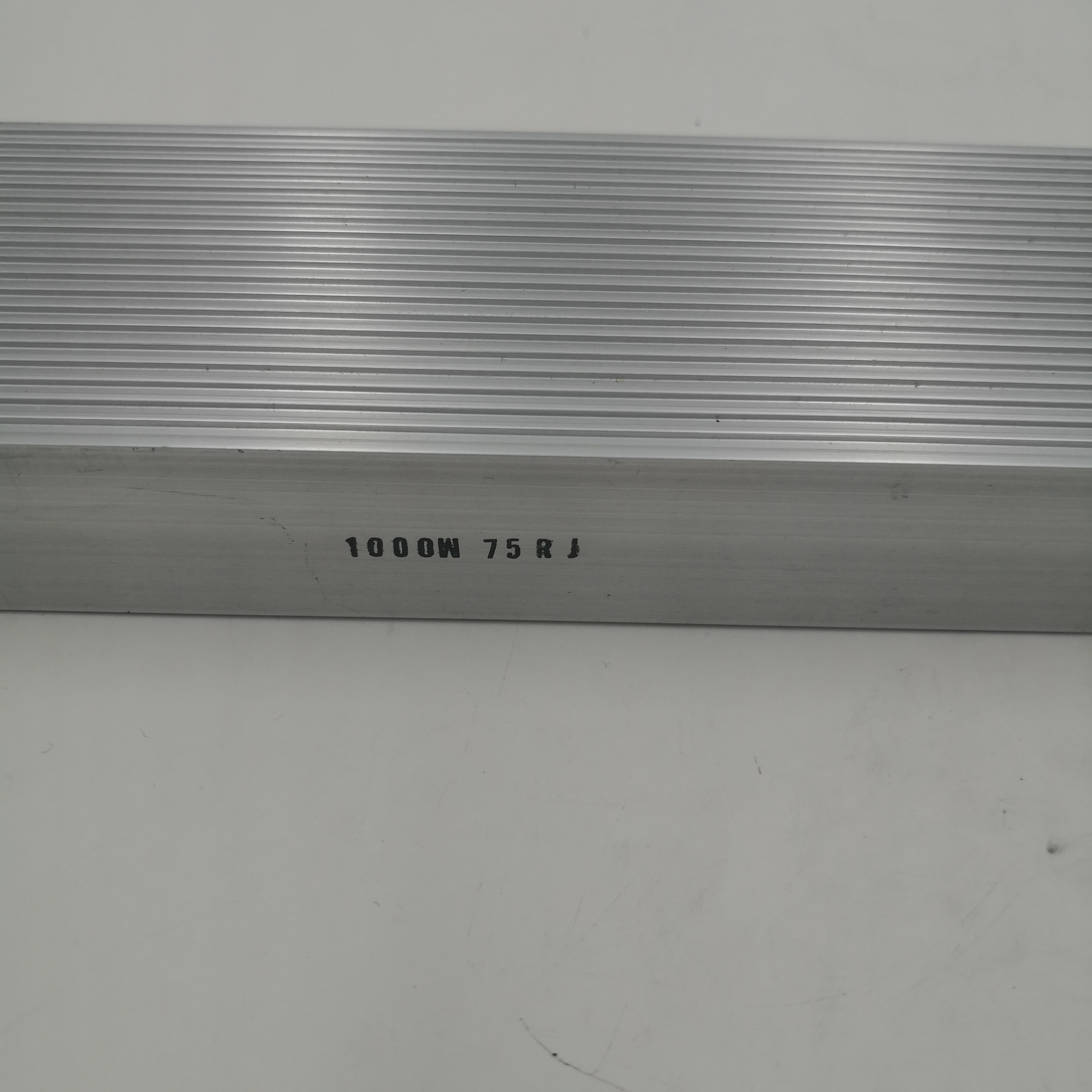

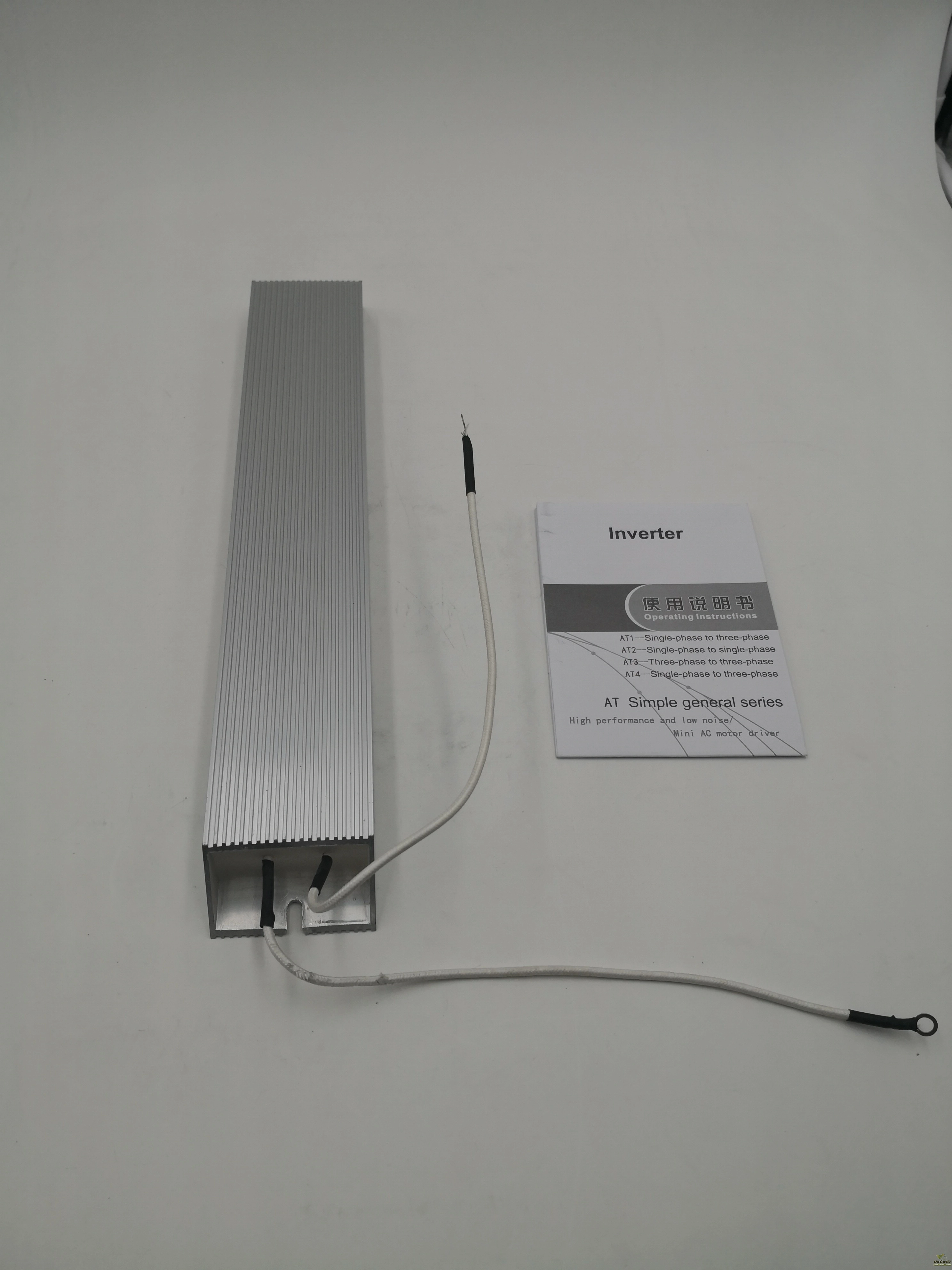

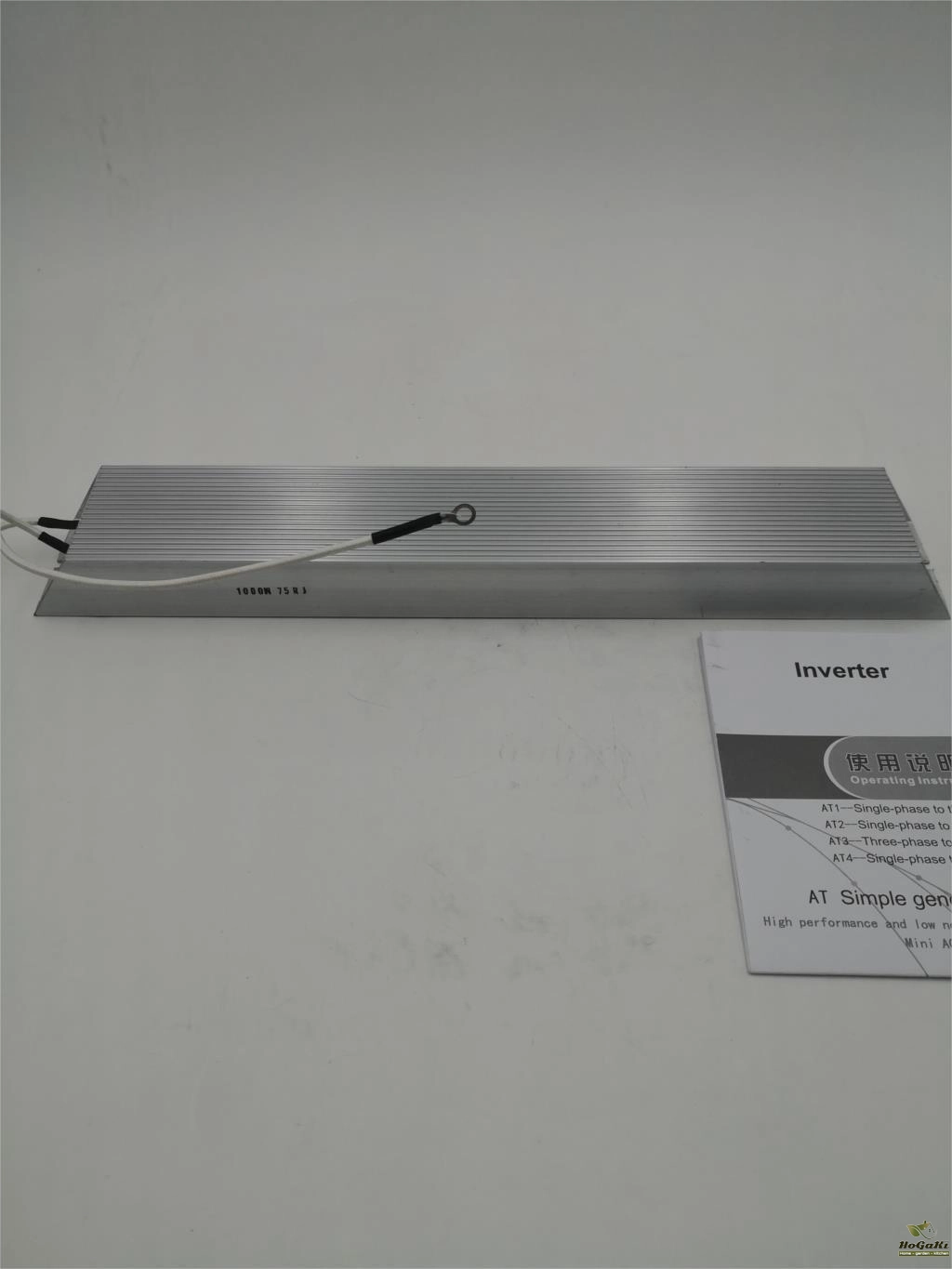

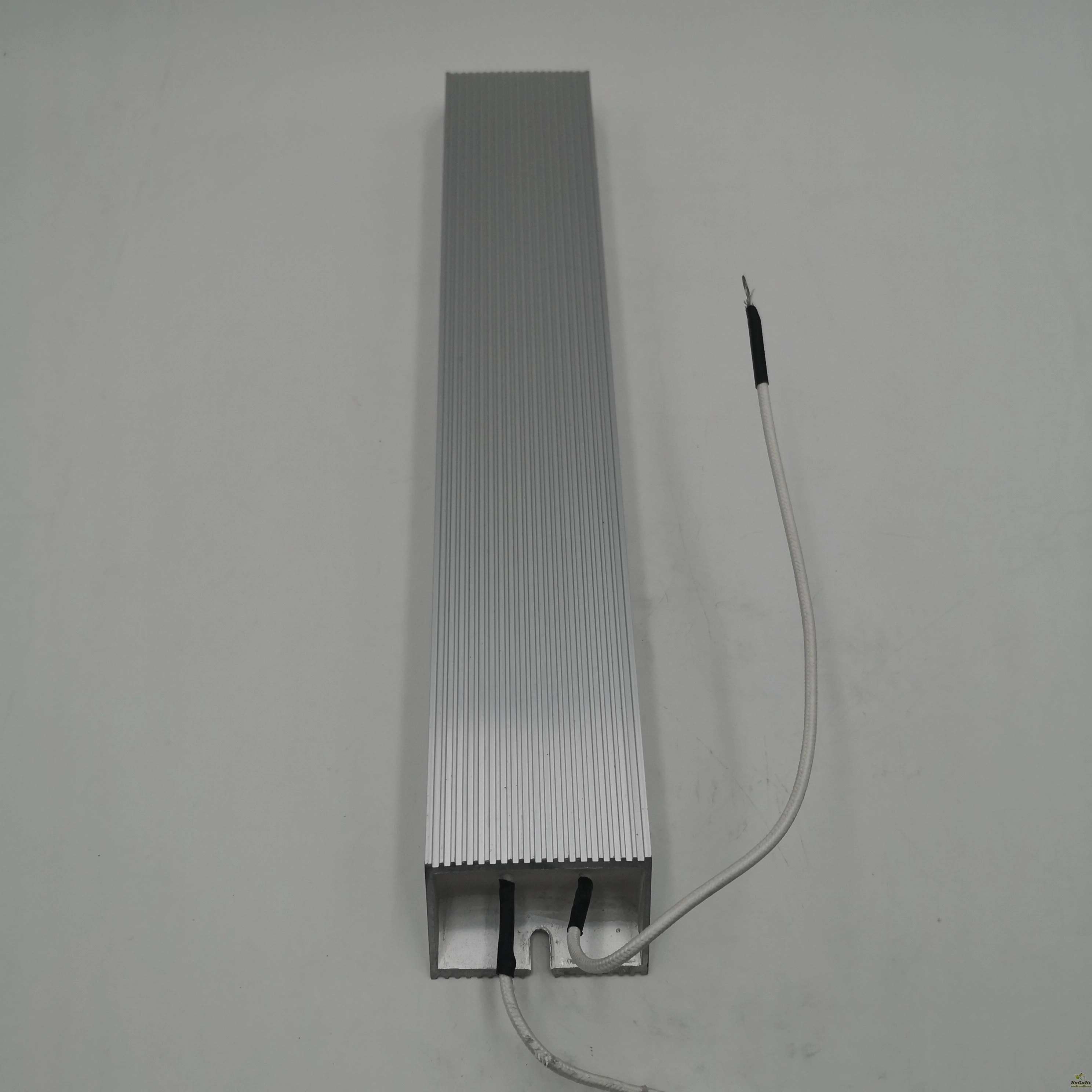

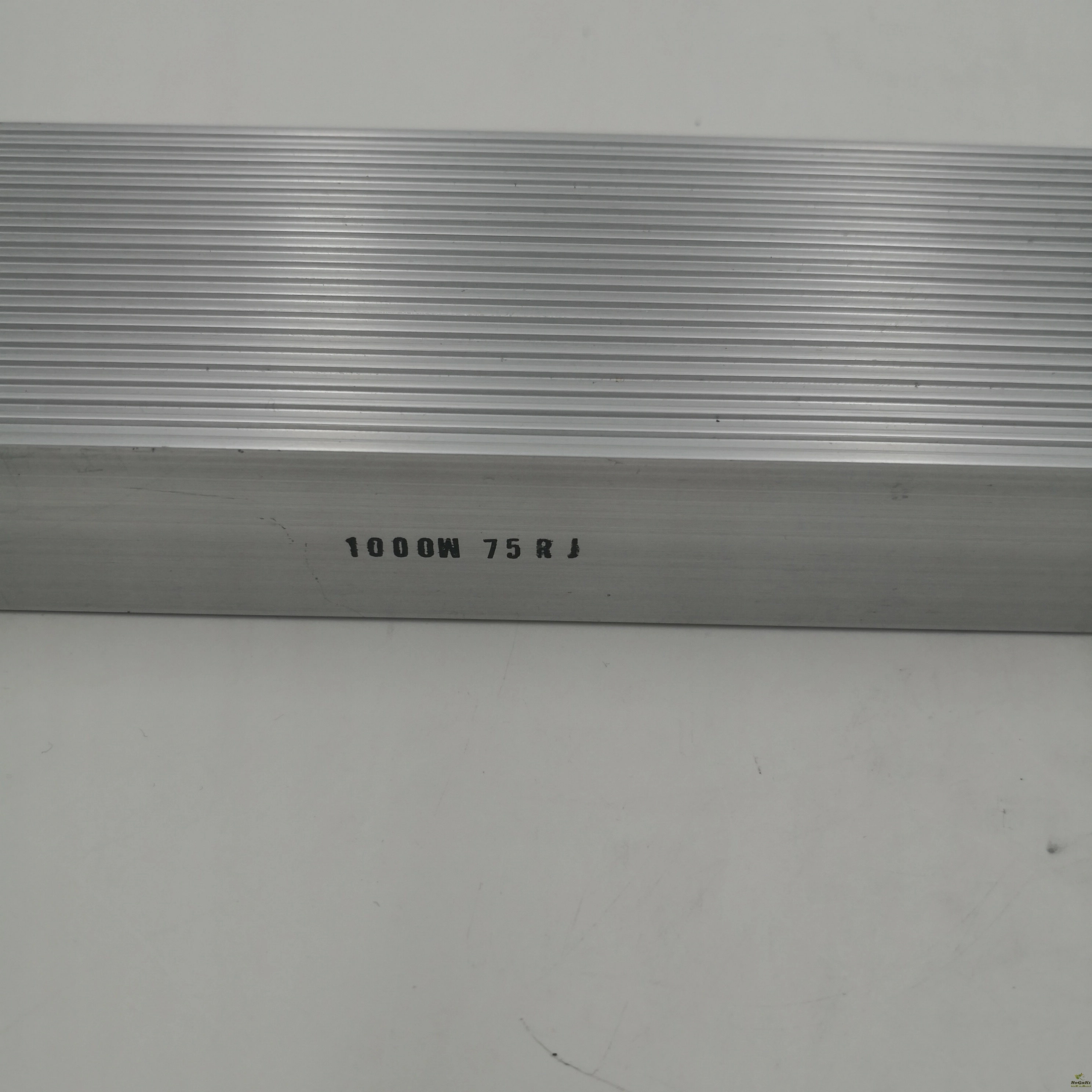

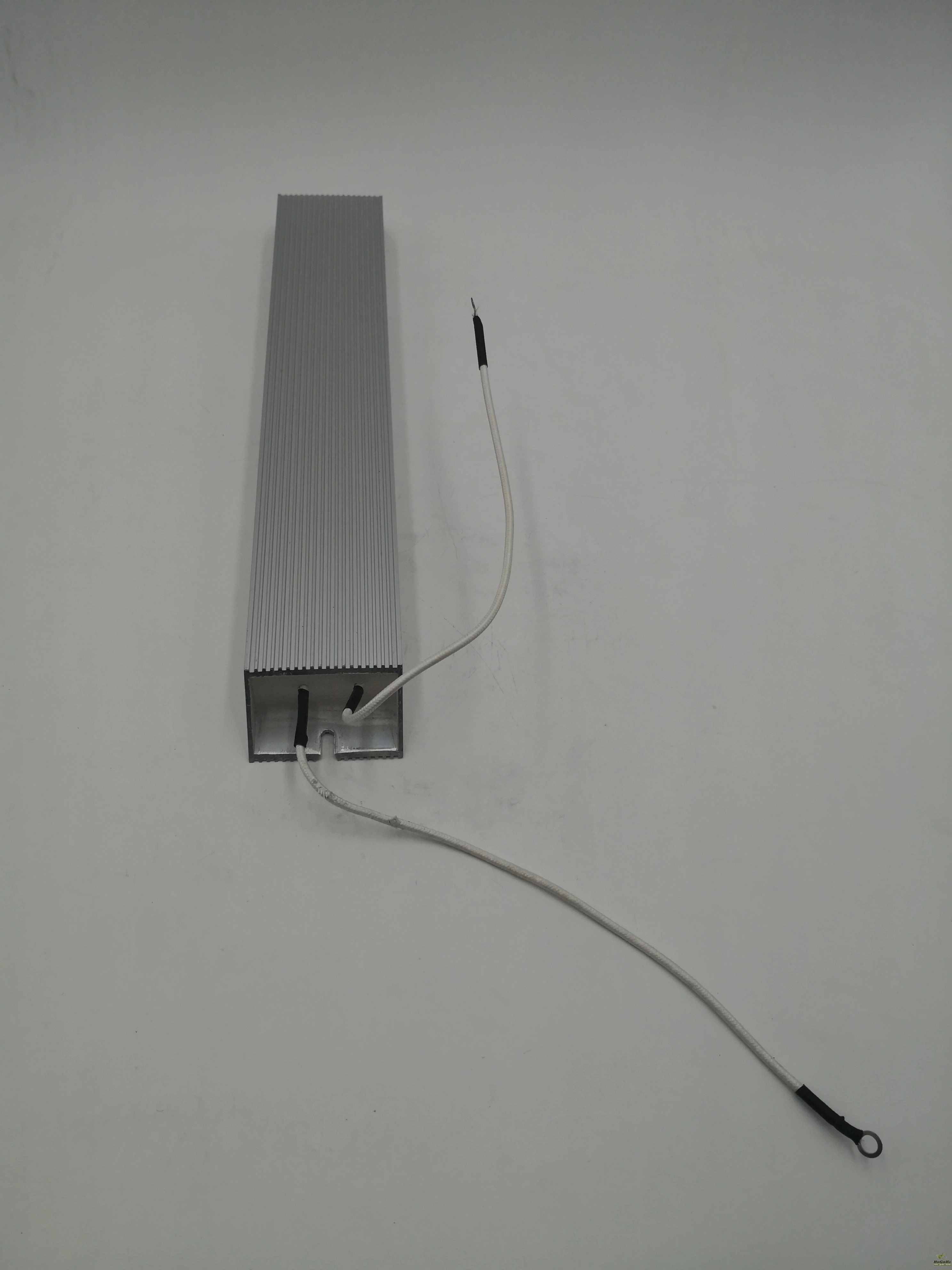

Other Models (0.45KW-4KW)do not support Brake Resistance,and If buyer need Buy Brake Resistance,Please Contact us,below is the Brake-R Picture:



Notice:it is Unable to connect the excitation motor, can damage the inverter, it can only connect asynchronous motor,

Like Hand-held Electric Drill, chainsaw and other motor is mostly excitation motor

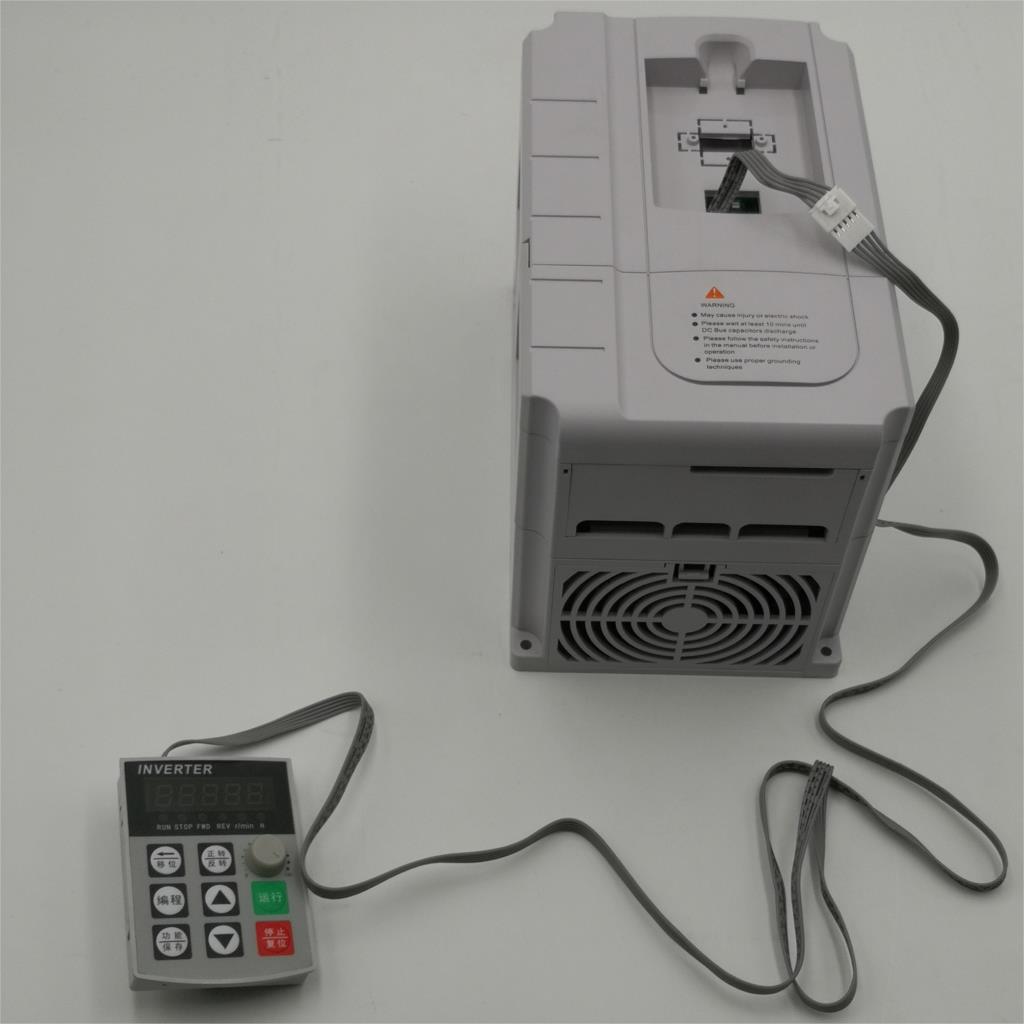

There is also will be 1.5meter long cable in the box;

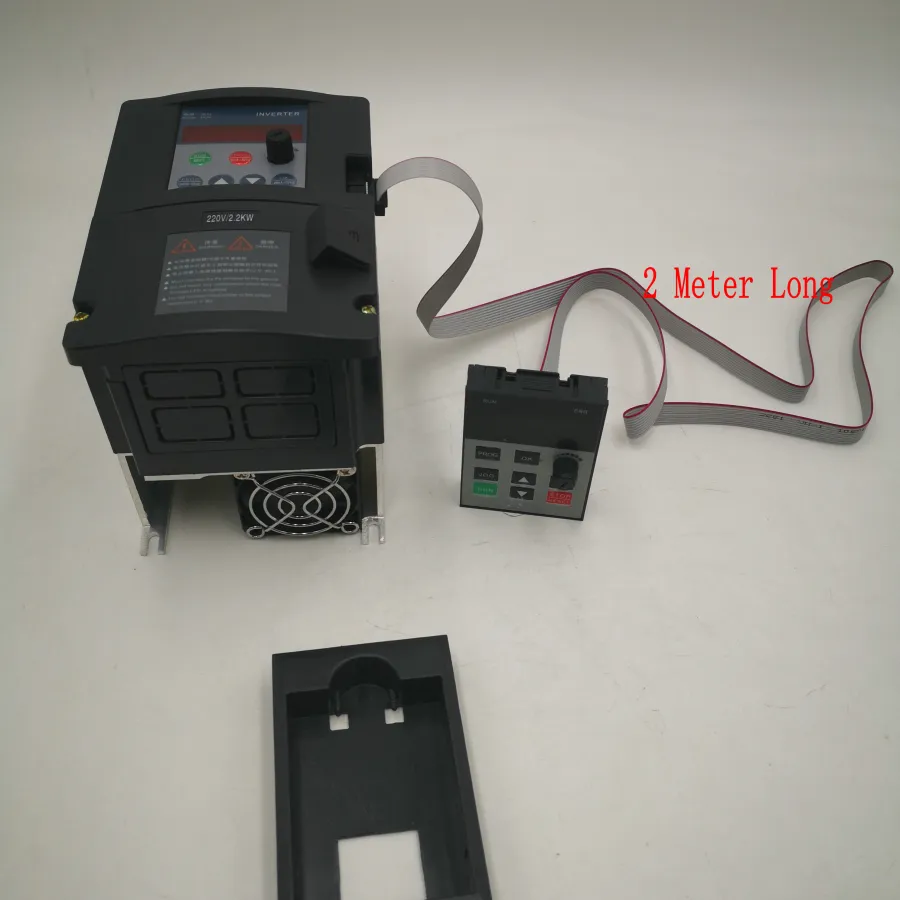

ZW-BT1 It wil be 2 meter long cable in the box;
ZW-CT1 also there will be 2 meter long cable in the box;
Both 2 meter long cable can head connect tail to 4 Meter;6 meter;8-Meter.

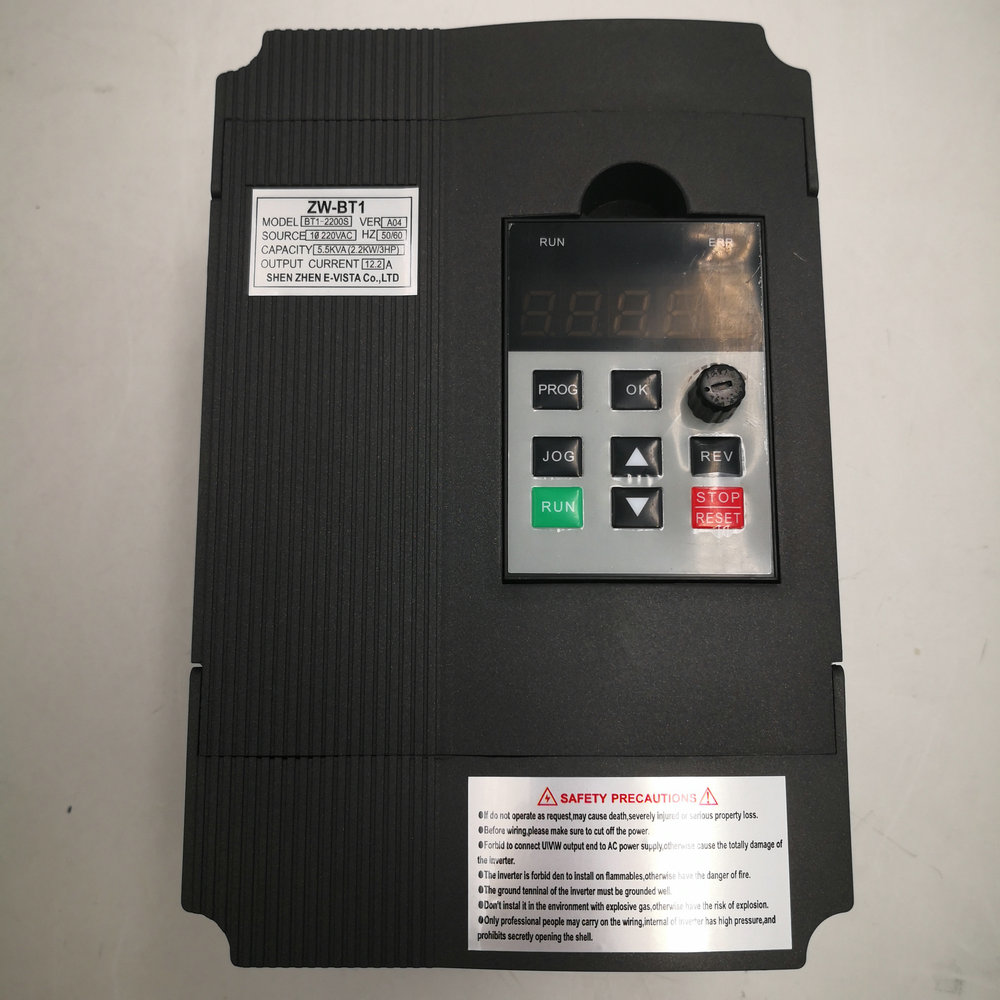

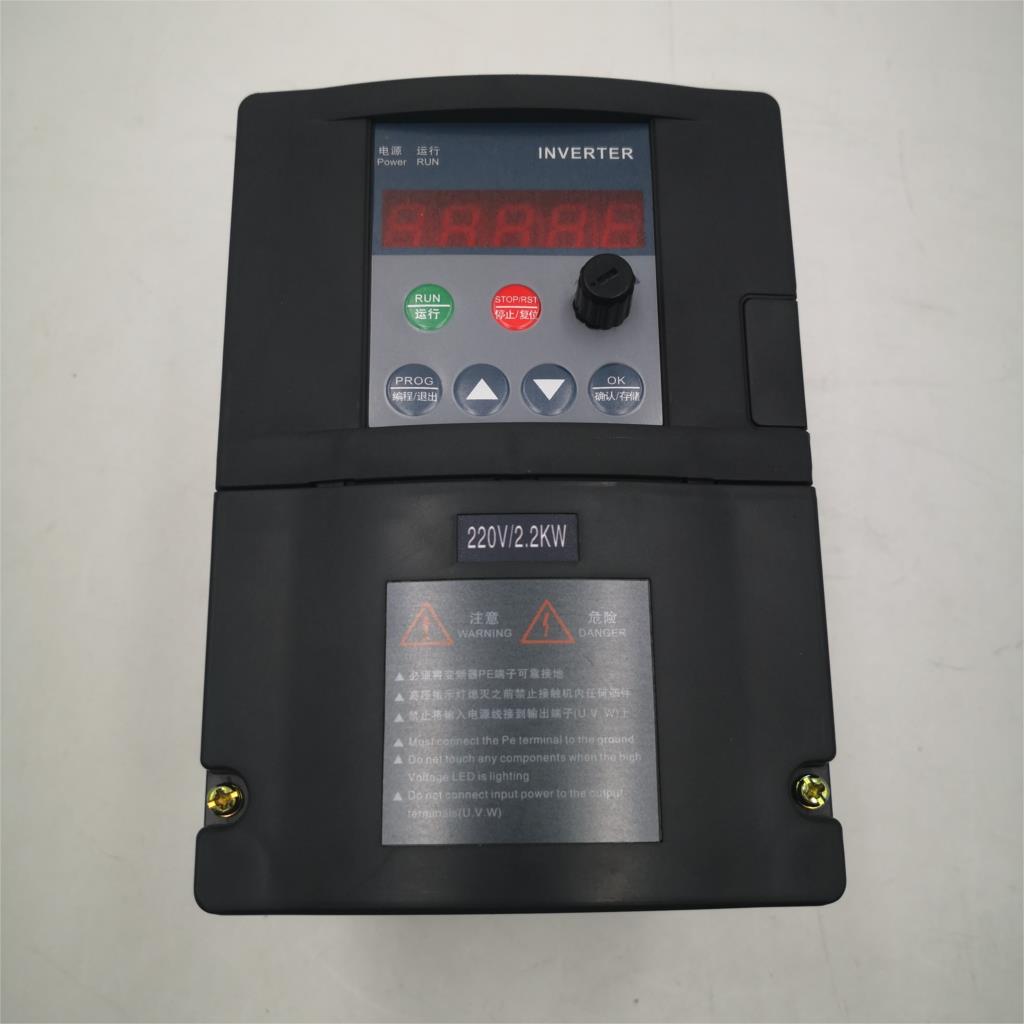

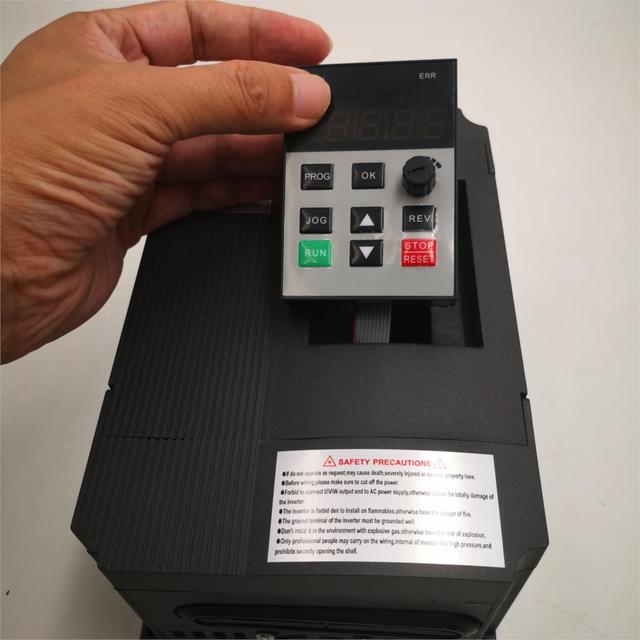

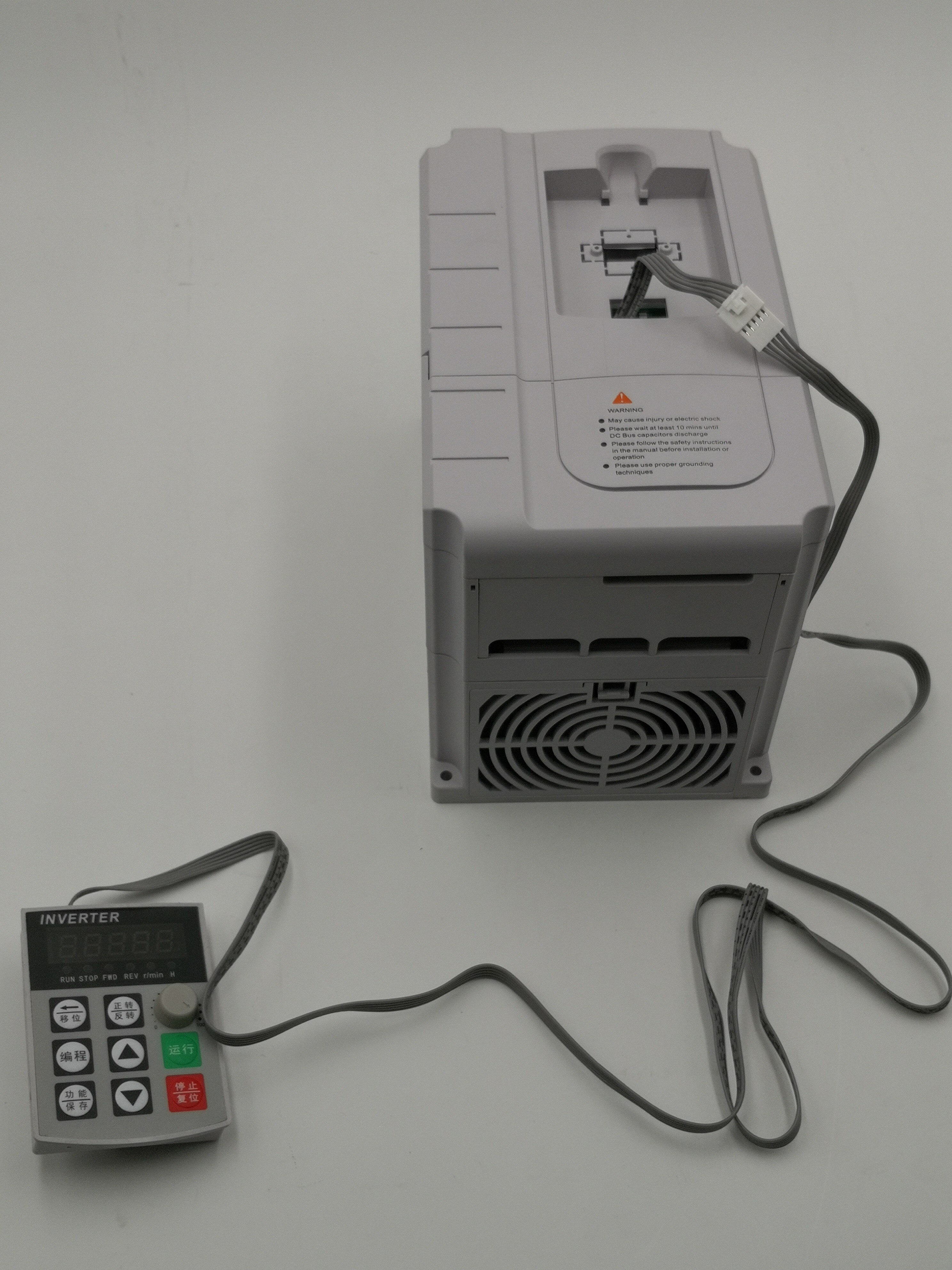

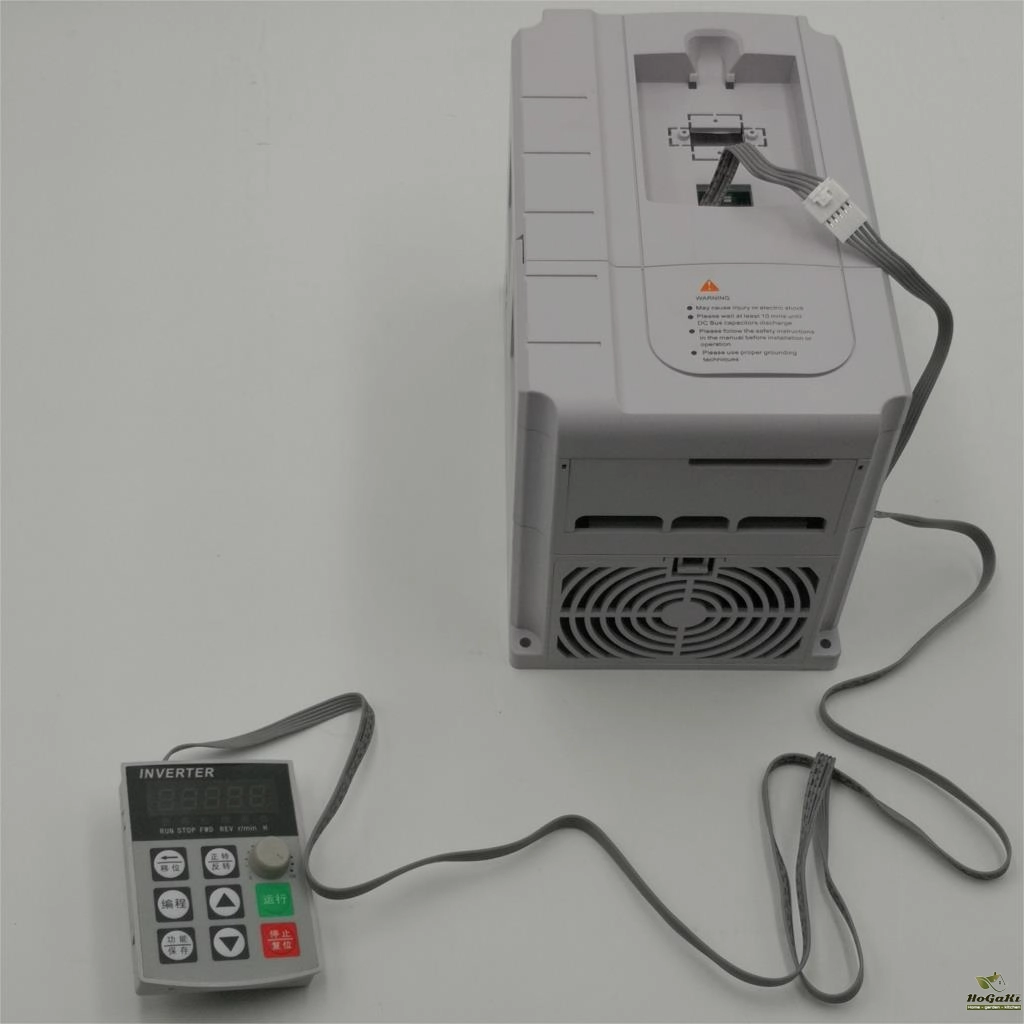

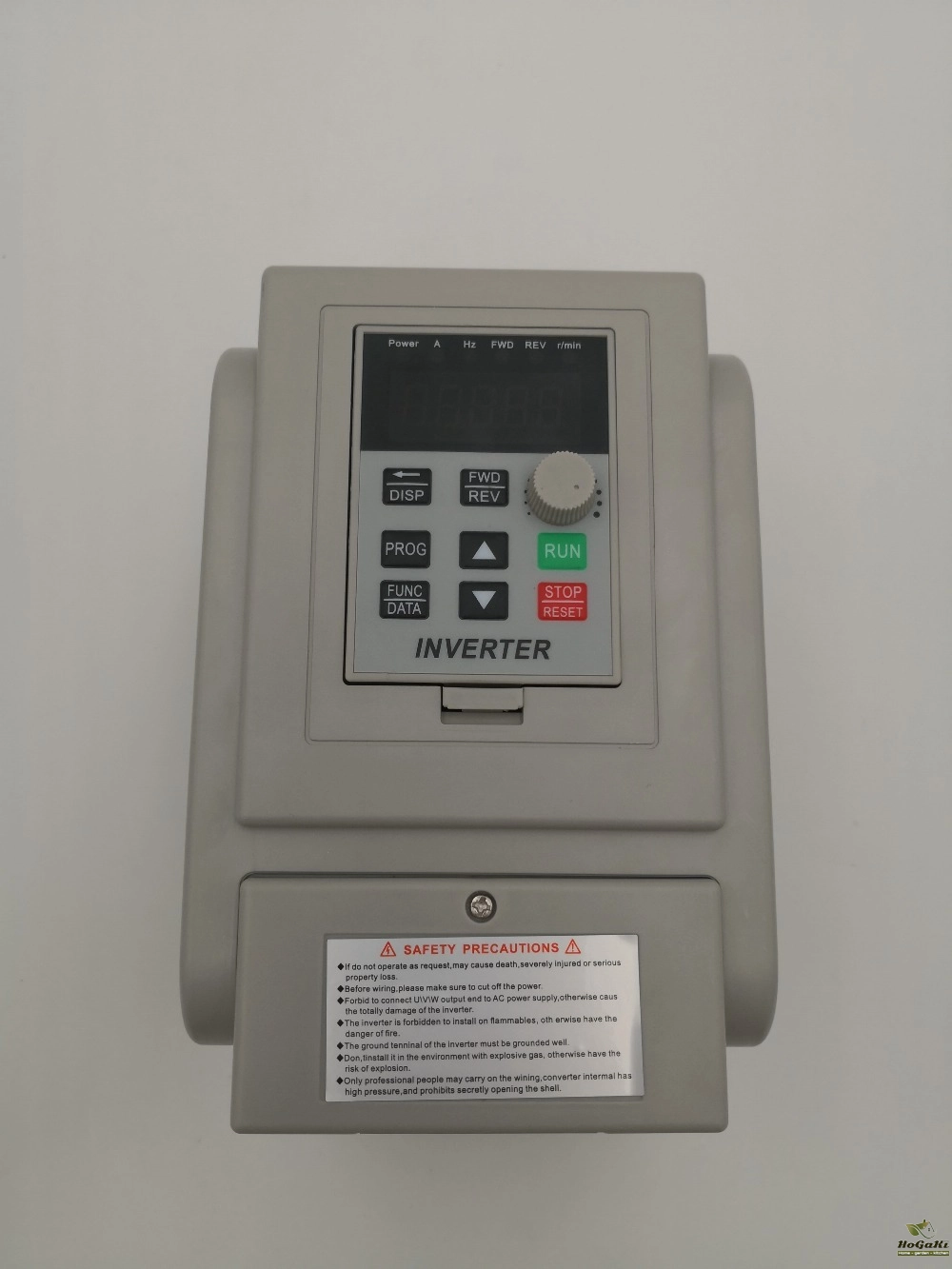

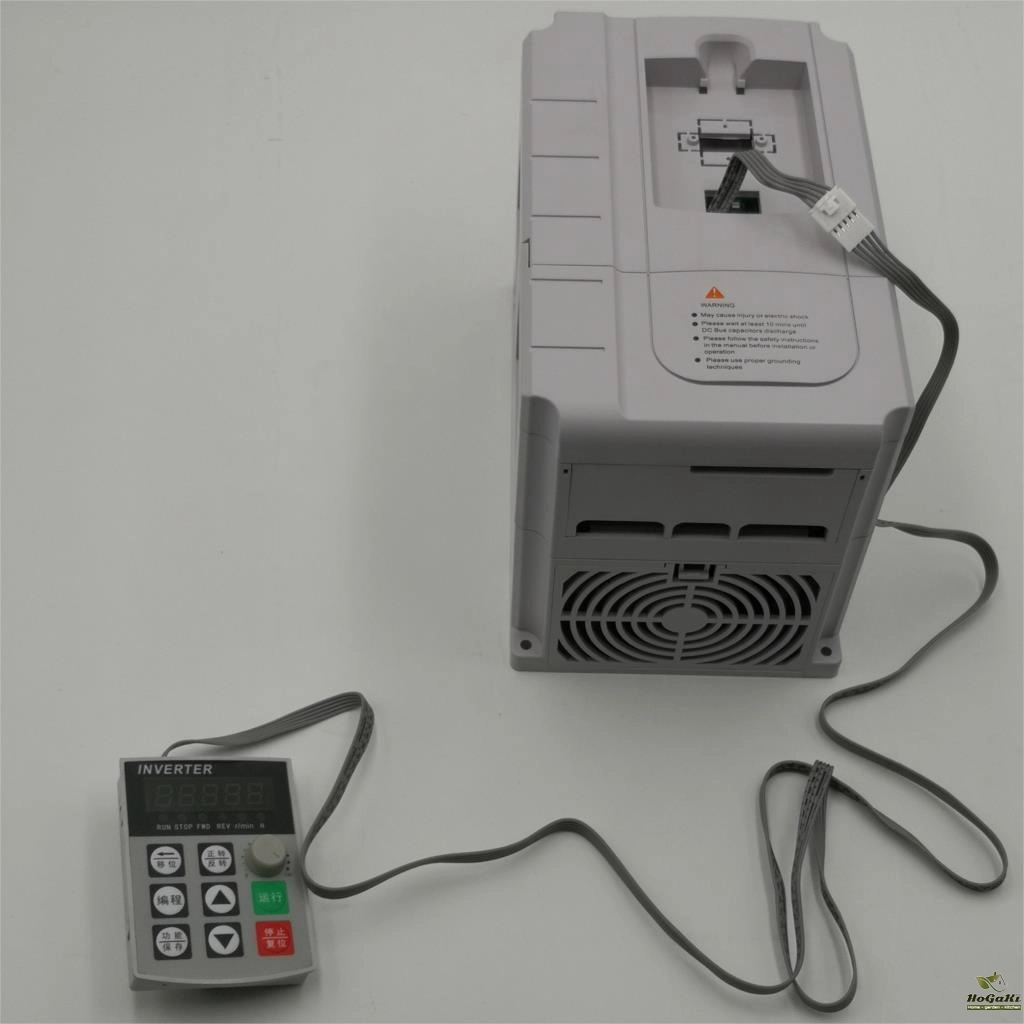

ZW-BT1 As below Pictures:

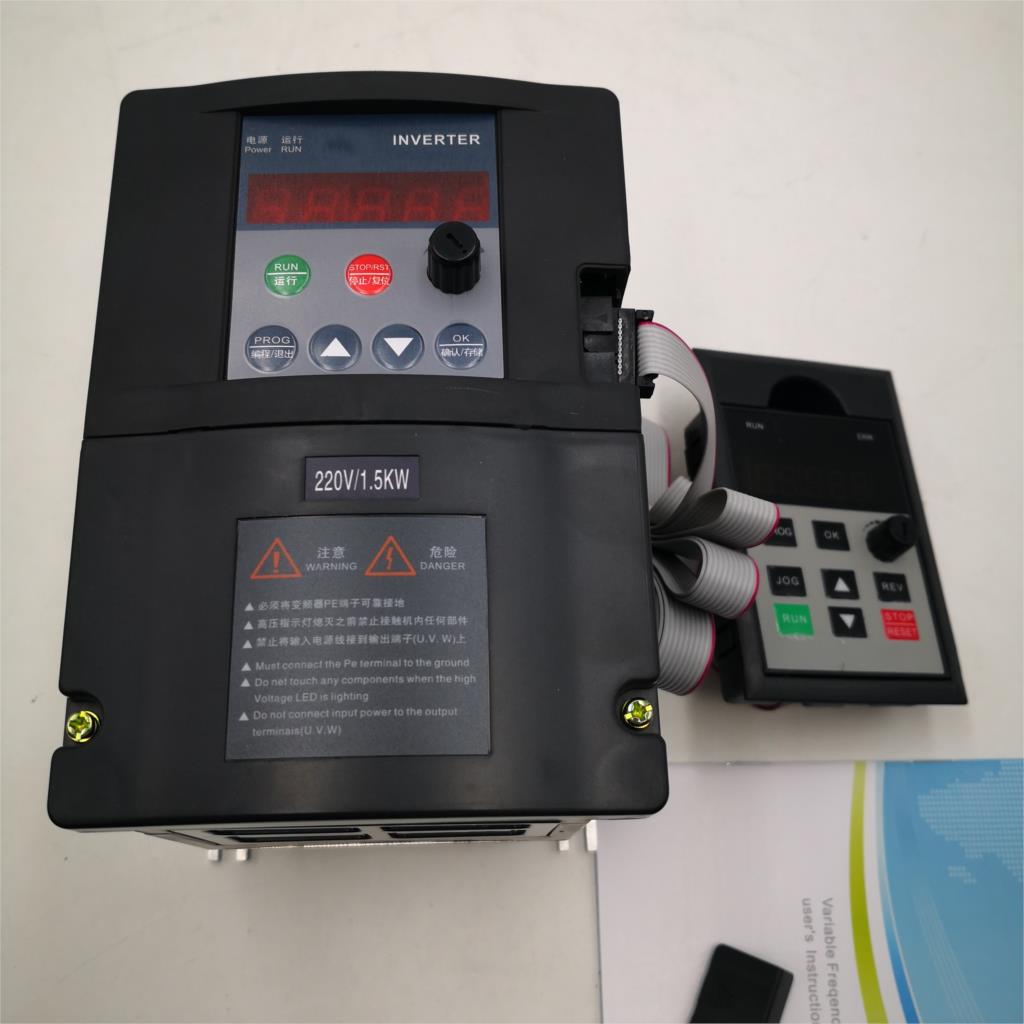

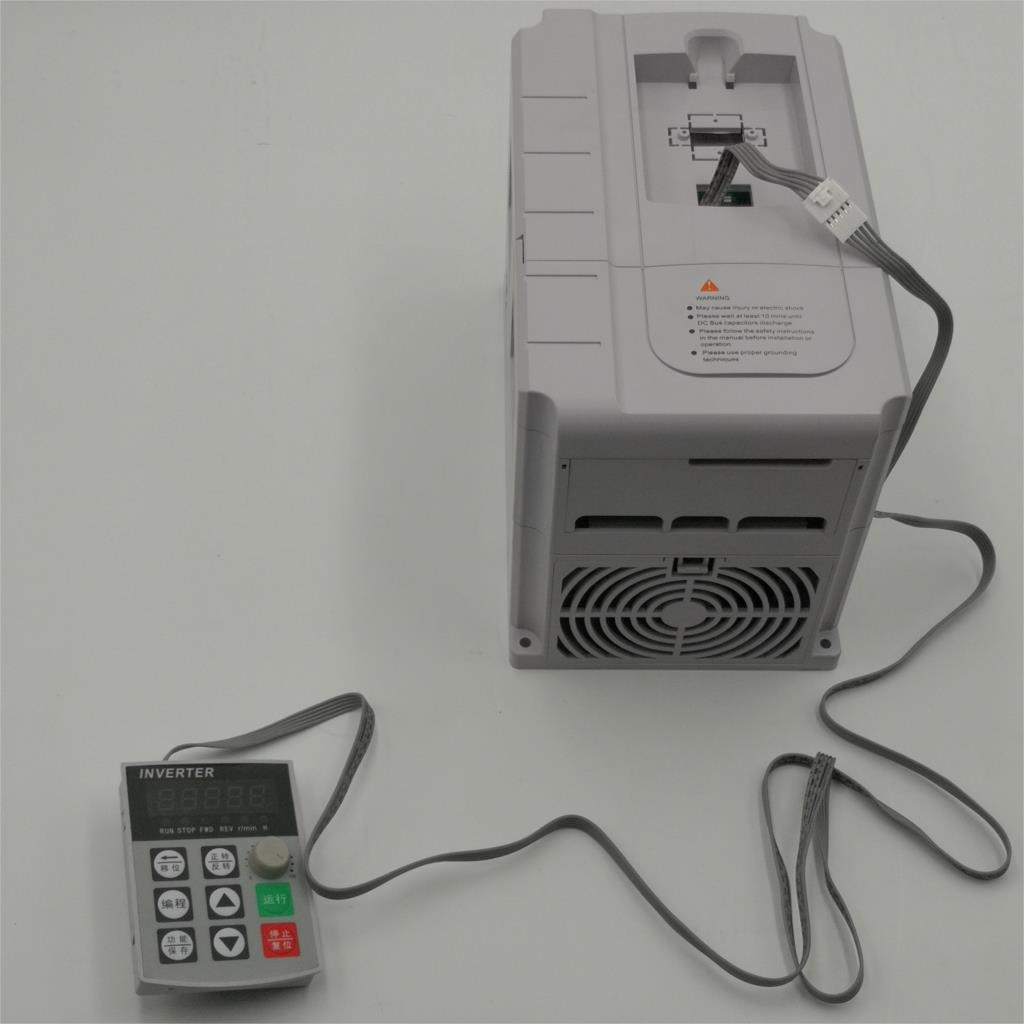

ZW-S2B Serial As below Pictures:



For ZW-BT1 CT1 and S2 ,S2B Model ,If motorneed high speed rotate,like spindle motor,you should set the inverter parameter as below:

you set P0-06 ,P0-07,P0-08 to 400,this is set to MAX Frequency 400hz,0.1hz-400hz


Defualt is 50hz as factory setting

andmind it should be Operate under the indicator lamp is off,And confirm Power is off






------------------------------------------------------------------------------

Notice:For XSY-AT1 or ZW-AT1,The Inverter Default factory Max Frequency

is also 50HZ

If motor need high speed rotate,likespindle motor,you should set the inverter parameter as below:

P001=400,P003=200,P006=400
So it is ok
Р001 = 400, Р003 = 200, P006 = 400
this is set to MAX 400hz
if you want to set MAX 70hz,
P001=70,P003=35 ,P006=70
This model of inverter  factorydefault MAX frequency is 50HZ
We ask buyer If your Inverter has show some error on display,first contact us,not open dispute,this is very harmful to us,it will effect our sales.

Russian instruction welcome ask we send you,Please Leave your email to us


In the Box there will be english or Russian instruction book


If you have any question, please contact me !

If you like this product, please tell your relatives and friends;

If you don't like it, please tell us: Thank you !


Russian People Please Note you Leave Full name and Surname,otherwise we will not charge of your shipping,And Mind also your Post Code,it is very Important for shipping quickly and safely.

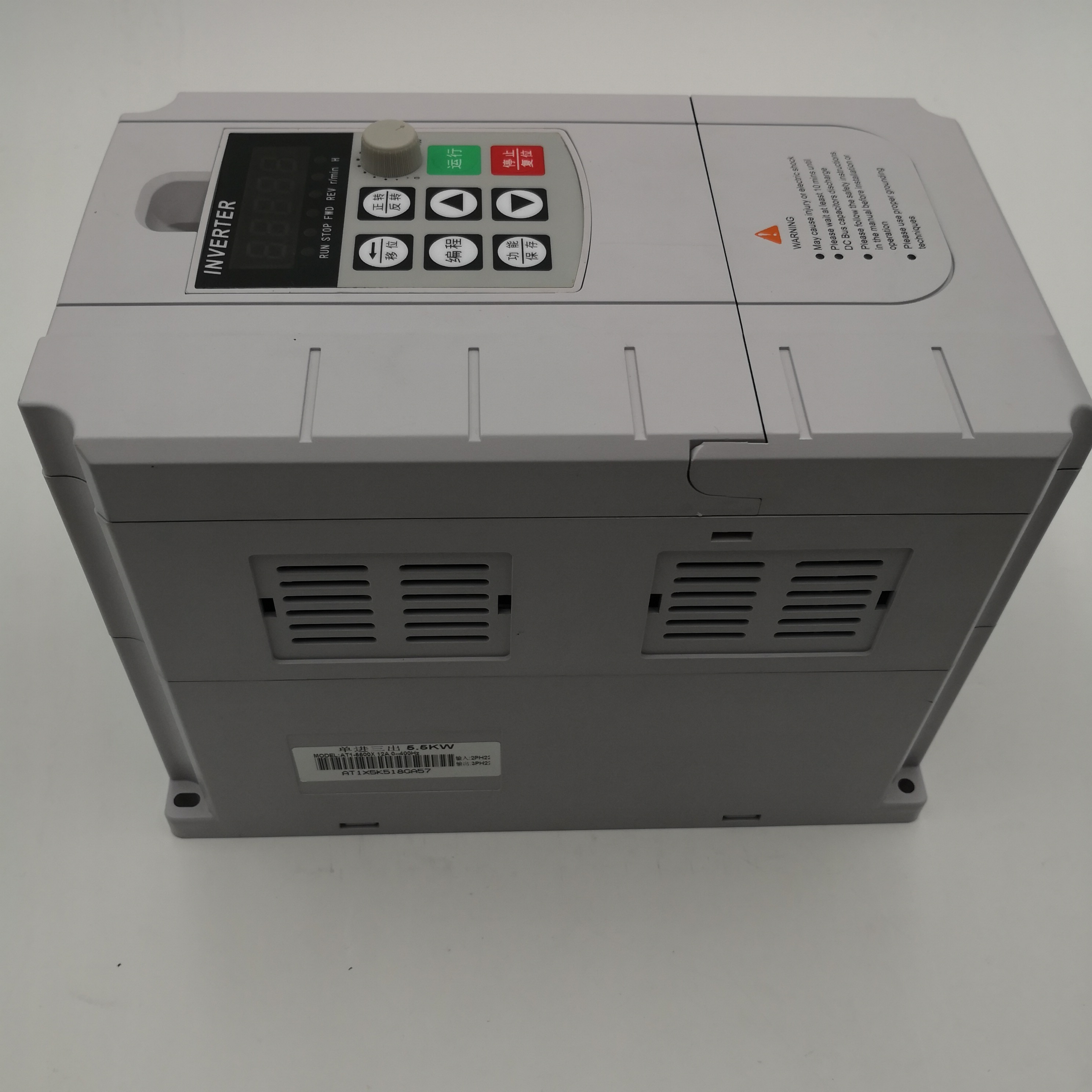

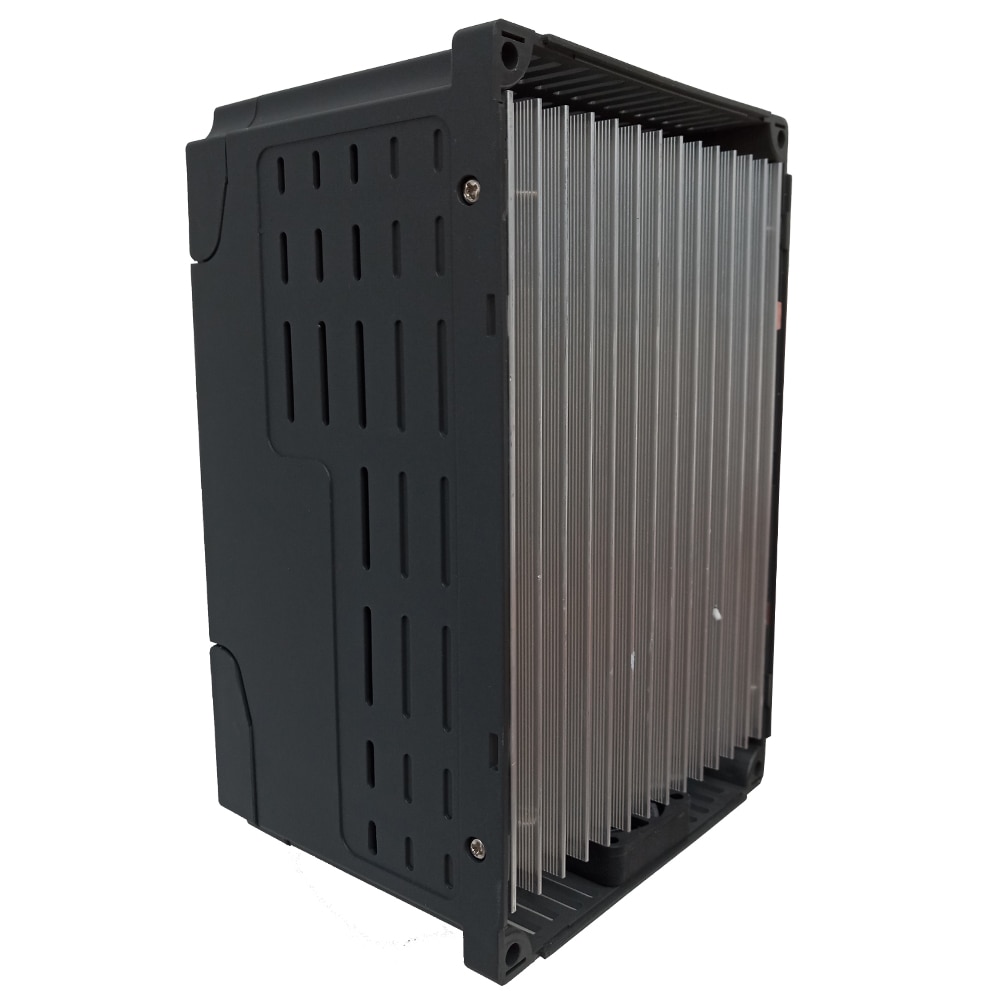

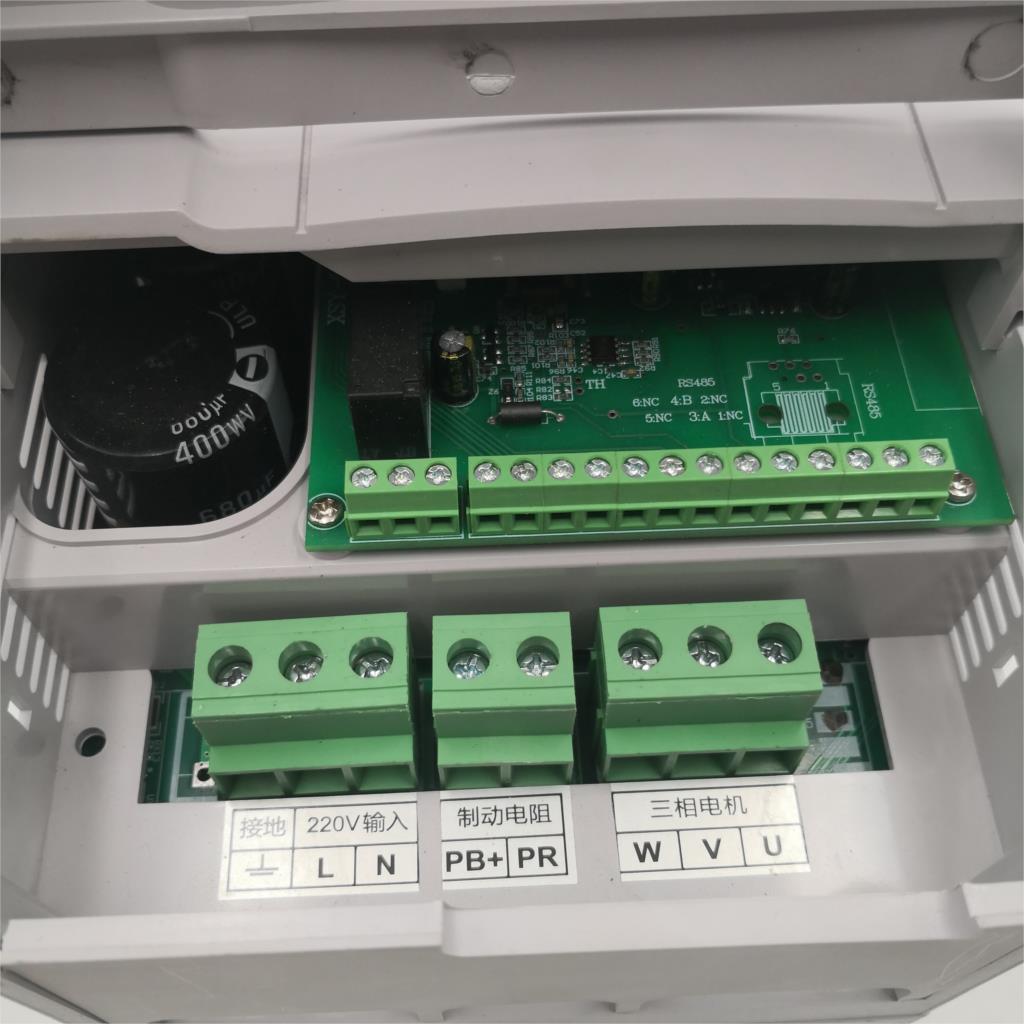

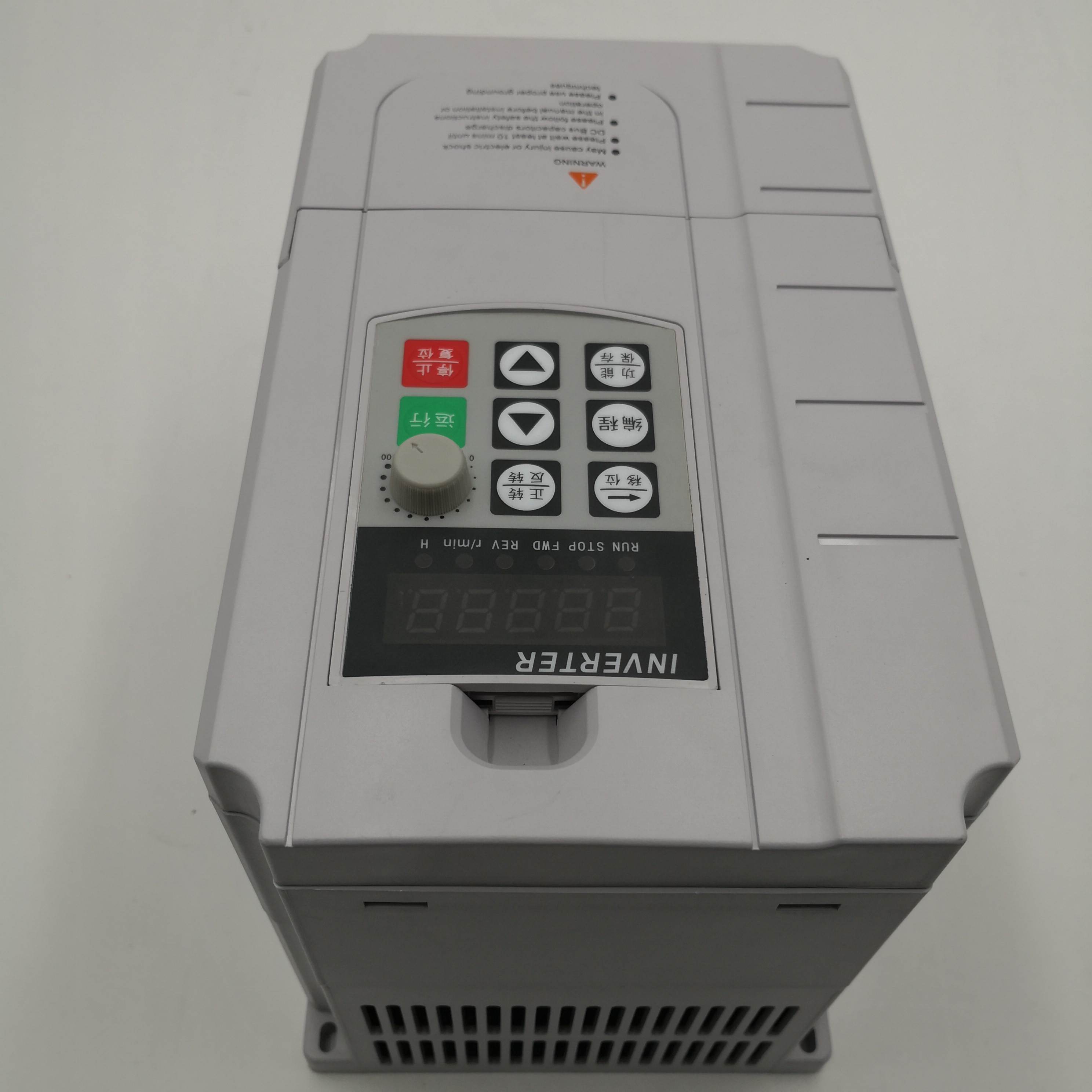

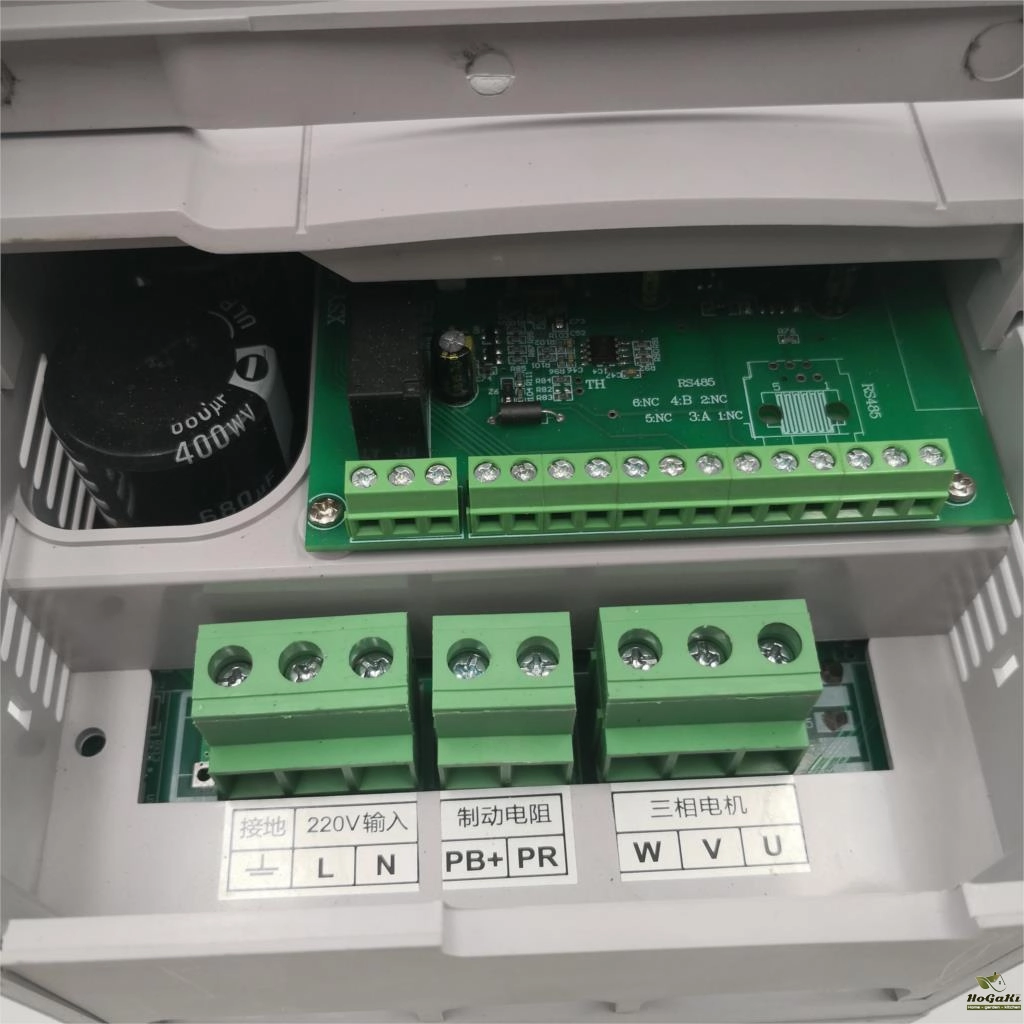

5.5KW 220 1P Input and 3P Output Frequency Inverter Picture is as Below :

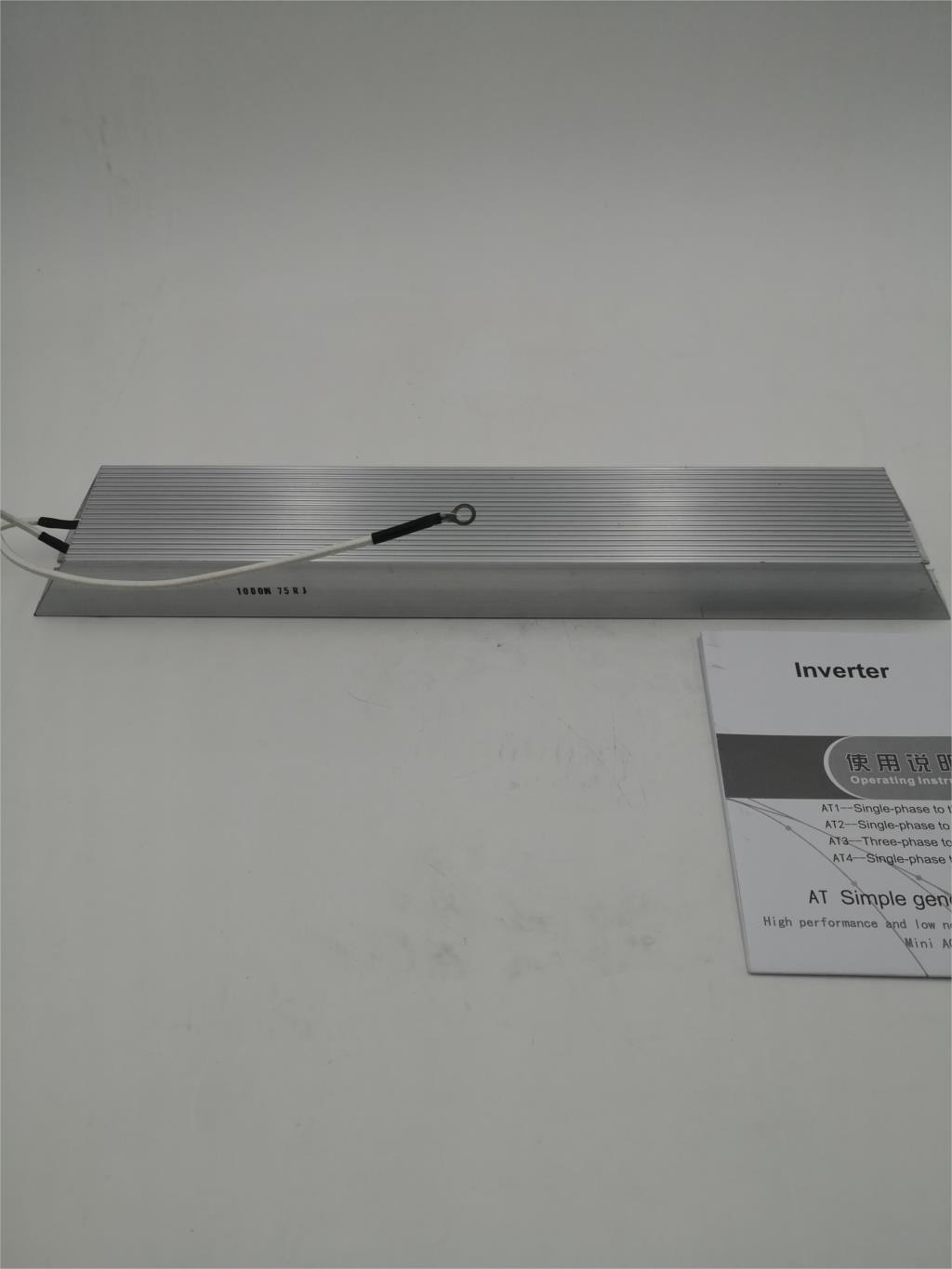

Brake Resistor Need buyer Prepare or buy In Other Link


----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

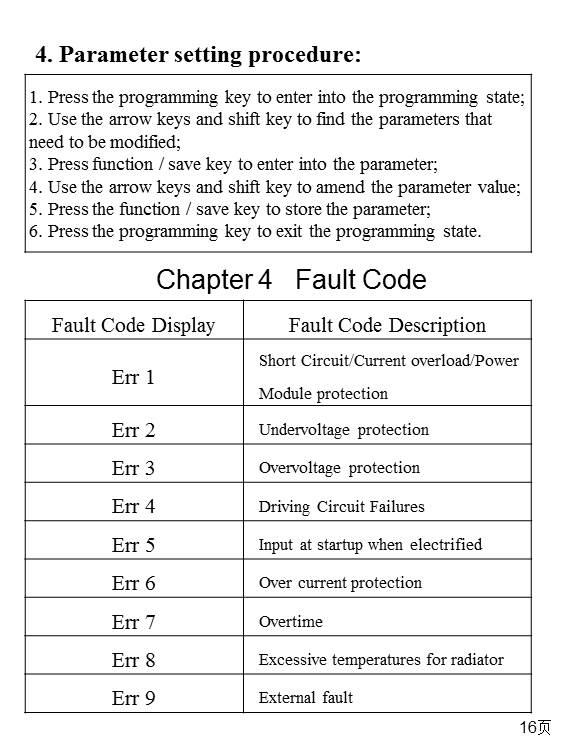

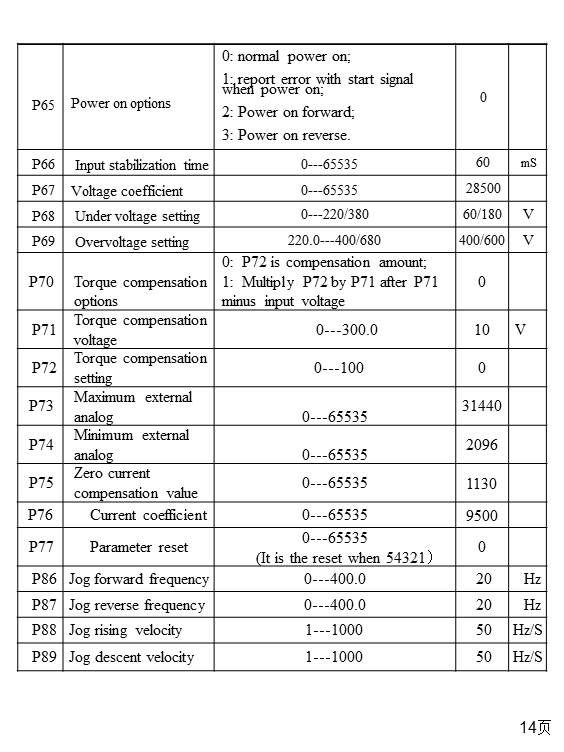

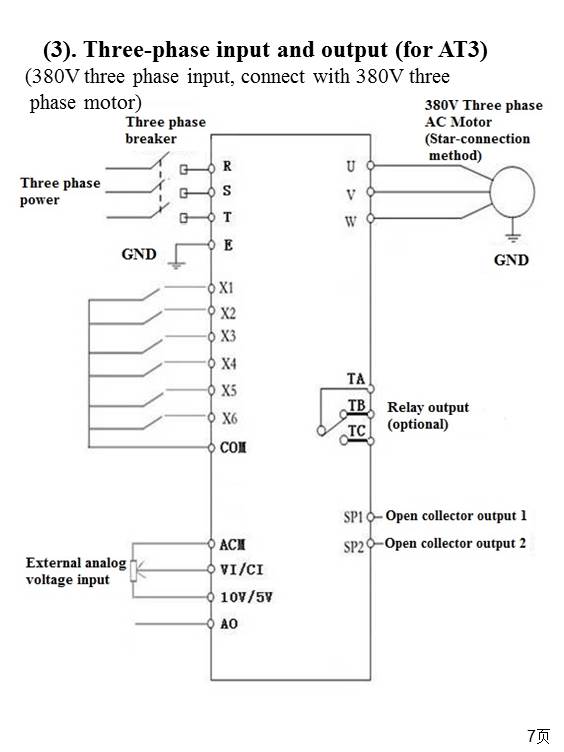

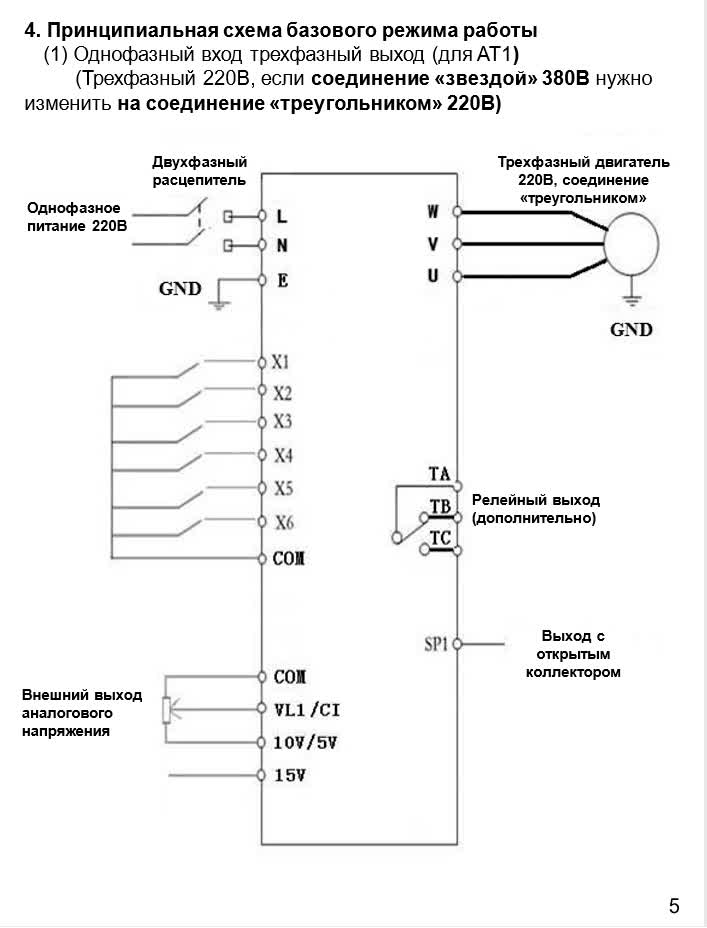

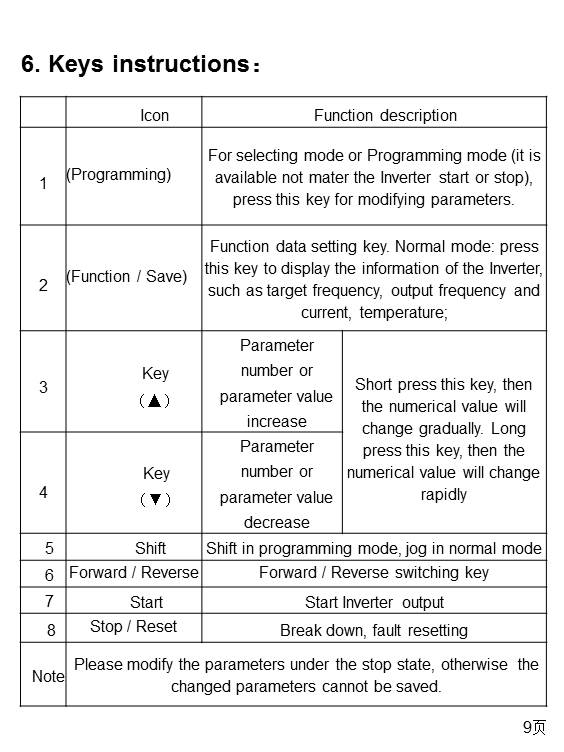

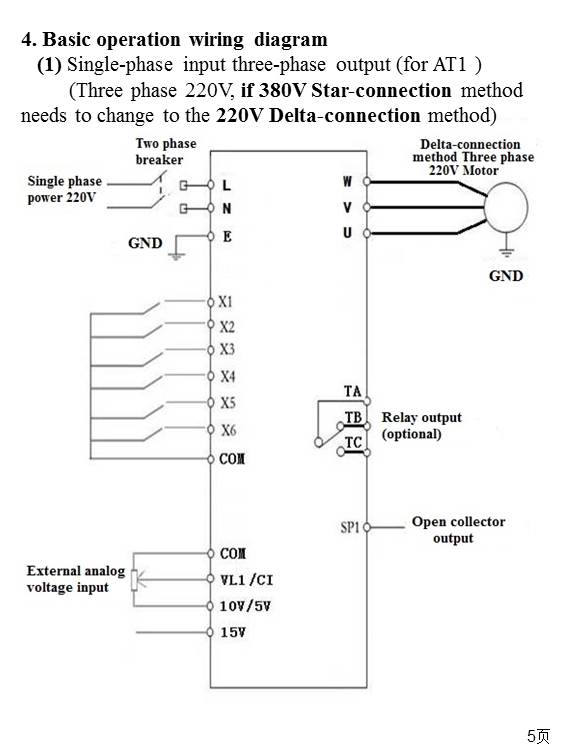

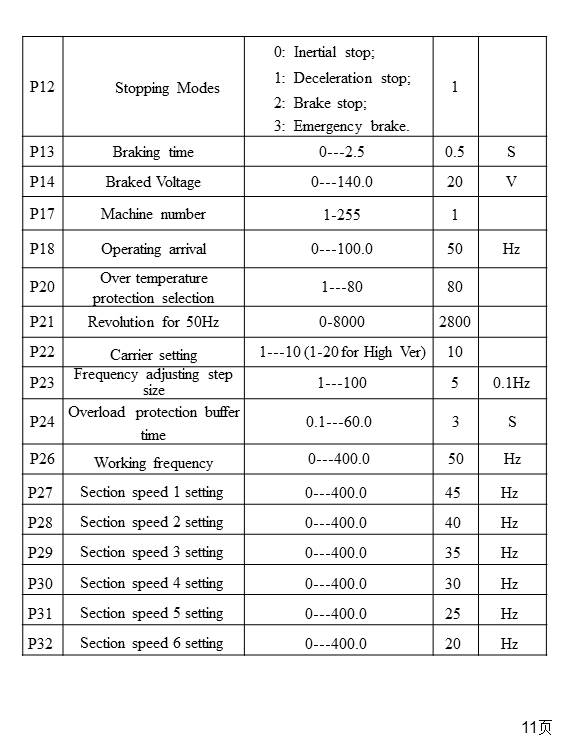

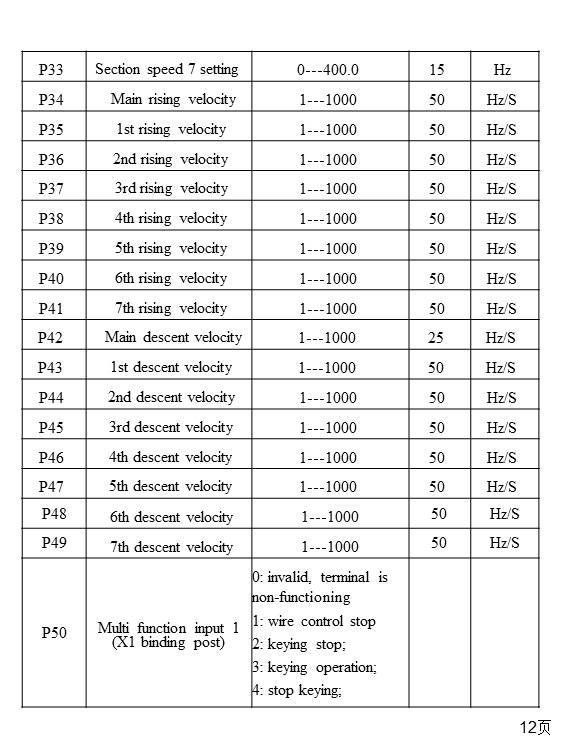

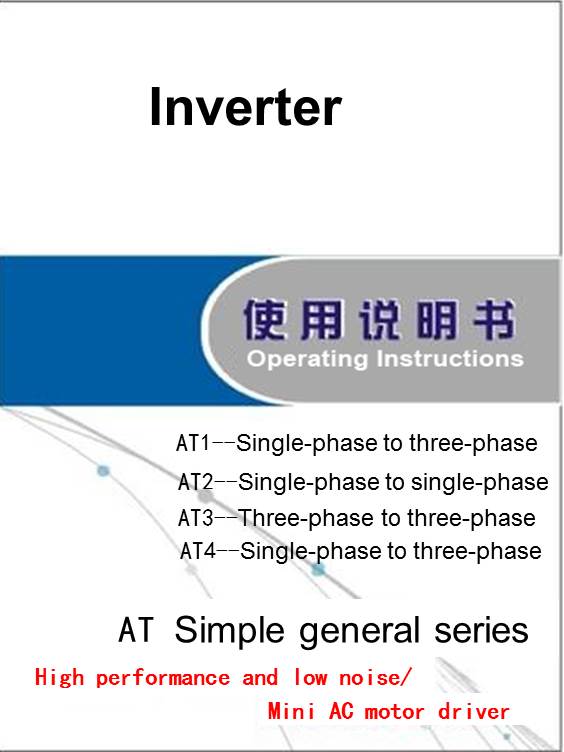

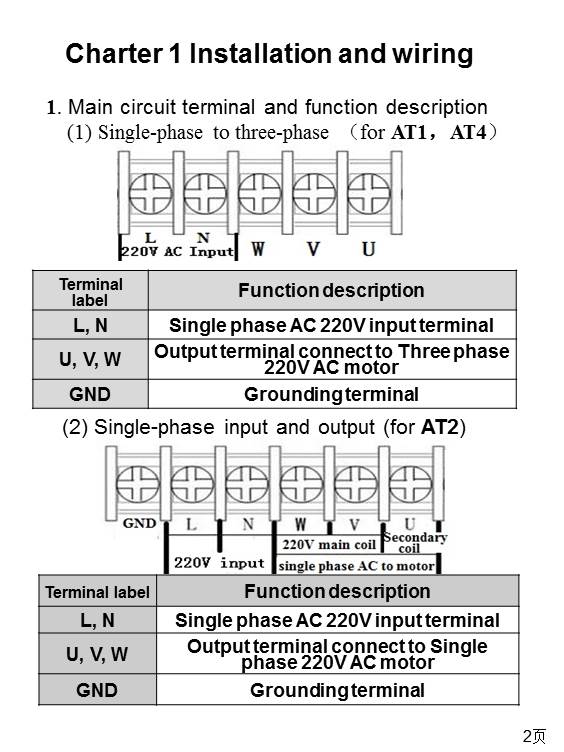

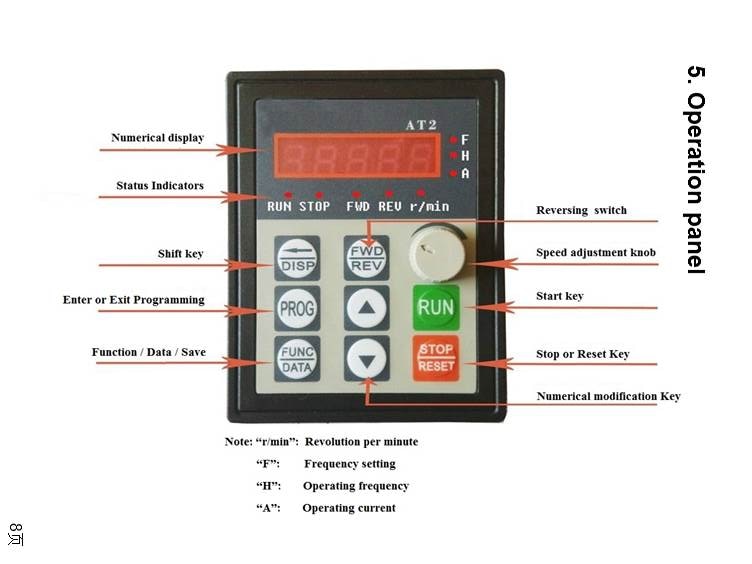

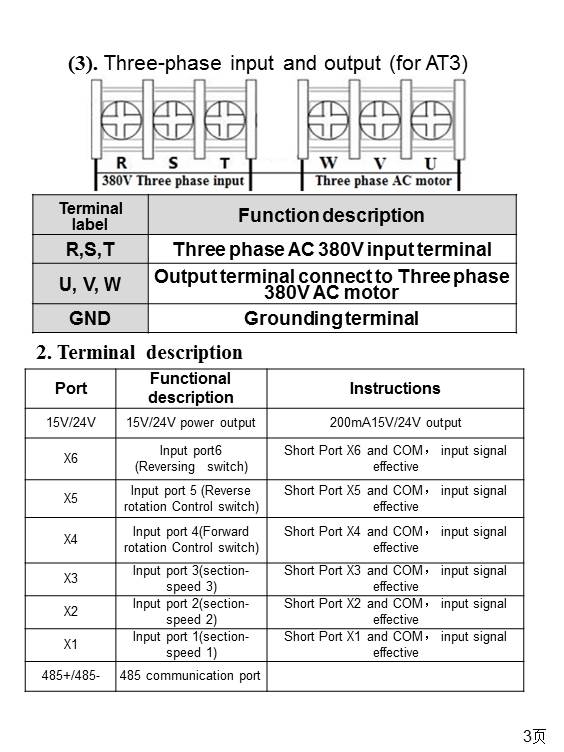

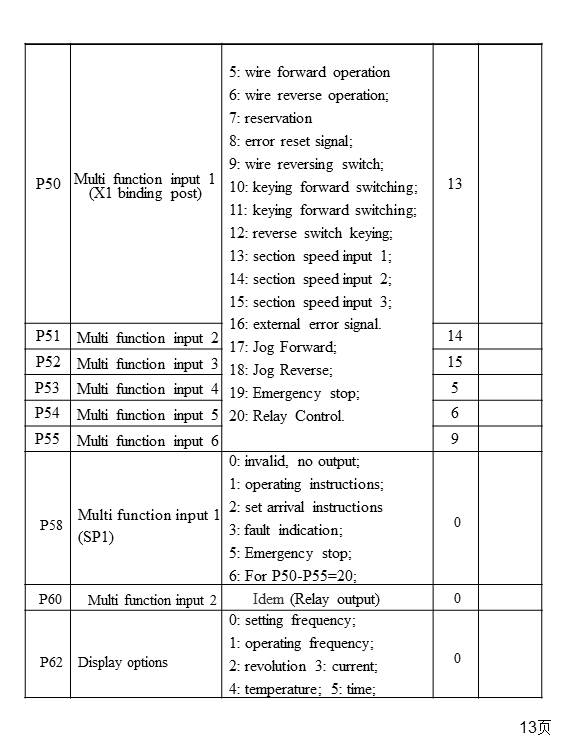

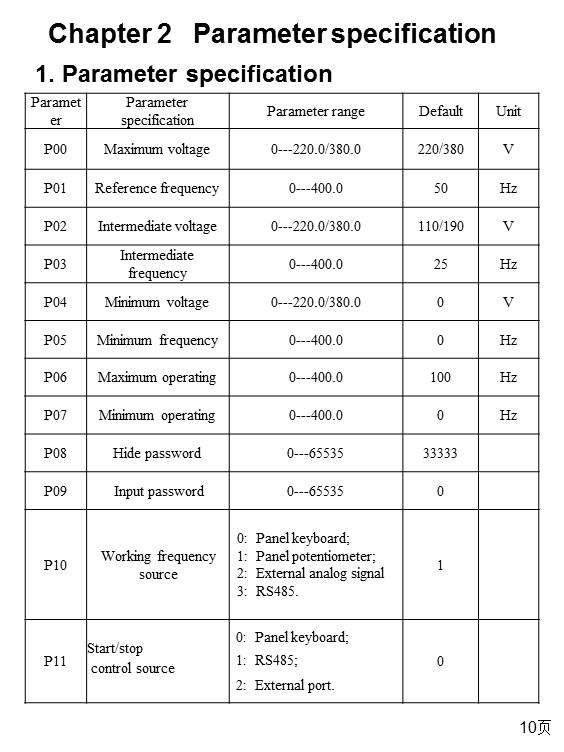

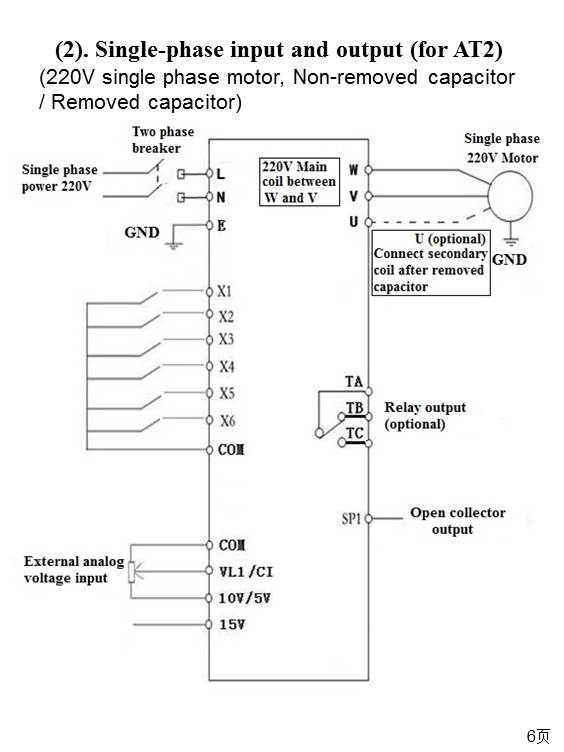

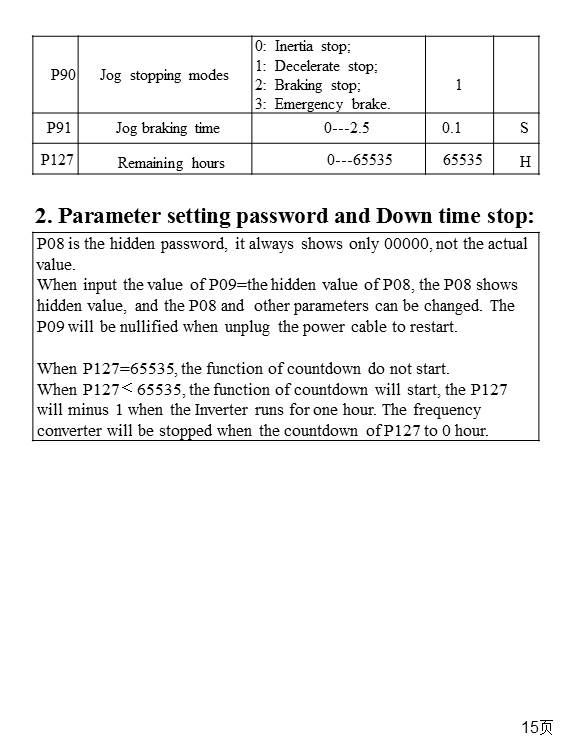

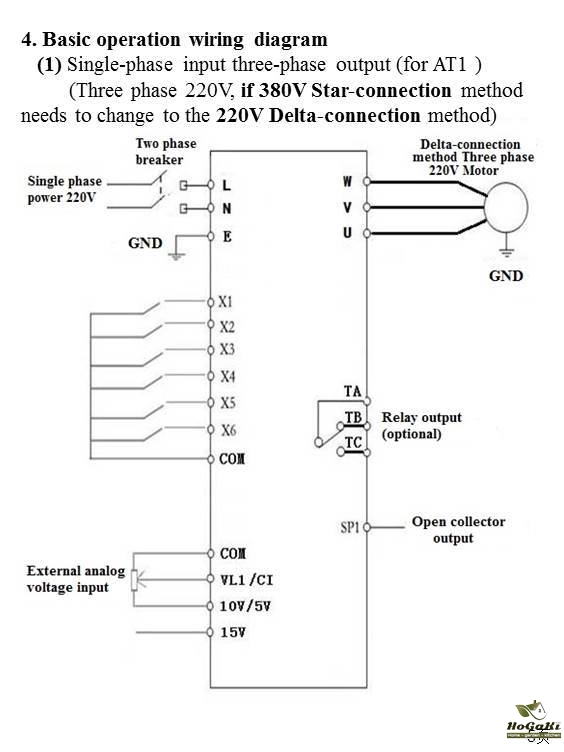

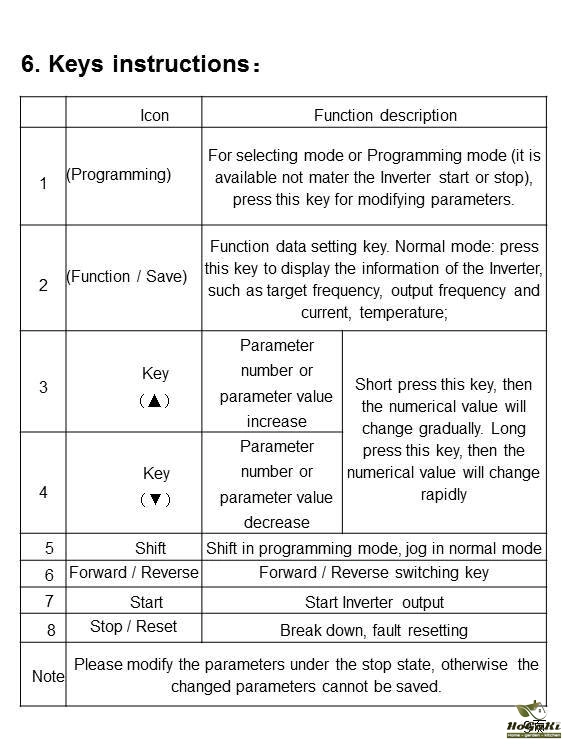

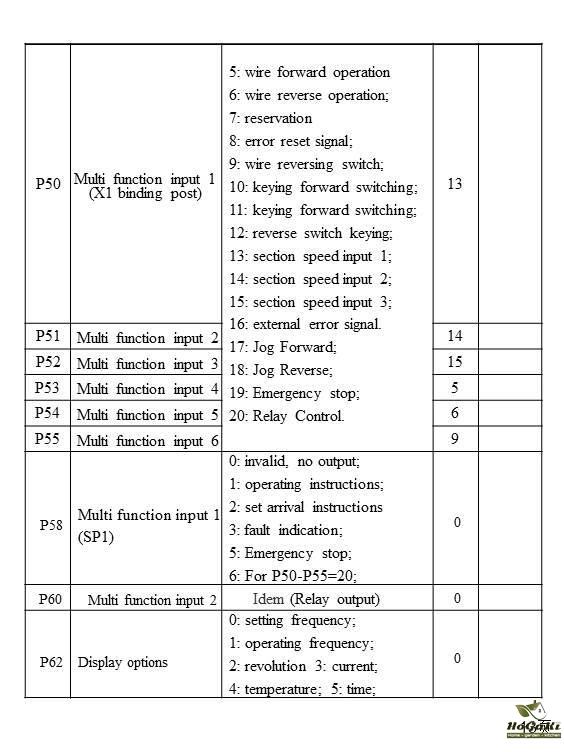

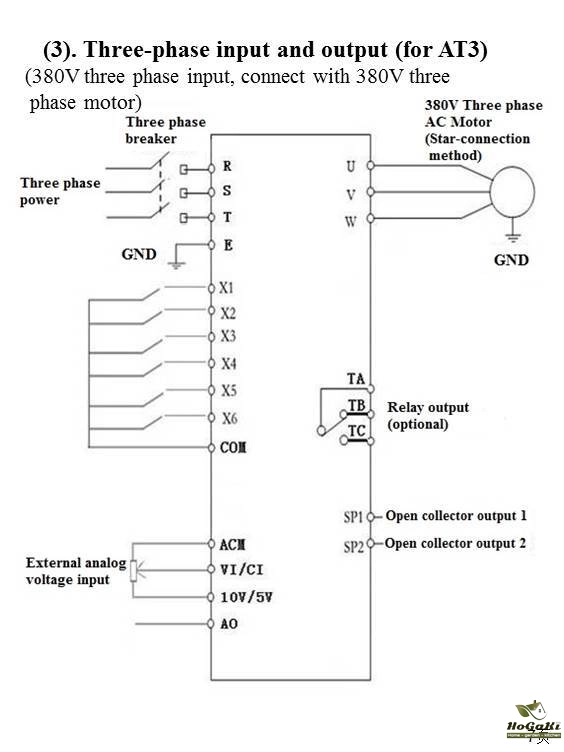

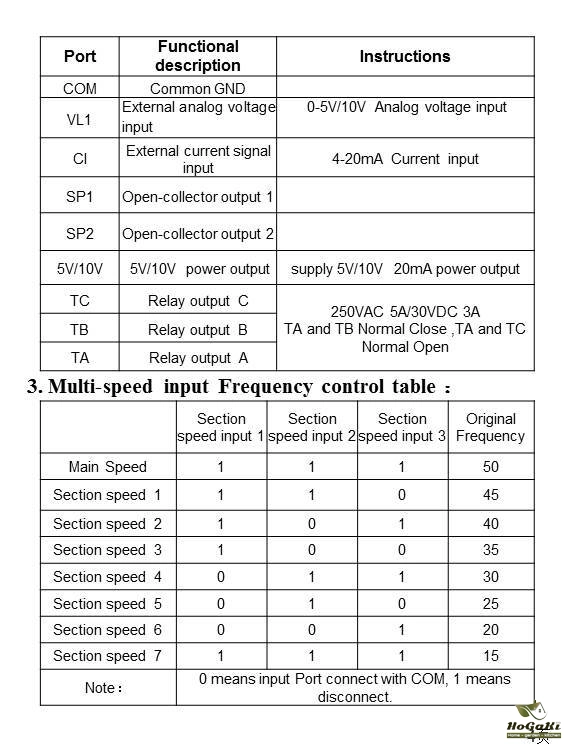

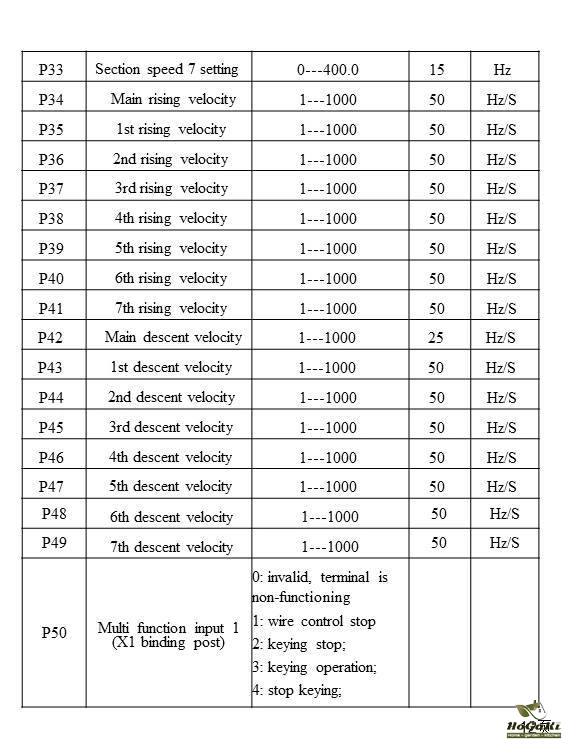

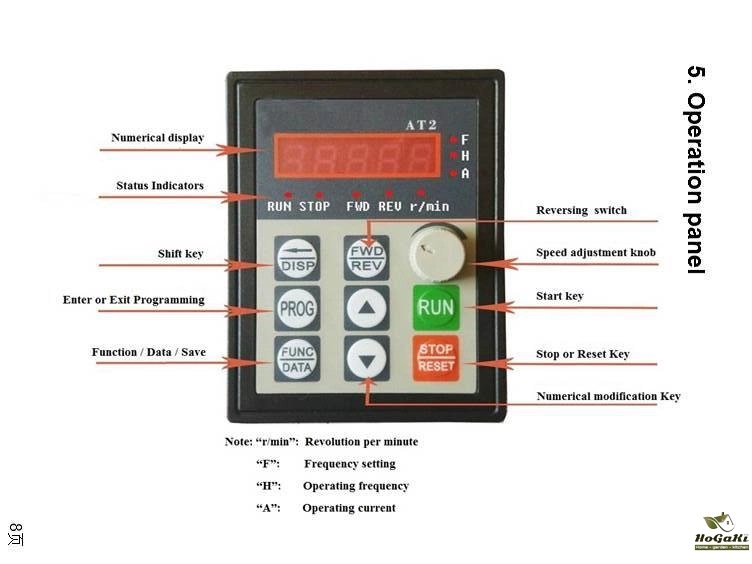

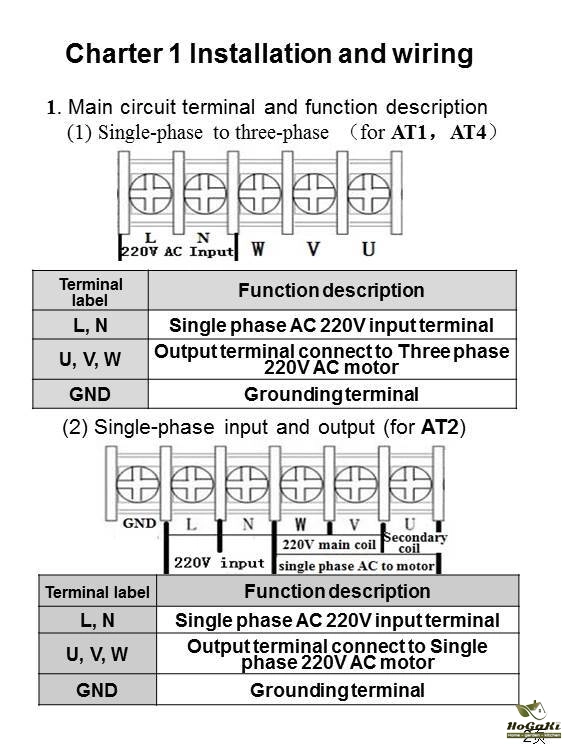

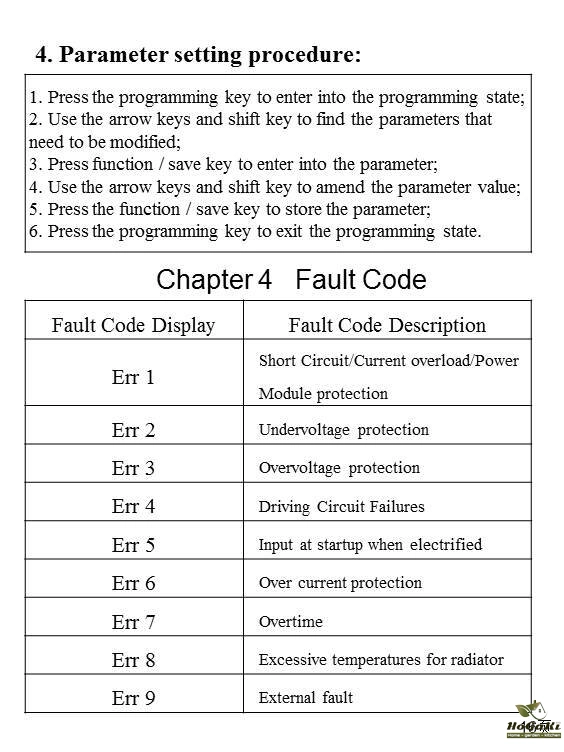

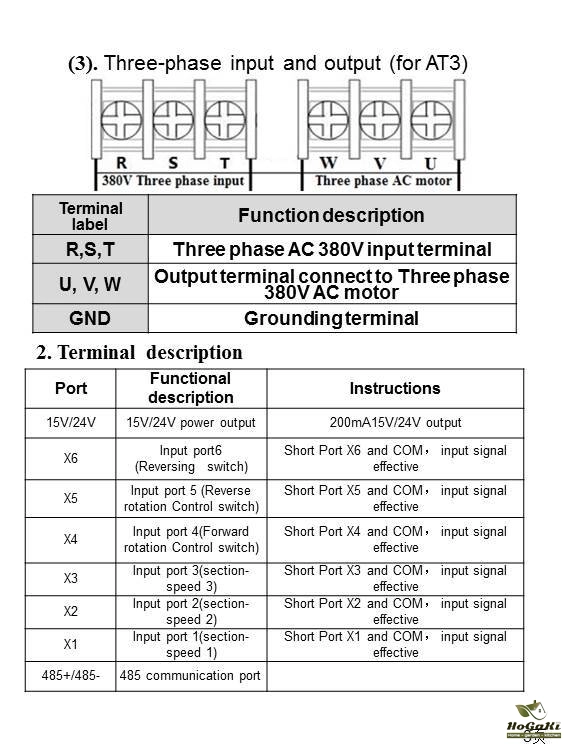

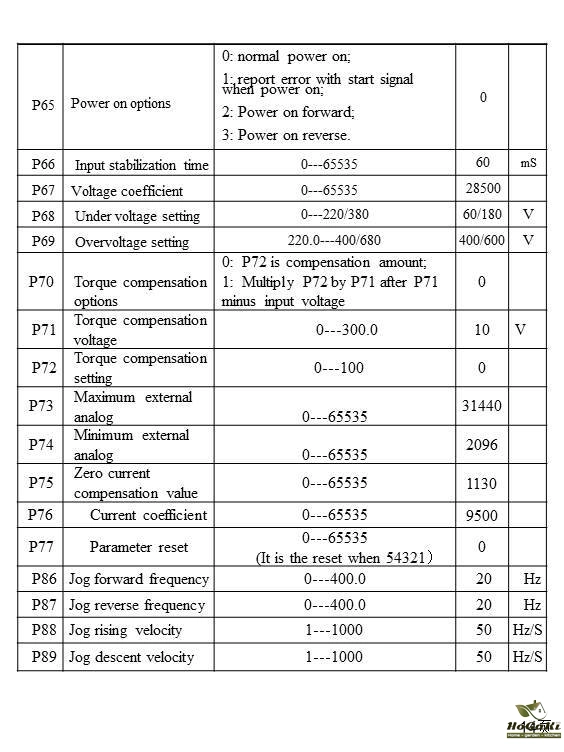

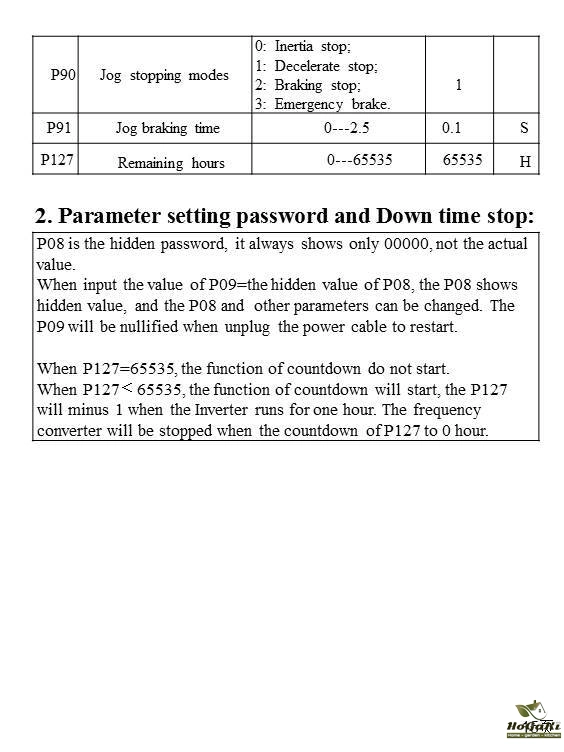

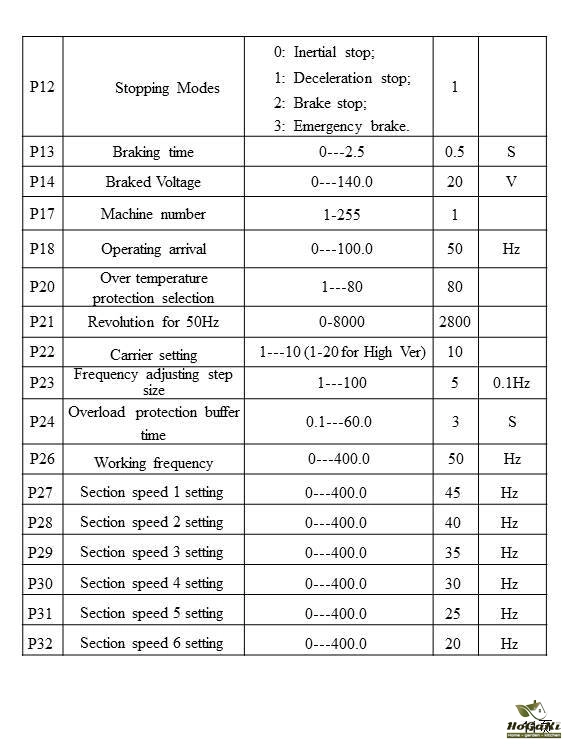

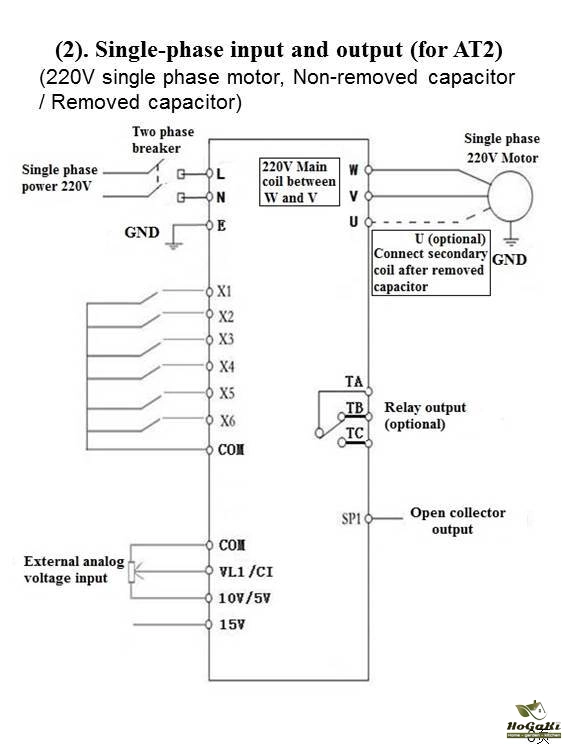

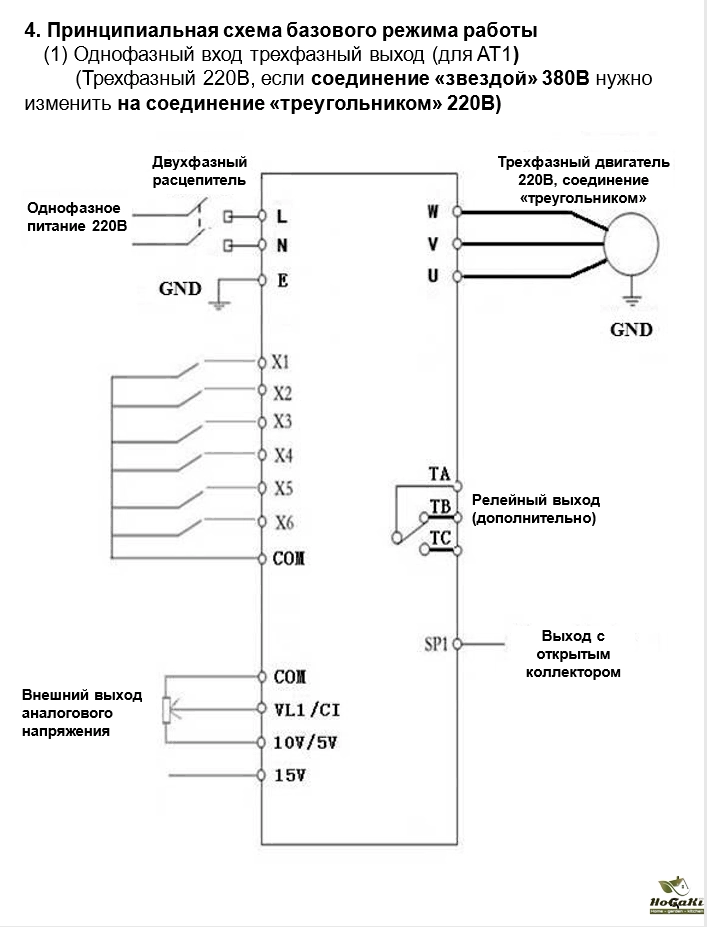

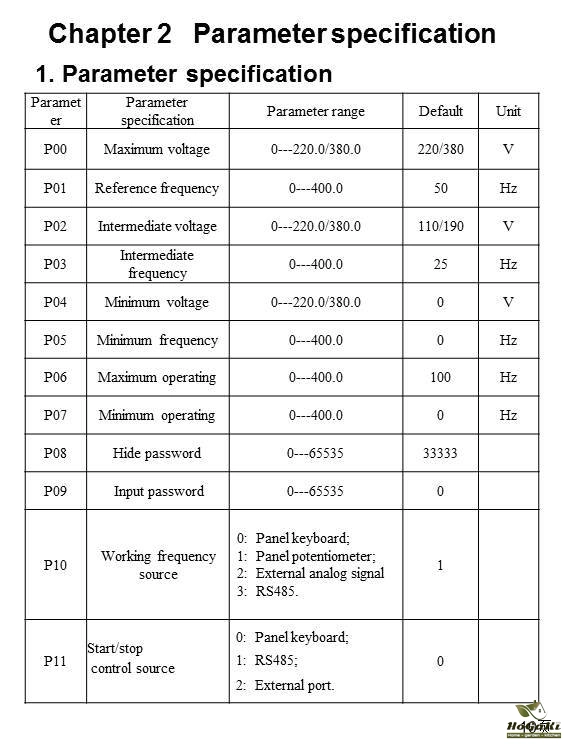

Below is XSY-AT1-AT4(ZW-AT1 Same0Serial Insturction Parameter :


















Above Intruction is for XSY-AT1 or ZW-AT1;


ZW-BT1 and ZW-CT1 we Put in the package box,and If buyer need,Please Leave Email;we send you Instruction file

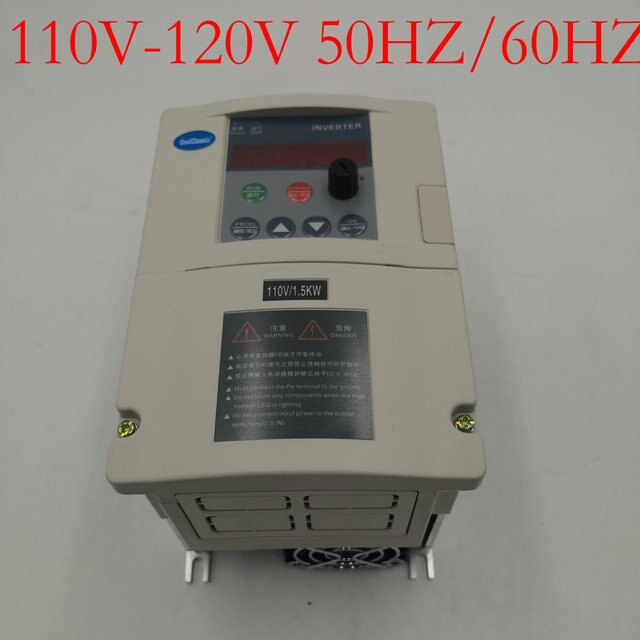

If Buyer want buy 110-120V input and 110-120V Output Inverter

Please Visit Here:


If Buyer want buy 380V input and 380V Output Inverter

Please Visit Here :


If Buyer Need Constant Pressure Pump Inverter,Please Choose as Below Link:







  • is_customized: Yes
  • Output Current: 7A 8A 12A 20A 25A 30A
  • Output Frequency: 0-400hz
  • Weight: 0.96kg 1.2kw 3.65kg,etc
  • Size: 165*115*109mm
  • Output Type: triple
  • Output Power: 1 - 200KW
  • Model Number: XSY-AT1-1500W;ZW-AT1-1.5KW;XSY-AT1-2.2KW;4KW;5.5KW
  • Type: AC-DC-AC
  • Brand Name: COOLCLASSIC
  • Origin: Mainland China
  • Certification: CE
  • Input Voltage: 220v Single Phase
  • Output Voltage: 220v Triple Phases
