VEVOR 1.5KW 2.2KW 220V Air Cooled Spindle Motor with Four Bearings ER11 ER20 Collet for CNC Router Engraver Frequency Converters

4.6 (28 votes) | 88 orders
Price: US $303.96 - 467.96 / piece
Discount Price:
US $ 165.74 - 466.05 / piece
-45%
Ships From
Color

Sorry! This item is out of stock


Product Description
Air Cooled Spindle Motor
ER11/ER20 Collet & Four Bearings & 12000-24000 R/min
These spindle motors adopt imported bearings and high-quality stainless steel materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
  • Technical Parameters

  • ER11/ER20 Standard Collet

  • Powerful Bearings

  • Low Noise & Heat Dissipation


Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Remind:
            If you have any issue about using, please feel free to contact us. If you need, we can also provide the use and installation instruction.

Key Features

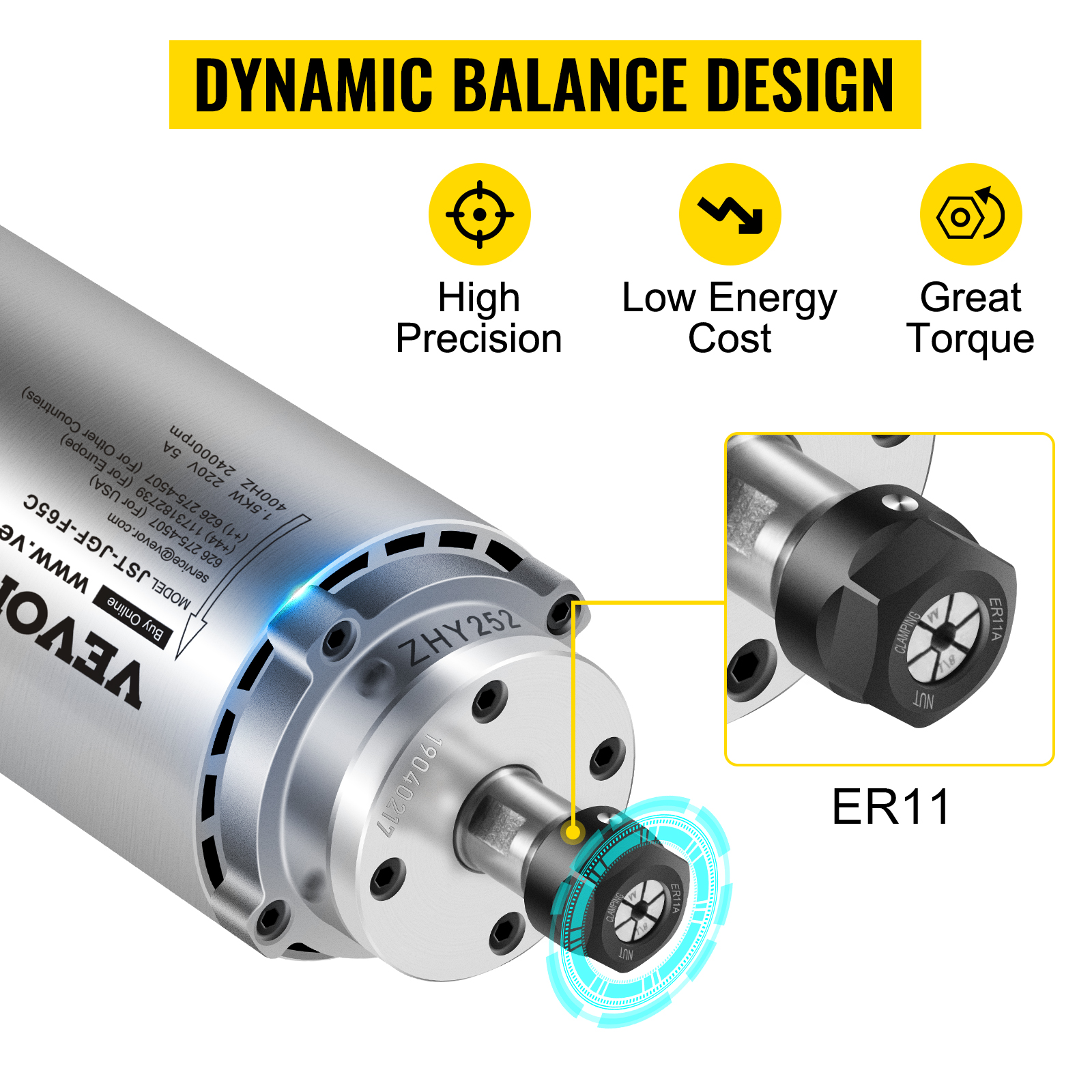

Dynamic Balance Design
Unlike other milling spindle motors, we use innovative and advanced dynamic balancing technology. The ER11/ER20 standard collet's advantages are excellent rigidity, full strength, unique drainage design, and high precision.

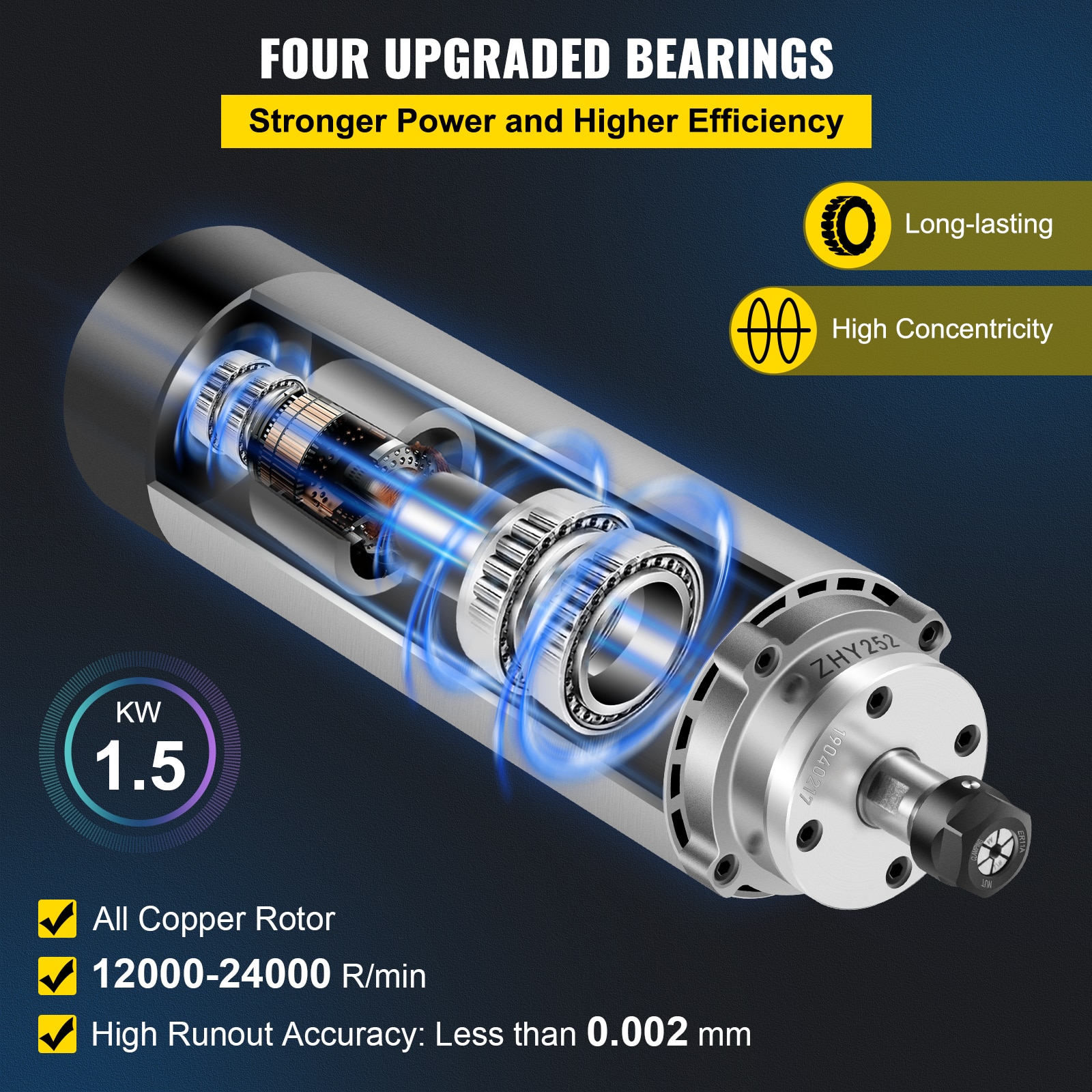

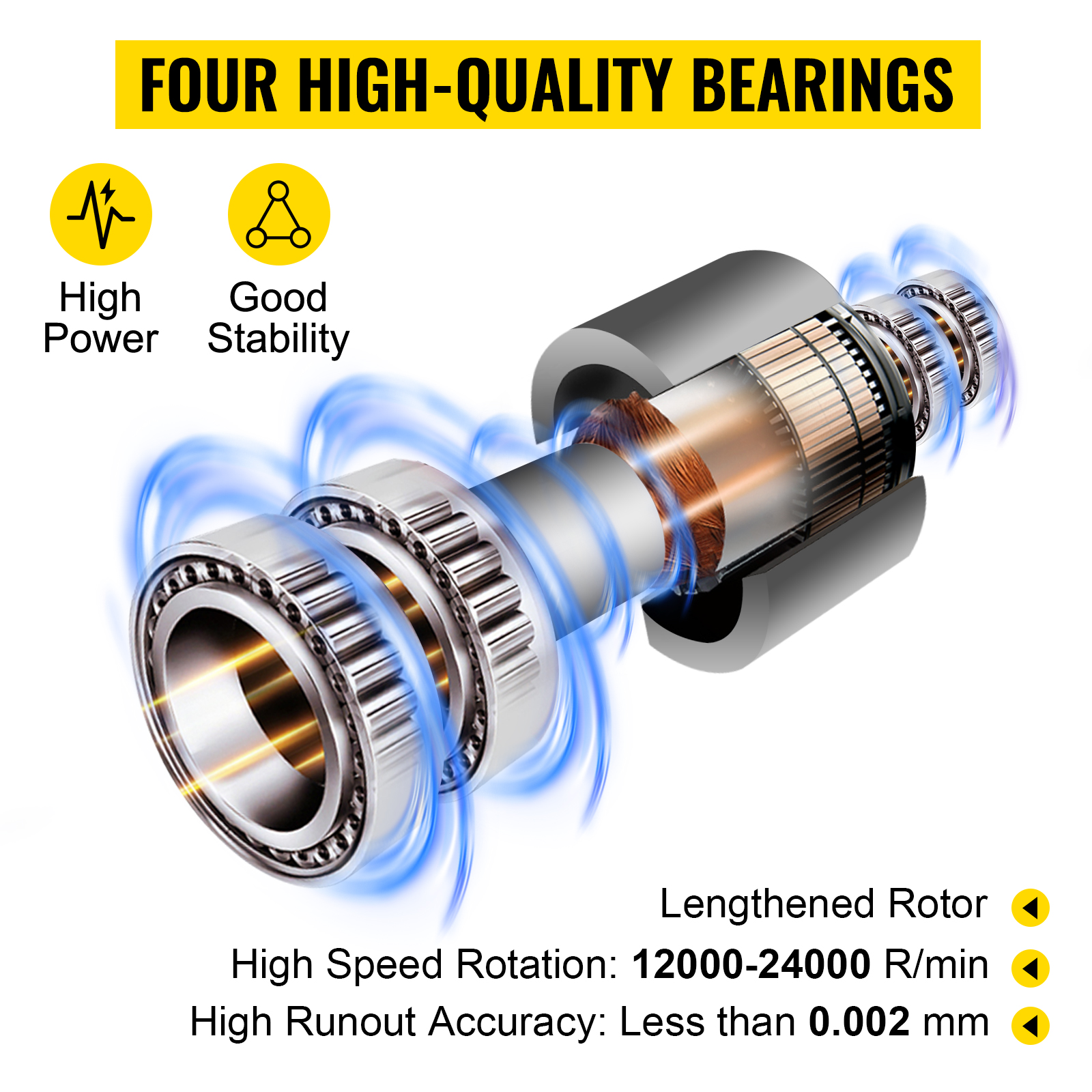

Four High-quality Bearings
The upgraded bearing has two significant advantages: superior durability and anti-rust performance. High speed (12000-24000R/min) and strong power bring higher efficiency than before.

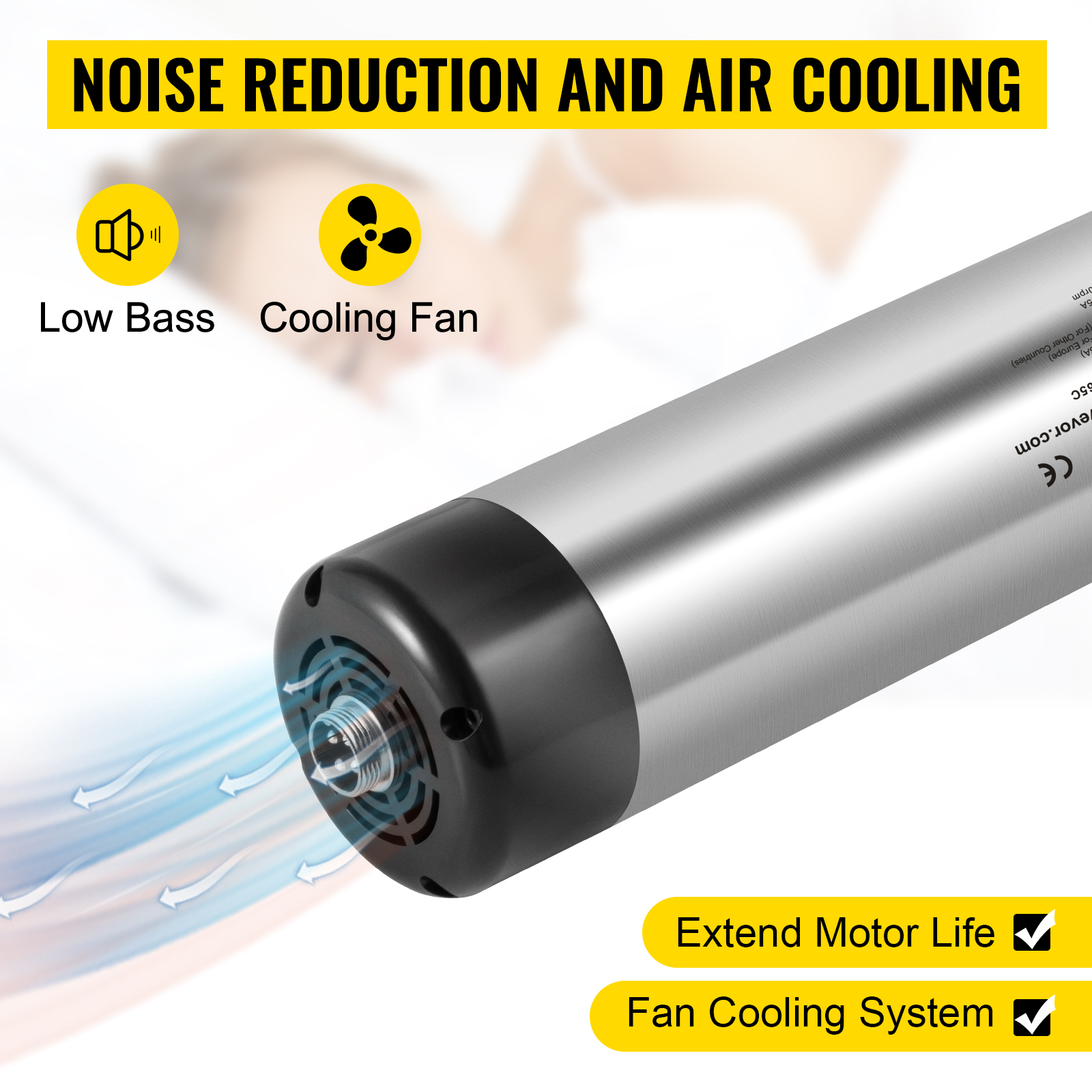

Noise Reduction and Air Cooling
Our CNC router spindle motor works with low noise and avoids auditory fatigue. It uses air circulation to cool the heat generated by the spindle at high speed and has a good heat dissipation effect.

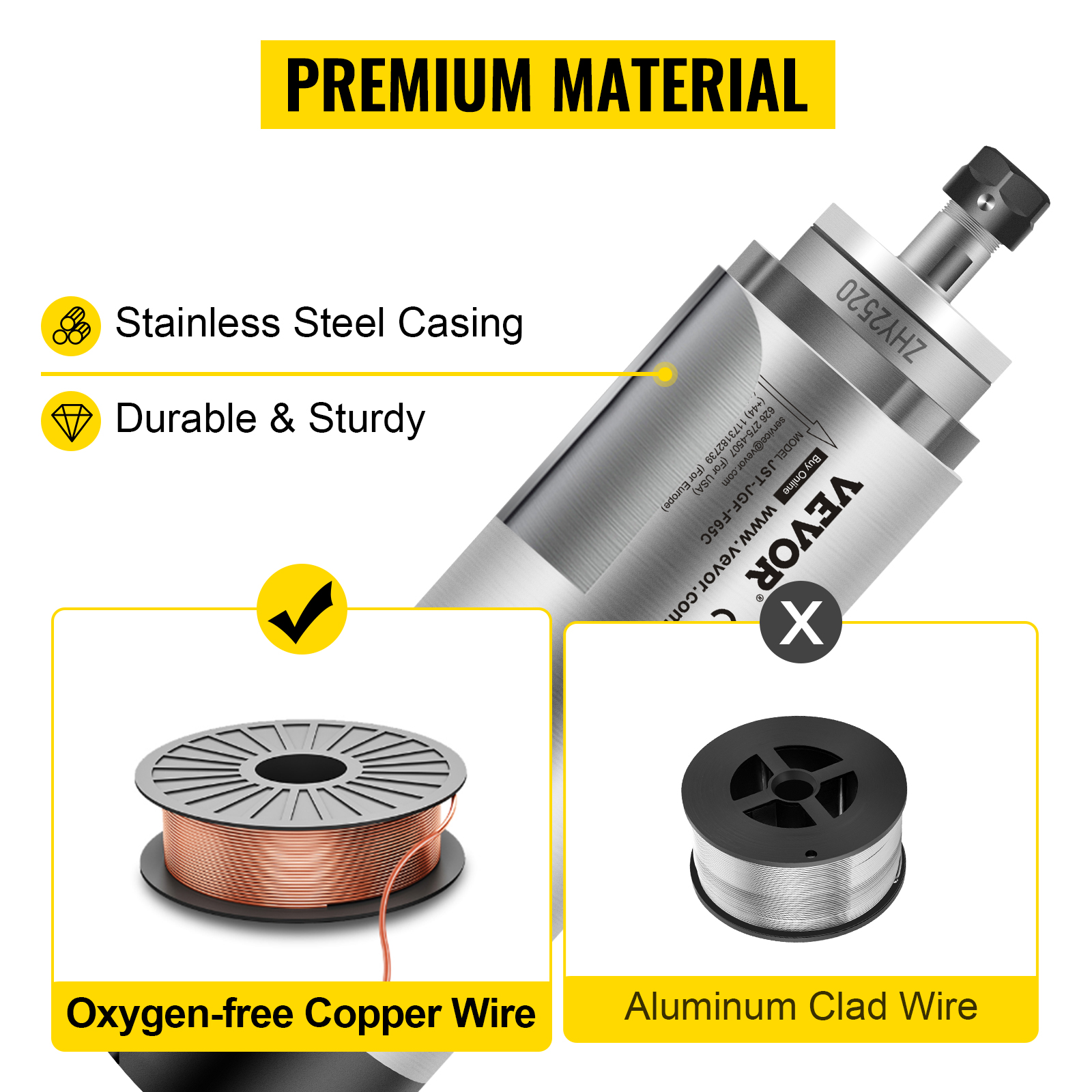

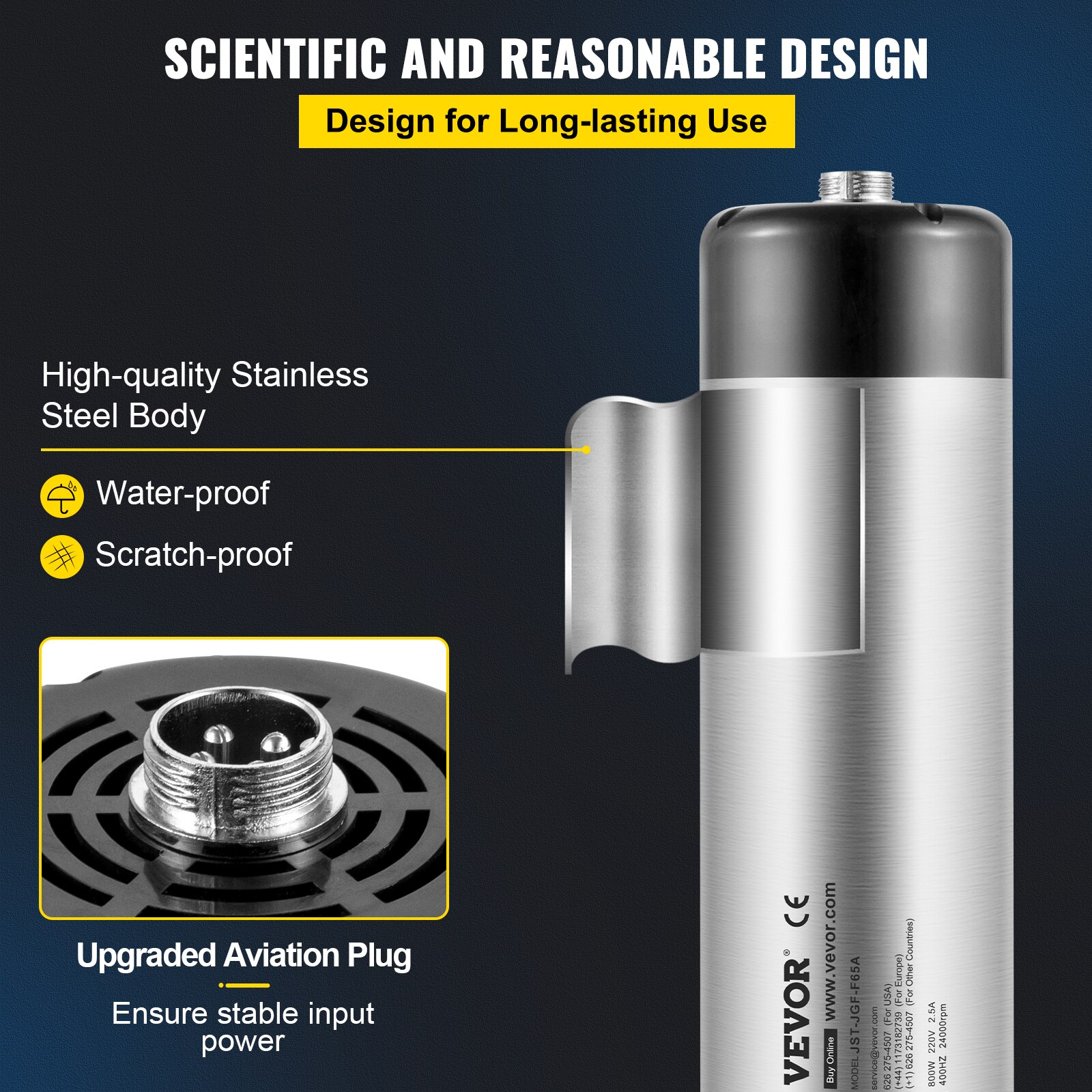

Premium Material
The stainless steel body ensures greater power and longer life; Unlike ordinary aluminum-clad wire, the oxygen-free copper coils can ensure high-quality processing and engraving performance.

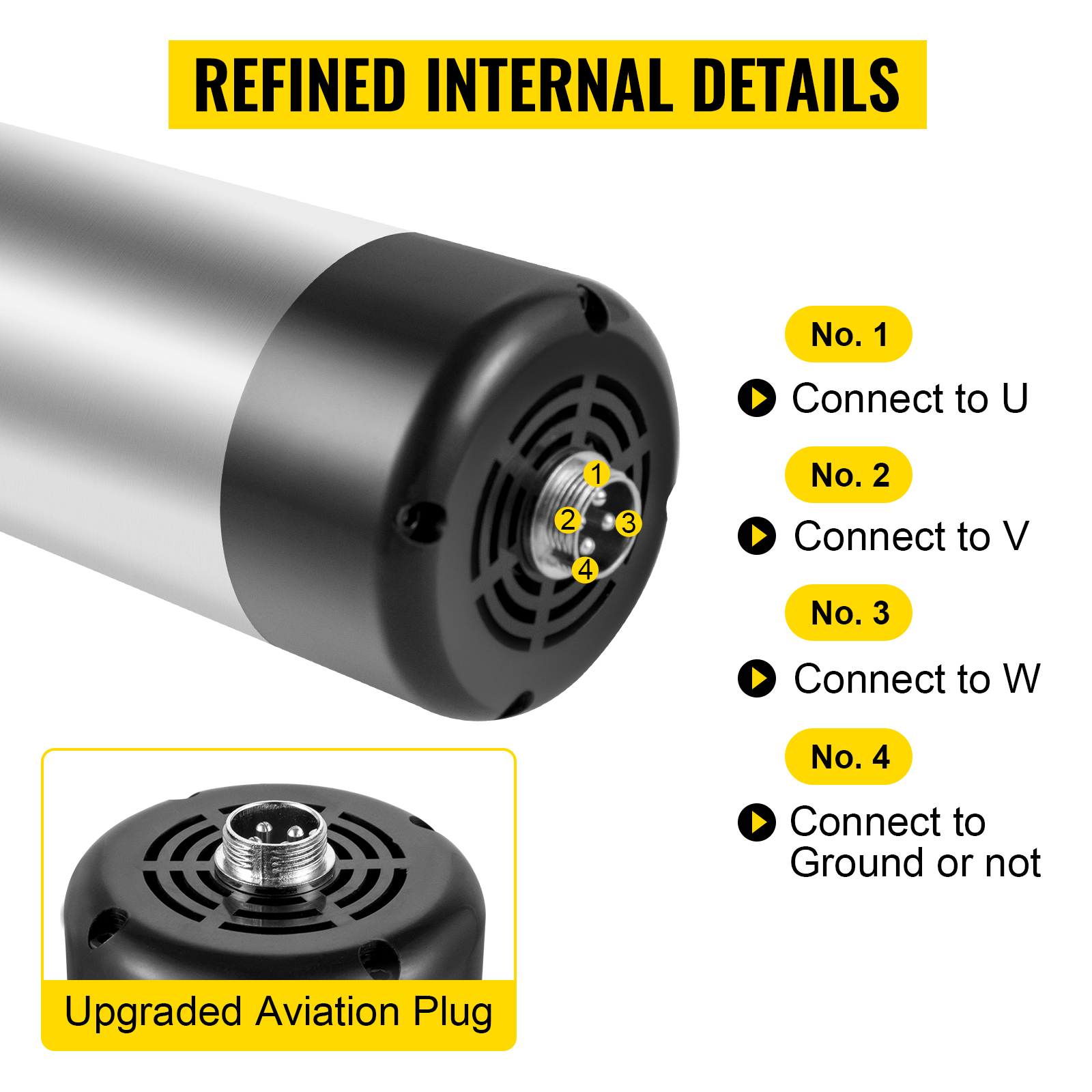

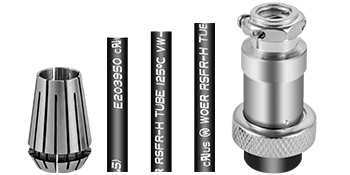

Refined Internal Details
The CNC router spindle is a built-in upgraded aviation plug, which is simple to make the current flow and achieve the predetermined function of the circuit, effectively improving the stable and smooth operation.
Wide Application
Air-cooled motors commonly applied materials such as wood, stone, mold & metal, etc. Suitable for machinery manufacturing, sheet metal processing, guardrails, factories, shipyards, home improvement, construction, and other fields.

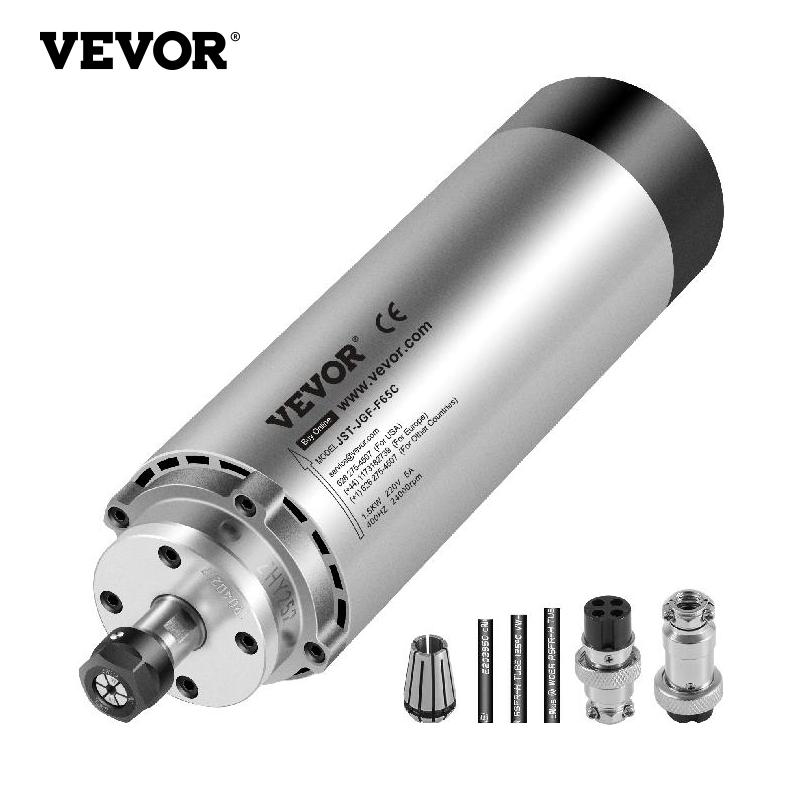

1.5KW Air Cooled Spindle Motor
  • Power: 1.5 KW

  • Rated Voltage: 110V(US)/220V(EU/RU/UK/AU)

  • Frequency: 200-400 Hz

  • Speed: 12000-24000 R/min

  • Runout off: Less than 0.002 mm

  • Maximum Torque: 1.1NM

  • Chuck: ER11

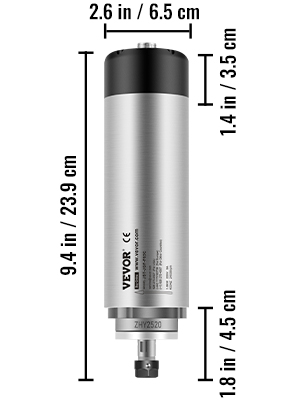

  • Product Dimension: 2.6 x 9.4 in / 6.5 x 23.9 cm

  • Weight: 7.7 lbs / 3.5 kg

Package Content
  • 1 x 1.5KW Air Cooled Spindle Motor

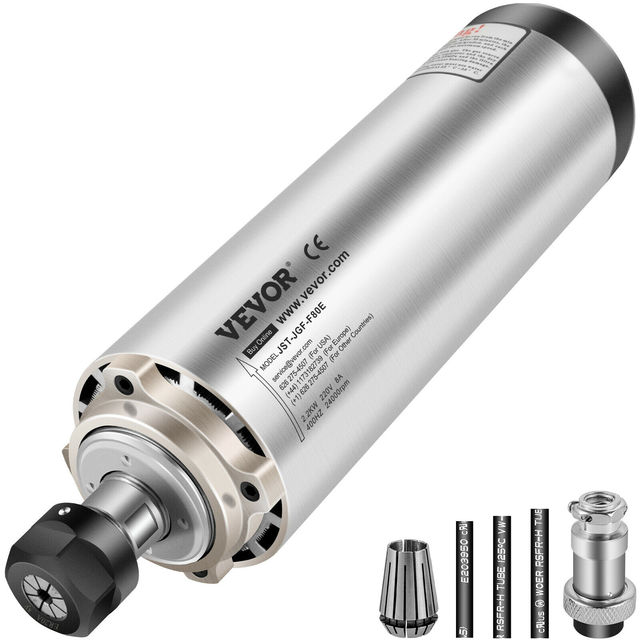

2.2KW Air Cooled Spindle Motor
  • Power: 2.2 KW

  • Rated Voltage: 110V(US)/220V(EU/RU/UK/AU)

  • Frequency: 200-400 Hz

  • Speed: 12000-24000 R/min

  • Runout off: Less than 0.002 mm

  • Maximum Torque: 1.7NM

  • Chuck: ER20

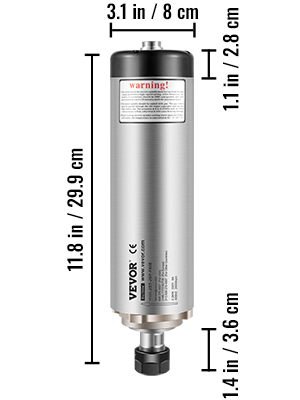

  • Product Dimension: 3.1 x 11.8 in / 8 x 29.9 cm

  • Weight: 13.2 lbs / 6 kg

Package Content
  • 1 x Air Cooled Spindle Motor

Features & Details
  • Technical Parameters: Spec: φ2.6 x 9.4 in (Diameter: 6.5 cm x Length: 23.9 cm)/ φ3.1 x 11.8 in (Diameter: 8 cm x Length: 29.9 cm); Power: 1.5KW/2.2KW; Voltage: 220V; Current: 5A/8A; Collet Size: ER11/ER20; Bearings: 4 bearings; Frequency: 200-400 Hz; Speed: 12000-24000 R/min; Runout off: less than 0.002 mm. Mainly used for engraving machine or used with frequency converter.

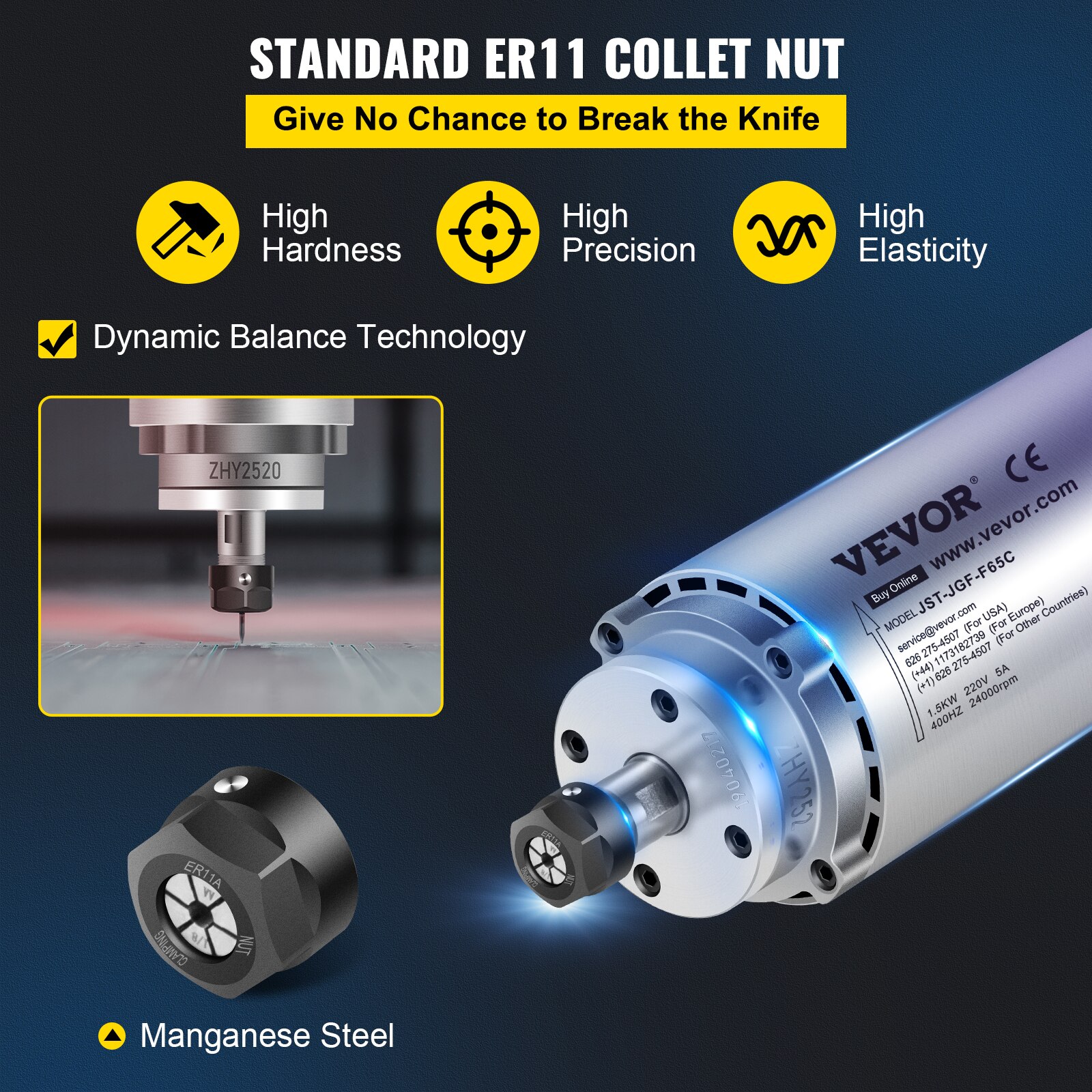

  • ER11/ER20 Standard Collet: The collet of the CNC router spindle is quenched with manganese steel, and the runout is less than 0.002 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.

  • Powerful Bearings: The air spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.

  • Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed air cooling system has a better heat dissipation effect to ensure smooth operation.

  • Wide Application: The CNC spindle motor kit is mainly used for engraving machines or frequency converters. It uses air circulation to cool the heat and has a good heat dissipation effect.





  • Origin: Mainland China
  • Certification: CE
  • Application: engraving
  • Drive: aircoled
  • Voltage: 220V~250V
  • Power: 1.5KW / 2.2 KW
  • Spec(1.5KW): 65 x 205 mm (Diameter: 65 mm x Length: 205 mm)
  • Spec(2.2KW): 80 x 215 mm (Diameter: 80 mm x Length: 215 mm)
  • Speed(1.5KW): 8000-24000 R/min
  • Speed(2.2KW): 12000-24000 R/min
  • Frequency: 200-400 Hz
  • Runout off: less than 0.005 mm
  • Chuck(1.5KW): ER 11
  • Chuck(2.2KW): ER 20
