LED 5V USB UV Ultraviolet Curing Lamp 405nm 365nm 395nm Shadowless Glue Resin Solder Paint Ink DIY 3D Printing Curing
58.95 23.67 $
We are the professional manufacturer of UVLED curing system, accept various non-standard customized UVLED curing system solutions.
If you need a large number of orders, please contact us for the order price of bulk purchases.
We will give you a more favorable price.
Thanks!
E-mail：umi@ymleduv.com
Whatsapp/WeChat/Tel：+86 18926468268
Manufacturer: YM

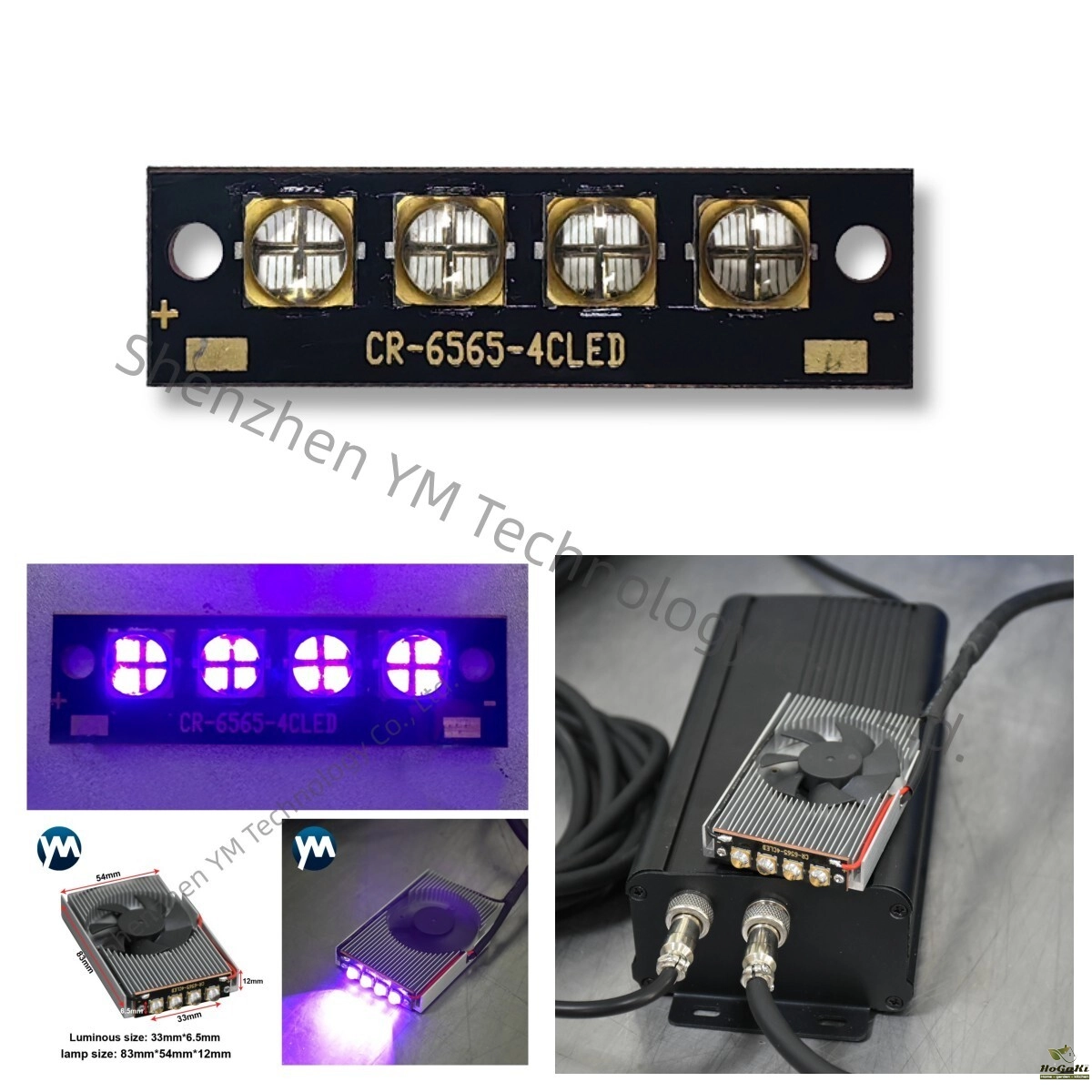

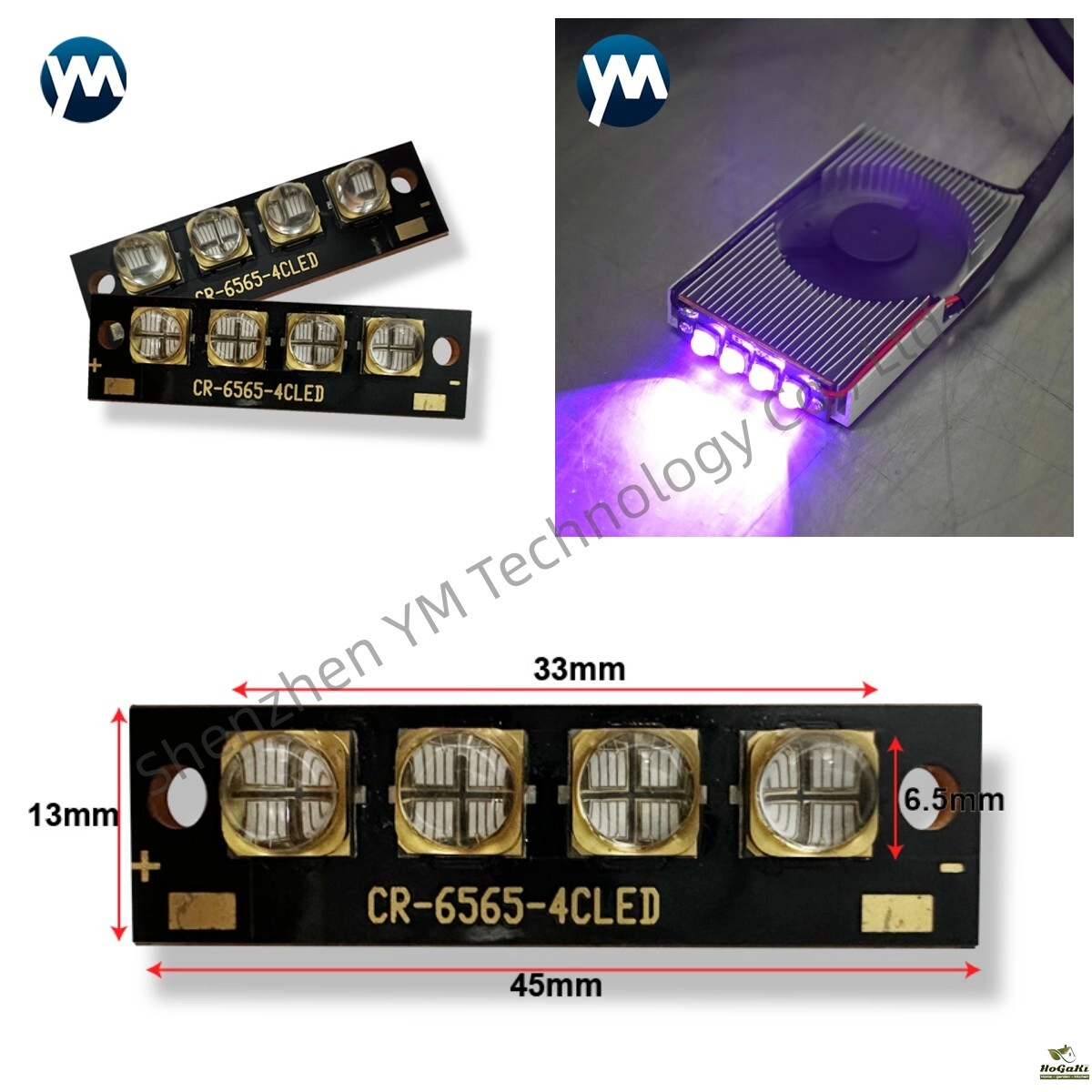

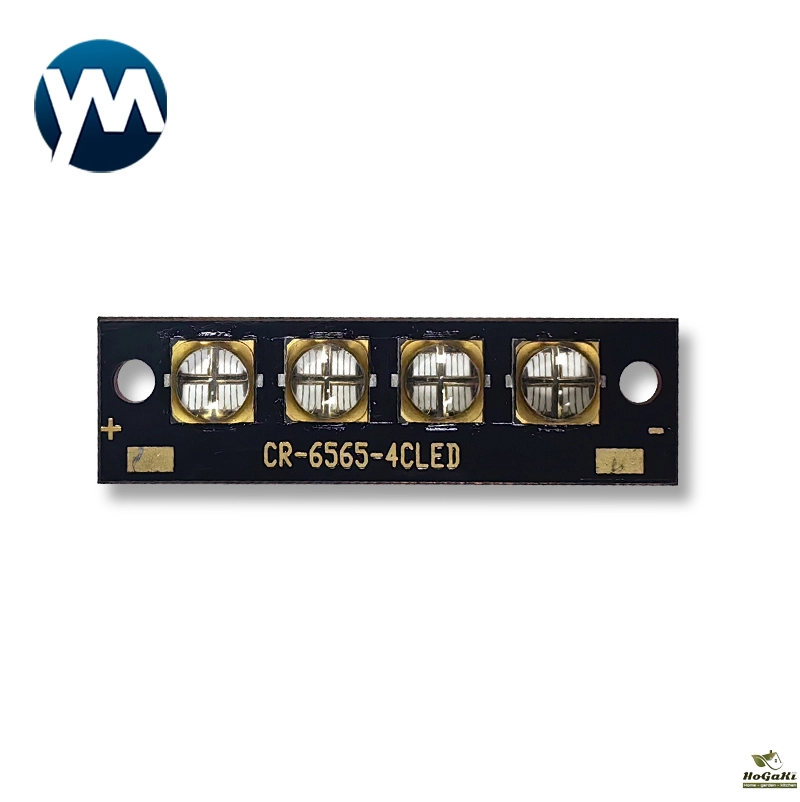

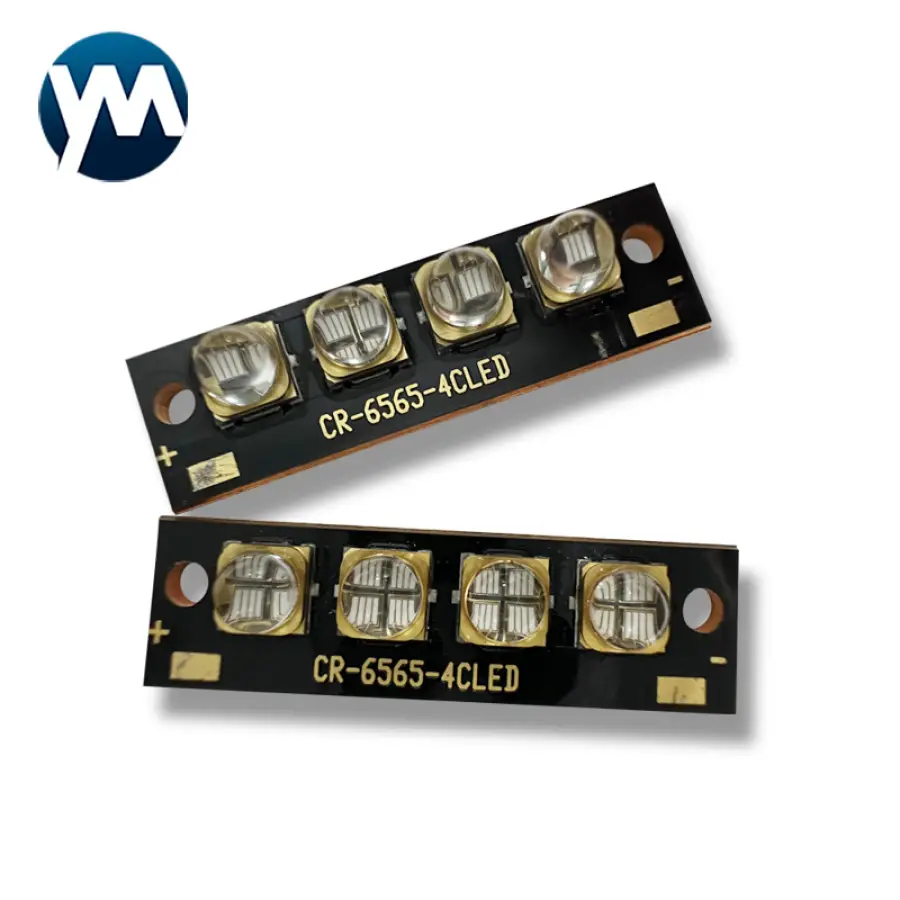

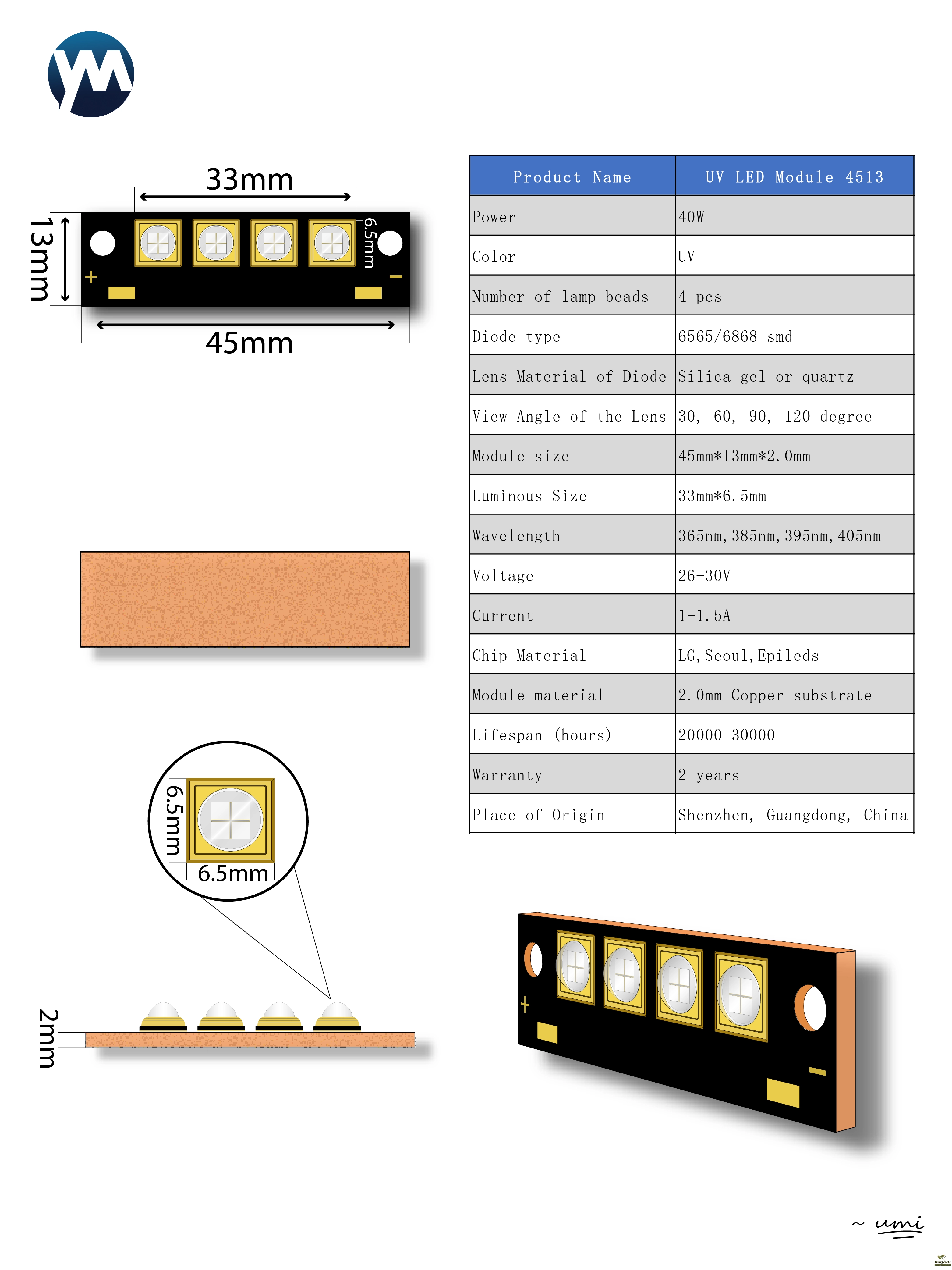

Module size: 45mm*13mm*2.0mm
Luminous Size: 33mm*6.5mm
Power: 40W
Number of lamp beads: 4
Lamp Bead Specifications: 6565/6868
Voltage: 26-30V
Current: 1-1.5A
Serial and parallel mode: 4 serial and 1 parallel
Cooling method: water cooling/air cooling
UV wavelength: 365nm 385nm 395nm 405nm
Substrate: 2.0mm thermoelectrically separated copper substrate
Packaging process: high temperature resistant quartz lens packaging
Scope of application: UV glue ink ink paint (screen printing, inkjet printing, offset printing, etc.)

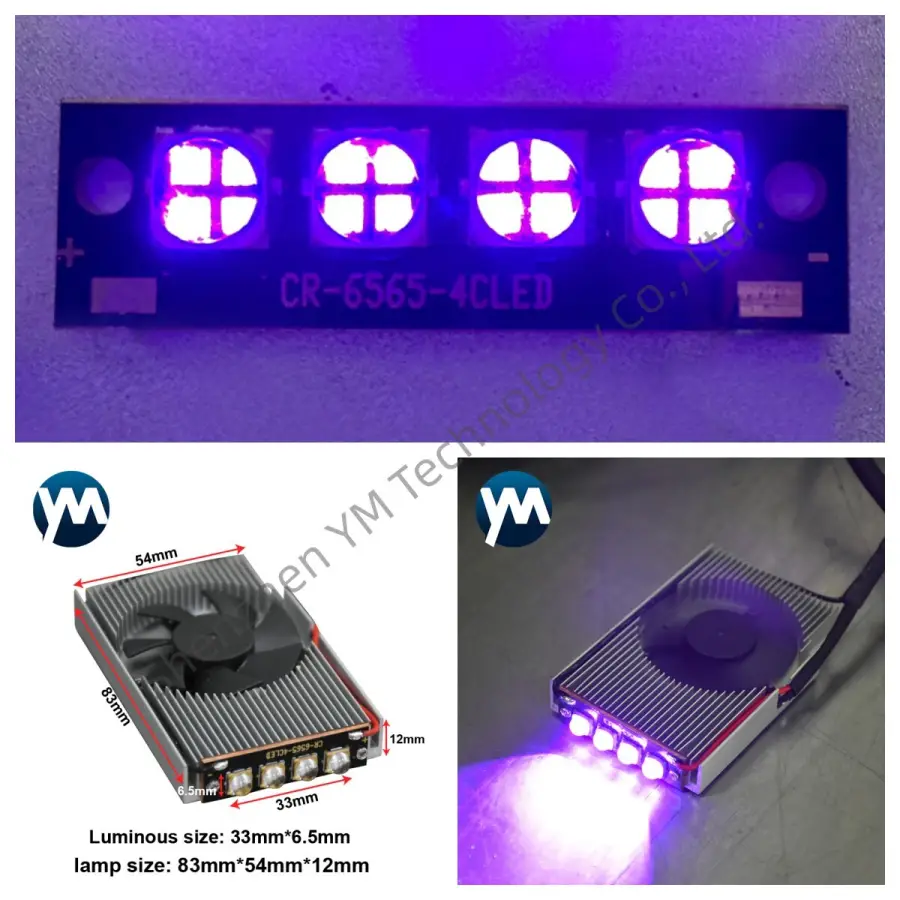

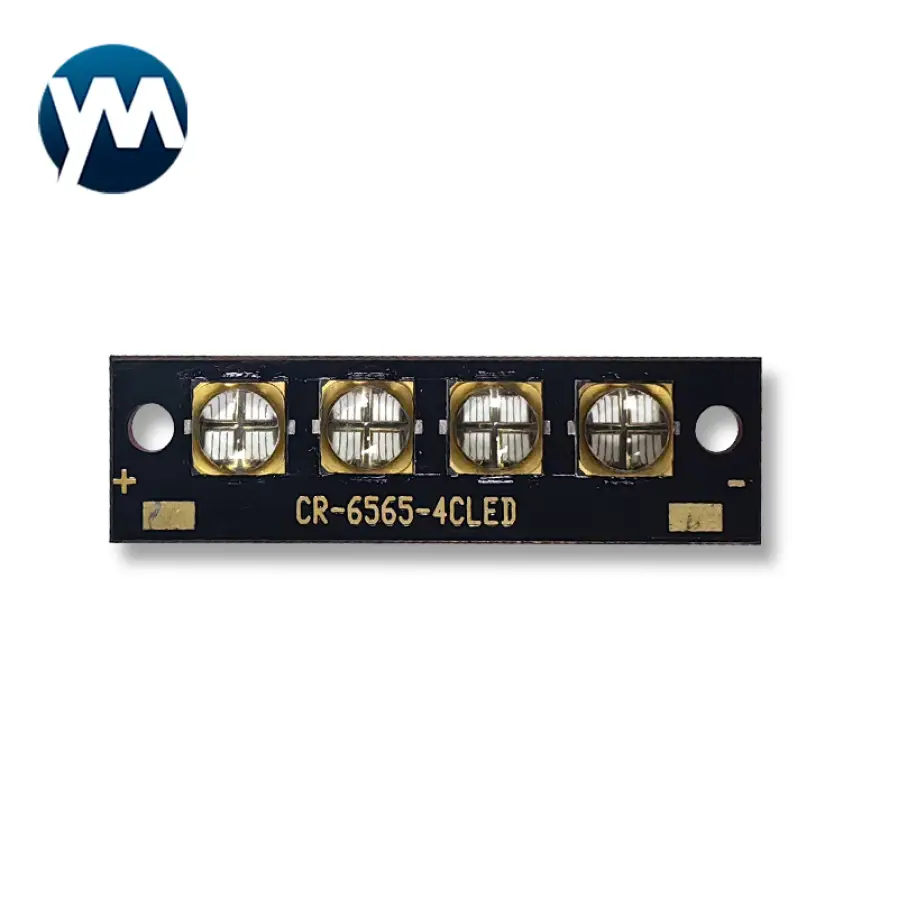

UV LED Module Product Description
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.

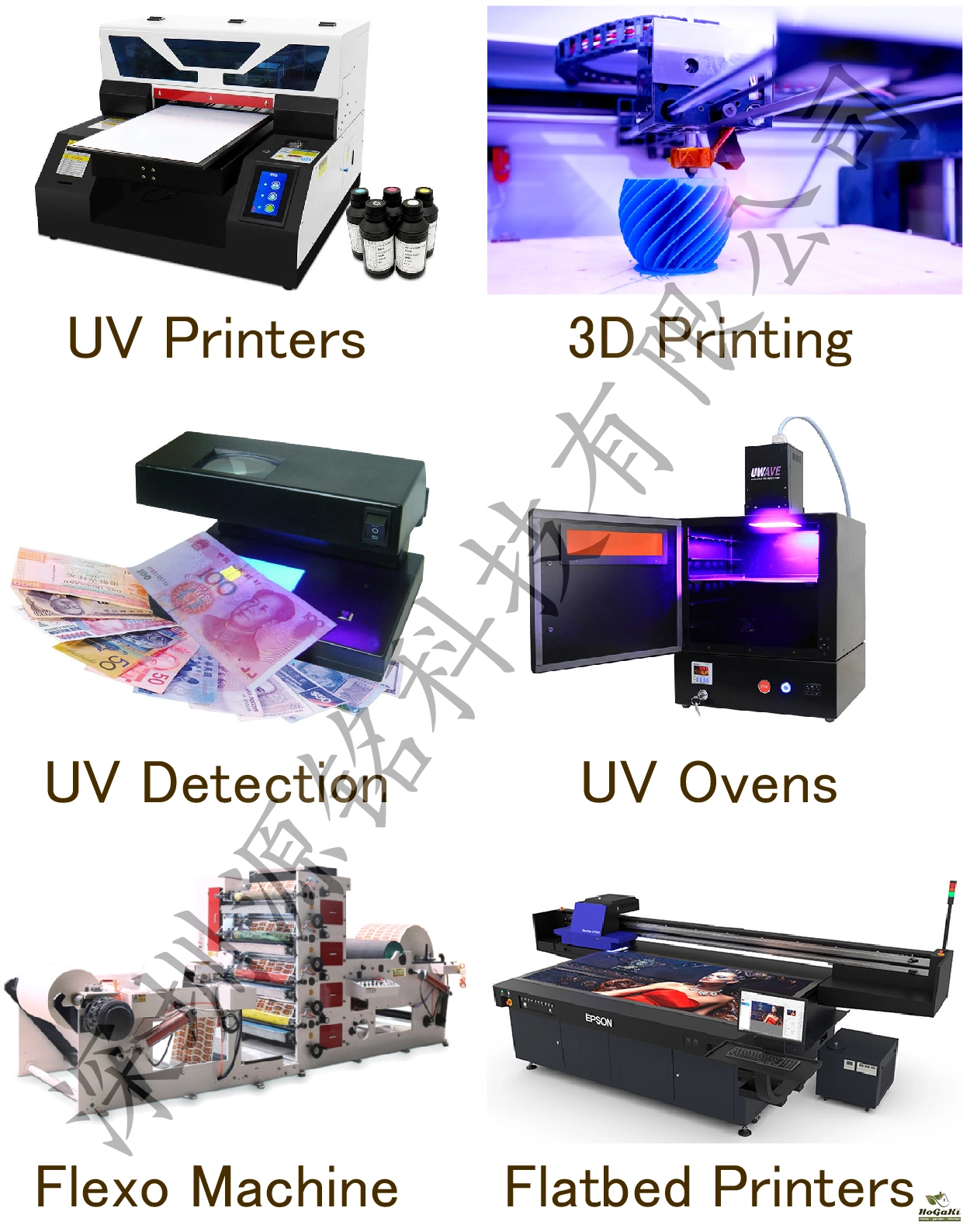

It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Why Choose Us
1) Good Price
We can provide the manufacturer's direct selling price and give you the best discount.
2) Quality Assurance

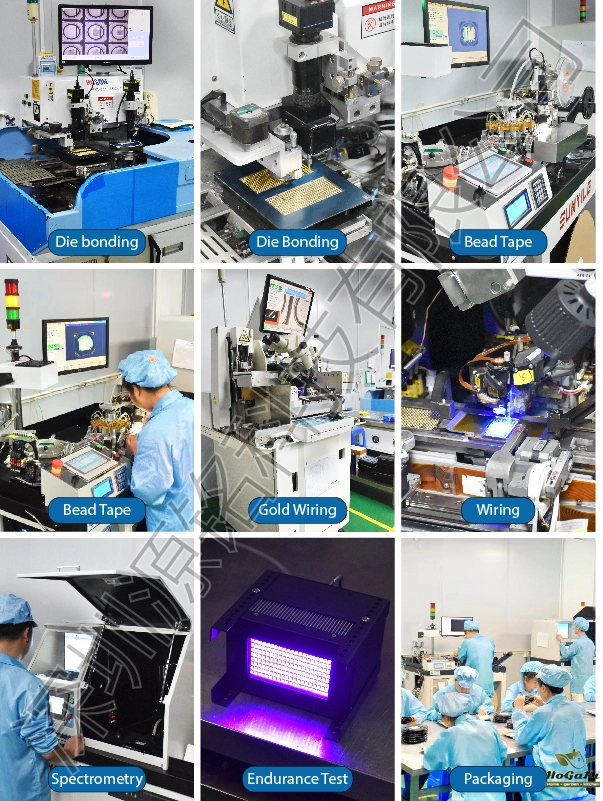

We have our own R&D team,Every product has a professional test before shipment.
3) After-sale Service
We provide high-quality and timely pre-sales consultation and after-sales service.
Any questions about UV LED will be answered by professional engineers within 12 hours.
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ Hogaki payment.
Q6. Could I put my logo on it?
A: Of course. The logo can be made according to your requirements once you reached our MOQ.
Q7. Can adjustable of UV intensity ?
A: Yes, the intensity is 0-100% adjustable. We designed different.
Q8. How many days do you need for preparing order?
A: We need 3-7 days for normal order, Custom product cycle is 15-20 days.
Q9. What's the wavelength of the UV Curing LED Lamp?
A: The wavelength of UV LED Lamp usually are 365-405nm, the wavelength for inkjet printer is 395nm,
385/395nm for printing machine, 365nm for UV glue.
Q10. What's the brand of LED chip you use?
A: The LED chip brand we use are LG, Epileds, Seoul.
Q11. What's the materials of the lamp and lens ?
A: The materials of lamp is Aluminum, and the lens are quartz.
Q12: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q13: What is the cooling method?
A: Most UV LEDs are mainly water-cooing, but we can also do air-cooling,
everything can be customized according to your requirements.
Packaging Details
- Unit Type:
- Package Weight: 0.150
- Package Size: 8x9x13
- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- Origin: Mainland China
- Item Type: UV GEL Curing Lamps
- Model Number: YM-4513
- Certification: None
- Product Name: UV LED Module 4513
- Power: 40W
- Color: UV
- Number of lamp beads: 4 pcs
- Diode type: 6565/6868 smd
- Lens Material of Diode: Silica gel or quartz
- View Angle of the Lens: 30, 60, 120 degree
- Module size: 45mm*13mm*2.0mm
- Luminous Size: 33mm*6.5mm
- Wavelength: 365nm,385nm,395nm,405nm
- Voltage: 26-30V
- Current: 1-1.5A
- Chip Material: LG,Seoul,Epileds
- Encapsulation process: High temperature quartz lens package module
- Module material: 2.0mm Copper substrate
- Lifespan (hours): 20000-30000
- Warranty: 1 years
- Application: Apply in various UV printing industries, painting,
