UV Flame Detector 4 wired Relay output Ultraviolet flame sensor Conventional UV alarm CF6002 work with all panel

5.0 (2 votes) | 2 orders
Price:
US $ 144.76 / piece
Quantity

Key Specifications/Special Features

  • Operating Voltage Range:    12 to 30 VDC Volts

  • Standby Current:               ≤10 mA @ 24 VDC

  • Alarm Current                   ≤30 mA @ 24 VDC

  • Spectrum:                      180~290nm

  • Detection Angle:             110 degree

  • Detection Sensitivity:     Grade I, 25m@flame (Container 33cmX33cm,Height 5cm with 2Kg ethanol )

  • Relay Contact Load:           1A@DC24V

  • Normal Status:                   LED blinking in 5 seconds interval

  • Alarm Status:                    LED lit steady

  • Protection rating:              IP 32

  • Operating Humidity Range:   10% to 93% Relative Humidity, Non-condensing

  • Operating Temperature Range:   -10°C to 50°C (14°F to 122°F)

  • Height:                           1.8(45 mm) installed in Base

  • Diameter:                        4.0(103 mm)

  • Weight:                          5.4 oz. (153g


NOTE: All wiring must conform to applicable local codes, ordinances, and regulations.
Mounting Indoor Wall or Ceiling Products

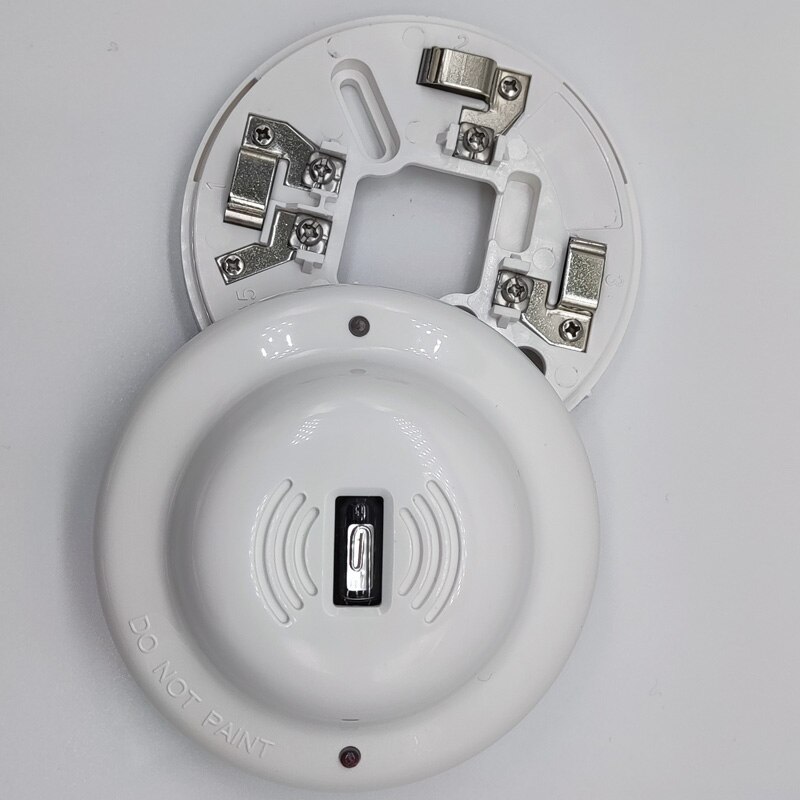

1. Attach mounting base to ceiling or wall.

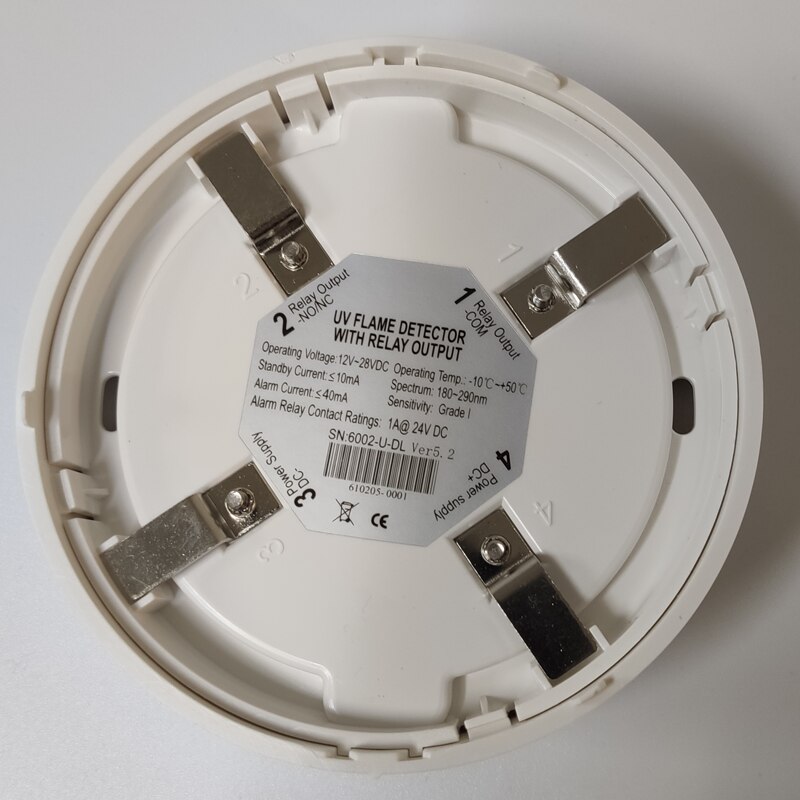

2. Connect field wiring to terminals:
Terminal 1: Relay Output –COM  (ZONE+)
Terminal 2: Relay Output – NO/NC (ZONE-)
Terminal 3: DC Power –
Terminal 4: DC Power +
3. To attach product to mounting base.
4. Secure product by tightening the two mounting screws in the front of the product housing.
5. The detector can be connected with Security alarm panel as Figure3. Relay output signal can be changed from Normal Close (NC) to Normal Open (NO) by Jump JP1 on the PCB board.
6. The detector can be connected with conventional alarm panel as Figure 4. One 4.7K ohm resistor should be connected as End of Line (EOL) resistor at the last detector.
7. After the installation, power on the detector, use lighter or candle to test the detector within 3 meters.


SETTING FOR WORKING MODE

1. Alarm Relay Output NO/NC setting:

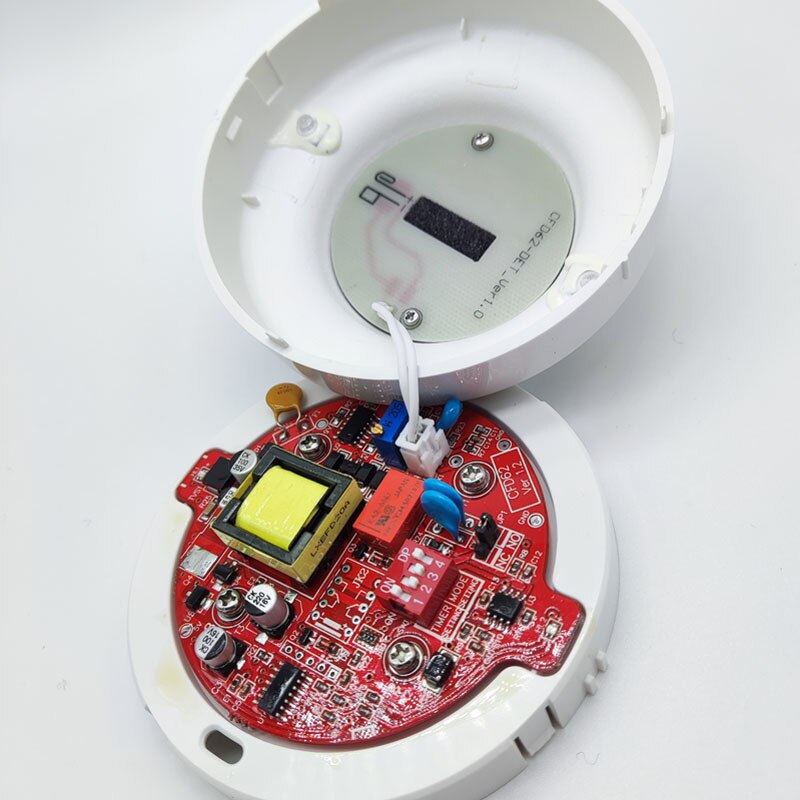

The jump setting JP1 is on the PCB board, the alarm relay output can be set to NO or NC by short the left two pin or right two pins.

2. Alarm detect timer setting:

When the detector found the fire, according to environment, the detector can be working in four modes as below DIP SW1 switch setting:

DIP

Delay time

Apply and Installation

1s

Quick detect flame

3S

Stable setting( Default setting)

6S

Detect flame in smoking area

15S

Some special place such as sunshine interfere place

The DIP SW1 switch is one the PCB board.

3. Alarm Output mode setting

DIP

Setting

Apply and Installation

SW1-3 OFF

Alarm status latch off (Unlock)

SW1-3 ON

Alarm status latch on (Lock)

SW1-4 OFF

Relay Contacts Output

(Default setting)

SW1-4 ON

470 ohm output, connected with conventional fire alarm panel

When the SW1-3 is set to ON (Lock) that mean the detector would keep alarm status until the power supply is cut off.

When the SW1-3 is set to OFF (Unlock) that mean the detector would restore from alarm status to normal status when the fire is disappear 30 seconds late.



When the SW1-4 is set to OFF that mean the detector connected with security alarm panel. When the detector alarms, the detector would output relay contacts. See Figure 3 for wiring.

When the SW1-4 is set to ON that mean the detector connected with conventional fire alarm panel. The internal 470 ohm resistor on the PCB board would serial connected into loop wire. See Figure 4 for wiring. The SW1-3 should set to OFF( Lock) status.

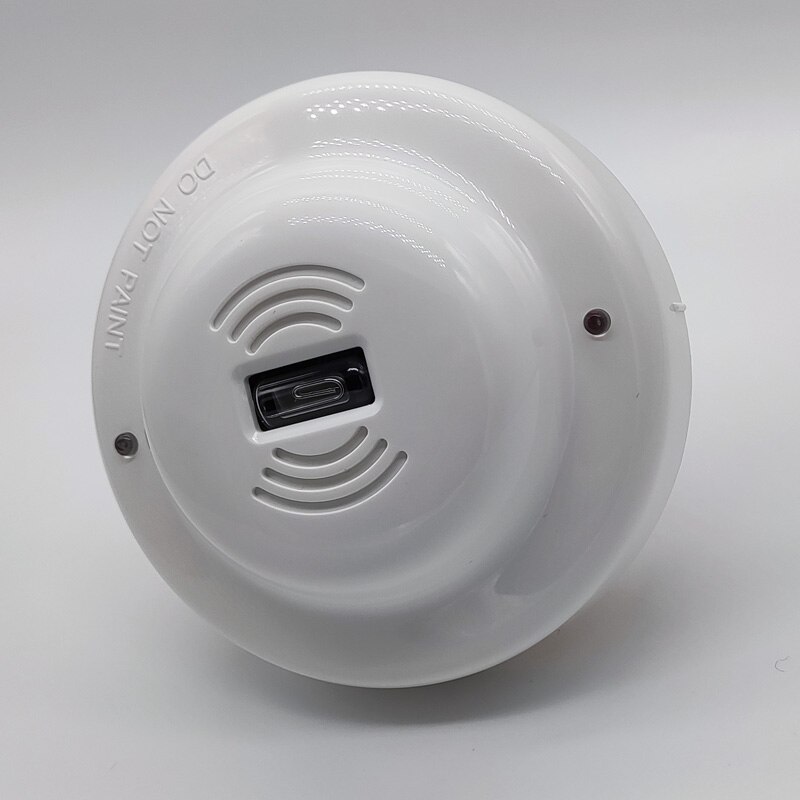

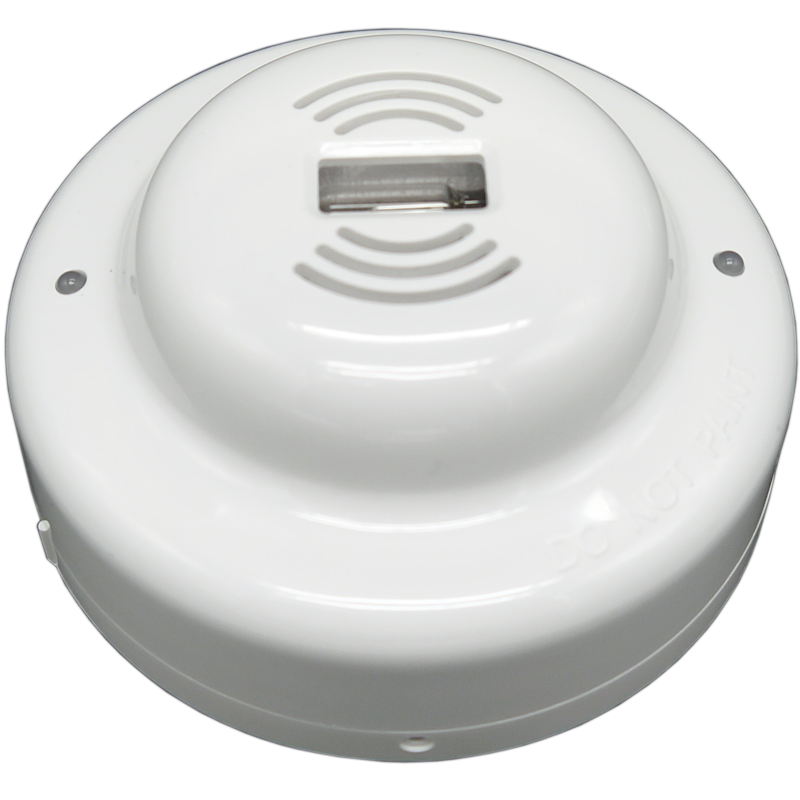

The device is an Ultraviolet-only flame detector designed to detect fires and provide alarm outputs directly from the detector while maintaining false alarm immunity. It detects in the ultraviolet (UV) spectral range for optimized speed of response.
It is fast and capable to detecting the ultraviolet (UV) rays emitted by a burning substance and is used in high hazard applications such as petrochemical plants, munitions factories and other areas where flammable or explosive liquids or solids are handled or stored.
The flame sensor adopts an ultraviolet photosensitive tube, with qualities of highly sensitive, reliable, dust-resistant, corrosion proof and moisture-resistant, therefore is not sensitive in sunlight, dust, oil, tolerance of fume, and humidity. Set in a standard calibration to detect a flames at a distance of 25 meters, which flame created by 2Kg ethanol in a Container of Base 33cmX33cm, Height 5cm.





  • Model Number: cf6002
  • Brand Name: zoanco
  • Origin: Mainland China
  • Smart home platform: NONE
  • Certification: CE
  • is_customized: Yes
  • COLOR: WHITE
  • SIZE: 103*50MM
  • WIRE: 4 WIRE
  • RELAY OUTPUT: YES
  • Sensor: UV flame detector
