UOTEK Industrial Grade RS-485 Lightning Arrestor Arrester RS485 Isolator Module ESD Surge Protector Level 4 IP30 5KA UT-S101
0.0 ( votes) | 2 orders
Price:
US $
73.03

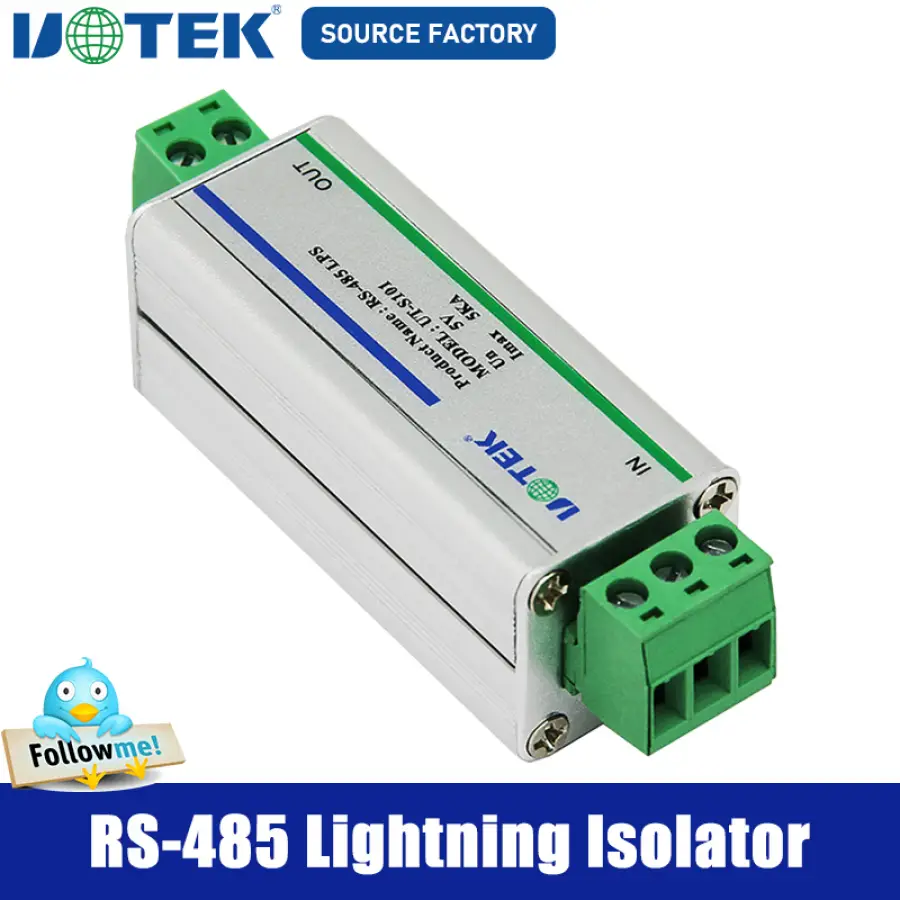

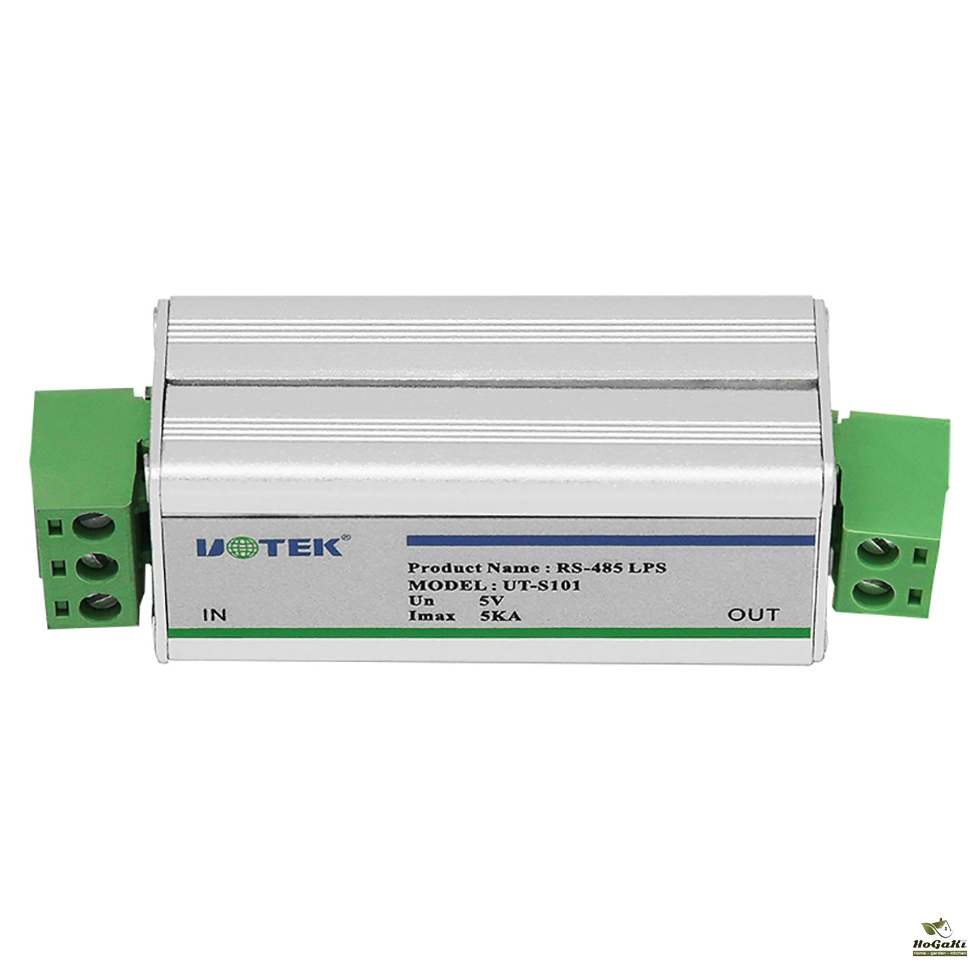

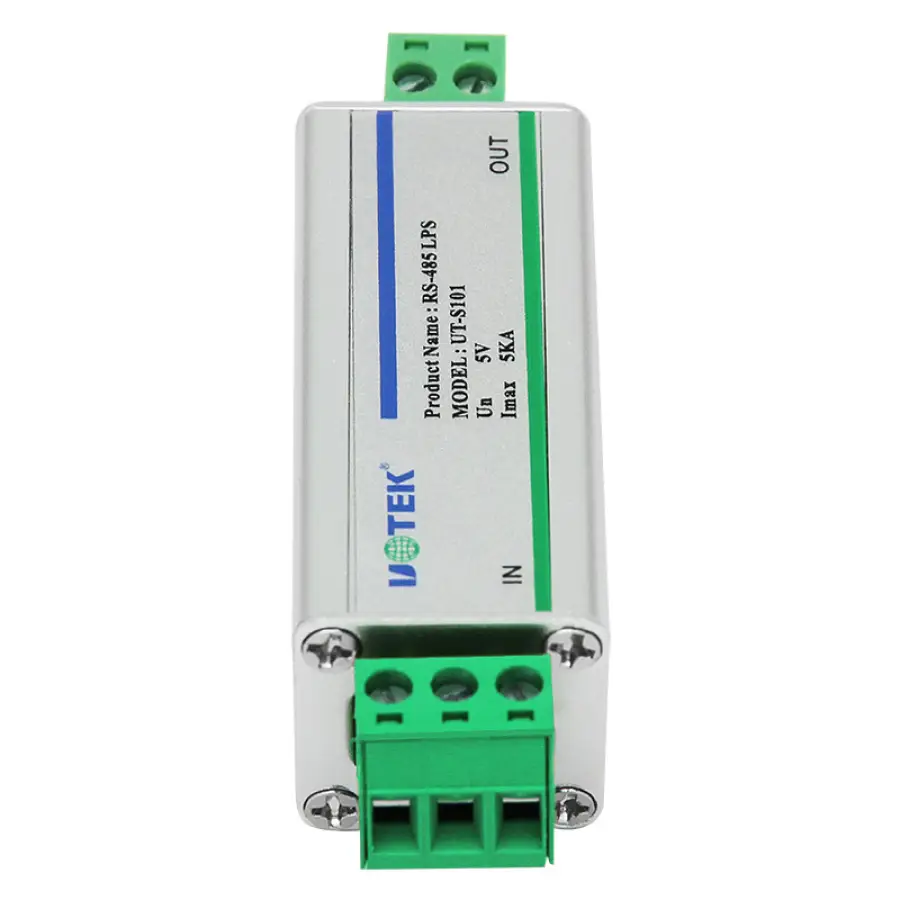

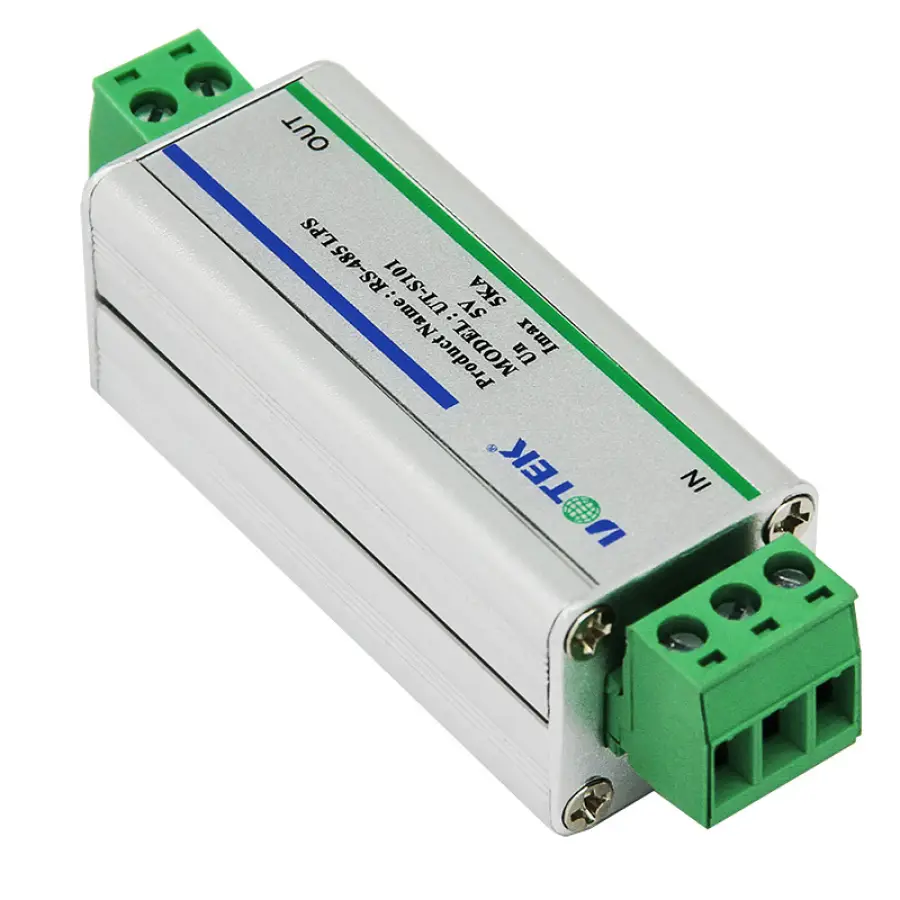

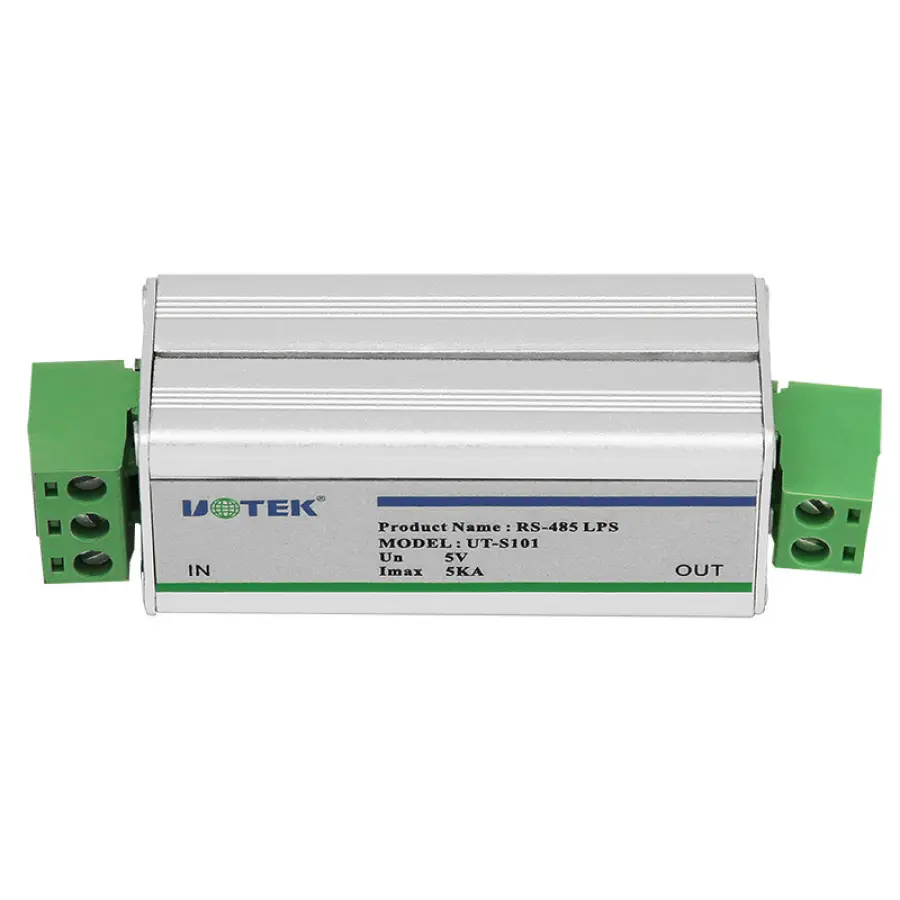

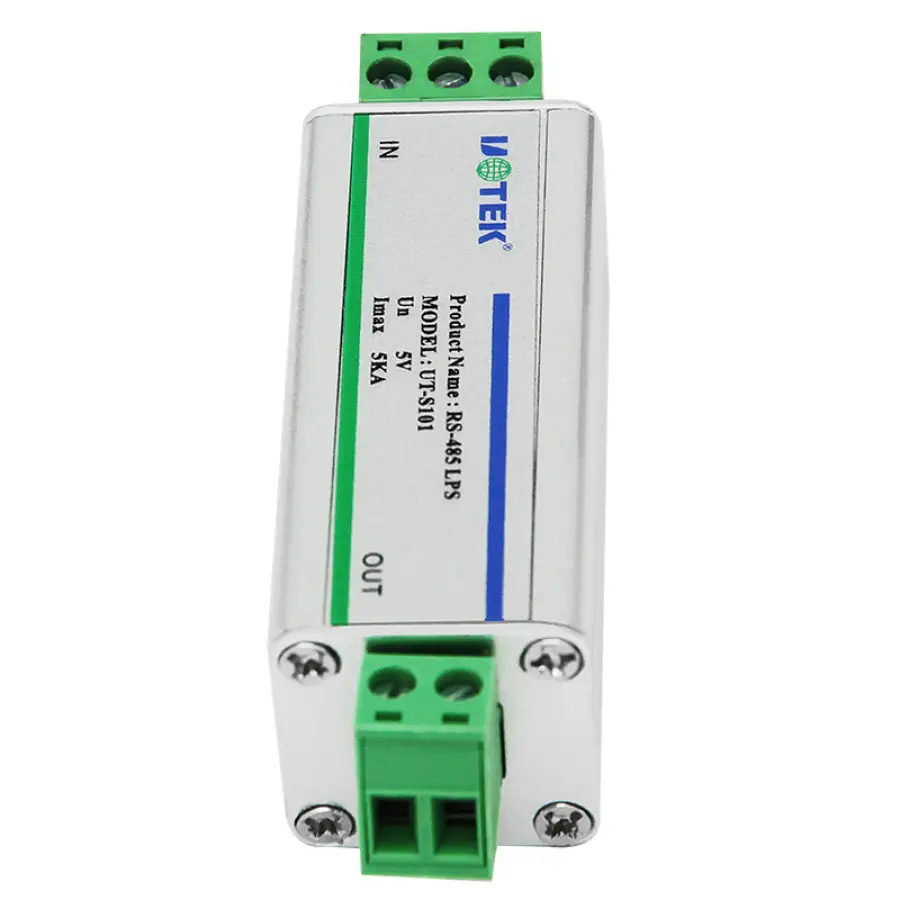

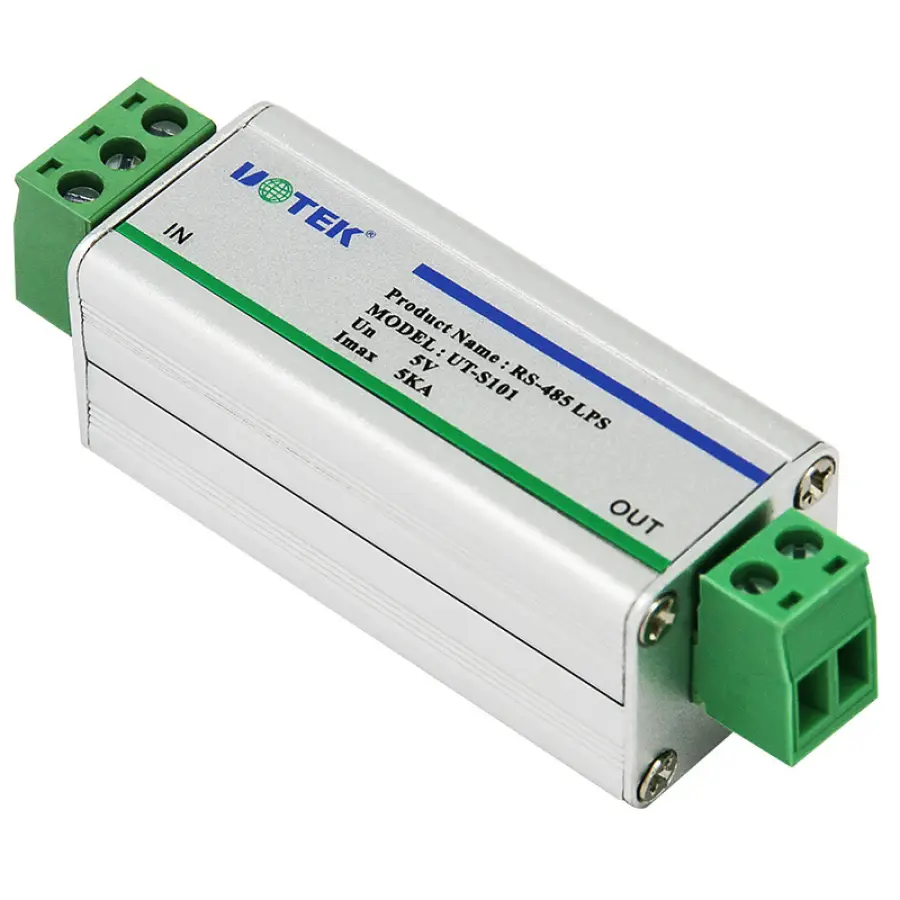

UOTEK Industrial Grade RS-485 Lightning Isolator Arrester RS485 Isolation Module Surge Protector ESD Level4 IP30 5KA UT-S101
● Multi-protection
● Huge current through capacity
● Low limiting voltage
● Fast response time
● High transmission rate

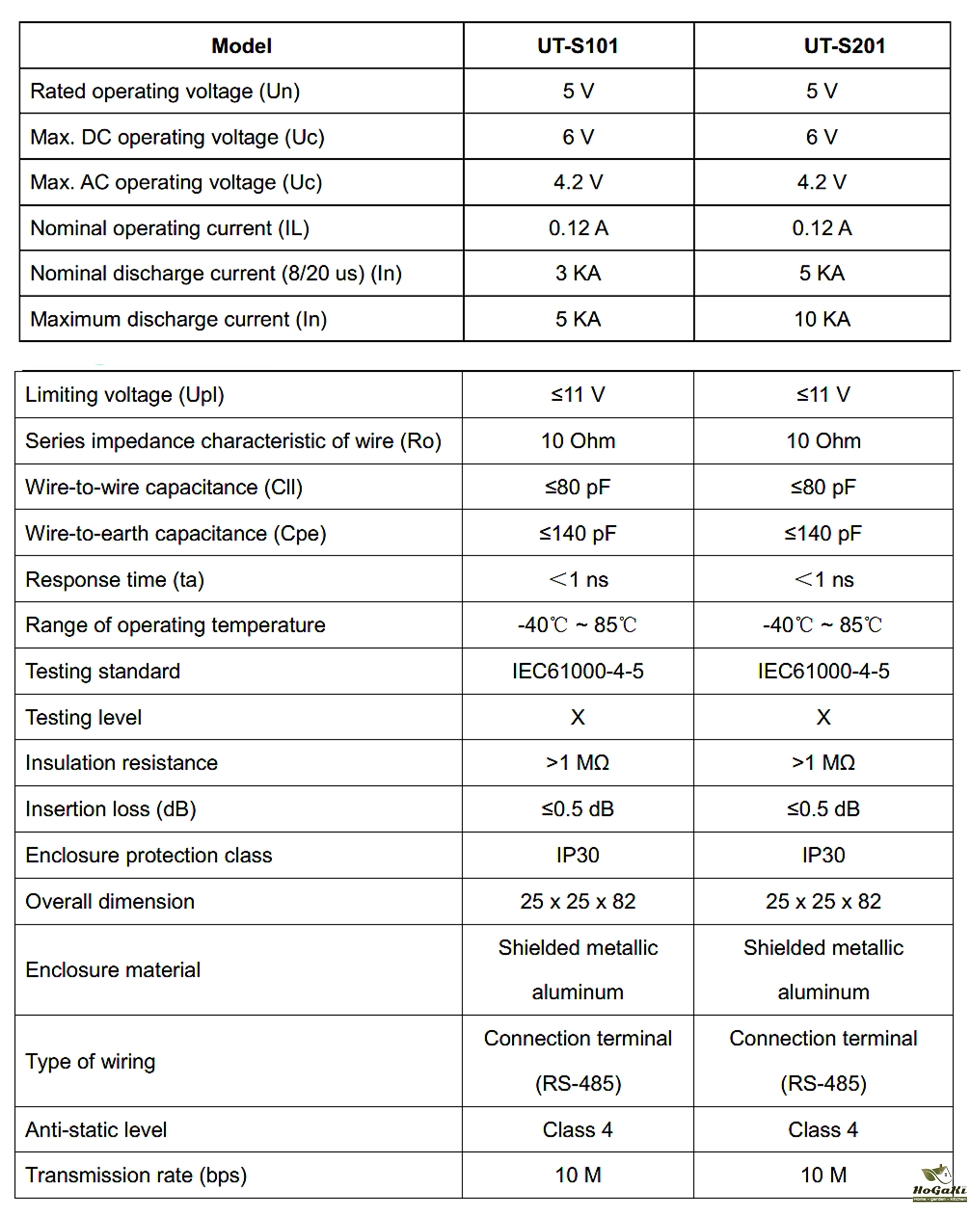

UT-S101 Parameters
Rating voltage Un：5V
Operating voltage (Max DC) Uc: 6V
Operating voltage (Max AC) Uc: 4.2V
Current rating: 0.12A
Nominal discharging current（8/20 us）In：3KA
Max discharging current In：5KA
Limiting voltage Upl：≤11V
Impedance Ro：10 Ohm
Capacitance Cll：≤80pF
Capacitance Cpe：≤140pF
Response time Ta：＜1 ns
Operating temperature: -40℃～85℃
Testing standard: IEC61000-4-5
Testing level: X
Insulation resistance: >1MΩ
Insection loss （dB）：≤0.5 dB
Housing protection: IP30
Dimension: 25 x 25 x 82mm
Material: shielded aluminum
Connect: terminal block (RS-485)
ESD protection level: 4
Transmission rate （BPS）：10M
Picked For You ( Click on the pictures below )
UTEK Certificate

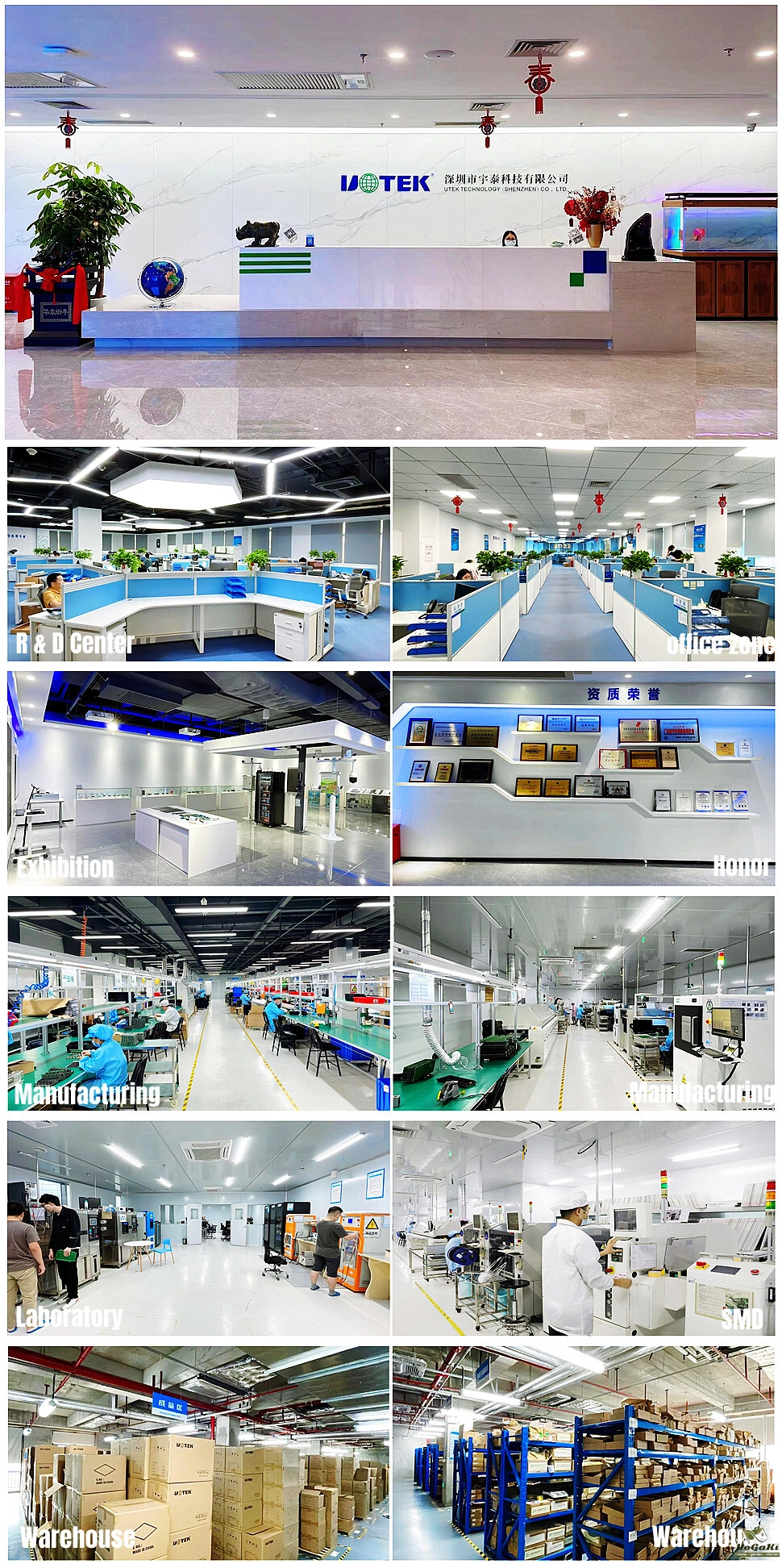

UTEK TECHNOLOGY Introduction

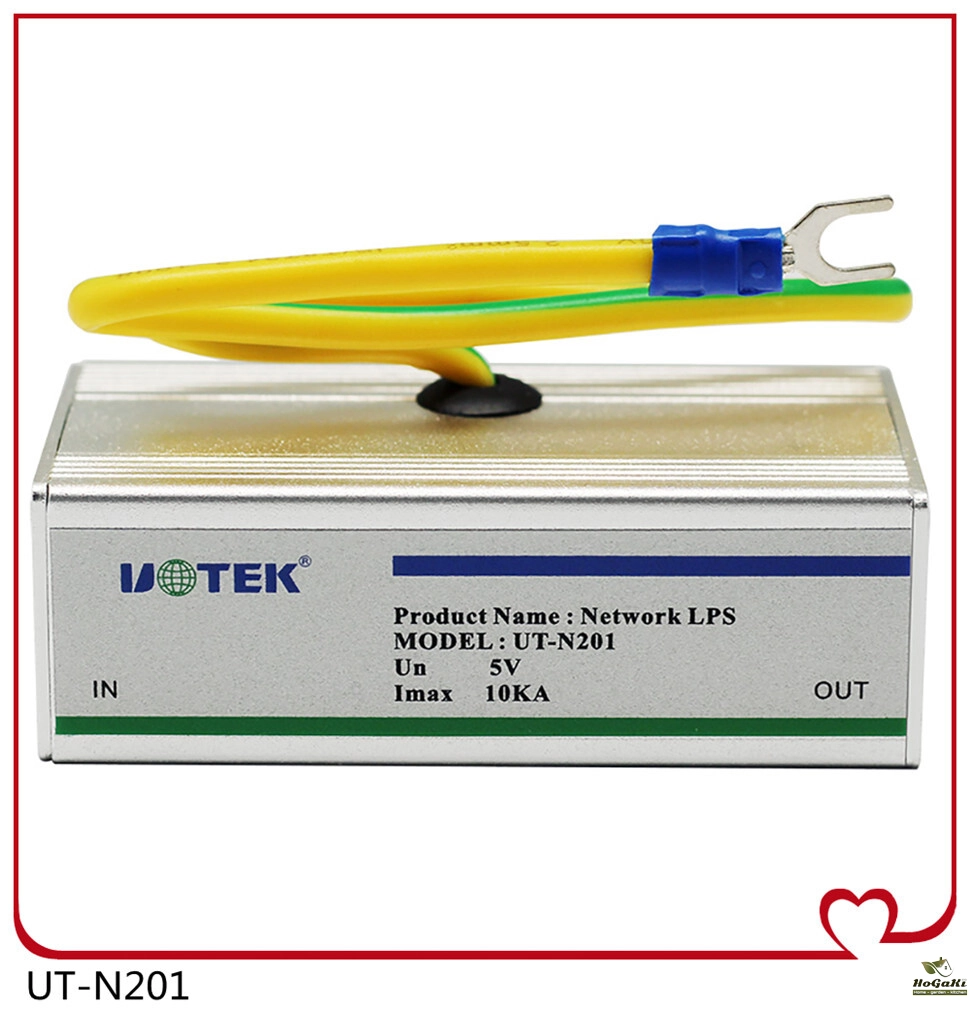

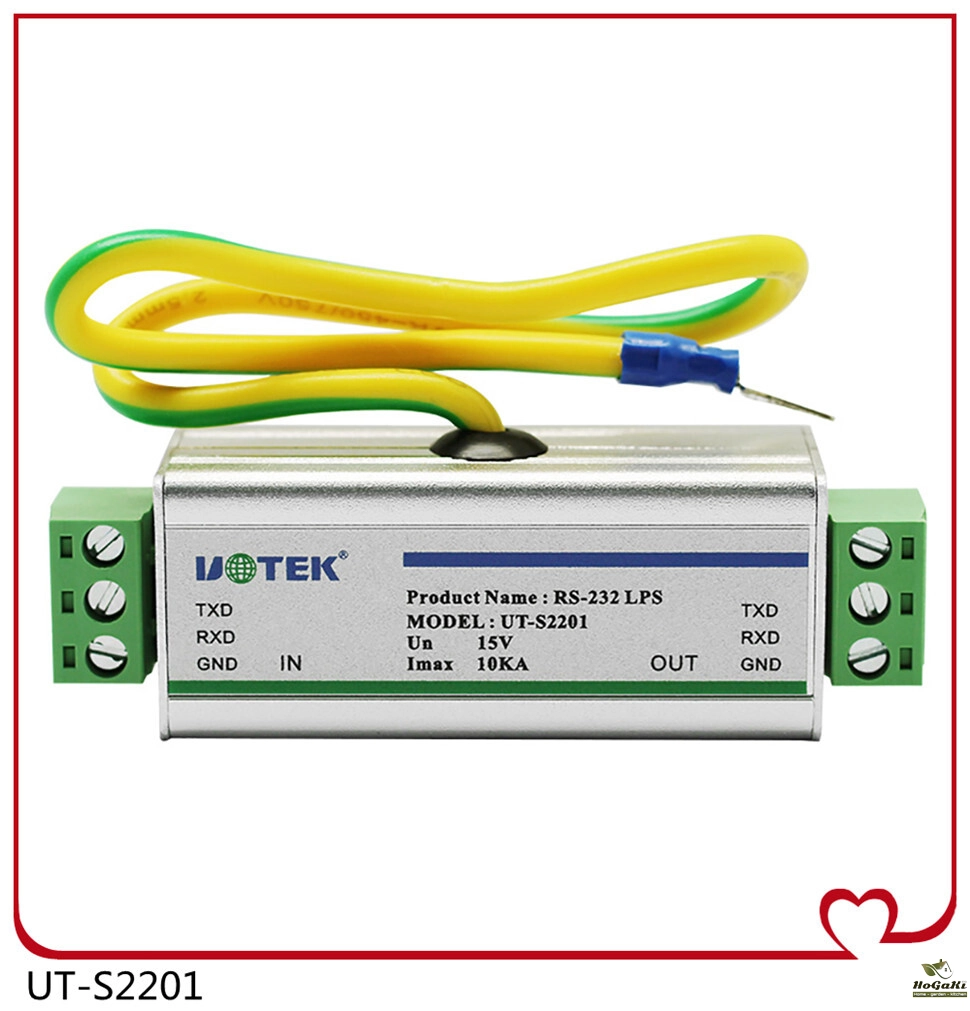

Related Products
Packaging Details
- Unit Type:
- Package Weight: 0.300
- Package Size: 8x5x18
- Brand Name: UOTEK
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: UT-S101
