Universal Mini Metal Lathe Machine Motorized Metalworking DIY CNC Tool Woodworking for Education Modelmaking 20000rpm(36W Lathe)
4.3 (11 votes) | 49 orders
Price:
US $435.32 - 504.66
Discount Price:
US $
224.16 -
259.88
-49%

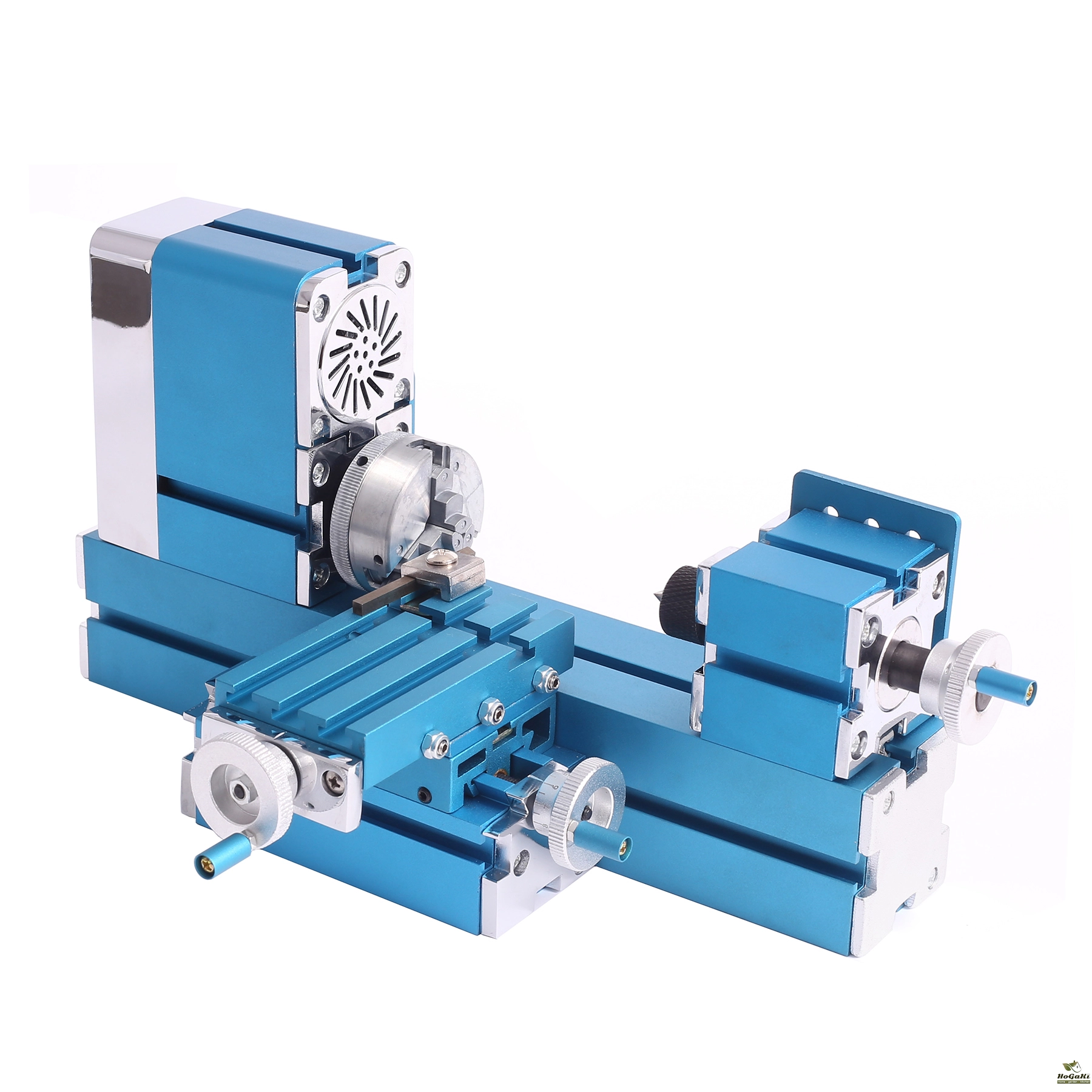

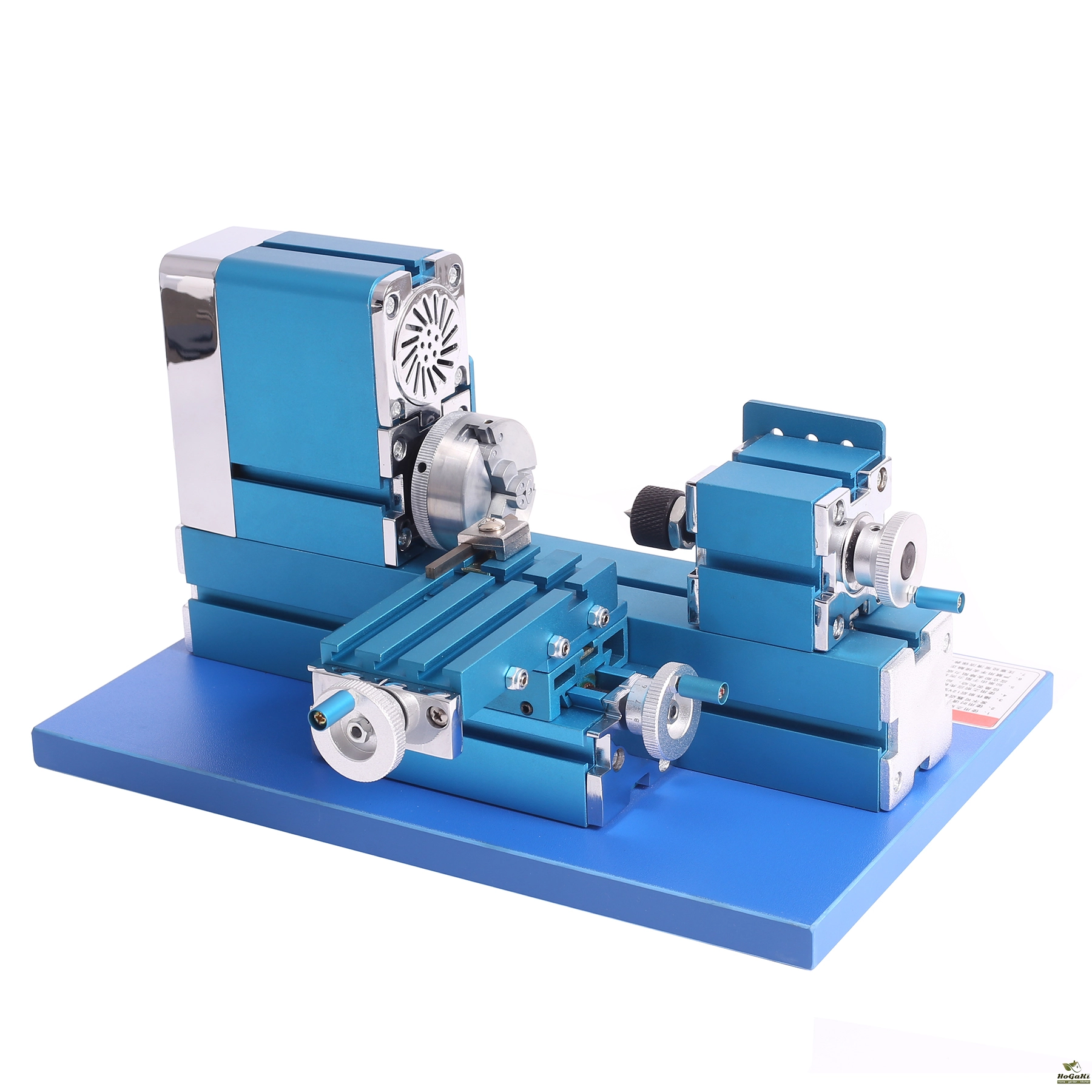

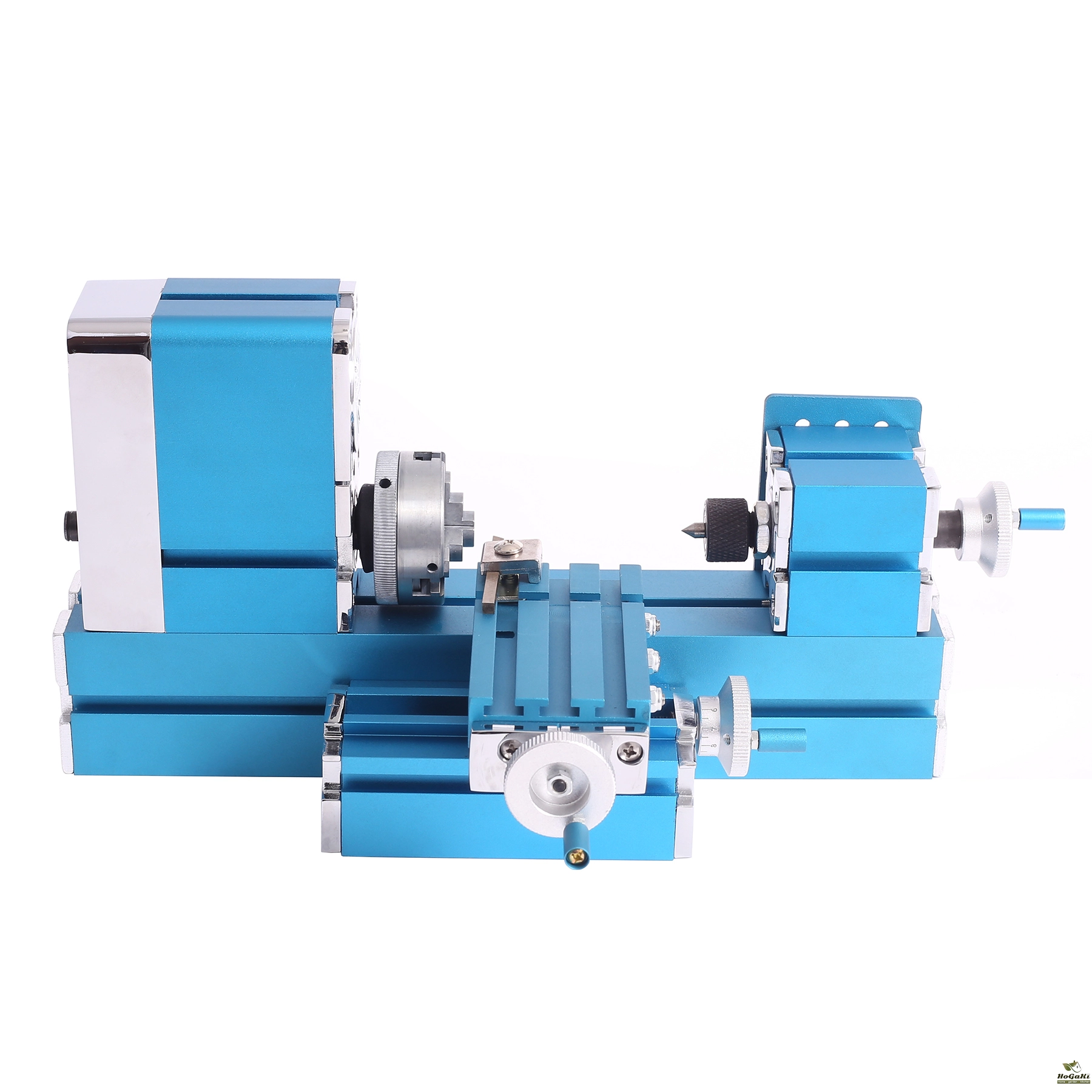

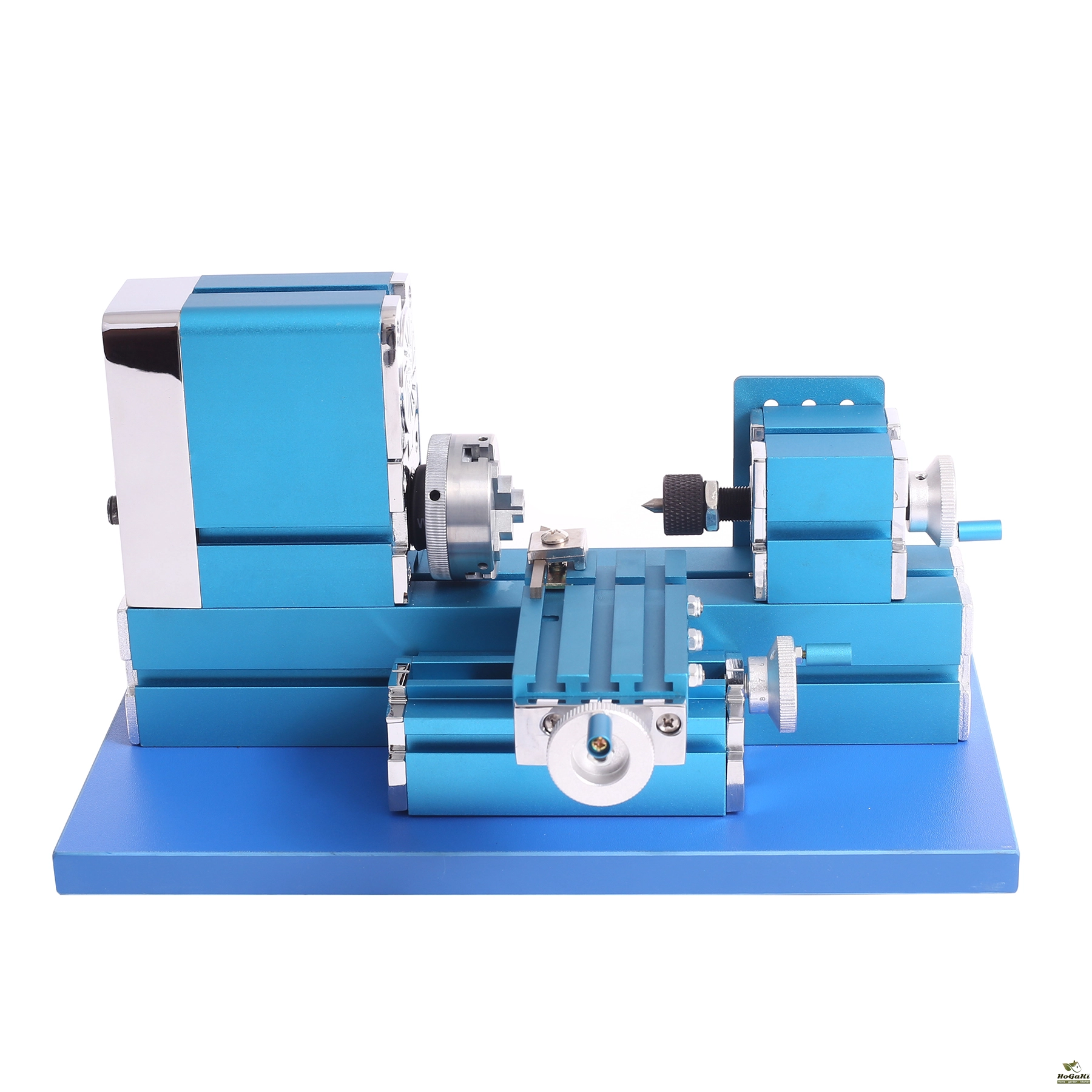

20000rpm Mini lathe woodworking machine metal processing tool Teaching Model
Application:
Youth Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation, DIY hobbyist.
Main parts of the machine:
The main components of the headstock, intermediate block, connecting block, tailstock, large slider, small slider, hand wheel, bases and so on are made of metal. The quality of the product is improved, more durable and more precise.
Parameter:
Input voltage: AC100V~240V 50/60HZ
Output voltage : DC12V 3A/4A
Motor rated power: 36W
Motor speed: High speed motor 20000r/min±15%
Spindle speed: high speed motor 3000r/min±15%
Spindle jump: <0.1mm
Large slider stroke（Z axis）: 45mm
Small slider stroke（X axis）: 35mm
Center height: 25mm
Center distance: 110mm
Turning tool size: 3.5*3.5mm
Maximum processing diameter: 0-10mm positive claw, 10-45mm reverse claw

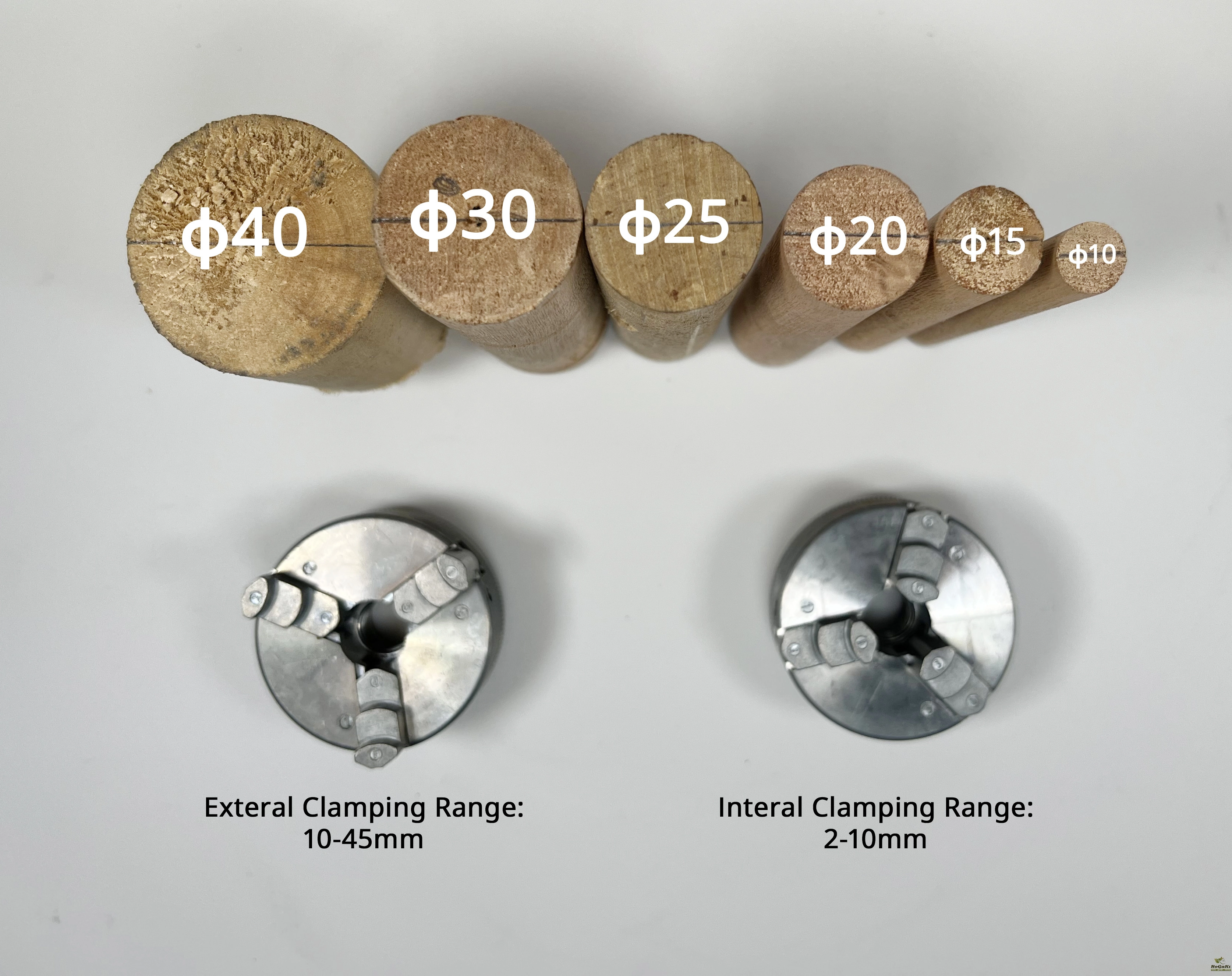

Three-jaw chuck clamping diameter: 0-10mm claw, 10-45mm reverse claw
Handle scale: 0.1mm/division

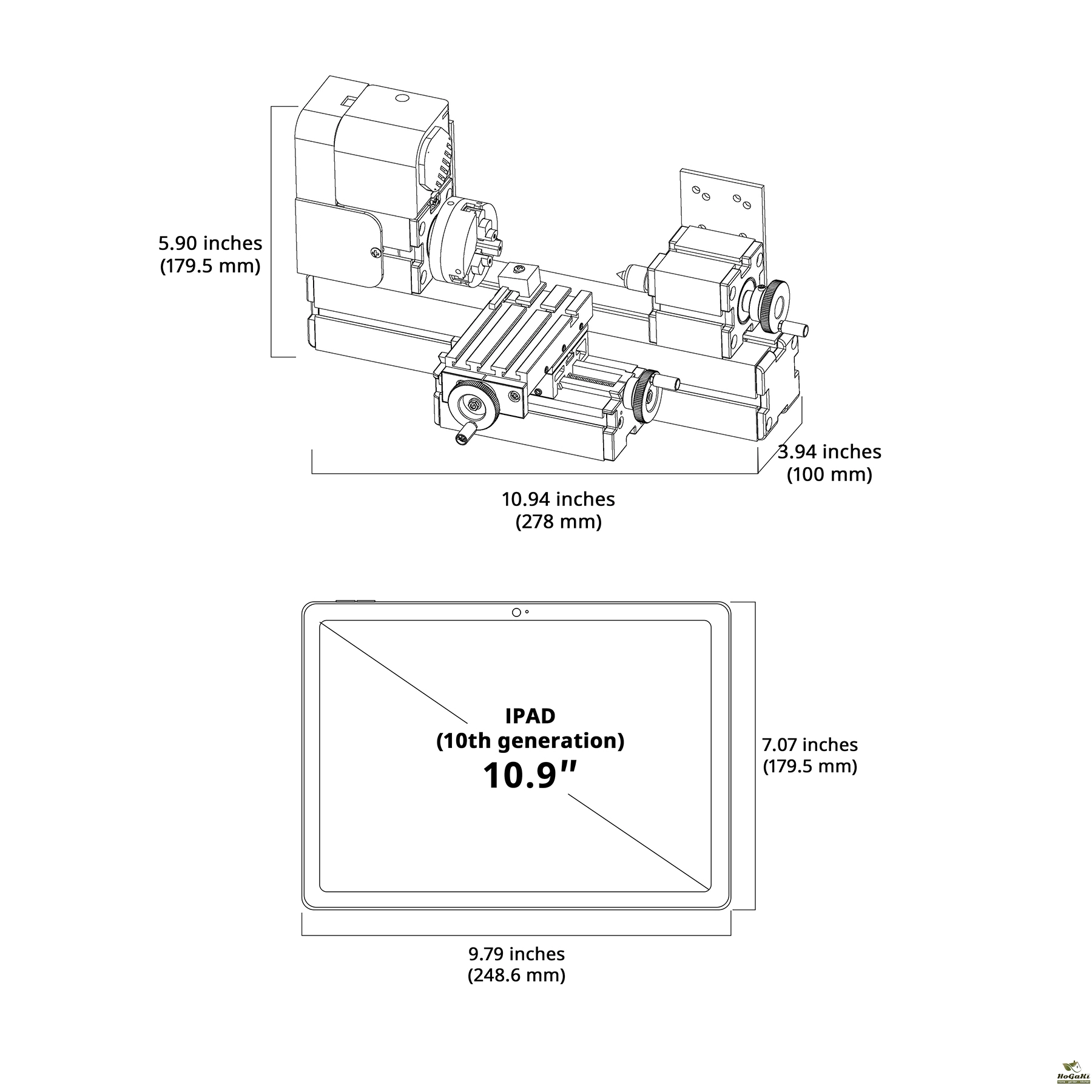

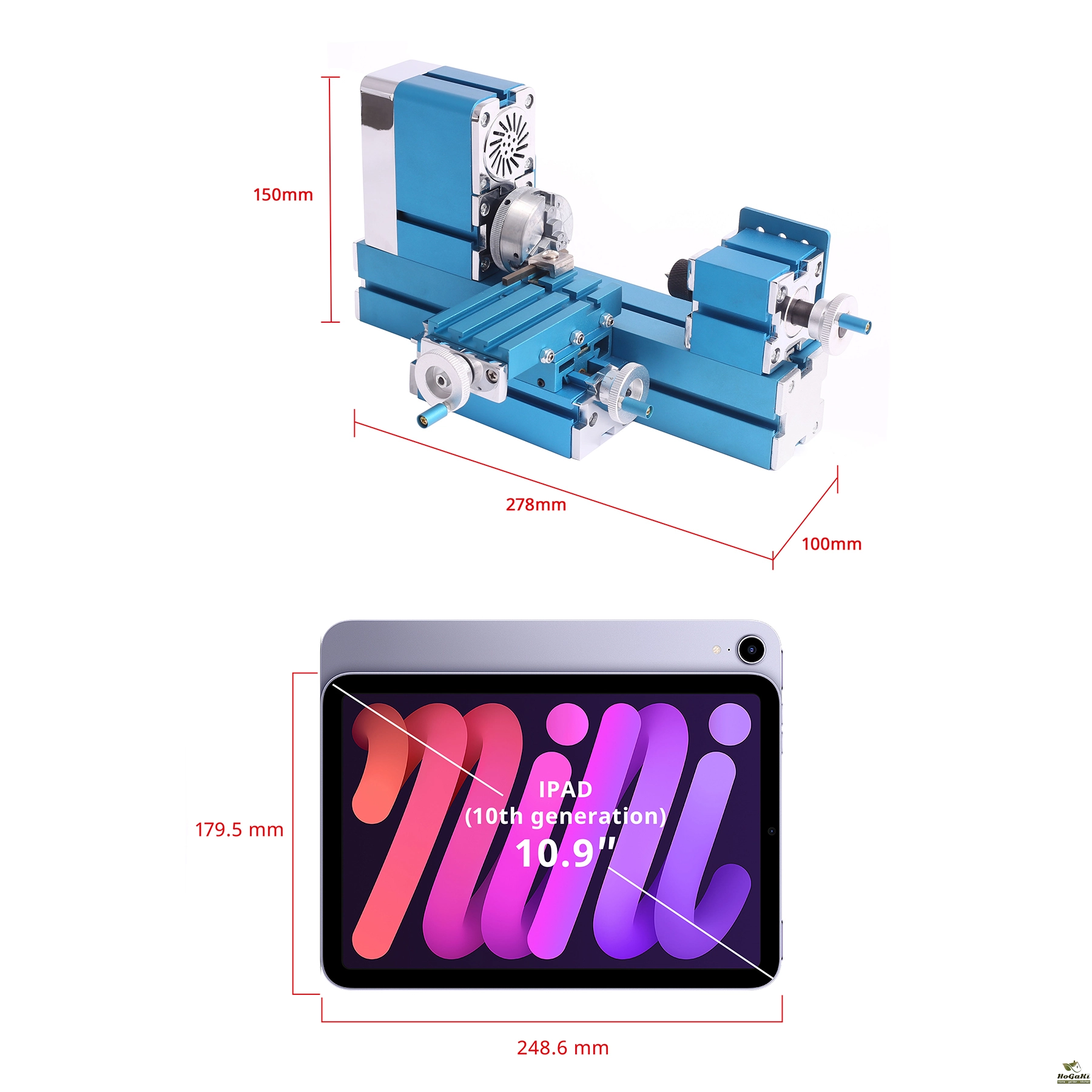

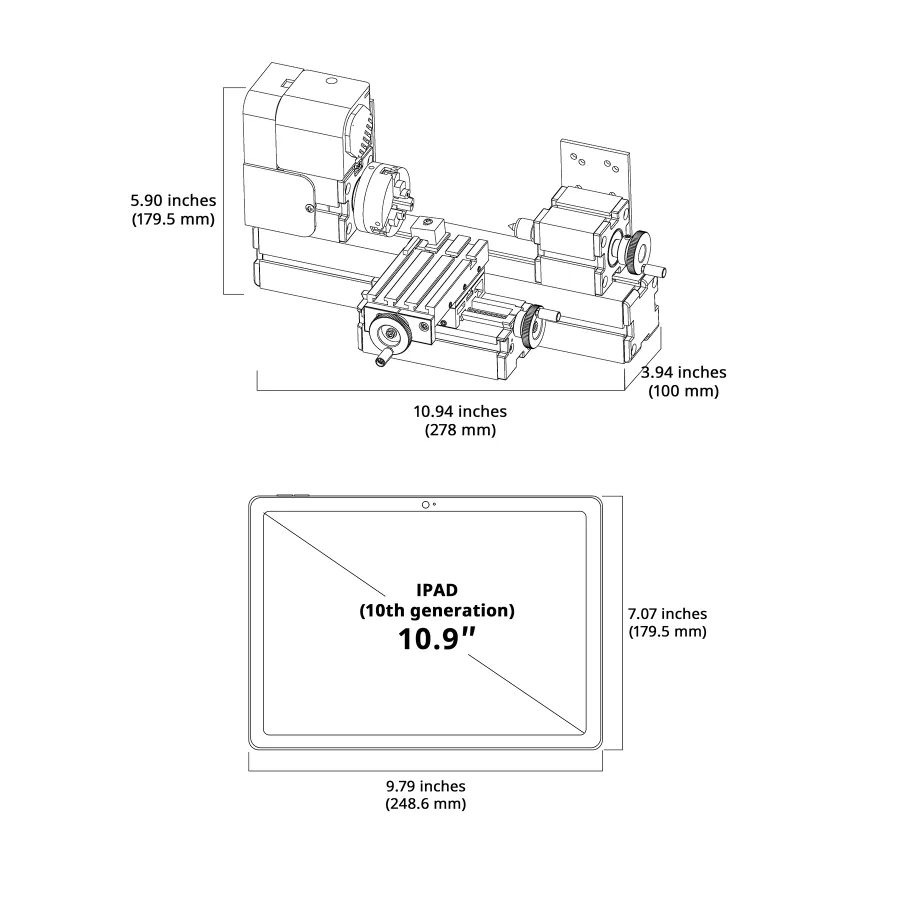

Production size:278*100*150 mm
Packing size: 325mm*200mm*240mm
Weight: 3.7KG
Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).

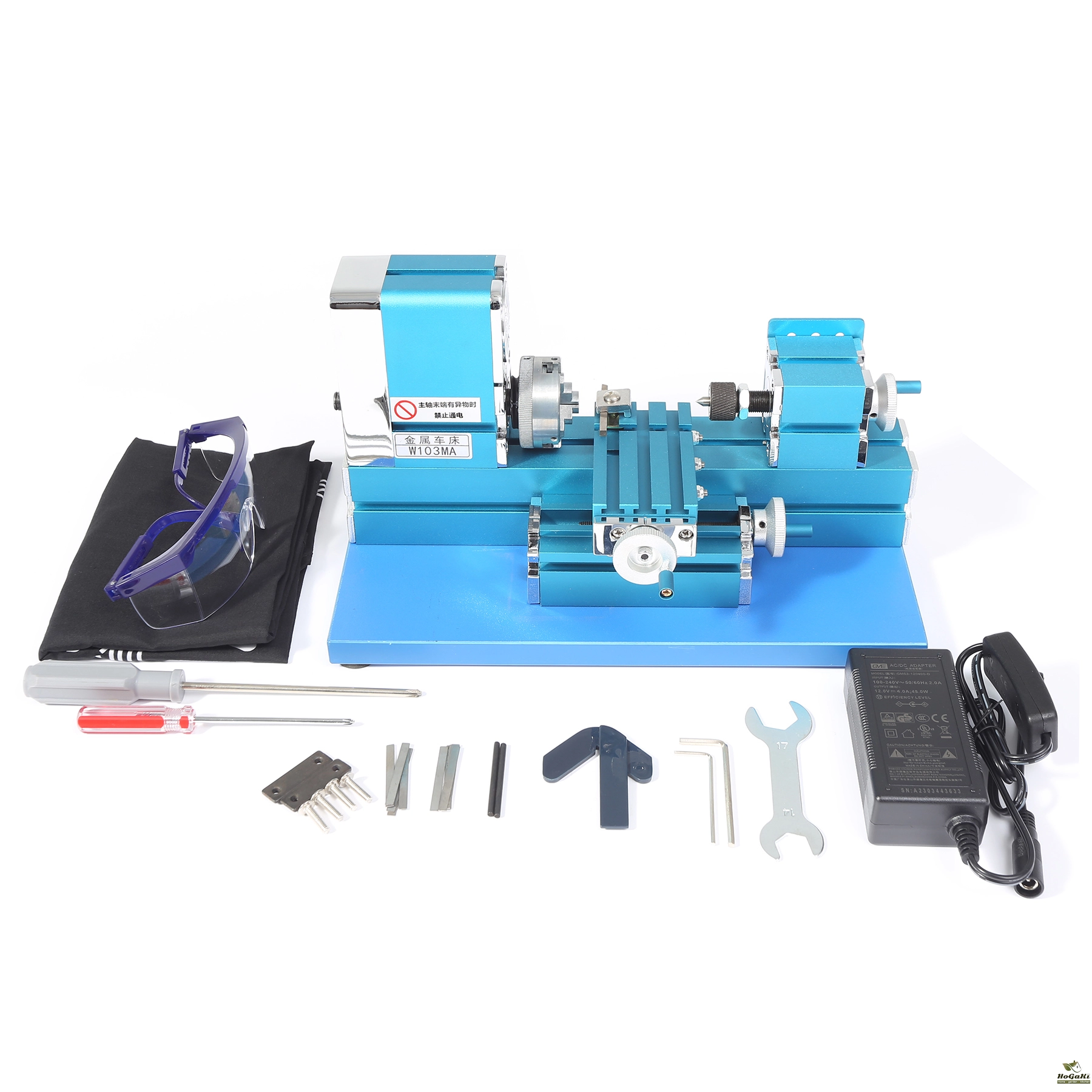

Package include：
1 set of lathe
1 set of Accessories:
inner hexagon spanner 2pcs(S=2\3)
double-headed wrench 1pcs(S=14\17)
cross screwdriver 1pcs
turning tool 1pcs(3.5*3.5mm), on machine
shim 5pcs(0.3mm)
shim 5pcs(0.4mm)
center finder 1pcs
three-jaw chuck locking rod 2pcs
two hole clamping plate 2pcs
screw 2pcs(M4*16)
1 set of apron
1 set of goggles
Packaging Details
- Unit Type:
- Package Weight: 4.0
- Package Size: 24x22x33
- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- Origin: Mainland China
- CNC or Not: Normal
- Type: Horizontal
- Plug: EU
- Condition: New
- Certification: CE
- Model Number: Mini lathe woodworking machine
