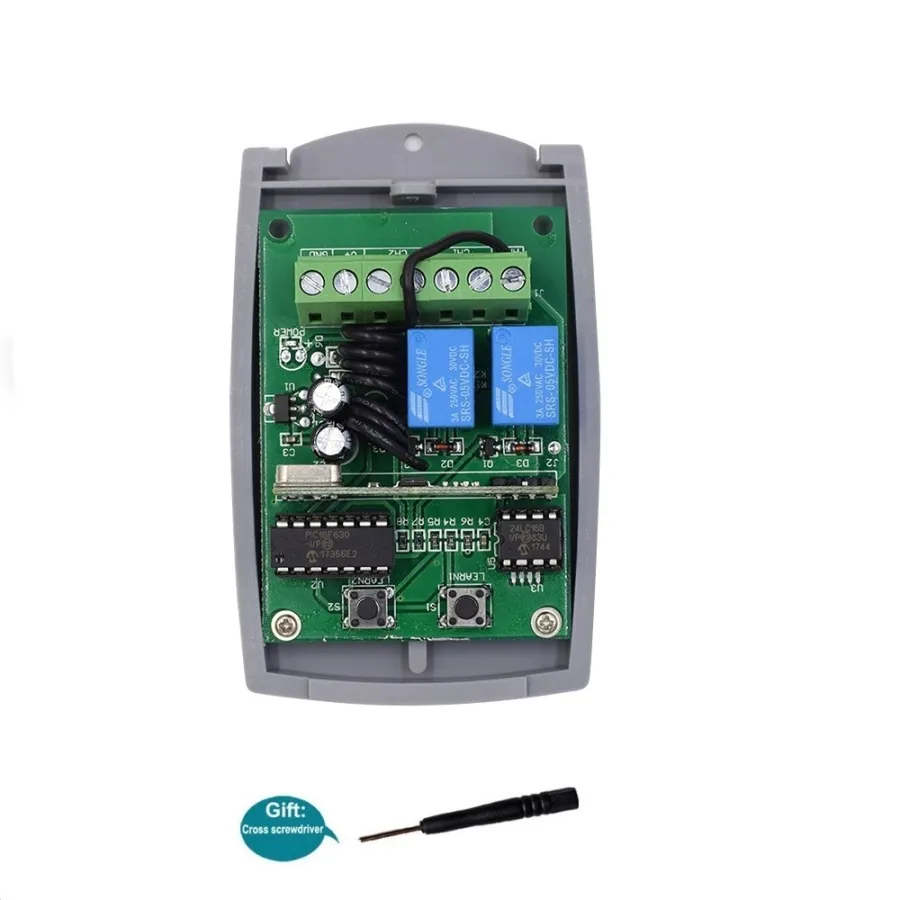

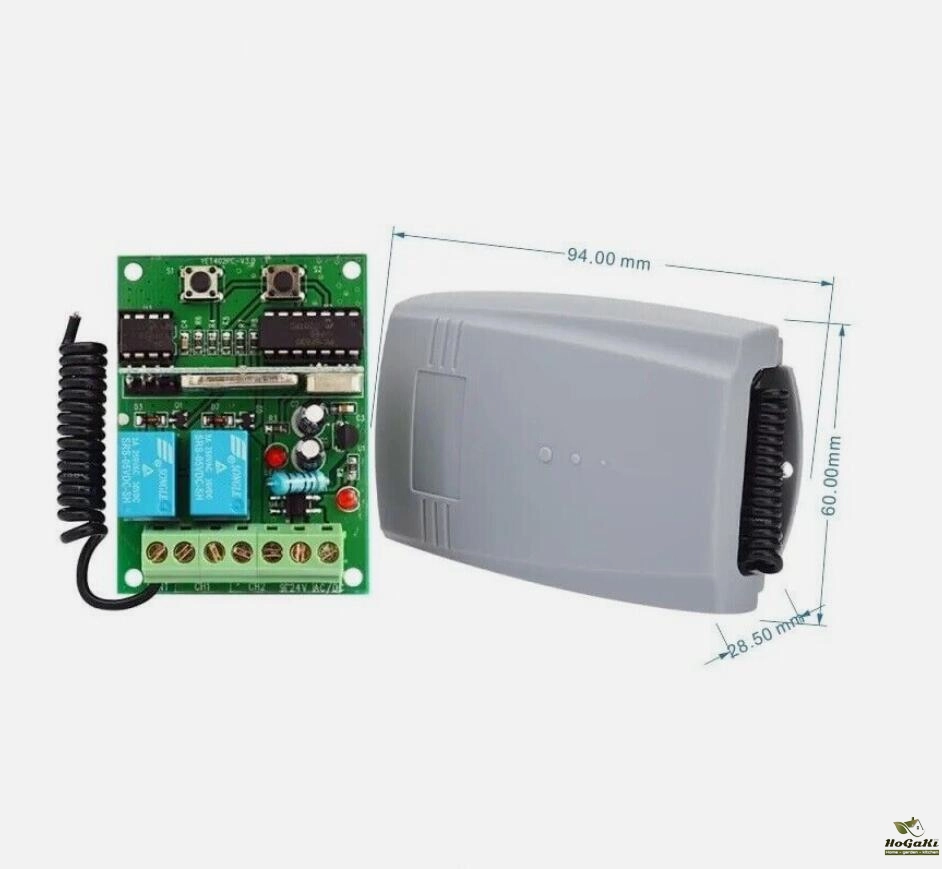

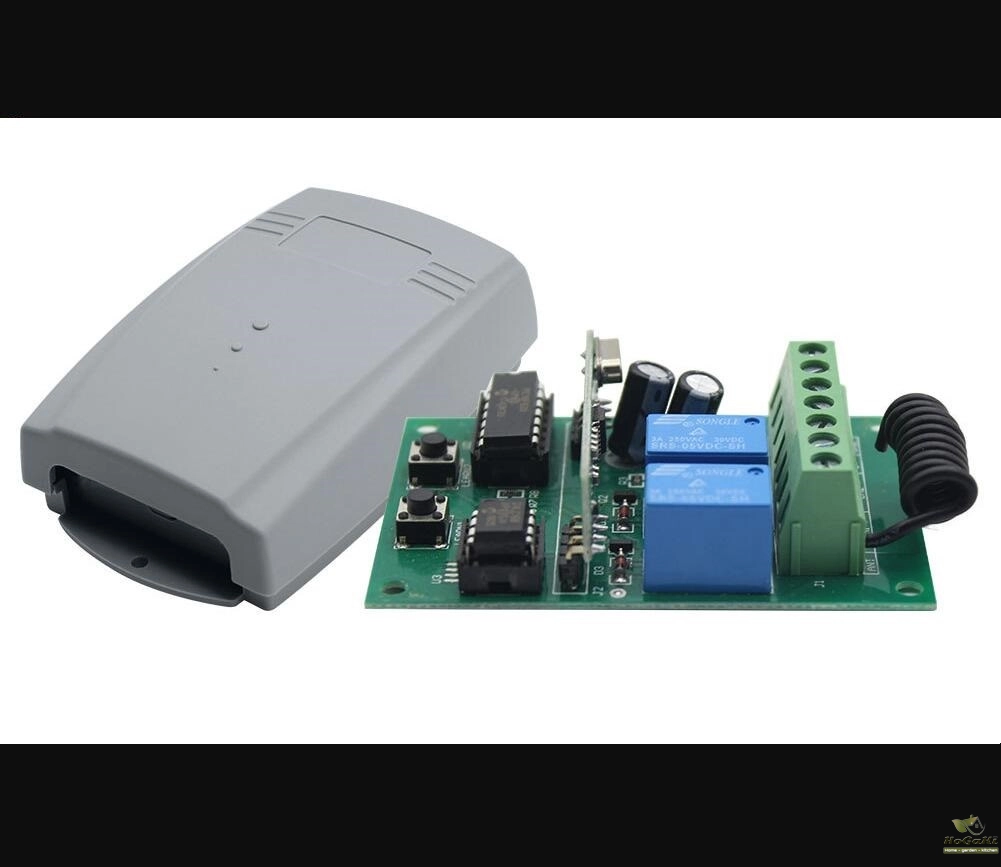

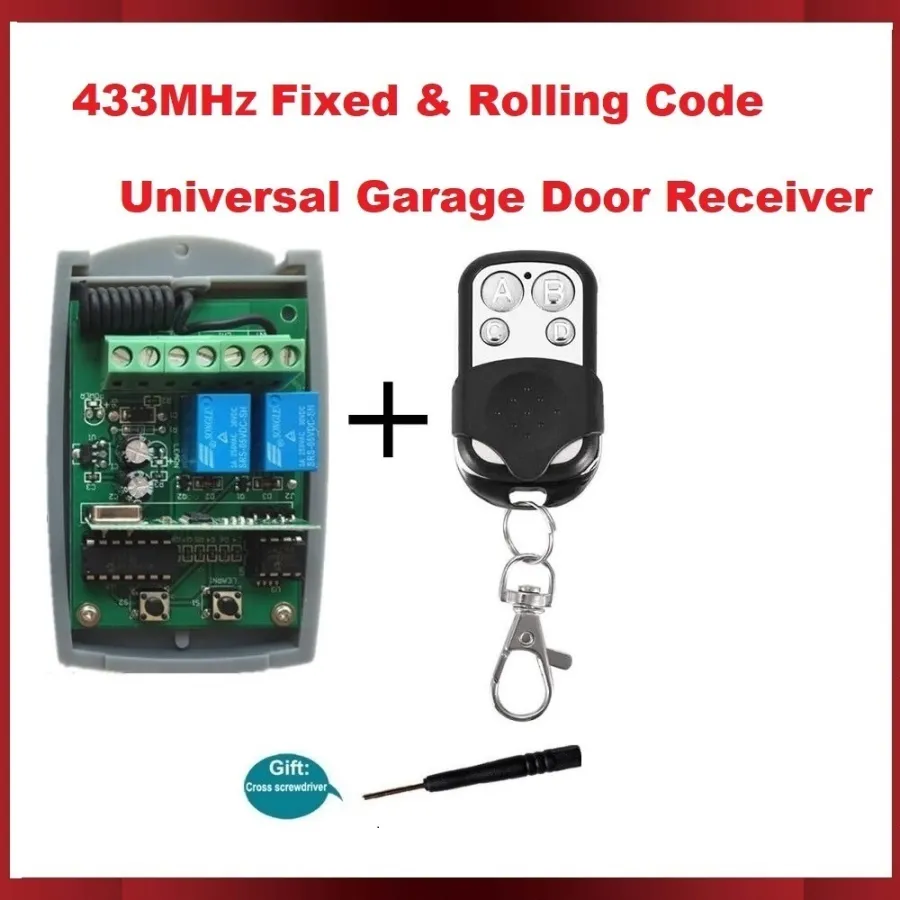

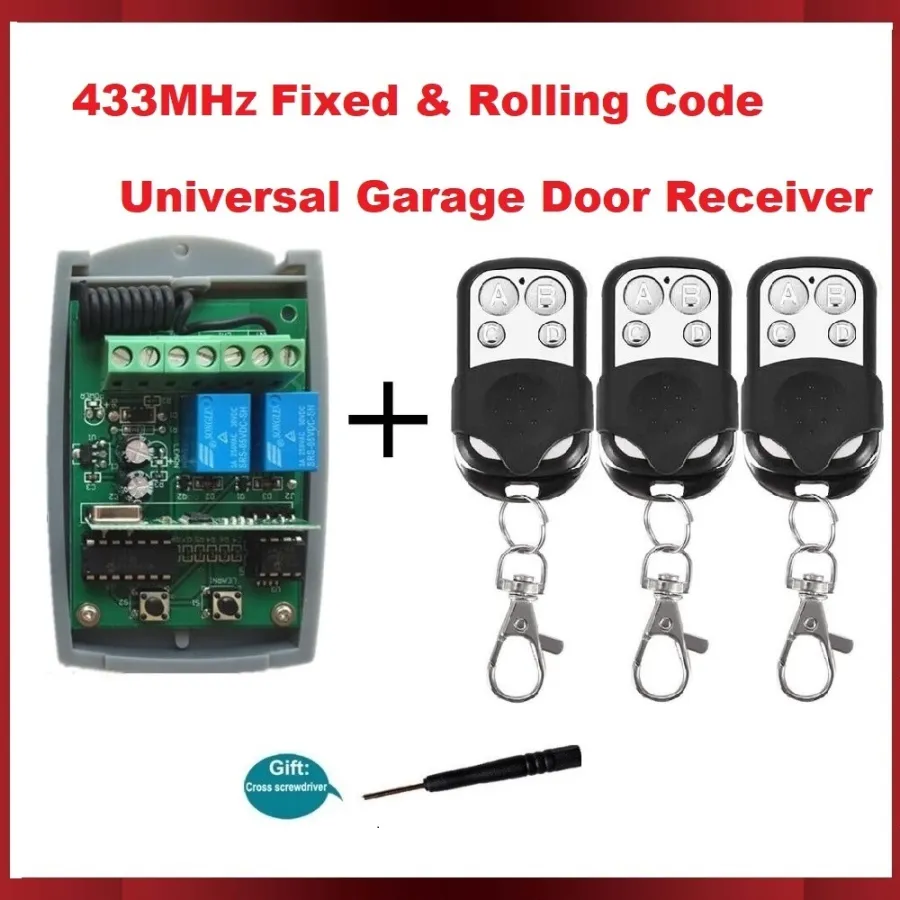

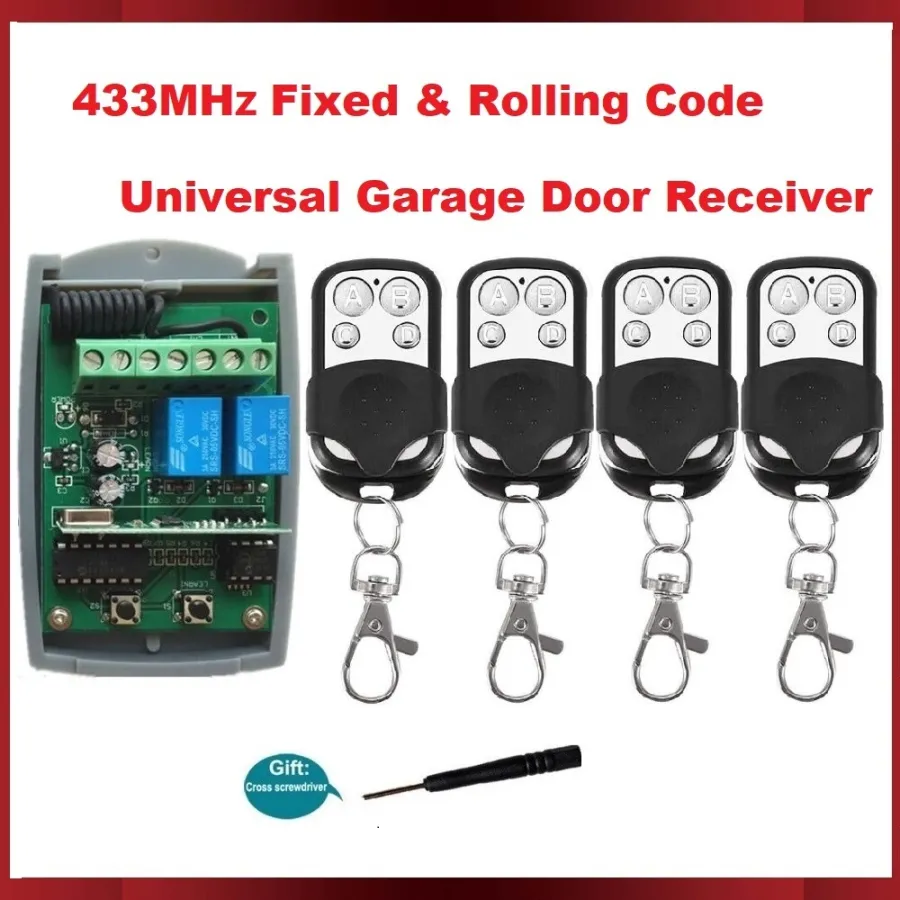

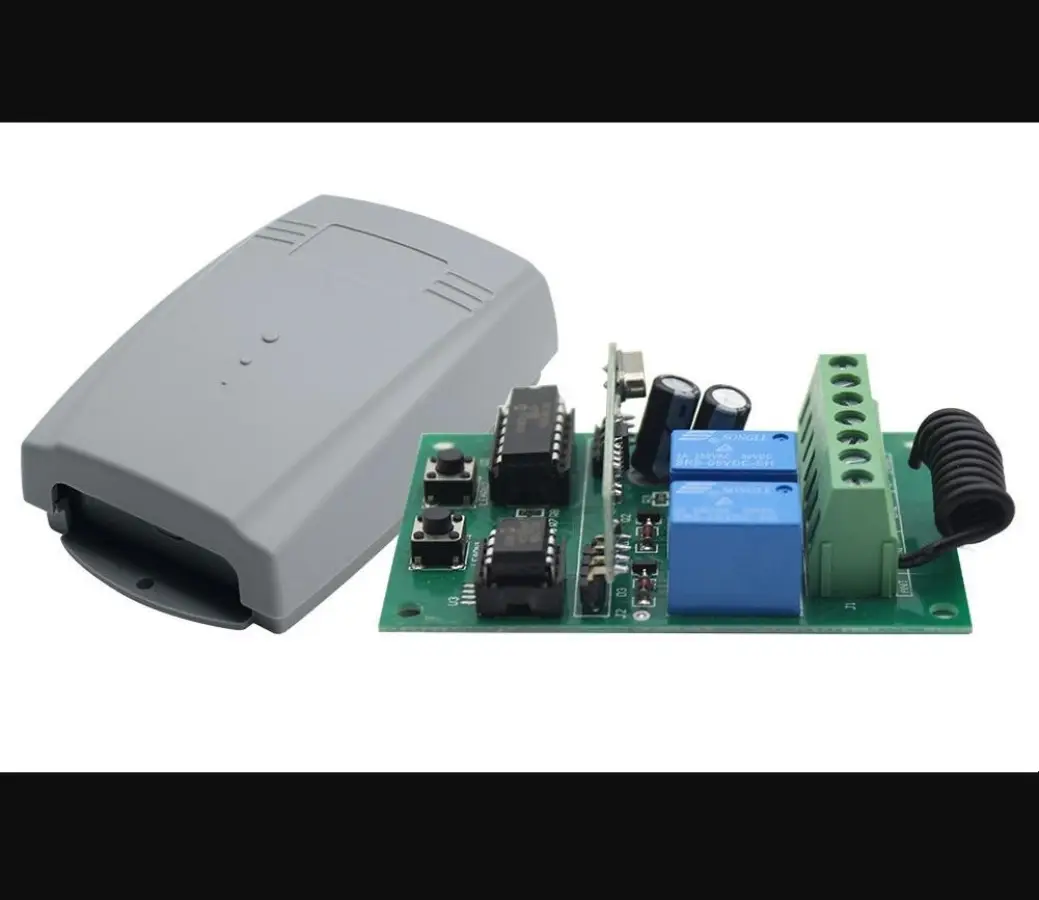

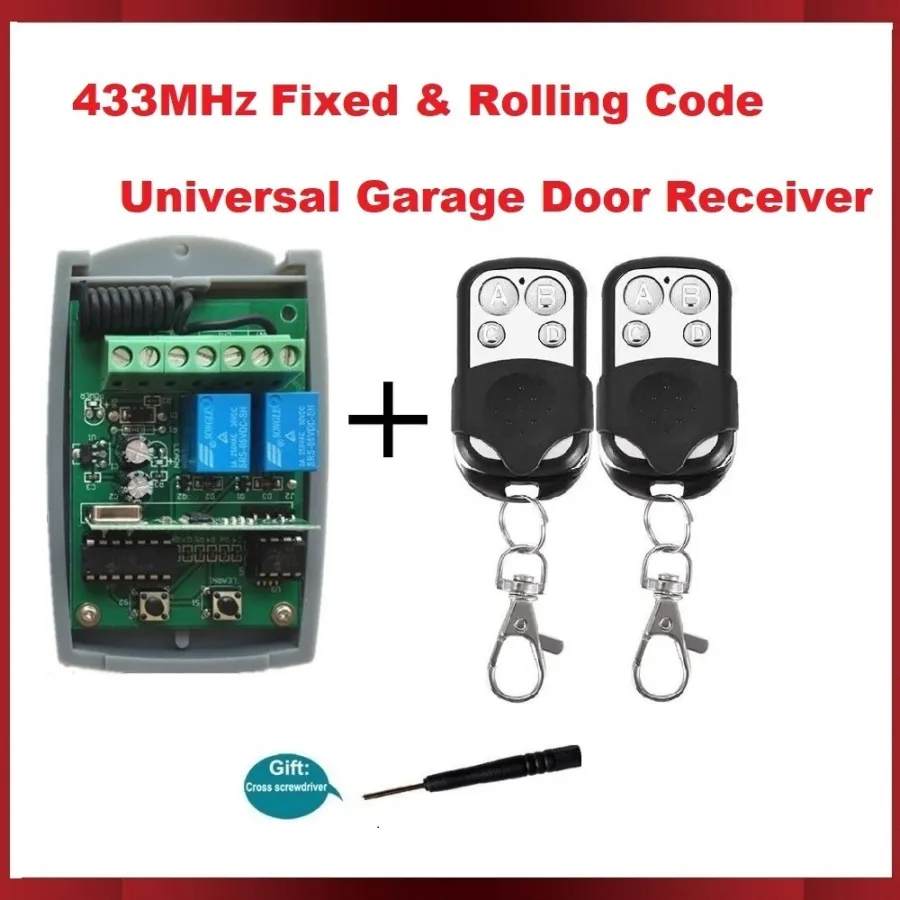

Universal 433mhz Remote Control Garage Door Receiver 2CH 12V 24V Controller Gate Opener 433.92mhz Transmitter Fixed Rolling Code
11.35 11.08 $
ID: 161276
Quantity
Universal 433mhz Remote Control Garage Door Receiver 2CH 12V 24V Controller Gate Opener 433.92mhz Transmitter Fixed Rolling Code
0.0 ( votes) | 8 orders
Price:
US $11.35 - 57.15
Discount Price:
US $
11.08 -
55.31
-2%
- Color
-
-
433MHz Universal Garage Receiver 2CH DC 12-24V Rolling Code Learning Code Fixed Code
Description
1. Power supply: 12V-24V DC
2. Frequency: 433.92MHz 433MHz
3. Codes:Fixed/Learning/Rolling Code
4. 2 Channel
5. Working temperature :-40℃- + 80℃
6.Built in Aerial antenna : Reception range 30-100m
Features

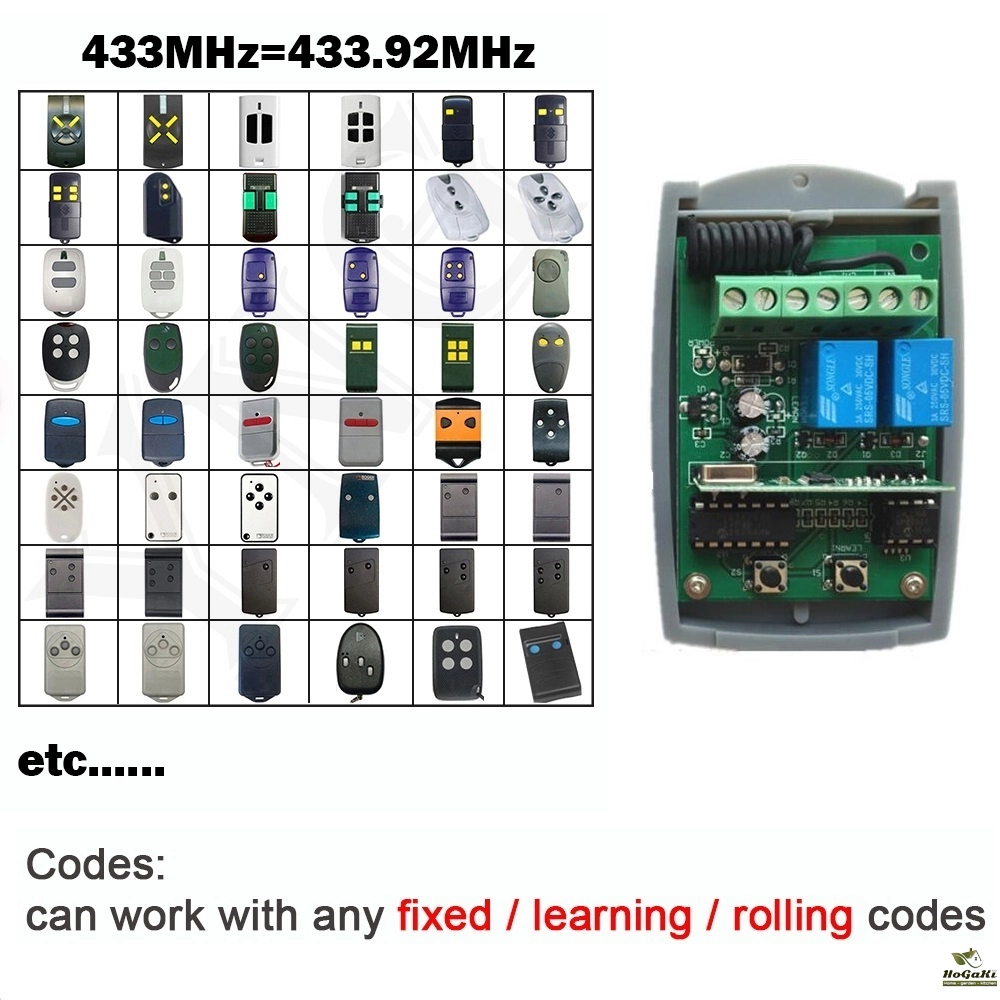

The product is a general smart receiver and it can be matched with the majority of the wireless receiver in the market, including fixed code （2262, 2260,2264,5326,M1E,M5E etc）, learning code （1527, 2240, 6P20B, 6P20D etc）. roling code （HCS301,HCS300,HCS200,HCS201,HSC100,HCS1O1 etc） and a part of customized remote controller.
PROGRAMMING:

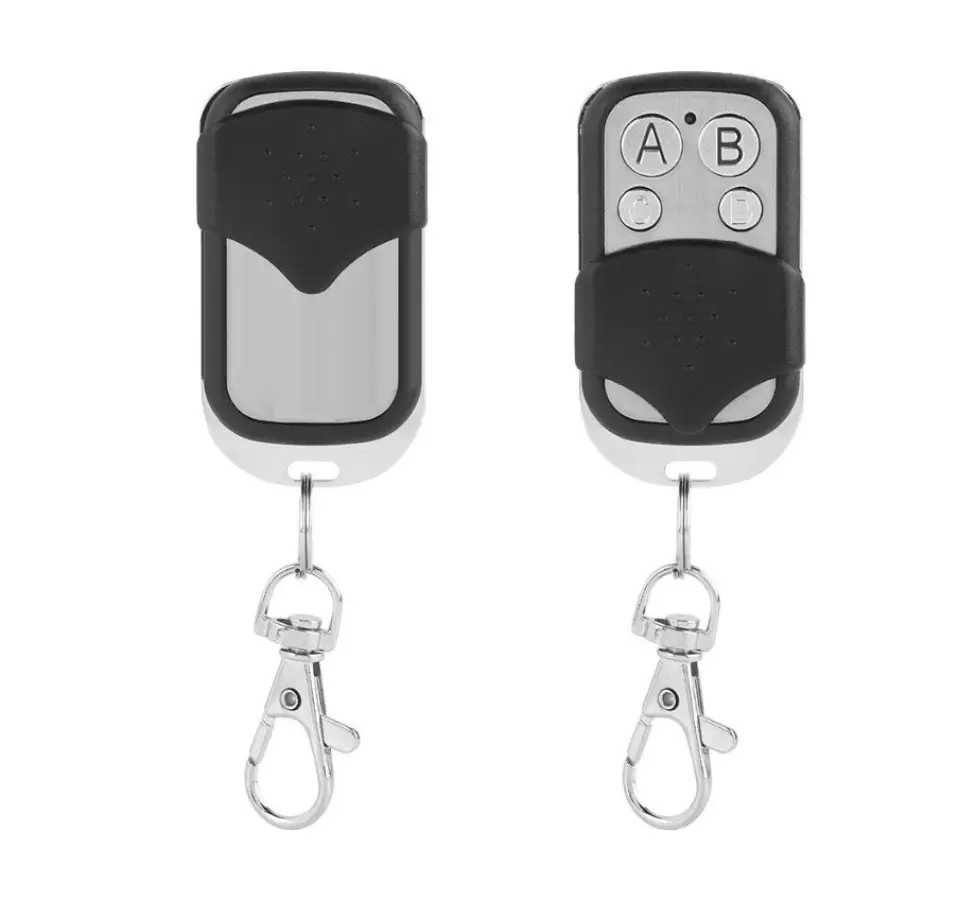

1.Learning transmitter’s codes:
Press “learn 1” or “learn 2” for 1 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored.
• Repeat the above steps for other transmitters.
2.Erasing transmitter’s codes:
Press “learn 1” or “learn2” and hold on to make the “learn_led light till go out, all codes of transmitters which had been stored are erased.

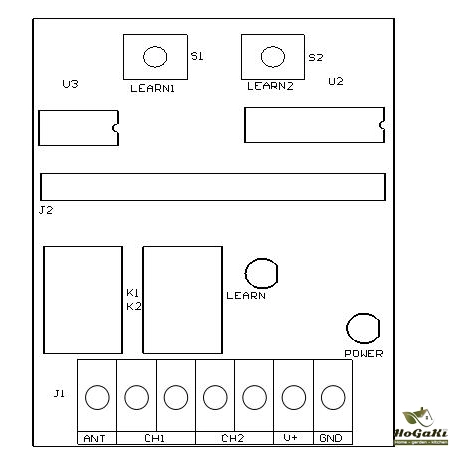

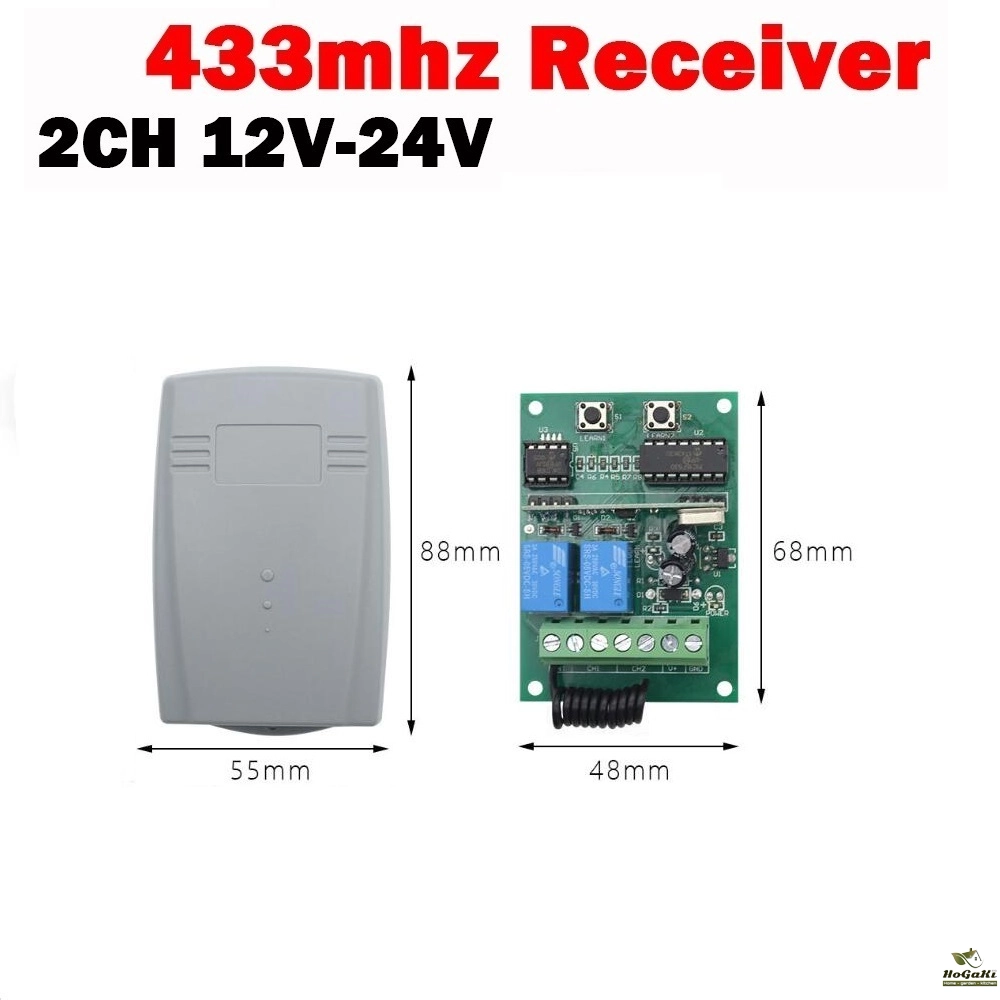

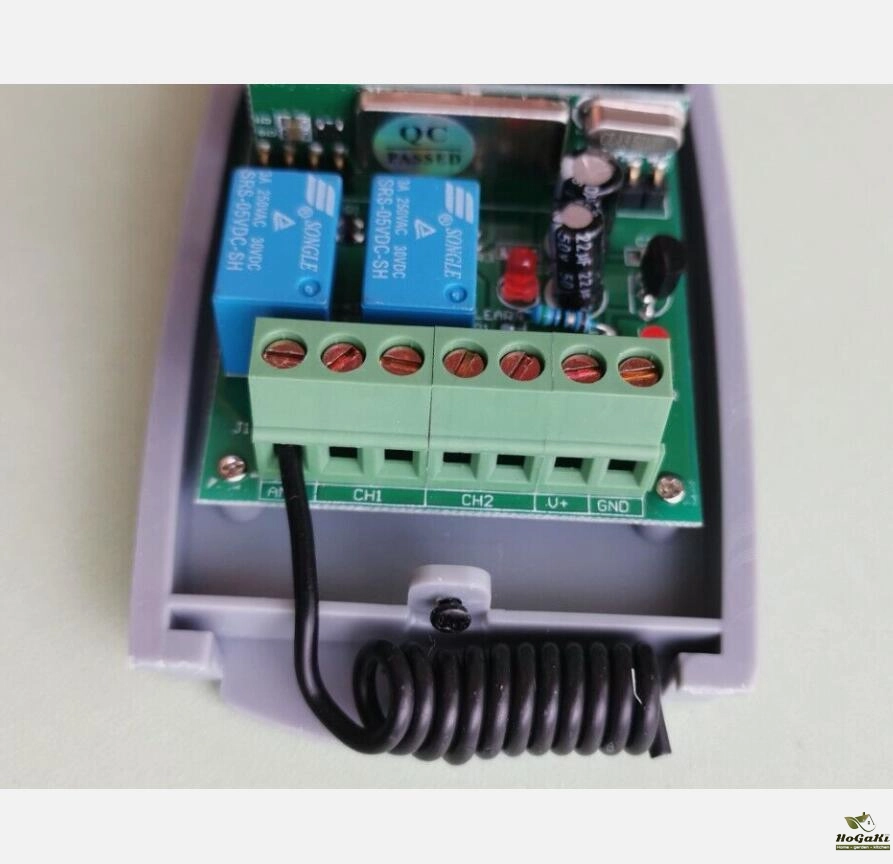

Circuit diagram
ANT - Receiver Antenna
CH1 - Relay Output 1
CH2 - Relay Output 2
V+ - Voltage +
GND - Ground
Packaging Details
- Unit Type:
- Package Weight: 0.200
- Package Size: 12x1x17
- garage door opener switch: garage door opener switch
- 2 channel plug receiver: 2 channel plug receiver
- universal garage receiver 24v: universal garage receiver 24v
- Brand Name: NoEnName_Null
- Model Number: 433
- Hign-concerned Chemical: None
- Origin: Mainland China
- Choice: yes
- semi_Choice: yes
