Security Protection Flashing Light Flashing For Gate Light Alarm 12V-265V AC/DC
103.79 37.72 $
ID: 160639
Quantity
Universal 12V 24V 220V Outdoor LED Signal Alarm Light Strobe Flashing Light Wall Mount Emergency Warning Lamp for Gate Opener
5.0 (3 votes) | 15 orders
Price:
US $39.77
Discount Price:
US $
21.61
-46%
- Color
-
-
Safety Instruction
1.For security, please read the user manual carefully before initial operation;
2.Please be sure the power is off before connecting, the product is produced without fuse;
3.This system must not endanger life or property during the running failure or its security risks
have been eliminated.

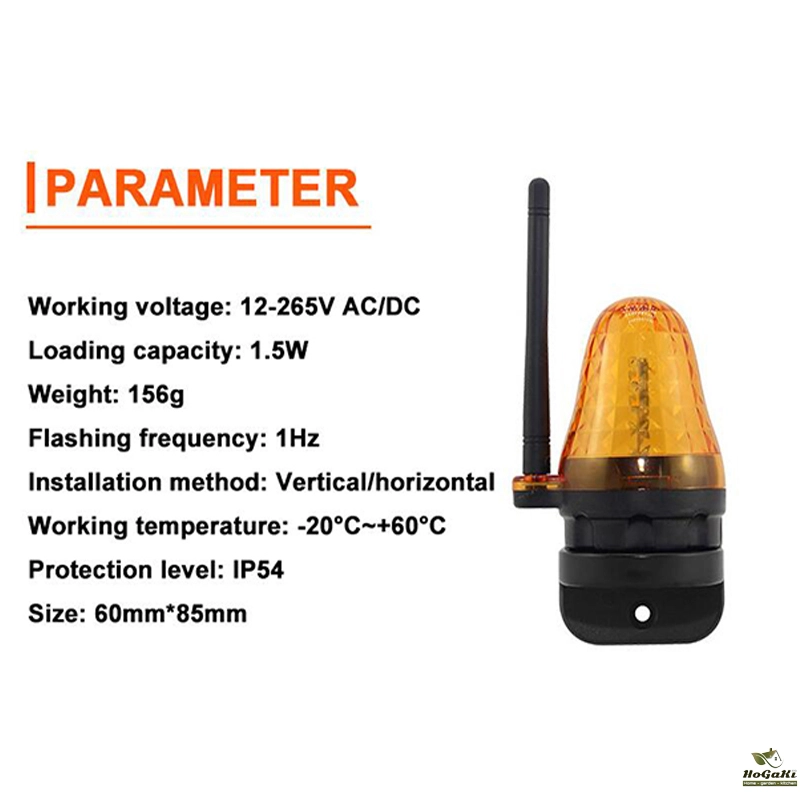

Specification
Working voltage: 12-265V AC/DC
Loading capacity: 1.5W
Weight: 156g
Flashing frequency: 1Hz
Installation method: Vertical/horizontal
Working temperature: -20°C~+60°C
Protection level: IP54
Size: 60*85mm

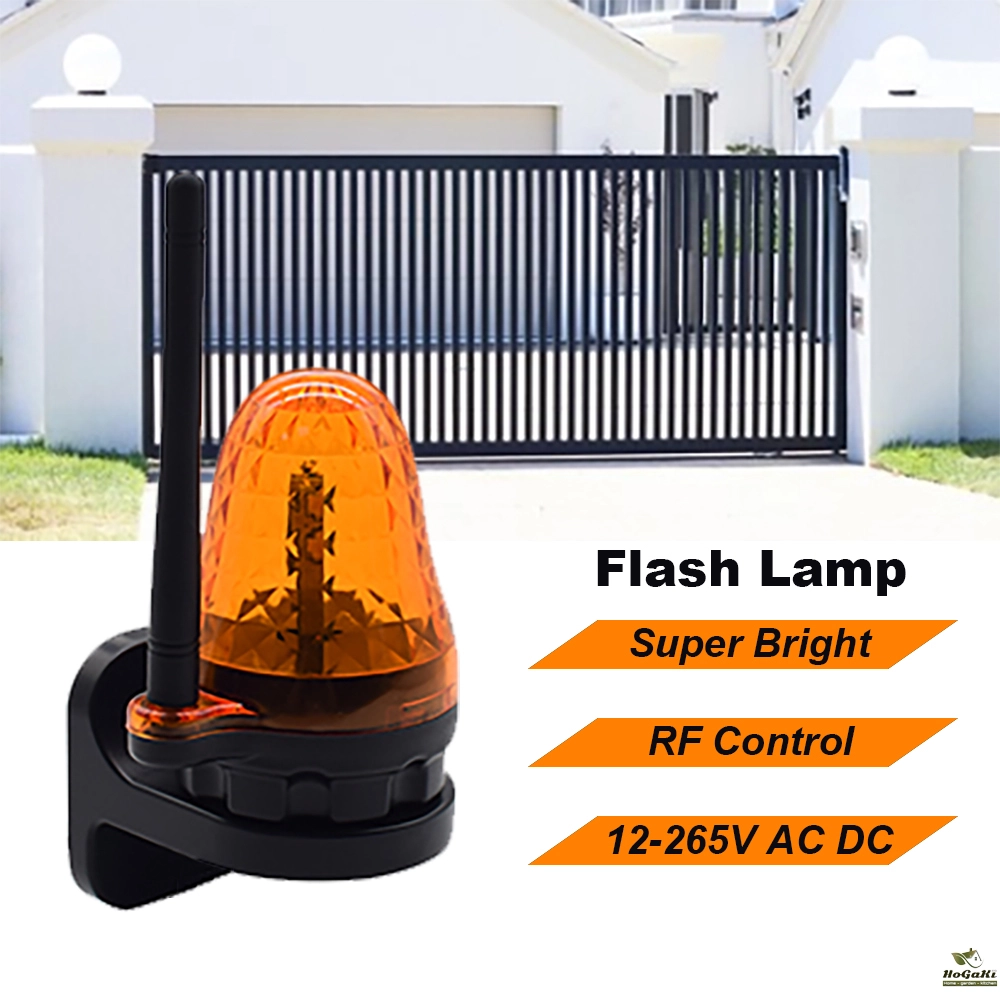

Mutiple Voltage Flash Lamp

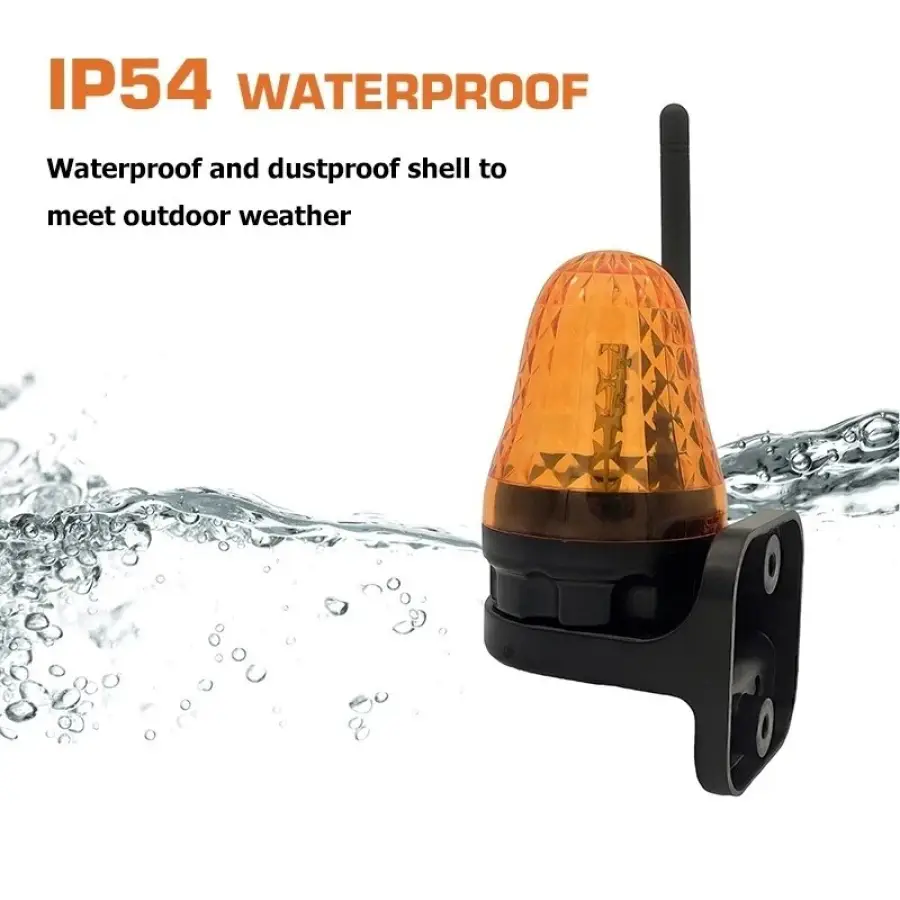

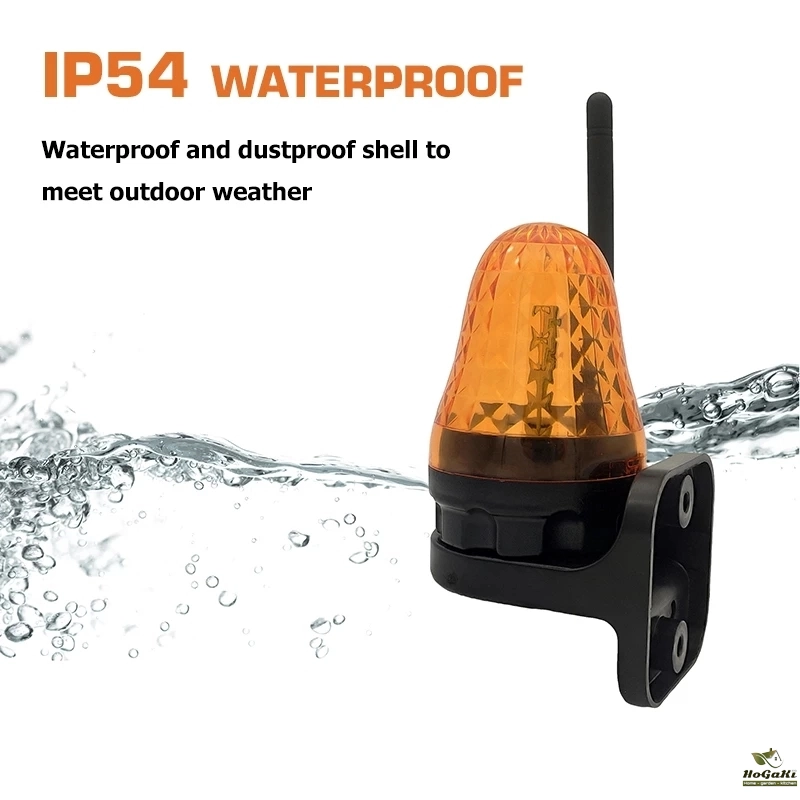

Antenna This is used to extend the effective distance of controller Waterproof and dustproof It is made of plastic material IP 54 .
Notice：
1,Terminal 1 is for connectino thepower input; working voltage is 12-265VAC/DC.
2,Terminal 2 is for connecting the antenna of RF controller to extend the effective working distance
Instruction:
After power the lamp on, LED will start fashing in 1HZ(default setting).

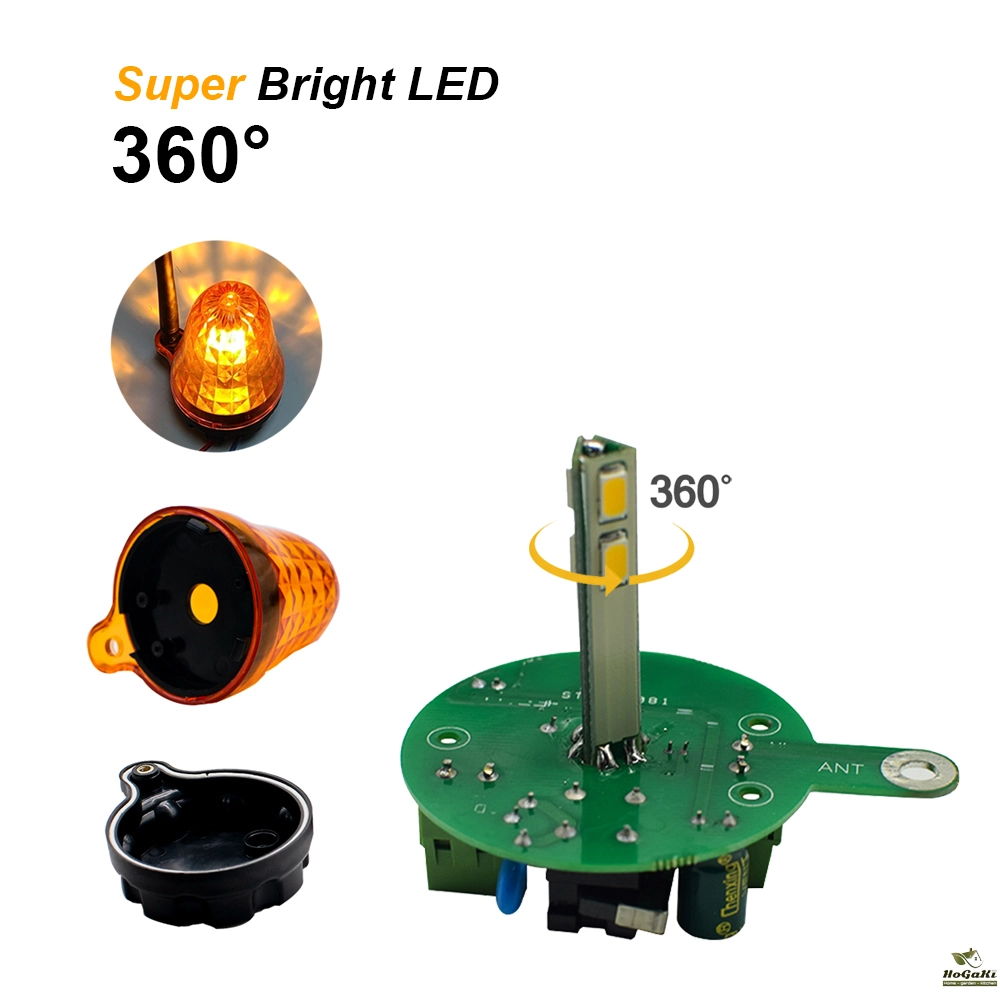

sW1 is the switch for selecting flashing or on mode of the lamp.CAP short connectsthe 2 pins; the lamp is in flashing mode. Remove the CAP from 2 pins, the lamp is inon mode.
Be Careful, the whole board includes the components are with high voltage. Alwaysmake sure power is off before you open the cover

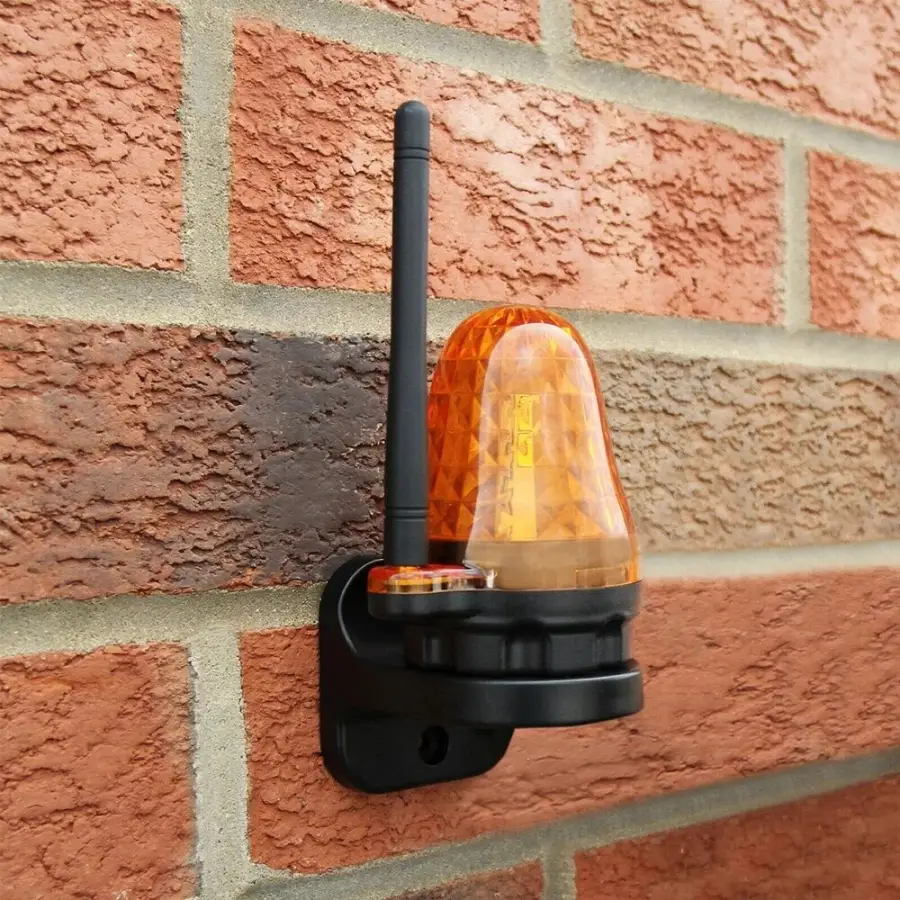

Installation：
Open the package; take out the products and all the accessories. Removing the antenna by rotatinganticlockwise.
Mark 2 holes on the wall by using the fixing hole of bracket.
Drilling two 6mm diameter holes and one 10mm diameter hole. Then put the expansion plug intothe 6mm diameter holes. Put the wires through 10mm diameter hole.
Put the power wire and antenna through the cable holes in the holder. And fix the holder to thewall by provided 4mm*30mm self-taping screws.
Connect the wire and antenna to the correct terminals.
Put the cover back and make sure the cover is fastened with the bottom base without any gap.Then screw the antenna up and turn clockwise to make it tight.
Always install the holder and lamp upright to the ground. Horizontally installation may cause therain go inside the lam and damage the board.

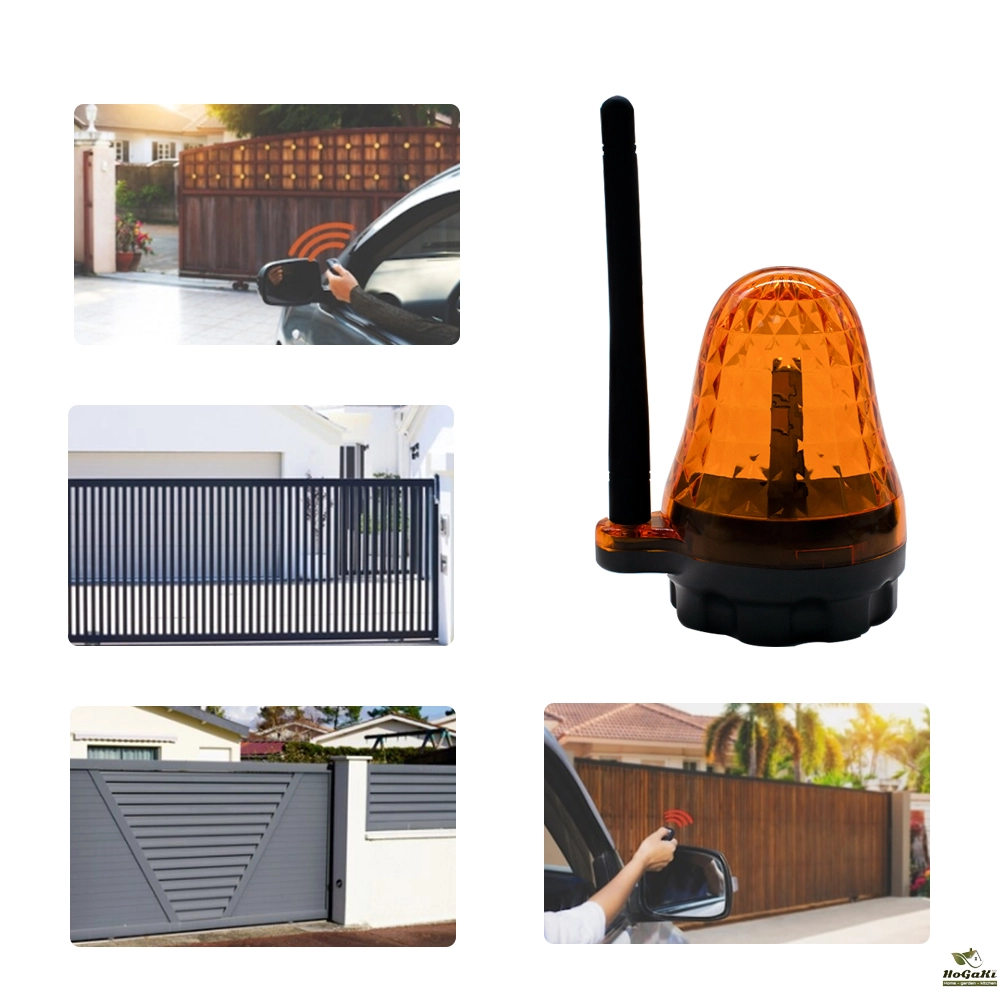

wide range of uses:

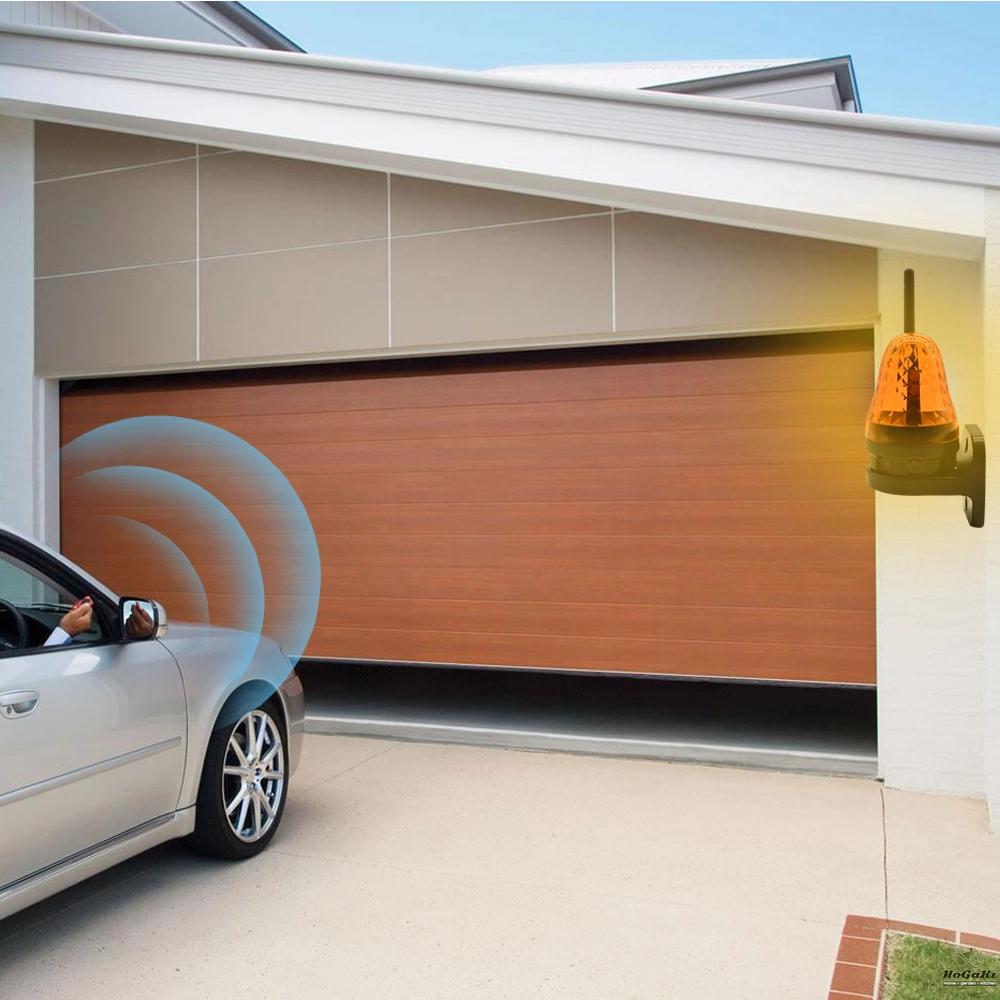

Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shutters
Electrical appliances/Home automation i.e. lights, Alarm system, access control system

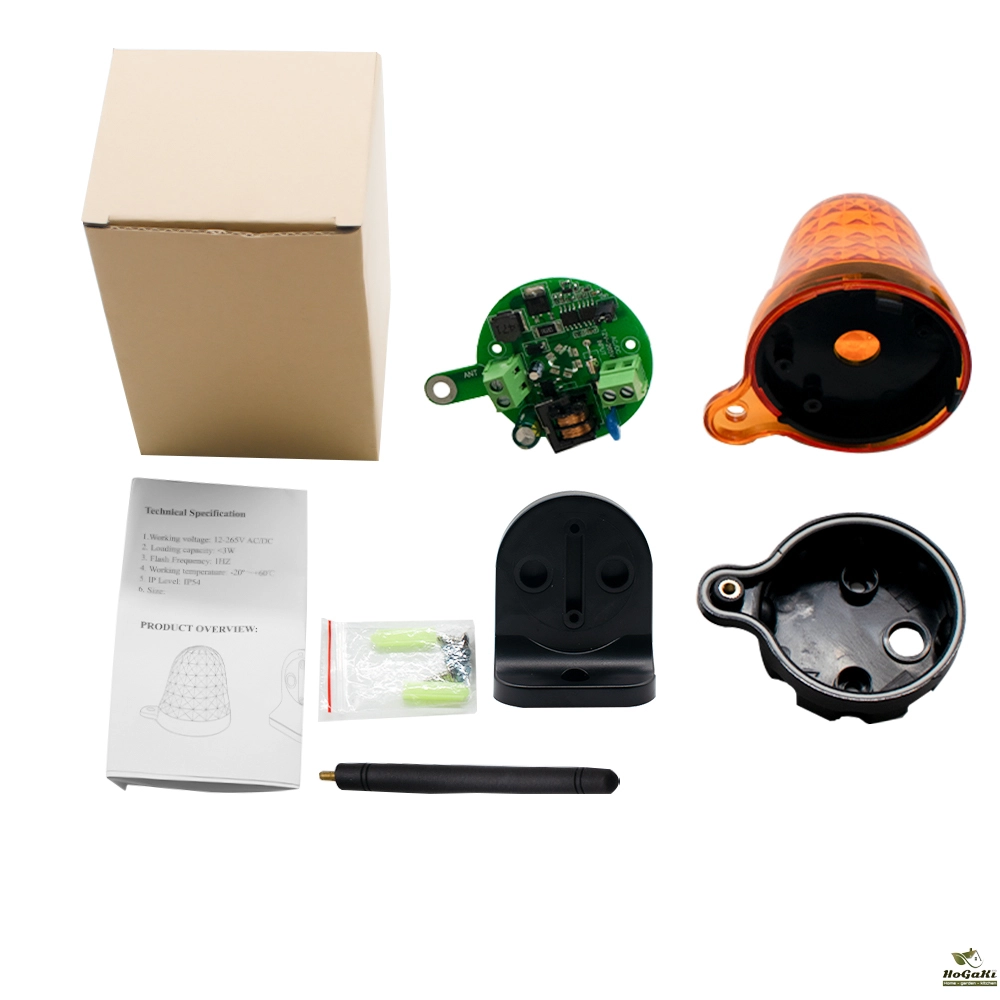

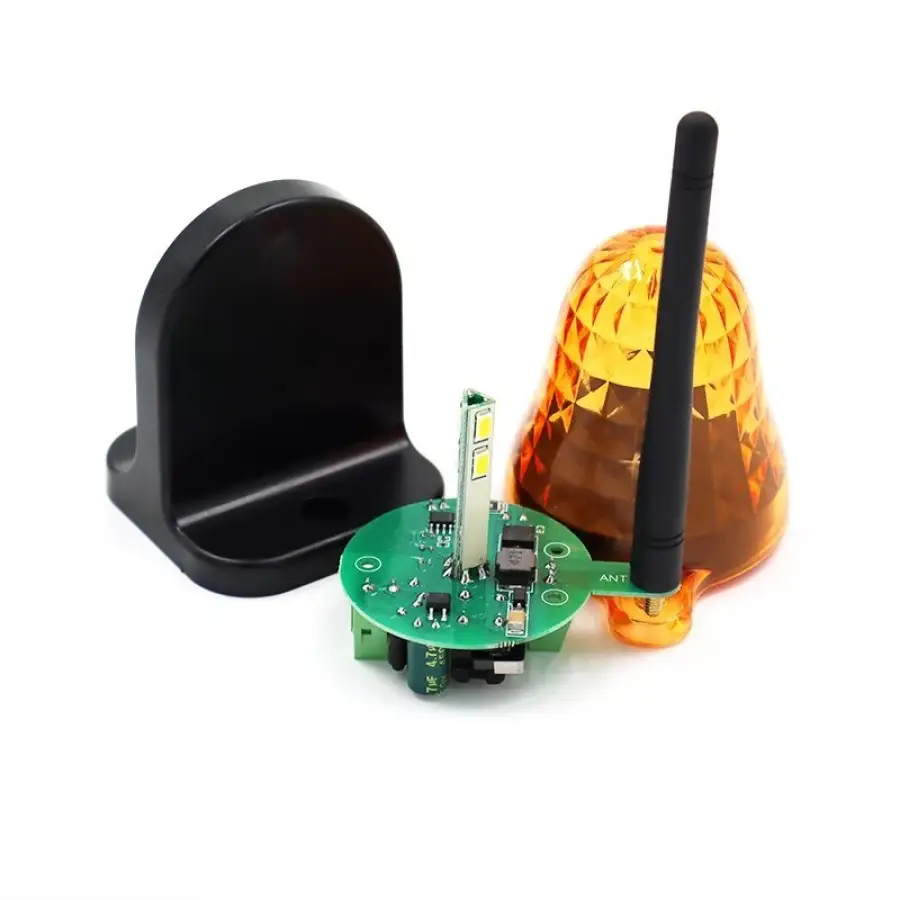

The package contains:
1X flash lamp
1X antenna
2X Screws
1 X English User Manual
Packaging Details
- Unit Type:
- Package Weight: 0.149
- Package Size: 8x7x13
- Brand Name: KUANGZIPENG
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: Flashing Light
- Certification: CE
- Smart home platform: None
- Choice: yes
