DC 0-100V 0-10A Digital Voltmeter Ammeter 12V 24V 36V 48V Car Motorcycle Electric Bicycle Voltage Current Meter Battery Tester
10.71 9.95 $
Tips:

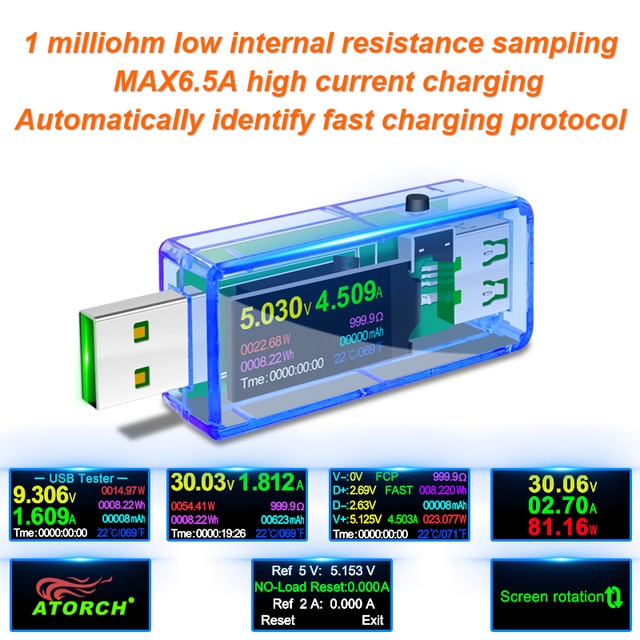

1) The upgraded version of the U96 model now supports 180W power with a maximum voltage of 32V and a maximum current of 6.5A. The upgraded USB port is OPPO’s 5P high-current port, but some Huawei chargers are 4P ports. If you find contact If it is not good enough, the current is low or no power is supplied. At this time, please try to pull out a short section for better contact and compatibility;
2) In addition, the button operation logic is optimized this time: Click the button to switch the interface cyclically; quickly double-click to clear the capacity, three-click to clear the battery, four-click to clear the time, and long press the button to clear all accumulated data ; Long press on the AAA interface is the screen flip; when you see the model is U96, please follow this instruction to operate the keys, thank you(2020.12.20)
U96

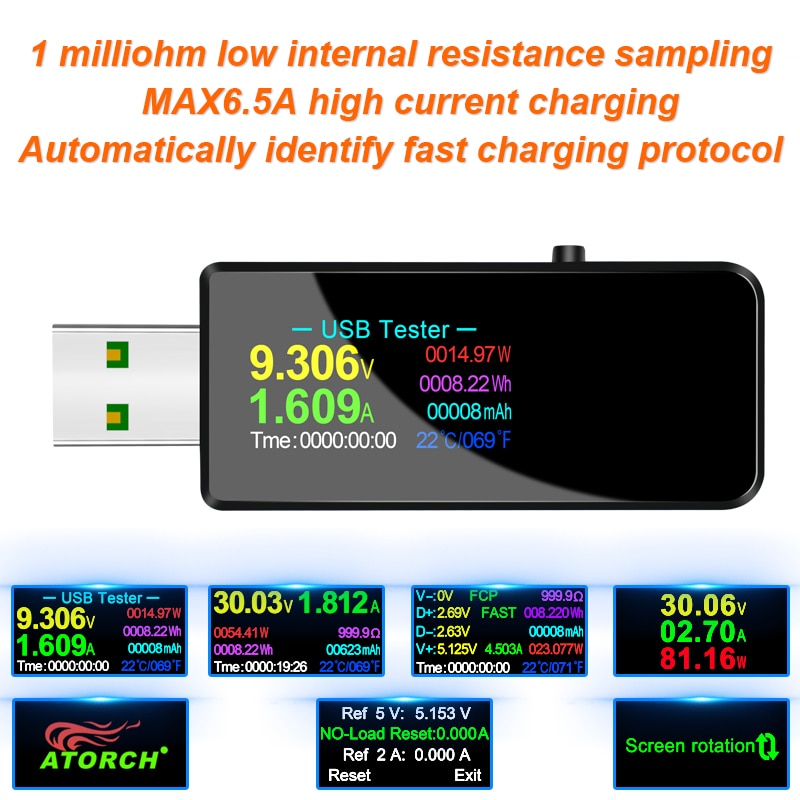

IPS High-definition color display
Low resistance fast charging

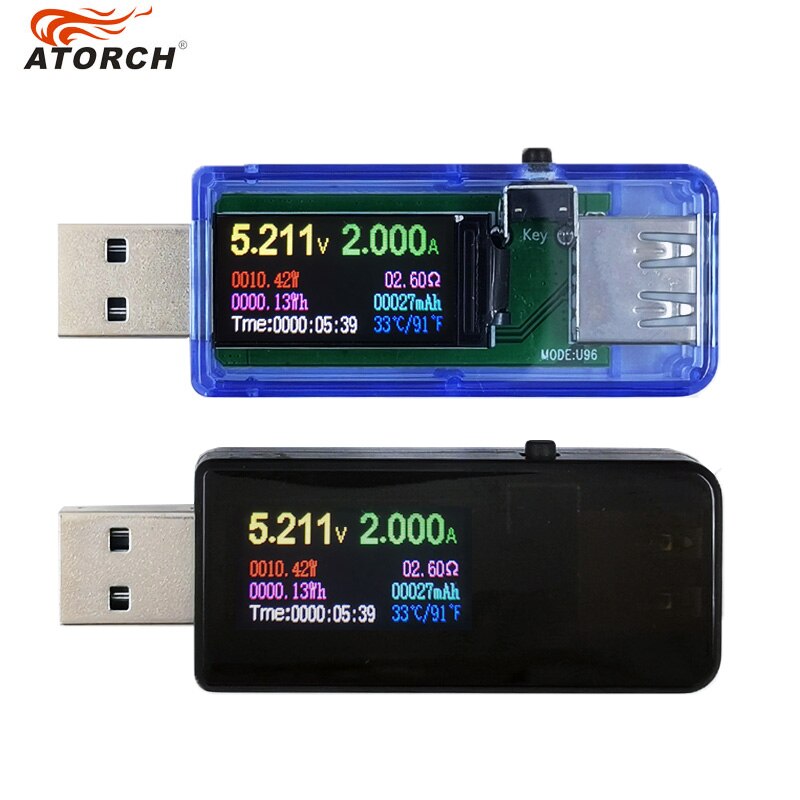

U96 USB color tester can monitor the charging data of the mobile phone in real time, supporting QC3.0 (3.8~12V, -/+0.2 step) Support QC2.0 (5V9V12V20V), Android BC1.2 (5V), Apple 5V2.4A and MTK-PE (5V/7V/9V/12V) Wait for the fast charging voltage range to charge!
U96 13 IN 1Technical parameters:
Voltage measuring range: 3.60V ~ 32.5 V Resolution precision: 0.01 V
Current measuring range: 0.00A ~ 5.00 A Resolution precision: 0.01 A
Power cumulative range: 0 ~ 999999 WH Resolution precision: 0.001 Wh
Capacity range :0 ~ 999999 mAH Resolution precision: 0.001 Ah
Temperature:0℃~ + 80 ℃ Resolution precision:1℃
D+ Voltage:0.000V ~ 2.999 VResolution precision: 0.001 V
D- Voltage:0.000V ~ 2.999 VResolution precision: 0.001 V
Load impedance: 0~ 999 ohm Resolution precision:1 ohm
Power metering range: 0 ~ 299.999 W Resolution precision: 0.001 W
Timing maximum time: 999 H 59 M 59 S Resolution precision: 1 S
Time to refresh: > 500 ms/time > 500 ms/times
Measurement rate: 0.5 times/s
Use large equipment of the same metal manganese bronze sampling resistor
(1.0 mm diameter metal manganese bronze material < 0.05R)
Product size: 65 x 24 x 14 mm
Since the power flow: < 0.003 A (<3mA)
Working temperature: - 10 ~ + 60 ℃
Working humidity: 10 ~ 80 (no doubt)
The pressure of work: 80 ~ 106 kpa
Cumulative capacity range: 0-99999 mah precision: 0.001 Ah (New features or D+ D- Voltage )
Specifications:
Item size:65 * 24 * 14 mm
