TUYA ZigBee Smart Circuit Breaker With Metering 1P 63A DIN Rail for Smart Home Wireless Remote Control Switch by Smart Life APP
4.8 (191 votes) | 1000 orders
Price:
US $54.72 - 137.49
Discount Price:
US $
27.26 -
61.54
-50%
- Rated Current
- Poles Number
We can provide the API service for this product.
This service will add an extra fee.
If you need it, please feel free to contact us. We will give you our best attention at all times.

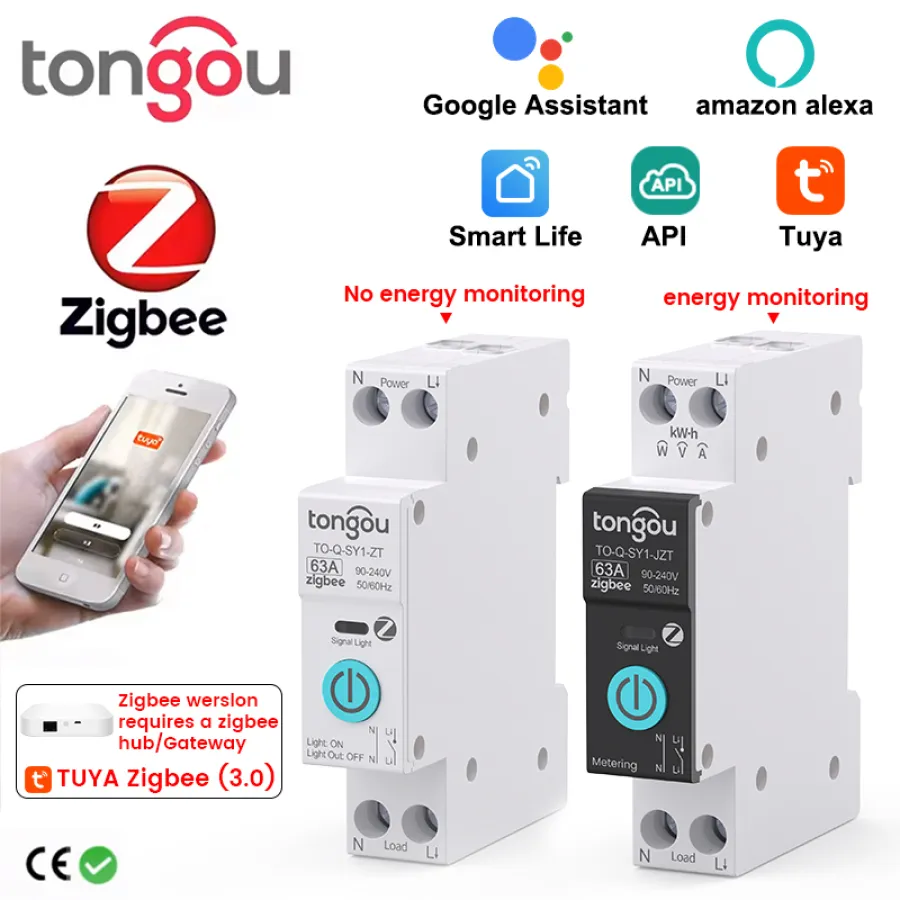

ZigBee 3.0 Smart Switch (SY1 Series)
Compatibility & Requirements

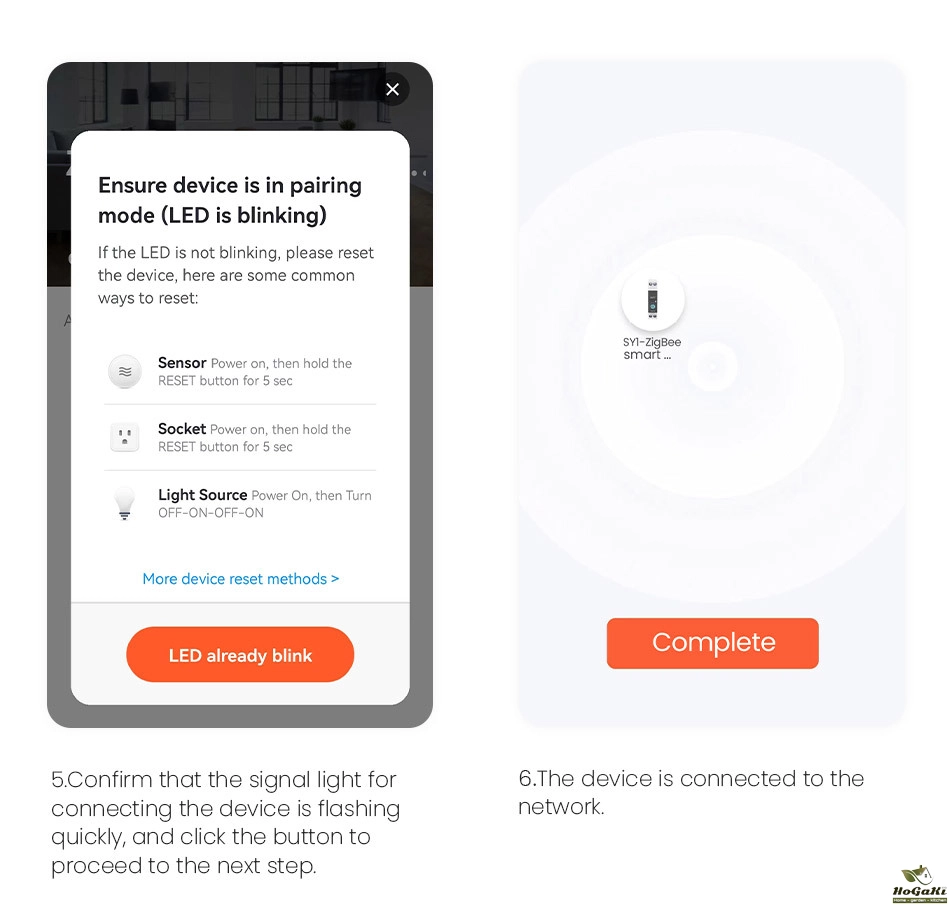

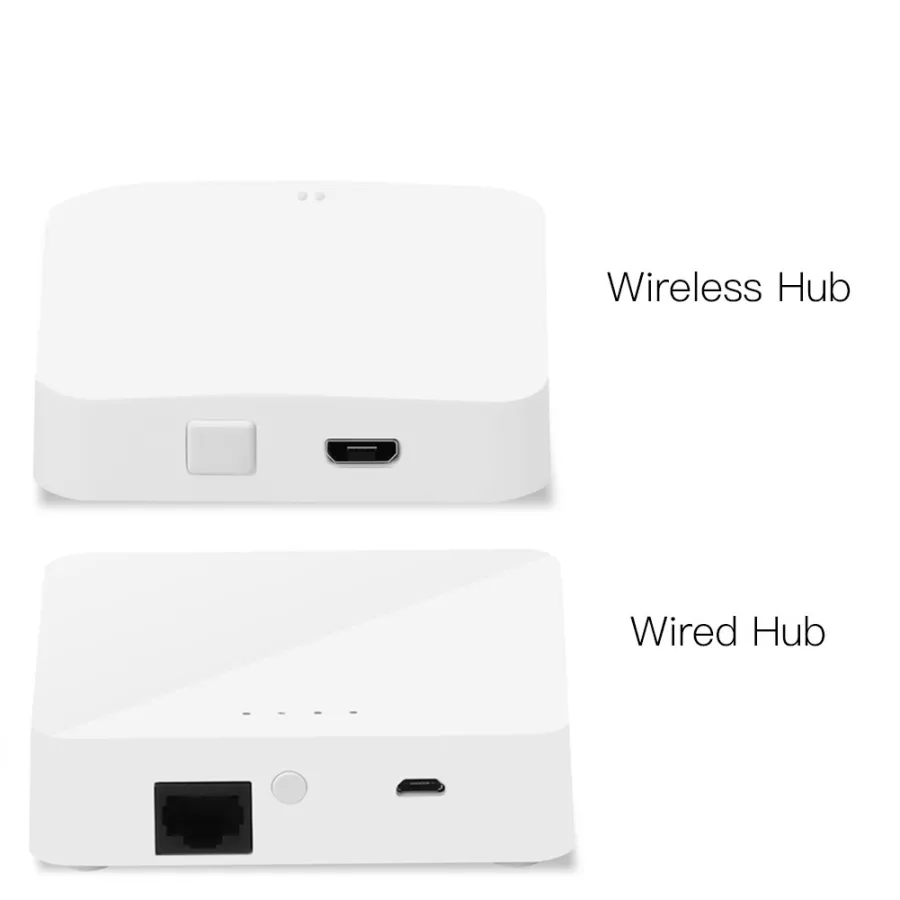

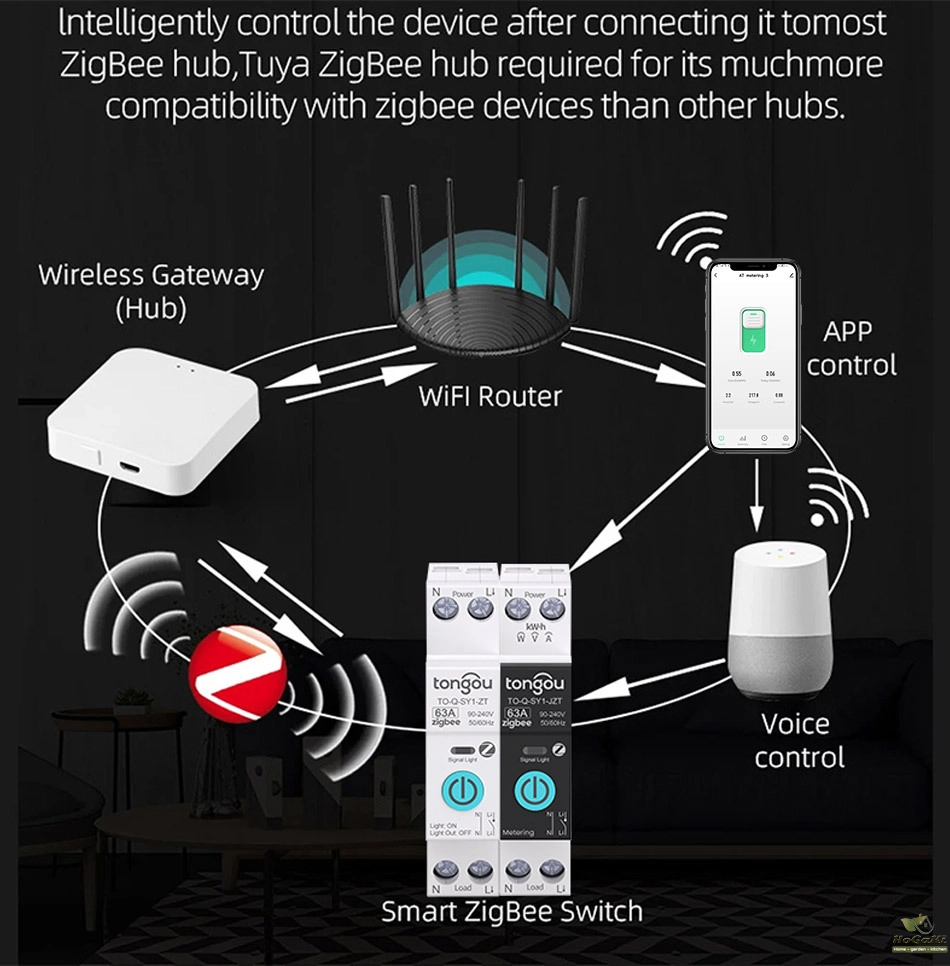

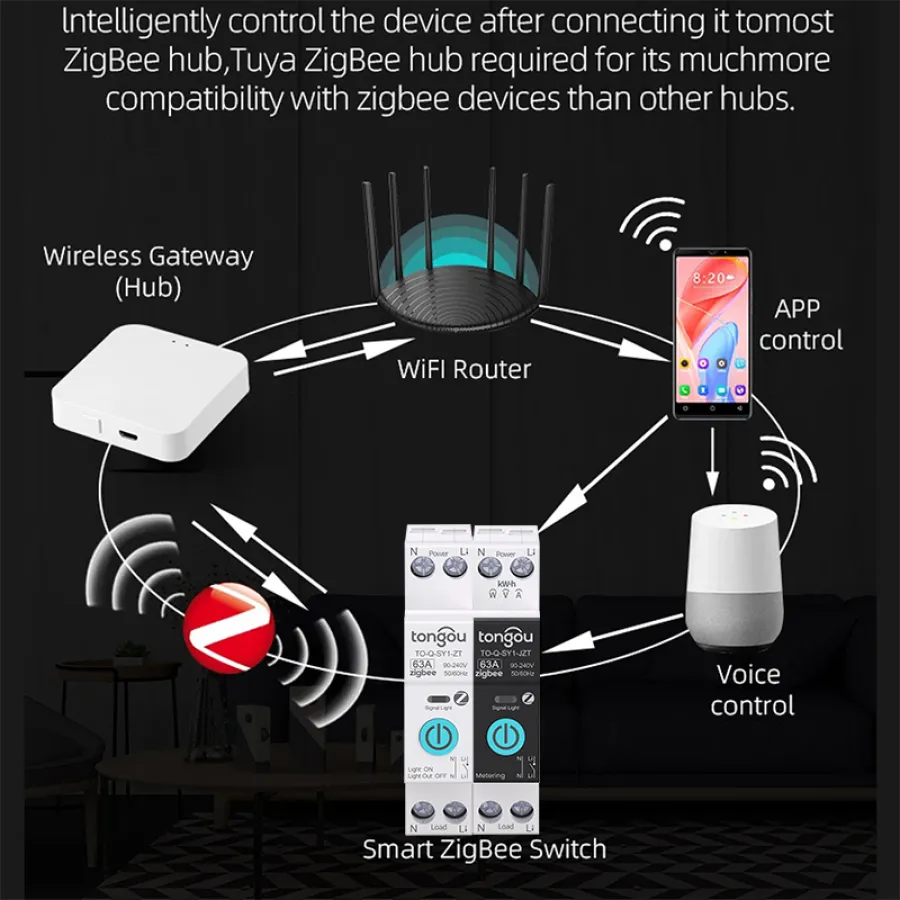

Protocol: ZigBee 3.0 (requires a TUYA ZigBee Hub/Gateway for remote control; cannot connect directly to Wi-Fi).
Note:
No built-in protection (overcurrent, leakage, etc.). Complies with IEC 60947 standard.
Poles: 1P+N (N pole cannot be cut off).

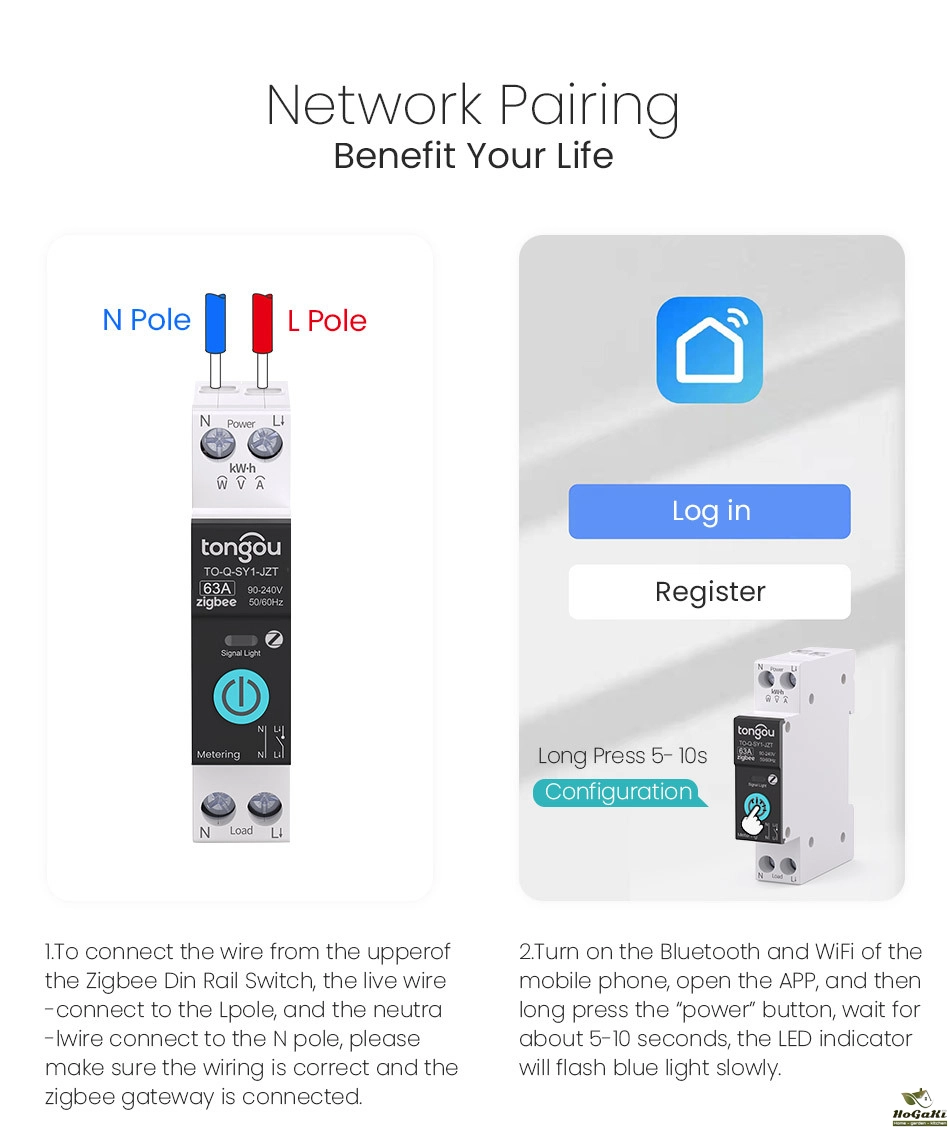

Wiring: Power must enter from the top (Live + Neutral L+N). L+L (Live+Live) is not supported.

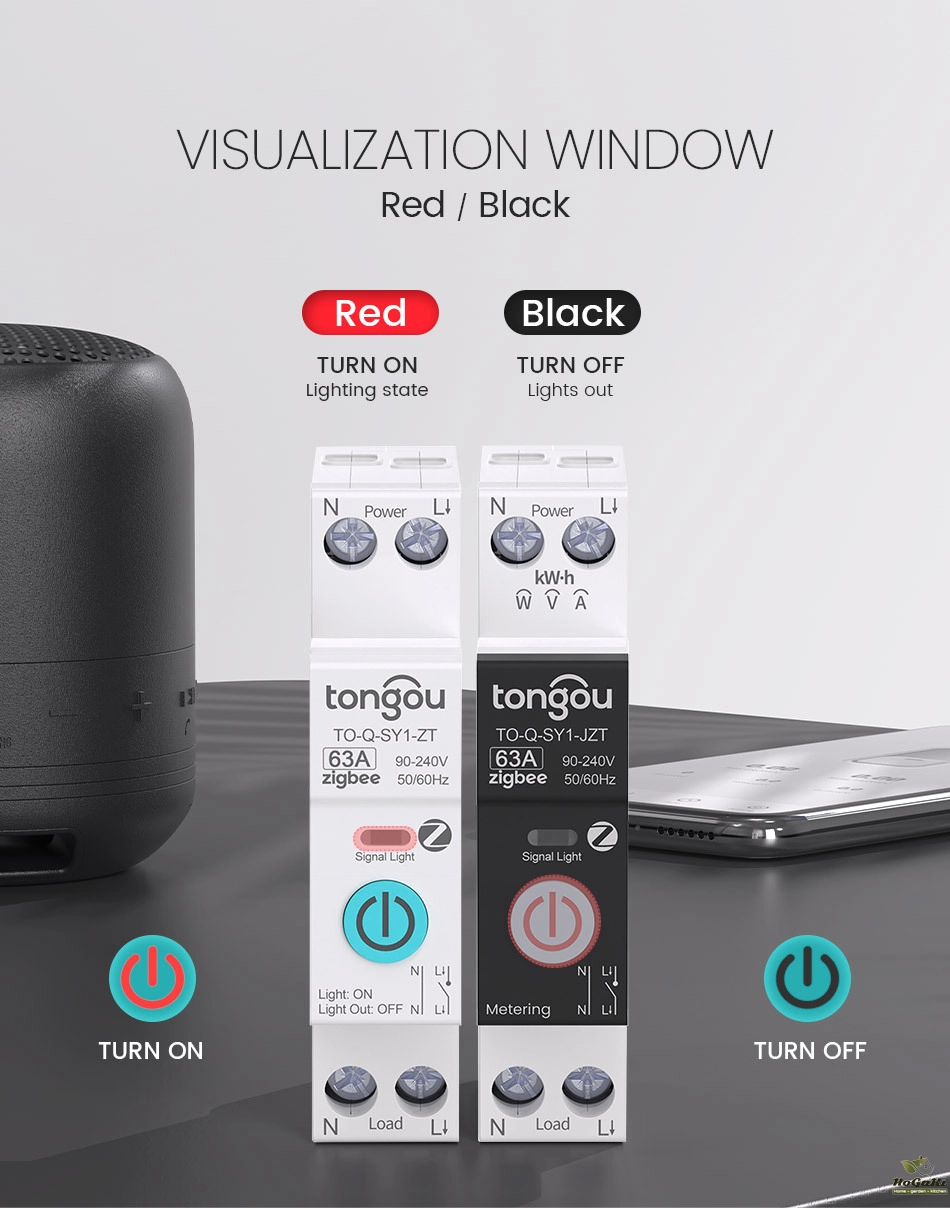

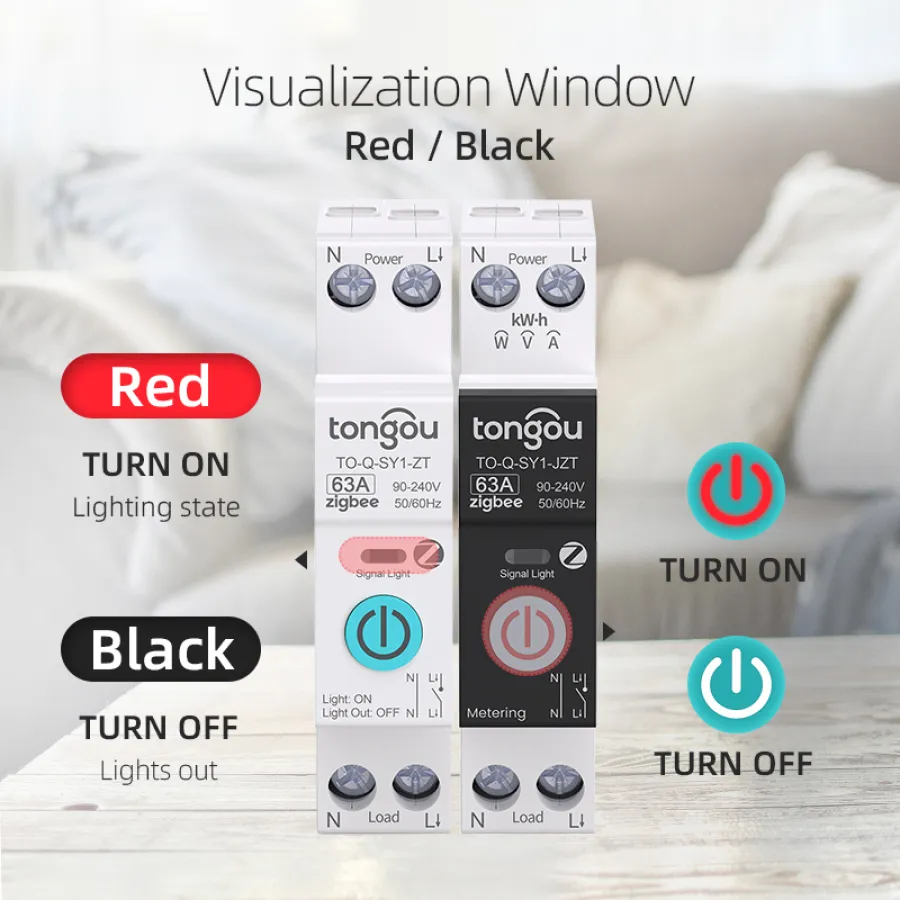

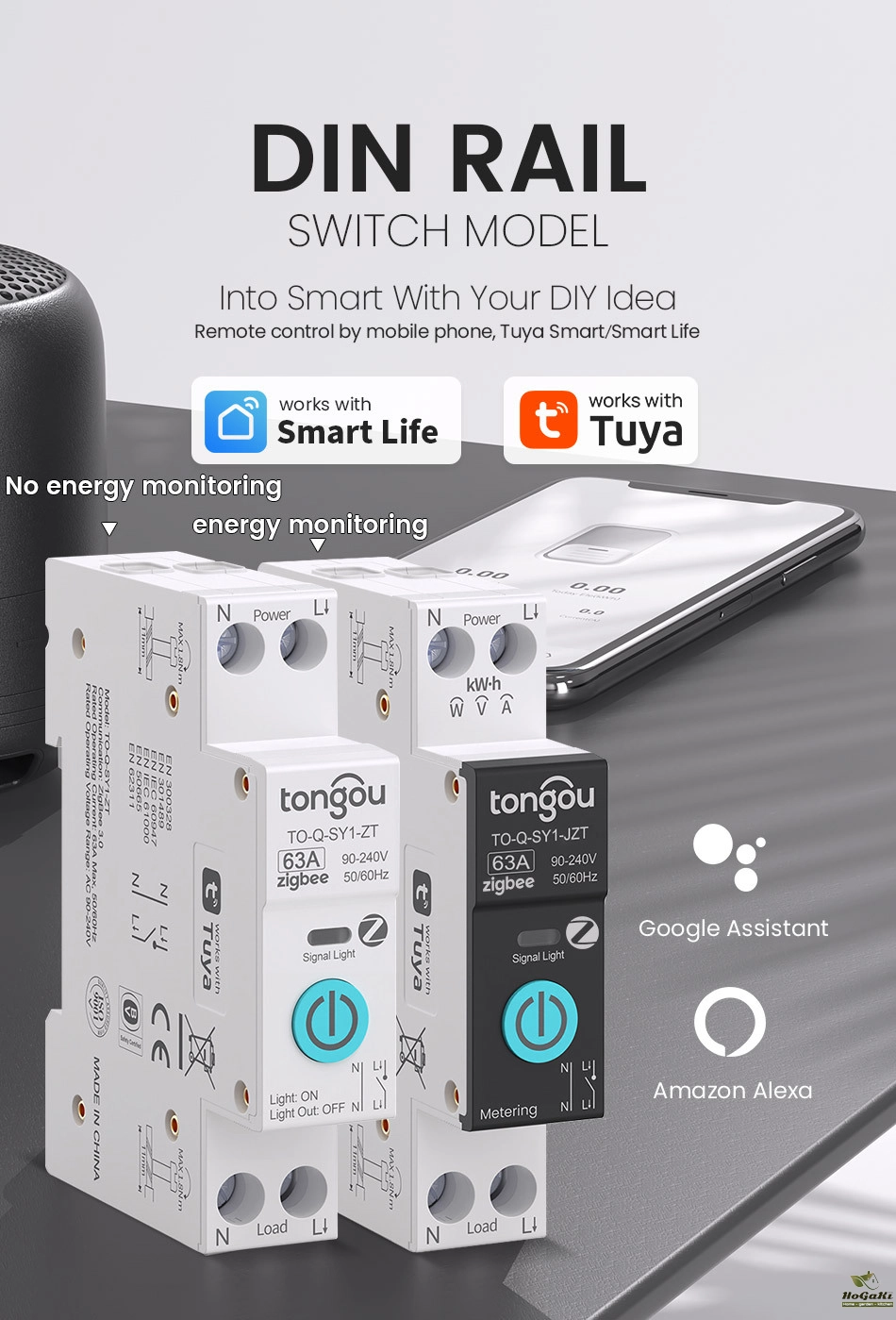

Color Variants:
White Model: Without power monitoring function.

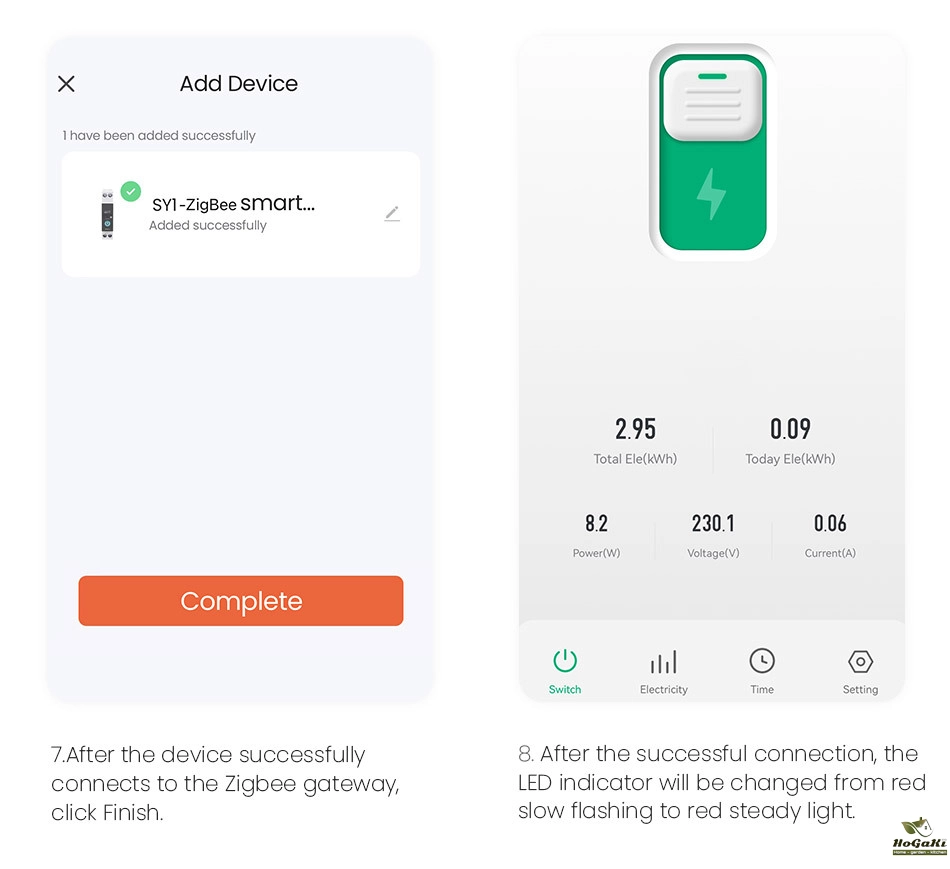

Black Model: Includes real-time power monitoring (voltage, current, consumption tracking).
Both models lack overcurrent protection (cannot set current/voltage limits via app).
Key Features
✅ Remote Control: Operate devices via "Smart Life" or "TUYA" app (Android/iOS) from anywhere.

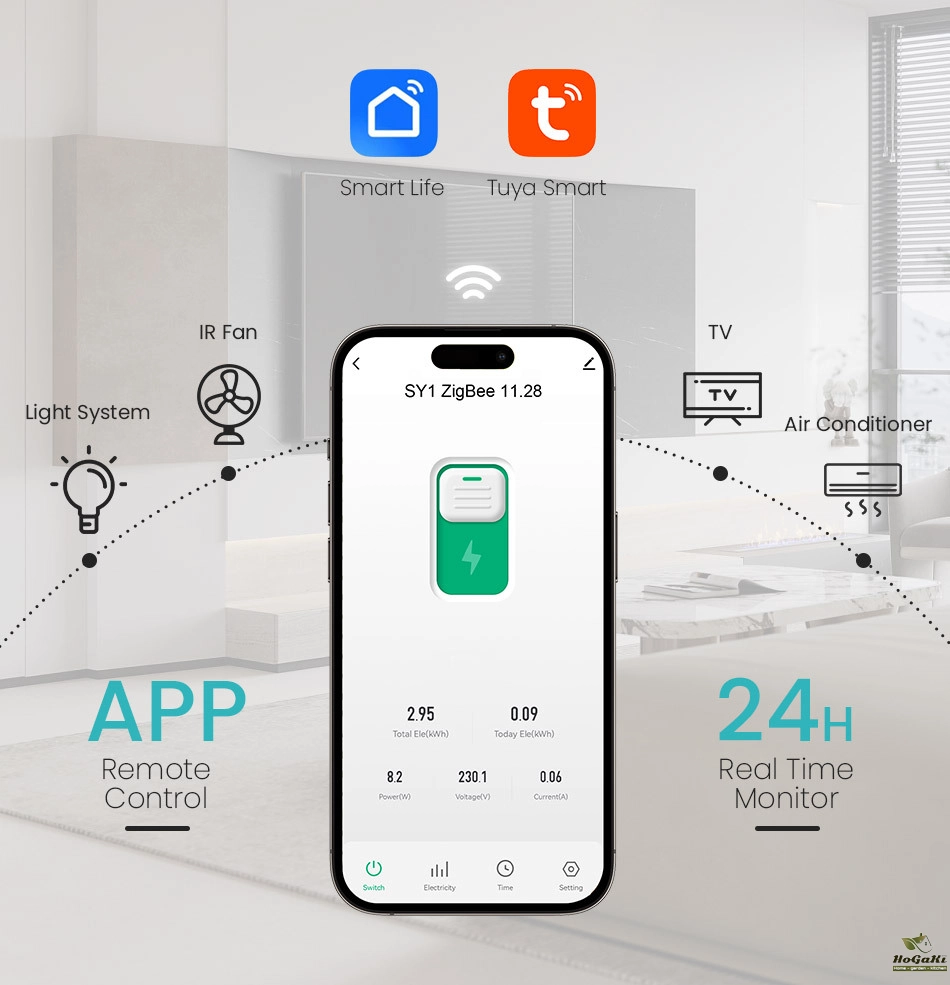

✅ Power Monitoring (Black Model Only):

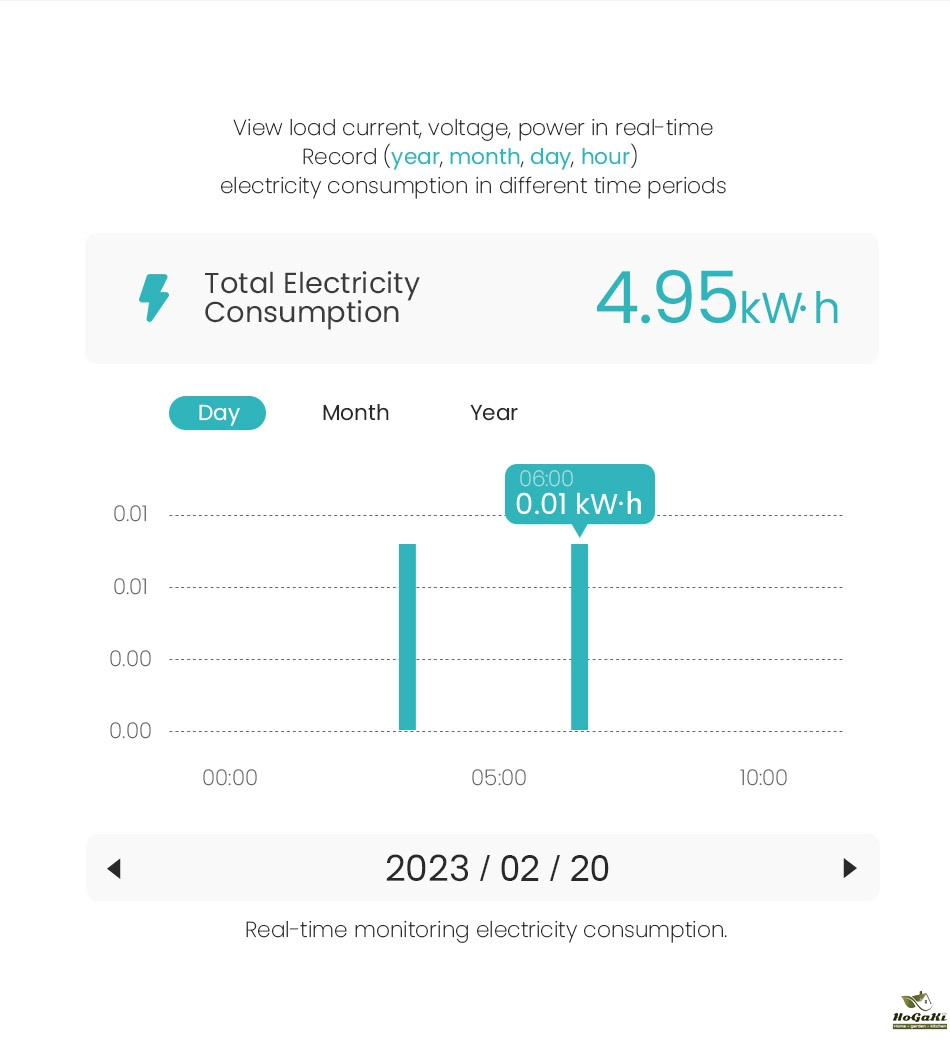

Real-time Monitoring of voltage, current, power, and historical usage (hours/days/months/years).

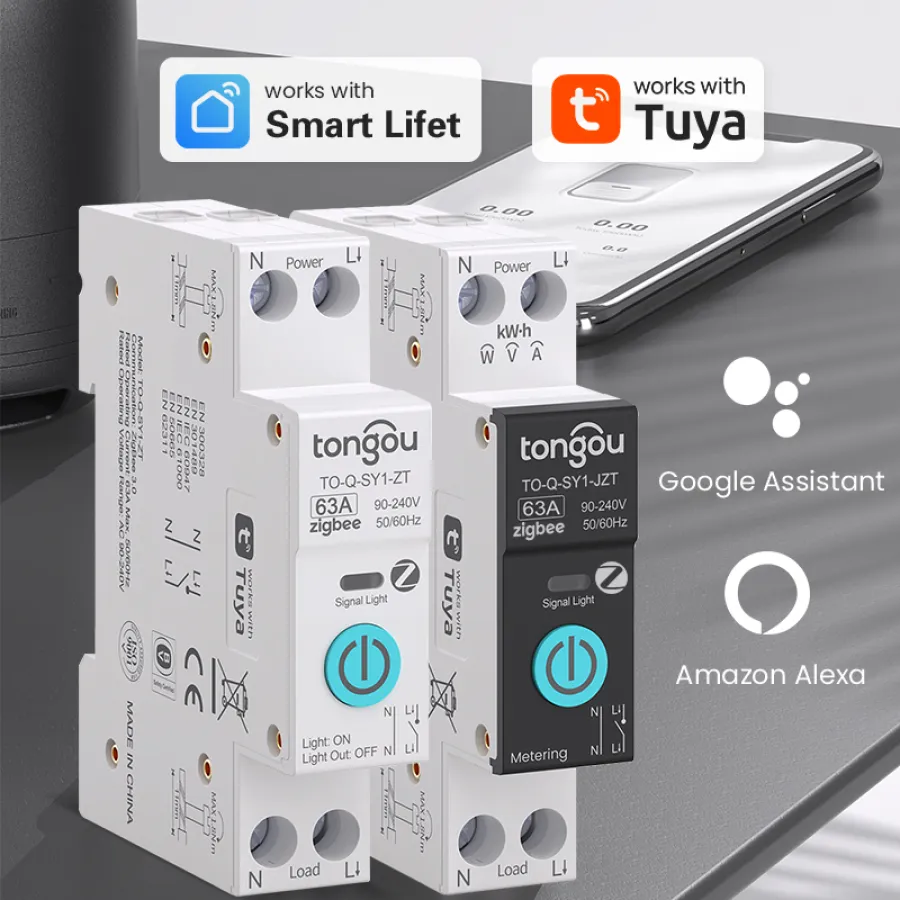

✅ Voice Control: Works with Amazon Alexa and Google Assistant.

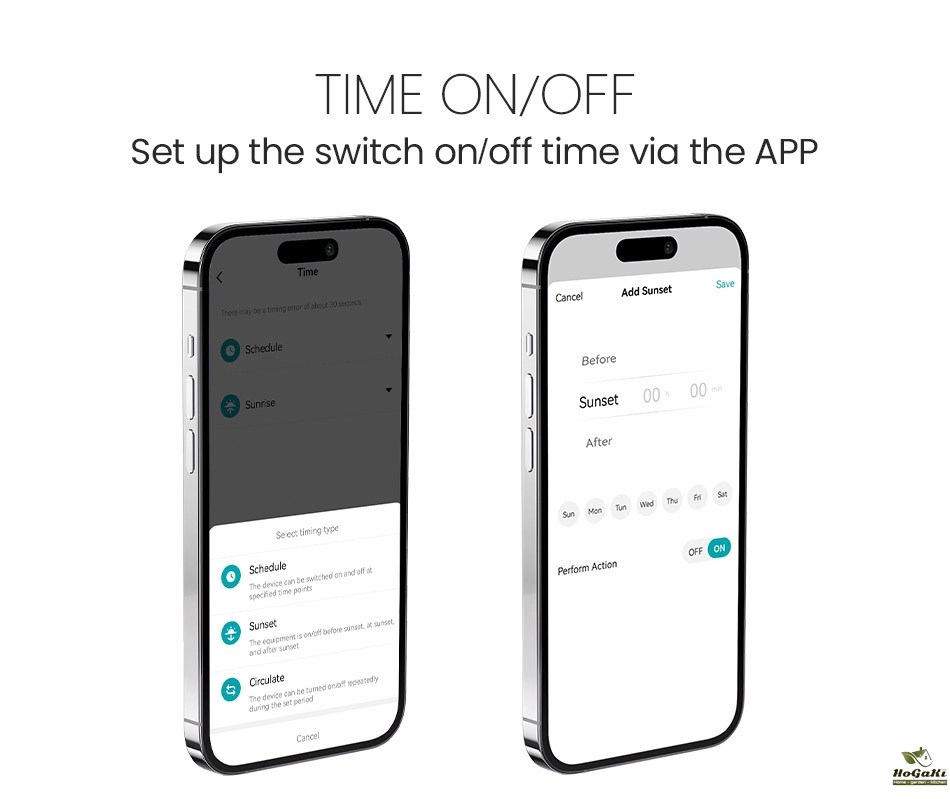

✅ Timing & Automation:
Schedule: Set on/off times for energy savings.
Countdown/Cycle Timing: Prevent forgetting to turn off appliances.

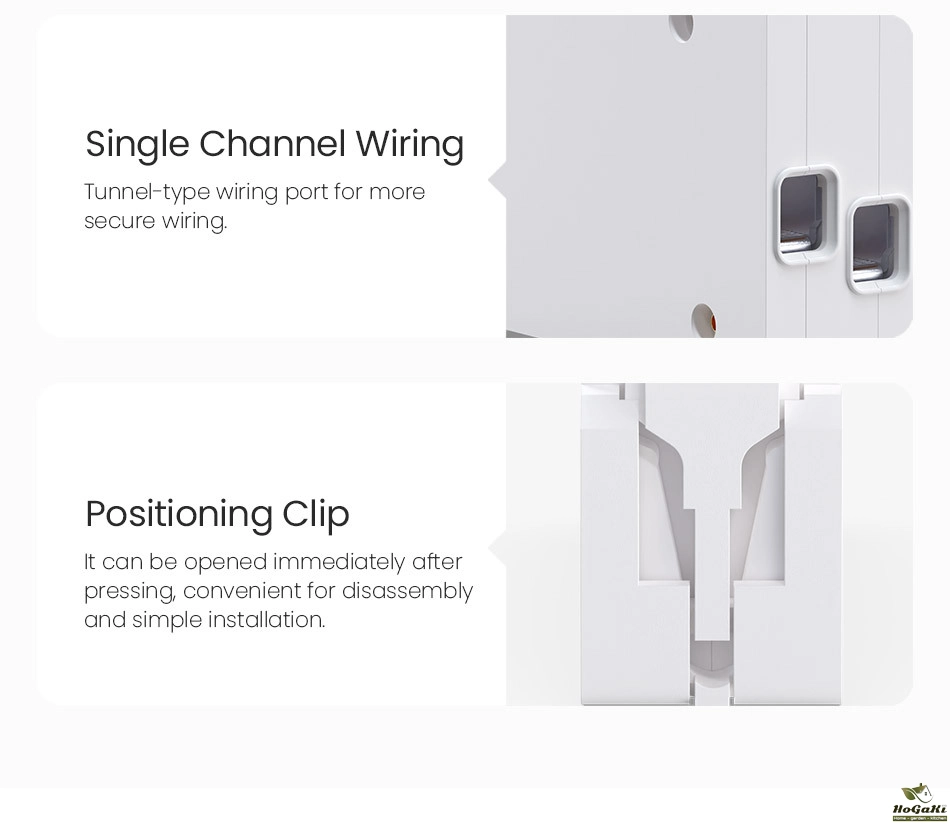

✅ Easy Installation:
Wiring completes in <10 minutes (press-and-insert terminals, screw tightening).
Max wire capacity: 10mm² (power/load sides).

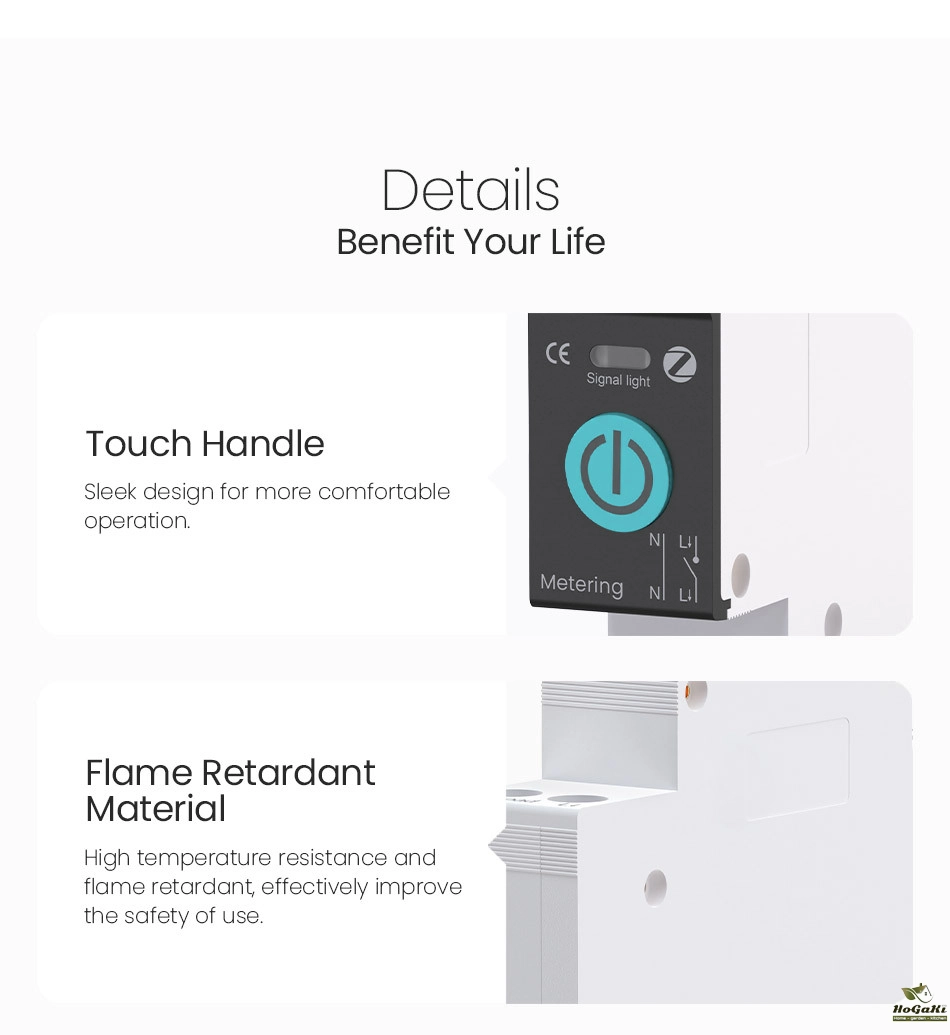

✅ Durable Materials:
Flame-retardant PA66 shell, high-conductivity copper.
Technical Parameters
Rated Voltage: AC 90-280V, 50/60Hz.
Current Type: AC (resistive loads only, e.g., heaters, incandescent lamps, ovens).
Max Load: 63A (pure resistive loads).
Supported Systems: Android, iOS.
Applications
Convert traditional appliances (lamps, fans, heaters, etc.) into smart devices for:
Home Automation
Energy Management
Hands-Free Voice Control
Notice: Not suitable for circuits requiring overcurrent protection.
Packaging Details
- Unit Type:
- Package Weight: 0.125

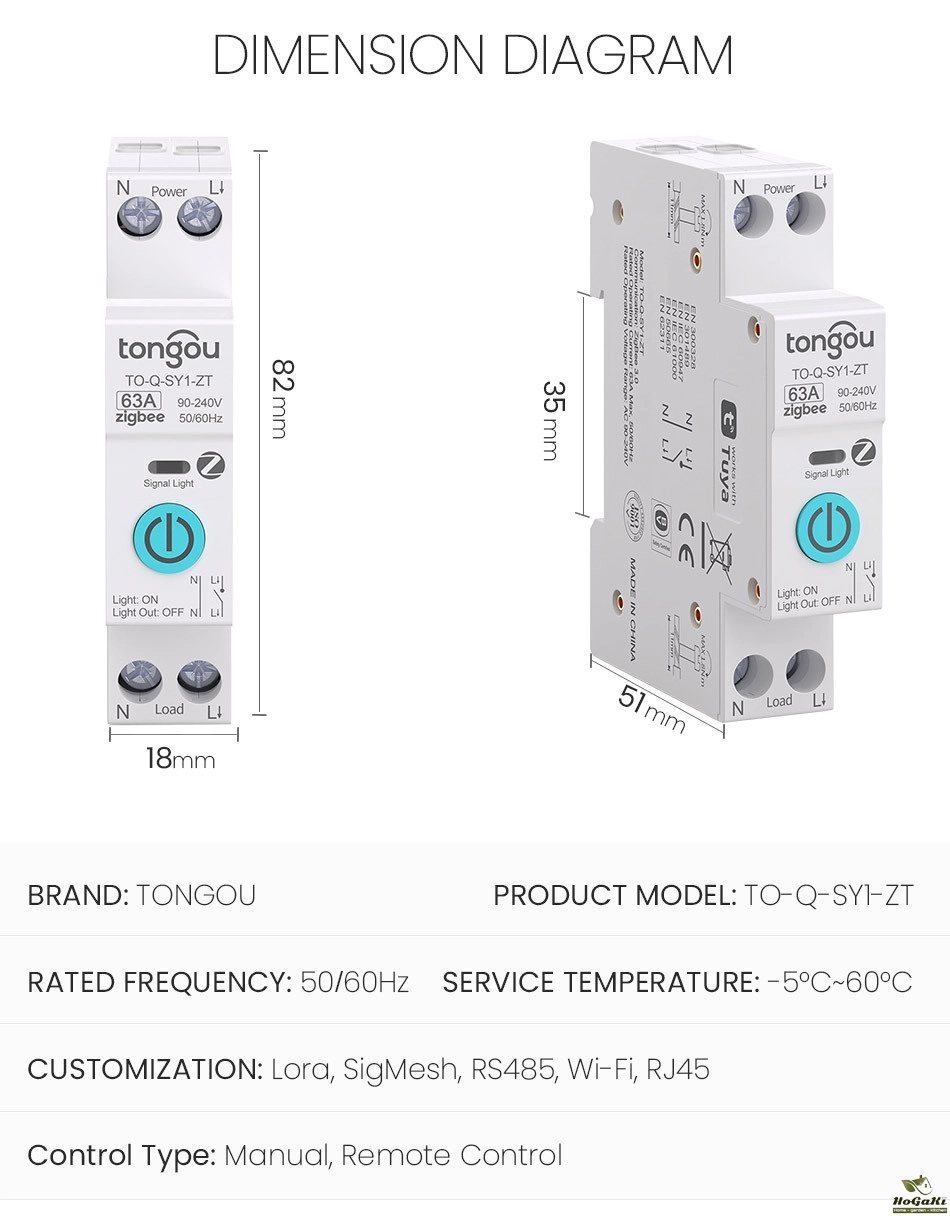

- Package Size: 5x5x13
- Brand Name: TONGOU
- Hign-concerned Chemical: None
- Type: Mini
- Origin: Mainland China
- is_customized: Yes
- Model Number: White TO-Q-SY1-163ZT
- Is Smart Device: Yes

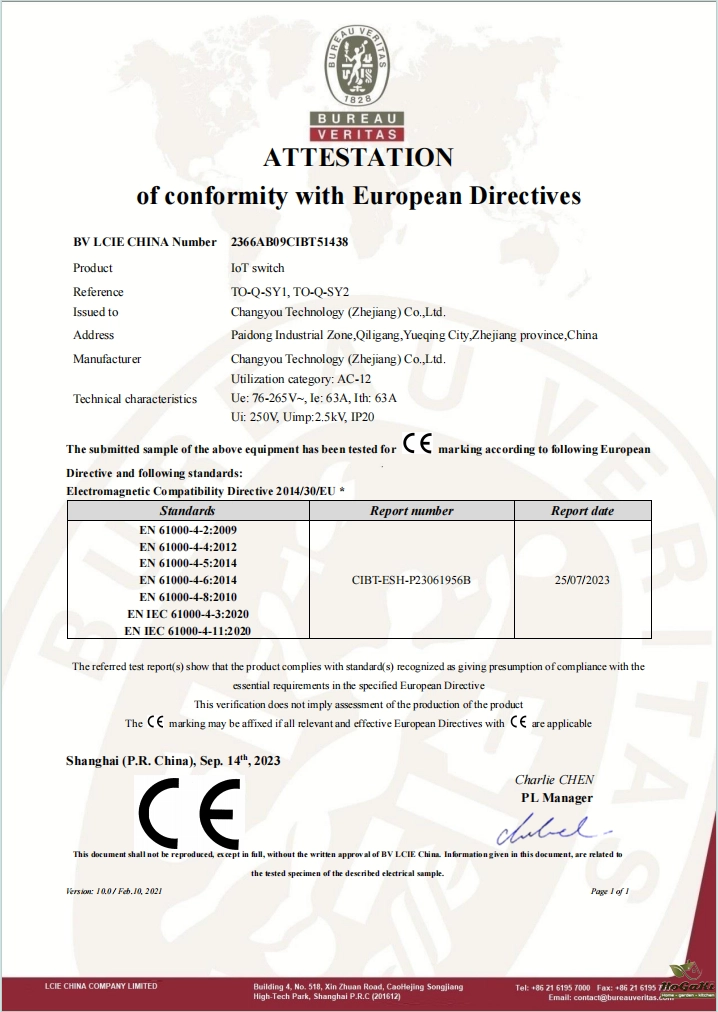

- Certification: CE
- Model Number 2: BlackTO-Q-SY1-163JZT
- Warranty: one year
