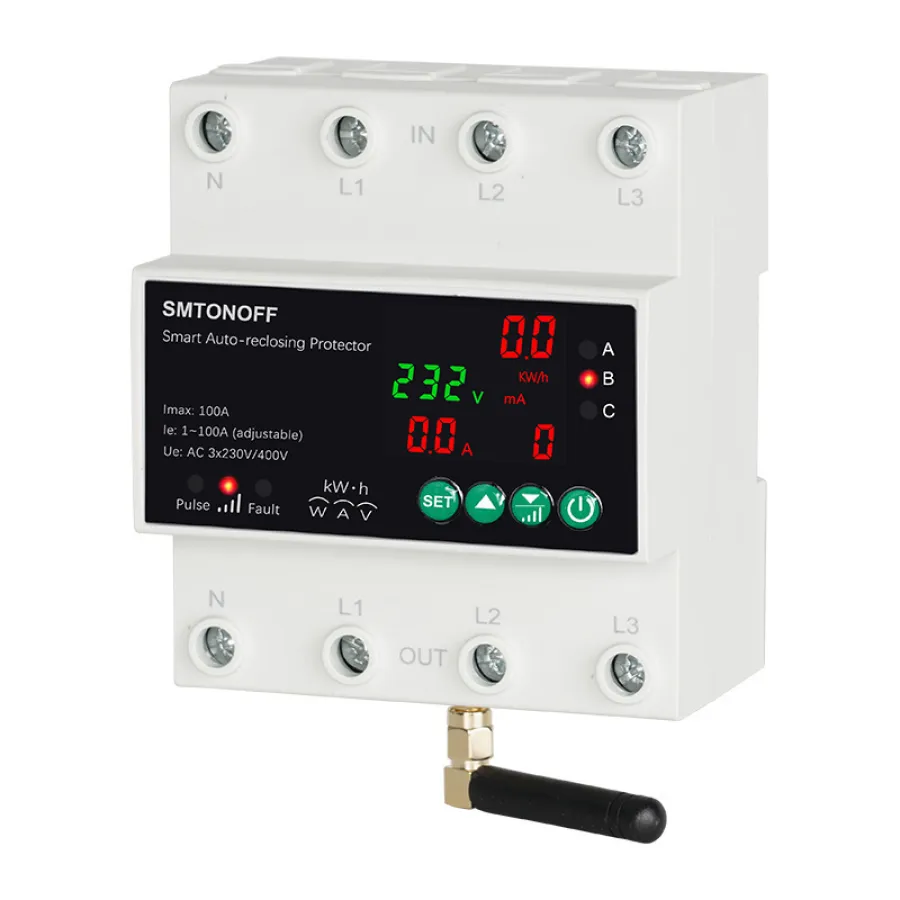

Tuya WiFi Three Phase 4P 100A Auto-Reclosing Over Under Voltage Protector Prepaid Meter Timer Switch Voice Remote Control
4.7 (122 votes) | 900 orders
Price:
US $249.68
Discount Price:
US $
121.42
-51%
- Voltage
Attention

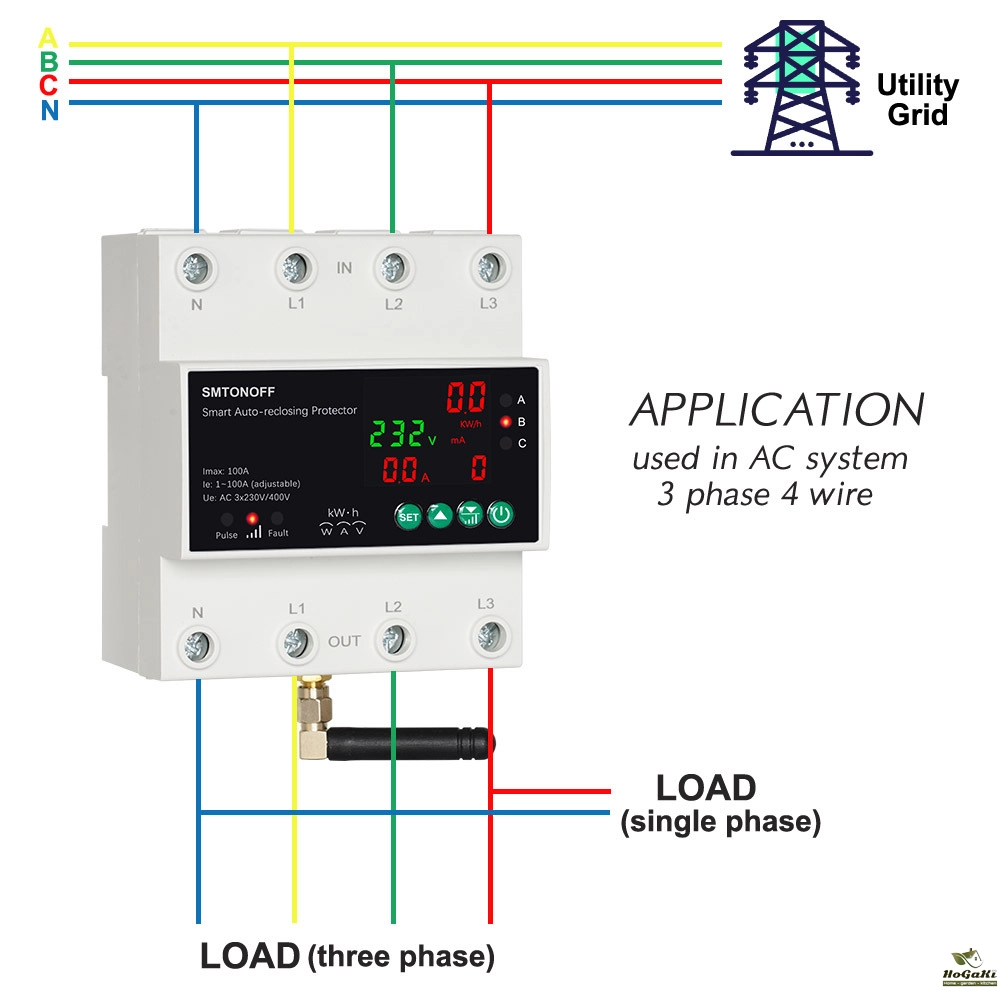

1. This device is for use in three-phase electricity, please do not use it in single-phase electricity.
2. The device has phase loss protection, so all phases must be connected.

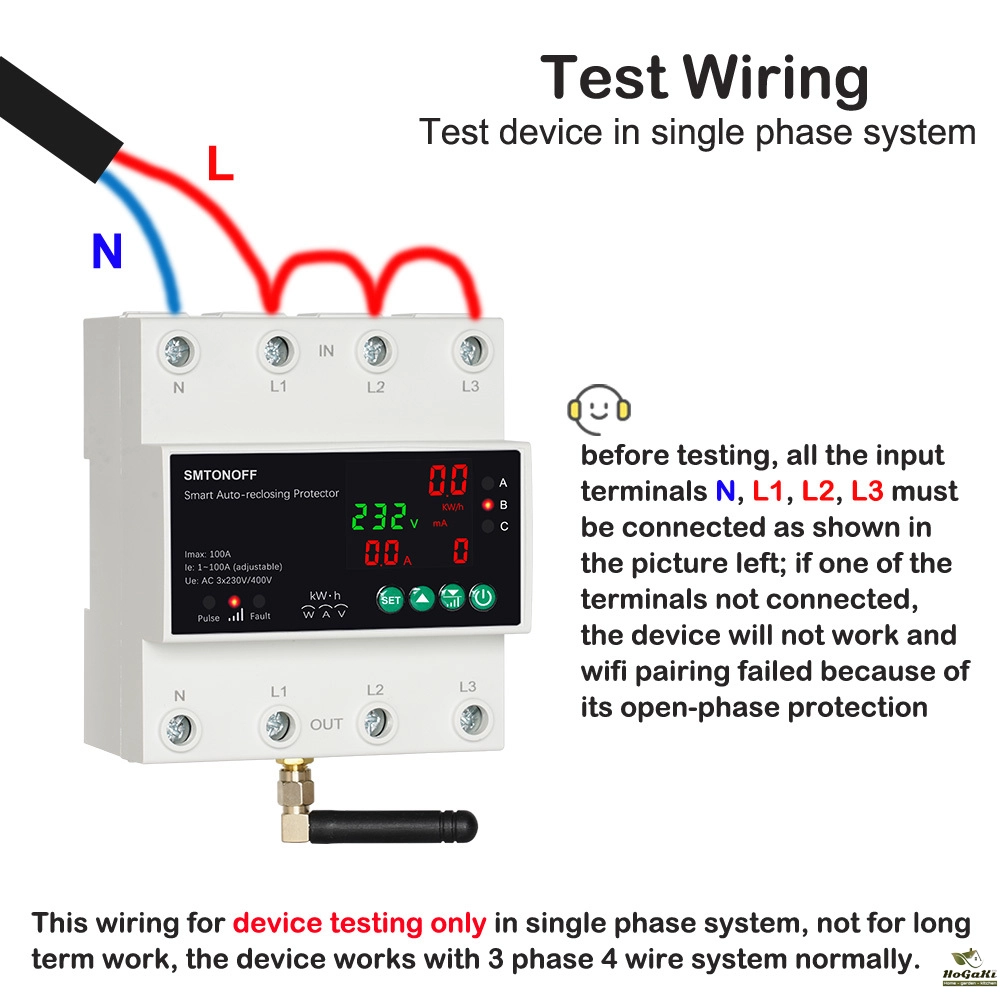

3. If testing in single phase, please connect N+ L1+L2+L3, but this is only for testing, it can't be used in single phase all the time.
For single-phase test connection, please refer to the picture below.

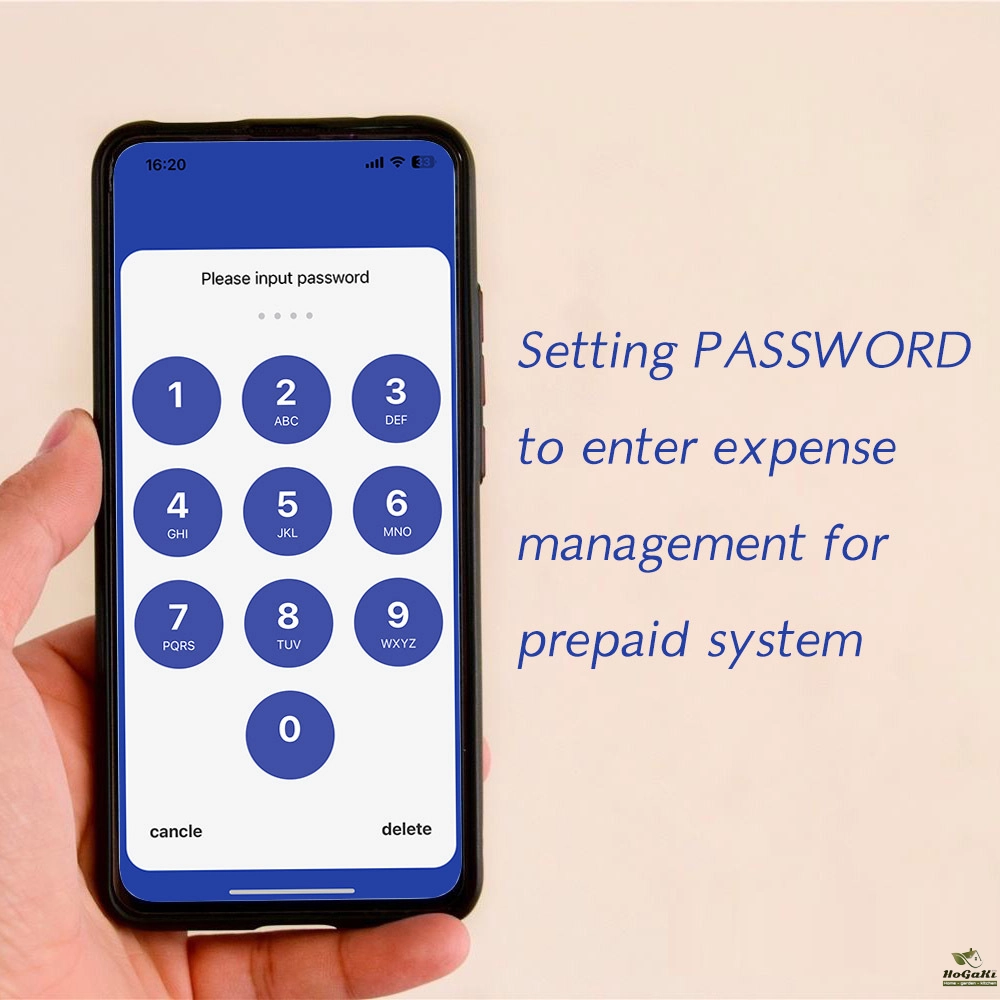

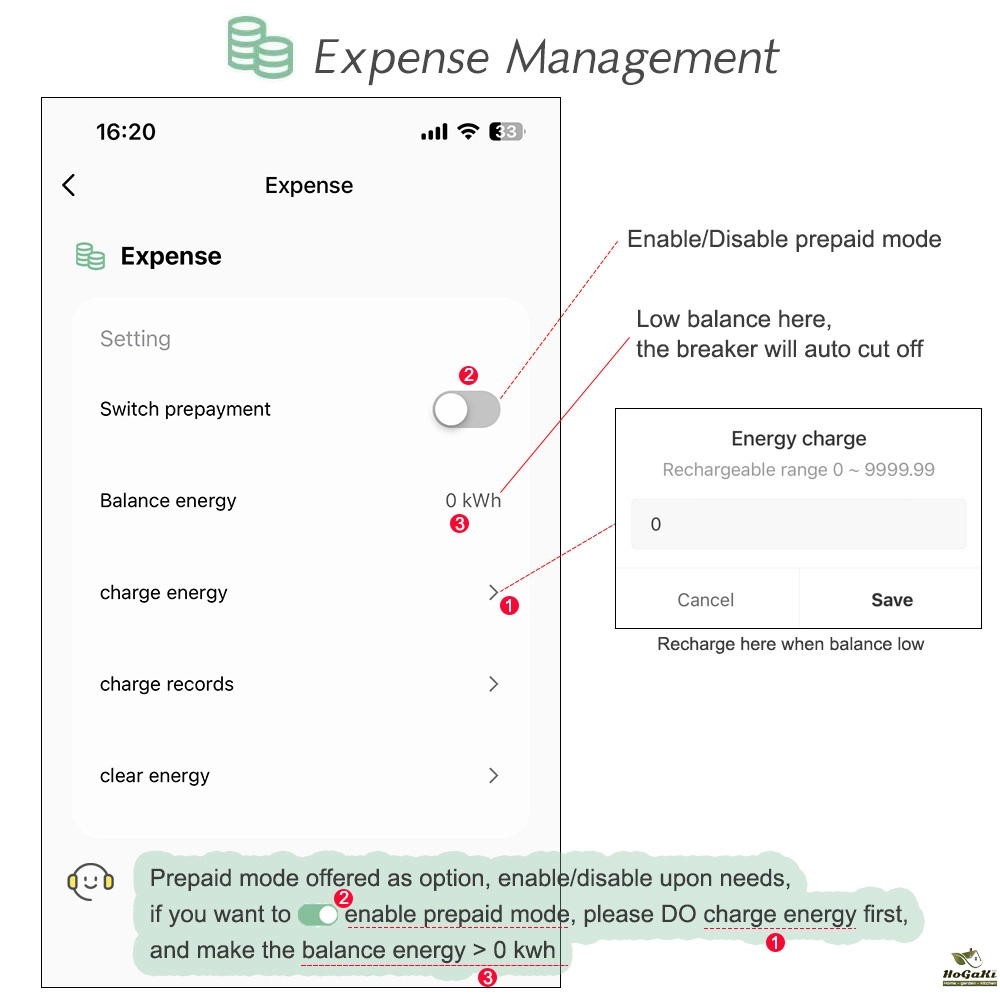

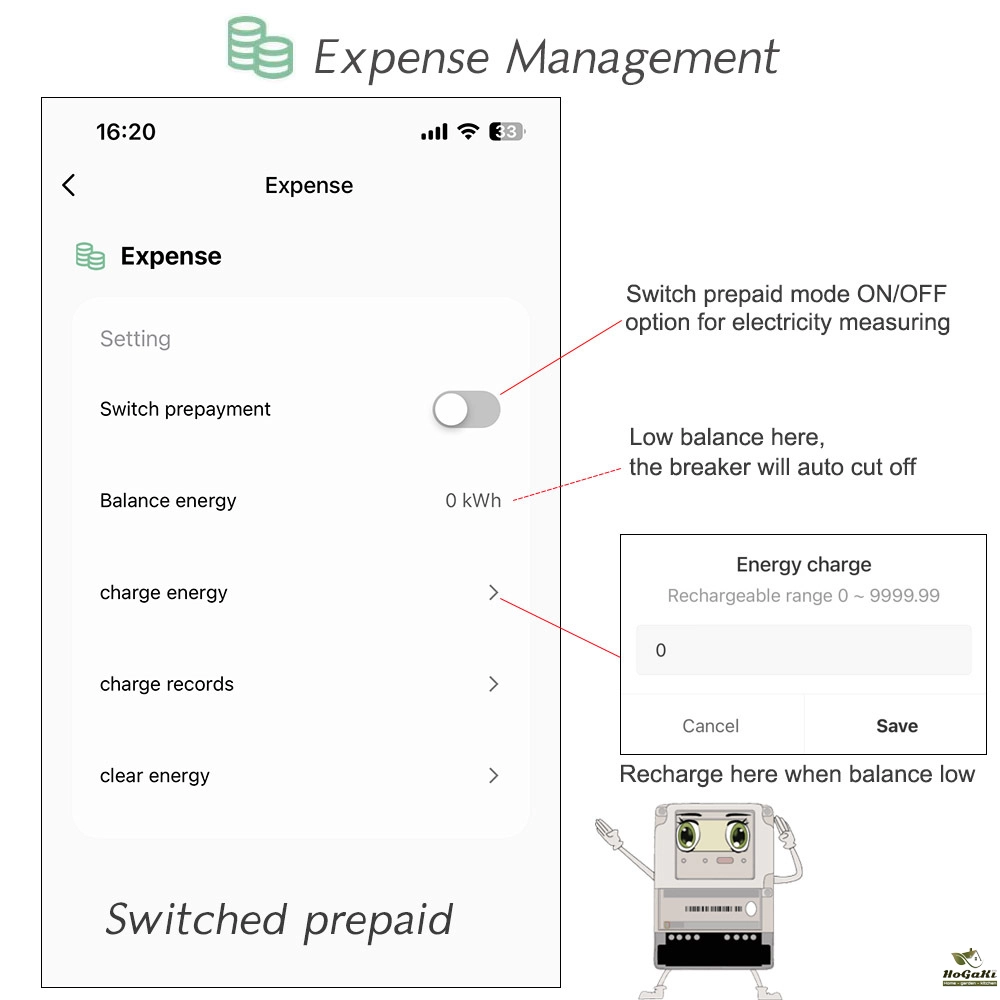

4. This device has prepaid function, default is off. The user password is 1234 by default, if you enable this function, please recharge the device. Otherwise, the device cannot be turned on.
5. If you enable the prepaid function, but forget to recharge the device, there are two ways to solve the problem.
A. Turn off the prepaid switch in “Expense” of APP.
B. Charge energy in “Expense”
Overview

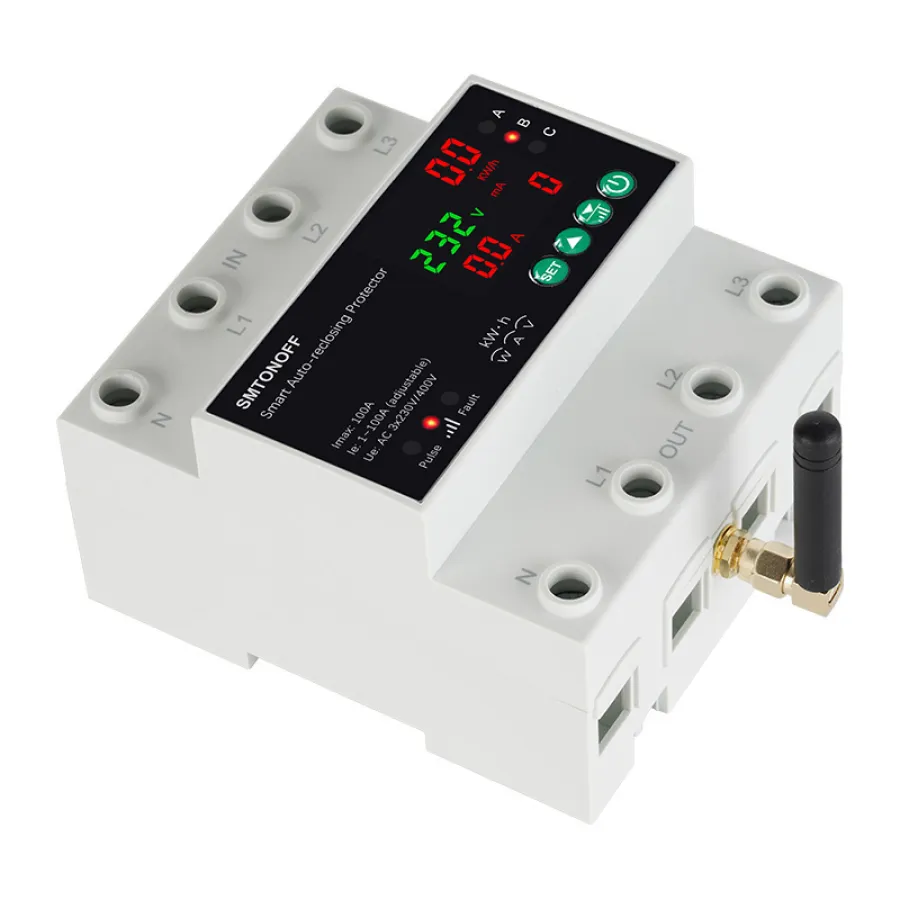

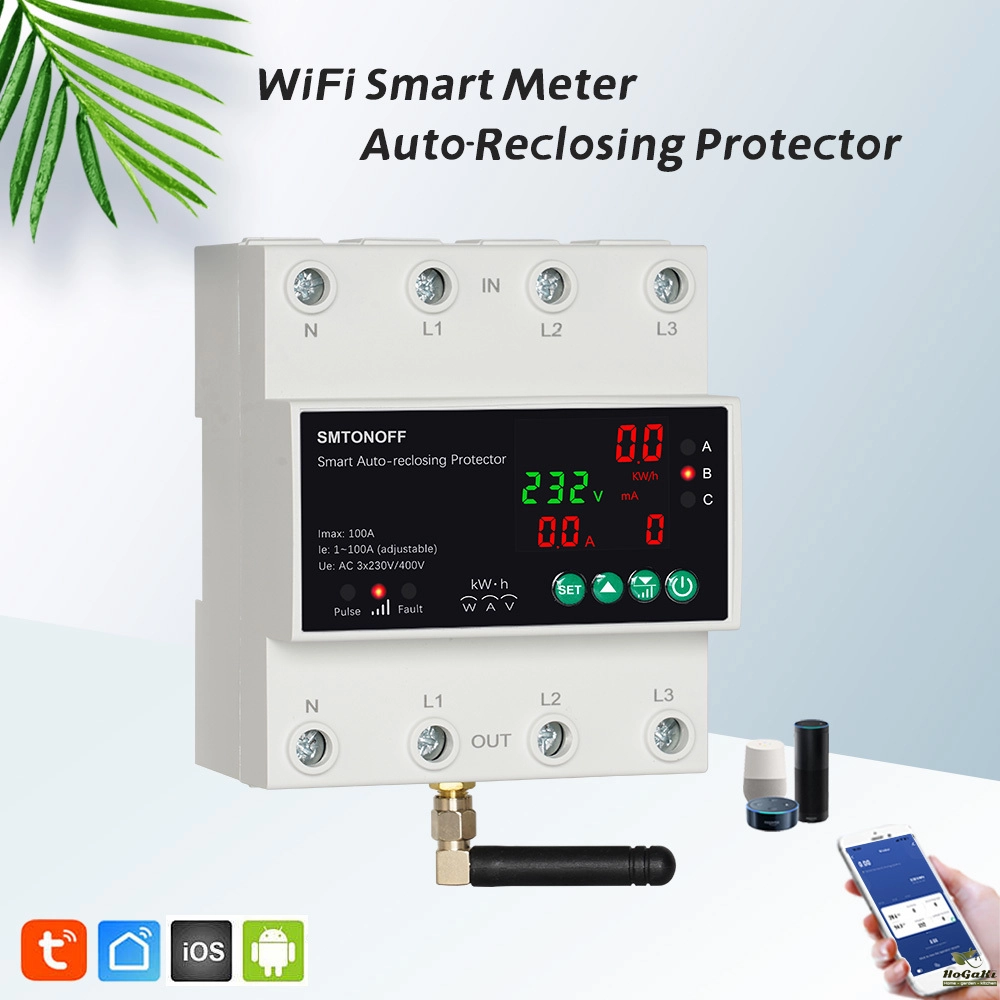

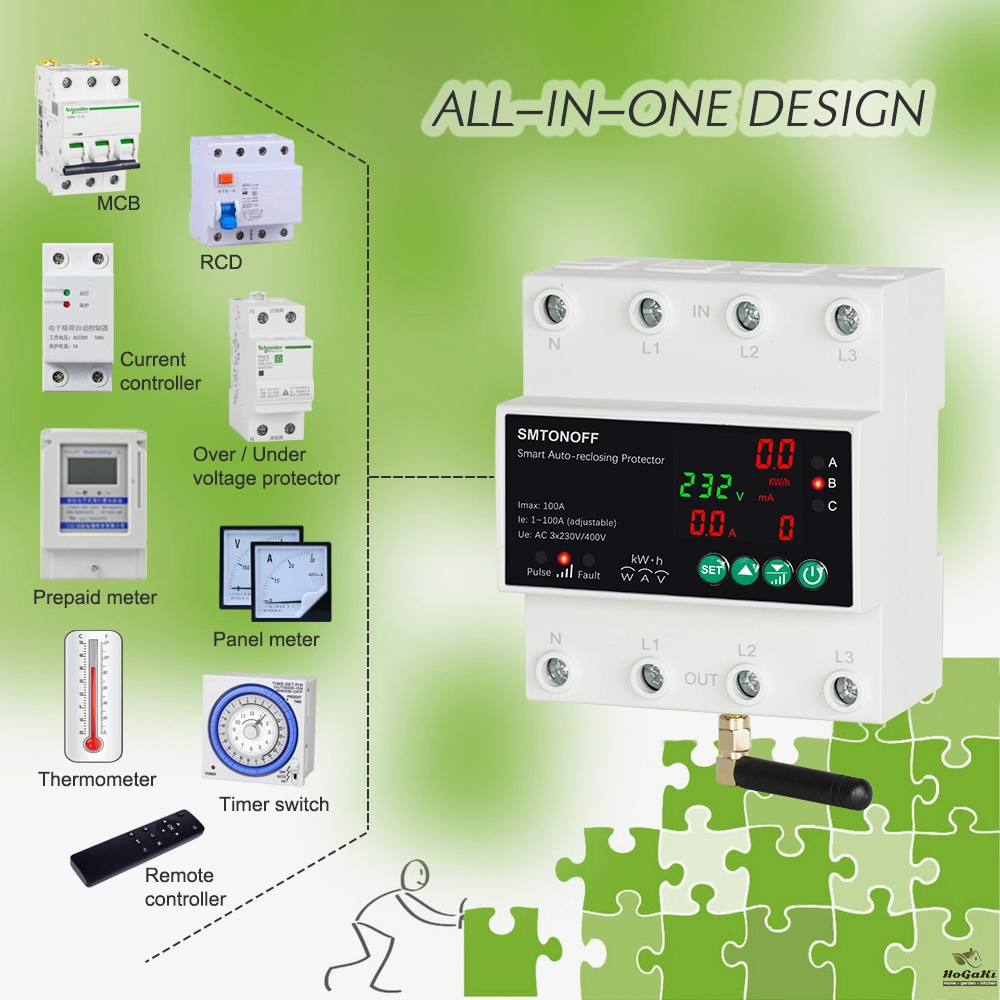

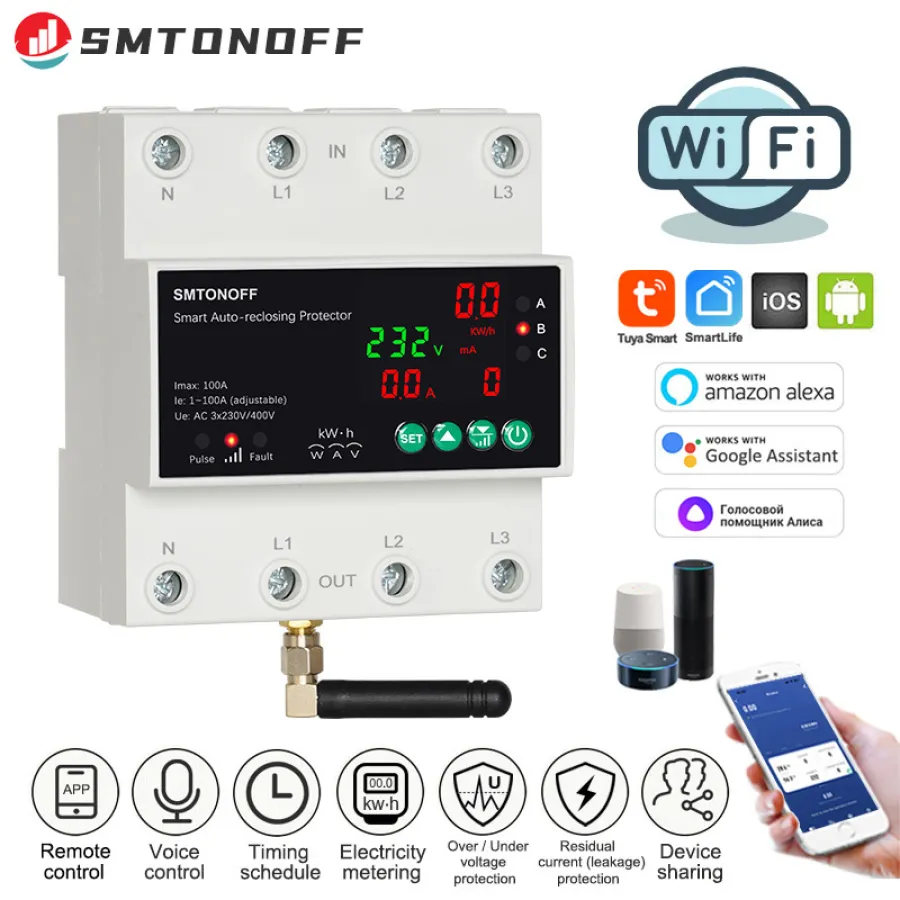

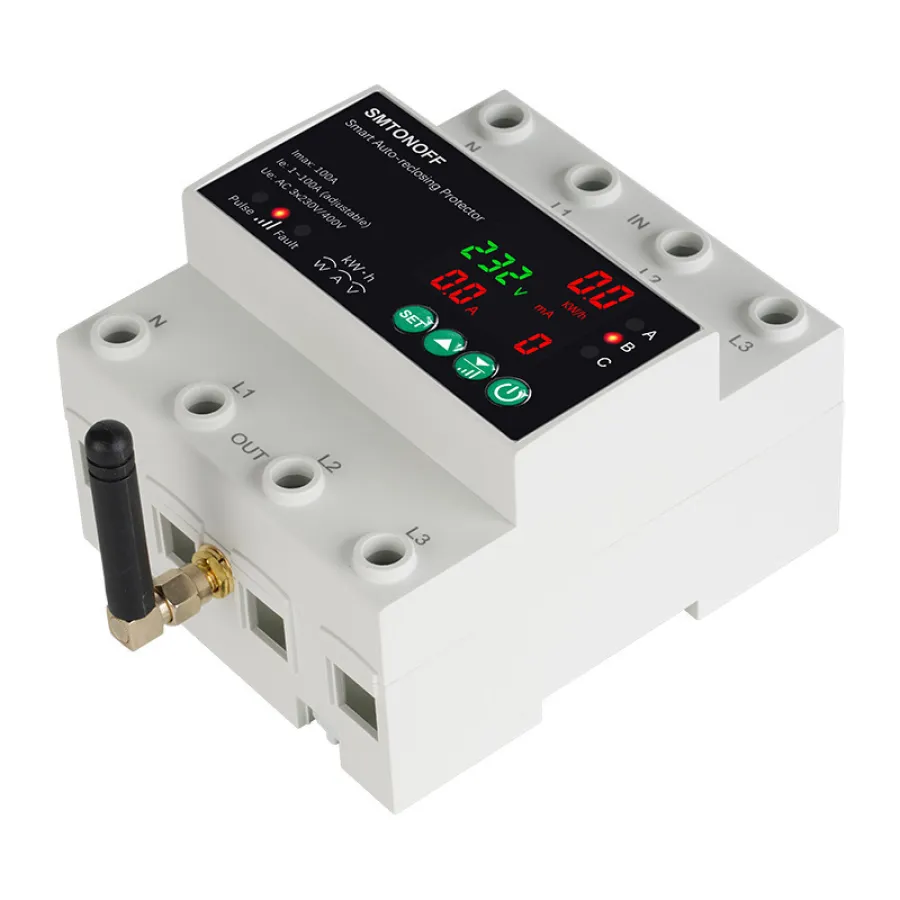

This all-in-one design smart IOT device applied to AC 230V/400V, 50/60Hz, rated current up to 63A/100A single or three phase
circuits in resident, commercial and industrial buildings with 2.4G WiFi, to measure electricity consumption and offer prepayment
as option; to remote control and set protections against over/under voltage, overcurrent, residual current(leakage), high
temperature via mobile App anytime anywhere; and auto reclosing after protected conditions recovery to achieve non-attended
management; programmable timing control to make your scheduled life efficiently and save electricity, and sharing device with
your family or persons concerned in your team. It also supports local manual control without WiFi, and voice control through
AI speaker, such as Amazon Alexa, Google Assistant, Yandex Alice, and etc.
Main specifications
Poles: single phase 2P, three phase 4P available;
Rated voltage: 2P AC230V, 4P AC3x230V/400V (over/under voltage protection adjustable);
Rated current: 1~63A/100A adjustable;
Frequency: 50/60Hz;
Capacity: resistive load≤13kW, inductive load≤6kW;
Self-consumption: <2W;

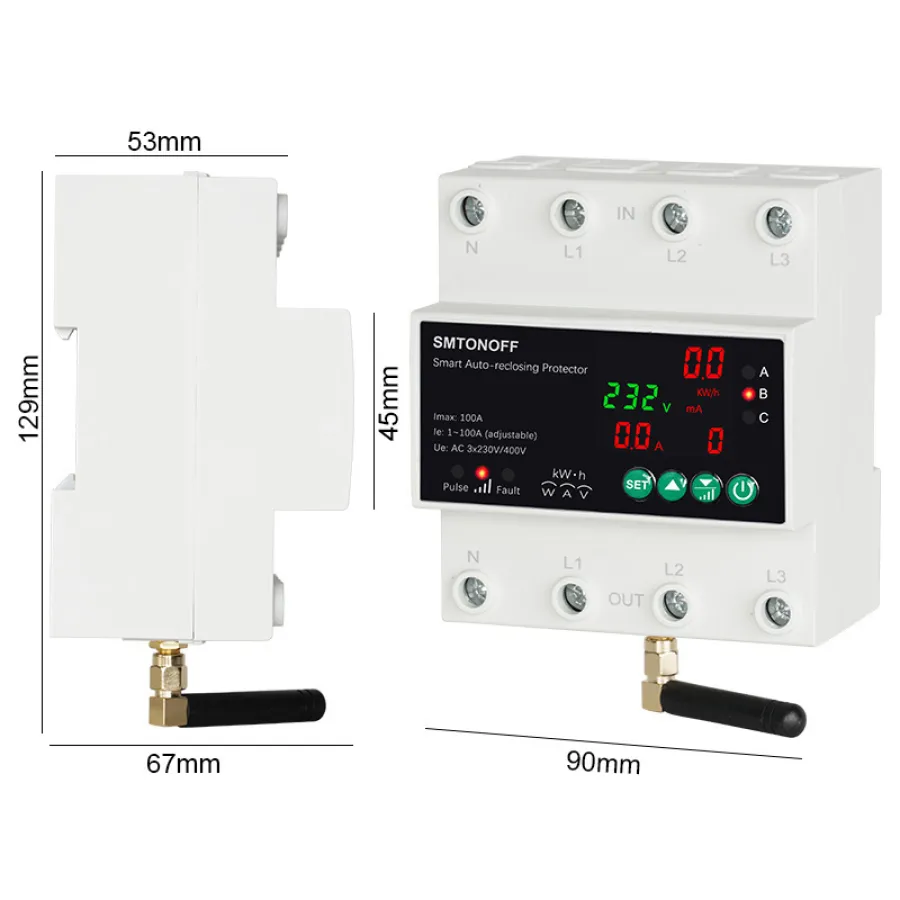

Mounting: 35mm din-rail;
Functional features

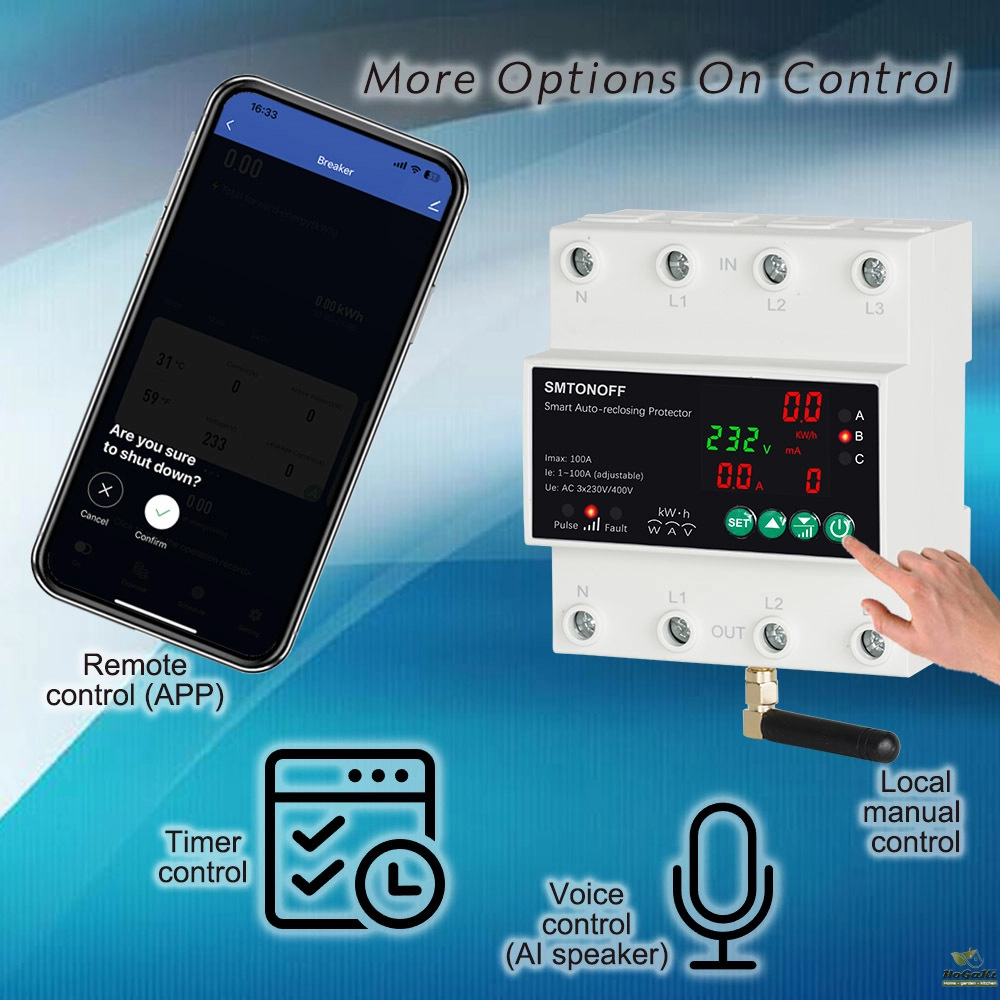

01. Four options on control:

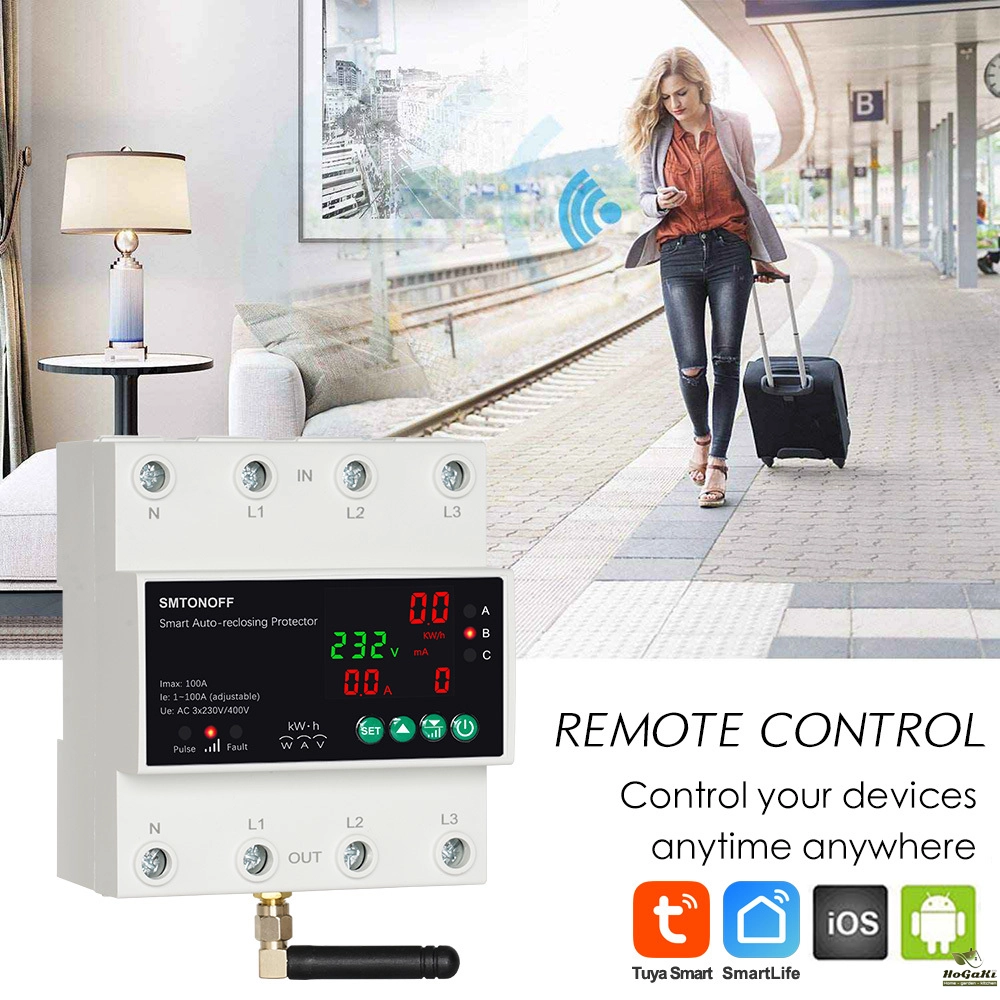

- Remote control anytime anywhere (mobile app, Tuya Smart, Smart Life)
- Voice control (AI speaker, Alexa, Google, Alice, ...)

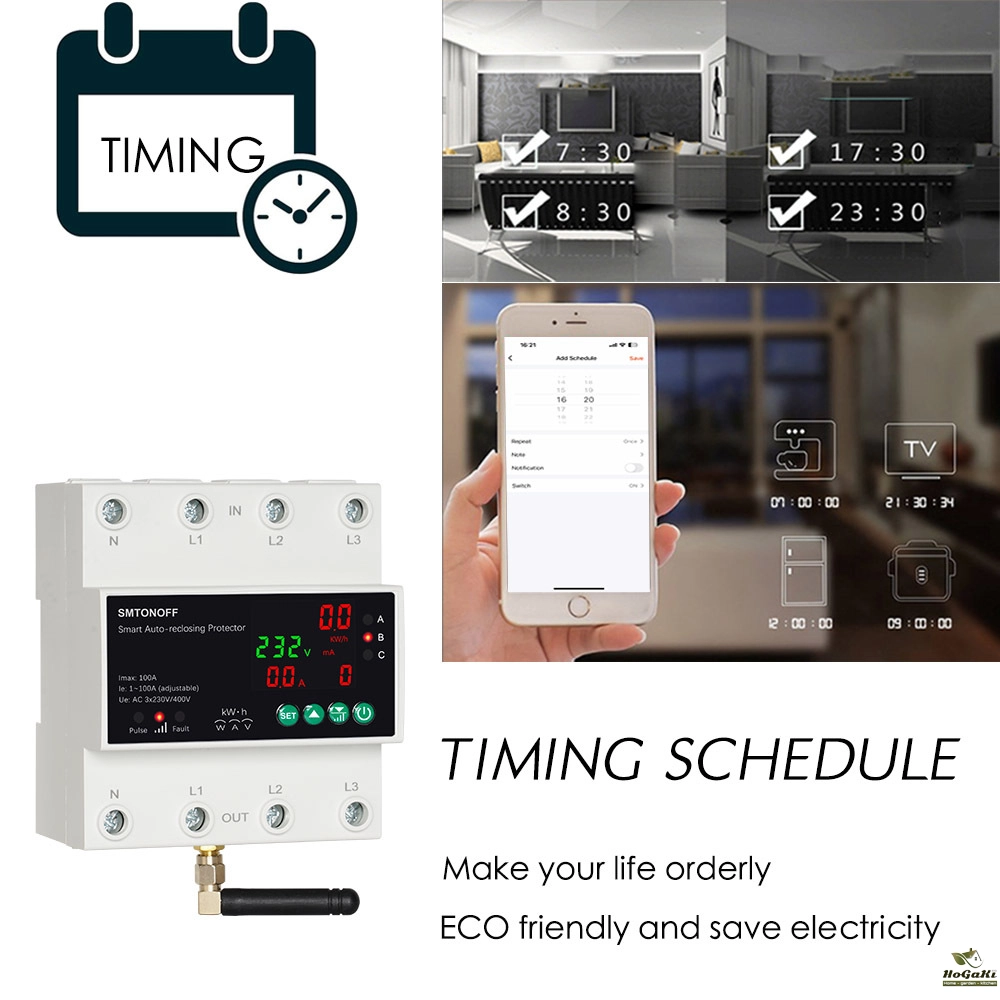

- Timing control (programmable Schedule)

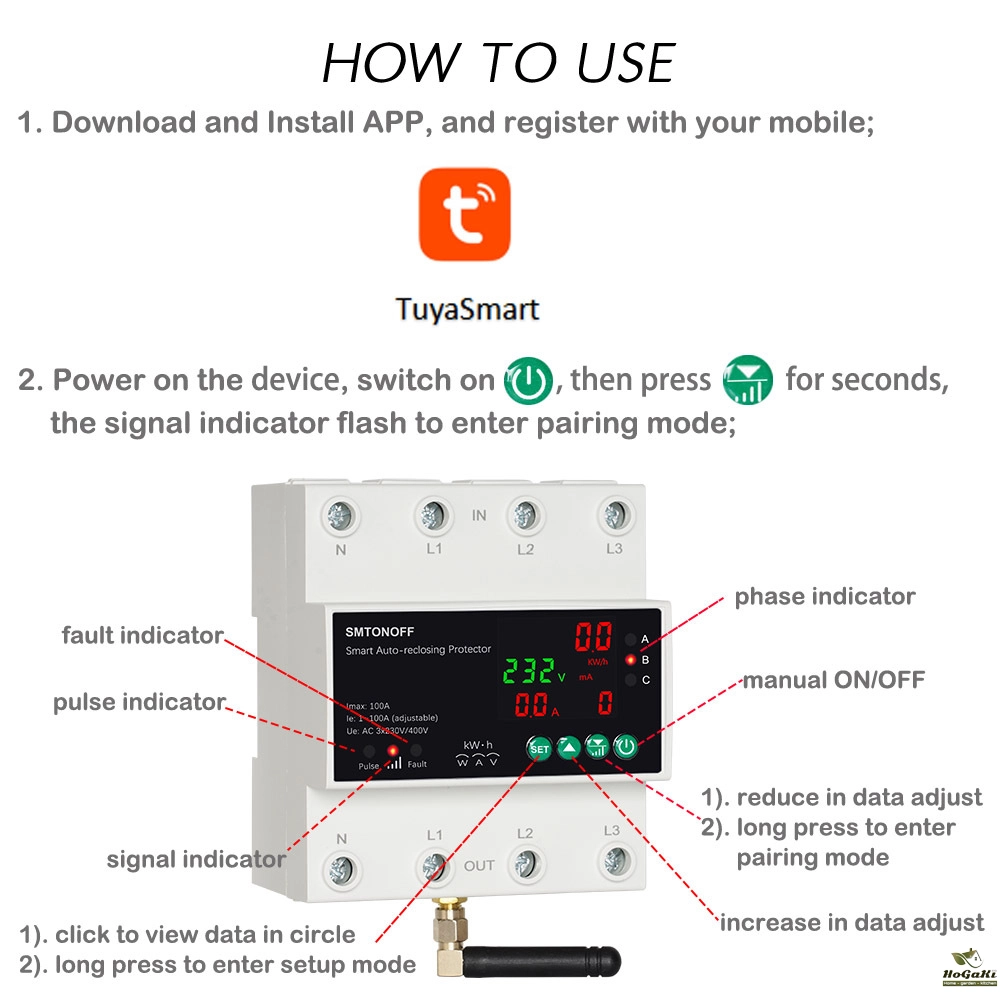

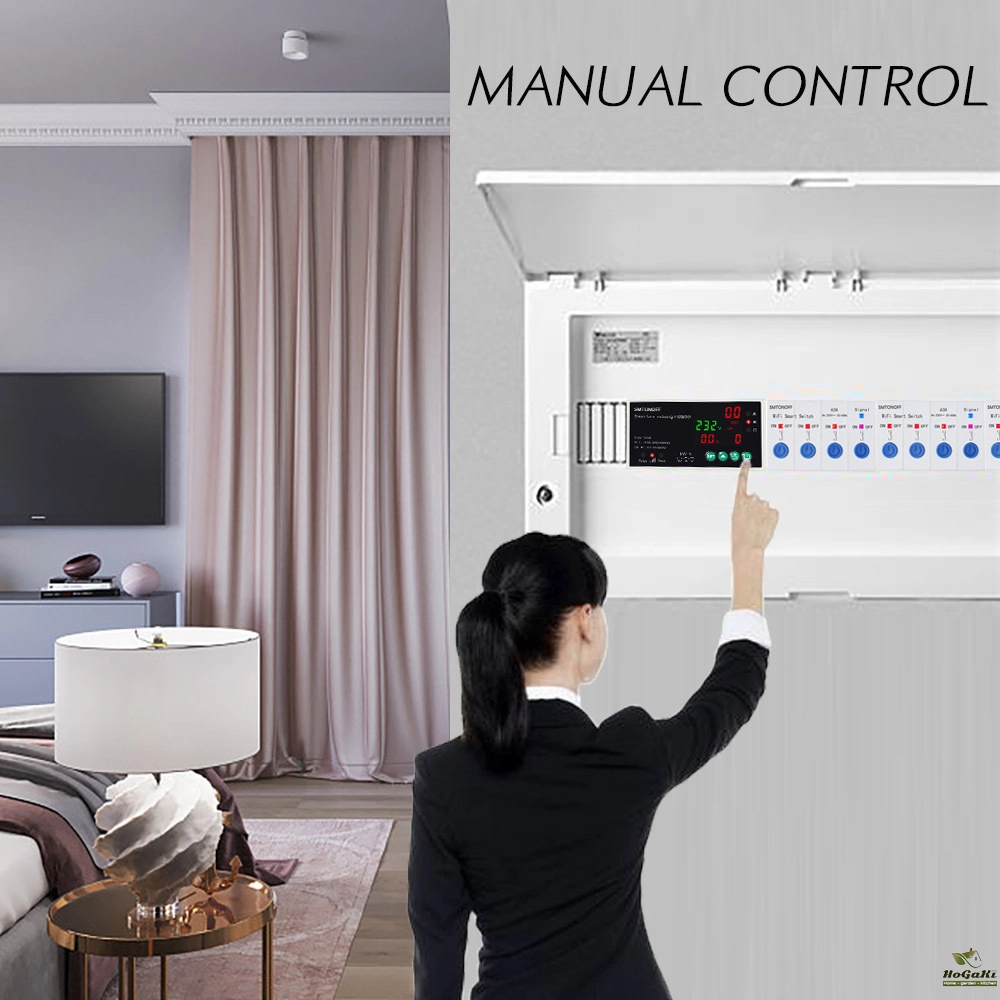

- Manual control (by keys and handle)

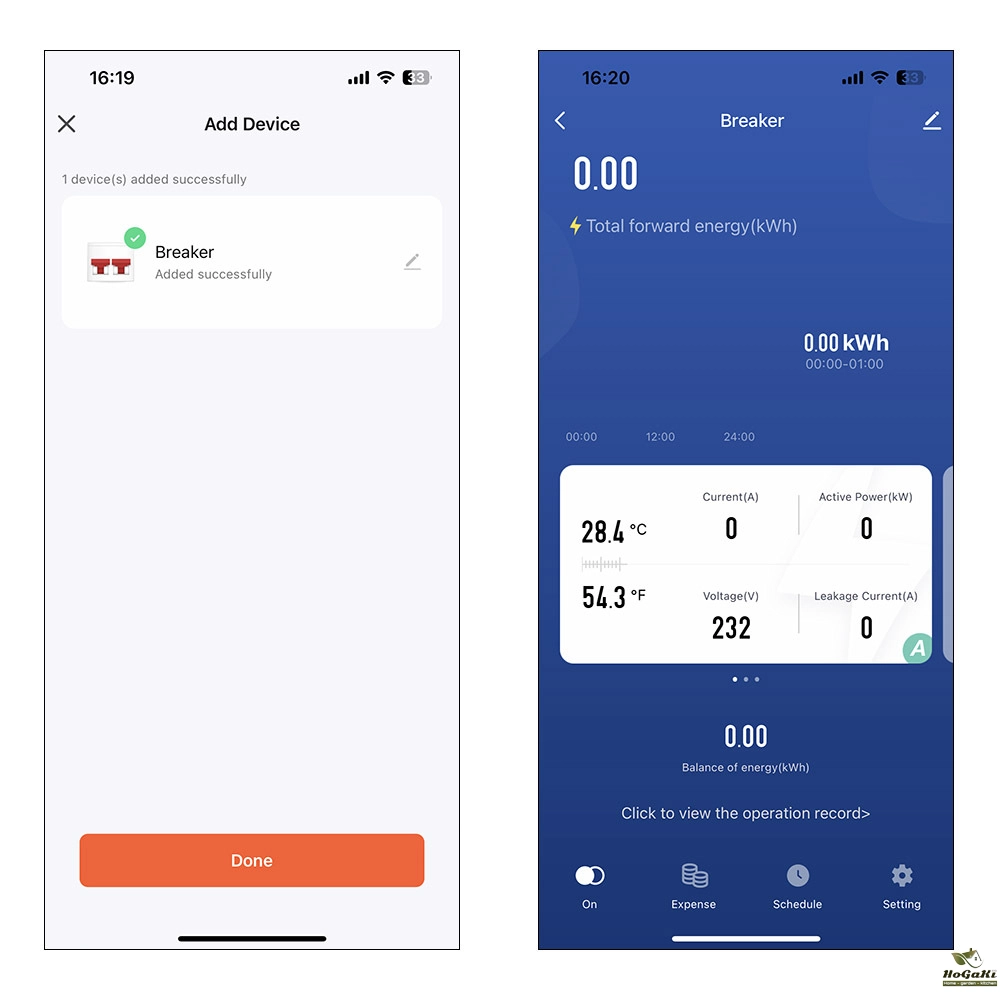

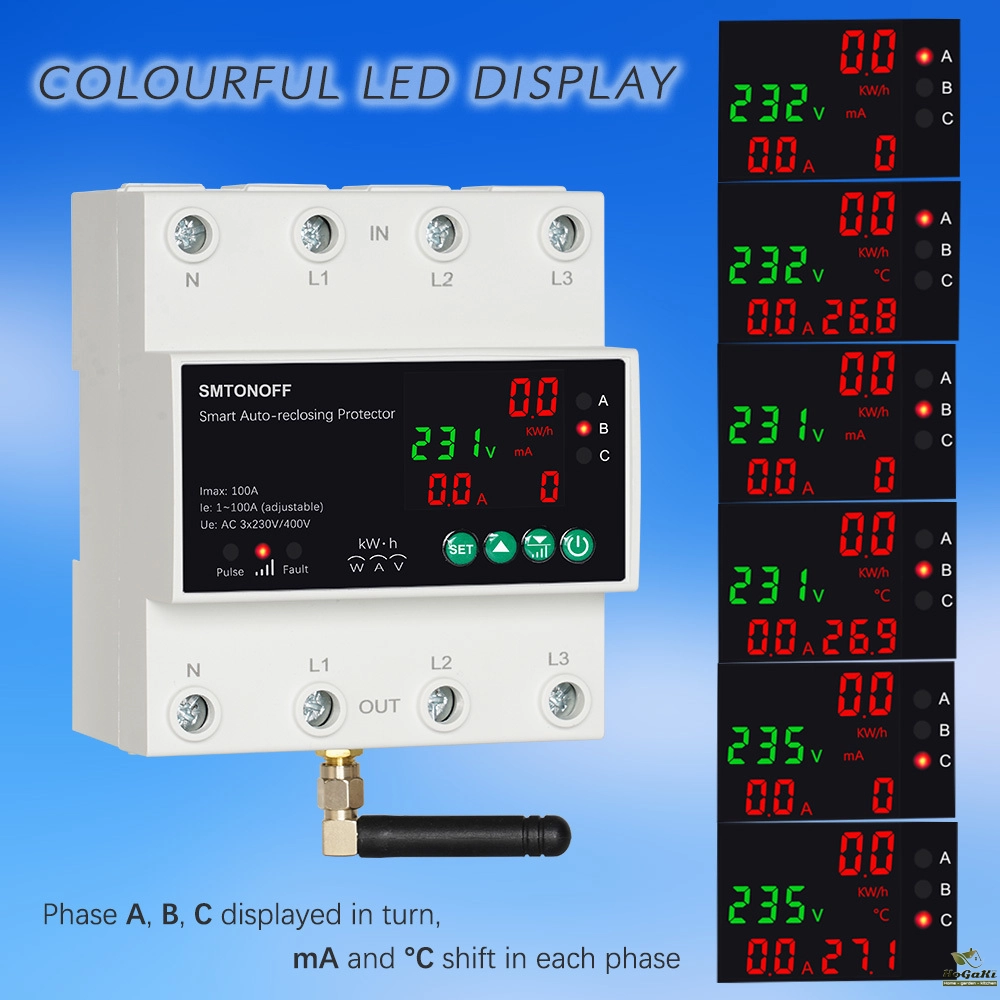

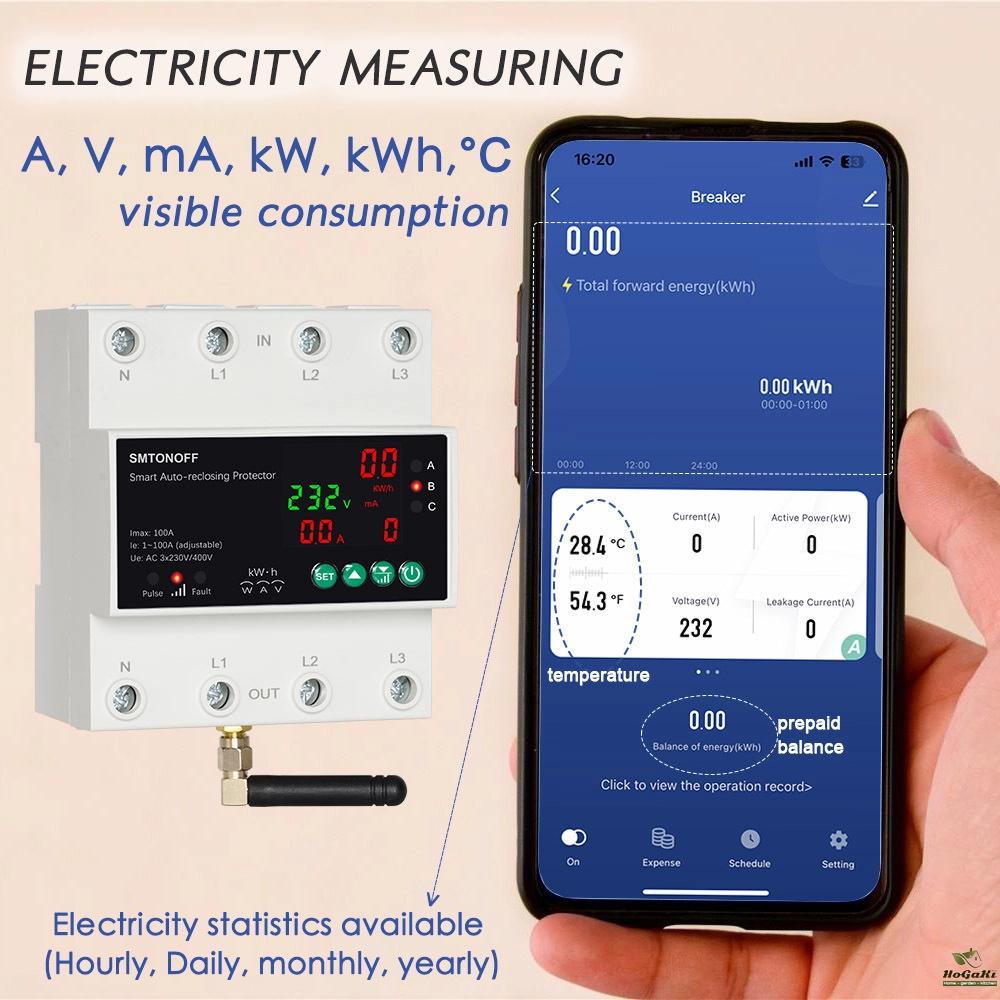

02. Monitor real-time electricity consumption and statistics on phone (A, V, mA, kW, kW/h, ℃);
03. Prepaid metering mode available as option by switch;

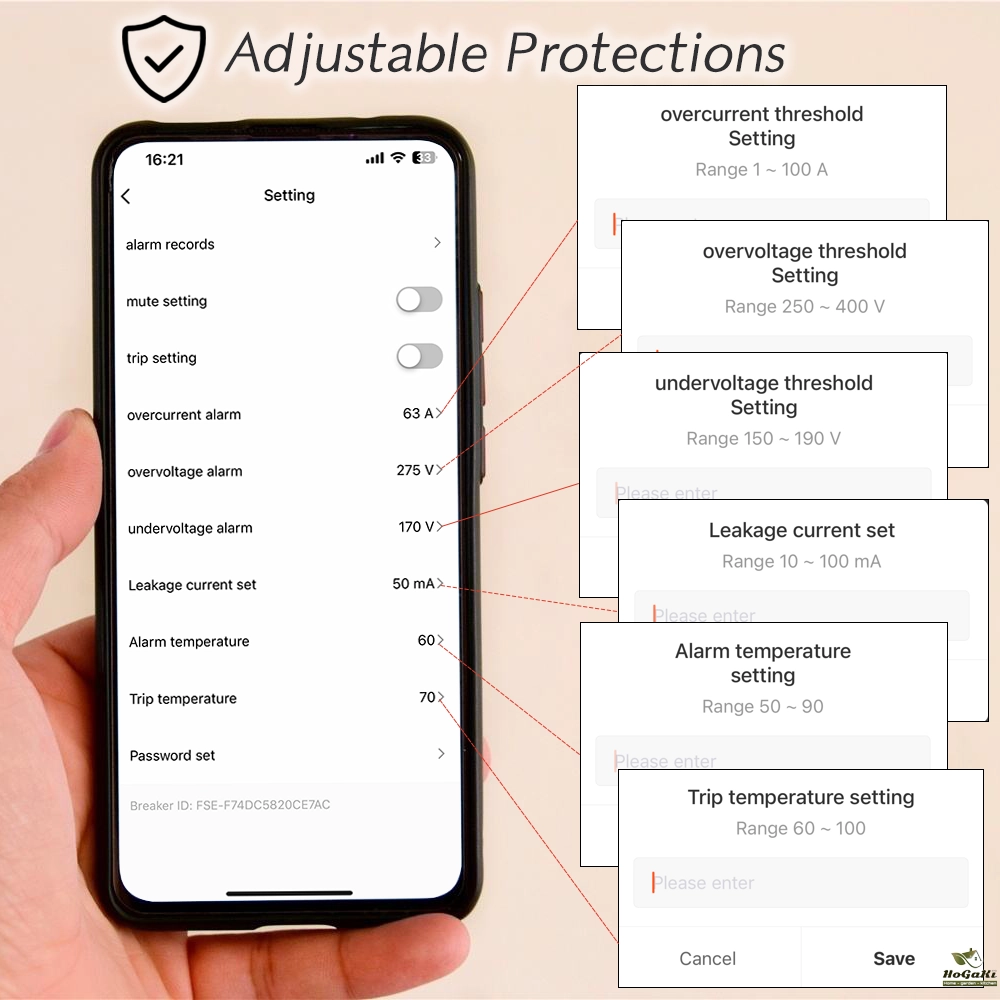

04. Adjustable protections against over/under voltage, overcurrent, residual current(leakage), high temperature;
05. Overcurrent protection: 1~63A/100A adjustable, 63A as default;
06. Over voltage protection: 250~400V adjustable, 275V as default;
07. Under voltage protection: 150~190V adjustable, 170V as default;
08. Residual current(leakage) protection: 10~100mA adjustable, 50mA as default;
09. Alarm temperature protection: 50~90℃ adjustable, 60℃ as default;
10. Tripping temperature protection: 60~100℃ adjustable, 70℃ as default;
11. Recovery on-delay time: 5~90s adjustable, 30s as default (manual setting on device by keys, not in app);
12. 2P ground wiring for surge protection, 4P three phase four wire solve three phase unbalance;
13. Local manual setting on device (no need WiFi support);

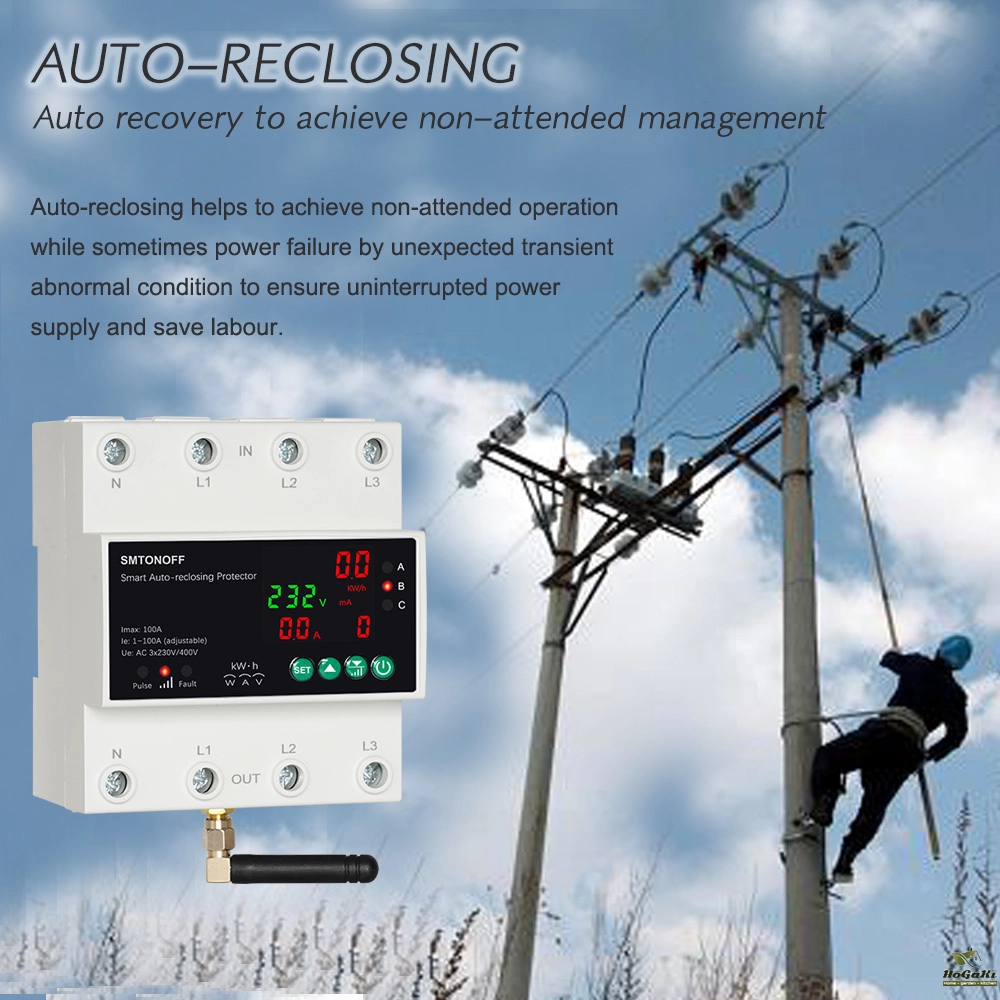

14. Auto-reclosing after protected conditions recovery;
15. Timing schedule programmable on App;
16. Device sharing among family or your team;
Note: If the protector trips 3 times due to leakage, it will not auto-reclosing until the fault fixed by user to ensure safety!
Download User manual from this link https://www.smtonoff.com/download/User_Manual_Auto-reclosing_Protector.pdf
