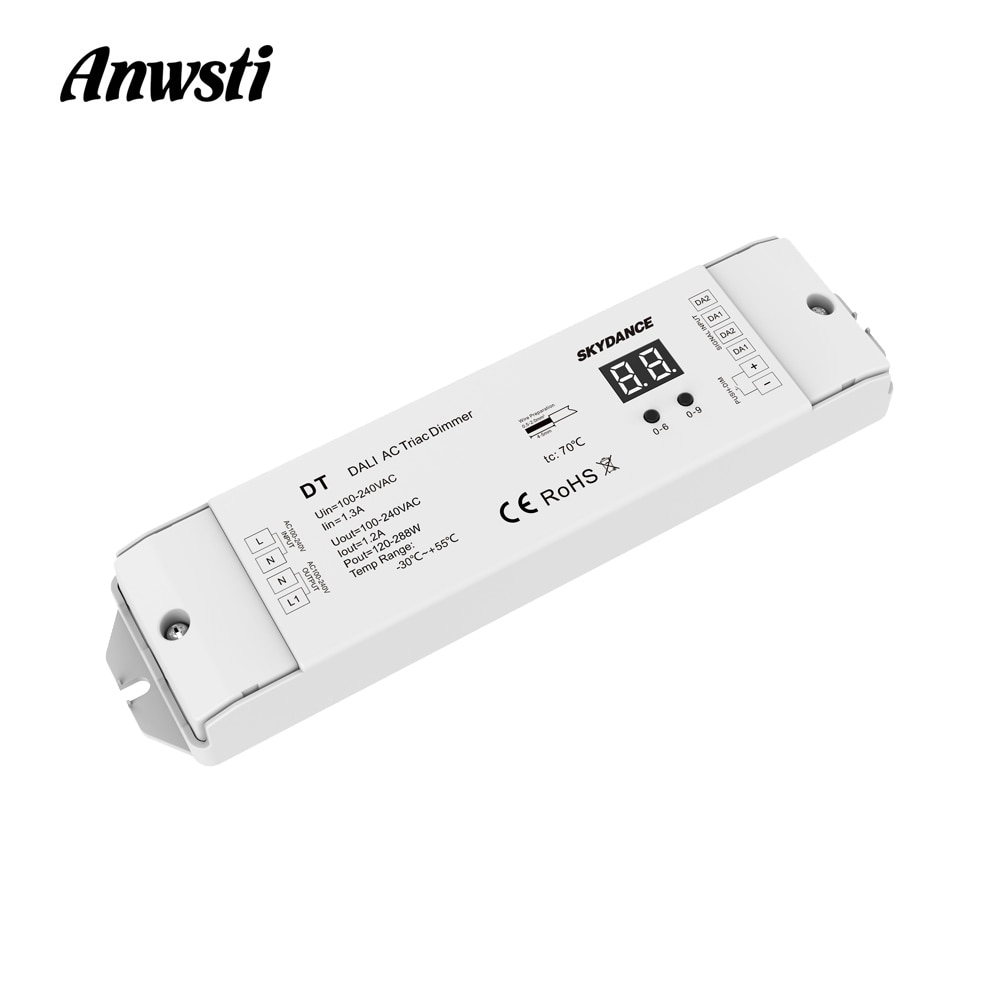

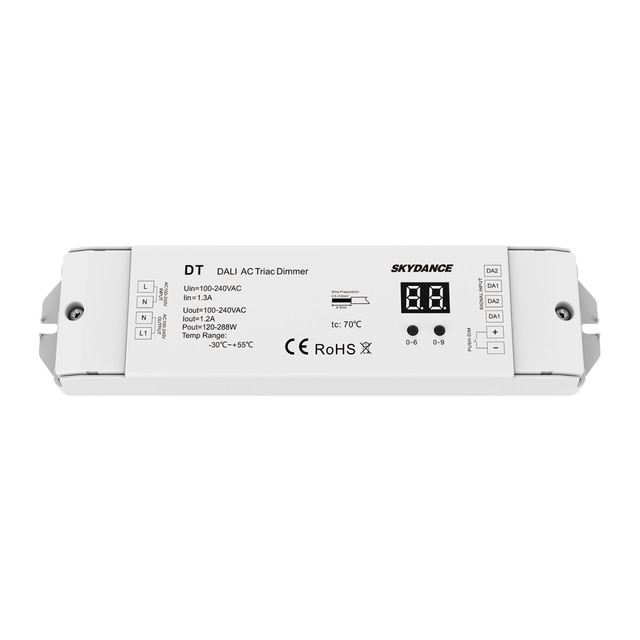

Triac DALI Dimmer 220V 110V 230V AC 1 Channel 1.2A 288W Numeric Display for LED Lamp Halogen Lights DT DALI AC Triac LED Dimmer

5.0 (1 votes) | 20 orders
Price: US $47.23 / piece
Discount Price:
US $ 37.79 / piece
-20%
Color
Voltage
Quantity

Triac DALI Dimmer 220V 110V 230V AC 1 Channel 1.2A 288W Numeric Display for Dimmable LED Lamp Halogen Lights DT DALI AC Triac LED Dimmer



Features:


● AC phase-cut mosfet DALI dimmer, one DALI address, one channel output.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
● DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
● Reverse-phase dimming or forward-phase dimming selectable.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
Caution:

Please carefully ensure all wire connections and polarities are correct and secure before applying power,otherwise this controller will be damaged.

Note: When calculating the maximum number of load lamps or drivers, the input power or input current parameters of a single lamp or driver must be used, the output power parameters can not be used,otherwise, the product will be overloaded and damaged.

Operation:

Reverse-phase or forward-phase dimming setting
Long press two buttons at the same time for 2s, switch between reverse-phase dimming("CR") or forward-phase("CF") dimming.
Set DALI Address via buttons

● Long press any of the two buttons for 2s, prepare for set the start DALI address, digital display start flashes.
● Short press first button to set “tens” position and second button to set “units” position.
● The address can be set from 00~63-FF. no DALI address is assigned for the dimmer, digital display shows “FF”.
● Long press any of the two buttons for 2s or timeout 10s, quit start DALI address setting, digital display stop flashes.


DALI address assigned by DALI masters

DALI address can also be assigned by DALI Master controller automatically.
Please refer to user manuals of compatible DALI Masters for specific operations.
The digital display will show “AU” When the DALI master is assigning address.
After address is assigned, the digital display will show the start DALI address”xx”, xx is from 00 to 63.

Push-Dim Function:

The provided Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.

● Short press:
 Turn on or off light.
● Long press (1-6s):
 Press and hold to step-less dimming,
 With every other long press, the light level goes to the opposite direction.
● Dimming memory:
 Light returns to the previous dimming level when switched off and on again, even at power failure.
● Synchronization:
 If more than one controller are connected to the same push switch, do a long press for more than 10s,then the system is synchronized and all lights in the group dim up to 100%.This means there is no need for any additional synchrony wire in larger installations.We recommend the number of controllers connected to a push switch does not exceed 25 pieces,The maximum length of the wires from push to controller should be no more than 20 meters.

Safety & Warnings:

• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Package included:

1pc* DT Dimmer

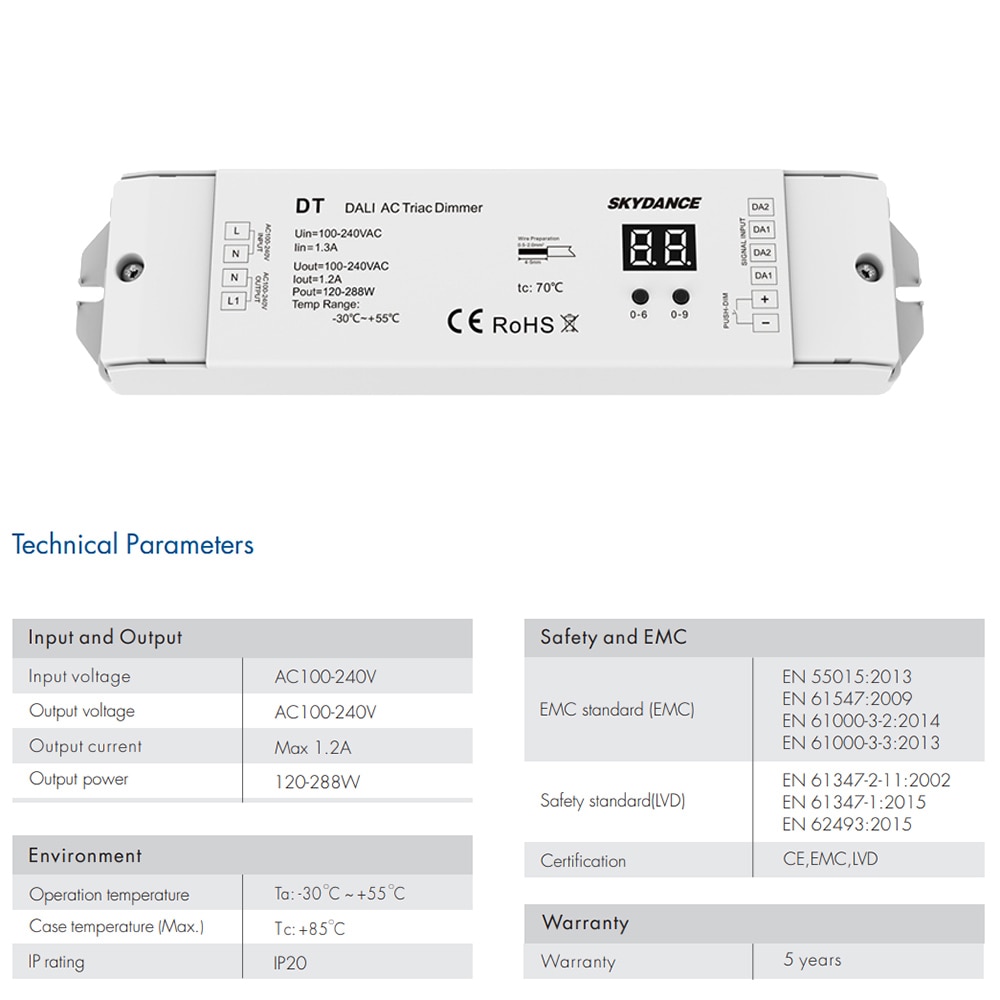

  • Features: Triac DALI Dimmer
  • Model Number: DT
  • Certification: CCC,ce,EMC,LVD,ROHS
  • Material: ABS
  • Warranty: 5 Years
  • Max. Load Power: 288W
  • Brand Name: Anwsti
  • Item Type: Dimmers
  • Max. Load Power: 288W
  • Input voltage: AC100-240V
  • Output voltage: AC100-240V
  • Output current: 1.2A
  • Output power: 120-288W
  • Dimming range: 0 -100%
  • Input signal: DALI
  • Type 1: DALI Dimmer Driver
  • Type 2: 110V Dimmer
  • Type 3: DALI LED Dimmer
  • Type 4: 240v dimmer
  • Type 5: AC Triac DALI Dimmer
  • Type 6: LED Dimmer 220V
  • Type 7: 220V Dimmer
  • Type 8: DALI Dimmer
