Traffic Inductive Loop Vehicle Detector Signal Control +50M/Roll Loop Vehicle Detector Induction Coil Wire Cable

0.0 ( votes)
Price: US $84.29 / Set
Discount Price:
US $ 79.18 / Set
-6%
Quantity

Note: when place a order,please leave a massage for your need voltage(12v, 24v, 110v, 230v),thank you!

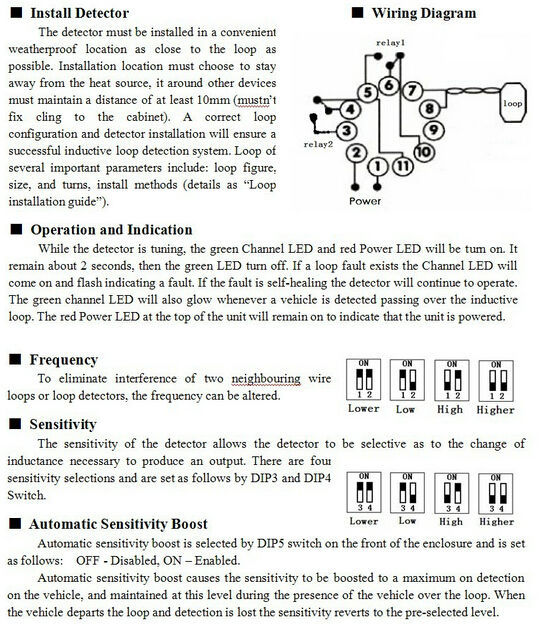

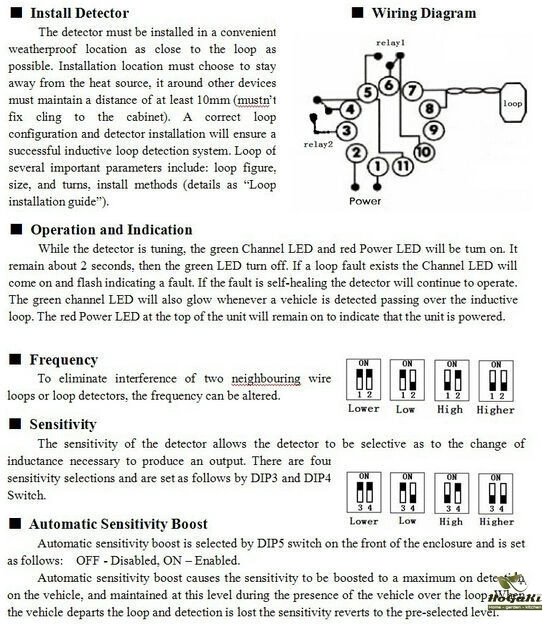

Vehicle Loop Detector:

The detector must be installed in a convenient weatherproof location as close to the loop as possible. Installation location must choose to stay away from the heat source; it around other devices must maintain a distance of at least 10mm (must not installation close with boxes wall). A correct loop configuration and detector installation will ensure a successful inductive loop detection system. Loop of several important parameters include: loop figure, size, turns, install methods.

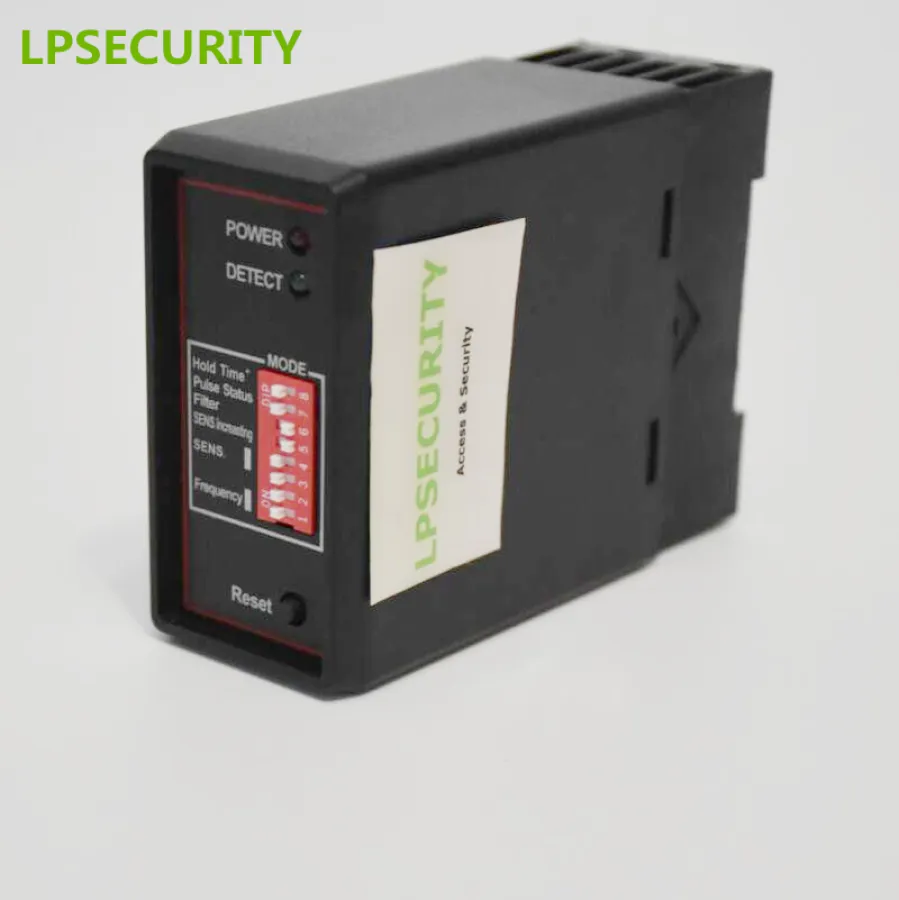

Operation and Indication:

While the detector is tuning, the green Channel LED and red Power LED will be turn on. It remain about 2 seconds, then the green LED turn off. If a loop fault exists the Channel LED will come on and flash indicating a fault. If the fault is self-healing the detector will continue to operate. The green channel LED will also glow whenever a vehicle is detected passing over the inductive loop. The red Power LED at the top of the unit will remain on to indicate that the unit is powered.



PARAMETERS:

Supply voltage: 230VAC , 115V AC, 24V DC/AC ( Seethe label on the detector)
Voltage tolerance AC: +10% / -15%
Voltage tolerance DC: ±15%
Power Consumption: 4.5VA
Output relays: 240V/5A

Operating temperature: -20°C to +65°C
Storage temperature: -40°C to +85°C
Frequency range: 20 kHz to 170 kHz
Reaction time: 10ms
Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes
Sensitivity: Adjustable in 4 increments
Loop inductance: Total loop plus connection wiring: 50μH to 1000μH.
Ideal is 100μH to 300μH
Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter
Size of Housing: 78x40x108 mm (L x W x H)

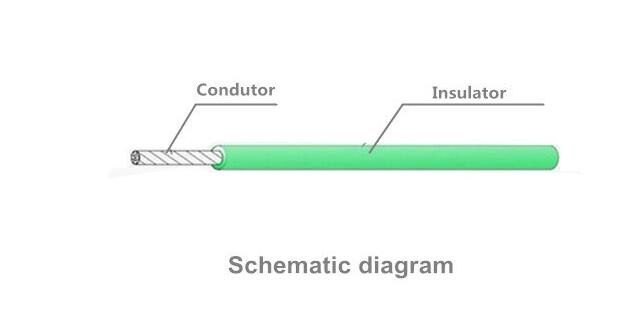

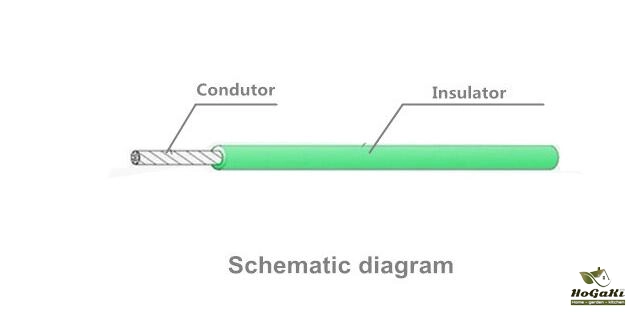

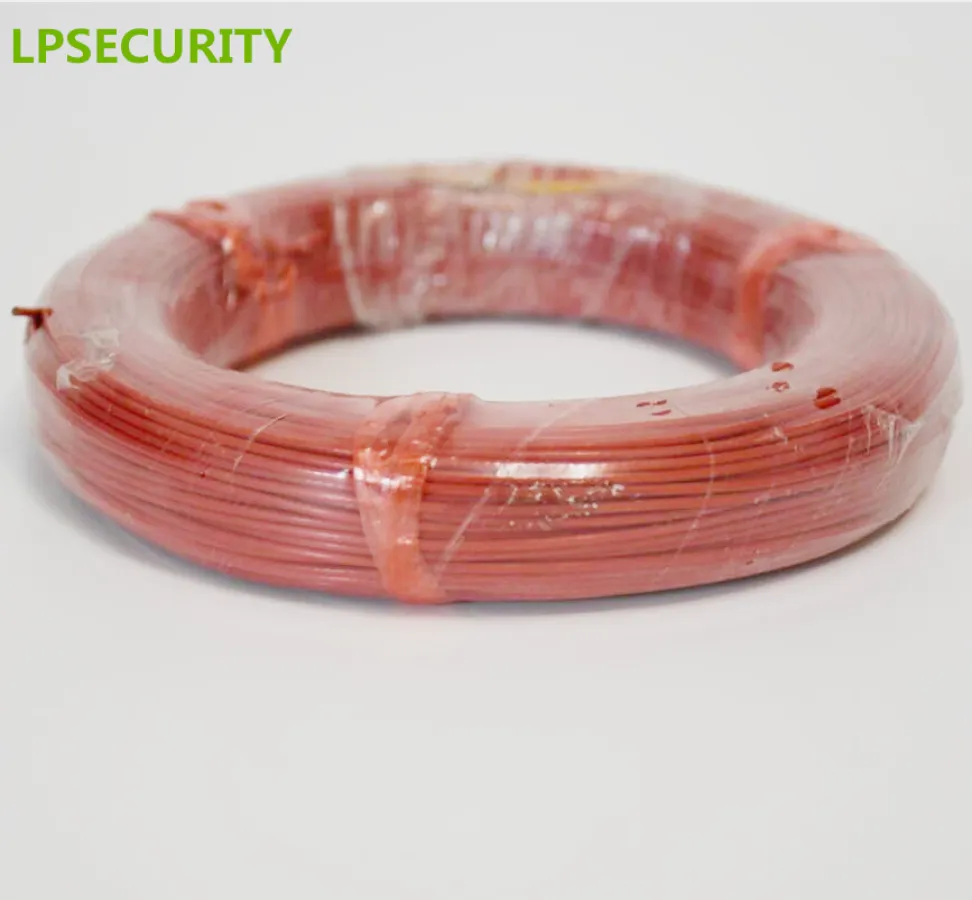

Wire Technical Data
Cross sectional area: 0.75mm 2
Conductor structure line number / wire diameter: 19*0.23mm
Insulation thickness: 0.35mm
The average diameter: 2.0mm
20 degree conductor DC resistance: 19 Ω/km
Voltage: 600V
Working temperature: -80 to +250 degree
Conductor: twisted nickel plated copper wire
Insulation: PFA Teflon
Color: Red

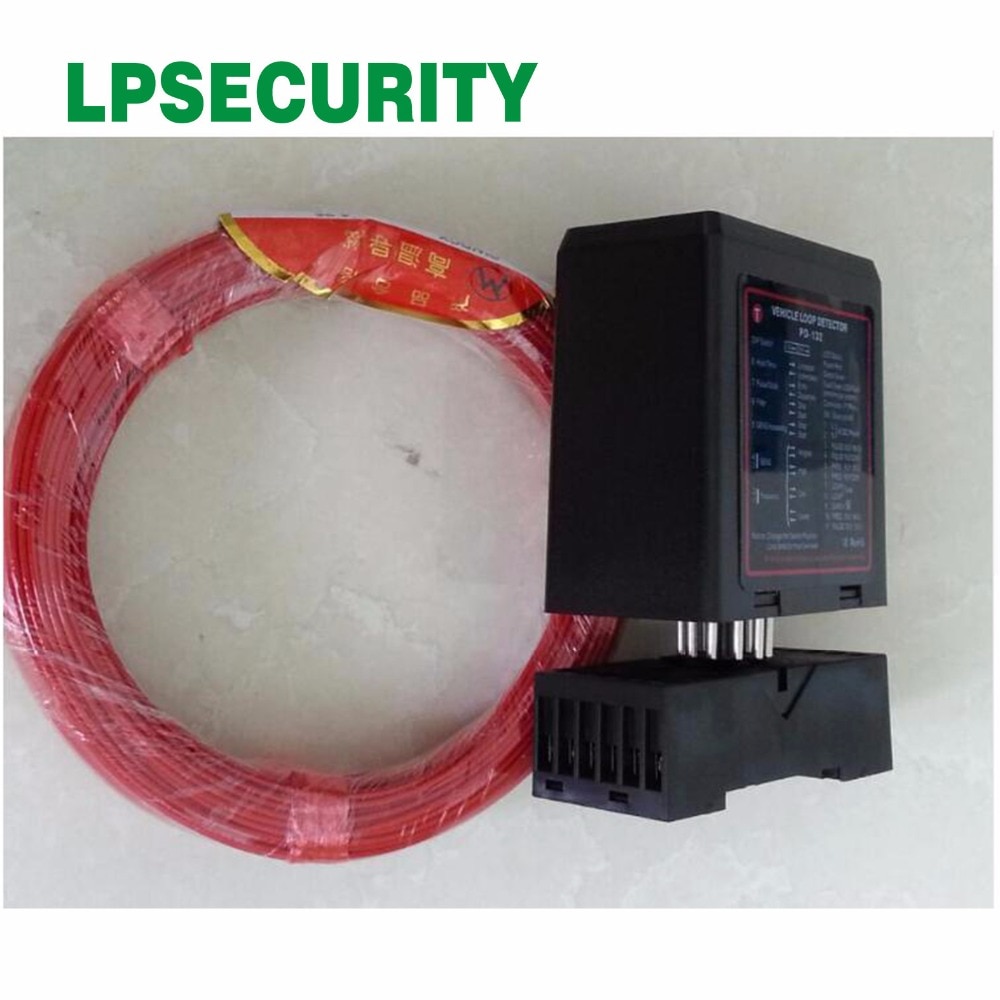

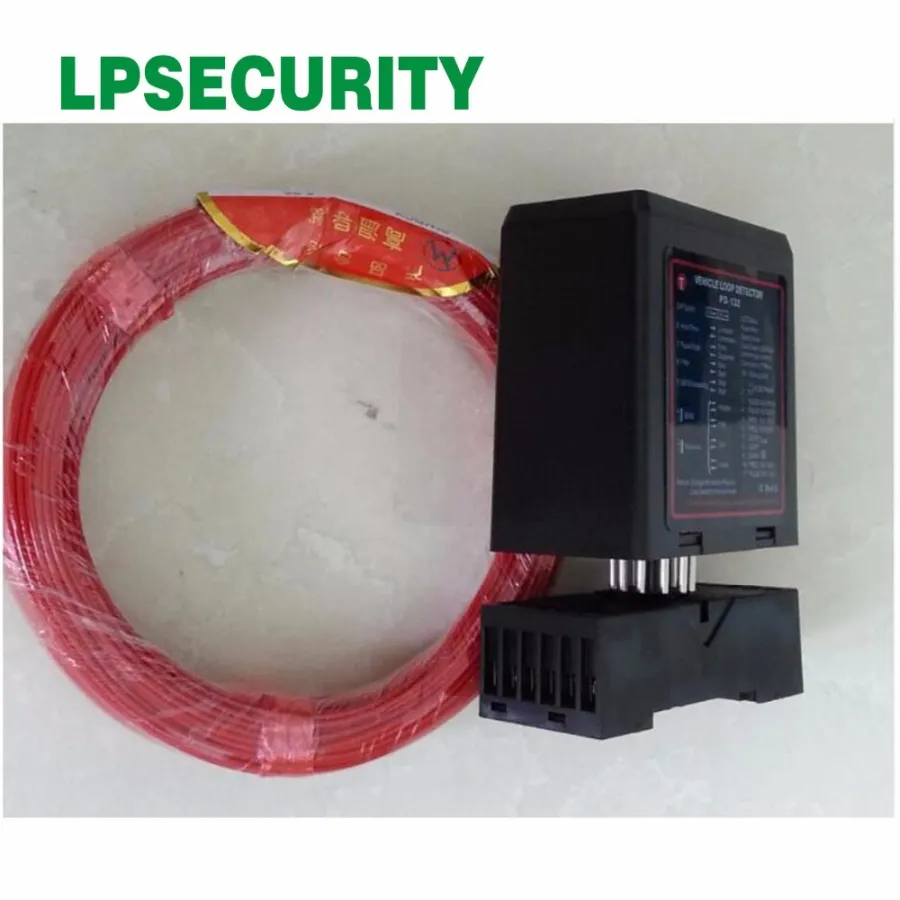

Packing list:
1* single loop detector
1* 0.75mm*50m coil

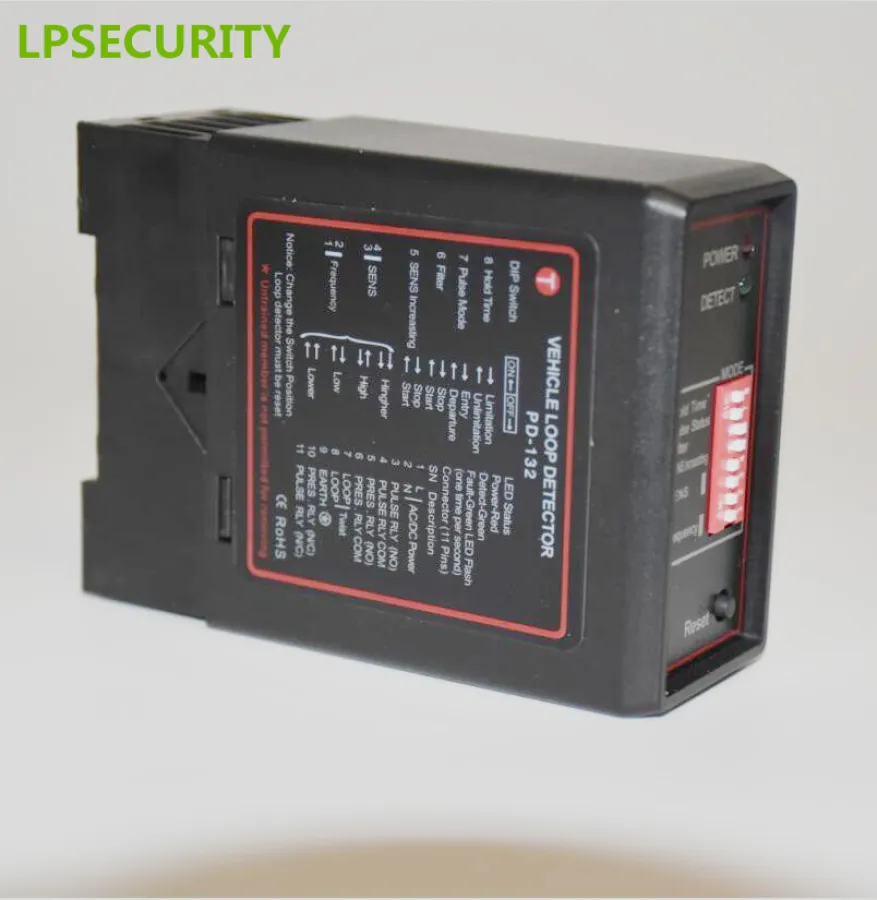

  • Model Number: PD-132A
  • Brand Name: LPSECURITY
  • Origin: Mainland China
  • Name: loop detector
  • Supply voltage: 230VAC , 115V AC, 24V DC/AC
  • Frequency range: 20 kHz to 170 kHz
