Thermal Imaging Camera Optical Bi-Spectrum Network Bullet IP Camera Thermal Measuring AI Human Body Temperature Detector Camera

0.0 ( votes)
Price: US $2400.00 - 2500.00 / piece
Discount Price:
US $ 2280.00 - 2375.00 / piece
-5%
Color
Quantity

Thermal Optical Bi-Spectrum Network Bullet Camera Thermal Imaging Camera Measuring Body Temperature Detector

QQ截图20200519150601QQ截图20200519150652

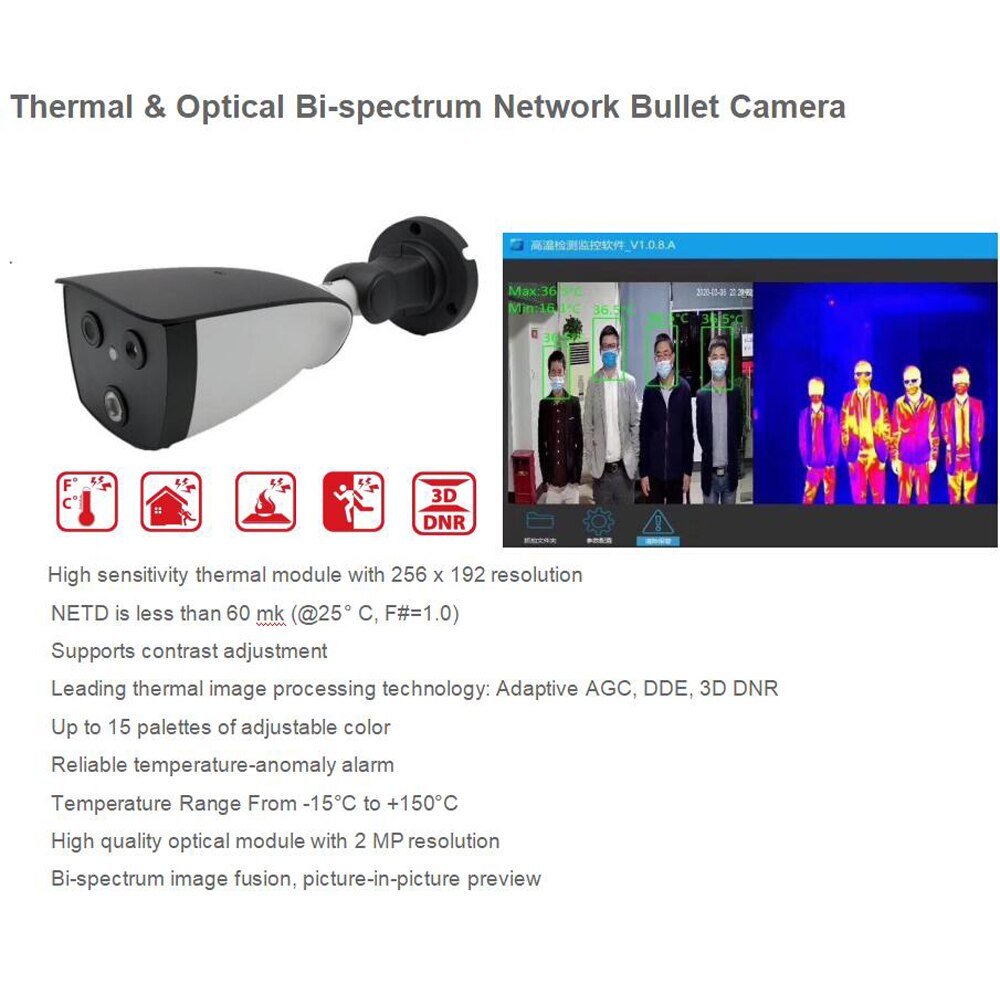

Features:

1.High sensitivity thermal module with 256 x 192 resolution NETD is less than 60 mk (@25° C, F#=1.0)

2.Supports contrast adjustment

3.Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR Up to 15 palettes of adjustable color

4.Reliable temperature-anomaly alarm Temperature Range From -15°C to +150°C High quality optical module with 2 MP resolution

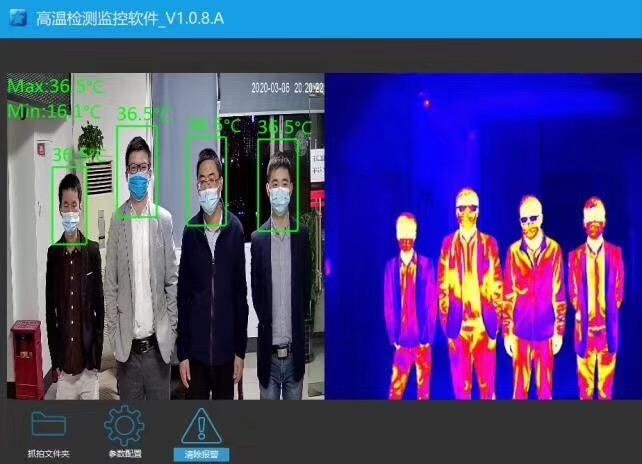

5.Bi-spectrum image fusion, picture-in-picture preview

Specification:

Thermal

Image Sensor

VOx Uncooled Focal Plane Arrays

Resolution

256×192

Pixel Interval

12μm

NETD

Less than 60 mK (@25°C,F#=1.1)

Aperture

F1.0

Field of View

35° × 27° (H × V)

Optical

Image Sensor

1/2.8" 2.0M Pixel CMOS

Resolution

1920×1080P



Min. Illumination

Color: 0.005Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON)

Field of View

84° × 45° (H × V)

Focal Length

4mm

Shutter Speed

1s to 1/100,000s

White Balance

Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp

Day & Night

ModeIR cut filter with auto switch

WDR

80 dB

Feature

Bi-spectrum Image Fusion

Fusion view of thermal view and overlaid details of the optical channel

Picture in Picture

Combines details of thermal and optical image PIP, overlay thermal image on optical image

Smart Function

Face snapping

Built-in deep learning AI algorithm, Supports simultaneous detection of 20-30 faces

Temperature Measurement

Support global and local temperature

Temperature Range

From -15°C to +150°C

Temperature Accuracy

Target temperature 35°C ^ 38°C ±0.3 °C

Target temperature 20°C ^ 33°C ±0.6 °C Target temperature 38°C ^ 50°C ±0.6 °C

Network

Main Stream

Thermal: 25fps(1920 × 1080, 1280 × 720)

Sub Stream

Thermal: 25fps(704 × 576, 352 × 288)

Video Compression

H.264 (Baseline/Main/High Profile) /MJPEG/H.265

Audio Compression

G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Protocols

TCP/IP, ONVIF, GB/T 28181, DHCP, RTP, RTSP, PPPoE, UPnP, UDP

API

ONVIF (Profile S, Profile G, Profile T), SDK

General

Web Client Language

languages English, Chinese

Power

DC 12V, 0.65A

Work Temperature/Humidity

From -20°C to 55°C; Humidity: 95% or Less

Protection Level

IP67

Dimension

246 mm × 101 mm × 81 mm (with bracket)

Weight

Approx. 1.0 kg



QQ截图20200511120401QQ截图20200511120327图片1QQ截图20200511120301QQ截图20200511120223QQ截图20200511120238QQ截图20200511120542QQ截图20200511120601

QQ截图20200511120143微信图片_20200511115930
lucking  door 介绍图




  • Model Number: KG9266T
  • Brand Name: LUCKING DOOR
  • Origin: Mainland China
  • Software: English Version
  • temperature detection: IR temperature array
  • tcp ip: RJ45
  • High sensitivity thermal module: 256 x 192 resolution;
  • Temperature Range: -15°C to +150°C ;
  • camera: 2 MP resolution; Bi-spectrum image fusion,
