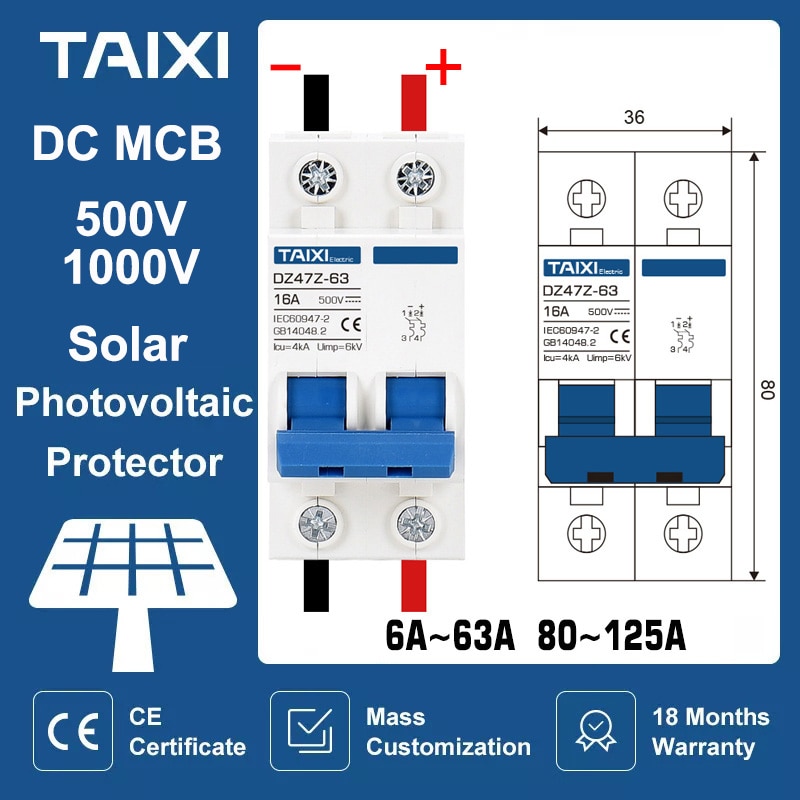

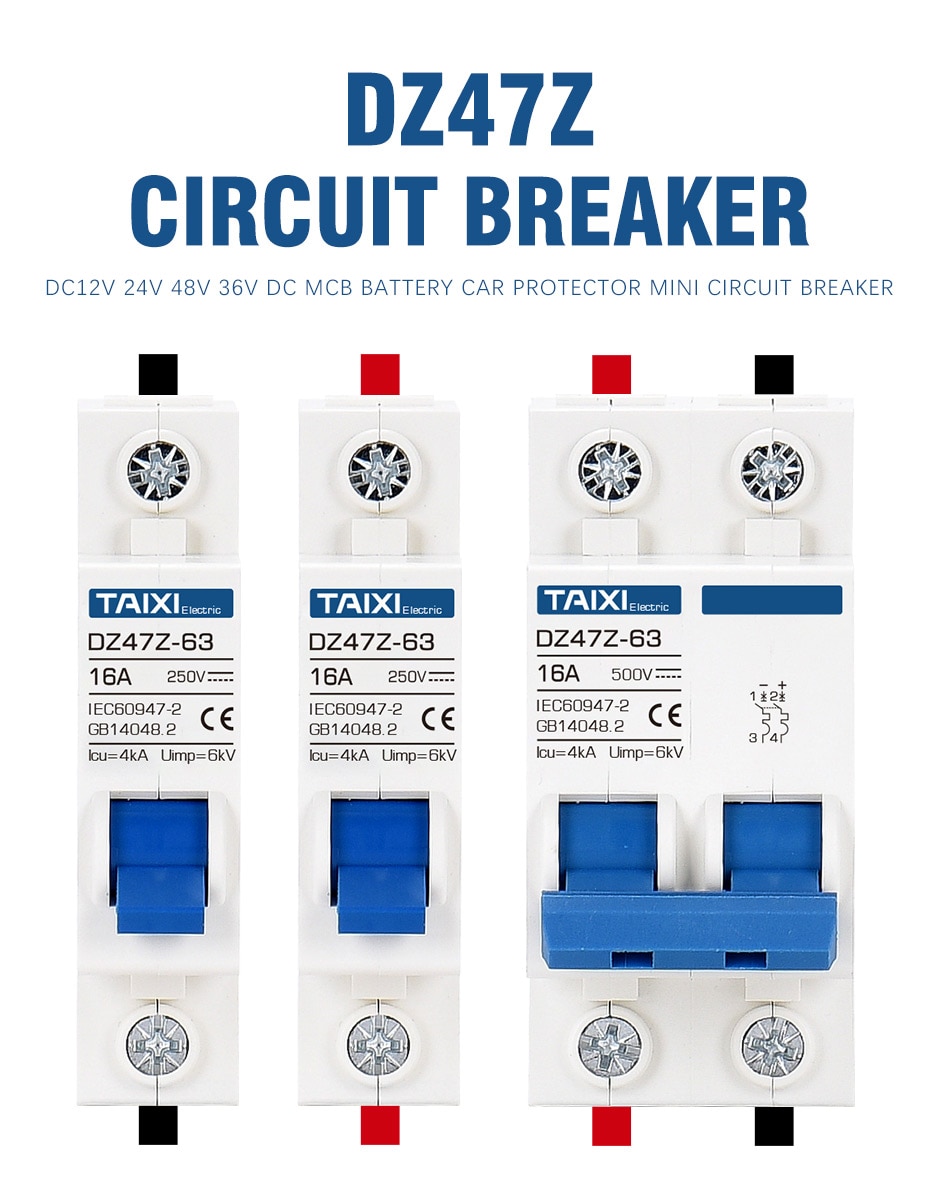

TAIXI Solar Energy Photovoltaic DC Circuit Breaker PV Switch MCB DC250V 500V 1000V 16A 32A 40A 50A 63A Air Switch 100A 125A

4.9 (144 votes) | 997 orders
Price: US $14.31 - 47.67 / piece
Discount Price:
US $ 10.88 - 36.23 / piece
-24%
Ships From
Poles Number
Rated Current
Quantity

High-quality product recommendation





Product Specifications

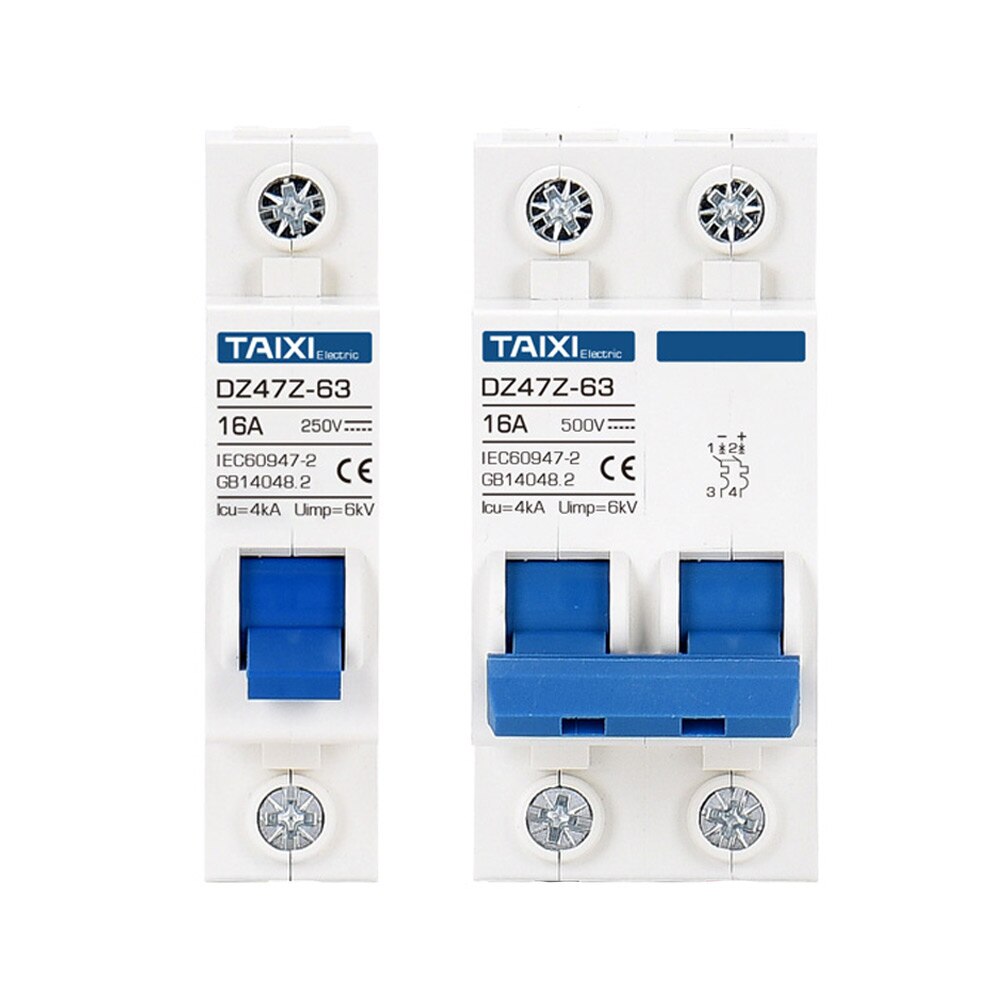

Model

DZ47Z 1P

DZ47Z 2P

DZ47Z 3P

DZ47Z 4P

Rated Voltage

DC250V

DC500V

DC750V

DC1000V

Trip Curve

C

Rated Current

1~125A

Installation

35mm DIN Rail Mounting

Breaking Capacity

4500A

Certificate

CE

Standard

IEC60947-2

Electrical Life

10,000 times

Mechanical Life

20,000 times


Why should 4P DC circuit breaker be selected for DC1000V?

1. Direct current is more dangerous than alternating current.

2. The short circuit circuit normally has hundreds of amps to thousands of amps. When the 2P DC circuit breaker is used in the DC1000V service, the subsection capability is greatly reduced and the safety is greatly reduced, so it is necessary to connect the circuit breaker in series to improve the subsection capability and the service safety

3. 2P DC circuit breaker is easy to burn off after short circuit, 4P DC circuit breaker can be used for many times after short circuit

The difference between several products


Model


Rated Working Voltage

DC 125V~1000V

DC12V~120V

DC 125V~1500V

DC12V~120V

Trip Curve

C

B

C

B

Rated Current

1~125A

1~250A

63~1000A

63~400A

Installation

35mm DIN Rail Mounting

Front Plate Screws Fixing

Breaking Capacity

4.5kA

25kA

Certificate

CE

Standard

IEC60947-2

IEC60898-2

IEC60947-2

IEC60898-2

Electrical Life

10,000 times

4,000 times

Mechanical Life

20,000 times

8,000 times

Applicable Place

Photovoltaic

Battery

Photovoltaic

Battery

Link



Model

DZ47Z 4P

TXC65Z 4P




Rated Voltage

DC1000V

DC1000V

Trip Curve

C

Rated Current

1~63A

Installation

35mm DIN Rail Mounting

Breaking Capacity

4500A

6000A

Certificate

CE

Standard

IEC60947-2

Electrical Life

10,000 times

Mechanical Life

20,000 times

Wiring

External

Built-in

Copper bar

10²

20²

Link

Click to Buy

Click to Buy



Model

DZ47Z 2P DC1000V

DZ47Z 4P DC1000V

TXC65Z 4P DC1000V

Breaking Capacity

2000A

4500A

6000A

Protection effects

☆☆

☆☆☆


Special recommendation for photovoltaic system and rechargeable battery system circuit breaker





  • Rated Voltage: 220/380V
  • Type: Circuit breaker
  • Is Smart Device: No
  • is_customized: Yes
  • Model Number: DZ47Z-63
  • Type: Mini
  • Brand Name: SUMRET
  • Origin: Mainland China
  • Certification: CE,FCC
  • voltage: DC250V/ DC500V/DC1000V
  • POLES: 1P / 2P
  • current: 6A 10A 16A 20A 25A 32A 40A 50A 63A 80A 100A 125A 150A
