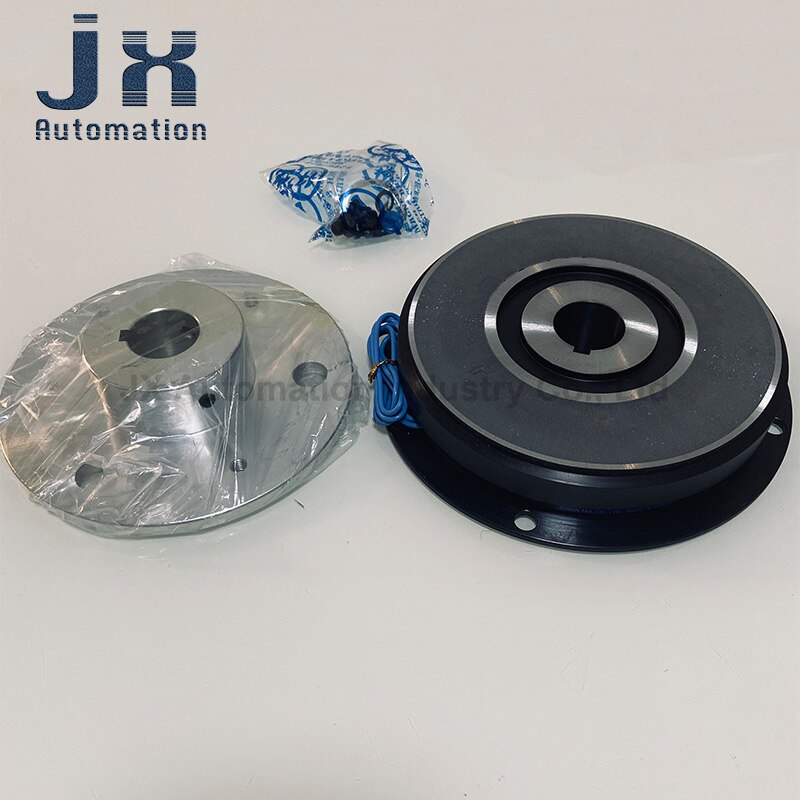

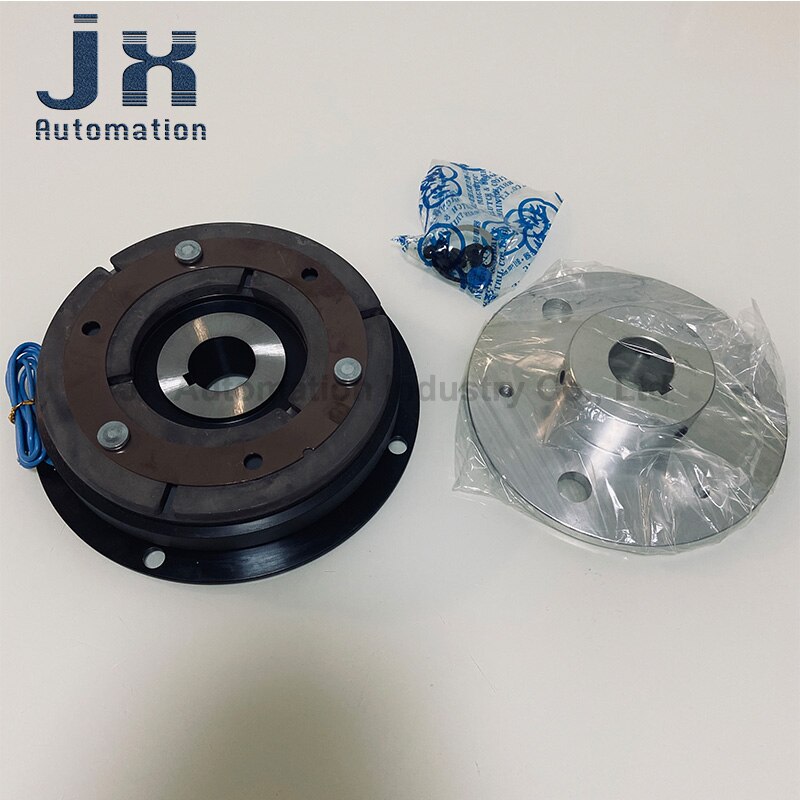

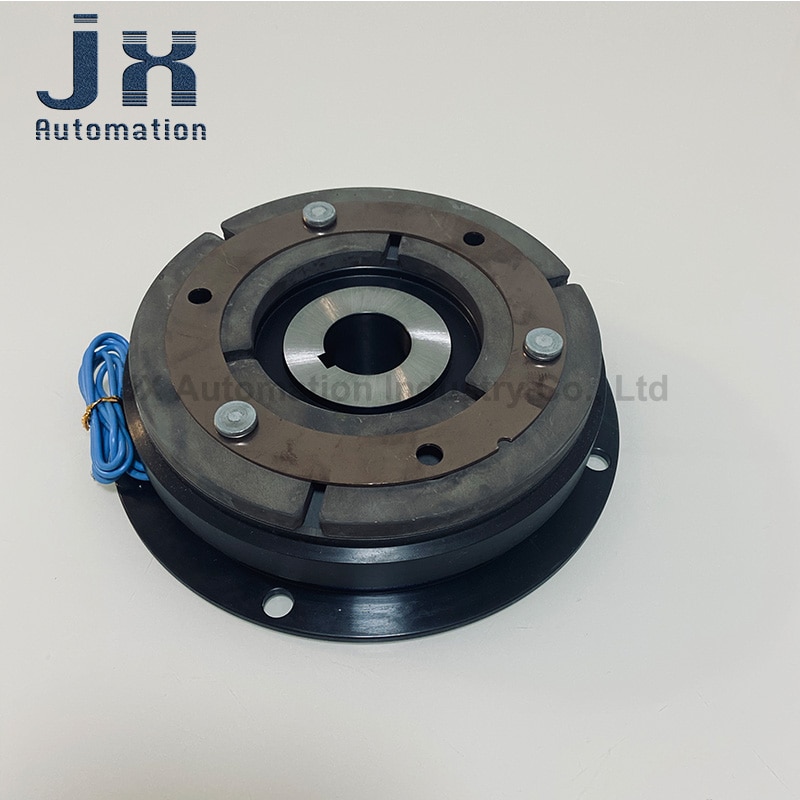

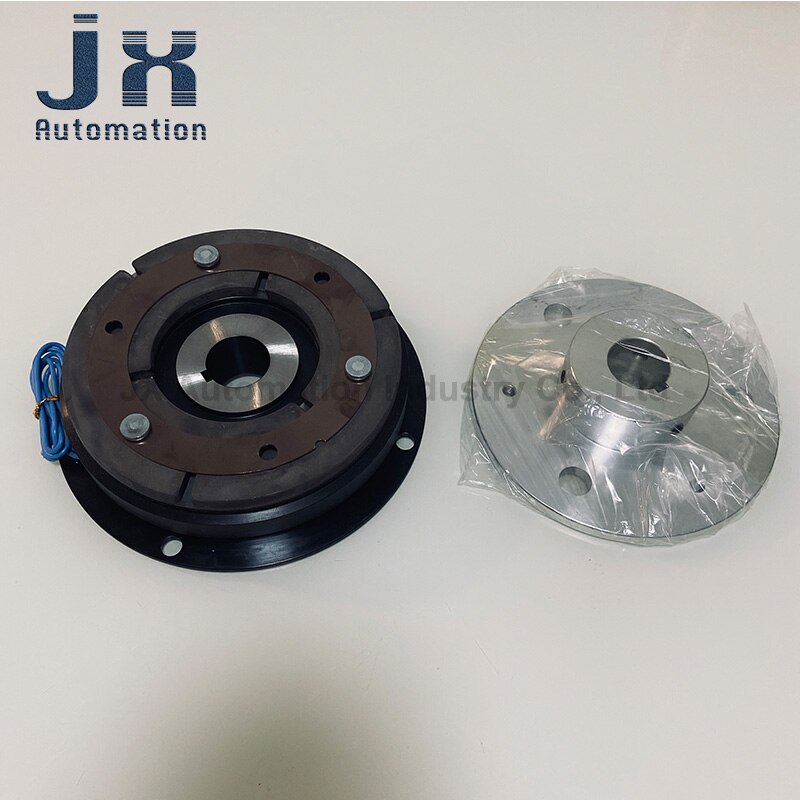

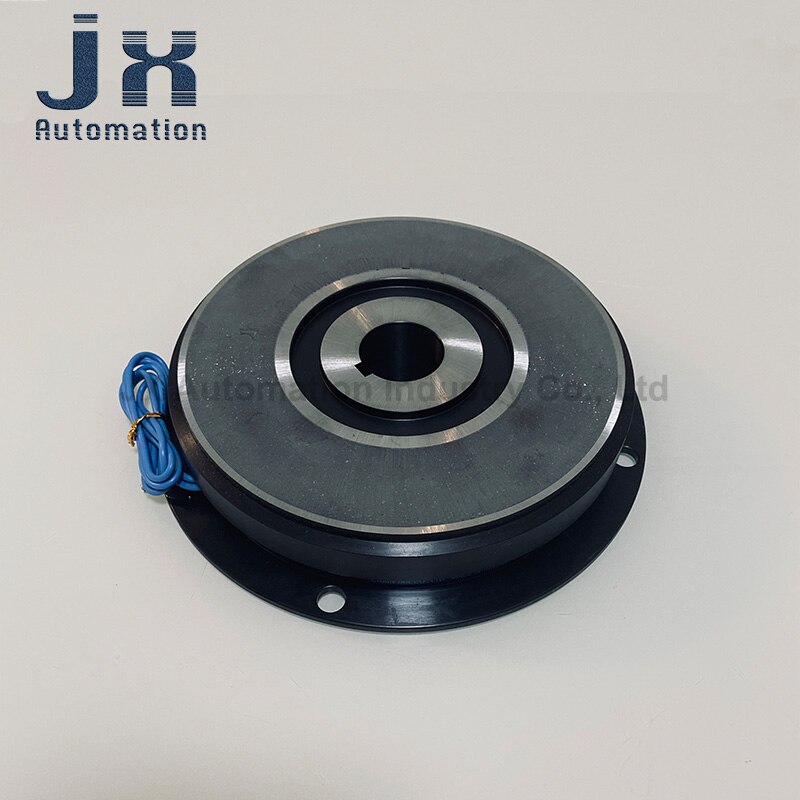

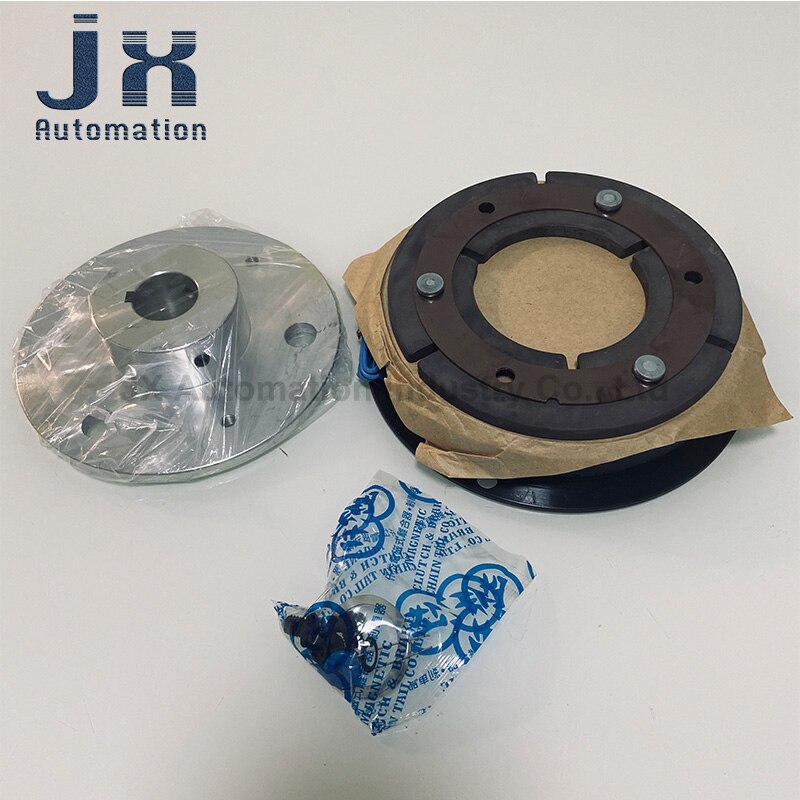

Taiwan CHAIN TAIL Electromagnetic Clutch CDF010AH DC 24V with Aluminum Hub (Dia30)
0.0 ( votes)
Price:
US $798.94
/ piece
Discount Price:
US $
728.42
/ piece
-9%
Taiwan CHAIN TAIL Electromagnetic Clutch CDF010AH DC 24V with Aluminum Seat (Dia30)

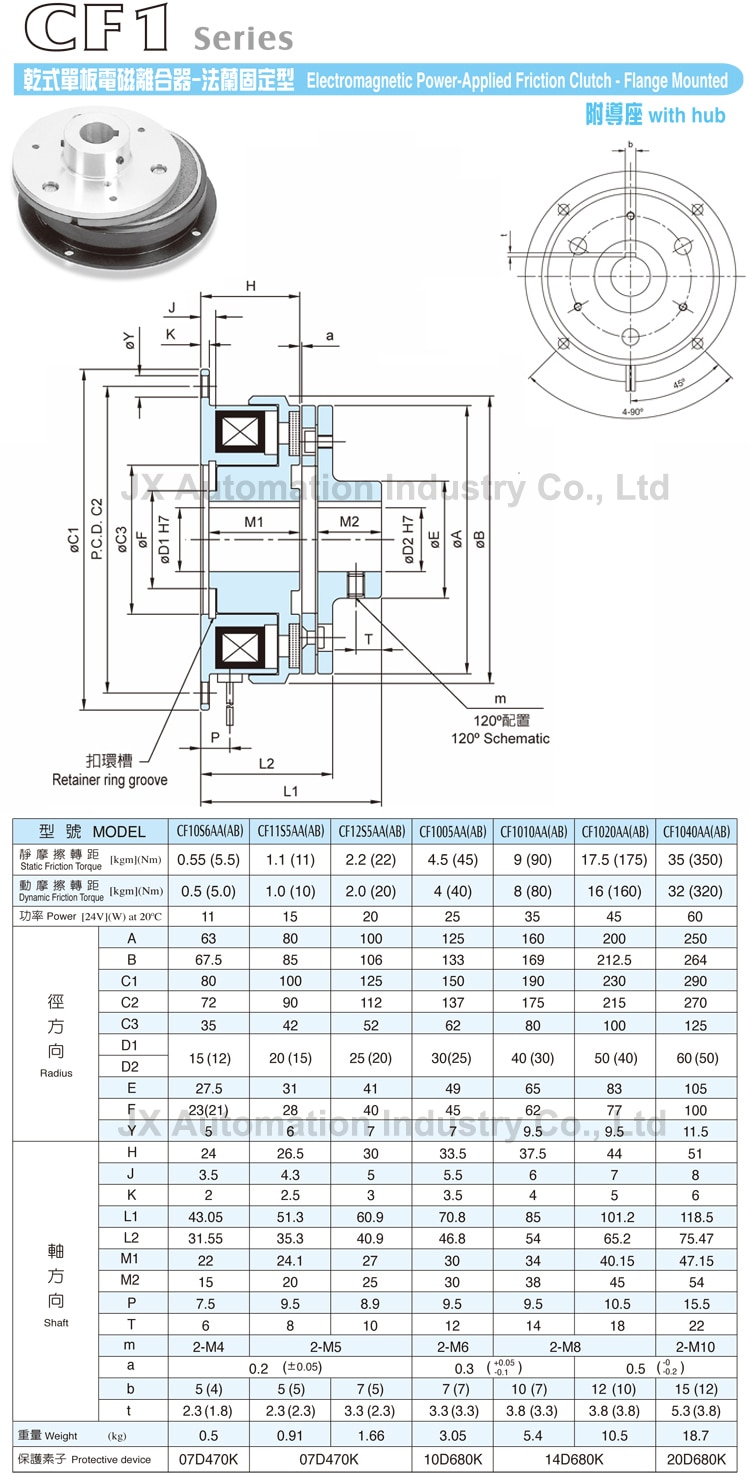

Brand: CHAIN TAIL
Model: CDF010AG(AH)
Type: Dry single-plate electromagnetic clutch-round fixed type
Material: cast iron
Voltage: 24V
Power: 35W
Weight: about 5.1KG
Origin: Taiwan
Inner hole diameter: 40(30)MM
Maximum outer diameter: 190MM
Torque: 90Nm
Features:
1. High-speed response: Because it is a dry type, the torque transmission is very fast, which can achieve convenient actions.
2. Strong durability: good heat dissipation, and the use of advanced materials, even if it is used with high frequency and high energy, it is also very durable.
3. Easy to assemble and maintain: the magnetic field coil in the ball bearing is static, so there is no need to take out the core or use the carbon brush, which is simple to use.
4. Wear adjustment is not required: Because this structure does not require abrasion adjustment of the friction surface. Therefore, no adjustment is required after installation (except for some).
5. Reliable action: using plate-shaped shrapnel, it will not loosen despite strong vibration and has good durability.
6. Torque adjustment can be performed: current can be used to adjust the friction torque, so it can be operated for various purposes.
Applications
●Packing and packing machinery: packing machine, strapping machine, packing machine.
●Fiber machinery: twisting machine, preparation machinery, textile machinery.
Metal processing machinery: calender, wire drawing machine, punching machine, welding machine, copper wall and iron wall line
Return machine, cutting machine, pipe making machine, coiling machine.
●Working machinery: lathes, milling machines, tapping machines, automatic CNC machines, special machines.
Handling machinery: cranes, feeders, conveyors, winding machines, hoists.
●Paper machinery: bag making machine, carton machine, follower, book making machine, cutting machine, paper machine.
●Printing machinery: rotary presses, feed presses.
Woodworking machinery: sawmills, woodworking machines, plywood machinery.
Business machinery: electronic copy machines, computers, fax machines, copper counters, printers.
Measuring machinery: testing machine, durability test device, measuring machine.
●Food processing machinery: meat cutting machinery, cake making machinery, bottling machinery, noodle making machine.
Others: reducer, electroplating device, physical and chemical machinery, paper making machinery, resin processing machine.
Installation Precautions
Use it without moisture, oil, etc.
When using in dusty places, put all the clutches and brakes in the box.
When installing, please mechanically adjust the suction gap to within 20% of the specified value.
Please use the bracket to keep it light and do not subject the bearing of the clutch to excessive pressure.
For the assembled screws, please use spring metal sheets, adhesives, etc. to prevent loosening
deal with.
While using the frame on the machine side to maintain the leads, it is also necessary to use terminal boards, etc.
- Voltage: DC24V
- Material: Cast Iron

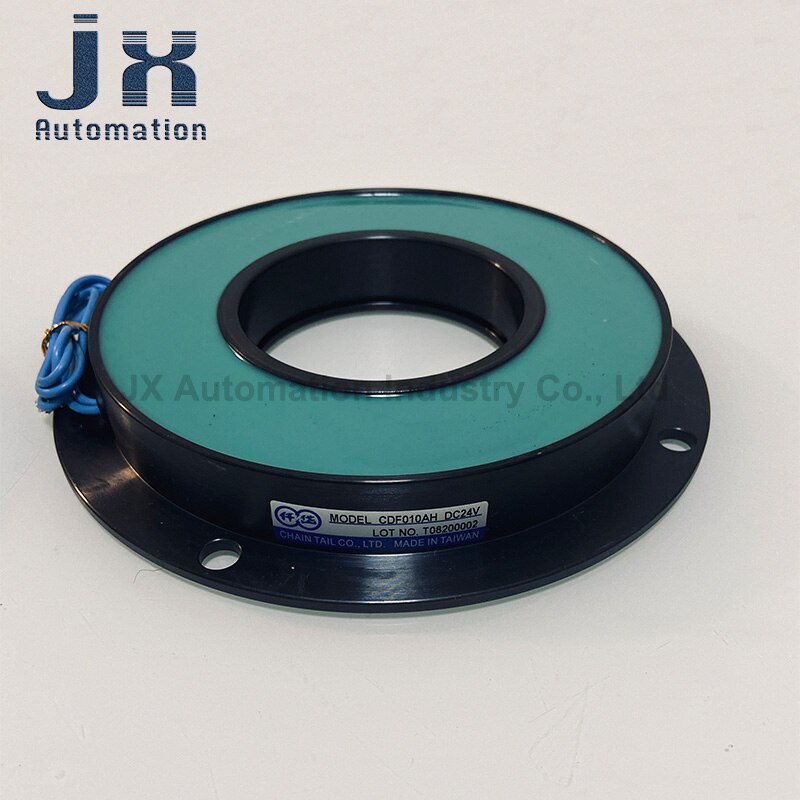

- Model Number: CDF010AH with aluminum seat(dia30)
- Origin: Taiwan China
- Type: CHAIN TAIL Electromagnetic Clutch
- Name: Dry single-plate electromagnetic clutch-round fixed type
- Voltage: 24V
- Power: 35W
- Weight: About 5.1KG
- Inner hole diameter: 40(30)MM
- Maximum outer diameter: 190MM
- Torque: 90Nm
